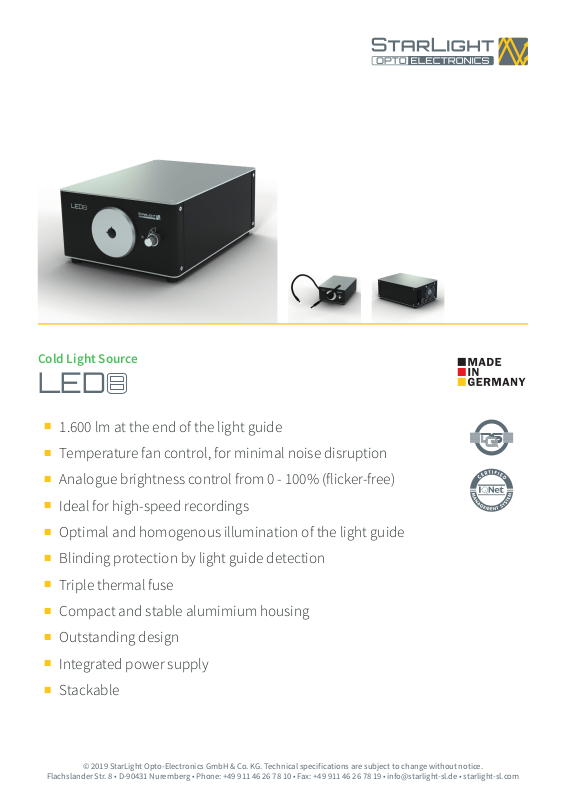

Cold Light Source
LED
1.600 lm at the end of the light guide
■
Temperature fan control, for minimal noise disruption
■
Analogue brightness control from 0 - 100% (flicker-free)
■
Ideal for high-speed recordings
■
Optimal and homogenous illumination of the light guide
■
Blinding protection by light guide detection
■
Triple thermal fuse
■
Compact and stable alumimium housing
■
Outstanding design
■
Integrated power supply
■
Stackable
■
© 2019 StarLight Opto-Electronics GmbH & Co. KG. Technical specifications are subject to change without notice.
Flachslander Str. 8 • D-90431 Nuremberg • Phone: +49 911 46 26 78 10 • Fax: +49 911 46 26 78 19 • info@starlight-sl.de • starlight-sl.com
Technical Data
Luminous flux (light guide 1 m × Ø 9
mm)
Color temperature 6.900 K
Color rendering index (CRI) ≥ 75
LED life span 50.000 h (L70, according to manufacturer)
Light guide access 15 mm (Standard)
Risk group 2
Power consumption approx. 110 W
Operating voltage 100 - 240 V AC, 50/60 Hz
Protection class I
IP code IP20
Dimensions (l × w × h) 273 mm × 200 mm × 116 mm
Material anodized aluminium
approx. 1.600 lm
Color black and silver
Weight approx. 2,3 kg
Versions
100-011832 LED8 [EU] EU connector
100-011853 LED8 [US] US connector
100-011854 LED8 [UK] UK connector
100-011855 LED8 [CH] CH connector
Accessories
100-005989 Adaptor for Schott
Light Guide
100-006343 Adaptor for Schott
Light Guide
9 + 12 mm
10 + 12 mm
