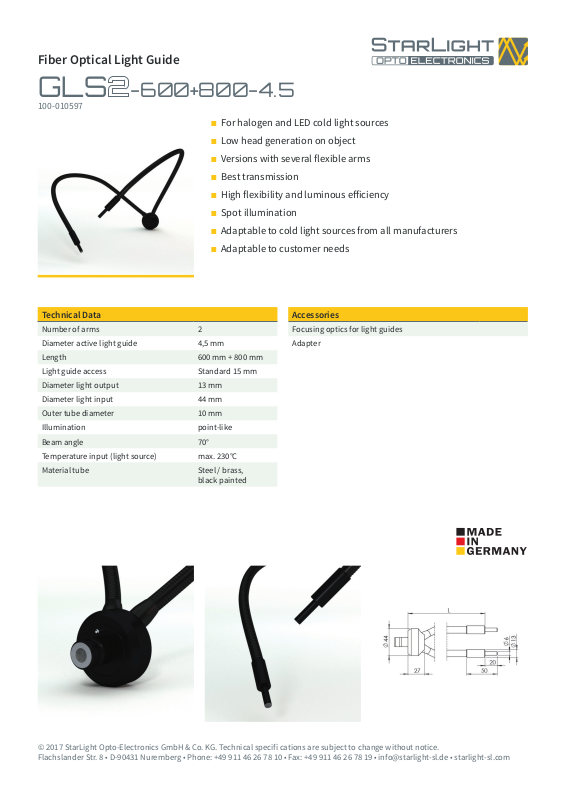

StarLight GLS2-600+800-4.5 Data sheet

Fiber Optical Light Guide

GLS -600+800-4.5

100-010597

For halogen and LED cold light sources

■

Low head generation on object

■

Versions with several flexible arms

■

Best transmission

■

High flexibility and luminous eiciency

■

Spot illumination

■

Adaptable to cold light sources from all manufacturers

■

Adaptable to customer needs

■

Technical Data

Number of arms 2

Diameter active light guide 4,5 mm

Length 600 mm + 800 mm

Light guide access Standard 15 mm

Diameter light output 13 mm

Diameter light input 44 mm

Outer tube diameter 10 mm

Illumination point-like

Beam angle 70°

Temperature input (light source) max. 230°C

Material tube Steel / brass,

black painted

Accessories

Focusing optics for light guides

Adapter

© 2017 StarLight Opto-Electronics GmbH & Co. KG. Technical specifi cations are subject to change without notice.
Flachslander Str. 8 • D-90431 Nuremberg • Phone: [phone] • Fax: [phone] • [email protected] • starlight-sl.com
