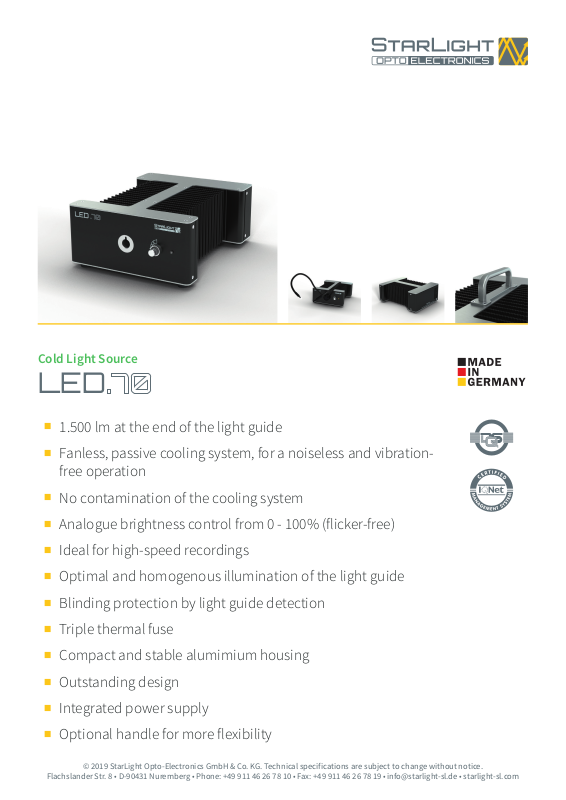

Cold Light Source
LED
1.500 lm at the end of the light guide
■
Fanless, passive cooling system, for a noiseless and vibration-
■
free operation
No contamination of the cooling system
■
Analogue brightness control from 0 - 100% (flicker-free)
■
Ideal for high-speed recordings
■
Optimal and homogenous illumination of the light guide
■
Blinding protection by light guide detection
■
Triple thermal fuse
■
Compact and stable alumimium housing
■
Outstanding design
■
Integrated power supply
■
Optional handle for more flexibility
■
© 2019 StarLight Opto-Electronics GmbH & Co. KG. Technical specifications are subject to change without notice.
Flachslander Str. 8 • D-90431 Nuremberg • Phone: +49 911 46 26 78 10 • Fax: +49 911 46 26 78 19 • info@starlight-sl.de • starlight-sl.com
Technical Data
Luminous flux (light guide 1 m × Ø 9
mm)
Color temperature 6.900 K
Color rendering index (CRI) ≥ 75
LED life span 50.000 h (L70, according to manufacturer)
Light guide access 15 mm (Standard)
Risk group 2
Power consumption approx. 100 W
Operating voltage 100 - 240 V AC, 50/60 Hz
Protection class I
IP code IP20
Dimensions (l × w × h) 283 mm × 230 mm × 116 mm
Material anodized aluminium
approx. 1.500 lm
Color black and silver
Weight approx. 5,2 kg
Versions
100-011724 LED.70 [EU] EU connector
100-011842 LED.70 [US] US connector
100-011843 LED.70 [UK] UK connector
100-011844 LED.70 [CH] CH connector
Accessories
100-005989 Adaptor for Schott
Light Guide
100-006343 Adaptor for Schott
Light Guide
9 + 12 mm
10 + 12 mm
