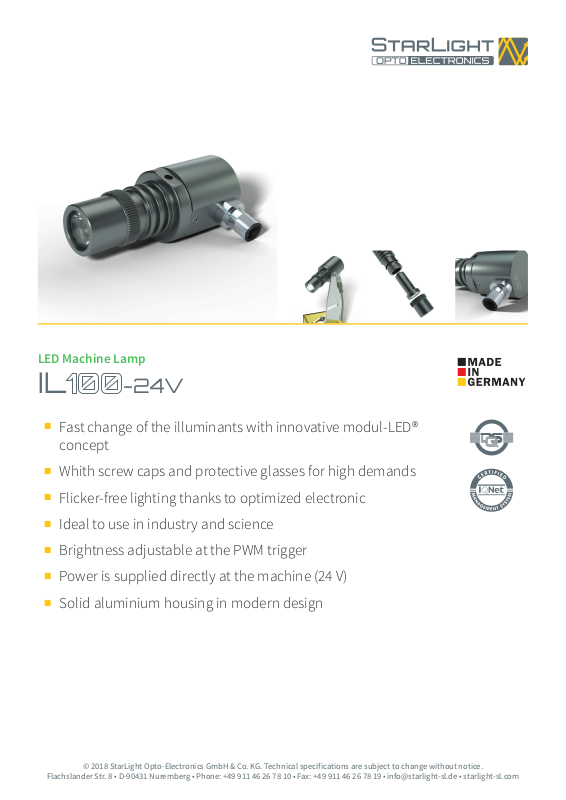

StarLight IL100-24V Data sheet [EN]

LED Machine Lamp

IL -24V

Fast change of the illuminants with innovative modul-LED®

■

concept

Whith screw caps and protective glasses for high demands

■

Flicker-free lighting thanks to optimized electronic

■

Ideal to use in industry and science

■

Brightness adjustable at the PWM trigger

■

Power is supplied directly at the machine (24 V)

■

Solid aluminium housing in modern design

■

© 2018 StarLight Opto-Electronics GmbH & Co. KG. Technical specifications are subject to change without notice.

Flachslander Str. 8 • D-90431 Nuremberg • Phone: [phone] • Fax: [phone] • [e-mail] • starlight-sl.com

Technical Data

Illuminant LED Module 21 mm (not in package)

LED Type 3 W Power LED

Brightness control yes, by PWM trigger

Operating voltage 24 V DC

Protection class III

IP code IP67

Connection M12 plug

Length 96,9 mm

Diameter 25 mm

Protective glass borosilicate glass

Material anodized aluminium

Color titanium

Weight approx. 100 g

Versions

100-009861 IL100-24V with M12 connector (4-pole)

Accessories

100-006420 modulLED21-s PW pure white (6.000 K), Spot (10°)

100-006421 modulLED21-f PW pure white (6.000 K), Flood (28°)

100-006422 modulLED21-d PW pure white (6.000 K), Diuse (40°)

100-006423 modulLED21-l PW pure white (6.000 K), Line (12° × 30°)

100-006443 modulLED21-s NW natural white (4.000 K), Spot (10°)

100-006444 modulLED21-f NW natural white (4.000 K), Flood (28°)

100-006445 modulLED21-d NW natural white (4.000 K), Diuse (40°)

100-006446 modulLED21-l NW natural white (4.000 K), Line (12° × 30°)

© 2018 StarLight Opto-Electronics GmbH & Co. KG. Technical specifications are subject to change without notice.

Flachslander Str. 8 • D-90431 Nuremberg • Phone: [phone] • Fax: [phone] • [e-mail] • starlight-sl.com

Accessories

100-006447 modulLED21-s WW warm white (3.000 K), Spot (10°)

100-006448 modulLED21-f WW warm white (3.000 K), Flood (28°)

100-006449 modulLED21-d WW warm white (3.000 K), Diuse (40°)

100-006450 modulLED21-l WW warm white (3.000 K), Line (12° × 30°)

100-005387 modulLED21-s R red (625 nm), Spot (10°)

100-005388 modulLED21-f R red (625 nm), Flood (28°)

100-005936 modulLED21-d R red (625 nm), Diuse (40°)

100-005939 modulLED21-l R red (625 nm), Line (12° × 30°)

100-005933 modulLED21-s G green (528 nm), Spot (10°)

100-005389 modulLED21-f G green (528 nm), Flood (28°)

100-005935 modulLED21-d G green (528 nm), Diuse (40°)

100-005938 modulLED21-l G green (528 nm), Line (12° × 30°)

100-005934 modulLED21-s B blue (470 nm), Spot (10°)

100-005390 modulLED21-f B blue (470 nm), Flood (28°)

100-005937 modulLED21-d B blue (470 nm), Diuse (40°)

100-005940 modulLED21-l B blue (470 nm), Line (12° × 30°)

100-004449 modulLED21-s A amber (590 nm), Spot (10°)

100-010722 modulLED21-f A amber (590 nm), Flood (28°)

100-010723 modulLED21-d A amber (590 nm), Diuse (40°)

100-010724 modulLED21-l A amber (590 nm), Line (12° × 30°)

100-010758 modulLED21 UV365 UV (365 nm), Reflector (80°)

100-010756 modulLED21 UV405 UV (405 nm), Reflector (80°)

© 2018 StarLight Opto-Electronics GmbH & Co. KG. Technical specifications are subject to change without notice.

Flachslander Str. 8 • D-90431 Nuremberg • Phone: [phone] • Fax: [phone] • [e-mail] • starlight-sl.com

Accessories

100-004585 Protective Glass Set for IL1, IL12, IL100 and TL1 (incl. O-Rings)

100-004912 IR Protective Filter for IL100 (1064 nm)

100-006332 L-Bracket

100-006333 U-Bracket

100-006334 Ball Joint

100-006337 Connection cable 3 m, M12, 5-pole, 3 free wires

100-011340 Connection cable 5 m, M12, 5-pole, 3 free wires
