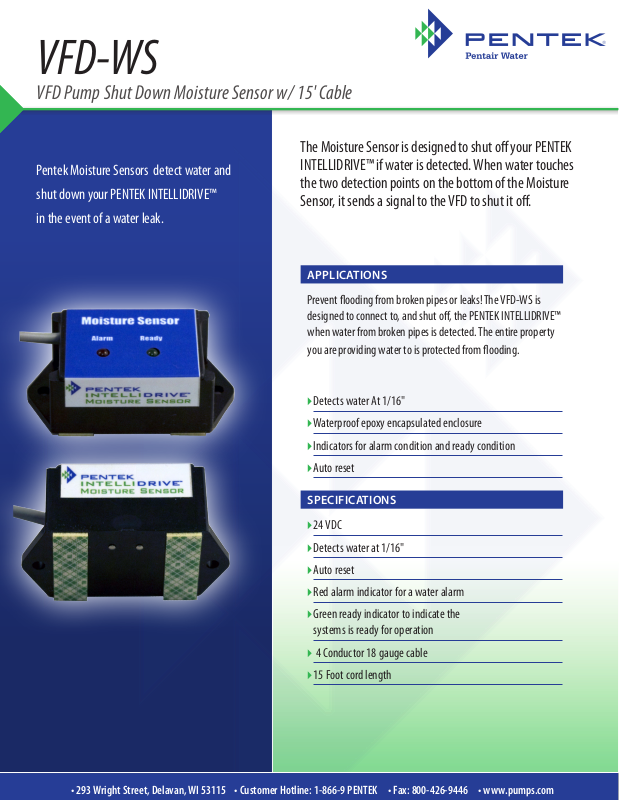

VFD-WS

VFD Pump Shut Down Moisture Sensor w/ 15' Cable

The Moisture Sensor is designed to shut o your PENTEK

Pentek Moisture Sensors detect water and

shut down your PENTEK INTELLIDRIVE™

in the event of a water leak.

INTELLIDRIVE™ if water is detected. When water touches
the two detection points on the bottom of the Moisture
Sensor, it sends a signal to the VFD to shut it o.

APPLICATIONS

Prevent ooding from broken pipes or leaks! The VFD-WS is
designed to connect to, and shut o, the PENTEK INTELLIDRIVE™
when water from broken pipes is detected. The entire property

you are providing water to is protected from ooding.

►

Detects water At 1/16"

►

Waterproof epoxy encapsulated enclosure

►

Indicators for alarm condition and ready condition

►

Auto reset

SPECIFICATIONS

►

24 VDC

►

Detects water at 1/16"

►

Auto reset

►

Red alarm indicator for a water alarm

►

Green ready indicator to indicate the
systems is ready for operation

►

4 Conductor 18 gauge cable

►

15 Foot cord length

• 293 Wright Street, Delavan, WI 53115 • Customer Hotline: 1-866-9 PENTEK • Fax: [phone] • www.pumps.com

Model Number & System Overview

Model Number

DIMENSIONS IN.

MODEL # RATED VOLTS HZ

VFD-WS 24VDC N/A 1.075 3.0 1.5 1.0

SYSTEM OVERVIEW

HEIGHT WIDTH DEPTH

WEIGHT LBS.

(Fig. 1 - When the sensor is dry and the system has power, the green “Ready” indicator
will be illuminated.) (Fig. 2 - The red “Alarm” indicator light will illuminate if water is
touching both detection points on the bottom of the Moisture Sensor.) The Moisture
Sensor can be automatically reset by wiping of the sensors on the bottom of the unit.
(Fig. 3 - When the Moisture Sensor is dry, the green “Ready” indicator will illuminate.)
The PENTEK INTELLIDRIVE™ must be "Reset" to return to normal operation.

Fig. 1

Green "Ready"

Indicator Illuminated

• 293 Wright Street, Delavan, WI 53115 • Customer Hotline: 1-866-9 PENTEK • Fax: [phone] • www.pumps.com

Red “Alarm” Indicator is illuminated if water is touching

the two detection points on the bottom of the

Fig. 2

Indicator Illuminated

Moisture Sensor.

Fig. 3

Green "Ready"
