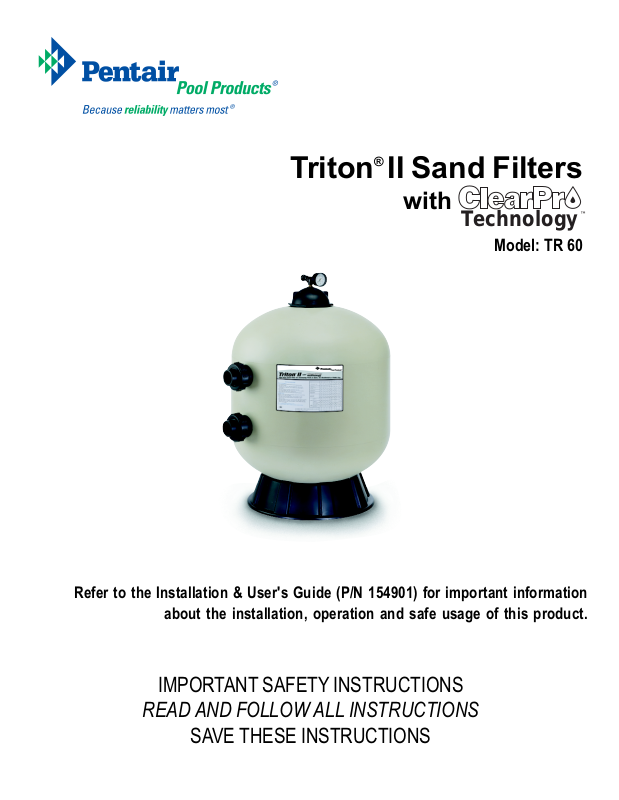

Sta-Rite TR 60 Installation Manual
Triton
®
II Sand Filters
with
Technology
™
Model: TR 60
Refer to the Installation & User's Guide (P/N 154901) for important information
about the installation, operation and safe usage of this product.
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
For Triton® II Filter's equipped with ClearPro Technology™, the following items have changed:
®
with
Technology
High Rate Sand Filter for Swimming Pools or Spas, for Residential or Public Use
Item No. Part No. Description Qty.
13 155284 ClearPro Piping Assy., Lower 1
15 150088 ClearPro Lateral Assy. 6
16 152222 ClearPro Hub Assy. 1
For Use Without ClearPro Technology
13 154805 Piping Assy., Lower 1
15 150085 Lateral 1/4 Turn Assy. 6
16 154763 Hub Lateral Assy. 1
ALL OTHER ITEMS ARE THE SAME AS
THE EXISTING TR 60 FILTER
™
13
16
DETAILED VIEW
1620 Hawkins Ave., Sanford, NC 27330 • (919) 566-8000
10951 West Los Angeles Ave., Moorpark, CA 93021 • (805) 553-5000
Visit us on the Internet at: www.pentairpool.com or www.staritepool.com
15
© 2007 Pentair Water Pool and Spa, Inc. All rights reserved.
This document is subject to change without notice.
P/N 155306 Rev. A 5/22/07
