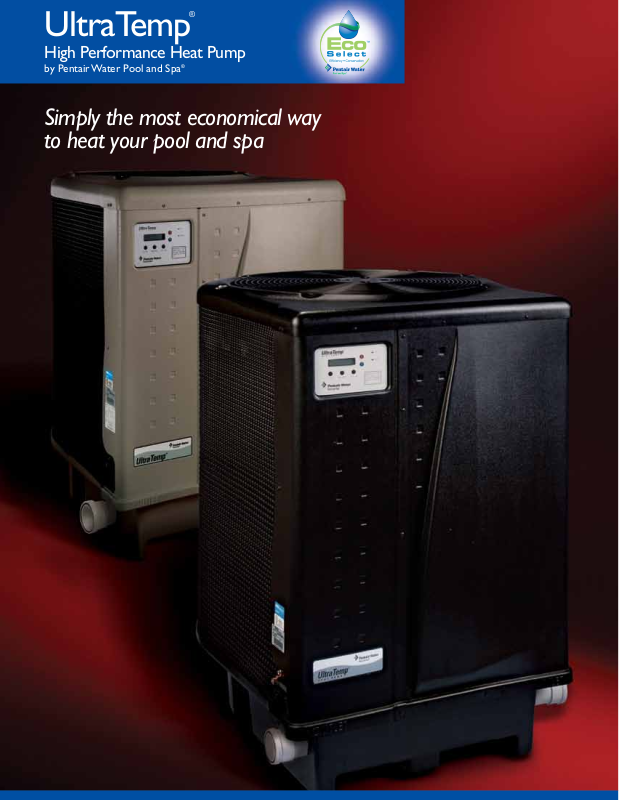

Sta-Rite 120 BLK User Manual

®
UltraTemp
High Performance Heat Pump
by Pentair Water Pool and Spa
Simply the most economical way to heat your pool and spa
®
Best in class performance and efficiency.
Environmentally superior.
More standard features than any other.
With today’s record energy costs, there’s never been a better time to invest in a heat
®
pump. Compared to gas, oil or electric heaters, UltraTemp fraction of the energy to generate the same amount of heat. In fact, just 20¢ worth of
heat pumps use just a
electricity produces $1.00 worth of heat generated by other methods. That means more comfortable water temperatures and longer swimming seasons for you and your family.
UltraTemp has earned the Eco Select brand, indicating it is one of our “greenest” and most efficient equipment choices
COMPARING THE COST TO HEAT YOUR POOL AND SPA
Electric $.1065/kWh 32,000 LP Gas $1.87/Gal 40,100 Oil $2.22/Gal 47,200 Natural Gas $1.218/Therm 67,300
UltraTemp $.1065/kWh 185,600
This chart illustrates how an UltraTemp heat pump generates 2.75 to 5.8 times more heat for the same cost. Costs are based on national average fuel costs and efficiencies (Source: Federal Register). Please consult your local provider for current pricing.
Why should you choose UltraTemp? That’s easy. It offers the longest list of standard features available.
UltraTemp provides an AutoSet™ feature as standard. It
monitors water temperature and turns the pump on and off as needed, overriding the time clock to maintain desired temperature. It’s the ultimate in convenient, hands-free comfort control.
UltraTemp features the legendary Emerson® Copeland Scroll®
Compressor that’s more efficient, durable, reliable and quieter than any piston-driven compressor. It’s the best of the best.
Pentair Water Pool and Spa® (“Pentair”) heat pumps have been
using the EPA-recognized, environmentally safe, non-ozone deplet­ing R-410A refrigerant for nearly 10 years. This has allowed the UltraTemp heat pump to be awarded the Eco Select™ brand for environmental responsibility.
100% titanium heat exchanger assures corrosion-free
performance for extra long life and value.
LCD control board displays an intuitive, menu-driven readout with
easy to follow, full word messages—no codes to memorize.
*
UltraTemp 3 phase heat pump models 460937 and 460967 are equipped with a
®
Danfoss
Compressor.
®
Emerson
is a registered trademark of Emerson Electric Co., Copeland Scroll® is a registered trademark of Emerson Climate Technologies, Inc ., and Danfoss trademark of Danfoss.
*
®
is a registered
Digital controls with dual thermostats offer precise temperature control for pool/spa combinations and avoid over­heating and energy waste
Self-diagnostic controls monitor and troubleshoot heat pump operations to ensure safer, dependable operation
Long-life, corrosion-resistant composite cabinet retains a like-new appearance for years
2" plumbing connections for easy installation
Self-diagnostic software continuously monitors system for
peak performance.
Thermostatic Expansion Valve (TXV) controls refrigerant ow
for optimum efficiency and BTU output over a wider operating temperature range.
Automatic defrost feature senses refrigerant temperature
and prevents UltraTemp from freezing, allowing the unit to operate effectively at even lower temperatures than many competing products.
Perfect companion to IntelliTouch® or EasyTouch® control
systems— all heat pump instructions and displays can be transferred to a centralized control system that manages all your pool/spa operations and poolscape features.
ETL listing is your assurance of safer, dependable operation.
BTU and efficiency independently certified by the
Air Conditioning, Heating, and Refrigeration Institute, AHRI. The AHRI Cer tif ied equipment and components that have been independently tested to certify manufacturers’ performance claims are accurate.
mark is applied only to HVACR
10-year compressor parts and labor warranty and lifetime
warranty on the titanium heat exchanger. See limited warranty for details.
Clearly, a heat pump is the best choice for pool heating. Also clear is the best-in-class performance and value of the fully-featured UltraTemp. Contact your pool professional today to learn which model is right for your pool.
Automatic Heating/Cooling Feature!
Pentair H/C model heat pumps are equipped to automatically heat or cool your pool water based on temperatures you set. Select the AUTO mode and the intelligent thermostat will automatically command the heat pump to heat or cool the water to your selected temperature.
NOTE: Pentair Water Pool and Spa is a member of the Air Conditioning
and Refrigeration Institute (ARI).
DEMAND ONLY CERTIFIED PRODUCTS
UltraTemp® Heat Pump
Heating BTU Rating per Hour
UltraTemp 110
120,000
115,000
110,000
105,000
100,000
95,000
90,000
85,000
80,000
75,000
70,000
65,000
60,000
90° 80° 70° 60° 50° 40°
Ambient Air Temperature
Heating BTU Rating per Hour
UltraTemp 120 & 120 R H/C
130,000
125,000
120,000
115,000
110,000
105,000
100,000
95,000
90,000
85,000
80,000
75,000
70,000
90° 80° 70° 60° 50° 40°
Ambient Air Temperature
Ordering Information
Part # Model
80/80/80*
BTU/COP
460931 90 90,000/5.8 84,000/5.5 60,000/4.0 60 50 1 8 230 230 460932 110 108,000/5.8 101,000/5.5 72,000/4.0 60 50 1 8 230 270 460933 120 125,000/5.5 117,000/5.3 82,000/4.0 60 50 1 8 230 270
460935
120 R
H/C
125,000 Heat/5.4
71,000 Cool/4.1
460937 120 C 125,000/5.7 115,000/5.3 81,000/4.0 60 50 3 8 230 280
460961 90 90,000/5.8 84,000/5.5 60,000/4.0 60 50 1 8 230 230 460962 110 BLK 108,000/5.8 101,000/5.5 72,000/4.0 60 50 1 8 230 270 460963 120 BLK 125,000/5.5 117,000/5.3 82,000/4.0 60 50 1 8 230 270
460965
120 R
H/C BLK
125,000 Heat/5.4
71,000 Cool/4.1
460967 120 C BLK 125,000/5.7 115,000/5.3 81,000/4.0 60 50 3 8 230 280
*
Rating outside the scope of ARI Standard 1160
(air temp. F° /% relative humidity/water temp. F°)
**
Rating in accordance with ARI Standard 1160
(air temp. F° /% relative humidity/water temp. F°)
80/63/80** BTU/COP
50/63/80** BTU/COP
Freq (Hz)
Breaker
Size (amp)
Phase Wire Size Volt Carton Wt
ULTRATEMP HEAT PUMPS
Color: Almond
117,000/5.2 82,000/4.0 60 50 1 8 230 278
Color: Black
117,000/5.2 82,000/4.0 60 50 1 8 230 278
Available from:
Pentair Pool Products® Sta-Rite
®
800.831.7133 800.831.7133 www.pentairpool.com www.staritepool.com
pumps / filters / heaters / heat pumps / automation / lighting / cleaners / sanitizers / water features / maintenance products
1/12 Part # P1-046
©2012 Pentair Water Pool and Spa, Inc. All rights reserved.
