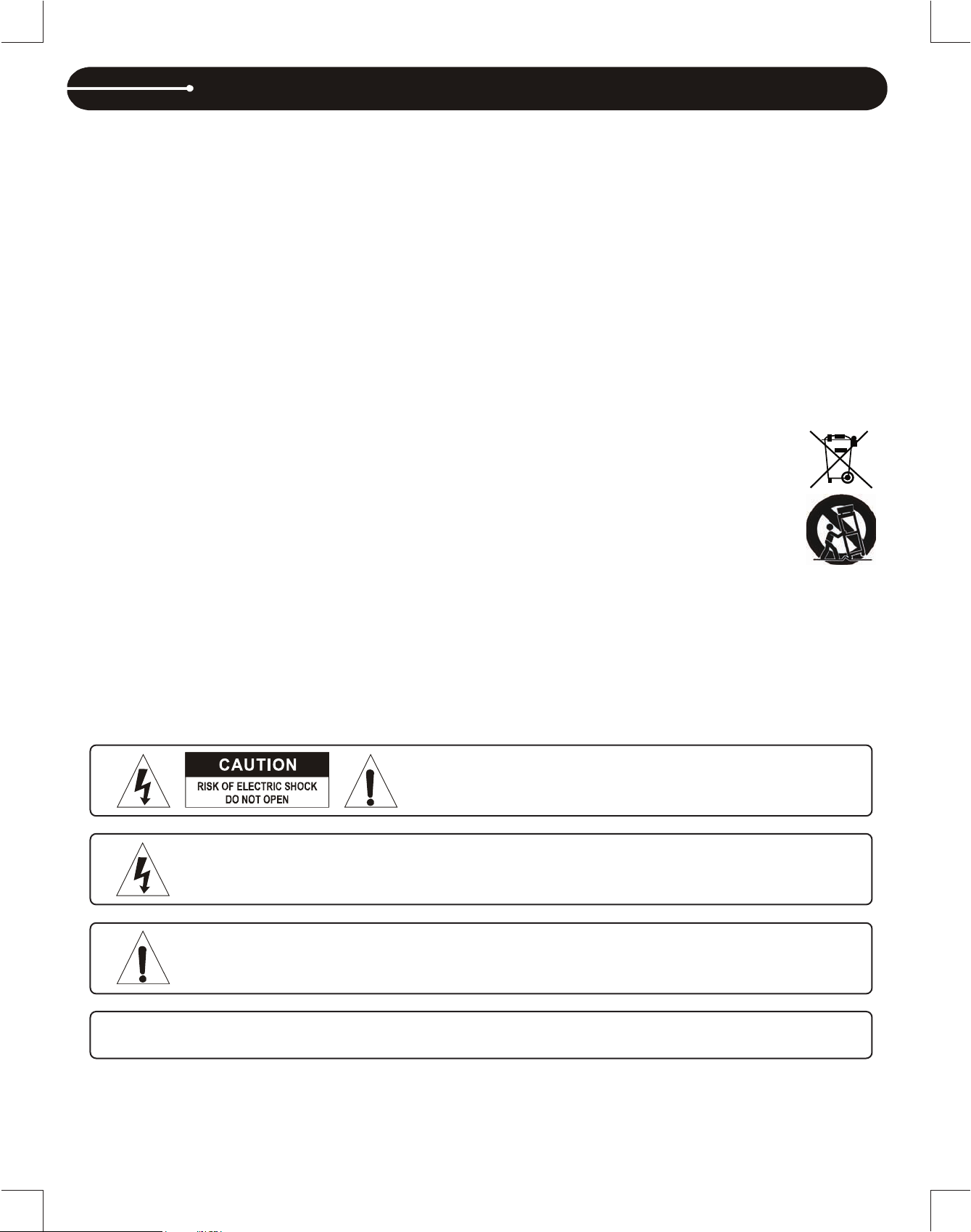

IMPORTANT SAFETY PRECAUTIONS
1. Read Instructions – All the safety and operating instructions should be read before
operating this product.
2. Retain Instructions – The safety and operating instructions should be retained for
future reference.
3. Heed Warnings – Adhere to all warnings included on the appliance and in the
operating instructions.
4. Follow Instructions – All operating and use instructions should be followed.
5. Water and Moisture – The appliance should not be used near water - for example,
near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a
swimming pool, etc.
6. Heat – Appliance should be situated away from heat sources such as radiators,
heat registers, stoves, or other appliances (including amplifiers) that produce heat.
7. Power Sources – This product should be operated only from the type of power
source indicated on the rating label. If you are not sure of the type of power supply to
your home, consult your product dealer or local power company. For products
intended to operate from battery power, or other sources, refer to the operating
instructions.
8. Grounding or Polarization – This product may be equipped with a polarized
alternating-current line plug (a plug having one blade wider than the other). This plug
will fit into the power outlet only one way. This is a safety feature. If you are unable to
insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to
fit, contact your electrician to replace the outlet. Do not defeat the safety purpose of
the polarized plug.
9. Power-Cord Protection – Power-supply cords should be routed so that they are
not likely to be walked on or pinched by items placed upon or against them. Pay
particular attention to the cord in correspondence of plugs, convenience receptacles,
and the point where they exit from the appliance.
10. Cleaning – The appliance should be cleaned only as recommended by the
manufacturer. Clean by wiping with a cloth slightly damp with water. Avoid getting
water inside the appliance.
11. Non-use Periods – The power cord of the appliance should be unplugged from
the outlet when left unused for a long period of time.
12. Object and Liquid Entry – Care should be taken so that objects do not fall and
liquids are not spilled into the enclosure through openings.
13. Damage Requiring Service – The appliance should be serviced by qualified
service personnel when:
A. The power-supply cord or the plug have been damaged; or
B. Objects have fallen, or liquid has been spilled into the appliance; or
C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate normally or exhibits a
marked change in performance; or
E. The appliance has been dropped, or the enclosure damaged.
14. Servicing – The user should not attempt any service to the appliance beyond that
described in the operating instructions. All other servicing should be referred to
qualified service personnel.
15. Ventilation – The cabinet contains slots and openings to provide proper
ventilation (protecting the unit from overheating), and to ensure reliable operation of
the product. These openings must not be blocked or covered, for example by placing
the product on a bed, sofa, rug, or other similar surface. This product should not be
placed in a built-in installation such as a bookcase or rack, unless proper ventilation is
provided.
16. Attachments – do not use attachments not recommended by the product
manufacturer as they may cause hazards.
17. Accessories – Do not place this product on an unstable cart, stand, tripod,
bracket, or table. The product may fall, causing serious injury to a child or adult, and
serious damage to the product. Use only with a cart, stand, tripod, bracket, or table
recommended by the manufacturer, or sold with the product. Any mounting of the
product should follow the manufacturer’s instructions, and should use a mounting
accessory recommended by the manufacturer.
18. Replacement Parts – When replacement parts are required, ensure that the
technician uses parts specified by the manufacturer or parts that have the same
characteristics as the original part. Unauthorized substitutions may result in fire,
electric shock, or other hazards.
19. Safety Check – Upon completion of any service or repairs to this product, ask the
service technician to perform safety checks to determine that the product is in proper
operating conditions.
20. This product is in compliance with EU WEEE regulations.
Disposal of end of life product should not be treated as municipal
waste. Please refer to your local regulations for instructions on
proper disposal of this product.
21. Carts and Stands – The appliance should be used only with a
cart or stand that is recommended by the manufacturer. An appliance
and cart combination should be moved with care. Quick stops,
excessive force, and uneven surfaces may cause the appliance and
cart combination to overturn.
CAUTION: To reduce the risk of electric shock, do not remove any cover.
No user-serviceable parts inside. Refer servicing to qualified service personnel only.
The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the user to the presence of un-insulated
“dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operation
and maintenance (servicing) instructions in the literature accompanying this appliance.
CAUTION: To prevent electric shock, do not use this polarized plug with an extension cord, receptacle or other outlet unless the blades can be
fully inserted to prevent blade exposure.
II
Page 3
INTRODUCTION
Thank you for purchasing Stanton’s newest innovation in professional tabletop mixer. The SMX.202 mixer was designed to bring style and
reliability to the mobile or club DJ at an affordable cost.
MAIN FEATURES
Compact design
User replaceable crossfader
2 phono, 2 line, 1 microphone input
Gain, Hi and Low Controls on Channels
Powerful stereo headphone output
Cue Pan Selector (Ch.1-Ch.2)
Bright LED Output Indicators
ACCESSORIES
Checking Package Contents
Check that the carton contains the following items:
(1) SMX.202 Mixer
(2) AC adaptor
(3) User's Manual
1
Page 4

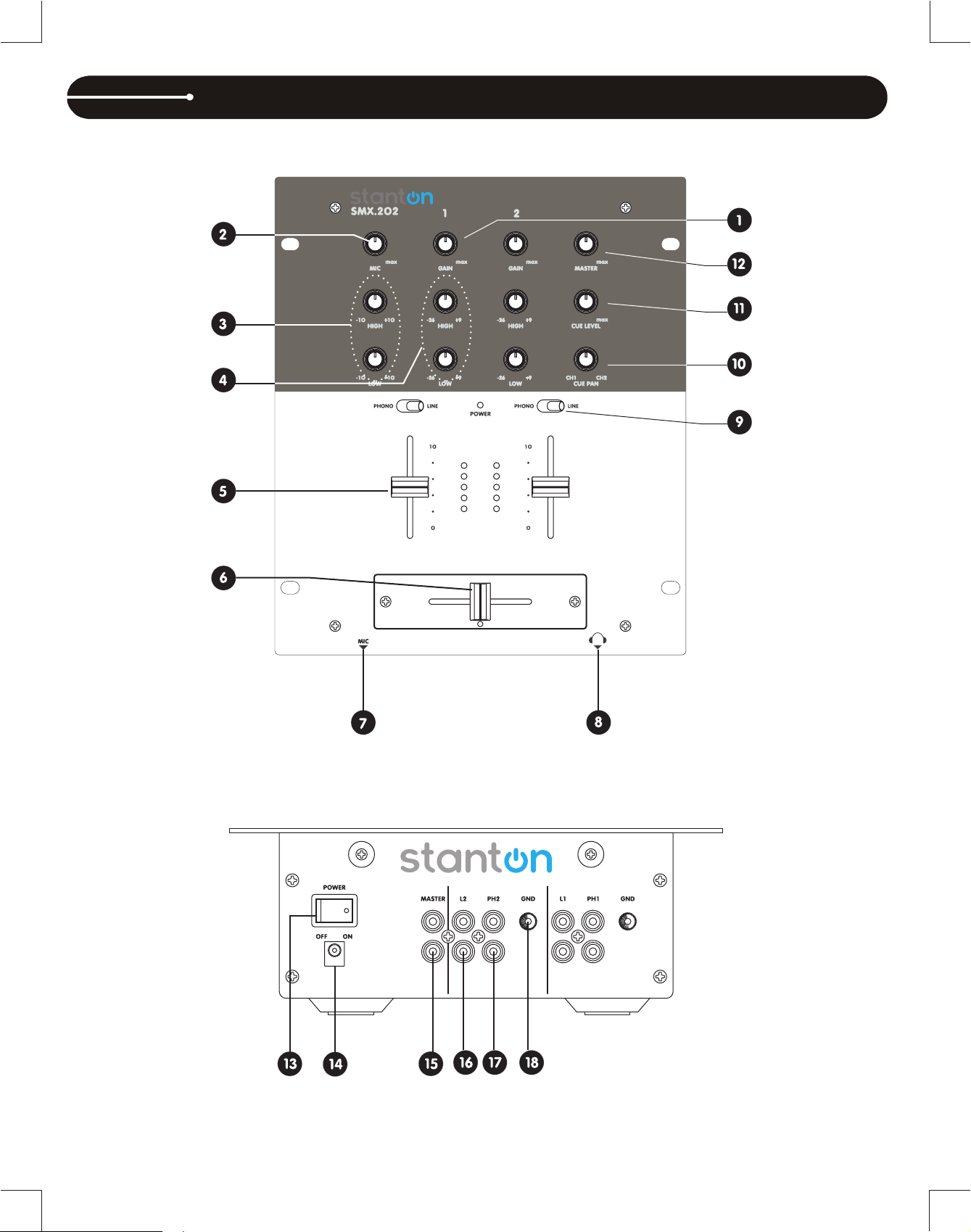

CONTROL OVERVIEW
AC 9V
2
Page 5
CONTROL OVERVIEW
1. Channel Gain - Adjusts the pre-fader volume for cleaner sound.
2. Mic Input Gain - Adjusts microphone input level.
3. Mic EQ - The mic channel includes a two-band EQ with a
range of +10dB to -10 dB.
4. Channel EQ - Adjusts the high, mid and low frequency
levels of the input channels for your desire.
5. Input Fader - Controls individual source levels (channels) in
the mix.
6. Crossfader - Used to mix the sound from both channels.
7. Mic Input - Insert your ¼” microphone plug here.
8. Headphone Input - Insert your ¼” headphone plugs here.
9. Input toggle switch - Selects which source will be active
based on what you have connected to the rear panel input
section (phono/line).
10. Channel Cue / Cue Pan - Used to preview channel audio
to
your headphones. Listen
channel faders or moving the crossfader.
here before bringing up
11. Headphone Level - Adjusts cue volume.
12. Master Level - Controls the overall output level.
13. Power Switch - Turns unit off and on.
14. Power Connector - Plug in the included power supply
here.
15. Master Output - Unbalanced RCA connectors controlled
by the Master level.
16. Line Inputs - Unbalanced RCA jacks for connecting stereo
audio from line level sources such as CD players, HiFi
VCRs, cassette decks, DAT machines, laser discs, tuners,
even synthesizers or other mixing consoles.
Note: Plug mono audio sources into both Left and Right inputs
using a "Y" cable connector.
17. Phono Inputs - Plug your
connectors are used, your signal is fed directly to the
high-quality RIAA phono pre-amplifiers. Use this position
only for turntables. Line level sources will overload the
sensitive phono preamps and will cause distortion.
18. GND - Connect each of your turntable ground leads to
either of the two ground terminals.
es in here. When these
turntabl
3
Page 6

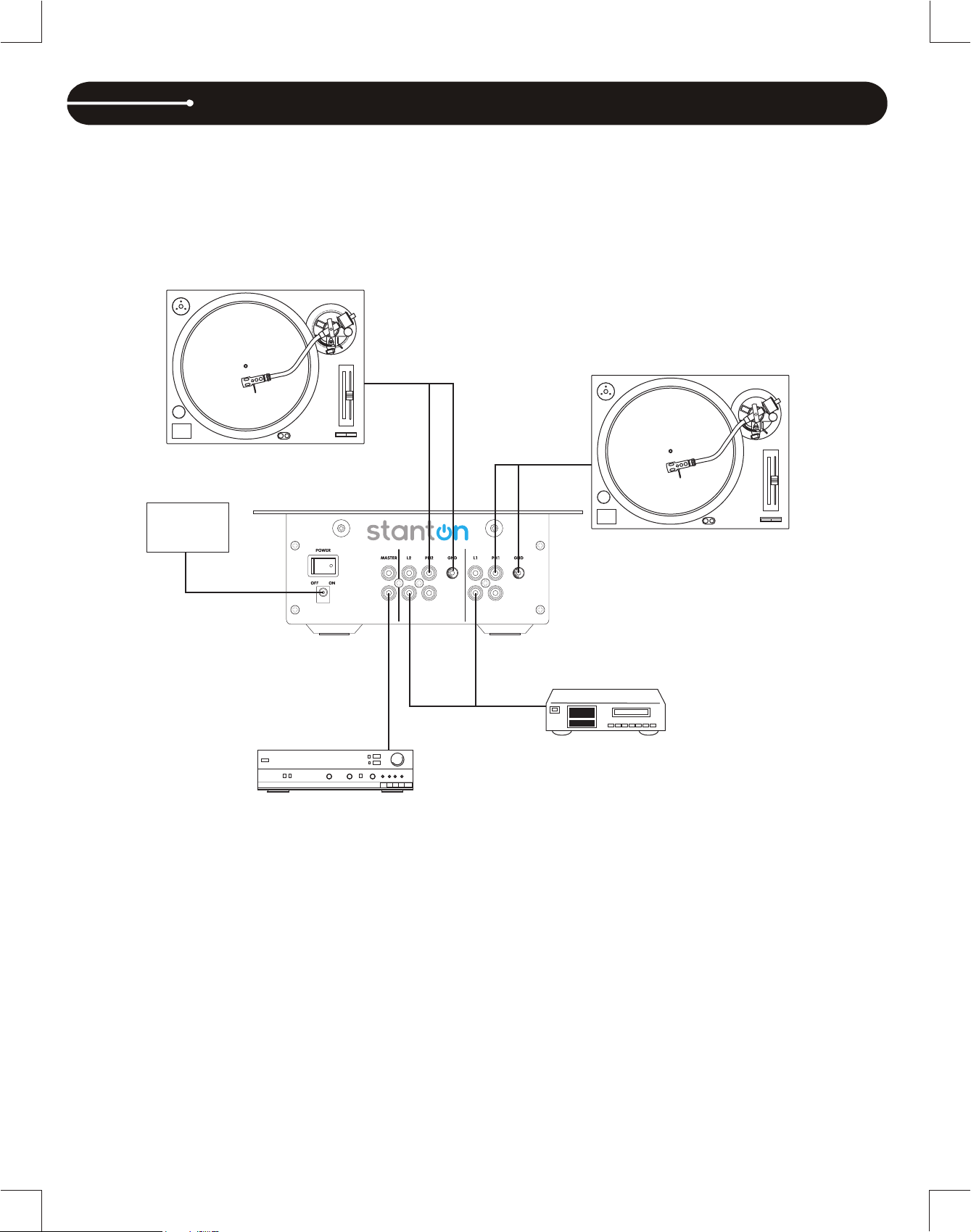

QUICK SETUP DIAGRAM
Review this setup diagram. Make sure all faders are at "zero" and all devices are off. First, connect all input sources and processors. Next, connect your
microphone and monitor headphones. Finally, connect the stereo outputs to the power amplifier(s) and/or audio receivers such as tape decks. Plug your mixer
into AC power. Now you are ready to switch everything on.
IMPORTANT: Always switch on your audio input sources, such as turntables or CD players first, then your mixer, and finally any amplifiers. When turning off,
always reverse this operation by turning off amplifiers, then your mixer, and then input devices.
Turntable
Power
Supply
Turntable
AC 9V
Power Amp.
DAT, etc.
4
Page 7
SPECIFICATIONS
Input / output impedance & sensitivity:
Line 47k ohm /-14 dB +/-3 dB
Phono 47k ohm /-50 dB +/-3 dB
Mic 6k ohm /-54 dB +/-3 dB
Master (Rec) 47k ohm /0 dB +/-3 dB
Phones (load=32 ohm) 33 ohm / -3 dB +/-3 dB
Max. output (THD= 5%, load= 47k)
Master (RCA) More than 18 dB (8.0V)
Phones More than 5 dB (1.8V) at load=32 ohm
Channel balance: Within 3 dB
Frequency response:
Line 20-20 kHz +/- 3 dB
Phono 20-20 kHz +2/-3 dB (RIAA)
Mic 50-20 kHz +2/-3 dB
S/N ratio: (IEC-A weighted)
Line Less than -75 dBV
Phono Less than -65 dBV
Mic Less than -55 dBV
THD + N:
Master output (load= 47k ohm) Less than 0.2%
Phones output (load= 32 ohm) Less than 0.3%
Crosstalk: More than 50 dB at 1 kHz between L and R channels
Channel EQ:
Hi
Low +9/-25 dB +2/-3 dB at 100 Hz
Mic EQ :
Hi +10/
Low +10/-10 dB +2/-3 dB at 100 Hz
Power Source: AC 9V
Dimensions: 228 (W) X 265 (D) X 87 (H) mm
Weight: 2.8 kg
+9/-25 dB +2/-3 dB at 10 kHz
-10 dB +2/-3 dB at 10 kHz
5
Page 8
Warranty
Through Stanton’s authorized dealers around the World, Stanton, or one of Stanton’s authorized distributors outside the U.S., will, without charge, repair
or replace, at the sole discretion of the entity responsible for making the repair or providing the replacement, any Stanton merchandise proved defective
in material or workmanship for a period of one year following the date of original purchase. Exceptions to this warranty are as noted below:
The warranty for mechanical parts which are subject to wear and tear are limited to the earlier of either thirty (30) days following the date of original
purchase or the following number of cycles: Faders - 15,000; Rotary potentiometers - 10,000; and Switches - 10,000.
Stanton will warrant all replacement parts and repairs for ninety (90) days from the date of original shipment. Repairs made necessary by reason of misuse,
alteration, normal wear, or accident are not covered under this war
Returns
replacement must be returned (freight prepaid if not hand-delivered) to the authorized Stanton dealer from whom the merchandise was purchased and
in the same country where the merchandise was purchased. For purposes of purchases made via the Internet, the merchandise must be returned to the
authorized Stanton dealer in the country where the authorized Stanton dealer which sold the merchandise to purchaser is located and not the authorized
Stanton dealer in the country where the purchaser is located or the country in which the merchandise was received. Any returns to a non-authorized
dealer or to an authorized Stanton dealer not in the same country as the merchandise was intended to be sold or as set forth above will void this warranty.
WARRANTY & RETURN POLICY
ranty.
To initiate a warranty repair,
Stanton dealer’s return policy.
Stanton’s liability for any claim, whether based on breach of contract, negligence, infringement of any rights of any party, or product liability, and relating
to the merchandise shall not exceed the price received by Stanton from your purchase of such merchandise. In no event will Stanton be liable for any
of Stanton or otherwise. To the extent permitted by law and except as otherwise provided above, Stanton disclaims any express or implied warranties of
country to country.
If there is a dispute regarding the warranty of merchandise that does not fall under the warranty conditions stated above, please include a written
explanation with the merchandise when returned pursuant to the terms and conditions set forth herein.
Please register your product online at www.stantondj.com
Stanton Magnetics
772 S. Military Trail
Phone: +1 (954) 949-9600
Technical Support:
[email protected]
you must contact the authorized Stanton dealer from whom you purchased the merchandise, and follow such authorized
LITS00059 12/18/09
