Stanton RM-406 User Manual
RM.406
:
::
AB ABABA B
LR
Professional DJ Mixer
OWNER’S MANUAL
STANTON MAGNETICS, Inc.
information@stantondj.com
2004 Stanton Magnetics, Inc.
©
Please read carefully before use of this product
Failure to follow the instructions printed below may void warranty
• Follow all security advice printed on your mixer
• When removing the unit's AC plug from the power source, grasp
and pull the plug, NEVER the cord itself!
• Avoid placing your mixer near heat sources, such as power amplifiers.
• When in use, place your mixer on a stable surface, away from vibration.
Always use care when carrying your mixer. Impact, or heavy vibration may
compromise the unit's mechanical integrity. The manufacturer is not
responsible for damage resulting from an impact, or misuse.
• When in use, place your mixer away from sources of hum or noise, such
as transformers, or electric motors.
• To prevent overheating, always provide your mixer with adequate ventilation air space.
• Avoid stepping on your mixer's AC cord. Repeated compression of the
cord may lead to electrical shorting.
• To avoid damage due to AC voltage peaks, always disconnect your mixer
from the power source during electrical storms.
• Your mixer contains no user-serviceable parts except for the crossfader.
The manufactureris not responsible for any damage or personal injury
resulting from unauthorized user-servicing or modifications. In addition,
the warranty will be void if any unauthorized service by the user is detected. Always return you mixer to an authorized Stanton dealer for servicing..
Welcome
Congratulations and thank-you for purchasing the latest addition to the growing Stanton family. Sporting a new attitude, and a fresh, modern look, the
RM.406 is a 4-channel, rackmount mixer loaded with features and innovations giving club and mobile DJs a complete, powerful, yet simple tool to mix,
create, and perform their best. 1/4" and 1/8" headphone outputs, XLR, RCA,
and 1/4" Master and Zone outputs, plus plenty of inputs, including three Mic
inputs, and a separate 1/8" jack for connecting portable devices such as
TM
iPods
by adding an FX Loop, Booth, and Subwoofer outputs. Colored, backlit
knobs, adjustable Crossfader curve, separate LED level indicators, gain and
3-band EQs on every channel with a fully assignable Crossfader, offer
increased control and functionality. Thoughtfully designed and engineered to
give you the most intuitive and instinctual experience possible, the RM.406
delivers all these features in a logical layout with quality components, all at
an affordable price.
Stanton's revolutionary Superior Sound Technology (SST™) also gives the
RM.406 exceptional sound quality with audio specifications rivaling mixers
costing up to four times as much. Developed from the ground up by a team
of seasoned audio professionals who have designed world class professional recording studio and broadcast mixers, working hand in hand with experienced and respected DJs, SST™ delivers a dynamic range better than 110
dB through ultra low-noise circuitry with a lower total harmonic distortion
(THD) than other mixers in its class. Glass epoxy PC boards, surface mount
technology, and faders that don't bleed add to the superior construction standards. This equates to a cleaner, more transparent sound, allowing your
music to be heard the way it was meant to. We’re proud to bring you the new
look, feel and sound of Stanton.
, ensure the utmost in flexibility. The RM.406 even goes a step further
A
B
C
D
E
F
G H
:::
A
BABABA B
L
R
RM.406 Top Panel (FUNCTIONS)
The controls and functions of the RM.406 are grouped in alphabetical sections (clockwise from upper right corner) for your reference and then listed
numerically for more detail.
Section A: Output Meters
Section B: FX Controls
Section C: Output Controls
Section D: Cue Controls

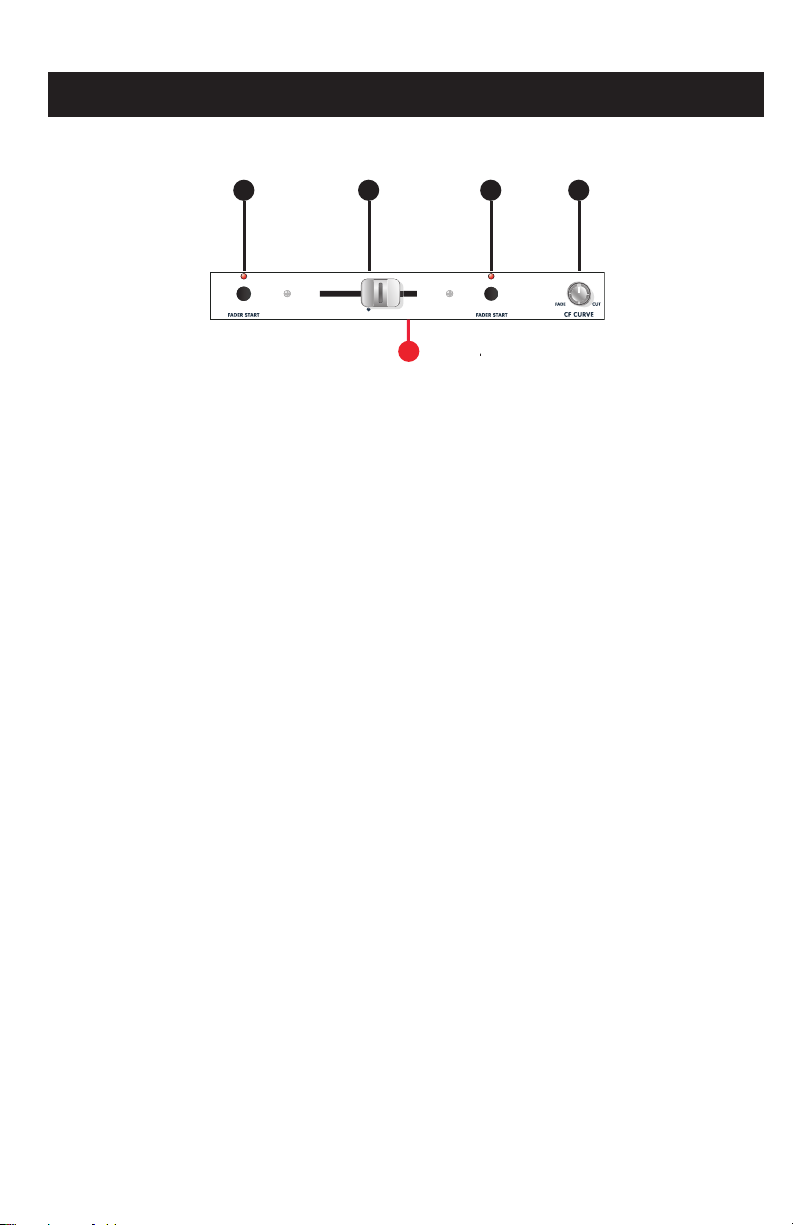

Section E: Crossfader Controls
Section F: MP3 / Aux In

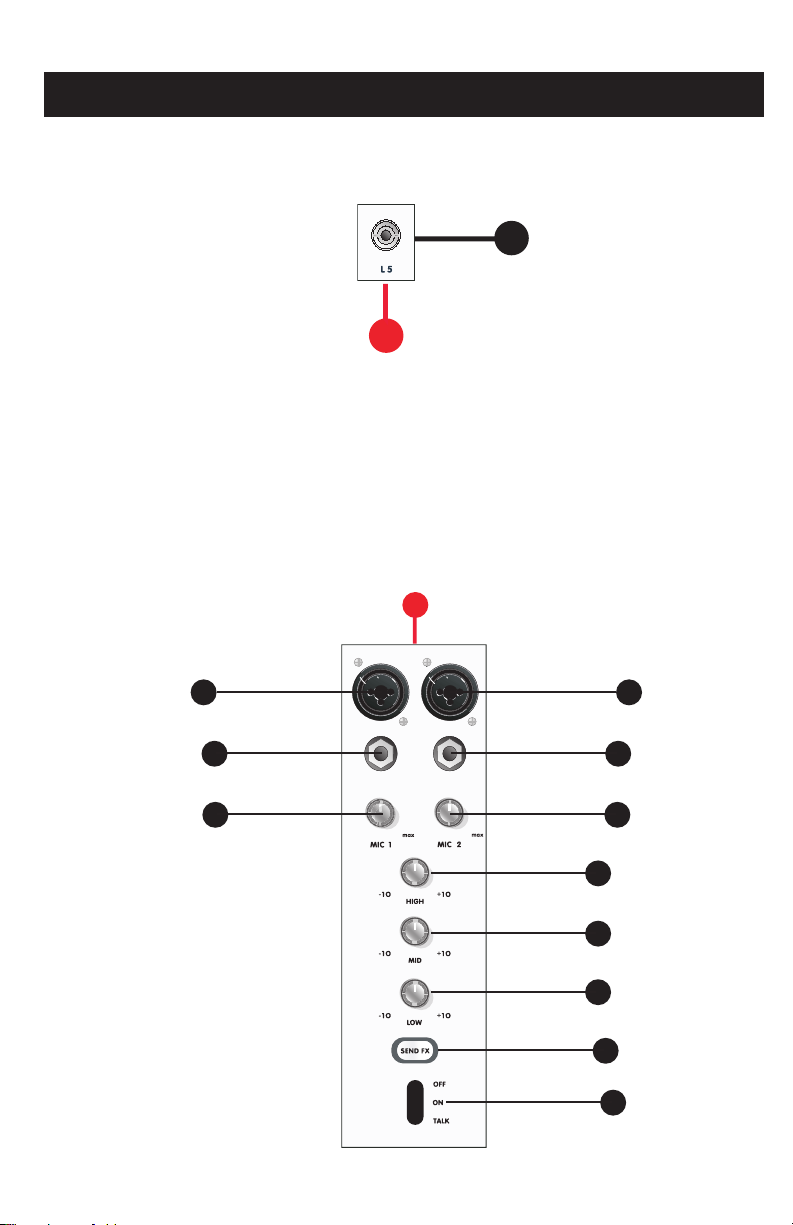

Section G: Mic Controls

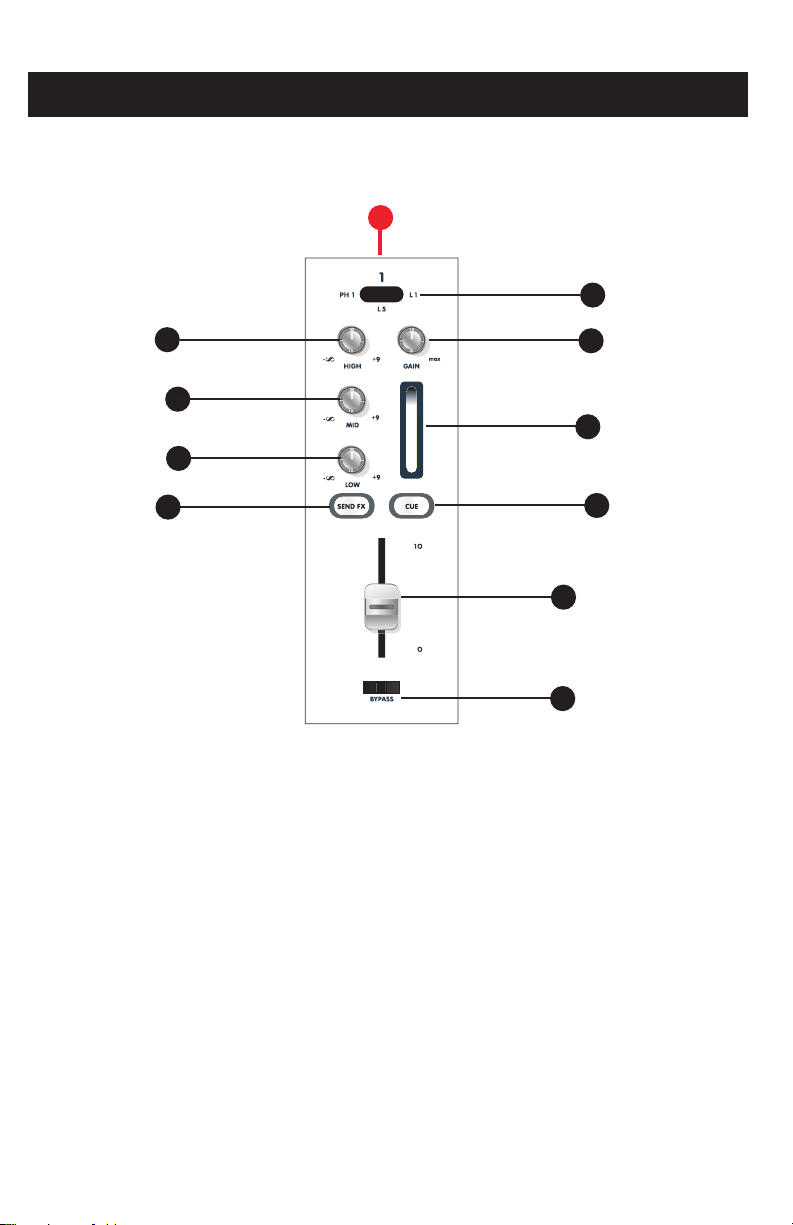

Section H: Channel Controls
RM.406 Top Panel (FUNCTIONS)
A
1 2
B
3 4 5
Section A: Output Meters
1. Meter Switch: Switches the display of the Level Meter (#2) between
Master or Zone output signals.
2. Level Meter: Displays the left and right Master or Zone output level of the
mixer. Red indicates clipping.
Section B: FX Controls
3. Send Level: Controls the output level (send volume) of the FX Loop when
a channel’s effects send (#40) is activated.
4. Return Level: Controls the input level (return volume) of the FX Loop when
a channel’s effects send (#40) is activated [external effects processor
required.]
5. FX Return: Toggles the effects loop ON / OFF. When on, the signal sent
and returned through the FX Loop will be audible through the Master Output.
RM.406 Top Panel (FUNCTIONS)
C
LR
6 7 8
9
1011
Section C: Output Controls
6. Master Level: Controls the overall output level of the audio signal sent
through the Master connectors (see Output Connections.)
7. Stereo/Mono Switch: Switches the Master output between a stereo or
mono signal. Mono mode can be used to accommodate some large PA systems. It can also be engaged in the event of a sudden loss of stereo
signal in phonograph cartridge connections [Stereo = UP position.]
8. Zone Level: Controls the output level of the audio signal sent through the
Zone connectors (see Output Connections.)
9. Booth Level: Controls the output level of the audio signal sent through the
Booth Output connectors (see Output Connections.)
10. Master Pan: Controls left/right signal balance of the Master Output (#6.)
11. Crossover LED: When lit, this indicates that the Crossover is active (for
setting the Crossover see Output Connections.)
RM.406 Top Panel (FUNCTIONS)
D
15
1617
12 13 14
Section D: Cue Controls
12. Cue FX: Sends the effected signal from the FX Loop to the Headphone Cue for
monitoring (see Section-B.) This allows DJs to hear what the FX Loop sounds like,
before sending it to the Master Outputs.
13. Split Cue: Controls how the CUE will be heard in the headphones. In the "stereo"
position, the pre-selected Cue (#41) will be heard as a stereo signal in the headphones (full stereo audio signal in both ears.) In "split" position, the pre-selected Cue
(#41) will be heard on one side of the headphones, while the Master Output (#6) signal is heard on the other side (different audio signals in each ear.)
14. Headphone Output 1: Connection for 1/4 inch headphone (phono-jack.)
Recommended headphone impedance is 32-200 ohms for maximum volume.
15. Headphone Output 2: Connection for 1/8 inch headphone (mini-jack.)
Recommended headphone impedance is 32-200 ohms for maximum volume.
16. Cue Level: Controls the overall headphone output level of both output jacks. It is
recommended headphones with an impedance rating of 200 ohms or less be used for
maximum volume.
17. Cue Pan: This controls the blend of audio signals that can be heard in the head
phones. In the left-most “Cue” position, only channels selected by the Cue Assign
switches (#41) will be heard. In the right-most “Master” position, ony signals being
sent to the Master Output (#6) will be heard in the headphones. Any setting inbetween provides a mix of both Cue and Master signals.
ty to choose how they wish to monitor audio signals, based on personal preference
and technique.
This gives DJs the flexibili
-
-
