Stanton ESM-11 User Manual

ESM-11

PROFESSIONAL STER EO PREAMP MIXER

OWNER’S MANUAL

ESM-11

© 2000, Stanton Magnetics, LLC

Register this product online

@

www.stantonmagnetics.com

STANTON MAGNETICS, LLC

2821 Evans St. Hollywood, FL 33020 [phone]
Fax: [phone] [e-mail]

@

T RO U B LE S H O OT I N G

Thank you for making Stanton your first choice in professional DJ mixers.

This new, innovative family of mixers has been developed with input from the profes­sional DJ community, bringing to the marketplace a previously unavailable, afford­able combination of user-friendly, functional design, rugged construction, and pro­fessional quality features.

Stanton and your authorized Stanton dealer are dedicated to your complete satisfac­tion by offering benchmark service and support throughout the long life of your
Stanton product.

Again, we appreciate your patronage, and look forward to many years of making
music together.

PLEASE READ CAREFULLY BEFORE USE OF THIS PRODUCT

FA I LU R E TO FO LLOW T H E I N ST RU C TI O NS P R I N TE D B E LOW M AY VO I D WA R R A N T Y

• Follow all security advice printed on your mixer

• When removing the unit's AC plug from the power source, grasp and pull the
plug, NEVER the cord itself!

• Avoid placing your mixer near heat sources, such as power amplifiers.

• When in use, place your mixer on a stable surface, away from vibration. Always
use care when carrying your mixer. Impact, or heavy vibration may compromise
the unit's mechanical integrity. The manufacturer is not responsible for damage
resulting from an impact, or misuse.

• When in use, place your mixer away from sources of hum or noise, such as
transformers, or electric motors.

• To prevent overheating, always provide your mixer with adequate ventilation
air space.

• Avoid stepping on your mixer's AC cord. Repeated compression of the cord
may lead to electrical shorting.

• To avoid damage due to AC voltage peaks, always disconnect your mixer from
the power source during electrical storms.

Problem

Excessive hum when using
phono source.

Low frequency hum while
operating source unit.

Pro g ram volume can’t be
adjusted with master vo l u m e
c o n t ro l .

No powe r.

The amplifier is turned up,
but there is no signal.

No signal in headphones.

Cause

Poor ground connection.

Loose cartridge/headshell
connection.

Poor AC source ground.
Loose input/output connec­tion. Shorted cable.

Amplifier or outboard gear
connected to the re c o rd out­put.

I m p roperly connected AC cord
or power line source not on

Faulty output connections

Improper level adjustment.

Improper connection.

Improper level or cue mix
settings.

Solution

Properly connect turntable
ground wire to mixer ground
terminal.

Check cartridge connection
to headshell. Check head­shell connection to tonearm.

Properly ground the AC
source. Check all input and
output connections for
s e c u re fit. Isolate and re p l a c e
the damaged cable.

Connect amplifier or outboard
gear to master output.

Properly connect AC cord to
AC power source. Turn powe r
o n .

Properly connect amplifier, or
outboard gear to mixer.

Properly set crossfader,
channel faders, gain con­trols, and input selector tog­gles.

Check headphone connec­tion to mixer. Tighten if nec­essary.

Adjust headphone level and
cue mix to the proper level
and channel settings.

• Your mixer contains no user-serviceable parts. The manufacturer is not
responsible for any damage or personal injury resulting from unauthorized
user-servicing or modifications. In addition, the warranty will be void if any
unauthorized service by the user is detected. Always return you mixer to an
authorized Stanton dealer for servicing.

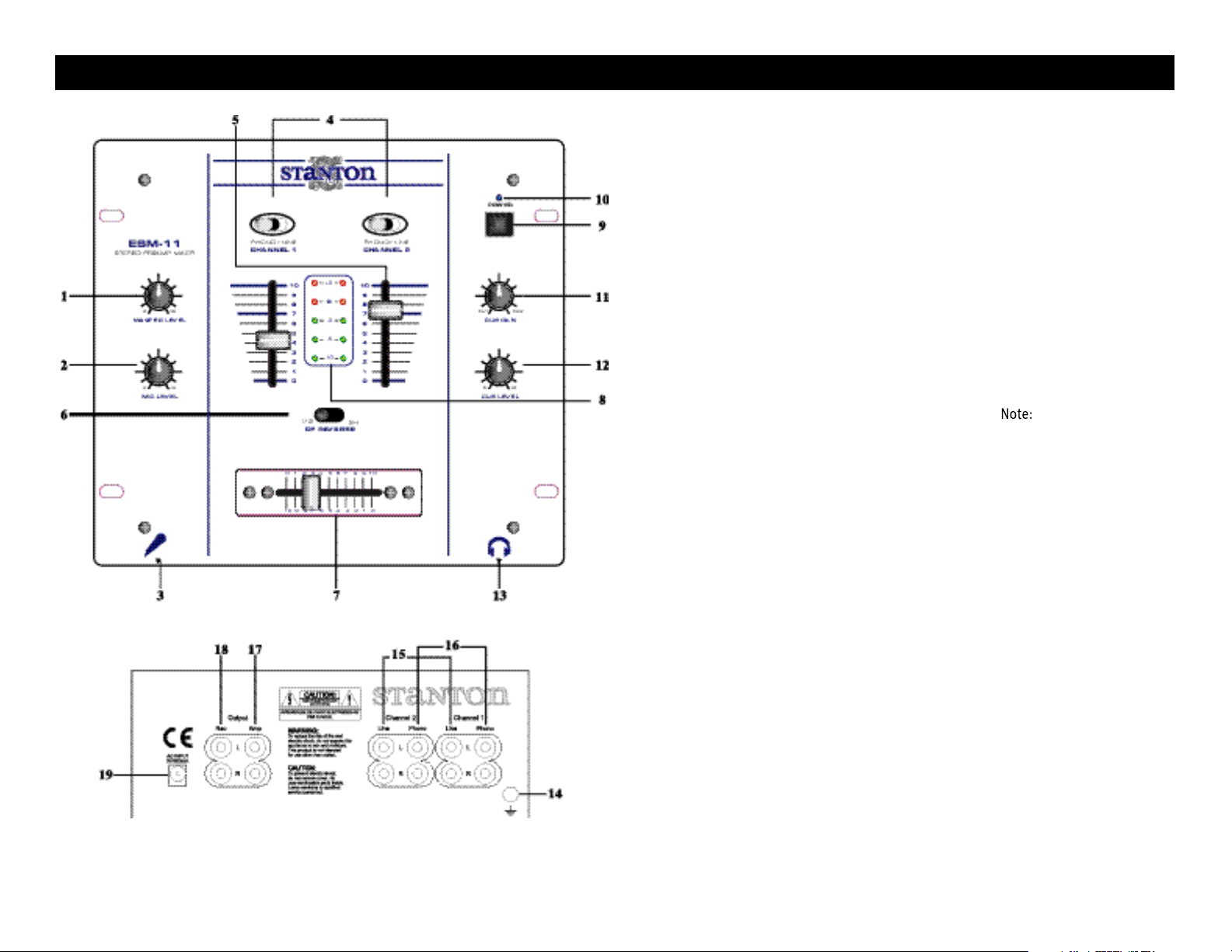

D E S C R I P T ION O F FU N C TI O N S

1. Master level control: Controls the overall signal output level of the Master output

2. Mic volume control: Controls the overall microphone output level

3. Microphone input: 1/4” connector

4. Input selector switches: Selects phono or line inputs of channels 1 and 2

5. Channel faders: Control the output level of channels 1 and 2

6. Crossfader Reverse: Reverses the direction of the crossfader

7. Crossfader: Fades the master output between channels 1 and 2

8. Level meter: The level meter displays the master output stereo signal level

9. Power switch: Selects power "ON" or "OFF"

10. Power Indicator: LED indicates whether mixer is ON or OFF.

11. Cue pan: Fades the headphone output between channels 1 and 2, effectively allowing
the user to preview a mix.

12. Cue level control: Controls the overall headphone output level.

13. Headphone output: Connection for 1/4 inch headphone. Recommended

headphone impedance is 32-200 ohms for maximum volume

14. Ground connector: Connects to the turntable ground connector to eliminate electrical
hum. Ground cables are usually supplied with turntables

15. Line inputs: Line signal inputs for channels 1 and 2

16. Phono inputs: Phono signal inputs to connect turntables to channels 1 and 2

17. Master output: Level is controlled by master level control (1)

18. REC output:

record performance

19. Power supply connector: Input connection for the accompanying power supply.

Record out connects to tape recorder, mini disk recorder, etc. to

C RO S S FA DER C LE A N I N G

TE C H N I CA L S P E C I FI C AT I O N S

The ESM-11 crossfader may need lubrication from time to time. This will extend
the fader life and eliminate any potential damage due to extended heavy usage.

Cleaning Instructions

1. Remove the crossfader by unscrewing the 2 outer screws (removing the 2
inner screws will detach the fader from the fader plate) and disconnecting the
cable from the mixer.

2. Spray a small amount of cleaner or lubricant into both ends of the fader and
slide the fader back and forth a few times to spread the fluid evenly throughout
the fader.

3. Shake and wipe off excess fluid before re-assembling the fader.

C RO S S FA DER REP L A C E M E N T

To replace the crossfader, follow step 1 of the cleaning instructions.
Replacement parts are available from

Stanton

or your local

Stanton

dealer.

Line inputs: 2 (RCA), 150 mV / 47K ohm
Phono inputs: 2 (RCA), 3 mV / 47K ohm
DJ mic input: 1 (1/4 inch), 1.5 mV / 600 ohm
Master output: 1 (RCA), 1V / 600 ohm
Record output: 1 (RCA), 330 mV / 600 ohm
Headphone output: 1 (1/4 inch), 32 - 200 ohms recommended
Frequency Response: 20 Hz - 20 kHz, +/- 0.5 dB
S/N Ratio: Less than 80dB
T.H.D: 0.01% at 1KHz
Dimension(LxWxD): 9” x 9.8” x 3.5” (230 x 250 x 90 mm)
Weight: 7 Lbs (3 Kg)

WA R R A N T Y

This unit has been designed and manufactured using quality
components. Therefore, it is warranted to be free from defects in materi­als (limited as specified below), and workmanship for a period of thirty
six (36) months from the original purchase date. During this period, all
service and parts necessary to repair a defect will be free of charge. This
limited warranty applies to mechanical parts which are subject to wear
and tear as specified:

• Faders, specified durability: 15,000 cycles

• Rotary potentiometers, specified durability: 10,000 cycles

• Switches, specified durability: 10,000 cycles

Consequently, the parts listed above are warranted to be free from
defects in materials and workmanship for a period of thirty days (30)
days from the original purchase date.

FOR THE WA R R A N TY TO BE VA LID, PLEASE CO M P LE TE THE

O N LINE WA R R A N T Y REGIST R ATION FORM FOUND AT

W W W. STA N TO N M AG N E TI CS . CO M

2821 Evans Street • Hollywood, FL 33020
