Stack-On GC-8-RTA 4327-0707 User Manual [en, es, fr]
R
HOME SECURITY CABINET
Assembly and Installation Instructions
IMPORTANT:
Record the serial and key numbers from the back of the
cabinet. You will need the serial number information in
order to replace lost keys.
Do not store this document in your security cabinet.
Keep keys in a secure place away from children.
Key #:
Serial #:
HELPFUL HINTS:
When assembling the cabinet body, only hand tighten the bolts
until all the parts are assembled. This will make it easy to align
all the holes.
A small socket wrench with a 7/16" (11mm) socket is the best
way to tighten the interior nylon locking nuts. Hold the head of
the carriage bolt in the square holes of the cabinet while
tightening the bolts. Do not over tighten these bolts.
Lock washer
Nylon locking nut
Back panel
Side
panel
Carriage bolt
Side
panel
Figure 1
For easier assembly, follow the exact sequence of assembly
steps shown in the following pages.
ASSEMBLING THE CABINET:
1. Assemble the side panels to the back panel.
For easy assembly, stand the panels up as shown. Assemble
each side with (6) carriage bolts, locking washers and nylon
locking nuts. Hand tighten the bolts at this time. (See Figure 1)
For the entire assembly of the cabinet body, the heads of all the
carriage bolts will be on the outside of the cabinet.
2. Keep the assembly standing up as shown. Locate the bottom
panel (the one with 2 holes in the center of the panel) and place it
on the sides and back assembly. The front and back flanges of
this panel must be on the outside of the cabinet. (See figure 2)
The side flanges will be on the inside of the cabinet.
Bottom panel
Note holes
Front flange
Back
flange
Assemble with (10) carriage bolts, lock washers and nylon locking
nuts. Hand tighten the bolts at this time.
Now turn the entire unit over to prepare for assembling the shelf
and top.
Figure 2
4327-0707
1
18
3. Assemble the optional storage shelf at this time. It will be
easier to align the holes without the top on.
Use the top set of holes in the side panels and assemble the
shelf with (4) machine screws and locking nuts. (See Figure 3)
Top panel
ACK-ON
ST

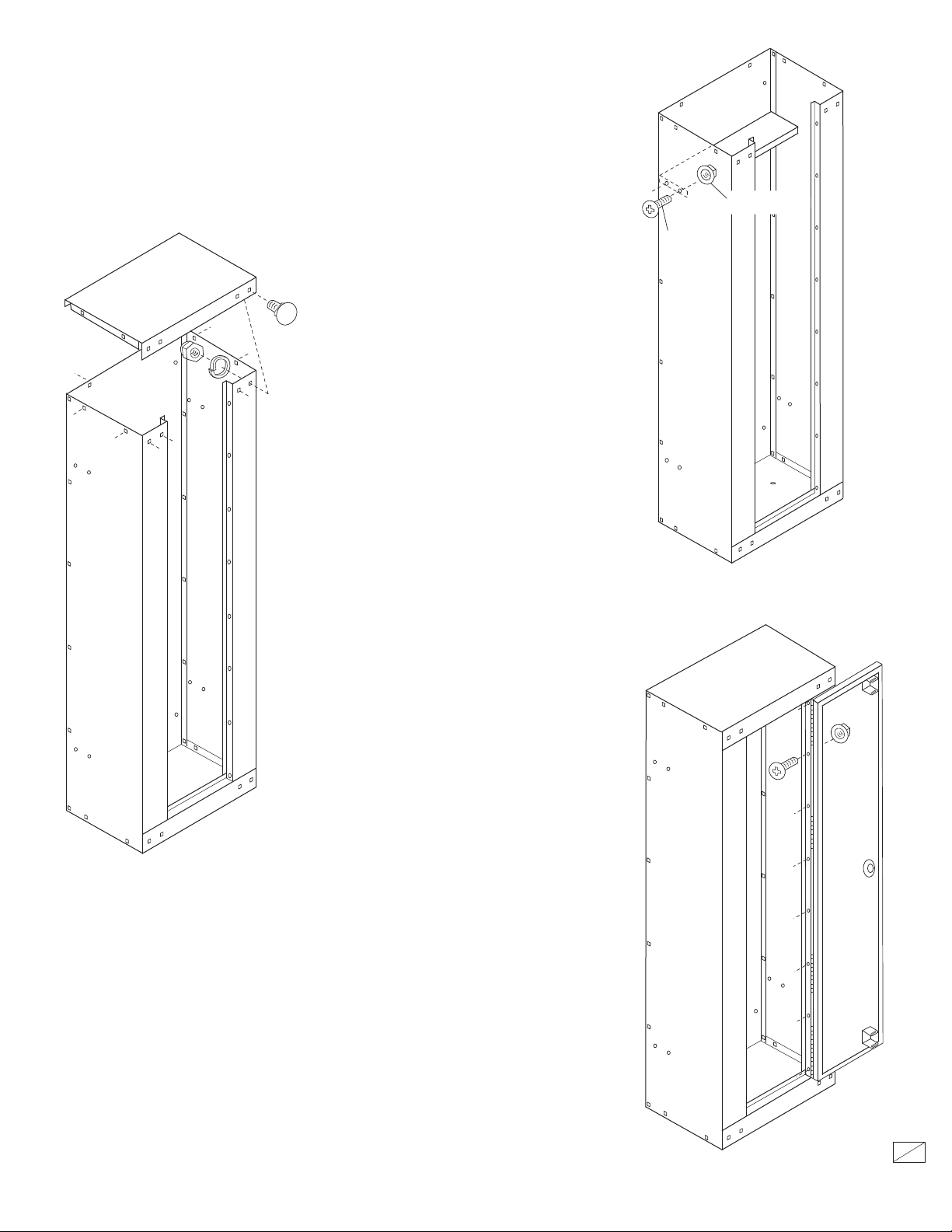

4. Assemble the top panel (which has the
name plate). This will assemble the same
as the bottom panel.
With the front and back flanges on the
outside of the cabinet and the side flanges
on the inside of the cabinet, assemble with
(10) carriage bolts, lock washers and nylon
locking nuts. (See figure 4)
Shelf
Locking nut
Machine
screw
Figure 3
Now tighten all the fasteners in the cabinet
body. Do not over tighten.
Figure 4
5. The door can be assembled on the left or right. Depending on where you
are going to place your cabinet, you may want your door to open in a certain
direction. Review the section "Selecting a Location" and determine the
opening direction before assembling the door.
Align the door hinge holes with the cabinet holes. Assemble with (8) machine
screws and locking nuts. (See figure 5)
Center the door in the opening (from top to bottom) and tighten the screws.
ST
AC
ON
-
K
Door
Figure 5
4327-0707
2
18
6. Assemble the lock and ring through the front of
the door.
Secure the lock with the locking washer and nut.
(See figure 6)
Nut
Locking
washer
Door
Ring
Lock
Figure 6
ACK-ON
ST
Top door
bracket
Lock bar
Nut
Bottom door
bracket
Center plate
formed end
7. Before assembling the lock bars remove the key
from the lock.
To assemble the 3 point locking bar, first position the center
plate horizontally with the indented formation in the one end
pointing to the outside of the door. (See figure 7)
Slide the lock bars through the slots in the top and bottom
door brackets.
Position the square hole in the center plate over the lock
while the center plate is still in the horizontal position.
Secure the center plate to the lock with the nut.
Insert the key into the lock and try the locking mechanism.
Lubricate the tips of the lock bars if necessary.
Please note that the key only comes out of the lock only
when it is in the locked position.
ON
CK-
A
T
S
Figure 7
8. To install the barrel rests to the cabinet, first remove the
backing from the foam rests. For help in doing this, pinch the
end of the foam to help secure the adhesive to the foam.
Attach the barrel rests to the inner sides of the cabinet at the
height shown. (See figure 8)
Place the bottom pad into the cabinet.
Figure 8
Barrel rests
36"
Bottom pad
4327-0707
3
18
SELECTING A LOCATION
Your Security Cabinet should be installed in an isolated, dry and
secure area.
16"
CENTERS
For greater security the cabinet must be fastened to a solid surface
with a minimum space on either side. Ideally the cabinet would be
installed on the side wall of a closet. (See figure 9)
The cabinet should be flat against the wall and floor. Remove the
baseboard if necessary. (See figure 10)
WALL MOUNT OPTION
The (4) mounting holes in the rear of the cabinet must line up with the
16" centers of the wall studs. Drill new holes in the cabinet if
necessary. (See figure 9)
Drill (4) 3/16" pilot holes into the wall studs and secure the cabinet to
the wall using (4 ea.) lag bolts and washers. (See figure 10)
CABINET
TOP VIEW
MINIMUM
Figure 9
FLOOR MOUNT OPTION
The (4) mounting holes in the rear of the cabinet must line up with the 16"
centers of the wall studs. Drill new holes if necessary. (See figure 9)
Drill (2) 3/16" pilot holes into the wall studs lining up with the top (2)
mounting holes in the back of the cabinet. Secure the cabinet to the wall
using (2) lag bolts and washers.
Drill (2) pilot holes and secure the cabinet bottom to the floor with (2) lag
bolts and washers.
IMPORTANT
Keep keys away from children. Keep this record of your serial and key
numbers in a secure place separate from your security cabinet. If you lose
your keys you will need this information as a reference for obtaining new keys.
To order a replacement key set, follow the instructions on the attached form.
Figure 10
STACK-ON PRODUCTS COMPANY
P. O. BOX 489
WAUCONDA, IL 60084
4327-0707
4
18
R
R
Security Cabinets and Safes Key or Combination Request
“This is not a Registration Form”
Verification of ownership is required in order to receive replacement key or confirm your combination
on your security product.
In order to receive a replacement key or obtain the combination to your security product:
1. Complete the following form and send to Stack-On Products.
2. Send a copy of your valid driver’s license along with the form.
3. Send a copy of the receipt showing the original purchase.
4. Security product owner must sign form.
5. Owner’s signature must be notarized.
6. Send $10.00 for replacement key or combination. Personal Check, MasterCard, or Visa
accepted.
7. Send completed information to: Stack-On Products Company
1360 N. Old Rand Road
P.O. box 489
Wauconda, IL 60084
Serial Number______________________ Key Number (if applicable) _______
Unit Dimensions________________________________________
Unit Description___________________________________________________________
Owner’s Name ____________________________________ Date Purchased___/___/____
Owner’s Address ___________________________ Unit or Apt Number _________________
City ___________________________ State _______________ Zip Code________________
Telephone Number: (____)___________________ Fax Number: (____)___________________
Owner’s Email Address: ________________________________________________________
Owner’s Signature __________________________ Notary Signature________________
Notary Commission Expires: _____/_____/_____ Notary Stamp
SERVICE REQUESTED
Combination confirmation: Yes No
$10.00 charge for this service
Key Replacement: Yes No
$10.00 charge for this service
Credit Card Information (Please circle one) MasterCard Visa
Expiration Date: ___/___/___ Card Number:______________________________________
Credit Card Identification Number (Located on back of card, last 3 digits on signature strip)_________
9/07
4327-0707
5
18
R
R
LIMITED ONE YEAR WARRANTY
SECURITY PLUS STEEL CABINETS AND PISTOL BOXES
Stack-On Products Co. (“Stack-On”) Security Plus Steel Cabinets and Pistol Boxes, are warranted to be
free from defects in material and workmanship for a period of one (1) year from the date of original
purchase by a consumer. This warranty extends to the initial consumer only.
If you believe there is a defect in material or workmanship in your Security Plus Steel Cabinet or Pistol
Box, during the one-year warranty period, please contact our customer service department, by regular mail
or email at the address listed below, and include with your correspondence proof of purchase information
and the model number of the product.
Stack-On Products Company
1360 North Old Rand Road
Wauconda, IL 60084
customerservice@stack-on.com
If Stack-On is properly notified during the one-year warranty period and, after inspection confirms there is
a defect, Stack-On will, at its sole option, provide repair parts or exchange the product at no charge, or
refund the purchase price of the product.
THIS WARRANTY DOES NOT COVER ANY PRODUCT, OR ANY PART OF ANY PRODUCT, WHICH
HAS BEEN SUBJECT TO EXCESSIVE USE, ACCIDENT, NEGLIGENCE, ABUSE OR MISUSE,
INCORRECT MAINTENANCE, ALTERATION OR REPAIR BY ANYONE OTHER THAN STACK-ON. IN
ADDITION, THIS WARRANTY DOES NOT COVER ANY ACCESSORIES OR PARTS USED WITH OR IN
THE PRODUCT, WHICH ARE NOT INCLUDED WITH THE ORIGINAL PURCHASE.
THIS WARRANTY IS EXCLUSIVE AND EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES
EXPRESSED OR IMPLIED INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, WHICH ARE HEREBY DISCLAIMED AND EXCLUDED. STACK-ON
SHALL NOT BE SUBJECT TO ANY OTHER OBLIGATIONS OR LIABILITIES. STACK-ON NEITHER
ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT, ANY OTHER LIABILITY IN
CONNECTION WITH THE SALE OF STACK-ON’S SECURITY PLUS STEEL CABINET OR PISTOL BOX.
STACK-ON WILL NOT, UNDER ANY CIRCUMSTANCES, BE LIABLE TO THE INITIAL CONSUMER FOR
ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, EXEMPLARY, OR PUNITIVE DAMAGES ARISING
OUT OF THE PURCHASE OR USE OF ANY STACK-ON SECURITY PLUS STEEL CABINET OR PISTOL
BOX.
STACK-ON’S LIABILITY FOR ANY BREACH OF THIS WARRANTY SHALL BE LIMITED EXCLUSIVELY
TO REPAIR OR REPLACEMENT OF THE DEFECTIVE PRODUCT, AS DESCRIBED ABOVE, OR A
REFUND OF THE PURCHASE PRICE OF THE PRODUCT.
IN NO EVENT SHALL STACK-ON’S OBLIGATION UNDER THIS WARRANTY EXCEED THE PRICE OF
THE PRODUCT.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS
WHICH VARY FROM STATE TO STATE.
4327-0707
