Stack-On GC-14P 40024-0707 User Manual [en, es, fr]
R
Home Security Cabinet
Installation Instructions
®
Key #:
Serial #:
IMPORTANT:
Record the serial and key numbers from the back of the
cabinet. You will need the serial number information in
order to replace lost keys.
Do not store this document in your security cabinet.
Keep keys in a secure place away from children.
Tools Required:
Phillips screwdriver
7/16" wrench
NOTE: Assemble shelving and barrel rests before
mounting the cabinet to a wall or floor. Exterior access
is required for assembling these items. Review these
instructions prior to installation.
Drill with
3/16" bit
MODEL GC-14P
INSTALLATION OF BARREL RESTS AND SHELF
Assemble shelving and barrel rests before mounting the cabinet to a wall or floor.

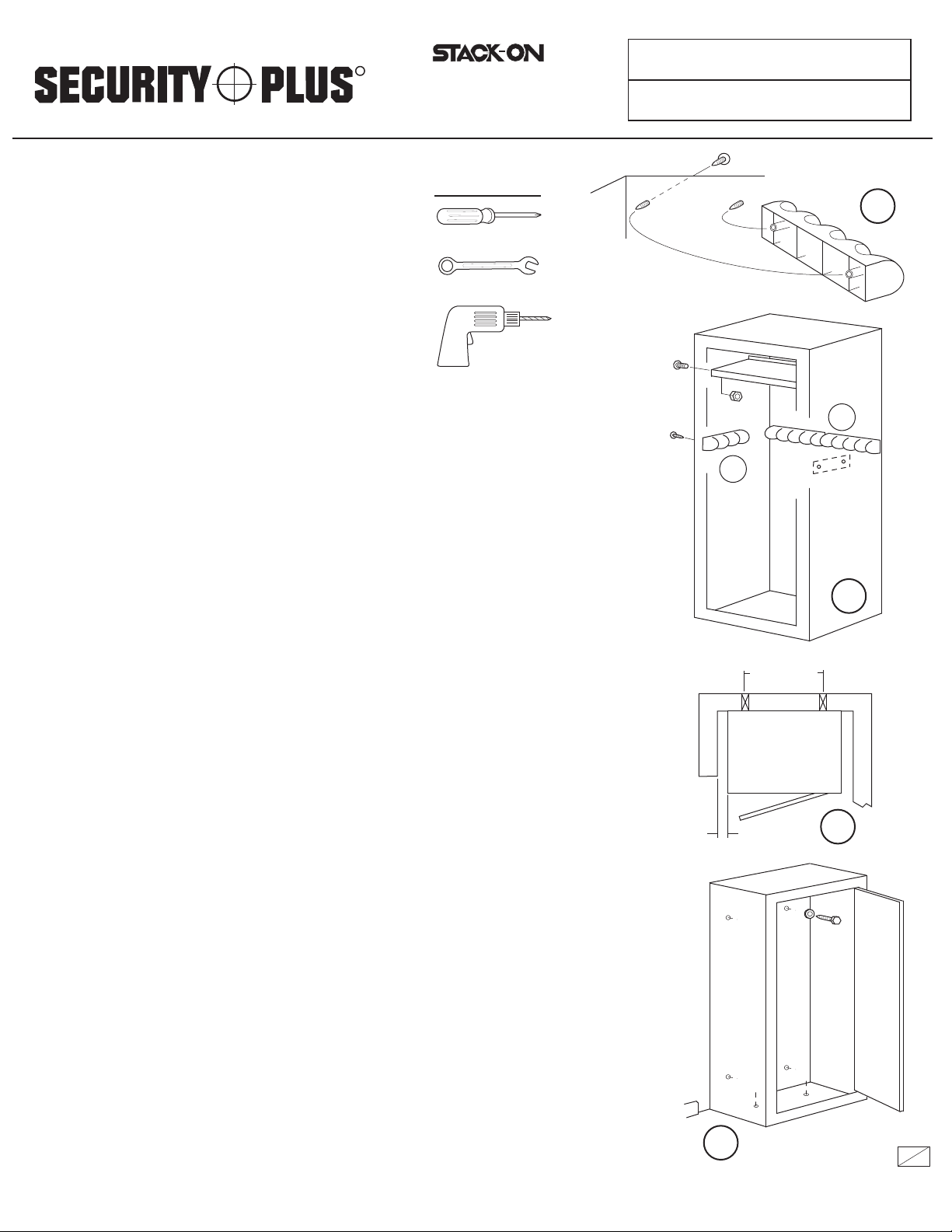

Barrel rest assembly
Install the 4-position barrel rests (A) to the back of the cabinet and the 3-position barrel rests (B) to the
sides of the cabinet as shown in figure 2.
1. Thread the screws into the pilot holes from the outside of the cabinet. (See figure 1)
2. Align the holes of the barrel rest over the tips of the screws and lightly press the barrel rest into place.
(See figure 1)
3. Now tighten the screws from the outside of the cabinet. Tighten each screw partially, alternating from
one screw to the other until they are both tight. Do not over tighten.
Shelf assembly
Assemble the shelf inside the cabinet with (4) 10-32 nuts and bolts as shown in figure 2.
1
A
B
2
16"
CENTERS
CABINET MOUNTING INSTRUCTIONS
Selecting a Location
Your Security Cabinet should be installed in an isolated, dry and secure area.
For greater security the cabinet must be fastened to a solid surface with a minimum space on either side.
Ideally the cabinet would be installed on the side wall of a closet. (See figure 3)
The cabinet should be flat against the wall and floor. Remove the baseboard if necessary. (See figure 4)
Insert the plastic plugs in the cabinet's top mounting holes if you are not installing the Pistol-Ammo cabinet
on the top of the security cabinet.
Wall Mount Option
The (4) mounting holes in the rear of the cabinet must line up with the 16" centers of the wall studs. Drill
new holes in the cabinet if necessary. (See figure 4)
Drill (4) 3/16" pilot holes into the wall studs and secure the cabinet to the wall using (4 ea.) lag bolts and
washers. (See figure 4)
Floor Mount Option
The (4) mounting holes in the rear of the cabinet must line up with the 16" centers of the wall studs. Drill
new holes if necessary. (See figure 4)
Drill (2) 3/16" pilot holes into the wall studs lining up with the top (2) mounting holes in the back of the
cabinet. Secure the cabinet to the wall using (2) lag bolts and washers.
Drill (2) pilot holes and secure the cabinet bottom to the floor with (2) lag bolts and washers.
4
CABINET
TOP VIEW
MINIMUM
3
40024-0707
1
12
FOAM INSTALLATION

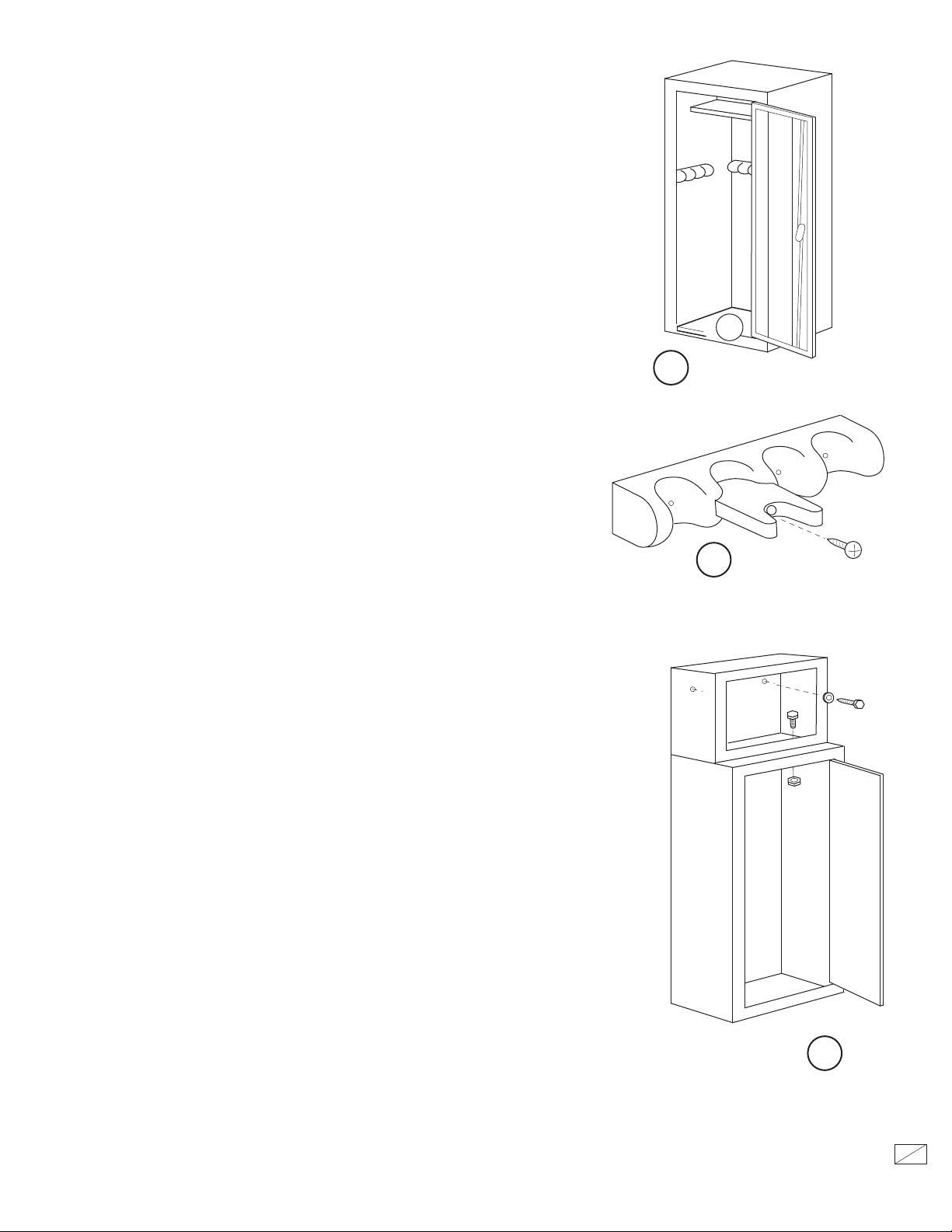

Place the bottom pad (C) in the bottom of the cabinet. (See figure 5)
INSTALLATION OF SCOPE STAND-OFF
NOTE: The scope stand-off will function properly for many combinations of guns with
scopes.
Screw the scope stand-off into the pilot hole of the barrel rest. (See figure 6)
C
5
6
INSTALLATION OF GC-900-5 PISTOL-AMMO CABINET ON TOP OF
SECURITY CABINET
NOTE: We recommend that security cabinet be installed as described above.
IMPORTANT: Install the shelf before mounting the cabinet to a wall.
Remove the top hole plugs from the cabinet by pushing out from the inside of the cabinet.
Place the GC-900-5 on top and assemble with (2) 1/4-20 nuts and bolts. Do not tighten
bolts. (See figure 7)
Drill (4) 3/16" pilot holes into the wall studs and secure the GC-500-5 cabinet to the wall
using (2) lag bolts and washers. (See figure 7)
Tighten the (2) bolts that connect the cabinets.
IMPORTANT
Keep keys away from children. Keep this record of your serial and key
numbers in a secure place separate from your security cabinet. If you
lose your keys you will need this information as a reference for obtaining
new keys. To order a replacement key set, follow the instructions on the
attached form.
STACK-ON PRODUCTS COMPANY
P. O. BOX 489
WAUCONDA, IL 60084
7
40024-0707
2
12
R
R
Security Cabinets and Safes Key or Combination Request
“This is not a Registration Form”
Verification of ownership is required in order to receive replacement key or confirm your combination
on your security product.
In order to receive a replacement key or obtain the combination to your security product:
1. Complete the following form and send to Stack-On Products.
2. Send a copy of your valid driver’s license along with the form.
3. Send a copy of the receipt showing the original purchase.
4. Security product owner must sign form.
5. Owner’s signature must be notarized.
6. Send $10.00 for replacement key or combination. Personal Check, MasterCard, or Visa
accepted.
7. Send completed information to: Stack-On Products Company
1360 N. Old Rand Road
P.O. box 489
Wauconda, IL 60084
Serial Number______________________ Key Number (if applicable) _______
Unit Dimensions________________________________________
Unit Description___________________________________________________________
Owner’s Name ____________________________________ Date Purchased___/___/____
Owner’s Address ___________________________ Unit or Apt Number _________________
City ___________________________ State _______________ Zip Code________________
Telephone Number: (____)___________________ Fax Number: (____)___________________
Owner’s Email Address: ________________________________________________________
Owner’s Signature __________________________ Notary Signature________________
Notary Commission Expires: _____/_____/_____ Notary Stamp
SERVICE REQUESTED
Combination confirmation: Yes No
$10.00 charge for this service
Key Replacement: Yes No
$10.00 charge for this service
Credit Card Information (Please circle one) MasterCard Visa
Expiration Date: ___/___/___ Card Number:______________________________________
Credit Card Identification Number (Located on back of card, last 3 digits on signature strip)_________
9/07
