Stack-On AC-2 User Manual [en, es, fr]
Portable Case
Instructions

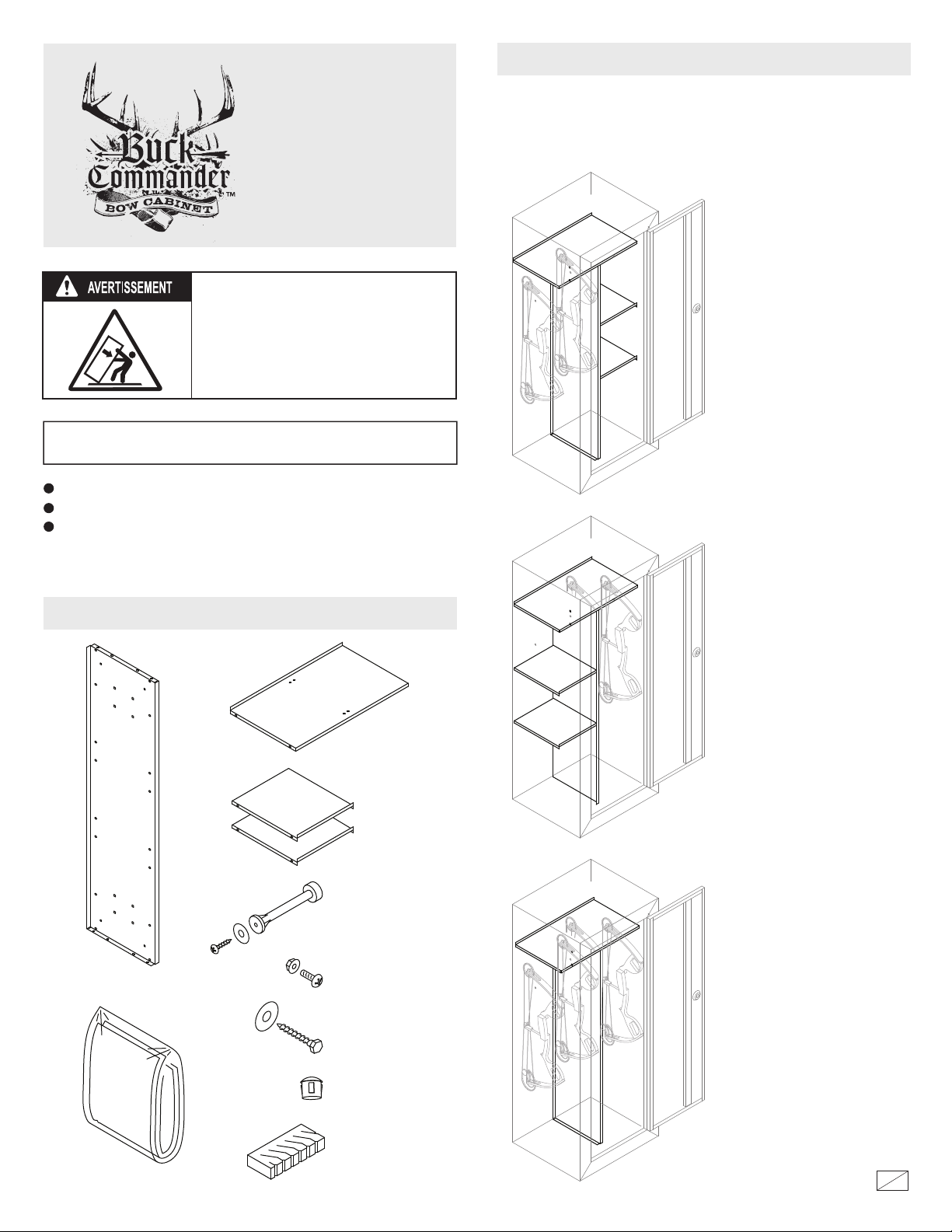

CABINET CONFIGURATIONS
Your bow cabinet can be congured in several ways, either with 2 bows and
shelving on either side or 4 bows. Please review the following
congurations options before you proceed in assembling your cabinet.
WARNING
A child or adult can tip the cabinet and be killed or
seriously injured.
Failure to secure the cabinet as shown in these
instructions can result in death or serious injury to
children and adults.
Children should not play with or around the
cabinet at any time.
Tip Over Hazard
Serial #:
Record the serial number from the back of the cabinet.
Keep keys in a secure place away from children.
Do not store this document in the cabinet
Tools Required: Phillips screwdriver, 7/16” wrench, drill, 3/16” drill bit,
tape measure
PARTS INCLUDED
Top Shelf
You can congure your cabinet
with storage for bows on the
le side of the cabinet and
shelving on the right.
You can congure your cabinet
with storage for bows on the
right side of the cabinet and
shelving on the le.
Center Partition
Foam Liner Kit
Shelf (2)
Bow Hanger,
Screw and
Washer (6)
Nut and Bolt (16)
Lag Screw and
Washer (4)
Plastic Plug (2)
Foam Arrow
Holders (2)
You can congure your cabinet
with storage for bows on both
sides of the center partition
with a top shelf.
40298-1202
1
18

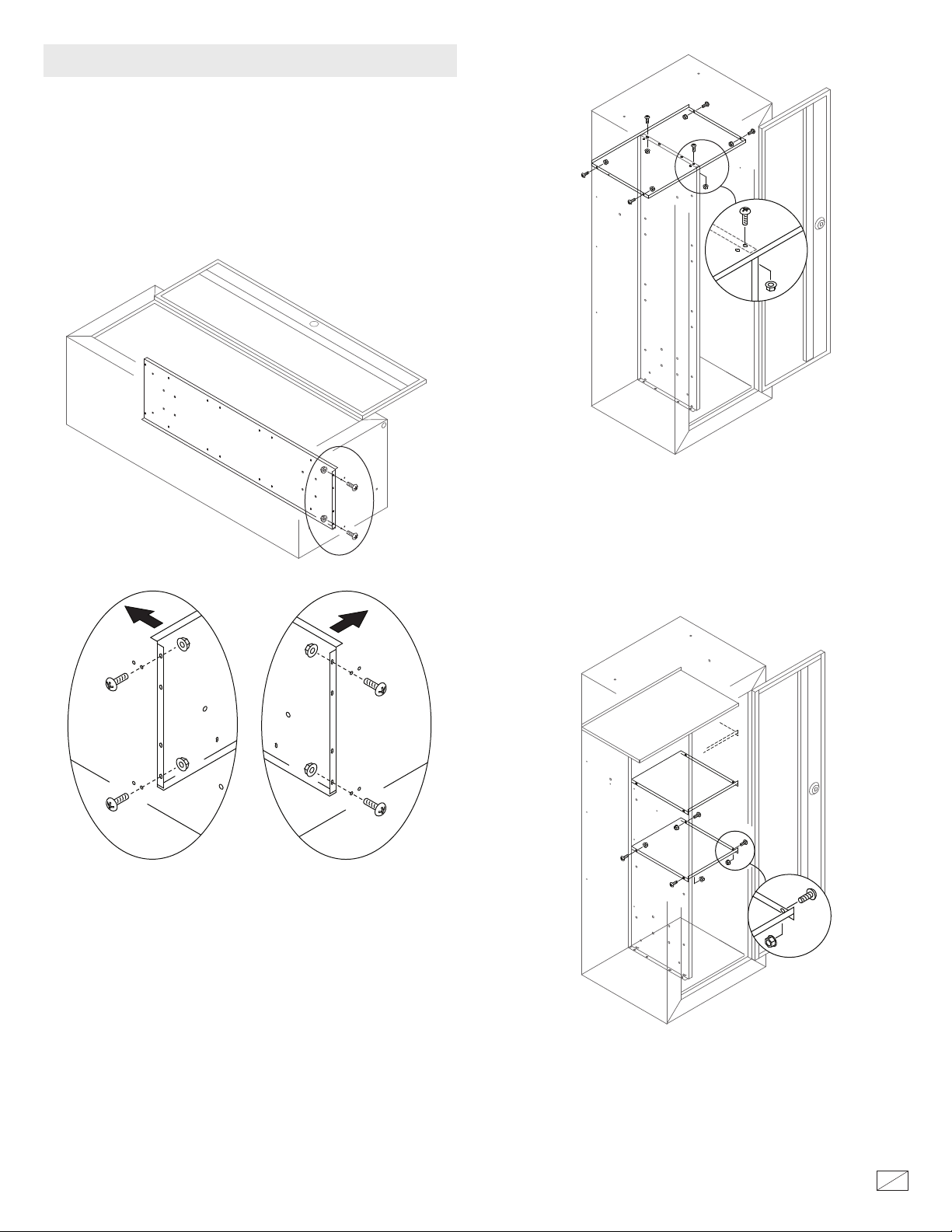

SHELVING ASSEMBLY
Interior of the cabinet must be assembled before mounting the
cabinet to a wall.
Aer you have reviewed and selected a shelving conguration (see Cabinet
Congurations) you are ready to assemble the center partition and shelves in
the cabinet. For ease of assembly, do not tighten the nuts and bolts until all the
parts have been assembled.
2. Top Shelf Assembly
e top shelf has 2 sets of holes for aaching the center partition. Use the set
of holes that will allow the partition to be centered between the 2 holes. is
will ensure that there is proper spacing for the shelf installation on both sides.
Position the shelf so the front and side anges point down. Assemble the top
shelf to the center partition and the sides of the cabinet using 6 nuts and bolts.
Shelves on left Shelves on right
1. Center Partition Assembly
Lay the cabinet on its back on a protective surface.
Position the center partition carefully to align the holes on the boom. e
center partition has two possible positions. You should face the front ange
towards the side you want to mount the shelves as shown. ere are also two
sets of mounting holes. Use the le holes when the shelves are on the right.
Use the right holes when the shelves are on the le. is will ensure that the
partition is in the exact center of the cabinet, and that there is proper spacing
for the shelf installation.
Install and tighten the 2 nuts and bolts as shown.
3. Shelf Assembly
You have the choice of 3 locations for mounting the 2 shelves. You also have
the choice of having the front ange of the shelf to point up or down. Select a
location and assemble each shelf to the center panel and cabinet side using 4
nuts and bolts.
Now tighten all remaining nuts and bolts.
40298-1202
2
18

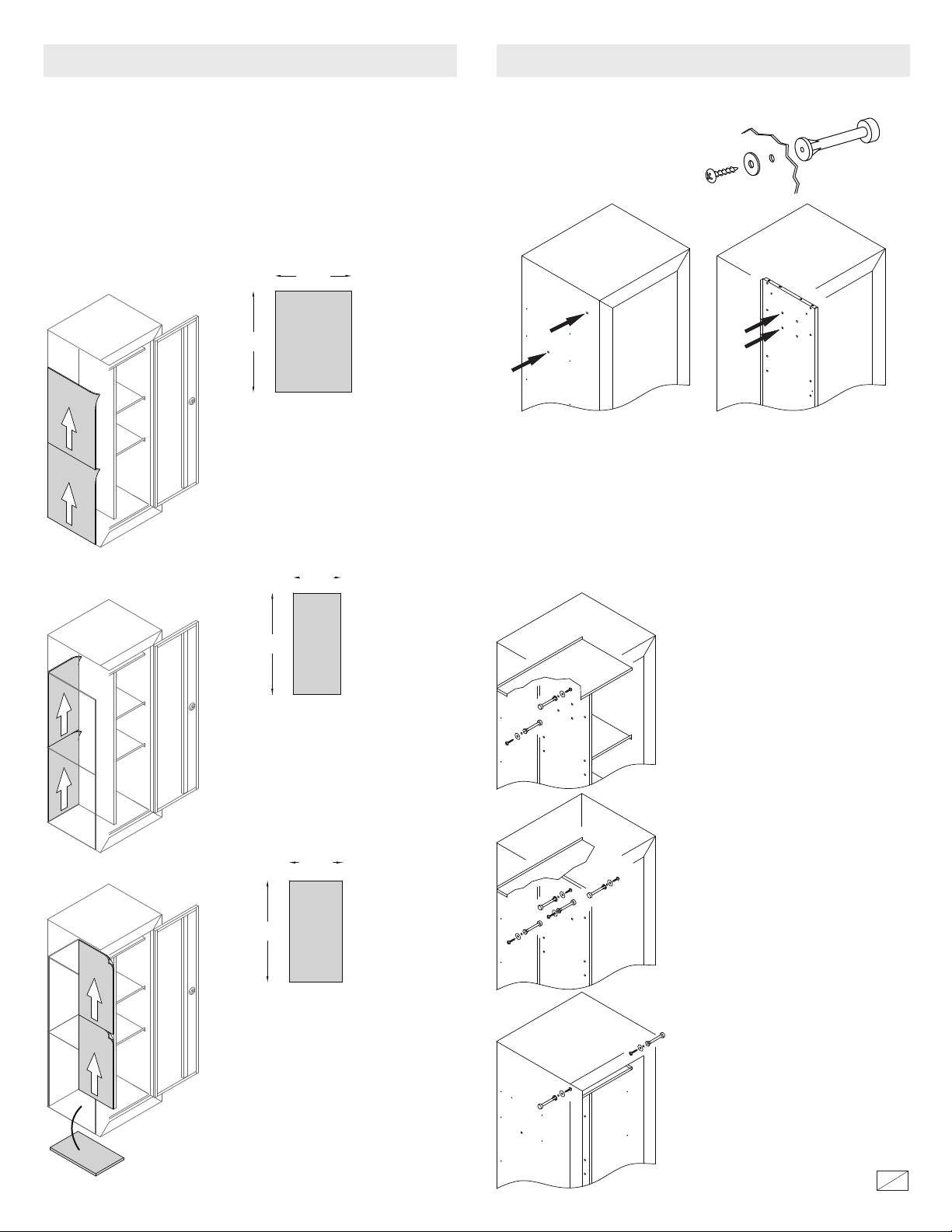

FOAM INSTALLATION BOW HANGER INSTALLATION
Shelves must be installed before installing foam.
Your foam kit will cover the inside walls of one side of the cabinet. Install the
foam from the boom up. e foam panels have an adhesive coating that is
covered by a removable backing. Before removing the backing, place the foam
in the cabinet as described below to make sure you are using the correct size
foam for each step. For best results, remove the backing by pinching the
backing and the foam together at a corner and then peeling away the backing.
16 1/2"
[419mm]
22"
[559mm]
1. Cabinet Side Foam (2)
Start at the boom of the cabinet. Remove
the foam backing and gage the foam to the
inside boom and back of the cabinet.
Apply the upper foam panel by gaging the
upper side foam to the top of boom side
foam and to the back of the cabinet.
10 1/4"
[260mm]
Install bow hangers before mounting the cabinet to the wall.
Assemble the bow hangers to the
cabinet sides or to the center partition
with the screw and washer as shown.
Center Partition LocationsCabinet Side Locations
To assure that your bows hangs properly inside and outside the cabinet, use
only the mounting hole shown above. ere are 2 mounting holes in each side
of the cabinet and 2 mounting holes in the center partition. Use these
mounting hole positions to congure your cabinet as shown below.
NOTE: e foam lining you installed will cover some of these mounting
holes. Push the screw through the foam to mount the bow hanger.
22"
[559mm]
2. Cabinet Back Foam (2)
Start with the boom cabinet back foam.
Remove the foam backing and gage the foam
to the inside boom of the cabinet and to the
lower side foam. Gage the upper back foam
to the top of the boom back foam and to
the upper side foam.
11 1/2"
[292mm]
22"
[559mm]
3. Cabinet Partition Foam (2)
Start with the boom cabinet partition foam.
Remove the foam backing and gage the foam
to the inside boom of the cabinet and to the
lower back foam. Gage the upper partition
foam to the top of boom partition foam and
to the upper back foam.
Place the foam without the backing on the
boom of the cabinet
For the cabinet conguration where there
are shelves on one side, mount one bow
hanger on the center partition in the upper
or lower hole located behind the center of
the partition. Do not use the rst set of holes.
Mount one bow hanger on the inside of the
cabinet on the outside wall as shown in the
cut away image.
For the cabinet conguration where there
will be bows on both sides of the center
partition, mount a bow hanger on each side
of the center partition. Mount one bow
hanger on the inside of both the le and
right side walls of the cabinet.
You can also mount 2 bow hangers on the
outside of the cabinet in the upper front
mounting holes.
Make sure there is room on the outside to
store and access your bows and equipment.
Hang your bows on all the bow hangers
before mounting the cabinet to a wall .
40298-1202
3
18

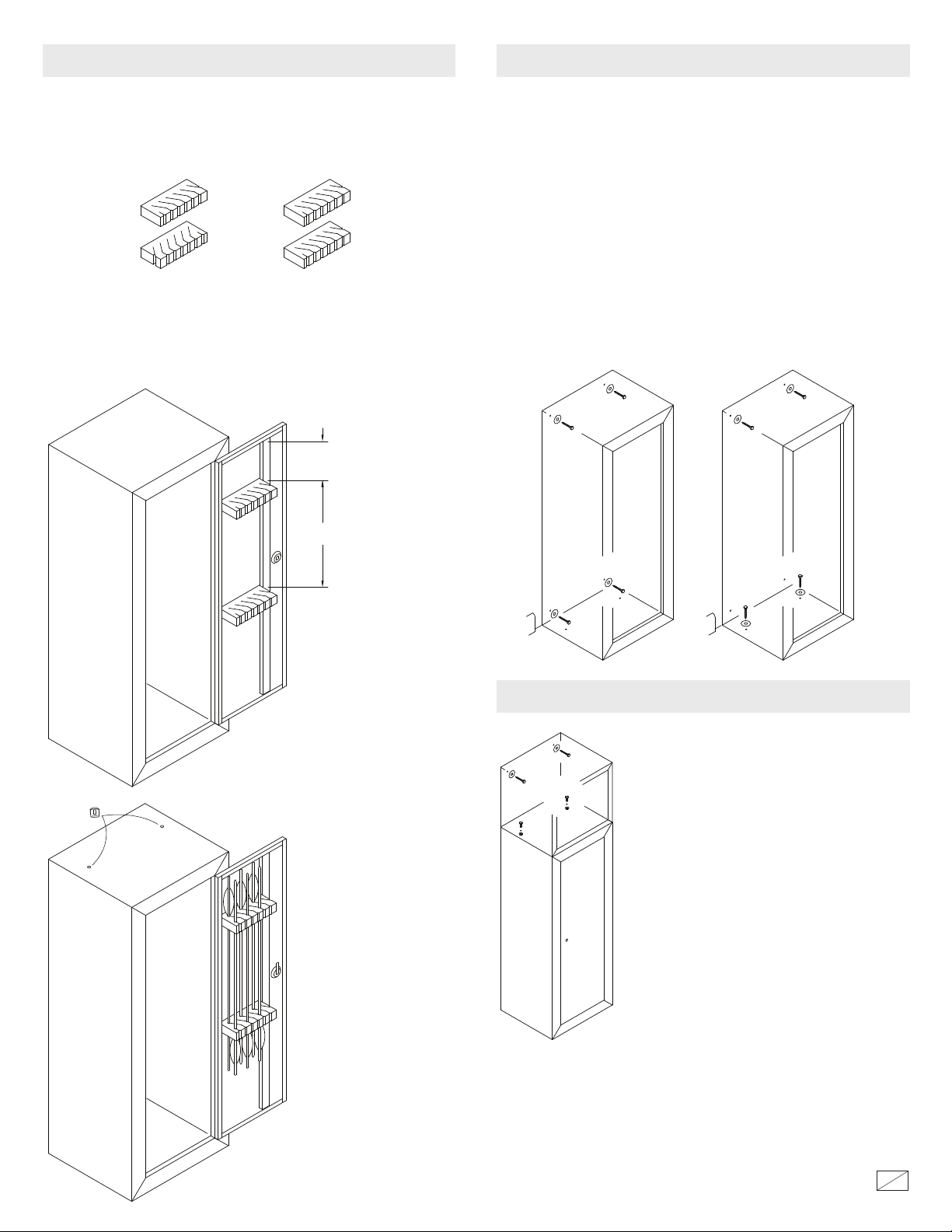

OPTIONAL ARROW HOLDER INSTALLATION CABINET INSTALLATION
For best results, aach the pair of arrow holders on the inside of the door at the
dimensions shown.
Both holders must have the slots run in the same direction.
Incorrect
Correct
e foam arrow holders have an adhesive coating that is covered by a
removable backing. Before removing the backing, mark the location of the
foam arrow holders on the door at the dimensions shown. To remove the
backing, pinch the backing and the foam together in one corner before starting
to remove the backing.
7 1/4"
[184mm]
20"
[508mm]
Before you install the cabinet to a wall, install the center partition and shelving,
foam lining and bow hangers as desired.
Make sure you have plenty of access and space if you plan to store bows or other
equipment on the outside of the cabinet.
Your cabinet should be installed in an isolated, dry and secure location. e
cabinet must be at against the wall and oor. Remove the baseboard if
necessary.
e mounting holes in the back of the cabinet are on 16” centers to line up
with typical wall studs. Drill new holes if necessary to line up with your stud
spacing.
Drill 3/16” pilot holes and mount your cabinet to the wall or the wall and the
oor with the lag bolts and washers as shown.
You can store up to 12
arrows if you alternate the
arrows as shown.
Insert the 2 hole plugs in
the top if you are not going
to install the optional
accessory cabinet.
OPTIONAL ACCESSORY GEAR CABINET
If you purchase the accessory gear cabinet that
mounts on top of the bow cabinet, follow the
accessory cabinet’s instruction for installation.
IMPORTANT
Keep keys in a secure place, away from children. Keep this record of your
serial number in a secure place separate from your cabinet. To order a
replacement key set, follow the instructions on the aached form.
STACK-ON PRODUCTS COMPANY
P.O. BOX 489
WAUCONDA, IL 60084
40298-1202
4
18
Key Request
“This is not a Registration Form”
Verification of ownership is required in order to receive replacement key for your security product.
In order to receive a replacement key to your security product:
1. Complete the following form and send to Stack-On Products.
2. Send a copy of your valid driver’s license along with the form.
3. Send a copy of the receipt showing the original purchase.
4. Security product owner must sign form.
5. Owner’s signature must be notarized.
6. Send $10.00 for replacement key. Personal Check, MasterCard, or Visa accepted.
7. Send completed information to:
Stack-On Products Company
1360 N. Old Rand Road
P.O. box 489
Wauconda, IL 60084
Serial Number______________________ Key Number (if applicable) _______
Unit Dimensions________________________________________
Unit Description___________________________________________________________
Owner’s Name ____________________________________ Date Purchased___/___/____
Owner’s Address ___________________________ Unit or Apt Number _________________
City ___________________________ State _______________ Zip Code________________
Telephone Number: (____)___________________ Fax Number: (____)___________________
Owner’s Email Address: ________________________________________________________
Owner’s Signature __________________________ Notary Signature________________
Notary Commission Expires: _____/_____/_____ Notary Stamp
SERVICE REQUESTED
Key Replacement: Yes No
$10.00 charge for this service
Credit Card Information (Please circle one) MasterCard Visa
Expiration Date: ___/___/___ Card Number:______________________________________
Credit Card Identification Number (Located on back of card, last 3 digits on signature strip)_________
9/07
40298-1202
5
18
LIMITED ONE YEAR WARRANTY
STEEL CABINETS AND PISTOL CASES
Stack-On Products Co. (“Stack-On”) Steel Cabinets and Pistol Cases, are warranted to be free from
defects in material and workmanship for a period of one (1) year from the date of original purchase by a
consumer. This warranty extends to the initial consumer only.
If you believe there is a defect in material or workmanship in your Steel Cabinet or Pistol Case, during the
one-year warranty period, please contact our customer service department, by regular mail or email at the
address listed below, and include with your correspondence proof of purchase information and the model
number of the product.
Stack-On Products Company
1360 North Old Rand Road
Wauconda, IL 60084
customerservice@stack-on.com
If Stack-On is properly notified during the one-year warranty period and, after inspection confirms there is
a defect, Stack-On will, at its sole option, provide repair parts or exchange the product at no charge, or
refund the purchase price of the product.
THIS WARRANTY DOES NOT COVER ANY PRODUCT, OR ANY PART OF ANY PRODUCT, WHICH
HAS BEEN SUBJECT TO EXCESSIVE USE, ACCIDENT, NEGLIGENCE, ABUSE OR MISUSE,
INCORRECT MAINTENANCE, ALTERATION OR REPAIR BY ANYONE OTHER THAN STACK-ON. IN
ADDITION, THIS WARRANTY DOES NOT COVER ANY ACCESSORIES OR PARTS USED WITH OR IN
THE PRODUCT, WHICH ARE NOT INCLUDED WITH THE ORIGINAL PURCHASE.
THIS WARRANTY IS EXCLUSIVE AND EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES
EXPRESSED OR IMPLIED INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, WHICH ARE HEREBY DISCLAIMED AND EXCLUDED. STACK-ON
SHALL NOT BE SUBJECT TO ANY OTHER OBLIGATIONS OR LIABILITIES. STACK-ON NEITHER
ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT, ANY OTHER LIABILITY IN
CONNECTION WITH THE SALE OF STACK-ON’S STEEL CABINET OR PISTOL CASE.
STACK-ON WILL NOT, UNDER ANY CIRCUMSTANCES, BE LIABLE TO THE INITIAL CONSUMER FOR
ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, EXEMPLARY, OR PUNITIVE DAMAGES ARISING
OUT OF THE PURCHASE OR USE OF ANY STACK-ON STEEL CABINET OR PISTOL CAES.
STACK-ON’S LIABILITY FOR ANY BREACH OF THIS WARRANTY SHALL BE LIMITED EXCLUSIVELY
TO REPAIR OR REPLACEMENT OF THE DEFECTIVE PRODUCT, AS DESCRIBED ABOVE, OR A
REFUND OF THE PURCHASE PRICE OF THE PRODUCT.
IN NO EVENT SHALL STACK-ON’S OBLIGATION UNDER THIS WARRANTY EXCEED THE PRICE OF
THE PRODUCT.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS
WHICH VARY FROM STATE TO STATE.
40298-1202
6
18
Loading...
