ST STM8AF6268, STM8AF6248, STM8AF6266, STM8AF6246, STM8AF6226 User Manual

...

Download

STM8AF6x26/4x/66/68

LQFP48 7x7

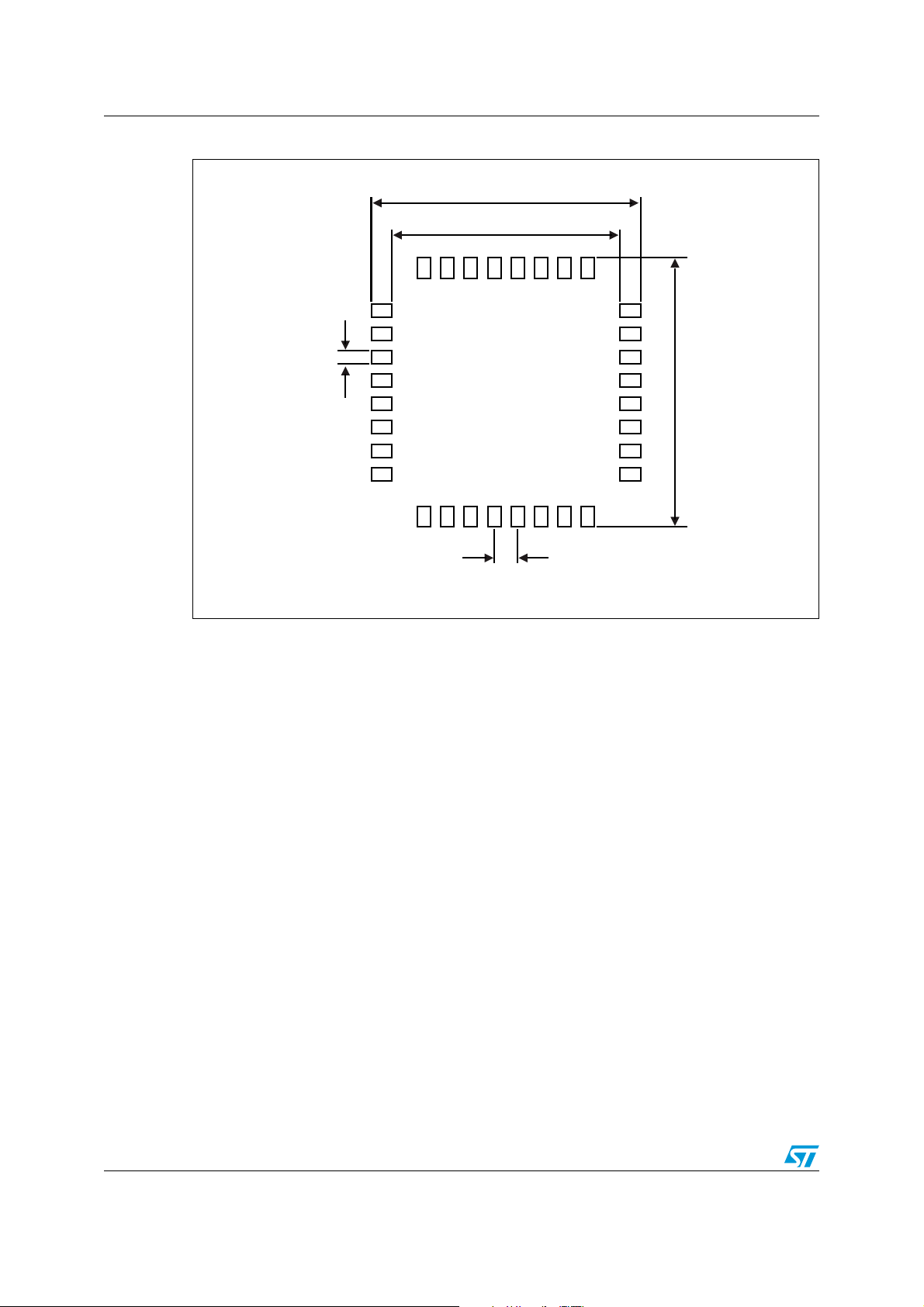

LQFP32 7x7

VFQFPN32 5x5

Automotive 8-bit MCU, with up to 32 Kbytes Flash, data EEPROM,

10-bit ADC, timers, LIN, SPI, I2C, 3 to 5.5 V

Datasheet − production data

Features

■ Core

–Max f – Advanced STM8A core with Harvard

architecture and 3-stage pipeline

– Average 1.6 cycles/instruction resulting in

10 MIPS at 16 MHz f standard benchmark

■ Memories

– Flash Program memory: 16 to 32 Kbytes

Flash; data retention 20 years at 55 °C after 1 kcycle

– Data memory: 0.5 to 1 Kbyte true data

EEPROM; endurance 300 kcycles

– RAM: 1 to 2 Kbytes

■ Clock management

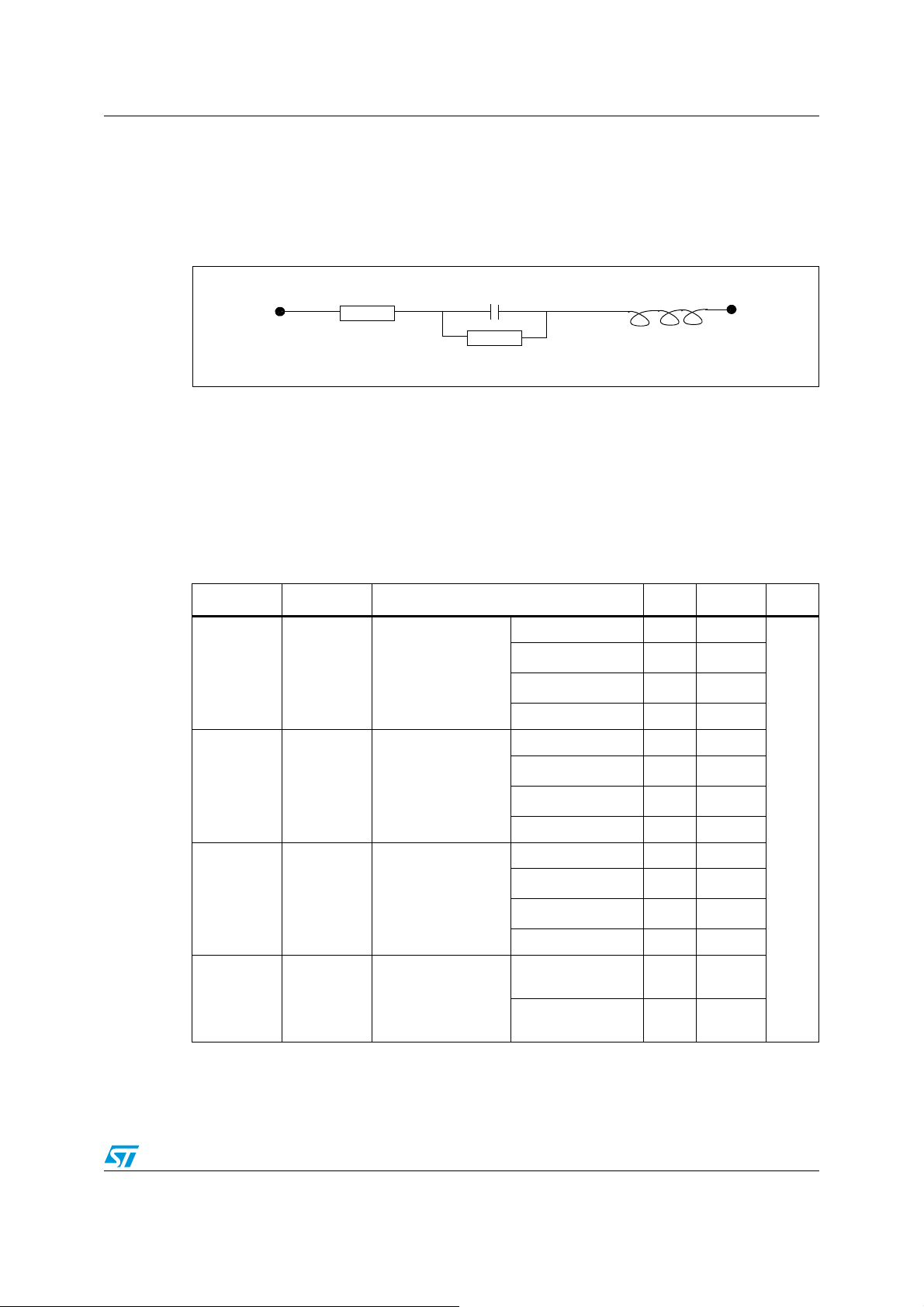

– Low-power crystal resonator oscillator with

external clock input

– Internal, user-trimmable 16 MHz RC and

low-power 128 kHz RC oscillators

– Clock security system with clock monitor

■ Reset and supply management

– Wait/auto-wakeup/Halt low-power modes

with user definable clock gating

– Low consumption power-on and power-

down reset

■ Interrupt management

– Nested interrupt controller with 32 vectors – Up to 34 external interrupts on 5 vectors

■ Timers

– Up to 2 general purpose 16-bit PWM timers

with up to 3 CAPCOM channels each (IC, OC or PWM)

– Advanced control timer: 16-bit, 4 CAPCOM

channels, 3 complementary outputs, dead-

time insertion and flexible synchronization – 8-bit AR basic timer with 8-bit prescaler – Auto-wakeup timer

CPU

: 16 MHz

for industry

CPU

– Window and independent watchdog timers

■ Communication interfaces

–LINUART – LIN 2.1 compliant, master/slave modes

with automatic resynchronization

– SPI interface up to 10 Mbit/s or f

–I

C interface up to 400 Kbit/s

■ Analog-to-digital converter (ADC)

MASTER

– 10-bit accuracy, 2LSB TUE accuracy, 2LSB

TUE linearity ADC and up to 10 multiplexed channels with individual data buffer

– Analog watchdog, scan and continuous

sampling mode

■ I/Os

– Up to 38 user pins including 10 HS I/Os – Highly robust I/O design, immune against

current injection

■ Operating temperature up to 150 °C

■ Qualification conforms to AEC-Q100 rev G

Table 1. Device summary

Part numbers: STM8AF622x/4x STM8AF6266/68

STM8AF6268, STM8AF6248, STM8AF6266, STM8AF6246, STM8AF6226

Part numbers: STM8AF612x/4x

STM8AF6168, STM8AF6148, STM8AF6166, STM8AF6146, STM8AF6126

In the order code, ‘F’ applies to devices with Flash program

memory and data EEPROM while ‘H’ refers to devices with Flash program memory only. ‘F’ is replaced by ‘P’ for devices with FASTROM (see Tables 2 and 3, and Figure 47).

2. Not recommended for new design.

(1)

(2)

STM8AF6166/68

(2)

July 2012 Doc ID 14952 Rev 6 1/89

This is information on a product in full production.

www.st.com
