ST24FC21, ST24FC21B, ST24F W21
1 Kbit (x8) Dual Mode Serial EEPROM
1 MILLION ERASE/WRITE CYCLES
40 YEARS DATA RETENTION
3.6V to 5.5V or 2.5V to 5.5V SINGLE SUPPLY
VOLT AGE
HARDWARE WRITE CONTROL (ST24LW21
and ST24FW21)
TTL SCHMITT-TRIGGER on VCLK INPUT
100k / 400k Hz COMPATIBILITY with the I2C
BUS BIT TRANSFER RANGE
TWO WIRE SERIAL INTERFACE I2C BUS
COMPATIBLE
I2C PAGE WRITE (up to 8 Bytes)
I2C BYTE, RANDOM and SEQUENTIAL READ
MODES
SELF TIMED PROGRAMMING CYCLE
AUTOMATIC ADDRESS INCREMENTING
ENHANCED ESD/LATCH UP
PERFORMANCES
ERROR RECOVERY MECHANISM
(ST24FC21 and ST24FW21) VESA 2
COMPATIBLE
ST24LC21B, ST24LW21
for VESA PLUG & P LAY
8
1
PSDIP8 (B)
0.25mm Frame
Figure 1. Logic Diagram
8
1
SO8 (M)
150mil Width
V
DESCRIPTION
CC
The ST24LC21B, ST24LW21, ST24FC21,
ST24FC21B and ST24FW21 are 1K bit electrically
erasable programmable memory (EEPROM), organized in 128x8 bits. In the text, products are
SCL
SDA
referred as ST24xy21, where "x" is either "L" for
VESA 1 or "F" for VESA 2 compatible memories
and where "y" indicates the Write Control pin con-
ST24xy21VCLK
nection: "C" means WC on pin 7 and "W" means
WC on pin 3.
WC
Table 1. Signal Names
V
SDA Serial Data Address Input/Output
2
SCL Serial Clock (I
V
CC
V
SS
VCLK Clock Transmit only mode
WC Write Control
June 2002 1/22
Supply Voltage
Ground
C mode)
Note: WC signal is on ly a v a ila b le f o r ST24LW21 and ST24FW21
products.
SS
AI01741
ST24LC21B, ST24LW21, ST24FC21, ST24FC21B, ST24FW21
Figure 2A. DIP Pin Connections
ST24LC21B
1
NC V
2
3
NC
4
SS
Warning: NC = Not Connected. Warning: NC = Not Connected.
8
7
6
5
AI01742
CC
VCLKNC
SCL
SDAV
Figure 2C. DIP Pin Connections
ST24FC21
ST24FC21B
1
NC V
2
3
DU
4
SS
8
7
6
5
AI01744
CC
VCLKNC
SCL
SDAV
Figure 2B. SO Pin Connections
ST24LC21B
NC V
1
2
NC
SS
3
4
AI01743
Figure 2D. SO Pin Connections
ST24FC21
ST24FC21B
NC V
DU
SS
1
2
3
4
AI01745
8
CC
7
VCLKNC
6
SCL
5
SDAV
8
CC
7
VCLKNC
6
SCL
5
SDAV
Warning: NC = Not Connected. DU = Don’t Use, must
be left open or connected to V
or VSS.
CC
Figure 2E. DIP Pin Connections
ST24FW21
ST24LW21
1
NC V
2
3
WC
4
SS
Warning: NC = Not Connected. Warning: NC = Not Connected.
2/22
8
7
6
5
AI01746
CC
VCLKNC
SCL
SDAV
Warning: NC = Not Connected. DU = Don’t Use, must
be left open or connected to V
Figure 2F. SO Pin Connections
ST24FW21
ST24LW21
NC V
WC
SS
1
2
3
4
AI01747
or VSS.
CC
8
7
6
5
CC
VCLKNC
SCL
SDAV
ST24LC21B, ST24LW21, ST24FC21, ST24F C21B, ST24FW21
Table 2. Absolute Maximum Ratings
Symbol Parameter Value Unit
T
T
STG
T
LEAD
V
V
V
ESD
Notes: 1. Except for the rating "Operating Temperature Range", stresses above those listed in the Table "Absolute Maximum Ratings"
Ambient Operating Temperature –40 to 85 °C
A
Storage Temperature –65 to 150 °C
Lead Temperature, Soldering (SO8 package)
Input or Output Voltages –0.3 to 6.5 V
IO
Supply Voltage –0.3 to 6.5 V
CC
Electrostatic Discharge Voltage (Human Body model)
Electrostatic Discharge Voltage (Machine model)
may ca use permanent damage to the device. These are stress ratings only and operation of the device at these or any other
conditions above those indicated in the Operating sections of this specification is not implied. Exposure to Absolute Maximum
Rating conditions for extended periods may affect device reliability. Refer also to the STMicroelectronics SURE Program and other
relevant quality docum ent s.
2. MIL-STD-883C, 3015.7 (100pF , 1500 Ω).
3. EIAJ IC-121 (Condition C) (200pF, 0 Ω).
(1)
(PSDIP8 package)
40 sec
10 sec
(2)
(3)
215
260
4000 V
500 V
Table 3A. Device Select Code (ST24LC21B, ST24LW21, ST24FC21 and ST24FW21)
Device Code Chip Enable RW
Bit b7 b6 b5 b4 b3 b2 b1 b0
Device Select 1 0 1 0 X X X R
Note: The MSB b7 is sent first.
X = 0 or 1.
°C
W
Table 3B. Device Select Code (ST24FC21B)
Device Code Chip Enable RW
Bit b7 b6 b5 b4 b3 b2 b1 b0
Device Select 1 010000R
Note: The MSB b7 is sent first.
X = 0 or 1.
DESCRIPTION (cont’d)
The ST24xy21 can operate in two modes: Trans-
mit-Only mode and I
2
C bidirectional mode. When
powered, the device is in Transmit-Only mode with
EEPROM data clocked out from the rising edge of
the signal applied on VCLK.
The device will switch to the I
upon the falling edge of the signal applied on SCL
pin. When in I
2
C mode, the ST24LC21B (or the
2
C bidirectional mode
ST24LW21) cannot switch back to the Transmit
Only mode (except when the power supply is removed). For the ST24FC21, ST24FC21B (or the
ST24FW21), after the falling edge of SCL, the
switch back to the Transmit-Only mode if no valid
2
C activity is observed. Both Plastic Dual-in -Line
I
and Plastic Small Outline packages are available.
Transmit Only Mode
After a Power-up, the ST24xy21 is in the Tra nsmit
Only mode. A proper initialization sequence (see
Figure 3) must supply nine clock pulses on the
VCLK pin (in order to internally synchronize the
device). During this initialization sequence, the
SDA pin is in high im pedance. On the rising edge
of the tenth pulse applied on VCLK pin, the device
will output the first bit of byte located at address 00h
(most significant bit first).
W
memory enter in a transition state which allowed to
3/22
ST24LC21B, ST24LW21, ST24FC21, ST24FC21B, ST24FW21
Figure 3. Transmit Only Mode Waveforms
V
CC
SCL
SDA
VCLK
V
CC
SCL
SDA
VCLK
Bit 7
tVPU
12 891011
Bit 6 Bit 4 Bit 0
Bit 5
12 13 17 18 19 20
Bit 7
Bit 6
Bit 6
AI01501
T able 4. I2C Operating Modes
R
W
Mode
bit
ST24FC21
ST24FC21B
VCLK
ST24LC21B
Current Address
Read
Random Address
Read
’1’ X X 1 START, Device Select, R
’0’ X X
’1’ X X reSTART, Device Select, R
Sequential Read ’1’ X X 1 to 128 Similar to Current or Random Mode
Byte Write ’0’ V
Page Write ’0’ V
Note: X = VIH or V
IL
IH
IH
4/22
ST24LW21
ST24FW21WCBytes Initial Sequence
W = ’1’
START, Device Select, RW = ’0’, Address,
1
W = ’1’
V
IH
V
IH
1 START, Device Select, RW = ’0’
8 START, Device Select, RW = ’0’
ST24LC21B, ST24LW21, ST24FC21, ST24F C21B, ST24FW21
Figure 4. Transition from Transmit Only (DDC1) to Bi-directional (DDC2B) Mode Waveforms
Transmit Only Mode
SCL
SDA
VCLK
- Temporary Bi-Directional Mode
(ST24FC21 and ST24FW21)
- Locked Bi-Directional Mode
(ST24LC21B and ST24LW21)
START
CONDITION
A byte is clocked out (on SDA pin) with nine clock
pulses on VCLK: 8 clock pulses for the data byte
and one extra clock pulse for a Don’t Care bit.
As long as the SCL pin is held high, each byte of
the memory array is transmitted serially on the SDA
pin with an automatic address increment.
When the last byte is transmitted, the address
counter will roll-over to location 00h.
2
C Bidirectional Mode
I
The ST24xy21 can be switched from T ransmit Only
mode to I
2
C Bidirectional mode by applying a valid
high to low transition on the SCL pin (see Figure 4).
– When the ST24LC21B (or the ST24FC21 or
the ST24FC21B) is in the I
2
C Bidirectional
mode, the VCLK input (pin 7) enables (or inhibits) the execution of any write instruction: if
VCLK = 1, write instructions are executed; if
VCLK = 0, write instructions are not executed.
– When the ST24LW 21 (or the ST24FW21) is in
2
C Bidirectional mode, the Write Control
the I
(WC on pin 3) input enables (or inhibits) the
execution of any write instruction: if WC = 1,
write instructions are executed;if WC = 0,
write instructions are not executed.
2
The ST24xy21 is compatible with the I
C standard,
two wire serial interface which uses a bidirectional
data bus and serial clock. The ST24xy21 carries a
built-in 4 bit, unique device identification code
(1010) named Dev ice Select code corresponding
2
to the I
unique device identification code (1010.0000 R
C bus definition. The ST24LC21B carries a
W)
- Locked Bi-Directional
Mode (ST24FC21
and ST24FW21)
1
MSB
2 89
ACK
named Device Select code corresponding to the
2
I
C bus definition.
The ST24xy21 behaves as a slave dev ice in the
2
C protocol with all memory operations synchro-
I
nized by the serial clock SCL. Read and write
operations are initiated by a STAR T condition generated by the bus master. The START condition is
followed by a stream of 7 bits, plus one read/write
bit and terminated by an acknowledge bit.
When data is written into the memory, the
ST24xy21 responds to the 8 bits received by asserting an acknowledge bit during the 9th bit time.
When data is read by the bus master, it must
acknowledge the receipt of the data bytes in the
same way. Data transfers are terminated with a
STOP condition (see READ and WRITE desc riptions in the following pages).
Power On Reset: V
lock out write protect
CC
In order to prevent data corruption and inadvertent
write operations during power up, a Power On
Reset (POR) circuit is implement ed. Until the V
voltage has reached the POR threshold value, the
internal reset is active, all operations are disabled
and the device will not respond to any c ommand.
In the same way, when V
drops down from the
CC
operating voltage to below the POR threshold
value, all operations are disabled and the dev ice
will not respond to any command. A stable V
must be applied before applying any logic signal.
Error Recovery Modes available in the
ST24FC21, ST24FC21B and the ST24FW21
AI01892
CC
CC
5/22
ST24LC21B, ST24LW21, ST24FC21, ST24FC21B, ST24FW21

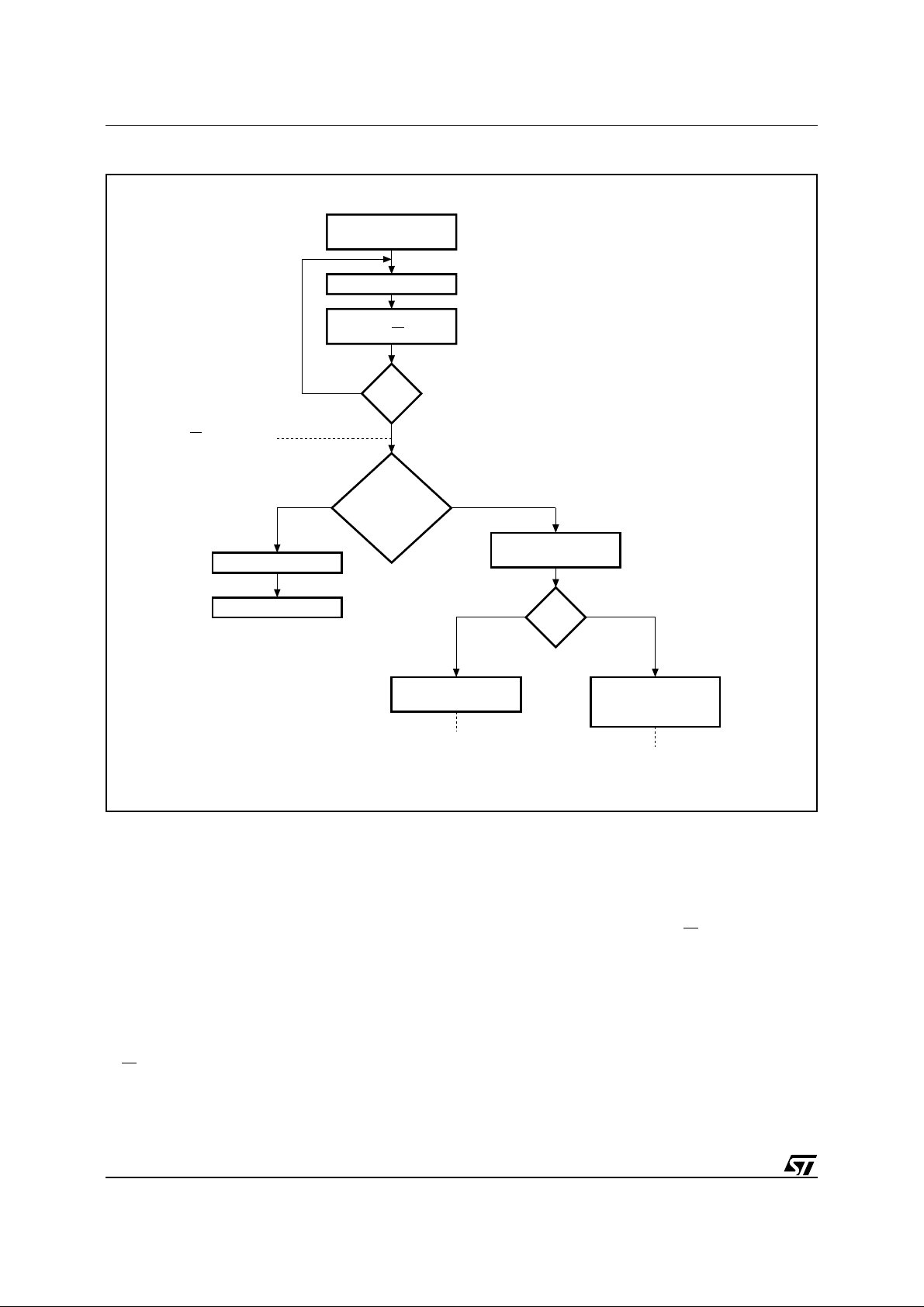

Figure 5. Error Recovery Mechanism Flowchart for the ST24FC21, ST24FC21B and ST24FW21
products
Memory Power On
Internal Address Pointer = 0
Transition
State
(VESA 2)
VCLK
NO
NO
VCLK Internal Counter = 0
Start Internal 2 sec Timer
(START + Device Select)
NO
SCL
SDA Hi-Z
SCL
NO
Valid
2
C access
I
VCLK
YES
YES
YES
?
Send Data bit (MSB first) pointed
by the Address Pointer and
auto-increment pointed bit/byte
Reset VCLK Internal Counter
and Reset Internal Timer
YES
I2C communication idle
waiting for a Device Select byte
Transmit-Only Mode
(DDC1)
6/22
Increment VCLK Counter
NO
Counter = 128
or Timer > 2 sec
Switch Back to
Transmit-Only Mode
YES
YES
Reset Counter and Timer
Send Acknowledge
Respond to the Incoming
2
C Command
I
I2C Mode
(DDC2B)
AI01748
ST24LC21B, ST24LW21, ST24FC21, ST24F C21B, ST24FW21
Figure 6. Maximum RL Value versus Bus Capacitance (C
20
16
12
8
Maximum RP value (kΩ)
4
0
10 1000
When the ST24FC21 (or the ST24FC21B or t he
ST24FW21) first switches to the I
DDC2B mode), it enters a transition state which is
functionally identical to I
ST24FC21 (or the ST 24FC21B or the ST24FW21)
does not receive a valid I
2
C operation. But, if the
2
C sequence, that is a
fc = 400kHz
100
C
(pF)
BUS
2
C mode (VESA
ST AR T condition followed by a valid Device Select
code (1010XXX R
ST24FW21; 1010000 R
W for ST24FC21 and
W for ST24FC21B), within
either 128 VCLK periods or a period of time of
t
RECOVERY
(approximately 2 seconds), the
ST24FC21 (or the ST 24FC21B or the ST24FW21)
will revert to the Transmit-Only m ode (VESA DDC1
mode).
If the ST24FC21 (or the ST24FC21B or the
ST24FW21) decodes a valid I
code, it will lock into I
2
C mode. Under this condition,
2
C Device Select
signals applied on the VCLK input will not disturb
READ access from the ST24FC21 (or the
ST24FC21B or the ST24FW21). For WRITE access, refer to the Signal Description paragraph.
When in the transition state, the count of VCLK
pulses and the internal 2 seconds timer are reset
by any activity on the SCL line. This me ans that,
after each high to low transition on SCL, the memory will re-initialise its transition state and will switch
back to Transmit-Only mode only after 128 more
VCLK pulses or after a new t
RECOVERY
delay.
fc = 100kHz
I
to synchronize all data in and out of the memory. A
resistor can be connected from the SCL line to V
to act as a pull up (see Figure 6).
Serial Data (SDA). The SDA pin is bi-directional
and is used to transfer data in or out of the memory.
It is an open drain output that may be wire-OR’ed
with other open drain or open collector signals on
the bus. A resistor must be connected from the SDA
bus line to V
Tr ansmit Only Clock (VCLK). The VCLK input pin
is used to synchronize data out when the ST24xy21
is in Transmit Only mode.
For the ST24LC21B and the ST24FC21 or
ST24FC21B Only, the VCLK offers also a Write
Enable (active high) function when the ST24LC21B
and the ST24FC21 or ST24FC21B are in I
rectional mode.
Write Control (WC). An hardware Wri te Control
feature (WC) is offered only on ST24LW21 and
ST24FW21 on pin 3. This feature is usefull to
protect the contents of the memory from any erroneous erase/write cycle. The Write Control signal
is used to enable (WC = V
the internal write protection. When unconnected,
the WC input is internally tied to V
pull-down resistor and the memory is write pro-
2
C Serial Clock (SCL). The SCL input pin is used
tected.
SIGNAL DESCRIPTIONS
DEVICE OPERATION
) for an I2C Bus
BUS
V
MASTER
to act as pull up (see Figure 6).
CC
CC
R
SDA
SCL
) or disable (WC = VIH)
IL
R
L
SS
L
C
BUS
AI01665
by a 100k ohm
C
BUS
2
C bidi-
CC
7/22
ST24LC21B, ST24LW21, ST24FC21, ST24FC21B, ST24FW21
Table 5. Input Parameters
(1)
(TA = 25 °C, f = 100 kHz )
Symbol Parameter Test Condition Min Max Unit
C
IN
C
IN
t
LP
Note: 1. Sampled only, not 100% tested.
Input Capacitance (SDA) 8 pF
Input Capacitance (other pins) 6 pF
Low-pass filter input time constant
(SDA and SCL)
200 500 ns
Table 6A. DC Characteristics (ST24LC21B, ST24LW21, ST24FC21 and ST24FW21)
= –40 to 85 °C; VCC = 3.6V to 5.5V)
(T
A
Symbol Parameter Test Condition Min Max Unit
I
I
I
CC1
I
CC2
V
V
V
V
V
V
I
LI
LO
CC
IL
IH
P
N
H
OL
Input Leakage Current 0V ≤ VIN≤ V
Output Leakage Current
Supply Current
Supply Current V
Supply Current (Standby)
Supply Current (Standby)
0V ≤ V
SDA in Hi-Z
V
= 5V, fC = 400kHz
CC
(Rise/Fall time < 10ns)
= 3.6V, fC = 400kHz 1 mA
CC
V
= VSS or VCC,
IN
V
CC
V
= VSS or VCC,
IN
= 5V, fC = 400kHz
V
CC
= VSS or VCC,
V
IN
V
CC
= VSS or VCC,
V
IN
V
= 3.6V, fC = 400kHz
CC
≤ V
OUT
= 5V, fC = 0
= 3.6V, fC = 0
Input Low Voltage
(SCL, SDA, WC)
Input High Voltage
(SCL, SDA, WC)
= 5.5V 1.4 2.1 V
V
High Level Threshold Voltage
(Schmitt Trigger on VLCK)
Low Level Threshold Voltage
(Schmitt Trigger on VLCK)
Hysteresis Voltage
(Schmitt Trigger on VLCK)
Output Low Voltage
CC
V
= 4.5V 1.2 1.9 V
CC
= 3.6V 1 1.7 V
V
CC
= 5.5V 0.6 1.4 V
V
CC
= 4.5V 0.5 1.2 V
V
CC
V
= 3.6V 0.4 1 V
CC
= 5.5V 0.4 1.5 V
V
CC
V
= 4.5V 0.4 1.4 V
CC
= 3.6V 0.35 1.3 V
V
CC
= 3mA, VCC = 3.6V 0.4 V
I
OL
= 6mA, VCC = 5V 0.6 V
I
OL
CC
CC
–0.3 0.3 V
0.7 V
CC
±2 µA
±2 µA
2mA
100 µA
300 µA
30 µA
100 µA
CC
VCC + 1 V
V
8/22
ST24LC21B, ST24LW21, ST24FC21, ST24F C21B, ST24FW21
Table 6B. DC Characteristics (ST24FC21B)
= –40 to 85 °C; VCC = 2.5 to 5.5V)
(T
A
Symbol Parameter Test Condition Min
I
LI
I
LO
I
CC
I
CC1
I
CC2
V
IL
V
IH
V
P
V
N
V
OL
Note 1: Preliminary results.
Input Leakage Current 0V ≤ VIN≤ V
Output Leakage Current
Supply Current
Supply Current V
Supply Current (Standby)
Supply Current (Standby)
0V ≤ V
SDA in Hi-Z
V
= 5V, fC = 400kHz
CC
(Rise/Fall time < 10ns)
= 2.5V, fC = 400kHz 1 mA
CC
V
= VSS or VCC,
IN
V
CC
V
= VSS or VCC,
IN
V
= 5V, fC = 400kHz
CC
= VSS or VCC,
V
IN
V
CC
V
= VSS or VCC,
IN
V
= 2.5V, fC = 400kHz
CC
≤ V
OUT
= 5V, fC = 0
= 2.5V, fC = 0
Input Low Voltage
(SCL, SDA, WC)
Input High Voltage
(SCL, SDA, WC)
V
= 5.0V 1.2 1.9 V
High Level Threshold Voltage
(Schmitt Trigger on VLCK)
Low Level Threshold Voltage
(Schmitt Trigger on VLCK)
Output Low Voltage
CC
= 2.5V 0.8 1.4 V
V
CC
V
= 5.0V 0.6 1.7 V
CC
= 2.5V 0.5 1.1 V
V
CC
= 2.1mA, VCC = 2.5V 0.4 V
I
OL
= 6mA, VCC = 5V 0.6 V
I
OL
CC
CC
(1)
–0.3 0.3 V
0.7 V
CC
(1)
Max
Unit
±2 µA
±2 µA
2mA
100 µA
300 µA
30 µA
100 µA
CC
V
VCC + 1 V
9/22
ST24LC21B, ST24LW21, ST24FC21, ST24FC21B, ST24FW21
T ab le 7. AC Characteristics, I2C Bidirectional Mode for Clock Frequency = 400kHz
= –40 to 85 °C; VCC = 3.6 to 5.5V or VCC = 2.5 to 5.5V)
(T
A
Symbol Alt Parameter Min Max Unit
t
t
t
Notes: 1. Sampled only, not 100% tested.
(1)
CH1CH2
(1)
CL1CL2
(1)
DH1DH2
(1)
t
DL1DL2
(2)
t
CHDX
t
CHCL
t
DLCL
t
CLDX
t
CLCH
t
DXCX
t
CHDH
t
DHDL
t
CLQV
t
CLQX
f
C
t
tWRWrite Time 10 ms
W
2. For a reSTART condition, or following a write cycle.
t
t
t
t
t
SU:STA
t
HIGH
t
HD:STA
t
HD:DAT
t
LOW
t
SU:DAT
t
SU:STO
t
BUF
t
AA
t
DH
f
SCL
R
F
R
F
Clock Rise Time 300 ns
Clock Fall Time 300 ns
SDA Rise Time 20 300 ns
SDA Fall Time 20 300 ns
Clock High to Input Transition 600 ns
Clock Pulse Width High 600 ns
Input Low to Clock Low (START) 600 ns
Clock Low to Input Transition 0 µs
Clock Pulse Width Low 1.3 µs
Input Transition to Clock Transition 100 ns
Clock High to Input High (STOP) 600 ns
Input High to Input Low (Bus Free) 1.3 µs
Clock Low to Data Out Valid 200 900 ns
Clock Low to Data Out Transition 200 ns
Clock Frequency 400 kHz
2
I
C Bus Background
The ST24xy21 supports the I
2
C protocol. This protocol defines any device that sends data ont o the
bus as a transmitter and any device that reads the
data as a receiver. The device that controls the data
transfer is known as the master and the other as
the slave. The master will always initiate a data
transfer and will provide the serial clock for synchronisation. The ST24xy21 are always slave devices in all communications.
Start Condition . START is identified by a high to
low transition of the SDA line while the clock SCL
is stable in the high state. A START condition must
precede any command for data transfer. Except
during a programming cycle, the ST24xy21 continuously monitor the SDA and SCL signals for a
START condition and will not respond unless one
is given.
The ST24LC21B, ST24LW21, ST24FC21 and
ST24FW21 are not executing a START condition if
this ST ART condition happens at any time inside a
byte. The ST24FC21B executes a START condition when this START condition happens at any
time inside a byte.
Stop Condition. STOP is identified by a low to high
transition of the SDA line while the clock SCL is
stable in the high s tate. A STOP c ondition terminates communication between the ST24xy21 and
the bus master. A STOP condition at the end of a
Read command (after the No ACK) forces the
standby state. A STOP condition at the end of a
Write command triggers the internal EEPROM
write cycle.
The ST24LC21B, ST24LW21, ST24FC21 and
ST24FW21 are n ot executing a STOP condition if
this STOP c ondition happens at any time inside a
byte. The ST24FC21B executes a STOP condition
when this STOP condition happens at any time
inside a byte.
Acknowledge Bit (ACK). An acknowledge signal
is used to indicate a successfull data transfer. The
bus transmitter, either master or slave, will release
the SDA bus after sending 8 bits of data. During the
9th clock pulse period the receiver pulls the SDA
bus low to acknowledge the receipt of the 8 bits of
data.
Data Input. During data input, the ST 24x y21 sa mple the SDA bus signal on the rising edge of the
clock SCL. Note that for correct device operation
10/22
ST24LC21B, ST24LW21, ST24FC21, ST24F C21B, ST24FW21
T ab le 8. AC Characteristics, I2C Bidirectional Mode for Clock Frequency = 100kHz
= –40 to 85 °C; VCC = 3.6V to 5.5V)
(T
A
Symbol Alt Parameter Min Max Unit
t
CH1CH2
t
CL1CL2
t
DH1DH2
t
DL1DL1
(1)
t
CHDX
t
CHCL
t
DLCL
t
CLDX
t
CLCH
t
DXCX
t
CHDH
t
DHDL
(2)
t
CLQV
t
CLQX
f
C
t
W
Notes: 1. For a reSTART condition, or following a write cycle.
2. The minimum value delays the falling/rising edge of SDA away fro m SCL = 1 in order to avoid unwanted START and/or STOP
conditions.
t
t
t
t
t
SU:STA
t
HIGH
t
HD:STA
t
HD:DAT
t
LOW
t
SU:DAT
t
SU:STO
t
BUF
t
AA
t
DH
f
SCL
t
WR
R
F
R
F
Clock Rise Time 1 µs
Clock Fall Time 300 ns
Input Rise Time 1 µs
Input Fall Time 300 ns
Clock High to Input Transition 4.7 µs
Clock Pulse Width High 4 µs
Input Low to Clock Low (START) 4 µs
Clock Low to Input Transition 0 µs
Clock Pulse Width Low 4.7 µs
Input Transition to Clock Transition 250 ns
Clock High to Input High (STOP) 4.7 µs
Input High to Input Low (Bus Free) 4.7 µs
Clock Low to Next Data Out Valid 0.2 3.5 µs
Data Out Hold Time 200 ns
Clock Frequency 100 kHz
Write Time 10 ms
T ab le 9. AC Characteristics, Transmit-only Mode
= –40 to 85 °C; VCC = 3.6V to 5.5V)
(T
A
Symbol A lt Parameter Min Max Unit
t
VCHQX
t
VCHVCL
t
VCLVCH
t
CLQZ
(1,2)
t
VPU
(2)
t
VH1VH2
(2)
t
VL1VL2
t
RECOVERY
Notes: 1. Refer to Figure 3.
(2)
2. Sampled only, not 100% tested.
t
VAA
t
VHIGH
t
VLOW
t
VHZ
t
t
Output Valid from VCLK 500 ns
VCLK High Time 600 ns
VCLK Low Time 1.3 µs
Mode Tansition Time 500 ns
Transmit-onl y Power-up Time 0 ns
R
F
VCLK Rise Time 1 µs
VCLK Fall Time 1 µs
Recovery Time 1.5 3.5 sec
11/22
ST24LC21B, ST24LW21, ST24FC21, ST24FC21B, ST24FW21
Figure 7. AC Waveforms
SCL
SDA IN
SCL
SDA OUT
SCL
tCHCL
tDLCL
tCHDX
START
CONDITION
tCLQV tCLQX
tDHDL
tCLDX
SDA
INPUT
DATA VALID
DATA OUTPUT
SDA
CHANGE
tW
tCLCH
tDXCX
tCHDH
tDHDL
STOP &
BUS FREE
SDA IN
VCLK
SDA
SCL
tCHDH
STOP
CONDITION
WRITE CYCLE
tVCHVCL tVCLVCH
tVCHQX
tCHDX
START
CONDITION
tCLQZ
AI01503
12/22
ST24LC21B, ST24LW21, ST24FC21, ST24F C21B, ST24FW21
T able 10. AC Measurement Conditions
Input Rise and Fall Times ≤ 50ns
Input Pulse Voltages SDA, SCL 0.2V
Input Pulse Voltages V
CLK
Input and Output Timing Ref.
Voltages
to 0.8V
CC
0.4V to 2.4V
0.3V
to 0.7V
CC
Figure 9. I2C Bus Protocol
SCL
SDA
START
CONDITION
CC
CC
SDA
INPUT
Figure 8. AC Testing Input Output Waveforms
0.8V
CC
0.2V
CC
SDA
CHANGE
STOP
CONDITION
0.7V
0.3V
AI00825
CC
CC
SCL
SDA
SCL
SDA
START
CONDITION
1 23 789
MSB
1 23 789
MSB ACK
ACK
STOP
CONDITION
AI00792
13/22
ST24LC21B, ST24LW21, ST24FC21, ST24FC21B, ST24FW21
Figure 10. Write Cycle Polling using ACK
WRITE Cycle
in Progress
START Condition
DEVICE SELECT
with RW = 0
ACK
NO
Returned
First byte of instruction
with RW = 0 already
decoded by ST24xxx
ReSTART
STOP
YES
Next
Operation is
Addressing the
Memory
WRITE Operation
the SDA s ignal must be stable during the clock low
to high transition and the data must change O NLY
when the SCL line is low.
Memory Addressing. To start communication between the bus master and the slave ST24xy21, the
master must initiate a STA RT condition. Following
this, the master sends onto the SDA bus line 8 bits
(MSB first) corresponding to the Device Select
code (7 bits) and a READ or WRITE bit. The 4 most
significant bits of the Device Select code are the
device type identifier, corresponding to the I
2
C bus
definition. For these memories the 4 bits are fixed
as 1010b. The 8th bit sent is the read or write bit
W), this bit is s et to ’1’ for read and ’0’ for write
(R
operations. If a match is found, the corresponding
YESNO
Send
Byte Address
Proceed
Proceed
Random Address
READ Operation
AI01099B
memory will acknowledge the identification on the
SDA bus during the 9th bit time.
Write Operations
Following a START condition the master sends a
Device Select code with the R
W bit set to ’0’. The
memory acknowledges this and waits for a byte
address. After receipt of the byte address the device again responds with an acknowledge.
2
C bidirectional mode, any write command with
In I
VCLK=0 (for the ST24LC21B and ST24FC21,
ST24FC21B) or with WC=0 (for the ST24LW21 and
ST24FW21) will not modify data and will be acknowledged on data bytes, as shown in Figure 12.
Byte Write. In the Byte Write mode the master
sends one data byte, which is acknowledged by the
14/22
ST24LC21B, ST24LW21, ST24FC21, ST24F C21B, ST24FW21
Figure 11. Write Modes Sequence
VCLK/WC
BYTE WRITE DEV SEL BYTE ADDR DATA IN
ACK ACK ACK
VCLK/WC
PAGE WRITE
R/W
START
ACK
DEV SEL BYTE ADDR
R/W
START
ACK ACK
DATA IN N
STOP
ACK ACK
DATA IN 1 DATA IN 2
STOP
AI01893
memory. The master then terminates the transfer
by generating a STOP condition.
Page Wri te . The Page Write mode allows up to 8
bytes to be written in a single write cycle, provided
that they are all located in the same ’row’ in the
memory: that is the most significant memory address bits are t he same. The master sends from
one up to 8 bytes of data, which are each acknowledged by the memory.
After each byte is transfered, the internal byte
address counter (3 least significant bits only) is
incremented. The transfer is terminated by the
master generating a STOP condition. Care must be
taken to avoid address counter ’roll-over’ which
could result in data being overwritten. Note that, for
any write mode, the generation by the master of the
STOP condition starts the internal memory program cycle. All inputs are disabled until the completion of this cycle and the memory will not respond
to an y request.
Minimizing System Delays by Polling On ACK.
During the internal write cycle, the memory disconnects itself from the bus in order to copy the data
from the internal latches to the memory cells. The
maximum value of the write time (t
) is given in the
W
AC Characteristics table, since the t ypical time is
shorter, the time seen by t he system may be reduced by an ACK polling sequence issued by the
master. T he sequence is as follows:
– Initial condition: a Write is in progress (see Fig-
ure 10).
15/22
ST24LC21B, ST24LW21, ST24FC21, ST24FC21B, ST24FW21
Figure 12. Inhibited Write when VCLK/WC = 0
VCLK/WC
CONTROL
BYTE
ACK ACK
BYTE WRITE
START
CONTROL
BYTE
PAGE WRITE WORD ADD n DATA n DATA n + 1
START
– Step 1: the Master issues a START condition
followed by a Device Select byte (1st byte of
the new instruction).
– Step 2: if the memory is busy with the internal
write cycle, no ACK will be returned and the
master goes back to Step 1. If the memory
has terminated the internal write cycle, it will
respond with an ACK, indicating that the memory is ready to receive the second part of the
instruction (the first byte of this instruction was
already sent during Step 1).
Read Operations
On delivery, the memory content is set at all "1’s"
(or FFh).
Current Address Read. The memory has an internal byte address counter. Each time a byte is read,
this counter is incremented. For the Current Address Read mode, following a START condition,
the master sends the Device Select code with the
W bit set to ’1’. The memory acknowledges this
R
and outputs the data byte addressed by the internal
byte address counter. This counter is then incremented. The master must NOT acknowledge the
data byte output and terminates the transfer with a
STOP condition.
WORD ADDR DATA
ACK
ACK
ACK
Random Address Read. A dummy write is performed to load the address into the address
counter, s ee Figure 14. This is followed by a ReSTART condition send by the master and the Device Select code is repeated with the RW bit set t o
’1’. The memory acknowledges this and outputs the
addressed data byte. The master must NOT acknowledge the data byte output and terminates the
transfer with a STOP condition.
Sequential Read. This mode can be initiated with
either a Current Address Read or a Random Address Read. However, in this case the master
DOES acknowledge the data byte output and the
memory continues to output the next byte in sequence. To terminate the stream of bytes, the
master must NOT acknowledge the last data byte
output, and MUST generate a STOP condition.
The output data is from consecutive byte addresses, with the internal byte address counter
automatically incremented after each byte output.
After a count of the last memory address, the
address counter will ’roll-over’ and the memory will
continue to output data.
Acknowledge in Read Mode. In all read modes
the ST24xy21 wait for an acknowledge during the
9th bit time. If the master does not pull the SDA line
ACK
STOP
ACKACK
DATA n + 7
STOP
AI01894
16/22
ST24LC21B, ST24LW21, ST24FC21, ST24F C21B, ST24FW21
Figure 13. Recommended Schematic for VESA 2.0 Specification
+5V
SCL
SDA
VSync
9
15
12
14
low during this time, the ST24xy21 terminate t he
data transfer and switches to a standby state.
NOTE CONCERNING THE POWER SUPPLY
VOLTAGE IN THE VESA 2.0 SPECIFICATION
According to the VESA 2.0 specification, the
ST24xy21 can be supplied by either the MONITOR
or by the HOST (using +5V on the VGA cable pin
9) power supply. The easyest way to implement this
is to use 2 diodes as described in the following
+5V Monitor
V
SCL
SDA
VCLK
CC
100nF
V
SS
AI01749
47kΩ
MONITORHOST VGA Cable
schematic. The ST24xy21 supply voltage will be
decreased by 0.6V, which is the diode forward
voltage drop, and will be below 4.5V. Nevertheless,
the ST24xy21 remains operational and no input will
be damaged if the applied voltage on any input
complies with the Absolute Maximum Ratings values.
Under this condition, the threshold voltage of the
Schmitt-Trigger (pin 7) will be decreased (as in
Table 6).
17/22
ST24LC21B, ST24LW21, ST24FC21, ST24FC21B, ST24FW21
Figure 14. Read Modes Sequence
CURRENT
ADDRESS
READ
RANDOM
ADDRESS
READ
SEQUENTIAL
CURRENT
READ
SEQUENTIAL
RANDOM
READ
ACK
DEV SEL DATA OUT
R/W
START
ACK
DEV SEL * BYTE ADDR
R/W
START
ACK ACK ACK NO ACK
DEV SEL DATA OUT 1
R/W
START
ACK ACK
DEV SEL * BYTE ADDR
NO ACK
STOP
ACK ACK
DEV SEL * DATA OUT
R/W
START
DEV SEL * DATA OUT 1
NO ACK
STOP
DATA OUT N
STOP
ACK ACK
R/W
START
ACK NO ACK
DATA OUT N
STOP
Note: * The 7 Most Significant bits of DEV SEL bytes of a Random Read (1st byte and 3rd byte) must be identical.
START
R/W
AI00794C
18/22
ST24LC21B, ST24LW21, ST24FC21, ST24F C21B, ST24FW21
ORDERING INFORMATION SCHEME
Example: ST24LC21B M 1 TR
Family Range
ST24LC21B VESA 1
WC on pin 7
ST24LW21 VESA 1
WC on pin 3
ST24FC21 VESA 2
WC on pin 7
Device Select=1010.xxx
ST24FC21B VESA 2, 2.5V
WC on pin 7
Device Select=1010.000
ST24FW21 VESA 2
WC on pin 3
Package
B PSDIP8
0.25mm Frame
M SO8
150mil Width
Temperature Range
1 0 to 70 °C
6 –40 to 85 °C
Option
TR Tape & Reel
Packing
Devices are shipped from the factory with the memory content set at all "1’s" (FFh).
For a list of available options (Package, etc...) or for further information on any aspect of this device, please
contact the STMicroelectronics Sales Office nearest to you.
19/22
ST24LC21B, ST24LW21, ST24FC21, ST24FC21B, ST24FW21
PSDIP8 - 8 pin Plasti c S k inny DIP, 0.25mm lea d frame
Symb
Typ Min Max Typ Min Max
A 3.90 5.90 0.154 0.232
A1 0.49 – 0.019 –
A2 3.30 5.30 0.130 0.209
B 0.36 0.56 0.014 0.022
B1 1.15 1.65 0.045 0.065
C 0.20 0.36 0.008 0.014
D 9.20 9.90 0.362 0.390
E 7.62 – – 0.300 – –
E1 6.00 6.70 0.236 0.264
e1 2.54 – – 0.100 – –
eA 7.8 0 – 0.307 –
eB 10.00 0.394
L 3.00 3.80 0.118 0.150
N8 8
PSDIP8
mm inches
Drawing is not to scale.
20/22
A2
A1AL
B
e1
B1
D
N
C
eA
eB
E1 E
1
PSDIP-a
ST24LC21B, ST24LW21, ST24FC21, ST24F C21B, ST24FW21
SO8 - 8 lead Plastic Small Outline, 150 mils body width
Symb
Typ Min Max Typ Min Max
A 1.35 1.75 0.053 0.069
A1 0.10 0.25 0.004 0.010
B 0.33 0.51 0.013 0.020
C 0.19 0.25 0.007 0.010
D 4.80 5.00 0.189 0.197
E 3.80 4.00 0.150 0.157
e 1.27 – – 0.050 – –
H 5.80 6.20 0.228 0.244
h 0.25 0.50 0.010 0.020
L 0.40 0.90 0.016 0.035
α 0° 8° 0° 8°
N8 8
CP 0.10 0.004
SO8
mm inches
Drawing is not to scale.
B
SO-a
h x 45˚
A
C
e
CP
D
N
E
H
1
LA1 α
21/22
ST24LC21B, ST24LW21, ST24FC21, ST24FC21B, ST24FW21
Information furnished is believed to be accurate and reliable. However, STMicroelectroni cs assumes no responsibility for the consequences
of use of such information nor for any infringement of patents or other rights of third parties which may result from its use. No license is granted
by implication or otherwise under any patent or patent rights of STMicroelectronics. Specifications mentioned in this publication are subject to
change without notice. This publication supersedes and repl aces all information previously supplied. STMicroelectron ics products are not
authorized fo r use as critical components in life support devices or systems without express written approval of STMicroelectronics.
The ST logo is a registered trademark of STMicroelectronics
© 2002 STMicroelectronics - All Rights Reserved
All other nam es are the propert y of their respective owners
2
2
I
Purchase of I
C Patent. Rights to use these components in an I2C system, is granted provide d that the system conforms to
Australia - Brazil - Canada - China - France - Germany - Italy - Japan - Korea - Malaysia - Malta - Mexico - Morocco - The Netherlands -
C Components by STMicroelectronics, conveys a license under the Philips
2
C Standard Specifications as defined by Philips.
the I
STMicroelectronics GROUP OF COMPANIES
Singapore - Spain - Sweden - Switzerland - Taiwan - Thailand - United Kingdom - United States
http://www.st.com
22/22
WWW.ALLDATASHEET.COM
Copyright © Each Manufacturing Company.
All Datasheets cannot be modified without permission.
This datasheet has been download from :
www.AllDataSheet.com
100% Free DataSheet Search Site.
Free Download.
No Register.
Fast Search System.
www.AllDataSheet.com
Loading...
