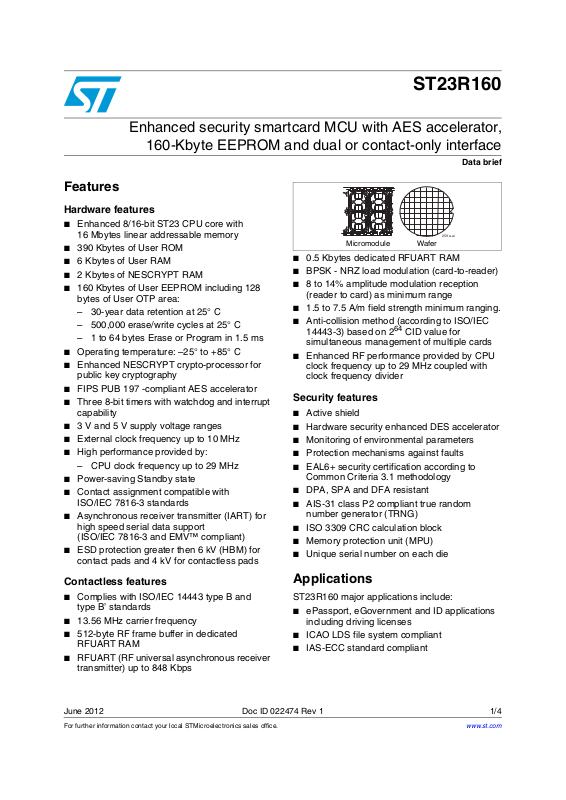

Page 1
Enhanced security smartcard MCU with AES accelerator,
259a.ai
Micromodule Wafer
160-Kbyte EEPROM and dual or contact-only interface
Features
Hardware features
■ Enhanced 8/16-bit ST23 CPU core with
16 Mbytes linear addressable memory
■ 390 Kbytes of User ROM
■ 6 Kbytes of User RAM
■ 2 Kbytes of NESCRYPT RAM
■ 160 Kbytes of User EEPROM including 128
bytes of User OTP area:
– 30-year data retention at 25° C
– 500,000 erase/write cycles at 25° C
– 1 to 64 bytes Erase or Program in 1.5 ms
■ Operating temperature: –25° to +85° C
■ Enhanced NESCRYPT crypto-processor for
public key cryptography
■ FIPS PUB 197 -compliant AES accelerator
■ Three 8-bit timers with watchdog and interrupt
capability
■ 3 V and 5 V supply voltage ranges
■ External clock frequency up to 10 MHz
■ High performance provided by:
– CPU clock frequency up to 29 MHz
■ Power-saving Standby state
■ Contact assignment compatible with
ISO/IEC 7816-3 standards
■ Asynchronous receiver transmitter (IART) for
high speed serial data support
(ISO/IEC 7816-3 and EMV™ compliant)
■ ESD protection greater then 6 kV (HBM) for
contact pads and 4 kV for contactless pads
ST23R160
Data brief
■ 0.5 Kbytes dedicated RFUART RAM
■ BPSK - NRZ load modulation (card-to-reader)
■ 8 to 14% amplitude modulation reception
(reader to card) as minimum range
■ 1.5 to 7.5 A/m field strength minimum ranging.
■ Anti-collision method (according to ISO/IEC
14443-3) based on 2
simultaneous management of multiple cards
■ Enhanced RF performance provided by CPU
clock frequency up to 29 MHz coupled with
clock frequency divider
Security features
■ Active shield
■ Hardware security enhanced DES accelerator
■ Monitoring of environmental parameters
■ Protection mechanisms against faults
■ EAL6+ security certification according to
Common Criteria 3.1 methodology
■ DPA, SPA and DFA resistant
■ AIS-31 class P2 compliant true random
number generator (TRNG)
■ ISO 3309 CRC calculation block
■ Memory protection unit (MPU)
■ Unique serial number on each die
64
CID value for
Contactless features
■ Complies with ISO/IEC 14443 type B and
type B’ standards
■ 13.56 MHz carrier frequency
■ 512-byte RF frame buffer in dedicated
RFUART RAM
■ RFUART (RF universal asynchronous receiver
Applications
ST23R160 major applications include:
■ ePassport, eGovernment and ID applications
including driving licenses
■ ICAO LDS file system compliant
■ IAS-ECC standard compliant
transmitter) up to 848 Kbps
June 2012 Doc ID 022474 Rev 1 1/4
For further information contact your local STMicroelectronics sales office.
www.st.com
1
Page 2
Description ST23R160
1 Description
ST23R160 devices are serial access microcontrollers custom-designed for secure
smartcard applications.
They are based on an enhanced STMicroelectronics 8/16-bit CPU core offering 16 Mbytes
linear addressing space. They are manufactured using an advanced highly reliable
ST CMOS EEPROM technology.
An RF Interface including an RF universal asynchronous receiver transmitter (RFUART)
enables contactless communication up to 848 Kbits/s compatible with the ISO 14443-B
standard and also enables Innovatron (type B’) communication.
Moreover, an ISO/IEC 7816-3 EMV-compliant asynchronous receiver transmitter (IART)
communication peripheral is available.
Figure 1. ST23R160 block diagram
3 x
8-bit
EDES
Accelerator
Security
Monitor-
ing and
Control
RESET
RAM
RF
Inter-
face
AC0 AC1
User
ROM
RF UART
RAM
RF UART
EEPROM
CRC
Module
ST ROM
(Boot software)
ST ROM Firewall
Internal Bus
Clock
Gene-
rator
Module
CLK
Timers
Note: Certain interfaces are not available on some devices.
Accelerator
Tr ue
Random
Number
Gene-
rator
GND
Vcc
AES
NESCRYPT
NESCRYPT RAM
MPU
IART
8/16-bit
CPU
Core
2 I/Os
Ai18129
2/4 Doc ID 022474 Rev 1
Page 3
ST23R160 Revision history
1.1 Development environment
Development tools for smartcard products include a complete range of hardware systems
and software tools from STMicroelectronics and third-party tool suppliers. The range of tools
includes solutions to help you to develop and debug your application and evaluate
smartcard products and their peripherals.
An Integrated Development Environment (IDE), the ST Visual Develop (STVD), provides a
set of tools for developing embedded applications. This interface manages the project
configuration, code edition, code generation and program debugging.
All the information needed to generate the application code and personalization will be
collected in a delivery file (.DLV extension). This file is created using the Delivery menu of
the STMicroelectronics configuration software tool, SCOOL.
2 Revision history
Table 1. List of modifications
Date Revision Changes
13-Jun-2012 1 First release.
Doc ID 022474 Rev 1 3/4
