Very low drop voltage regulators with inhibit
Features
■ Very low dropout voltage (0.4 V)
■ Very low quiescent current
■ (Typ. 50 µA in off mode, 600 µA in on mode)
■ Output current up to 250 mA
■ Logic-controlled electronic shutdown
■ Output voltages of 2.7; 3.3; 3.5; 5; 8; 12 V
■ Automotive Grade product: 2.7 V, 3.3 V, 3.5 V
V
only in SO-8 package
OUT
■ Internal current and thermal limit
■ Only 2.2 µF for stability
■ Available in ± 1 % (AB) or 2 % (C) selection at
25 °C
■ Supply voltage rejection: 70 dB typ. for 5 V
version
■ Temperature range: -40 to 125 °C
Description
L4931ABxx
L4931Cxx
TO-220
PPAK SO-8
DPAK
This means that when the device is used as a
local regulator, it is possible to put a part of the
board in standby, decreasing the total power
consumption. It requires only a 2.2 µF capacitor
for stability allowing space and cost saving.
TO-92
The L4931ABxx L4931Cxx are very Low Drop
regulators available in TO-220, SO-8, DPAK,
PPAK and TO-92 packages and in a wide range of
output voltages.
The L4931 is available as Automotive Grade in
SO-8 package only, for the options of output
voltages whose commercial Part Numbers are
shown in the Table 19 on page 34 (order codes).
These devices are qualified according to the
The very low drop voltage (0.4 V) and the very low
quiescent current make them particularly suitable
for low noise, low power applications and
specially in battery powered systems.
specification AEC-Q100 of the Automotive
market, in the temperature range -40 °C to
125 °C, and the statistical tests PAT, SYL, SBL are
performed.
A TTL compatible shutdown logic control function
is available in PPAK and SO-8 packages.
Table 1. Device summary
Part numbers
L4931ABXX27 L4931CXX33 L4931ABXX50 L4931CXX80
L4931CXX27 L4931ABXX35 L4931CXX50 L4931ABXX120
L4931ABXX33 L4931CXX35 L4931ABXX80 L4931CXX120
August 2008 Rev 17 1/36
www.st.com
36
Contents L4931ABxx - L4931Cxx
Contents
1 Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 Pin configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3 Maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4 Application circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
6 Typical application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
7 Package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
8 Order codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
9 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
2/36
L4931ABxx - L4931Cxx List of figures
List of figures
Figure 1. Schematic diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Figure 2. Pin connections (top view) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Figure 3. Test circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Figure 4. Line regulation vs temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Figure 5. Dropout voltage vs temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Figure 6. Supply current vs input voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Figure 7. Supply current vs temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Figure 8. Short circuit current vs dropout voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Figure 9. SVR vs input voltage signal frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
3/36
List of tables L4931ABxx - L4931Cxx
List of tables
Table 1. Device summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Table 2. Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Table 3. Thermal data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Table 4. Electrical characteristics of L4931ABxx27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Table 5. Electrical characteristics of L4931Cxx27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Table 6. Electrical characteristics of L4931Cxx27-TRY (Automotive Grade) . . . . . . . . . . . . . . . . . . 11
Table 7. Electrical characteristics of L4931ABxx33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Table 8. Electrical characteristics of L4931Cxx33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Table 9. Electrical characteristics of L4931Cxx33-TRY (Automotive Grade) . . . . . . . . . . . . . . . . . . 14
Table 10. Electrical characteristics of L4931ABxx35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Table 11. Electrical characteristics of L4931ABxx35-TRY (Automotive Grade) . . . . . . . . . . . . . . . . . 16
Table 12. Electrical characteristics of L4931Cxx35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Table 13. Electrical characteristics of L4931ABxx50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Table 14. Electrical characteristics of L4931Cxx50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Table 15. Electrical characteristics of L4931ABxx80 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Table 16. Electrical characteristics of L4931Cxx80 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Table 17. Electrical characteristics of L4931ABxx120 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Table 18. Electrical characteristics of L4931Cxx120 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Table 19. Order codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Table 20. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
4/36
L4931ABxx - L4931Cxx Diagram
1 Diagram
Figure 1. Schematic diagram
5/36
Pin configuration L4931ABxx - L4931Cxx
2 Pin configuration
Figure 2. Pin connections (top view)
TO-220
PPAK
TO-92
PIN 1 = V
OUT
PIN 2 = GND
PIN 3 = V
IN
BOTTOM VIEW
SO-8
DPAK
6/36
L4931ABxx - L4931Cxx Maximum ratings
3 Maximum ratings
Table 2. Absolute maximum ratings
Symbol Parameter Value Unit
T
V
I
P
STG
T
I
O
D
OP
DC Input voltage 20 V
Output current Internally limited mA
Power dissipation Internally limited mW
Storage temperature range -40 to 150 °C
Operating junction temperature range -40 to 125 °C
Note: Absolute maximum ratings are those values beyond which damage to the device may occur.
Functional operation under these condition is not implied
Table 3. Thermal data
Symbol Parameter TO-220 SO-8 DPAK PPAK TO-92 Unit
R
R
Thermal resistance junction-case 3 20 8 8 °C/W
thJC
Thermal resistance junction-ambient 50 55 100 100 200 °C/W
thJA
7/36
Application circuit L4931ABxx - L4931Cxx
4 Application circuit
Figure 3. Test circuit
8/36
L4931ABxx - L4931Cxx Electrical characteristics
5 Electrical characteristics
Table 4. Electrical characteristics of L4931ABxx27 (refer to the test circuits, TA = 25 °C,
C
= 0.1 µF, CO = 2.2 µF unless otherwise specified).
I
Symbol Parameter Test conditions Min. Typ. Max. Unit
I
= 5 mA, VI = 4.7 V 2.673 2.7 2.727
V
Output voltage
O
V
Operating input voltage IO = 250 mA 20 V
I
Output current limit 300 mA
I
out
ΔV
ΔV
Line regulation VI = 3.4 to 20 V, IO = 0.5 mA 3 15 mV
O
Load regulation
O
(1)
Quiescent current
ON MODE
I
d
OFF MODE V
SVR Supply voltage rejection
eN Output noise voltage B = 10 Hz to 100 kHz 50 µV
V
Dropout voltage
d
Control input logic low TA = -40 to 125°C 0.8 V
V
IL
Control Input Logic High TA = -40 to 125°C 2 V
V
IH
I
Control input current VI = 6 V, VC = 6 V 10 µA
I
Output bypass
C
O
capacitance
(1)
O
= 5 mA, VI = 4.7 V, TA=-25 to 85°C 2.646 2.754
I
O
V
VI = 3.6 V, IO = 0.5 to 250 mA 3 15 mV
= 3.6 to 20 V, IO = 0 mA 0.6 1
V
I
= 3.6 to 20 V, IO = 250 mA 4 6
V
I
= 6 V 50 100 µA
I
mA
f = 120 Hz 74
I
= 5 mA
O
VI = 4.6 ± 1 V
dBf = 1 kHz 71
f = 10 kHz 55
IO = 250 mA 0.4 0.6 V
I
= 250 mA, TA= -40 to 125°C 0.8 V
O
ESR = 0.1 to 10 Ω, I
= 0 to 250 mA 2 10 µF
O
1. For SO-8 package the maximum limit of load regulation and dropout is increased by 20 mV.
9/36
Electrical characteristics L4931ABxx - L4931Cxx
Table 5. Electrical characteristics of L4931Cxx27 (refer to the test circuits, TA = 25 °C,
C
= 0.1 µF, CO = 2.2 µF unless otherwise specified).
I
Symbol Parameter Test conditions Min. Typ. Max. Unit
I
= 5 mA, VI = 4.7 V 2.646 2.7 2.754
V
Output voltage
O
V
Operating input voltage IO = 250 mA 20 V
I
Output current limit 300 mA
I
out
ΔV
ΔV
Line regulation VI = 3.4 to 20 V, IO = 0.5 mA 3 18 mV
O
Load regulation
O
(1)
Quiescent current
ON MODE
I
d
OFF MODE V
SVR Supply voltage rejection
eN Output noise voltage B = 10 Hz to 100 kHz 50 µV
V
Dropout voltage
d
Control input logic low TA = -40 to 125°C 0.8 V
V
IL
Control Input Logic High TA = -40 to 125°C 2 V
V
IH
I
Control input current VI = 6 V, VC = 6 V 10 µA
I
Output bypass
C
O
capacitance
(1)
O
= 5 mA, VI = 4.7 V, TA=-25 to 85°C 2.592 2.808
I
O
V
VI = 3.6 V, IO = 0.5 to 250 mA 3 18 mV
= 3.6 to 20 V, IO = 0 mA 0.6 1
V
I
= 3.6 to 20 V, IO = 250 mA 4 6
V
I
= 6 V 50 100 µA
I
mA
f = 120 Hz 74
I
= 5 mA
O
VI = 4.6 ± 1 V
dBf = 1 kHz 71
f = 10 kHz 55
IO = 250 mA 0.4 0.6 V
I
= 250 mA, TA= -40 to 125°C 0.8 V
O
ESR = 0.1 to 10 Ω, I
= 0 to 250 mA 2 10 µF
O
1. For SO-8 package the maximum limit of load regulation and dropout is increased by 20 mV.
10/36
L4931ABxx - L4931Cxx Electrical characteristics
Table 6. Electrical characteristics of L4931Cxx27-TRY (Automotive Grade) (refer to the test
circuits, T
Symbol Parameter Test conditions Min. Typ. Max. Unit
V
Output voltage
O
V
Operating input voltage IO = 250 mA 20 V
I
Output current limit TA = 25°C 300 mA
I
out
ΔV
ΔV
SVR Supply voltage rejection
Line regulation VI = 3.4 to 20 V, IO = 0.5 mA 20 mV
O
Load regulation VI = 3.6 V, IO = 0.5 to 250 mA 38 mV
O
Quiescent current
ON MODE
I
d
OFF MODE V
eN Output noise voltage B = 10 Hz to 100 kHz, T
V
Dropout voltage
d
Control input logic low 0.82 V
V
IL
Control Input Logic High 2 V
V
IH
I
Control input current VI = 6 V, VC = 6 V, TA = 25°C 10 µA
I
Output bypass
C
O
capacitance
= -40 to 12 5°C, CI = 0.1 µF, CO = 2.2 µF unless otherwise specified).
A
I
= 5 mA, VI = 4.7 V, TA = 25°C 2.646 2.7 2.754
O
= 5 mA, VI = 4.7 V 2.592 2.808
I
O
= 3.6 to 20 V, IO = 0 mA 1
V
I
= 3.6 to 20 V, IO = 250 mA 6
V
I
= 6 V 100 µA
I
I
= 5 mA
O
f = 120 Hz 74
VI = 4.6 ± 1 V
= 25°C
T
A
I
= 250 mA, TA = 25°C 0.4 0.6 V
O
I
= 250 mA 0.82 V
O
ESR = 0.1 to 10 Ω, IO = 0 to 250 mA,
TA = 25°C
f = 10 kHz 55
= 25°C 50 µV
A
210 µF
V
mA
dBf = 1 kHz 71
11/36
Electrical characteristics L4931ABxx - L4931Cxx
Table 7. Electrical characteristics of L4931ABxx33 (refer to the test circuits, TA = 25 °C,
C
= 0.1 µF, CO = 2.2 µF unless otherwise specified).
I
Symbol Parameter Test conditions Min. Typ. Max. Unit
I
= 5 mA, VI = 5.3 V 3.267 3.3 3.333
V
Output voltage
O
V
Operating input voltage IO = 250 mA 20 V
I
Output current limit 300 mA
I
out
ΔV
ΔV
Line regulation VI = 4 to 20 V, IO = 0.5 mA 3 15 mV
O
Load regulation
O
(1)
Quiescent current
ON MODE
I
d
OFF MODE V
SVR Supply voltage rejection
eN Output noise voltage B = 10 Hz to 100 kHz 50 µV
V
Dropout voltage
d
Control input logic low TA = -40 to 125°C 0.8 V
V
IL
Control Input Logic High TA = -40 to 125°C 2 V
V
IH
I
Control input current VI = 6 V, VC = 6 V 10 µA
I
Output bypass
C
O
capacitance
(1)
O
= 5 mA, VI = 5.3 V, TA=-25 to 85°C 3.234 3.366
I
O
V
VI = 4.2 V, IO = 0.5 to 250 mA 3 15 mV
= 4.2 to 20 V, IO = 0 mA 0.6 1
V
I
= 4.2 to 20 V, IO = 250 mA 4 6
V
I
= 6 V 50 100 µA
I
mA
f = 120 Hz 73
I
= 5 mA
O
VI = 5.2 ± 1 V
dBf = 1 kHz 70
f = 10 kHz 55
IO = 250 mA 0.4 0.6 V
I
= 250 mA, TA= -40 to 125°C 0.8 V
O
ESR = 0.1 to 10 Ω, I
= 0 to 250 mA 2 10 µF
O
1. For SO-8 package the maximum limit of load regulation and dropout is increased by 20 mV.
12/36
L4931ABxx - L4931Cxx Electrical characteristics
Table 8. Electrical characteristics of L4931Cxx33 (refer to the test circuits, TA = 25 °C,
C
= 0.1 µF, CO = 2.2 µF unless otherwise specified).
I
Symbol Parameter Test conditions Min. Typ. Max. Unit
I
= 5 mA, VI = 5.3 V 3.234 3.3 3.366
V
Output voltage
O
V
Operating input voltage IO = 250 mA 20 V
I
Output current limit 300 mA
I
out
ΔV
ΔV
Line regulation VI = 4.1 to 20 V, IO = 0.5 mA 3 18 mV
O
Load regulation
O
(1)
Quiescent current
ON MODE
I
d
OFF MODE V
SVR Supply voltage rejection
eN Output noise voltage B = 10 Hz to 100 kHz 50 µV
V
Dropout voltage
d
Control input logic low TA = -40 to 125°C 0.8 V
V
IL
Control Input Logic High TA = -40 to 125°C 2 V
V
IH
I
Control input current VI = 6 V, VC = 6 V 10 µA
I
Output bypass
C
O
capacitance
(1)
O
= 5 mA, VI = 5.3 V, TA=-25 to 85°C 3.168 3.432
I
O
V
VI = 4.3 V, IO = 0.5 to 250 mA 3 18 mV
= 4.3 to 20 V, IO = 0 mA 0.6 1
V
I
= 4.3 to 20 V, IO = 250 mA 4 6
V
I
= 6 V 50 100 µA
I
mA
f = 120 Hz 73
I
= 5 mA
O
VI = 5.3 ± 1 V
dBf = 1 kHz 70
f = 10 kHz 55
IO = 250 mA 0.4 0.6 V
I
= 250 mA, TA= -40 to 125°C 0.8 V
O
ESR = 0.1 to 10 Ω, I
= 0 to 250 mA 2 10 µF
O
1. For SO-8 package the maximum limit of load regulation and dropout is increased by 20 mV.
13/36
Electrical characteristics L4931ABxx - L4931Cxx
Table 9. Electrical characteristics of L4931Cxx33-TRY (Automotive Grade) (refer to the test
circuits, T
Symbol Parameter Test conditions Min. Typ. Max. Unit
V
Output voltage
O
V
Operating input voltage IO = 250 mA 20 V
I
Output current limit TA = 25°C 300 mA
I
out
ΔV
ΔV
SVR Supply voltage rejection
Line regulation VI = 4.1 to 20 V, IO = 0.5 mA 20 mV
O
Load regulation VI = 4.3 V, IO = 0.5 to 250 mA 38 mV
O
Quiescent current
ON MODE
I
d
OFF MODE V
eN Output noise voltage B = 10 Hz to 100 kHz, T
V
Dropout voltage
d
Control input logic low 0.82 V
V
IL
Control Input Logic High 2 V
V
IH
I
Control input current VI = 6 V, VC = 6 V, TA = 25°C 10 µA
I
Output bypass
C
O
capacitance
= -40 to 125 °C, CI = 0.1 µF, CO = 2.2 µF unless otherwise specified).
A
I
= 5 mA, VI = 5.3 V, TA = 25°C 3.234 3.3 3.366
O
= 5 mA, VI = 5.3 V 3.168 3.432
I
O
= 4.3 to 20 V, IO = 0 mA 1
V
I
= 4.3 to 20 V, IO = 250 mA 6
V
I
= 6 V 100 µA
I
I
= 5 mA
O
f = 120 Hz 73
VI = 5.3 ± 1 V
= 25°C
T
A
I
= 250 mA, TA = 25°C 0.4 0.6 V
O
I
= 250 mA 0.82 V
O
ESR = 0.1 to 10 Ω, IO = 0 to 250 mA,
TA = 25°C
f = 10 kHz 55
= 25°C 50 µV
A
210 µF
V
mA
dBf = 1 kHz 70
14/36
L4931ABxx - L4931Cxx Electrical characteristics
Table 10. Electrical characteristics of L4931ABxx35 (refer to the test circuits, TA = 25 °C,
C
= 0.1 µF, CO = 2.2 µF unless otherwise specified).
I
Symbol Parameter Test conditions Min. Typ. Max. Unit
I
= 5 mA, VI = 5.5 V 3.465 3.5 3.535
V
Output voltage
O
V
Operating input voltage IO = 250 mA 20 V
I
Output current limit 300 mA
I
out
ΔV
ΔV
Line regulation VI = 4.2 to 20 V, IO = 0.5 mA 3 15 mV
O
Load regulation
O
(1)
Quiescent current
ON MODE
I
d
OFF MODE V
SVR Supply voltage rejection
eN Output noise voltage B = 10 Hz to 100 kHz 50 µV
V
Dropout voltage
d
Control input logic low TA = -40 to 125°C 0.8 V
V
IL
Control Input Logic High TA = -40 to 125°C 2 V
V
IH
I
Control input current VI = 6 V, VC = 6 V 10 µA
I
Output bypass
C
O
capacitance
(1)
O
= 5 mA, VI = 5.5 V, TA=-25 to 85°C 3.43 3.57
I
O
V
VI = 4.4 V, IO = 0.5 to 250 mA 3 15 mV
= 4.4 to 20 V, IO = 0 mA 0.6 1
V
I
= 4.4 to 20 V, IO = 250 mA 4 6
V
I
= 6 V 50 100 µA
I
mA
f = 120 Hz 73
I
= 5 mA
O
VI = 5.4 ± 1 V
dBf = 1 kHz 70
f = 10 kHz 55
IO = 250 mA 0.4 0.6 V
I
= 250 mA, TA= -40 to 125°C 0.8 V
O
ESR = 0.1 to 10 Ω, I
= 0 to 250 mA 2 10 µF
O
1. For SO-8 package the maximum limit of load regulation and dropout is increased by 20 mV.
15/36
Electrical characteristics L4931ABxx - L4931Cxx
Table 11. Electrical characteristics of L4931ABxx35-TRY (Automotive Grade) (refer to the test
circuits, T
Symbol Parameter Test conditions Min. Typ. Max. Unit
V
Output voltage
O
V
Operating input voltage IO = 250 mA 20 V
I
Output current limit TA = 25°C 300 mA
I
out
ΔV
ΔV
SVR Supply voltage rejection
Line regulation VI = 4.2 to 20 V, IO = 0.5 mA 17 mV
O
Load regulation VI = 4.4 V, IO = 0.5 to 250 mA 35 mV
O
Quiescent current
ON MODE
I
d
OFF MODE V
eN Output noise voltage B = 10 Hz to 100 kHz, T
V
Dropout voltage
d
Control input logic low 0.82 V
V
IL
Control Input Logic High 2 V
V
IH
I
Control input current VI = 6 V, VC = 6 V, TA = 25°C 10 µA
I
Output bypass
C
O
capacitance
= -40 to 125 °C, CI = 0.1 µF, CO = 2.2 µF unless otherwise specified).
A
I
= 5 mA, VI = 5.5 V, TA = 25°C 3.465 3.5 3.535
O
= 5 mA, VI = 5.5 V 3.43 3.57
I
O
= 4.4 to 20 V, IO = 0 mA 1
V
I
= 4.4 to 20 V, IO = 250 mA 6
V
I
= 6 V 100 µA
I
I
= 5 mA
O
f = 120 Hz 73
VI = 5.4 ± 1 V
= 25°C
T
A
I
= 250 mA, TA = 25°C 0.4 0.6 V
O
I
= 250 mA 0.82 V
O
ESR = 0.1 to 10 Ω, IO = 0 to 250 mA,
TA = 25°C
f = 10 kHz 55
= 25°C 50 µV
A
210 µF
V
mA
dBf = 1 kHz 70
16/36
L4931ABxx - L4931Cxx Electrical characteristics
Table 12. Electrical characteristics of L4931Cxx35 (refer to the test circuits, TA = 25 °C,
C
= 0.1 µF, CO = 2.2 µF unless otherwise specified).
I
Symbol Parameter Test conditions Min. Typ. Max. Unit
I
= 5 mA, VI = 5.5 V 3.43 3.5 3.57
V
Output voltage
O
V
Operating input voltage IO = 250 mA 20 V
I
Output current limit 300 mA
I
out
ΔV
ΔV
Line regulation VI = 4.3 to 20 V, IO = 0.5 mA 3 18 mV
O
Load regulation
O
(1)
Quiescent current
ON MODE
I
d
OFF MODE V
SVR Supply voltage rejection
eN Output noise voltage B = 10 Hz to 100 kHz 50 µV
V
Dropout voltage
d
Control input logic low TA= -40 to 125°C 0.8 V
V
IL
Control Input Logic High TA= -40 to 125°C 2 V
V
IH
I
Control input current VI = 6 V, VC = 6 V 10 µA
I
Output bypass
C
O
capacitance
(1)
O
= 5 mA, VI = 5.5 V, TA=-25 to 85°C 3.36 3.64
I
O
V
VI = 4.5 V, IO = 0.5 to 250 mA 3 18 mV
= 4.5 to 20 V, IO = 0 mA 0.6 1
V
I
= 4.5 to 20 V, IO = 250 mA 4 6
V
I
= 6 V 50 100 µA
I
mA
f = 120 Hz 73
I
= 5 mA
O
VI = 5.5 ± 1 V
dBf = 1 kHz 70
f = 10 kHz 55
IO = 250 mA 0.4 0.6 V
I
= 250 mA, TA= -40 to 125°C 0.8 V
O
ESR = 0.1 to 10 Ω, I
= 0 to 250 mA 2 10 µF
O
1. For SO-8 package the maximum limit of load regulation and dropout is increased by 20 mV.
17/36
Electrical characteristics L4931ABxx - L4931Cxx
Table 13. Electrical characteristics of L4931ABxx50 (refer to the test circuits, TA = 25 °C,
C
= 0.1 µF, CO = 2.2 µF unless otherwise specified).
I
Symbol Parameter Test conditions Min. Typ. Max. Unit
I
= 5 mA, VI = 7 V 4.95 5 5.05
V
Output voltage
O
V
Operating input voltage IO = 250 mA 20 V
I
Output current limit 300 mA
I
out
ΔV
ΔV
Line regulation VI = 5.8 to 20 V, IO = 0.5 mA 3.5 17.5 mV
O
Load regulation
O
(1)
Quiescent current
ON MODE
I
d
OFF MODE V
SVR Supply voltage rejection
eN Output noise voltage B = 10 Hz to 100 kHz 50 µV
V
Dropout voltage
d
Control input logic low TA = -40 to 125°C 0.8 V
V
IL
Control Input Logic High TA = -40 to 125°C 2 V
V
IH
I
Control input current VI = 6 V, VC = 6 V 10 µA
I
Output bypass
C
O
capacitance
(1)
O
= 5 mA, VI = 7 V, TA=-25 to 85°C 4.9 5.1
I
O
V
VI = 6 V, IO = 0.5 to 250 mA 3 15 mV
= 6 to 20 V, IO = 0 mA 0.6 1
V
I
= 6 to 20 V, IO = 250 mA 4 6
V
I
= 6 V 50 100 µA
I
mA
f = 120 Hz 70
I
= 5 mA
O
VI = 7 ± 1 V
dBf = 1 kHz 67
f = 10 kHz 55
IO = 250 mA 0.4 0.6 V
I
= 250 mA, TA= -40 to 125°C 0.8 V
O
ESR = 0.1 to 10 Ω, I
= 0 to 250 mA 2 10 µF
O
1. For SO-8 package the maximum limit of load regulation and dropout is increased by 20 mV.
18/36
L4931ABxx - L4931Cxx Electrical characteristics
Table 14. Electrical characteristics of L4931Cxx50 (refer to the test circuits, TA = 25 °C,
C
= 0.1 µF, CO = 2.2 µF unless otherwise specified).
I
Symbol Parameter Test conditions Min. Typ. Max. Unit
I
= 5 mA, VI = 7 V 4.9 5 5.1
V
Output voltage
O
V
Operating input voltage IO = 250 mA 20 V
I
Output current limit 300 mA
I
out
ΔV
ΔV
Line regulation VI = 5.8 to 20 V, IO = 0.5 mA 3.5 17.5 mV
O
Load regulation
O
(1)
Quiescent current
ON MODE
I
d
OFF MODE V
SVR Supply voltage rejection
eN Output noise voltage B = 10 Hz to 100 kHz 50 µV
V
Dropout voltage
d
Control input logic low TA = -40 to 125°C 0.8 V
V
IL
Control Input Logic High TA = -40 to 125°C 2 V
V
IH
I
Control input current VI = 6 V, VC = 6 V 10 µA
I
Output bypass
C
O
capacitance
(1)
O
= 5 mA, VI = 7 V, TA=-25 to 85°C 4.8 5.2
I
O
V
VI = 6 V, IO = 0.5 to 250 mA 3 15 mV
= 6 to 20 V, IO = 0 mA 0.6 1
V
I
= 6 to 20 V, IO = 250 mA 4 6
V
I
= 6 V 50 100 µA
I
mA
f = 120 Hz 70
I
= 5 mA
O
VI = 7 ± 1 V
dBf = 1 kHz 67
f = 10 kHz 55
IO = 250 mA 0.4 0.6 V
I
= 250 mA, TA= -40 to 125°C 0.8 V
O
ESR = 0.1 to 10 Ω, I
= 0 to 250 mA 2 10 µF
O
1. For SO-8 package the maximum limit of load regulation and dropout is increased by 20 mV.
19/36
Electrical characteristics L4931ABxx - L4931Cxx
Table 15. Electrical characteristics of L4931ABxx80 (refer to the test circuits, TA = 25 °C,
C
= 0.1 µF, CO = 2.2 µF unless otherwise specified).
I
Symbol Parameter Test conditions Min. Typ. Max. Unit
I
= 5 mA, VI = 10 V 7.92 8 8.08
V
Output voltage
O
V
Operating input voltage IO = 250 mA 20 V
I
Output current limit 300 mA
I
out
ΔV
ΔV
Line regulation VI = 8.8 to 20 V, IO = 0.5 mA 4 20 mV
O
Load regulation
O
(1)
Quiescent current
ON MODE
I
d
OFF MODE V
SVR Supply voltage rejection
eN Output noise voltage B = 10 Hz to 100 kHz 50 µV
V
Dropout voltage
d
Control input logic low TA = -40 to 125°C 0.8 V
V
IL
Control Input Logic High TA = -40 to 125°C 2 V
V
IH
I
Control input current VI = 6 V, VC = 6 V 10 µA
I
Output bypass
C
O
capacitance
(1)
O
= 5 mA, VI = 10 V, TA=-25 to 85°C 7.84 8.16
I
O
V
VI = 9 V, IO = 0.5 to 250 mA 3 15 mV
= 9 to 20 V, IO = 0 mA 0.8 1.6
V
I
= 9 to 20 V, IO = 250 mA 4.5 7
V
I
= 6 V 70 140 µA
I
mA
f = 120 Hz 67
I
= 5 mA
O
VI = 10 ± 1 V
dBf = 1 kHz 64
f = 10 kHz 55
IO = 250 mA 0.4 0.6 V
I
= 250 mA, TA= -40 to 125°C 0.8 V
O
ESR = 0.1 to 10 Ω, I
= 0 to 250 mA 2 10 µF
O
1. For SO-8 package the maximum limit of load regulation and dropout is increased by 20 mV.
20/36
L4931ABxx - L4931Cxx Electrical characteristics
Table 16. Electrical characteristics of L4931Cxx80 (refer to the test circuits, TA = 25 °C,
C
= 0.1 µF, CO = 2.2 µF unless otherwise specified).
I
Symbol Parameter Test conditions Min. Typ. Max. Unit
I
= 5 mA, VI = 10 V 7.84 8 8.16
V
Output voltage
O
V
Operating input voltage IO = 250 mA 20 V
I
Output current limit 300 mA
I
out
ΔV
ΔV
Line regulation VI = 8.9 to 20 V, IO = 0.5 mA 4 24 mV
O
Load regulation
O
(1)
Quiescent current
ON MODE
I
d
OFF MODE V
SVR Supply voltage rejection
eN Output noise voltage B = 10 Hz to 100 kHz 50 µV
V
Dropout voltage
d
Control input logic low TA = -40 to 125°C 0.8 V
V
IL
Control Input Logic High TA = -40 to 125°C 2 V
V
IH
I
Control input current VI = 6 V, VC = 6 V 10 µA
I
Output bypass
C
O
capacitance
(1)
O
= 5 mA, VI = 10 V, TA=-25 to 85°C 7.68 8.32
I
O
V
VI = 9.1 V, IO = 0.5 to 250 mA 3 18 mV
= 9.1 to 20 V, IO = 0 mA 0.8 1.6
V
I
= 9.1 to 20 V, IO = 250 mA 4.5 7
V
I
= 6 V 70 140 µA
I
mA
f = 120 Hz 67
I
= 5 mA
O
VI = 10.1 ± 1 V
dBf = 1 kHz 64
f = 10 kHz 55
IO = 250 mA 0.4 0.6 V
I
= 250 mA, TA= -40 to 125°C 0.8 V
O
ESR = 0.1 to 10 Ω, I
= 0 to 250 mA 2 10 µF
O
1. For SO-8 package the maximum limit of load regulation and dropout is increased by 20 mV.
21/36
Electrical characteristics L4931ABxx - L4931Cxx
Table 17. Electrical characteristics of L4931ABxx120 (refer to the test circuits, TA = 25 °C,
C
= 0.1 µF, CO = 2.2 µF unless otherwise specified).
I
Symbol Parameter Test conditions Min. Typ. Max. Unit
I
= 5 mA, VI = 14 V 11.88 12 12.12
V
Output voltage
O
V
Operating input voltage IO = 250 mA 20 V
I
Output current limit 300 mA
I
out
ΔV
ΔV
Line regulation VI = 12.8 to 20 V, IO = 0.5 mA 4 20 mV
O
Load regulation
O
(1)
Quiescent current
ON MODE
I
d
OFF MODE V
SVR Supply voltage rejection
eN Output noise voltage B = 10 Hz to 100 kHz 50 µV
V
Dropout voltage
d
Control input logic low TA = -40 to 125°C 0.8 V
V
IL
Control Input Logic High TA = -40 to 125°C 2 V
V
IH
I
Control input current VI = 6 V, VC = 6 V 10 µA
I
Output bypass
C
O
capacitance
(1)
O
= 5 mA, VI = 14 V, TA=-25 to 85°C 11.76 12.24
I
O
V
VI = 13 V, IO = 0.5 to 250 mA 3 15 mV
= 13 to 20 V, IO = 0 mA 0.8 1.6
V
I
= 13 to 20 V, IO = 250 mA 4.5 7
V
I
= 6 V 90 180 µA
I
mA
f = 120 Hz 64
I
= 5 mA
O
VI = 14 ± 1 V
dBf = 1 kHz 61
f = 10 kHz 55
IO = 250 mA 0.4 0.6 V
I
= 250 mA, TA= -40 to 125°C 0.8 V
O
ESR = 0.1 to 10 Ω, I
= 0 to 250 mA 2 10 µF
O
1. For SO-8 package the maximum limit of load regulation and dropout is increased by 20 mV.
22/36
L4931ABxx - L4931Cxx Electrical characteristics
Table 18. Electrical characteristics of L4931Cxx120 (refer to the test circuits, TA = 25 °C,
C
= 0.1 µF, CO = 2.2 µF unless otherwise specified).
I
Symbol Parameter Test conditions Min. Typ. Max. Unit
I
= 5 mA, VI = 14 V 11.76 12 12.24
V
Output voltage
O
V
Operating input voltage IO = 250 mA 20 V
I
Output current limit 300 mA
I
out
ΔV
ΔV
Line regulation VI = 12.9 to 20 V, IO = 0.5 mA 4 24 mV
O
Load regulation
O
(1)
Quiescent current
ON MODE
I
d
OFF MODE V
SVR Supply voltage rejection
eN Output noise voltage B = 10 Hz to 100 kHz 50 µV
V
Dropout voltage
d
Control input logic low TA = -40 to 125°C 0.8 V
V
IL
Control Input Logic High TA = -40 to 125°C 2 V
V
IH
I
Control input current VI = 6 V, VC = 6 V 10 µA
I
Output bypass
C
O
capacitance
(1)
O
= 5 mA, VI = 14 V, TA=-25 to 85°C 11.52 12.48
I
O
V
VI = 13.1 V, IO = 0.5 to 250 mA 3 18 mV
= 13.1 to 20 V, IO = 0 mA 0.8 1.6
V
I
= 13.1 to 20 V, IO = 250 mA 4.5 7
V
I
= 6 V 90 180 µA
I
mA
f = 120 Hz 64
I
= 5 mA
O
VI = 14.1 ± 1 V
dBf = 1 kHz 61
f = 10 kHz 55
IO = 250 mA 0.4 0.6 V
I
= 250 mA, TA= -40 to 125°C 0.8 V
O
ESR = 0.1 to 10 Ω, I
= 0 to 250 mA 2 10 µF
O
1. For SO-8 package the maximum limit of load regulation and dropout is increased by 20 mV.
23/36
Typical application L4931ABxx - L4931Cxx
6 Typical application
Figure 4. Line regulation vs temperature Figure 5. Dropout voltage vs temperature
Figure 6. Supply current vs input voltage Figure 7. Supply current vs temperature
Figure 8. Short circuit current vs dropout
24/36
voltage
Figure 9. SVR vs input voltage signal
frequency
L4931ABxx - L4931Cxx Package mechanical data
7 Package mechanical data
In order to meet environmental requirements, ST offers these devices in ECOPACK®
packages. These packages have a lead-free second level interconnect. The category of
second Level Interconnect is marked on the package and on the inner box label, in
compliance with JEDEC Standard JESD97. The maximum ratings related to soldering
conditions are also marked on the inner box label. ECOPACK is an ST trademark.
ECOPACK specifications are available at: www.st.com.
25/36
Package mechanical data L4931ABxx - L4931Cxx
TO-220 mechanical data
Dim.
A 4.40 4.60 0.173 0.181
C1.23 1.32 0.048 0.051
D 2.40 2.72 0.094 0.107
D1 1.27 0.050
E0.49 0.70 0.019 0.027
F 0.61 0.88 0.024 0.034
F1 1.14 1.70 0.044 0.067
F2 1.14 1.70 0.044 0.067
G4.95 5.15 0.194 0.203
G1 2.4 2.7 0.094 0.106
H2 10.0 10.40 0.393 0.409
L2 16.4 0.645
L4 13.0 14.0 0.511 0.551
L5 2.65 2.95 0.104 0.116
L6 15.25 15.75 0.600 0.620
L7 6.2 6.6 0.244 0.260
L93.5 3.93 0.137 0.154
DIA. 3.75 3.85 0.147 0.151
Min. Typ. Max. Min. Typ. Max.
mm. inch.
26/36
P011C
L4931ABxx - L4931Cxx Package mechanical data

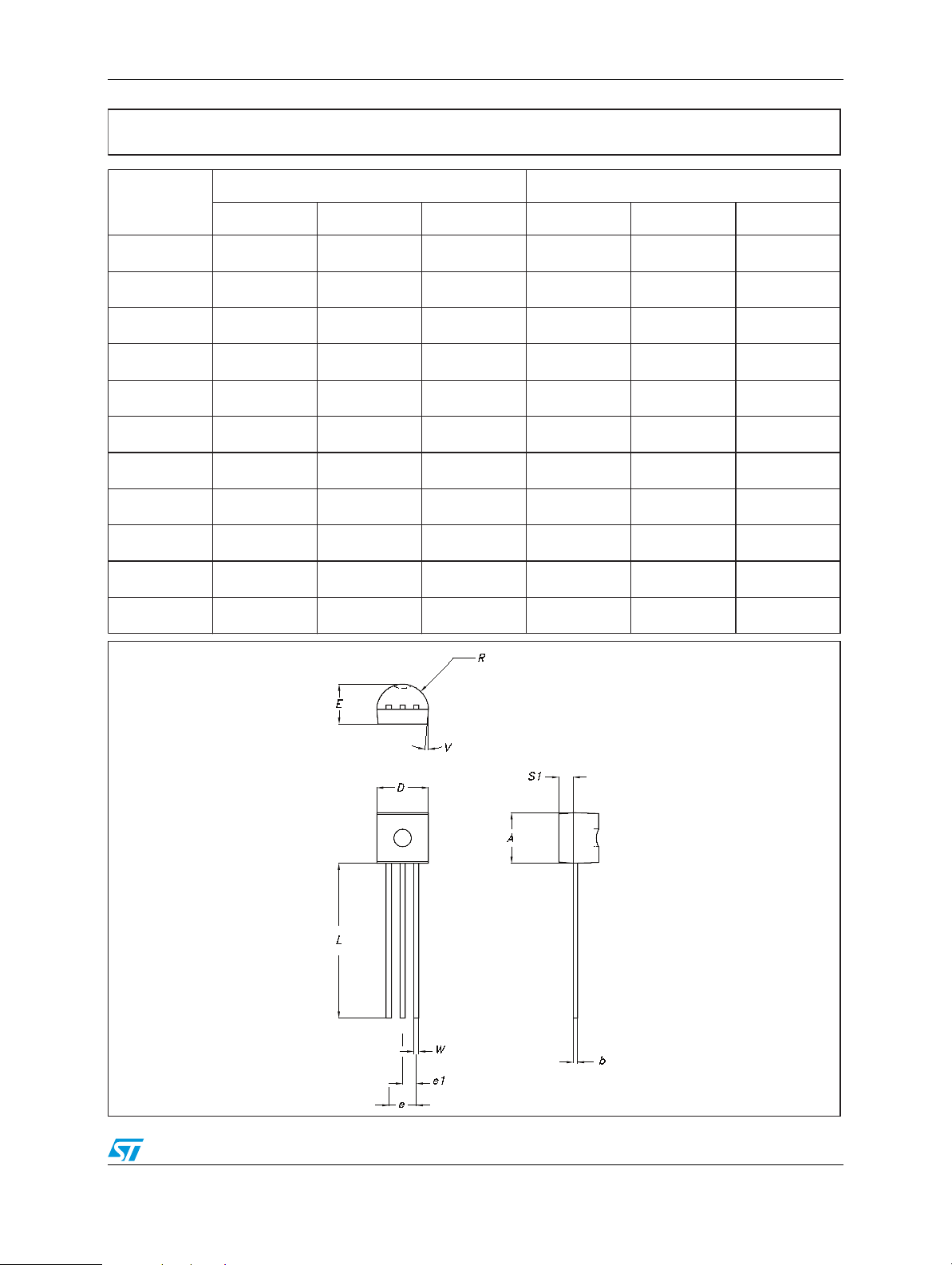

TO-92 mechanical data
mm. mils.
Dim.
Min. Typ. Max. Min. Typ. Max.
A4.324.95 170.1 194.9
b 0.36 0.51 14.2 20.1
D 4.45 4.95 175.2 194.9
E 3.30 3.94129.9 155.1
e 2.41 2.67 94.9 105.1
e1 1.14 1.40 44.9 55.1
L 12.7 15.49 500.0 609.8
R 2.16 2.41 85.0 94.9
S10.92 1.52 36.2 59.8
W 0.41 0.56 16.1 22.0
α 5° 5°
0102782/D
27/36
Package mechanical data L4931ABxx - L4931Cxx
PPAK mechanical data
Dim.
Min. Typ. Max. Min. Typ. Max.
A 2.2 2.4 0.086 0.094
A1 0.9 1.1 0.035 0.043
A2 0.03 0.23 0.001 0.009
B 0.4 0.6 0.015 0.023
B2 5.2 5.4 0.204 0.212
C 0.45 0.6 0.017 0.023
C2 0.48 0.6 0.019 0.023
D 6 6.2 0.236 0.244
D1 5.1 0.201
E 6.4 6.6 0.252 0.260
E1 4.7 0.185
e 1.27 0.050
G4.9 5.25 0.193 0.206
G1 2.38 2.7 0.093 0.106
H 9.35 10.1 0.368 0.397
L2 0.8 1 0.031
L4 0.6 1 0.023 0.039
L5 1
L6 2.8 0.110
mm. inch.
0.039
0.039
28/36
0078180-E
L4931ABxx - L4931Cxx Package mechanical data
DPAK mechanical data
Dim.
Min. Typ. Max. Min. Typ. Max.
A 2.2 2.4 0.086 0.094
A1 0.9 1.1 0.035 0.043
A2 0.03 0.23 0.001 0.009
B 0.64 0.9 0.025 0.035
b4 5.2 5.4 0.204 0.212
C 0.45 0.6 0.017 0.023
C2 0.48 0.6 0.019 0.023
D 6 6.2 0.236 0.244
D1 5.1 0.200
E 6.4 6.6 0.252 0.260
E1 4.7 0.185
e2.28 0.090
e1 4.4 4.6 0.173 0.181
H 9.35 10.1 0.368 0.397
L 1 0.039
(L1)
L2 0.8 0.031
L4 0.6 1 0.023 0.039
R 0.2 0.008
V2 0° 8°0° 8°
mm. inch.
2.8 0.110
0068772-F
29/36
Package mechanical data L4931ABxx - L4931Cxx
SO-8 mechanical data
Dim.
A1.35 1.75 0.053 0.069
A1 0.10 0.25 0.04 0.010
A2 1.10 1.65 0.043 0.065
B0.33 0.51 0.013 0.020
C0.19 0.25 0.007 0.010
D4.80 5.00 0.189 0.197
E 3.80 4.00 0.150 0.157
e 1.27 0.050
H5.80 6.20 0.228 0.244
h 0.25 0.50 0.010 0.020
L 0.40 1.27 0.016 0.050
k 8° (max.)
ddd 0.1 0.04
Min. Typ. Max. Min. Typ. Max.
mm. inch.
30/36
0016023/C
L4931ABxx - L4931Cxx Package mechanical data

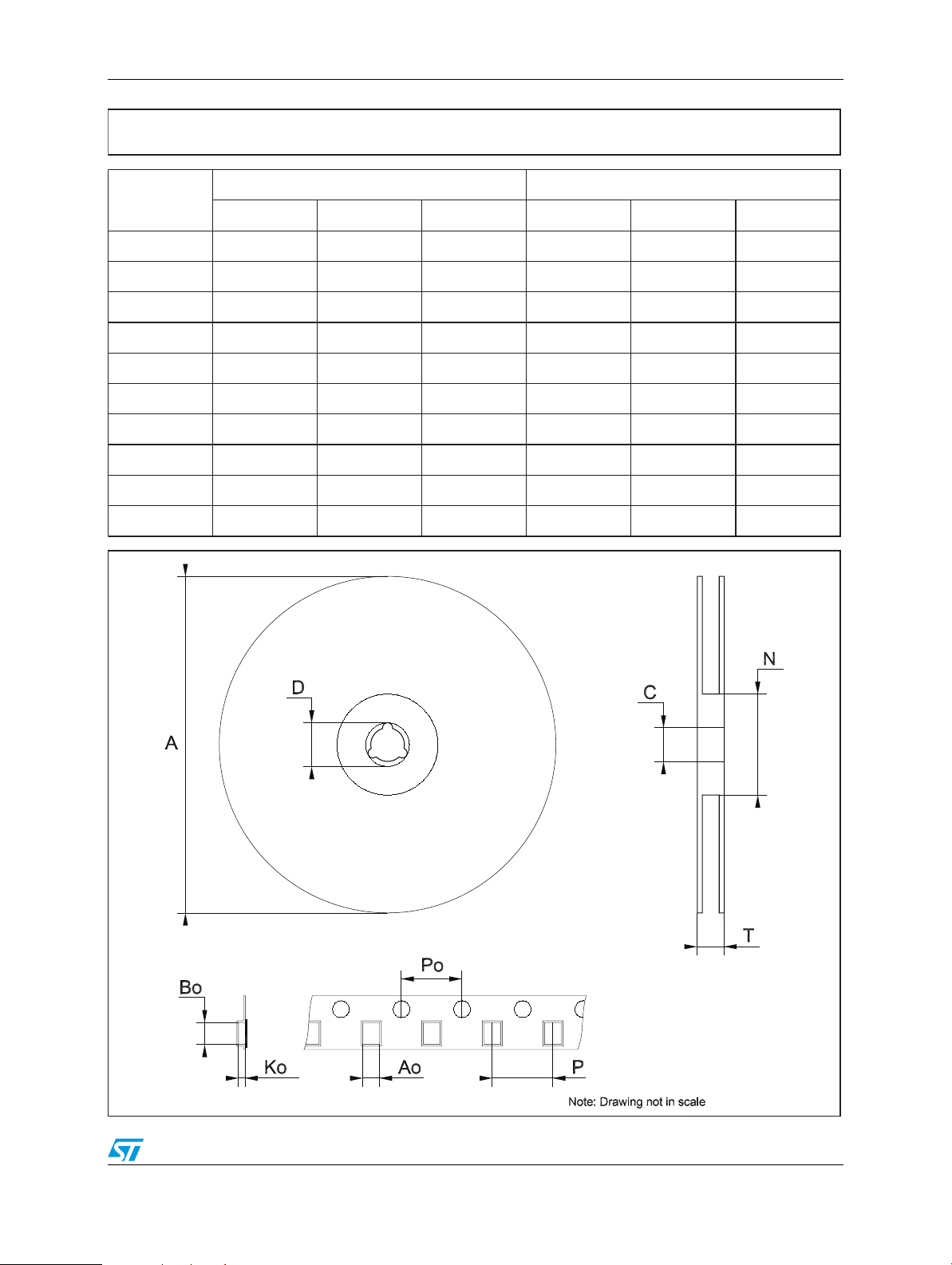

Tape & reel DPAK-PPAK mechanical data
Dim.
Min. Typ. Max. Min. Typ. Max.
A 330 12.992
C12.8 13.0 13.2 0.504 0.512 0.519
D 20.2 0.795
N60 2.362
T22.40.882
Ao 6.806.90 7.00 0.268 0.272 0.2.76
Bo 10.40 10.50 10.60 0.409 0.413 0.417
Ko 2.55 2.65 2.75 0.100 0.104 0.105
Po 3.9 4.0 4.1 0.153 0.157 0.161
P7.98.0 8.1 0.311 0.315 0.319
mm. inch.
31/36
Package mechanical data L4931ABxx - L4931Cxx
Tape & reel SO-8 mechanical data
mm. inch.
Dim.
Min. Typ. Max. Min. Typ. Max.
A 330 12.992
C 12.8 13.2 0.504 0.519
D 20.2 0.795
N60 2.362
T 22.4 0.882
Ao 8.1 8.5 0.319 0.335
Bo 5.5 5.9 0.216 0.232
Ko 2.1 2.3 0.082 0.090
Po 3.9 4.1 0.153 0.161
P7.98.1 0.311 0.319
32/36
L4931ABxx - L4931Cxx Package mechanical data
Tape & reel for TO-92 mechanical data
Dim.
Min. Typ. Max. Min. Typ. Max.
mm. inch.
A1 4.80 0.189
T 3.80 0.150
T1 1.60 0.063
T2 2.30 0.091
d0.48 0.019
P0 12.5 12.9 0.492 0.508
P2 5.65 7.05 0.222 0.278
F1, F2 2.44 2.54 2.94 0.096 0.100 0.116
delta H ±2 0.079
W 17.5 18.00 19.0 0.689 0.709 0.748
W0 5.7 6.3 0.224 0.248
W1 8.5 9.25 0.3350.364
W2 0.50 0.20
H18.50 18.70 0.728 0.726
H0 15.50 16.50 0.610 0.650
H1 25.00 0.984
D0 3.8 4.2 0.150 0.165
t0.900.035
L1 3 0.118
delta P±1 0.039
u 50 1.968
Φ1 3
60 14.173
Φ2 301.181
H1
delta P
A1
delta H
H
H0
L
d
W2
T
T2
T1
l1
W
W0
W1
F1
F2
P2
P0
DRAWING NOT IN SCALE
D0
t
33/36
Order codes L4931ABxx - L4931Cxx
8 Order codes
Table 19. Order codes
Packages
TO-220 SO-8 PPAK DPAK TO-92
L4931CD27-TR 2.7 V
L4931CD27-TRY
L4931CD33-TR L4931CPT33-TR L4931CDT33-TR L4931CZ33-AP 3.3 V
L4931ABV33 L4931ABD33-TR L4931ABDT33-TR 3.3 V
L4931CD33-TRY
L4931CD35-TR L4931CDT35-TR 3.5 V
L4931ABD35-TR L4931ABDT35TR 3.5 V
L4931ABD35-TRY
L4931CD50-TR L4931CPT50-TR L4931CDT50-TR L4931CZ50-AP 5 V
L4931ABD50-TR L4931ABDT50-TR 5 V
L4931CD80-TR L4931CPT80-TR L4931CDT80-TR 8 V
L4931CD120-TR L4931CPT120-TR L4931CDT120-TR 12 V
L4931ABD120TR L4931ABPT120R 12 V
1. Automotive Grade products.
(1)
L4931ABPT27TR 2.7 V
(1)
(1)
L4931ABPT80TR L4931ABDT80-TR 8 V
Output
voltage
3.3 V
3.5 V
34/36
L4931ABxx - L4931Cxx Revision history
9 Revision history
Table 20. Document revision history
Date Revision Changes
21-Jun-2004 11 Document updating.
14-Jun-2006 12 Order codes updated.
31-Jan-2008 13 Added: Ta bl e 1 and new order codes for Automotive grade products.
20-Feb-2008 14 Modified: Table 19 on page 34.
11-Mar-2008 15 Modified: Table 1 on page 1 and Table 19 on page 34.
15-Jul-2008 16 Modified: Table 1 on page 1 and Table 19 on page 34.
18-Aug-2008 17 Modified: Table 19 on page 34.
35/36
L4931ABxx - L4931Cxx
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.
All ST products are sold pursuant to ST’s terms and conditions of sale.
Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.
Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.
ST and the ST logo are trademarks or registered trademarks of ST in various countries.
Information in this document supersedes and replaces all information previously supplied.
The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2008 STMicroelectronics - All rights reserved
STMicroelectronics group of companies
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -
Malaysia - Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America
www.st.com
36/36
Loading...
