Clearing The Airway Is Our #1 Priority
Operating Instructions
& Maintenance Manual
BOARDTM
, INC.
11064 Randall Street
Sun Valley, CA 91352 USA
www.sscor.com
shop.sscor.com Tel 1+818-504-4054 Email: sales@sscor.com
techsupport@sscor.com
Caution-Notice
Clearing The Airway Is Our #1 Priority
Revision N (01/18)
1.This suction system is for permanent installation in patient transport vehicles to be used exclusively by medical personnel trained in suctioning techniques and in the use of medical suction equipment.
2.Federal law restricts this device to sale, distribution, and use by, or on the order of a physician, emergency medical technician, or other medical practitioner. For use by medical personnel trained in suctioning techniques and in the use of medical suction equipment.
3.This manual is restricted to the discussion of the use and maintenance of this device. It does not attempt to discuss professional techniques in suctioning procedures.
4.Operator should be thoroughly familiar with these operating instructions before this device is used.
5.Do not use in the presence of flammable agents or anesthetics.
6.The SSCOR/board™ produces a powerful vacuum. Use the regulator to control vacuum as appropriate.
7.Observe gauge marking and pre-adjust the regulator for the anticipated procedure by occluding the patient tube with the HI-D® tip removed and the vacuum system running.
8.The mechanical shut-off valve in the canister lid will close down when canister is filled with fluids. If the vacuum shuts down, empty contents immediately or replace the canister with a new one. Spare canisters are available from SSCOR, Inc. or your dealer.
9.Use the canister in an upright position to keep fluids away from shut off valve and filter. A wet filter can close the system. Be sure the lid on the canister is tightened securely to prevent a loss of vacuum at a critical time.
10.Before testing for vacuum over -300mmHg look for an expiration date on the canister (where applicable) and change the canister if the canister has passed the expiration date to minimize the possibility of implosion, which can occur when a canister is aged or damaged.
11.Refer all servicing of electrical systems to qualified service personnel. Turn the SSCOR/board suction system off as soon as possible after use
12.If selecting alternate accessories make sure they meet specifications listed on page 9(tubing, canister and catheter) For the canister and tubing, ensure that you run the applicable test on pages 15-16.
SSCOR/board Suction System for EMS Vehicles
©2015 HI-D and Big Stick are registered trademarks of SSCOR, Inc.
2 |
SSCOR/Onboard |
|
Rev N (01/18) |
Clearing The Airway Is Our #1 Priority
Table of Contents
|
Caution-Notice |
Page 2 |
|
General Description |
Page 3 |
|
Symbol Description |
Page 4 |
|
Model Description, Installation and Test |
Pages 5-7 |
|

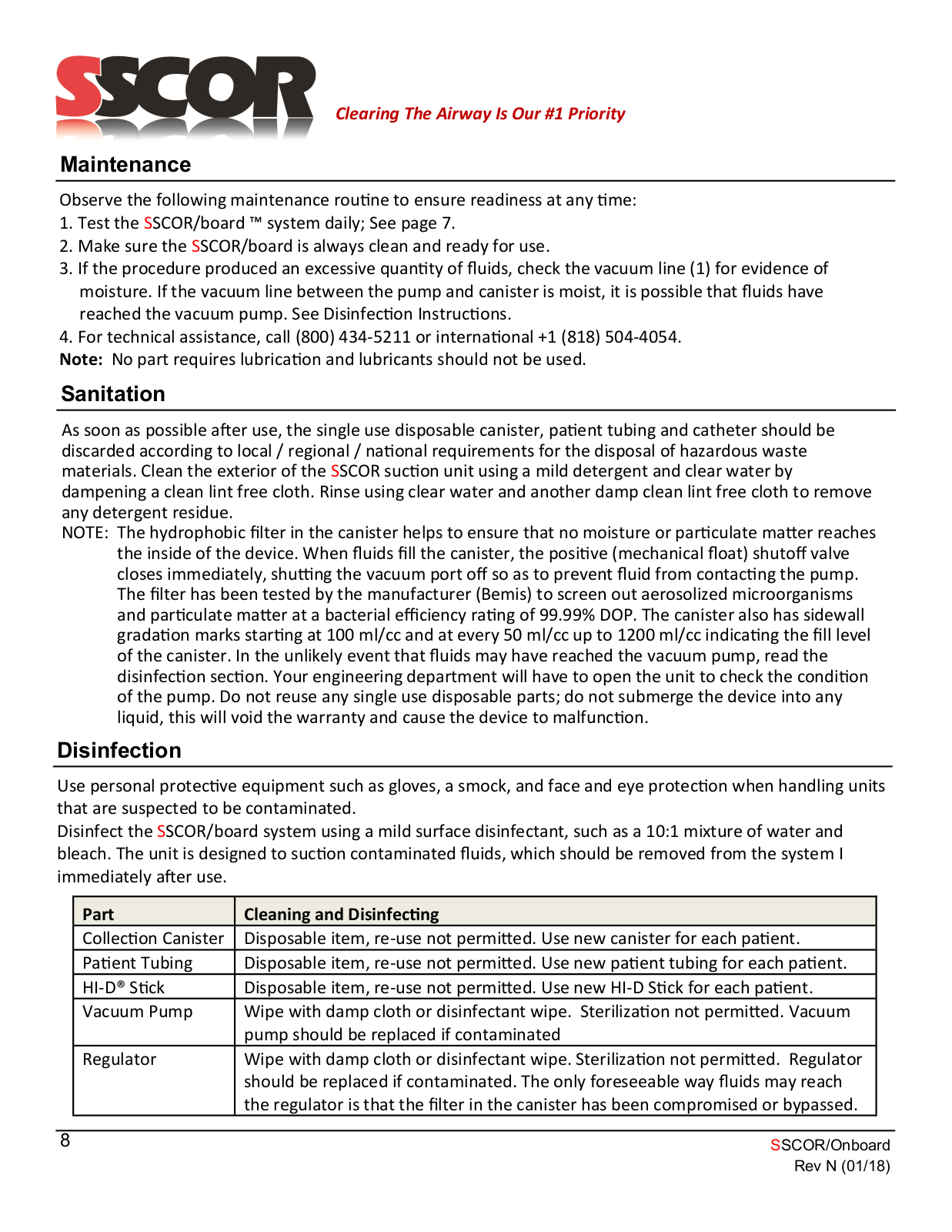

Maintenance |
Page 8 |
|
Troubleshooting and General Specifications |
Page 9 |
|

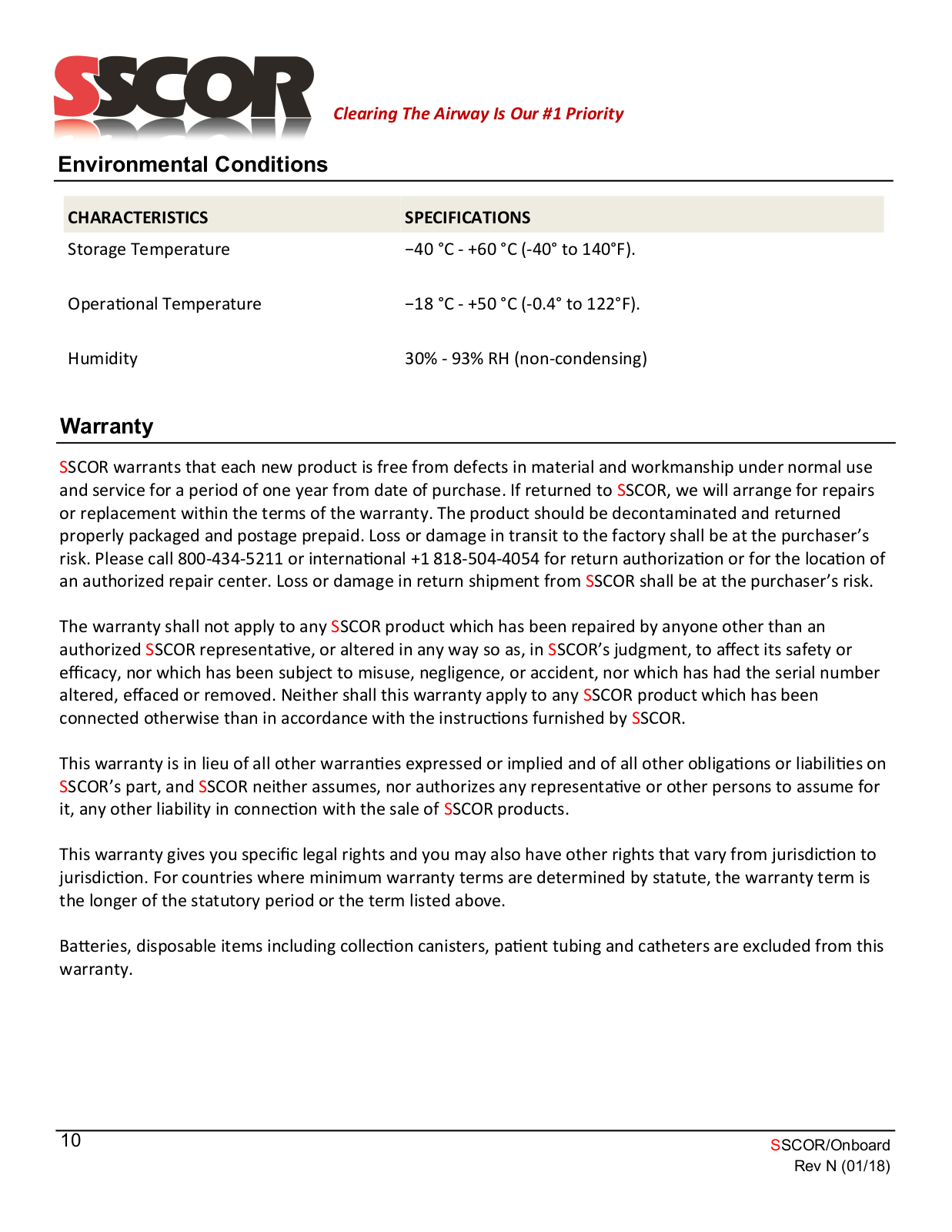

Environmental Conditions and Warranty |
Page 10 |
|
Accessory Specifications for Proper Selection by end user |
Page 11 |
|
Templates—Model 22000, 23001, 22500, 22002 |
Page 12 |
|
Templates—Model 23002, 25000 |
Page 13 |
|
Installation Alert |
Page 14 |
|
Verification for end users when selecting alternate Collection |
Page 15 |
|
Canister |
|
|
Verification for end users when selecting alternate Patient |
Page 16 |
|
(Suction) Tubing |
|
General Description |
|
|
|
|
|
The SSCOR/board suction system is a Hospital Grade medical vacuum system designed for EMS vehicles. It combines the safety and efficiency of a hospital system with the vehicular demand for rugged construction and durability.
The SSCOR/board can be specified and purchased as part of a new vehicle or, it can retrofit to an existing vehicle. The SSCOR/board can be installed in its entirety or any one of the component groups described in this manual can be installed to enhance an existing system.
SSCOR/board’s unrestricted vacuum system maximizes the airflow from the vacuum pump to the patient. The powerful vacuum provided by the vacuum pump is controlled by a vented regulator and can be monitored by an easy to read gauge.
SSCOR/board’s durable canister holders accept most hospital grade, suction canisters. The canister holder provides years of durable service and helps to protect the collector from blows which could shatter the plastic vessel and render it useless. Room is provided for organized storage of patient tubing.
The system can be powered by an installed 12V DC vacuum pump. It is designed to provide powerful, effective and reliable vacuum for suctioning procedures during patient transport. SSCOR/board exceeds performance standards for emergency vacuum when properly installed.
The SSCOR/board system is available in the following component groups: Canister Holder, Panel Mount Regulator and Gauge, Retrofit Regulator and Gauge and Vacuum Pumps.
3 |
SSCOR/Onboard |
|
Rev N (01/18) |
Clearing The Airway Is Our #1 Priority
Description of Symbols
SYMBOL |
LOCATION |
MEANING |
|
|
|
|
Shipping Carton |
Manufacturer |
|
Shipping Carton |
Date of Manufacturer |
|
Shipping Carton |
Authorized Representative in the |
|
|
European Community |
|
Serialized Label / Shipping Label |
European Conformity |
4 |
SSCOR/Onboard |
|
Rev N (01/18) |
Clearing The Airway Is Our #1 Priority
Model Description, Installation, and Test
DESCRIPTION OF PARTS: Model #22000 Stainless Steel Panel Mount Regulator
Part # |
Description |
|
Part # |
Description |
|
|
|
|
|
22015 |
Regulator |
|
50150 |
10’ Tubing (5/16”ID x 9/16”OD ) |
|
|
|
|
304.8cm Tubing (.79cm ID x 1.428cm OD) |
22006 |
Gauge |
|
60000-90 |
Mounting Screws (4 each) |
|
|
|
|
|
22018 |
Faceplate |
|
90154 |
Hose barb, straight 1/4” x 5/16” (2 each) |
|
|
|
|
|
40000-9 |
Regulator Bracket |
|
50161 |
Hose clamps (2 each) |
|
|
|
|
|
INSTALLATION: Model #22000 Stainless Steel Panel Mount Regulator
Use the template card to mark the hole placement in the panel 2-5/8" x 4-1/4" (6.67cm x 10.79cm) and mark the holes for the faceplate mounting screws. Connect the tubing from the vacuum pump to the hose barb on the regulator. Secure the tubing to the hose barb using the hose clamps. THE VACUUM SOURCE MAY BE CONNECTED TO EITHER SIDE OF THE REGULATOR. Run the tubing from the opposite hose barb on the regulator (secured with a hose clamp) to the suction canister.
DESCRIPTION OF PARTS: Model #25000 Stainless Steel Panel Mount Regulator (2-1/2” Gauge)
Part # |
Description |
|
Part # |
Description |
|
|
|
|
|
22015 |
Regulator |
|
50150 |
10’ Tubing (5/16”ID x 9/16”OD ) |
|
|
|
|
304.8cm Tubing (.79cm ID x 1.428cm OD) |
22025 |
Gauge |
|
60000-90 |
Mounting Screws (4 each) |
|
|
|
|
|
22019 |
Faceplate |
|
90154 |
Hose barb, straight 1/4” x 5/16” (2 each) |
|
|
|
|
|
40000-9 |
Regulator Bracket |
|
50161 |
Hose clamps (2 each) |
|
|
|
|
|
INSTALLATION: Model #25000 Stainless Steel Panel Mount Regulator (2-1/2” Gauge)
Use the template card to mark the hole placement in the panel 3-1/3" x 4-1/2" (8.45cm x 11.43cm) and mark the holes for the faceplate mounting screws. Connect the tubing from the vacuum pump to the hose barb on the regulator. Secure the tubing to the hose barb using the hose clamps. THE VACUUM SOURCE MAY BE CONNECTED TO EITHER SIDE OF THE REGULATOR. Run the tubing from the opposite hose barb on the regulator (secured with a hose clamp) to the suction canister.
5 |
SSCOR/Onboard |
|
Rev N (01/18) |
