Clearing The Airway Is Our #1 Priority
Operating Instructions
& Maintenance Manual
Models 2100 & 2100S
, INC.
11064 Randall Street
Sun Valley, CA 91352 USA
www.sscor.com
shop.sscor.com
Email: marketing@sscor.com
techsupport@sscor.com
Tel 1+818-504-4054
Tel 1+800-434-5211
Clearing The Airway Is Our #1 Priority
Caution-Notice
1. SSCOR suction units are not designed or intended for use in extended procedures that require prolonged
high vacuum/low airflow applications, as is the case in wound drainage or endoscopic use or in any other
procedure that produces high vacuum levels within an occluded system for an extended period of time.
Turn the suction unit off when it is not in use.
2. Federal law restricts this device to sale, distribution, and use by, or on the order of a physician,
emergency medical technician, or other medical practitioner. For use by medical personnel trained in
suctioning techniques and in the use of medical suction equipment.
3. This manual is restricted to the discussion of the use and maintenance of this device. It does not attempt
to discuss professional techniques in suctioning procedures.
4. Operator should be thoroughly familiar with these operating instructions before this device is used.
5. Do not use in the presence of flammable agents or anesthetics.
6. The S-SCORT Ten produces a powerful vacuum. Do not use the S-SCORT Ten to suction neonates.
7. The suction pump must be reconnected to the charging source after each use and remain on charge until
needed. Disconnect only for portable use. Check condition of the battery frequently, see the weekly
checklist, page 9. SSCOR’s AC-DC converter only activates the internal battery charger. It will not run the
pump, however, the suction unit will run on vehicle power when the unit is connected directly to the
vehicle battery via the enclosed DC power cord or the SSCOR charging/retention shelf.
8. The mechanical shut-off in the canister is designed to close when the canister is filled with fluids. If the
vacuum shuts down, replace the canister. Spare canisters are available from SSCOR, Inc. or your dealer.
Be sure the lid on the canister is securely tightened to prevent a loss of vacuum at a critical time.
9. Before testing for vacuum over -300mmHg look for an expiration date on the canister (where applicable)
and change the canister if the canister has passed the expiration date to minimize the possibility of
implosion, which can occur when a canister is aged or damaged.
10. The battery is protected from a deep discharge condition by shutting down after approximately 45
minutes (±10%) running time.
Refer all servicing of electrical systems to qualified service personnel
NOTE: DO NOT ATTEMPT TO CHANGE THE ELECTRICAL SYSTEM.
THIS UNIT OPERATES ON 12-14V DC ONLY
Revision AA (02/17)
2
S-SCORT Ten - Models 2100 & 2100S
Rev AA (02/17)
Clearing The Airway Is Our #1 Priority
Table of Contents
Caution-Notice Page 2
General Description & Description of Symbols Pages 3—4
Important Features Pages 5—6
Getting Acquainted Pages 7—9
Charging / Retention Shelf Mounting Instructions Page 9
Warranty Page 10
Maintenance Pages 10—11
Trouble Shooting Page 12
General Specifications Page 13
Replacing the Battery Page 14
Electrical Diagram Page 15
Retention Bracket Mounting Template Page 16
General Description
The S-SCORT® Ten is a portable, 12V DC battery operated, suction device. S-SCORT suction units are
designed for hospital crash cart suction, patient transport and emergency medical service. The unit
receives power from its internal 12V DC battery or from the 12V system of the vehicle. The battery is
recharged by an internal, dual mode battery charger which is activated by the AC-DC converter or direct
connection to the vehicle electrical system. The charger monitors the battery, charges the battery only when
necessary, shuts down the unit if battery is low and signals battery condition. A full capacity, fully charged
battery will power the unit for 45 minutes (±10%). Replacement battery may be purchased at
shop.sscor.com
The S-SCORT Ten has two variations. The Model 2100 and Model 2100S. The Model 2100S includes a
charging and retention shelf (SSCOR part #85000). The suction unit is designed to be charged through the
shelf. The charging studs on the charging / retention shelf deliver the current provided by the vehicle to the
PC Board inside the suction unit.
The Model 2100 is designed to be charged by the vehicle or by a converter through the receptacle on the
control panel. The Model 2100 has stainless steel charging contacts which have been dipped in a
nonconductive material. The coating can be peeled away to expose the stainless steel contacts when/if the
Model 85000 Charging and Retention shelf is added to the system. If your suction unit is wired to the
vehicle battery via an automatic load switch power supply, be sure to use a filter in order to eliminate any
voltage spikes.
The S-SCORT Ten is equipped with a disposable collection canister which features a bacterial filter to
screen airborne particulates and a mechanical shut-off valve to prevent fluid overflow.
The molded cover/chassis of the S-SCORT Ten is extremely rugged and, while not submersible, it is water
repellent.
3
S-SCORT Ten - Models 2100 & 2100S
Rev AA (02/17)

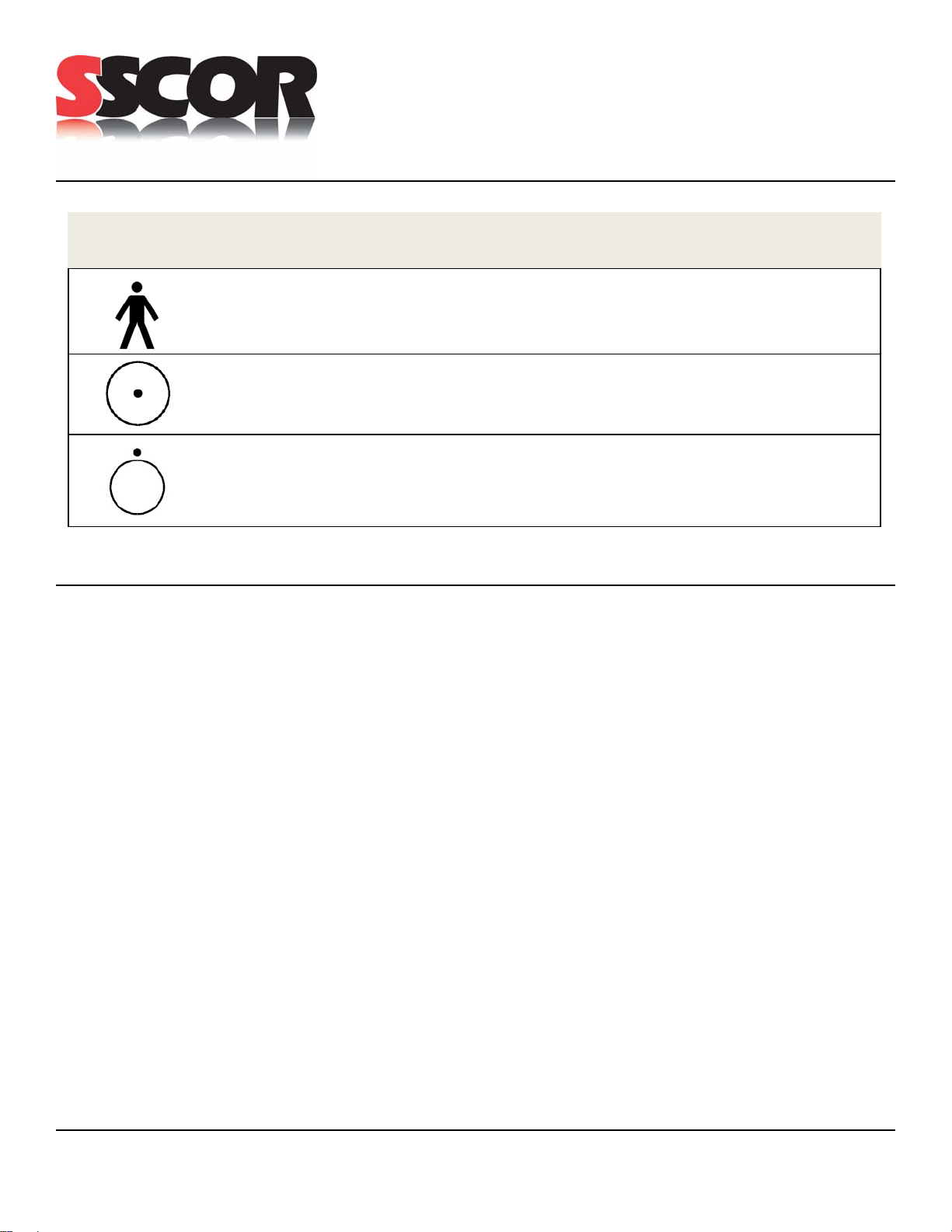

Description of Symbols
SYMBOL LOCATION MEANING
Control Panel Type B Equipment
Control Panel Pump is On
Control Panel Pump is Off
Clearing The Airway Is Our #1 Priority
Battery and Charging System
The S-SCORT® Ten suction unit is powered by sealed lead acid batteries. A sealed lead acid battery is a
very stable and reliable battery. Many factors can affect the life of a battery:
• Leaving a unit switched on after there is no longer enough power to run the pump can cause a battery to
deep discharge. This can reduce the life of, or destroy the battery.
Failing to charge a battery for an extended period of time will also cause the battery to go into deep
discharge.
• Low temperatures may reduce the available capacity.
• High temperatures may cause deformation of the battery case and damage the battery.
Sealed lead acid batteries can easily be maintained to permit proper operation of the equipment. To protect
the battery, after each procedure turn the unit off, put the unit on charge and always store the pump at room
temperature. The only way to assure the battery has functional capacity, even if it is indicated the battery is
fully charged, is to perform the battery check suggested on page 6 of this operations manual.
Batteries on the S-SCORT Ten are charged by an internal dual mode charger which monitors the battery,
maintains a fully charged battery while the suction unit is connected to the charging source, prevents the battery from overcharging and communicates battery condition to the user through a bi-color LED. The GREEN
LED indicates the battery has been charged to its available capacity. The sealed lead acid battery is a rechargeable battery that is a corrosive device that gradually loses available capacity as natural aging
Occurs. In no way does this green light guarantee full battery capacity or 45 minutes running time. The only
way to assure the battery has functional capacity is to perform the weekly check suggested on page 9
of this operations manual. It is possible for the green LED to light and the suction unit to run for a
very short period of time when the battery has lost capacity due to aging or abuse. The RED LED indicates a
depleted battery - recharge immediately. The internal dual mode charger can be activated by direct connec-
tion to the DC electrical system of the vehicle or by an AC-DC converter
4
S-SCORT Ten - Models 2100 & 2100S
Rev AA (02/17)
Important Features
Clearing The Airway Is Our #1 Priority
5
S-SCORT Ten - Models 2100 & 2100S
Rev AA (02/17)
Clearing The Airway Is Our #1 Priority
Important Features
Key # Component Function
1 Vacuum Port Connects canister to vacuum line
2 Patient Port Connects canister to patient tube
3 Disposable Canister 1200cc/ml. SSCOR Part #48041
4 Bulk Head Fitting Vacuum line connection
5 Deck Straps Holds shoulder strap
6 (+,-) Charging Contacts (Model 2100) Coated, Non-conductive
6 + Charging Contacts (Model 2100S) Supplies DC Power to internal battery charger (positive connection)
6 - Charging Contacts (Model 2100S) Supplies DC Power to internal battery charger (negative connection)
7 N/A N/A
8 Gasket, Control Panel Water repellent
9 Control Panel Service Screws To remove panel from chassis
11 On/Off Switch Turns unit on or off
11 Regulator Control Adjusts negative pressure
12 Battery Condition LED Bi-color; Red = depleted battery, Green = battery charged to availa-
ble capacity
13 Protective Cap / Charging Receptacle Water repellent
14 Roto-molded Chassis
15 Battery Connection Quick disconnect
16 Wiring Harness
17 Vacuum Pump Provides vacuum source
18 Battery Ties / Velcro Strap Secures battery
19 Battery Holder Holds battery in place
20 Battery Supplies electrical power to pump
21 Tubing Strap Holds patient tubing in place
22 Suction Tip HI-D Large Bore Suction Tip, SSCOR Part #44241
23 Patient Connecting Tubing 9/32” ID x 6’, SSCOR Part #43200
24 Charging / Retention Shelf Charges unit while retaining it up to a force of 25G
25 AC/DC Converter Activates internal battery charger. SSCOR Part #80521-100
26 12V DC Electrical Plug To connect AC/DC converter to battery
27 DC Power Cord Delivers DC power from vehicle to suction unit
6
S-SCORT Ten - Models 2100 & 2100S
Rev AA (02/17)
Clearing The Airway Is Our #1 Priority
Getting Acquainted
Electrical Operation: Constant battery charging is required.
MODEL 2100 - DC BATTERY CHARGING FROM VEHICLE:
Connect the DC power cord to the cigarette lighter receptacle in the vehicle or hard wire the DC power cord to
the DC electrical system of the vehicle on a properly fused line in front of the master switch. Connect the electrical line cord to the suction device by securely attaching the charging plug (26) into the receptacle (13). The
vehicle electrical system furnishes power to the internal dual mode battery charger. The suction device is
powered by the vehicle current. The DC power cord may be purchased at shop.sscor.com.
MODEL 2100 - DC BATTERY CHARGING FROM AC POWER USING AC-DC CONVERTER:
The 12Volt 1Amp AC Converter will not run the pump. If battery charging from AC power is required, connect
the SSCOR AC-DC converter (25) to an AC outlet. The converter connects to the unit through the receptacle
(13) on the front panel. Do not attempt to run the pump with the AC converter attached to the pump.
Remove the AC converter connection from the pump prior to any suction procedure. The AC/DC Converter
may be purchased at shop.sscor.com.
MODEL 2100S - DC CHARGING FROM THE CHARGING SHELF:
See page 9 for instructions to mount the charging/retention shelf. Hard wire the DC power cord to the DC
electrical system of the vehicle on a properly fused line in front of the master switch. Connect the 12V DC
electrical plug (26) to the receptacle on the side of the charging/retention shelf. Pull the handle of the shelf up
and out and place the unit in the charging/retention shelf. The unit will charge via the charging contacts (6).
MODEL 2100S - DC BATTERY CHARGING FROM AC POWER USING AC-DC CONVERTER:
Note: The 12V 1Amp AC Converter will not run the suction device. If charging from AC power is required,
mount the charging/retention shelf near a 115V AC power outlet. See page 9 for instructions to mount the
charging/retention shelf. Connect the SSCOR AC-DC converter (25) to a 115V AC outlet. The converter
delivers power to the unit through the receptacle on the side of the charging/retention shelf. Pull the handle of
the shelf up and out and place the unit in the charging/retention shelf. The unit will charge via the
charging contacts (6). Do not attempt to run the suction device with the AC converter attached to the device.
Remove the AC converter connection from the charging/retention shelf prior to any suction procedure.
While connected to the charging source, the internal dual mode charger monitors the battery and charges it
when needed. When disconnected from the charging source the suction device is designed to run independently for 45 minutes (± 10%) on a fully charged battery at full capacity. See page 4 of this operations
manual for an explanation of battery capacity. If your suction unit is wired to the vehicle battery via an automatic load switch power supply, be sure to use a filter in order to eliminate any voltage spikes.
BATTERY CHARGING VERIFICATION
Once the unit is connected to the charging source, check the On/Off switch on the control panel (10). The
amber LED indicates a good connection and that the battery is charging.
7
S-SCORT Ten - Models 2100 & 2100S
Rev AA (02/17)
Clearing The Airway Is Our #1 Priority
Getting Acquainted
Operation of Unit:
Negative pressure is controlled by a two position regulator (11). When fully depressed (pushed toward the
pump), the negative pressure exceeds -525mmHg. To reduce negative pressure, pull the regulator
straight out to the stop. In this position, the negative pressure will be -120mmHg (±15%).
Attach the patient connecting tube (23) to the patient port (2) on the canister (3). Use 9/32" ID tubing.
Push the On/Off switch (10) to the “On” position.
Occlude the end of the patient connecting tube (23) and keep it occluded for 10 seconds. Release the
occlusion and observe evidence of negative pressure. If the pump is running and no negative pressure is
observed, check to be sure the lid on the disposable canister is tight and vacuum connections are secure.
See Trouble Shooting, Page 12 for additional help.
Dispose of the canister after use according to local / regional / national requirements for the disposal of
hazardous waste materials.
Reconnect the S-SCORT to the charging source as soon as possible following use. The amber light on
the ON/OFF switch will confirm connection to the charging source.
Note: When charging the battery, verify the amber charging indicator light on the On/Off switch is lit.
The bi-color LED on the control panel will not show GREEN until the battery is fully charged to its current
capacity. A battery should fully charge in 4 to 6 hours.
Significance of Control Lights on the Front Panel
The amber charging indicator light on the On/Off switch (10) indicates the S-SCORT® “TEN” is receiving
electrical input from the power source. The green light on the On/Off switch indicates the pump is running.
The bi-color LED (12) lights Green when the battery is fully charged to its current capacity and Red when the
battery is depleted. During the charging cycle, while the battery is being brought up to full charge, the LED
indicator will not be lit but the amber light on the On/Off switch will indicate the battery is charging. Both the
amber light and the green LED will be lit when the battery is fully charged to its current capacity.
On/Off Switch
Green Light Pump is running
Amber Light Unit is receiving electrical input from charging source
Bi-color LED
Green is lit Battery is charged to its full capacity.
Red is lit Battery is depleted – Connect unit to charging source immediately Neither is lit Battery
is not depleted. Connect the unit to its charging source. If the amber light on the on/off
switch is lighted, the battery is in its’ charging cycle.
CAUTION: The pump will not run when the Red LED is on, indicating the battery is depleted. When the
Red light is observed, immediately turn the switch off and connect the unit to the charging source as
soon as possible. Always turn the On/Off switch “Off” as soon as possible after the procedure.
8
S-SCORT Ten - Models 2100 & 2100S
Rev AA (02/17)
Clearing The Airway Is Our #1 Priority
Getting Acquainted
Run the following test weekly to ensure proper performance of the device
1. Confirm the unit is connected to a power source, the battery is charging, and the green LED is lit
indicating the battery is fully charged.
2. Remove the unit from the power source and run the unit from its internal DC battery.
3. See Caution - Notice, page 2 number 9. Check for vacuum by occluding the patient tube and push
the regulator in to the stop.
4. The vacuum reading should rise to -300mmHg from zero in 3 seconds. It should max out at
≥ -525mmHg. Un-occlude the patient tubing.
5. Allow the unit to run for 15 minutes on DC power. If the unit stops or slows during the 15 minutes, it
is possible the battery capacity has been depleted. It is time to replace the battery.
6. If the unit is still running at full power after 15 minutes, adjust the regulator to the desired setting, turn
the device off and put it back on charge.
SSCOR recommends replacing the battery after 3 years. Replacement battery may be purchased at
shop.sscor.com.
Charging/Retention Shelf Mounting Instructions
The Model 85000 Charging/Retention shelf can be mounted by the base or vertically in order to hold the
Model 2100S S-SCORT® Ten Portable Suction device. Mount the retention bracket to a suitable safe
mounting surface so the indicator lights on the control panel are visible to the user. The unit is shipped
ready to be mounted by the base, but if that does not fit your requirements, you can easily modify the unit to
mount it vertically.
Note: the mounting bracket will hold the S-SCORT Ten in place to a force of 25G. Select and prepare a
mounting surface, and take care in the mounting procedure, so the bracket and pump will be secure at a
force equal to, or greater than, 25G.
Base Mount
Use the mounting template that is shipped along with the Operation Instructions and Maintenance Manual to
mark the hole placement for a base mount. Use a 5/16" drill. Remove the nut and washer from the screws
extending from the base plate. Slip the screws of the base plate through the holes you have drilled and reattach the washers and nuts to secure the Charging/Retention shelf in place. Coat the nuts with Loctite® (not
supplied) before securing the Charging/Retention Shelf.
Vertical Mount
Remove the four hex head screws from the base plate. You will not use this mounting plate to mount the
unit vertically. Use the Mounting Template that is shipped along with the Operation Instructions and Maintenance Manual to mark the hole placement for a vertical mount. Use a 5/16"drill. Put the four 1-1/2" bolts
through the holes in the charging shelf arch. Reattach the washers and nuts to the screws to secure the
Charging/Retention shelf in place. Coat the nuts with Loctite (not supplied) before securing the Charging/
Retention Shelf.
Electrical
Hard wire the DC power cord (27) to the DC electrical system of the vehicle in front of the master switch.
The ribbed wire of the split charging cable is positive. The inside of the barrel connector to the charging shelf
is positive. The front charging contact, closest to the canister holder, is positive and it matches the front
charging pin on the charging shelf, which is positive. Make certain the circuit is properly fused according to
appropriate vehicle standards.
9
S-SCORT Ten - Models 2100 & 2100S
Rev AA (02/17)
Clearing The Airway Is Our #1 Priority
Warranty
SSCOR warrants that each new product is free from defects in material and workmanship under normal use
and service for a period of one year from date of purchase. If returned to SSCOR, we will arrange for repairs
or replacement within the terms of the warranty. The product should be decontaminated and returned properly
packaged and postage prepaid. Loss or damage in transit to the factory shall be at the purchaser’s risk.
Please call 800-434-5211 or international +1 818-504-4054 for return authorization or for the location of an
authorized repair center. Loss or damage in return shipment from SSCOR shall be at the purchaser’s risk.
The warranty shall not apply to any SSCOR product which has been repaired by anyone other than an
authorized SSCOR representative, or altered in any way so as, in SSCOR’s judgment, to affect its safety or
efficacy, nor which has been subject to misuse, negligence, or accident, nor which has had the serial number
altered, effaced or removed. Neither shall this warranty apply to any SSCOR product which has been connected otherwise than in accordance with the instructions furnished by SSCOR.
This warranty is in lieu of all other warranties expressed or implied and of all other obligations or liabilities on
SSCOR’s part, and SSCOR neither assumes, nor authorizes any representative or other persons to assume
for it, any other liability in connection with the sale of SSCOR products.
This warranty gives you specific legal rights and you may also have other rights that vary from jurisdiction to
jurisdiction. For countries where minimum warranty terms are determined by statute, the warranty term is the
longer of the statutory period or the term listed above.
Batteries, disposable items including collection canisters, patient tubing and catheters are excluded from this
warranty.
The Rotomolded chassis of the S-SCORT Ten is unconditionally warranted for the life of the unit.
Model 2100S (with Charging Shelf) Battery Replacement Policy
SSCOR will replace any S-SCORT® Ten Model 2100S battery which fails to operate the pump to specifications for a period of three years from the date of purchase. Verify that the pump runs to specifications as per
the weekly checklist on Page 9 in this Operations Manual.
Maintenance
Preventive Care: Observe the following maintenance routine to ensure readiness at any time:
1. When the SSCOR aspirator is not in use, keep batteries on continuous charge.
2. Test the SSCOR aspirator at regular intervals; See page 9.
3. Make sure the SSCOR aspirator is always clean and ready for use.
4. If the procedure produced an excessive quantity of fluids, check the vacuum line (1) for evidence of
moisture. If the vacuum line between the pump and canister is moist, it is possible that fluids have
reached the vacuum pump. See Disinfection Instructions (page 11).
5. If the vacuum pump appears defective, return the unit to the factory for repair. Do not attempt to
repair the vacuum pump.
6. For technical assistance, call (800) 434-5211 or international +1 (818) 504-4054. For replacement
parts and accessories, please visit shop.sscor.com.
10
S-SCORT Ten - Models 2100 & 2100S
Rev AA (02/17)
Clearing The Airway Is Our #1 Priority
Maintenance
As soon as possible after use, the single use disposable canister, patient tubing and catheter should be
discarded according to local / regional / national requirements for the disposal of hazardous waste
materials. Clean the exterior of the SSCOR suction unit using a mild detergent and clear water by
dampening a clean lint free cloth. Rinse using clear water and another damp clean lint free cloth to remove
any detergent residue.
NOTE: The hydrophobic filter in the canister helps to ensure that no moisture or particulate matter
reaches the inside of the device. When fluids fill the canister, the positive (mechanical float) shutoff
valve closes immediately, shutting the vacuum port off so as to prevent fluid from contacting the
pump. The filter has been tested by the manufacturer (Bemis) to screen out aerosolized
microorganisms and particulate matter at a bacterial efficiency rating of 99.99% DOP. The canister
also has sidewall gradation marks starting at 100 ml/cc and at every 50 ml/cc up to 1200 ml/cc
indicating the fill level of the canister.
In the unlikely event that fluids may have reached the vacuum pump, read the disinfection section. Your
engineering department will have to open the unit to check the condition of the pump.
Do not reuse any single use disposable parts; do not submerge the device into any liquid, this will void the
warranty and cause the device to malfunction.
Disinfection
Use personal protective equipment such as gloves, a smock, and face and eye protection when handling
units that are suspected to be contaminated.
Part Cleaning and Disinfecting
Collection Canister Disposable item, re-use not permitted. Use new canister for each
patient.
Patient Tubing
HI-D® Stick
Vacuum Pump
Disposable item, re-use not permitted. Use new patient tubing for
each patient.
Disposable item, re-use not permitted. Use new HI-D Stick for each
patient.
Wipe with damp cloth or disinfectant wipe. Sterilization not permitted. Vacuum pump should be replaced if contaminated
Chassis Wipe with damp cloth or disinfectant wipe. Sterilization not permit-
ted.
Caution: Disconnect the unit from any power source prior to cleaning the unit.
Disinfect the unit using a mild surface disinfectant, such as a 10:1 mixture of water and bleach. The unit is
designed to suction contaminated fluids, which should be removed from the system immediately after use.
In the unlikely event that fluids may have reached the vacuum pump, your engineering department will have
to open the unit to check the condition of the pump. When cleaning the interior of the chassis, disconnect
the battery from the wiring harness. The only foreseeable way fluids may reach the vacuum pump is the
filter in the canister has been compromised or bypassed.
For technical assistance, call (800) 434-5211 or +1 (818) 504-4054. For replacement parts and accessories,
please visit shop.sscor.com.
11
S-SCORT Ten - Models 2100 & 2100S
Rev AA (02/17)
Clearing The Airway Is Our #1 Priority
Troubleshooting
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Unit does not function
when switch is in the “ON”
position
Unit does not suction
when pump is running
Pump is sluggish
Molex connections disconnected
Battery discharged
Battery damaged
Converter damaged
Internal battery charger is
damaged
Vacuum line loose
Canister damaged
Canister lid is not tight
Thumb vent on suction tip is not
occluded
Residual materials have collected
in the pump head
Battery is unable to retain a
charge
Loose connections
Reconnect Molex connections
Recharge battery
Replace battery
Check output of converter
Return unit to SSCOR, Inc.
Check connections
Replace canister
Re-secure canister lid
Occlude thumb vent with thumb
Replace pump
Replace battery
Check connections
System shuts down while
suctioning heavy
particulate matter
Regulator stem is difficult
to pull
12
Vacuum line clogged at canister
lid
Float valve has closed
Battery damaged
Stem requires lubrication Lubricate stem with pneumatics
Remove connector or canister lid and
loosen obstruction
Loosen float valve, empty contents,
or replace canister
Replace battery
lubricant
S-SCORT Ten - Models 2100 & 2100S
Rev AA (02/17)
Clearing The Airway Is Our #1 Priority
General Specifications
CHARACTERISTICS SPECIFICATIONS
Size 14"L x 9.5"H x 7"W
Weight 10 pounds
Vacuum Pump 12V DC., 3.0 A
Clinical Airflow ≥ 30LPM
Exceeds 525mmHg
Regulator Controls negative pressure
Power Source:
Battery (DC Power)
DC Charging from Vehicle
Internal“DualMode”Charger
Switch On/Off Rocker, water resistant. Lights on the switch signal electrical
Collection Canister 1200cc/ml SSCOR part #48041
Patient tubing Vinyl tubing 9/32”ID x 72”L SSCOR part #43200
Suction Tip HI-D® “Big Stick®” Large Bore Suction Tip with thumb control.
Rechargeable Sealed Lead Acid. Please read pages 7 – 9 for battery
care suggestions. At full capacity a fully charged battery will power the
suction device for 45 minutes ( ± 10%).
Vehicle electrical system powers the pump and charges the battery
until disconnected and then the unit switches automatically to its self
contained battery.
Monitors battery voltage and charges battery when needed.
input and output.
SSCOR part #44241
13
S-SCORT Ten - Models 2100 & 2100S
Rev AA (02/17)
Clearing The Airway Is Our #1 Priority

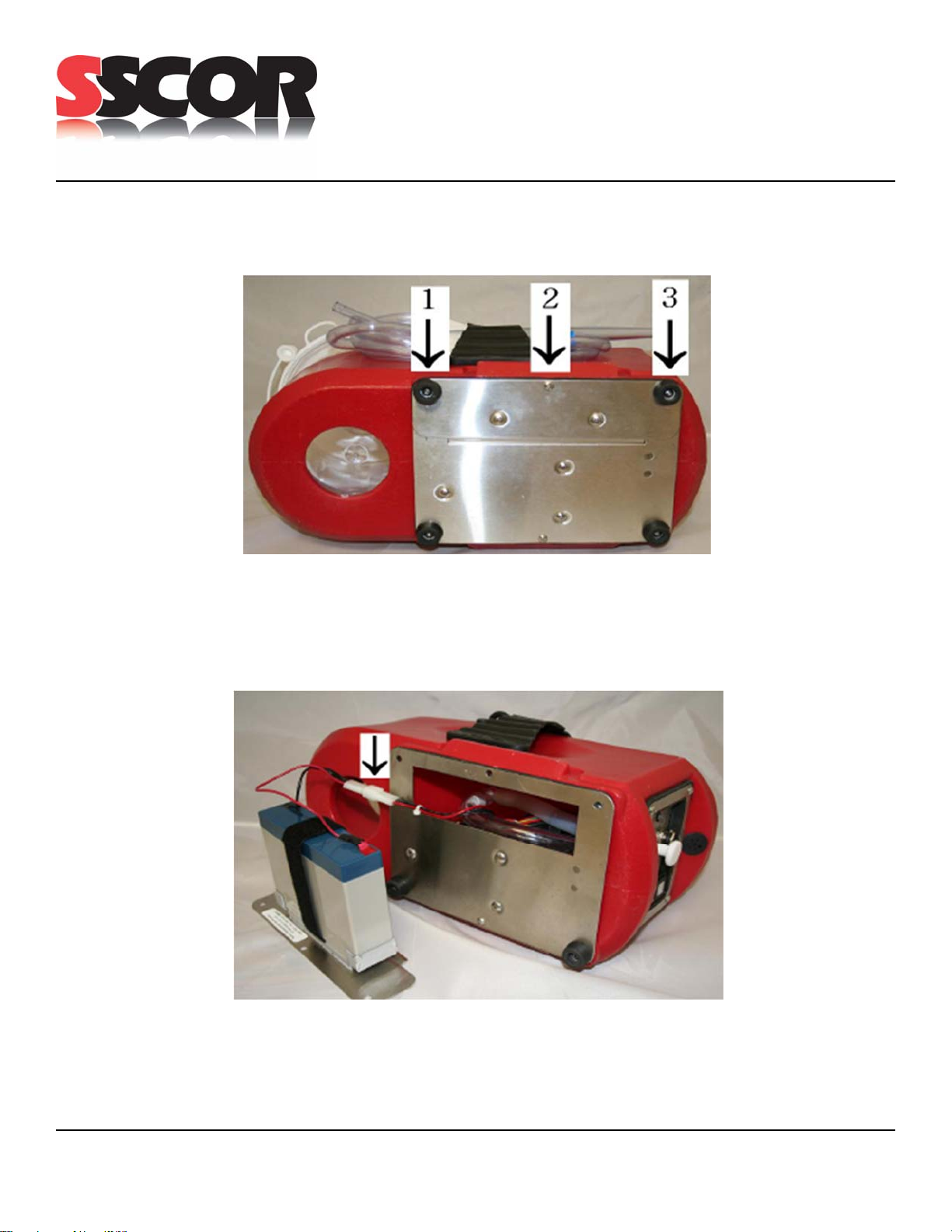

Replacing the Battery (Available for purchase on shop.sscor.com)
Refer to Parts Diagram pages 5 & 6 and Electrical Diagram on page 16.
1. Remove the three screws noted below from the bottom plate. Do not remove any other screws.
2. Pull the battery plate away from the device and disconnect the battery Molex. Release the battery
from the battery holder by removing the velcro strap. Install the new battery in the battery holder,
reconnect the Molex connection, and secure the battery using the velcro strap. Turn the device
on and verify negative pressure from the vacuum tubing. Re-attach the battery plate to the base
plate.
Dispose of the old battery according to local / regional / national requirements for the disposal of
sealed lead acid batteries.
14
S-SCORT Ten - Models 2100 & 2100S
Rev AA (02/17)
Electrical Diagram
Clearing The Airway Is Our #1 Priority
15
S-SCORT Ten - Models 2100 & 2100S
Rev AA (02/17)
Clearing The Airway Is Our #1 Priority
Mounting Template
Charging / Retention Shelf (#85000) for the S-SCORT Ten Model 2100S
To mount the Charging / Retention Shelf (#85000) for the S-SCORT Ten Model 2100S to the vehicle, drill four
1/4” holes to the appropriate hole pattern as shown below for a base mount or a vertical mount.
Please Note: Template size may vary on different printers. Make sure your holes are marked per the
dimensions on the template. All dimensions are in inches.
16
S-SCORT Ten - Models 2100 & 2100S
Rev AA (02/17)
Loading...
