SSCI 108495-00 User guide

Utility Table









Model Number: 108495-00

Helps keep instruments organized & handy
Full 4 in. deep drawer with friction latch
Non-marking 3 in. ball-bearing swivel casters
Stainless steel construction - designed to last

Owner’s Manual

SSCI

Wheeling, IL [phone]

Form No. 702757 07/07

Owner’s Manual

Table of Contents

General Information ........................................................................................................................................ 3

Introduction............................................................................................................................................................. 3

About this Manual .................................................................................................................................................. 3

SSCI Contact Information ........................................................................................................................................ 3

Model ...................................................................................................................................................................... 4

Returning the Table for Repairs ............................................................................................................................... 4

RMA Numbers .......................................................................................................................................... 4

Packing and Shipment ...............................................................................................................................4

Warranty .................................................................................................................................................................. 4

Care & Cleaning of Stainless Steel ................................................................................................................ 5

Introduction............................................................................................................................................................. 5

Cleaning & Cleansers .............................................................................................................................................. 5

Deodorizing Agents, Disinfectants, & Sanitizers .................................................................................................... 5

Effect on Warranty .................................................................................................................................................. 6

Unpacking & Inspection .................................................................................................................................. 6

Repairs & Replacements ................................................................................................................................. 7

Replacement Parts ................................................................................................................................................... 7

General .....................................................................................................................................................................7

Parts Ordering Procedure ........................................................................................................................................ 7

Parts Replacement Procedures ................................................................................................................................ 8

Pull Handle ................................................................................................................................................ 8

Overview ..................................................................................................................................... 8

Tool Required ............................................................................................................................. 8

Procedure .................................................................................................................................... 8

Drawer ....................................................................................................................................................... 9

Overview ..................................................................................................................................... 9

Procedure .................................................................................................................................... 9

Retaining Rail .......................................................................................................................................... 10

Overview ................................................................................................................................... 10

Tools Required .......................................................................................................................... 10

Procedure .................................................................................................................................. 10

Ball-bearing Swivel Caster ....................................................................................................................... 11

Overview ................................................................................................................................... 11

Tool Required ........................................................................................................................... 11

Procedure .................................................................................................................................. 11

Care & Maintenance of Casters .................................................................................................................... 12

General ................................................................................................................................................................... 12

Caster Safety Tips ................................................................................................................................................. 12

Inspection .............................................................................................................................................................. 12

Frames ..................................................................................................................................................... 12

Wheels .................................................................................................................................................... 12

Casters .................................................................................................................................................... 13

© Copyright 2007 by Suburban Surgical Co., Inc. All rights reserved.

No part of this document may be reproduced or utilized in any form or by any means, electronic or mechanical, including
photocopying, recording, or by any information storage and retrieval system without written permission.

Inquiries should be addressed to Suburban Surgical Co., Inc.

Wheeling, Illinois 60090, USA

2

SSCI - Suburban Surgical Company, Inc.

General Information

Utility Table

Introduction

About this Manual

SSCI Contact
Information

SSCI’s Utility Table features a built-in drawer to help keep your
instruments and treatment supplies clean, organized, and easily
accessible. The Type 304 stainless steel construction offers long­lasting durability with easy care. The drawer is a full 4 in. (10.16cm)
deep and features a friction latch to stay closed while the table is
being moved. Ball-bearing slides allow the drawer to open fully, yet
feature a positive stop to prevent the drawers from being removed
accidentally. A retaining rail around three sides of the top surface
helps keep supplies in place during transit. A lower shelf adds
storage space and enhances structural integrity.

Every attempt has been made to insure that the information in this
manual is correct and complete. SSCI, however, always welcomes
our customer’s suggestions for improvements to our products and
associated publications.

Contact SSCI Customer Service by mail, telephone, or fax.
The department is available from 8:30am to 5:00pm, Central Time,
Monday through Friday. Closed holidays.

Address: Suburban Surgical Co., Inc.

275 Twelfth Street
Wheeling, Illinois 60090

Telephone: Illinois - [phone], ext. 3518

Toll Free - [phone]

Fax: [phone]

Web: www.suburbansurgical.com

Form No. 702757 July, 2007 3

Owner’s Manual

Model

Returning the Table
for Repairs

RMA Numbers

Packing & Shipment

The model number for the stainless steel SSCI Utility Table with
drawer, casters, retaining rail, and lower shelf is:

P/N 108495-00

Dimensions: 20.750”W x 35.656”H x 16.375”D

52.705cmW x 90.57cmH x 41.59cmD

If your utility table should require return to SSCI for repairs, discuss
the problem with one of our Customer Service Representatives.
Obtain an RMA number (Return Merchandise Authorization) from
them before shipping the unit back. Note: Merchandise returned
without an RMA number will not be accepted.

If you were able to keep the utility table shipping carton, repack the
table into the carton, and staple or tape the cover securely in place.
If the original shipping carton is not available, pack the table as best
you can to protect it during shipment. Ship documentation with the
table including:

 Destination
 RMA Number
 Your name, company, and address
 Your telephone number
 A description of the reason for returning the table

Warranty

4

Suburban Surgical Company, Inc. warrants the original purchaser
that our products are of the highest standards in material and
workmanship. Our stainless steel components are guaranteed to last
a lifetime assuming they are used as intended, properly maintained
and cared for. Mechanical, electrical, electronic, hydraulic, and any
product’s devices carry a one year warranty.

Items purchased by Suburban Surgical Company, Inc. from other
manufacturers and incorporated into our equipment are covered by
the respective manufacturer’s warranties.

Warranties will not apply if it is determined by Suburban Surgical
Company, Inc. that the equipment became defective due to an
accident, misuse, abuse, improper maintenance, or alteration.
Warranty freight charges are covered for the first year only.

SSCI - Suburban Surgical Company, Inc.

Care & Cleaning of Stainless Steel

Utility Table

Introduction

Cleaning & Cleansers

Stainless steel is steel alloyed with chromium to make it highly
resistant to stain, rust, and corrosion. Note: This does NOT mean
that stainless steel will never rust or corrode. Science has not yet
developed a steel which is completely stainless or corrosion
PROOF.

The type of stainless steel and finish selected by SSCI for this
product is the best available for the intended use.

The basic rule of thumb is to use the mildest cleaning procedure that
will do the job effectively. Always rinse thoroughly with clear water
and dry completely. Frequent cleaning will prolong the service life of
stainless steel equipment and will help maintain a bright, pleasing
appearance.

Ordinary deposits of waste and fluids can usually be removed with
soap and water. More stubborn deposits or tightly adhering debris
may require harder scrubbing and possibly the use of commercial
cleaning products acceptable for use on metal surfaces. When using
any cleaning agent, rub in the direction of the polish lines or “grain”
of the metal. For high luster finishes, clean soft cloths or pads should
be used. If especially rough cleaning is necessary, use “stainless
steel” wool, nylon, or plastic scrubbers. Test these scrubbers in an
inconspicuous area first to be sure they do not mar or scratch the
stainless steel finish.

Minor scale build-up and some hard water spotting may be
removed by washing with vinegar, followed by a neutralizing rinse
with clear water and a thorough drying with a soft cloth. For heavy
deposits of scale, 5% oxalic acid (use warm), 5-15% sulfamic acid,
or 5-10% phosphoric acid may be used. Always follow with a
neutralizing rinse of clean water and a thorough drying.

Deodorizing Agents,
Disinfectants, &
Sanitizers

Form No. 702757 July, 2007 5

The large selection of brands and combinations of chemicals
available for deodorizing, disinfecting, and sanitizing is staggering.
Select one or more agents for use in your facility only after weighing
all the benefits claimed by each product. Often this choice is made
without adequate consideration of the effects these agents may
produce on equipment or furnishings.

Owner’s Manual

CAUTION: Before selecting a chemical to employ in
your facility, review label statements regarding use
with metals (stainless steel). Always consult the
chemical supplier if there are any doubts.

Avoid prolonged use of chlorides (such as chlorine bleach),
bromides, iodides, and thiocyanates on stainless steel surfaces as
these chemicals will cause pitting, corrosion, and metal
discoloration. Allowing salty solutions to evaporate and dry on
stainless steel may also contribute to corrosive conditions.

In summary, select chemical deodorizers, disinfectants, and/or
sanitizers only after weighing all possible benefits and known
adverse effects.

Effect on Warranty

CAUTION: The warranty for this product is void if the
care and cleaning instructions provided in this
manual are not followed.

Unpacking & Inspection

CAUTION: Unpacking the utility table is not difficult.
However, the table is heavy and we recommend that
unpacking be done by at least two people.

If the shipping container appears damaged in any way, contact
the shipping company immediately. Save all damaged packing
materials to assist in proving liability for damage.

Carefully inspect your utility table while you unpack it. If any
damage is noted, or if parts appear to be missing, call SSCI
Customer Service at [phone].

6

SSCI - Suburban Surgical Company, Inc.

Repairs & Replacements

Utility Table

Replacement Parts

emaNtraP rebmuNtraPICSS ytitnauQ

eldnaHlluP95915818egaP

rewarD 5250-4451-0371-6020H 1 9egaP

liaRgniniateR05751-05702-573-502H101egaP

retsaCleviwSgniraeb-llaB 000EC-00014032-001C 4 11egaP

Replacement Parts for SSCI Utility Table

General

The table below lists the replacement parts available for the SSCI
Utility Table. For parts not listed, contact SSCI Customer Service
at [phone]. To order parts, refer to Parts Ordering
Procedure below.

 During disassembly, retain all hardware items such as screws,

nuts, lockwashers, etc. for reassembly.

 If you have problems with any procedure, please feel to

call SSCI Customer Service at [phone].

tnemecalpeR

snoitcurtsnI

Parts Ordering
Procedure

Order new equipment, accessories, and replacement parts directly
through SSCI Customer Service. You can order by mail, telephone,
or fax. Refer to SSCI Contact Information on Page 3 for address,
telephone, and fax numbers. When ordering, please provide the
following information:

 Your name
 Company name
 Company account number
 Telephone number
 Fax number
 e-mail address
 Shipping address
 Billing address (if different from shipping address)
 Names, part numbers, and quantities of items being

ordered

 Credit card number and expiration date, or other payment

information

 Preferred method of shipment
 Information on whether the items are required on a normal

or urgent basis

Form No. 702757 July, 2007 7

Owner’s Manual

Parts Replacement
Procedures

Pull Handle

P/N 851959

The following pages guide you in replacing worn, damaged, or
missing parts on your SSCI Utility Table.

Overview

There is one pull handle on the Utility Table (Figure 1). It can be
replaced without removing the drawer.

Tool Required

 Phillips screwdriver

Procedure

1. Open the drawer.

2. From inside the drawer (Figure 2), use a Phillips screw­driver to unscrew the two pull handle screws, and remove
the old handle from the drawer.

3. Secure the new pull handle to the front of the drawer with
the two screws removed in Step 2.

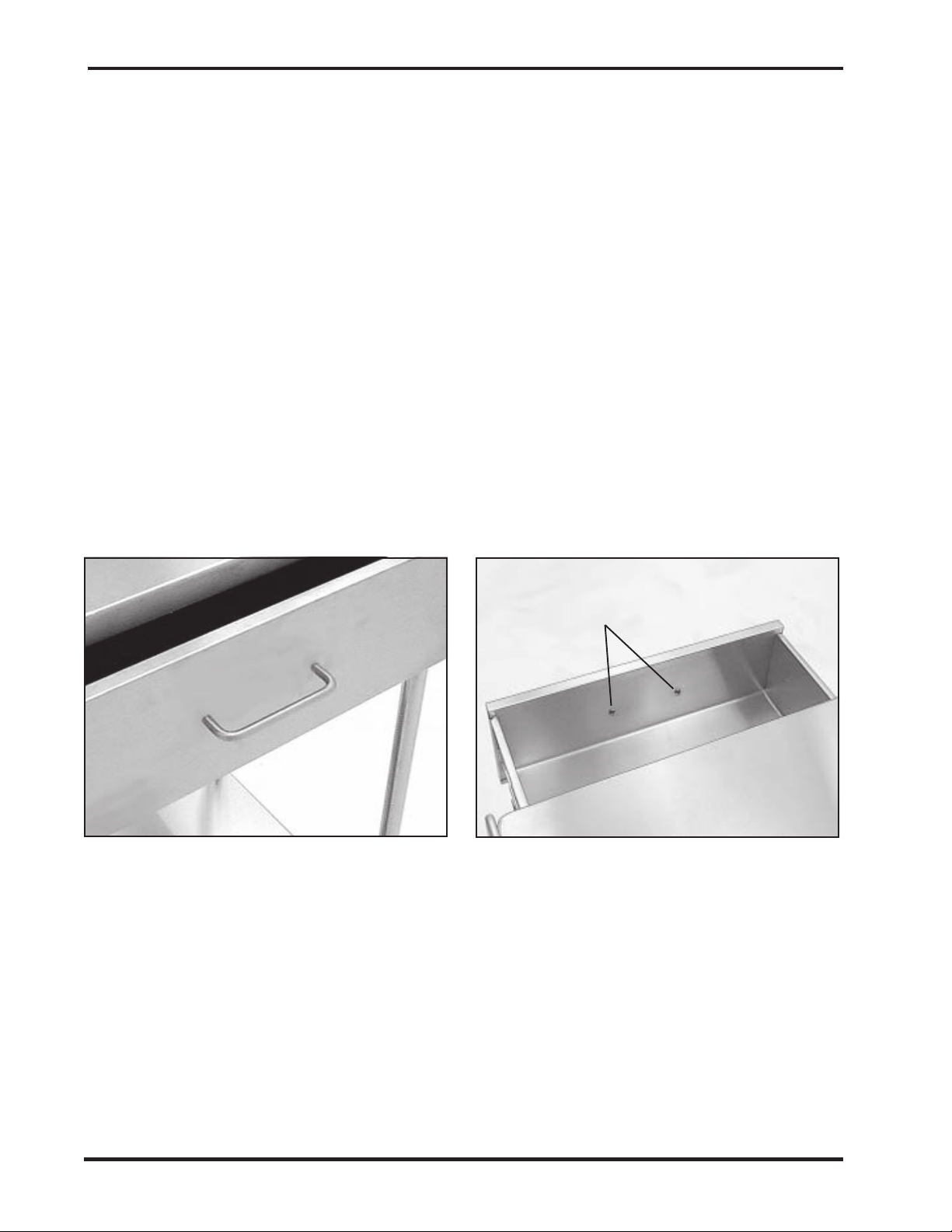

Figure 1. Pull Handle

Pull Handle Screws

Figure 2. Drawer Open Showing Pull
Handle Screws

8

SSCI - Suburban Surgical Company, Inc.

Utility Table

Drawer

P/N H0206-1730-1544-0525

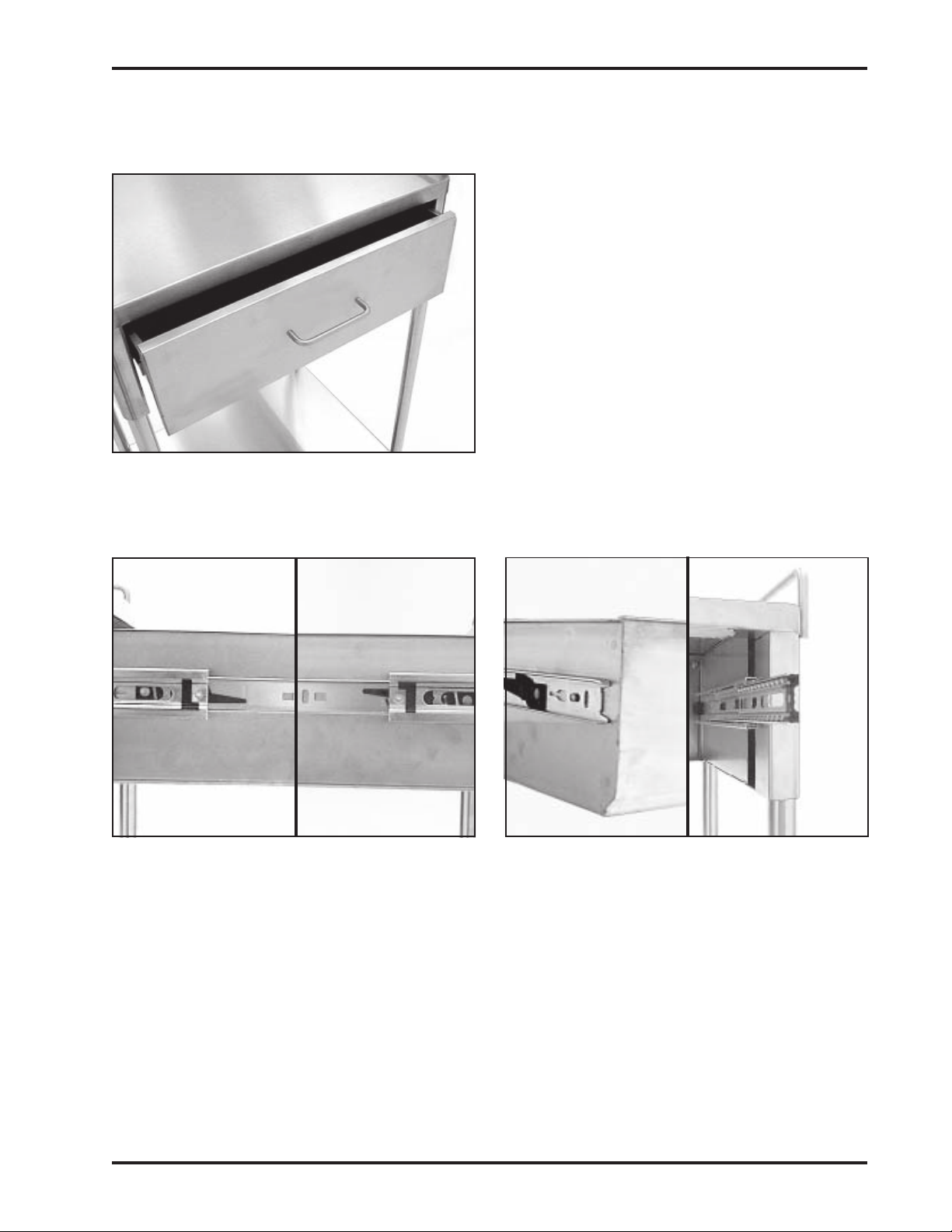

Figure 3. Drawer

Overview

There is one drawer in the Utility Table (Figure 3). It is quick and
easy to remove and install without tools.

Procedure

1. Open the drawer all the way.

2. While supporting the drawer from below,
hold the left locking lever up, and the right
locking lever down (Figure 4).

3. Pull the drawer out of the table.
Note: Hold the table back to keep it from
trying to follow the drawer.

4. To replace the drawer into the table, place
the flanges on the right and left drawer
carriages (Figure 5) into the slots above
and below the ball-bearings on the slides,
and push the drawer in.

LEFT SIDE

rr

r

rr

Hold Left Lever

UP

Figure 4. Drawer Locking Levers

RIGHT SIDE

oo

o

oo

Hold Right Lever

DOWN

Place flanges on

carriage...

pp

p

pp

pp

p

pp

Figure 5. Installing Drawer

...into slots in slide,

& push drawer in.

pp

p

pp

pp

p

pp

Form No. 702757 July, 2007 9

Owner’s Manual

Retaining Rail

P/N H205-375-20750-15750

Retaining Rail Mounting

Screws (4)

Overview

A retaining rail runs around three sides of the table top to help keep
supplies in place during transit.

Tools Required

 Phillips screwdriver
 7/16 in. wrench

Procedure

1. Refer to Drawer - Procedure - Steps 1 through 3 on
Page 9, and remove the drawer from the table.

2. With a Phillips screwdriver and 7/16 in. wrench, remove the
four retaining rail screws/nuts (Figures 6, 7, & 8) and remove
the rail from the table.

3. Mount the new retaining rail into place with
the four screws/nuts removed in Step 2.

4. Refer to Drawer - Procedure - Step 4 on
Page 9, and install the drawer.

Retaining Rail

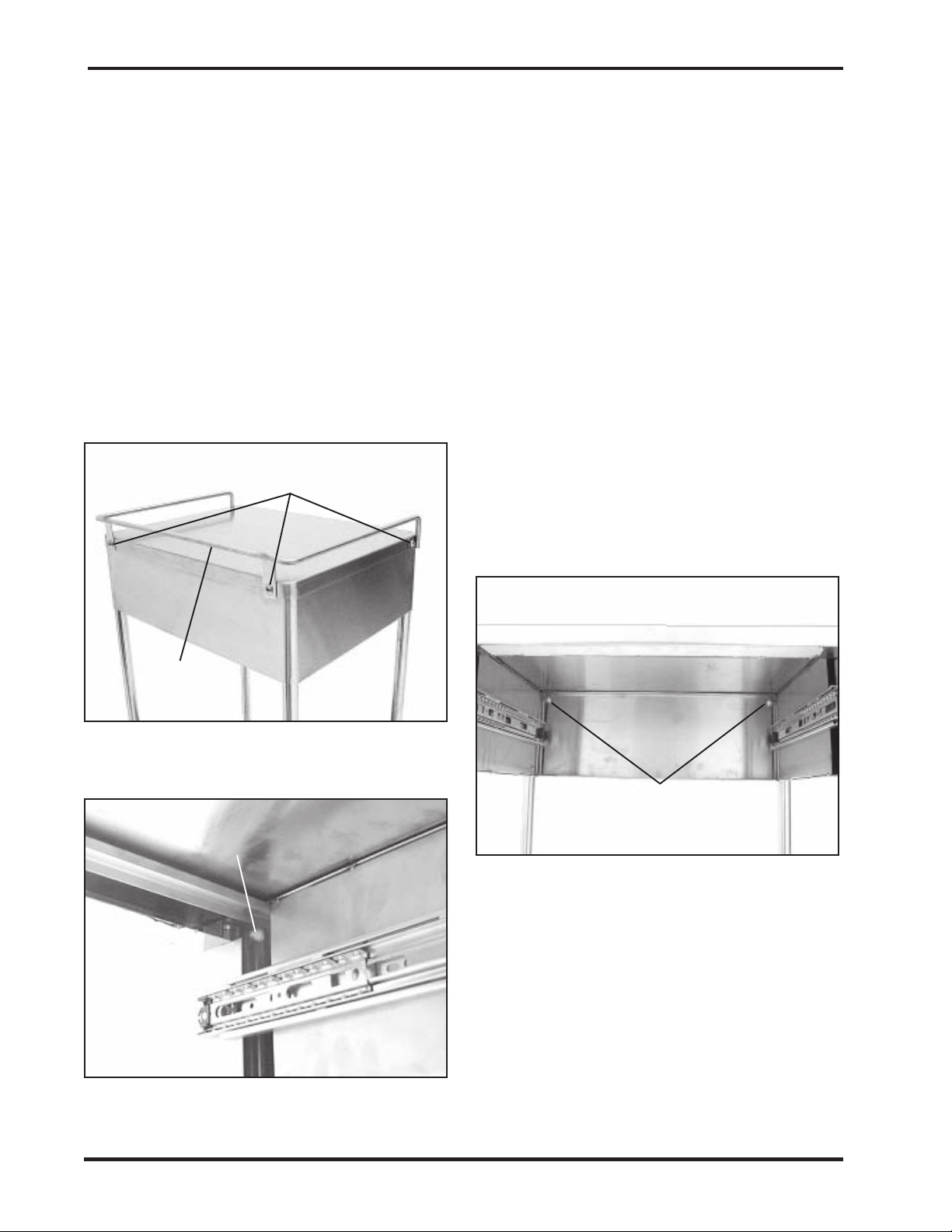

Figure 6. Retaining Rail and Mounting
Screws

Front Retaining Rail Mounting

Nut (1 of 2)

Inside view
of table with
drawer
removed.

Inside view of table with drawer removed

Rear Retaining Rail

Mounting Nuts

Figure 7. Rear Mounting Nuts on Inside
of Table

Figure 8. Front Mounting Nut on Inside
of Table

10

SSCI - Suburban Surgical Company, Inc.

Utility Table

Ball-bearing Swivel

Caster

P/N C100-23041000-CE000

Overview

There are four ball-bearing swivel casters on the Utility Table. They
are all the same and are replaced in the same way. The casters do
not have brakes or lubrication fittings.

Tool Required

 Large, flat-blade screwdriver

Procedure

1. Lay the table down on one side so that the caster to be
replaced is accessible. Place the table on a cloth or other
soft surface to avoid scratching the stainless steel.

2. Wedge the blade of a large, flat-blade screwdriver between
the caster and the plastic socket (Figure 9) and pry the
caster partially out.

3. Once the caster is loose, pull it out the rest of the way by
hand.

4. Place the shaft of the new caster into the socket and push it
in by hand until it seats.

Place screwdriver

blade here.

oo

o

oo

Socket

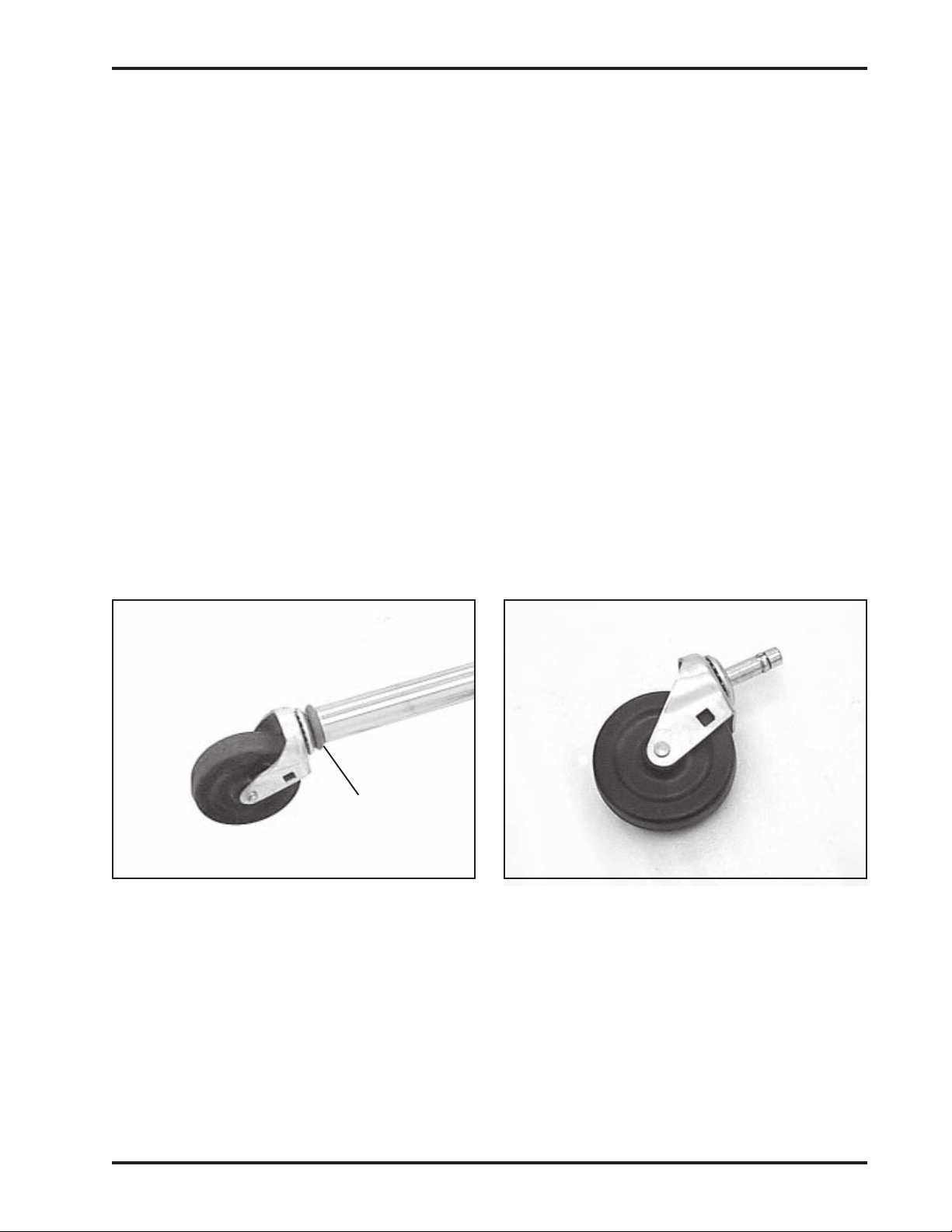

Figure 9. Removing a Caster from the
Table Leg

Figure 10. Caster Removed from the
Table Leg

Form No. 702757 July, 2007 11

Owner’s Manual

Care & Maintenance of Casters

General

Caster Safety Tips

This section provides you with a general safety and maintenance
guide for the casters on your Utility Table. Please read this section
carefully to use your equipment safely and to provide a long and
reliable life for your table.

Always remember, the most important safety step for casters is
regular and proper maintenance. Users are responsible for the
proper operation and maintenance of their equipment. Any piece of
equipment will become inefficient and unsafe if abused or subjected
to improper demands for which it was not designed. If equipment is
regularly maintained and not abused, you will get the maximum
safety and service performance from your casters. Always observe
the following rules:

 Never overload the equipment.
 Never drop heavy loads on the equipment.
 Never subject the equipment to operation at high speeds.

These actions create severe impact and shock loads that can lead to
wheel, caster, and equipment failure.

Inspection

Frames

Wheels

Periodically turn the equipment on its end or side and check the
following:

 Look for broken or cracked welds.
 Look for frame distortion caused by overloads and impact

loads. Distorted frames can lead to wheel failure by placing
disproportionate loads on one or two casters.

Check wheels for visible tread wear. Flat spots may indicate an
accumulation of foreign material, such as string, thread, or hair,
which can cause the wheel to bind. Clean any foreign material out of
the axle and ball-bearing.

Loose casters and frozen wheels can also cause flat spots. Timely
replacement of damaged casters will enhance equipment rollability
and tracking performance.

12

SSCI - Suburban Surgical Company, Inc.

Utility Table

Badly worn or “chunked out” rubber tires can also cause erratic
steering, bumping, load shifting, and damage to floors. We
recommend that replacement casters be kept on hand to reduce
costly downtime.

After the wheels have been inspected and repaired, be sure the axle
rivets are tight. The wheel may lock up or become damaged if it is
not straight in the caster horn.

Casters

Check the swivel assembly for excessive play due to wear. If the
swivel assembly is loose, replace the entire caster. If the swivel does
not turn freely, check for corrosion or dirt binding the raceways.
Note: The casters on the Utility Table do not have brakes or
lubrication fittings.

Form No. 702757 July, 2007 13

For more information on SSCI’s fine line of products

and accessories, talk to your SSCI sales representative.

SSCI

Suburban Surgical Company, Inc.

275 Twelfth Street Wheeling, IL 60090

Phone: [phone] Fax: [phone]

Toll Free: [phone] Web: www.suburbansurgical.com

Form No. 702757 07/07
