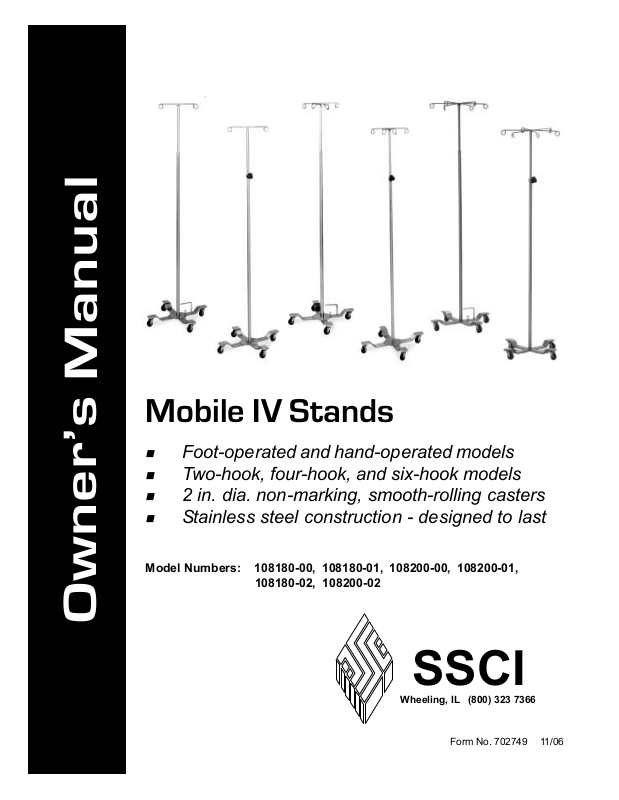

Page 1
Mobile IV Stands
Model Numbers: 108180-00, 108180-01, 108200-00, 108200-01,
Foot-operated and hand-operated models
Two-hook, four-hook, and six-hook models
2 in. dia. non-marking, smooth-rolling casters
Stainless steel construction - designed to last
108180-02, 108200-02
Owner’s Manual
SSCI
Wheeling, IL (800) 323 7366
Form No. 702749 11/06
Page 2
Owner’s Manual
Table of Contents
General Information ................................................................................................................................3
Introduction ...................................................................................................................................................3
About this Manual .........................................................................................................................................3
Information and Safety Notices ....................................................................................................................4
Notes ................................................................................................................................................4
CAUTIONS ......................................................................................................................................4
Models ...........................................................................................................................................................4
SSCI Contact Information ............................................................................................................................4
Parts Ordering Procedure .............................................................................................................................5
Returning the Mobile IV Stand for Repairs ...................................................................................................5
RMA Numbers ................................................................................................................................. 5
Packing and Shipment ..................................................................................................................... 5
Warranty ........................................................................................................................................................6
Unpacking and Inspection ..................................................................................................................... 6
Using Your Mobile IV Stand ................................................................................................................... 7
Foot-operated IV Stands ...............................................................................................................................7
Raising the Stand ............................................................................................................................. 7
Lowering the Stand.......................................................................................................................... 7
Hand-operated IV Stands ..............................................................................................................................7
Raising the Stand ............................................................................................................................. 7
Lowering the Stand.......................................................................................................................... 8
Care and Cleaning of Stainless Steel ..................................................................................................9
Introduction .....................................................................................................................................9
Cleaning and Cleansers ....................................................................................................................9
Deodorizing Agents, Disinfectants, and Sanitizers ..........................................................................9
Effect on Warranty ........................................................................................................................ 10
Caster Safety and Maintenance .......................................................................................................... 11
Overview ..................................................................................................................................................... 11
Inspection .................................................................................................................................................... 11
Equipment Frames and Fasteners .................................................................................... 11
Casters ............................................................................................................................. 11
Wheels .............................................................................................................................. 11
Repairs and Replacements.................................................................................................................. 12
Replacement Parts .......................................................................................................................................12
Replacement Procedures ............................................................................................................................. 12
Overview .......................................................................................................................................12
Black Triangular Knob ................................................................................................................... 12
Supplies Required .............................................................................................................12
Procedure .........................................................................................................................12
Telescoping Rod ............................................................................................................................ 13
Procedure .........................................................................................................................13
© Copyright 2006 by Suburban Surgical Co., Inc. All rights reserved.
No part of this document may be reproduced or utilized in any form or by any means, electronic or mechanical, including
photocopying, recording, or by any information storage and retrieval system without written permission.
Inquiries should be addressed to Suburban Surgical Co., Inc.
Wheeling, Illinois 60090, USA
2
SSCI - Suburban Surgical Company, Inc.
Page 3
General Information
Mobile IV Stands
Introduction
SSCI’s Mobile IV Stands feature uniquely-designed, weighted
bases to ensure excellent balance and rock-like stability. The
stainless steel hanger loops are balanced to hold IV bags securely
without tipping. The stands are made of Type 304 Stainless Steel
and the strong, durable, heli-arc welded joints are buffed and
polished for a finished, professional appearance.
The smooth-rolling, 2 in. (5.08 cm) diameter, non-marking casters
make it easy to move the stands from place to place throughout
your facility. Choose from models with two, four, or six IV hangers;
all are available in foot-operated and hand-operated styles. The
bases are 21 in. (53.34 cm) diameter overall.
The extendable sections of all stands adjust to any height from
the 61 in. to 101 in. (154.94 cm to 256.54 cm). Lift the upper
section of each foot-operated stand to raise it, and press the foot
pedal to lower it. On hand-operated models, a knob loosens and
tightens a ring collet to unlock, raise, lower, or lock the stand firmly
in place.
About this Manual
Form No. 702749 November, 2006
Every attempt has been made to insure that the information in this
manual is correct and complete. SSCI, however, always welcomes
our customer’s suggestions for improvements to our products and
associated publications.
3
Page 4
Owner’s Manual
Information and
Safety Notices
CAUTIONS
Notes
In this manual you will find text under the headings Note: and
CAUTION:.
Under Note: headings, you will be given additional information
pertinent to the subject discussed in that paragraph or step.
Example:
Tighten the knob to hold the rod in the desired position.
Note: Be careful not to cross-thread the knob.
Under CAUTION: headings, you will be alerted to potentially
hazardous conditions which, if ignored or mishandled, could result in
injury to yourself or damage to the equipment.
Example:
CAUTION: Do not lift the telescoping portion
so far that it comes out of the stand.
Models
SSCI Contact
Information

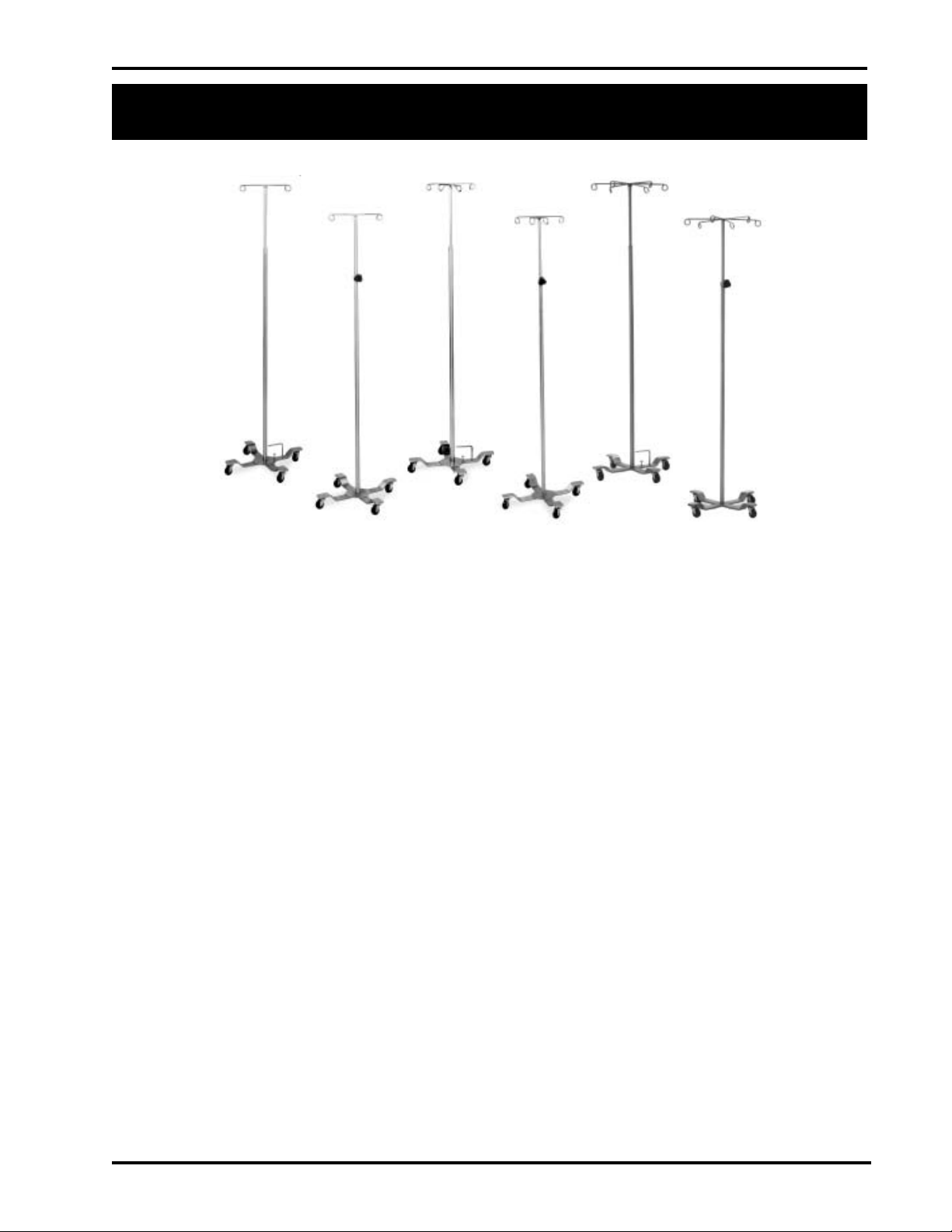

SSCI Mobile IV Stands come in six models. The part numbers are:
Foot-operated, 2-hangers - P/N 108180-00
Foot-operated, 4-hangers - P/N 108180-01
Foot-operated, 6-hangars - P/N 108180-02
Hand-operated, 2-hangers - P/N 108200-00
Hand-operated, 4-hangers - P/N 108200-01
Hand-operated, 6-hangars - P/N 108200-02
Contact SSCI Customer Service by mail, telephone, or fax.
The department is available from 8:30am to 5:00pm, Central Time,
Monday through Friday. Closed holidays.
Address: Suburban Surgical Co., Inc.
275 Twelfth Street
Wheeling, Illinois 60090
Telephone: Illinois - (847) 537-9320, ext. 3518
Toll Free - (800) 323-7366
Fax: (847) 537-9061
Web: www.suburbansurgical.com
4
SSCI - Suburban Surgical Company, Inc.
Page 5
Mobile IV Stands
Parts Ordering
Procedure
Order new equipment, accessories, and replacement parts directly
through SSCI Customer Service. You can order by mail, telephone,
or fax. Refer to SSCI Contact Information on Page 4 for address,
telephone, and fax numbers. When ordering, please provide the
following information:
Your name
Company name
Company account number
Telephone number
Fax number
e-mail address
Shipping address
Billing address (if different from shipping address)
Names, part numbers, and quantities of items being
ordered
Credit card number and expiration date, or other payment
information
Preferred method of shipment
Information on whether the items are required on a normal
or urgent basis
Returning the Mobile
IV Stand for Repairs
RMA Numbers
Packing and
Shipment
If your IV stand should require return to SSCI for repairs, discuss
the problem with one of our Customer Service Representatives.
Obtain an RMA number (Return Merchandise Authorization) from
them before shipping the unit back. Note: Merchandise returned
without an RMA number will not be accepted.
If you were able to keep the IV stand’s shipping carton, repack the
stand into the carton, and staple or tape the cover securely in place.
If the original shipping carton is not available, pack the stand as best
you can to protect it during shipment. Ship documentation with the
IV stand including:
Destination
RMA Number
Your name, company, and address
Your telephone number
A description of the reason for returning the IV stand
Form No. 702749 November, 2006
5
Page 6
Owner’s Manual
Warranty
Suburban Surgical Company, Inc. warrants the original purchaser
that all equipment manufactured by Suburban Surgical Company,
Inc. will be of the highest standards in material and workmanship.
All equipment manufactured by Suburban Surgical Company, Inc.
will be warrantied for a period of one (1) year from the date of
shipment from the factory.
Components and Casters Suburban Surgical Company, Inc.
purchases from other manufacturers will be covered by the
respective manufacturers’ Warranty.
Warranties will not apply if it is determined by Suburban Surgical
Company, Inc. that the equipment became defective due to an
accident, misuse, abuse, or alteration. Warranties do not include
freight charges for replacement or repair.
Unpacking and Inspection
CAUTION: Unpacking the IV Stand is not difficult.
However, the stand is heavy and we recommend that
unpacking be done by at least two people.
If the shipping container appears damaged in any way, contact the
shipping company immediately. Save all damaged packing materials
to assist in proving liability for damage.
Carefully inspect your IV Stand while you unpack it. If any damage
is noted, or if parts appear to be missing, call SSCI Customer
Service at (800) 323-7366.
SSCI IV Stands are shipped fully assembled and ready for
immediate use. No additional assembly is required.
6
SSCI - Suburban Surgical Company, Inc.
Page 7
Using Your Mobile IV Stand
Foot-operated
IV Stands
Mobile IV Stands
Raising the Stand
Lowering the Stand
rr
r
rr

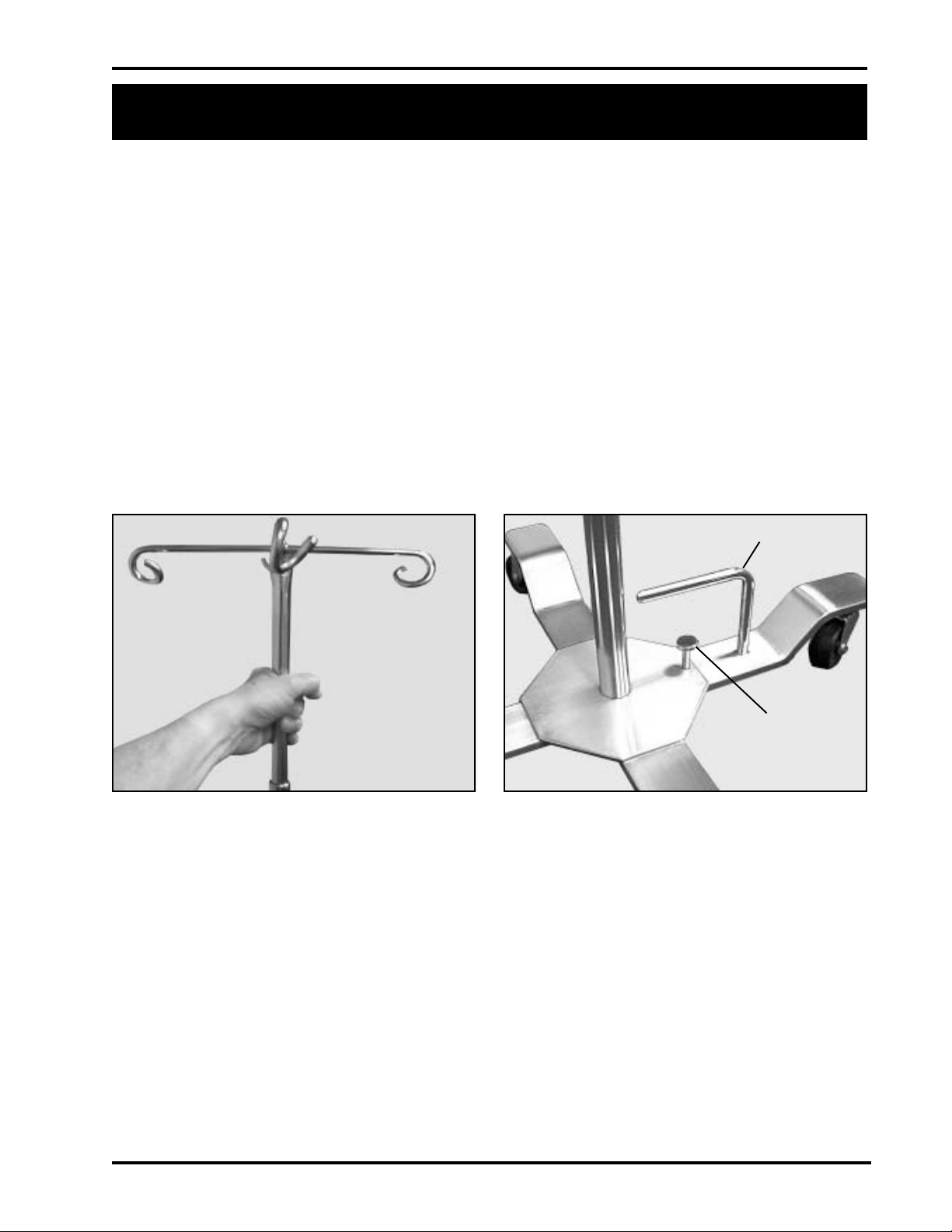

To raise the foot-operated IV stand, merely grasp the telescoping
portion of the stand and lift up (Figure 1). The stand adjusts to any
height from 61 in. to 101 in. (154.94 cm to 256.54 cm).
To lower the stand, grasp the telescoping portion of the stand and
press down on the foot release pedal (Figure 2). Gently lower the
stand to the desired height. If you do not hold the stand while you
release it, the telescoping section will slam down. The purpose of
the guard is to minimize the possibility of inadvertently touching the
release pedal and lowering the stand when not desired.
Guard
Foot
Release
Pedal
Figure 1. Raising the Foot-operated IV
Stand
Hand-operated
IV Stands
Raising the Stand
Form No. 702749 November, 2006

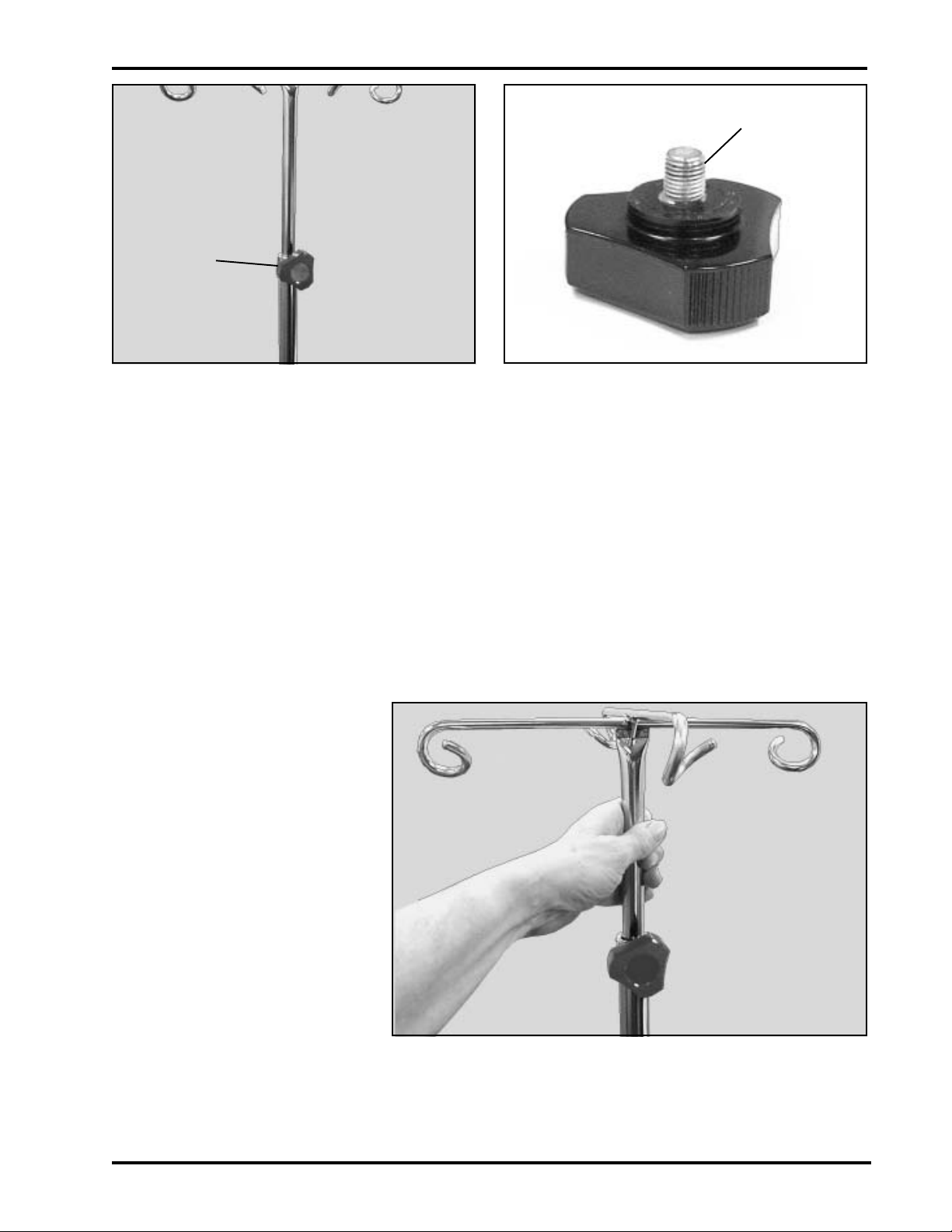

A plastic knob on the hand-operated IV stand (Figure 3) squeezes
and loosens a ring collet on the lower section of the stand. To raise
the telescoping portion of the stand, loosen the knob by turning it
counterclockwise. Gently raise the stand by hand to the desired
height, then tighten the knob by turning it clockwise. The stand
adjusts to any height from 61 in. to 101 in. (154.94 cm to 256.54 cm).
CAUTION: Do not lift the telescoping portion so far
that it comes out of the stand.
Figure 2. Lowering the Foot-operated IV
Stand
7
Page 8
Owner’s Manual

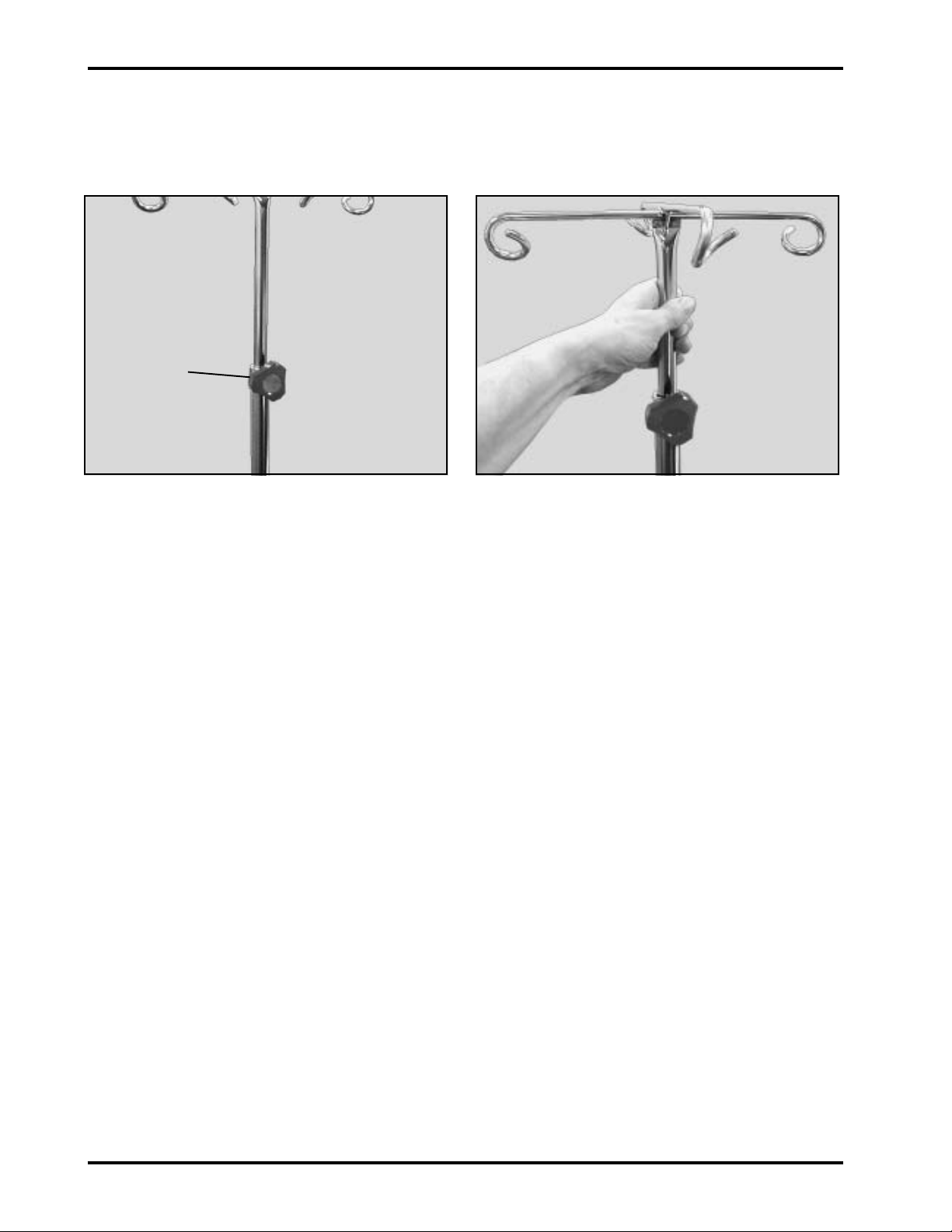

Lowering the Stand
Loosen Knob
DD
D
Knob
Figure 3. Hand-operated Knob
DD
dd
d
dd
Tighten Knob
To lower the telescoping portion of the stand, loosen the knob by
turning it counterclockwise, lower the stand by hand, then tighten
the knob by turning it clockwise (Figure 4). If you do not hold the
stand while you release it, the upper section will slam down.
Raise
rr
r
rr
oo
o
oo
Figure 4. Raising and Lowering the
Hand-operated IV Stand
Lower
Release
Knob
8
SSCI - Suburban Surgical Company, Inc.
Page 9
Care and Cleaning of Stainless Steel
Mobile IV Stands
Introduction
Cleaning and
Cleansers
Stainless steel is steel alloyed with chromium to make it highly
resistant to stain, rust, and corrosion. Note: This does NOT mean
that stainless steel will never rust or corrode. Science has not yet
developed a steel which is completely stainless or corrosion
PROOF.
The type of stainless steel and finish selected by SSCI for this
product is the best available for the intended use.
The basic rule of thumb is to use the mildest cleaning procedure that will
do the job effectively. Always rinse thoroughly with clear water and dry
completely. Frequent cleaning will prolong the service life of stainless
steel equipment and will help maintain a bright, pleasing appearance.
Ordinary deposits of waste and fluids can usually be removed with
soap and water. More stubborn deposits or tightly adhering debris
may require harder scrubbing and possibly the use of commercial
cleaning products acceptable for use on metal surfaces. When using
any cleaning agent, rub in the direction of the polish lines or “grain”
of the metal. For high luster finishes, clean soft cloths or pads should
be used. If especially rough cleaning is necessary, use “stainless
steel” wool, nylon, or plastic scrubbers. Test these scrubbers in an
inconspicuous area first to be sure they do not mar or scratch the
stainless steel finish.
Deodorizing Agents,
Disinfectants, and
Sanitizers
Form No. 702749 November, 2006
Minor scale build-up and some hard water spotting may be
removed by washing with vinegar, followed by a neutralizing
rinse with clear water and a thorough drying with a soft cloth.
For heavy deposits of scale, 5% oxalic acid (use warm), 5-15%
sulfamic acid, or 5-10% phosphoric acid may be used. Always
follow with a neutralizing rinse of clean water and a thorough
drying.
The large selection of brands and combinations of chemicals
available for deodorizing, disinfecting, and sanitizing is staggering.
Select one or more agents for use in your facility only after weighing
all the benefits claimed by each product. Often this choice is made
without adequate consideration of the effects these agents may
produce on equipment or furnishings.
9
Page 10
Owner’s Manual
CAUTION: Before selecting a chemical to employ in
your facility, review label statements regarding use
with metals (stainless steel). Always consult the
chemical supplier if there are any doubts.
Avoid prolonged use of chlorides (such as chlorine bleach),
bromides, iodides, and thiocyanates on stainless steel surfaces as
these chemicals will cause pitting, corrosion, and metal
discoloration. Allowing salty solutions to evaporate and dry on
stainless steel may also contribute to corrosive conditions.
In summary, select chemical deodorizers, disinfectants, and/or
sanitizers only after weighing all possible benefits and known
adverse effects.
Effect on Warranty
CAUTION: The warranty for this product is void if the
care and cleaning instructions provided in this
manual are not followed.
10
SSCI - Suburban Surgical Company, Inc.
Page 11
Caster Safety and Maintenance
Mobile IV Stands
Overview
Inspection
The wheel/caster assemblies on the Mobile IV Stands were
selected by SSCI for high durability and long life. These casters do
not include brakes. Users are responsible for the proper operation,
care, and maintenance of their equipment. Equipment can become
damaged and unsafe if abused or subjected to improper demands.
If your equipment is regularly maintained and never abused, you will
get the maximum safety and service from your casters.
Never overload the stand.
Do not drop heavy loads on the stand.
Do not use the stand at high speeds.
The above conditions can create severe impact and shock loads on
your stand and may result in caster, wheel, or equipment failure.
Equipment Frames and Fasteners
Periodically, turn the stand over and check the following:
Look for broken welds.
Tighten any loose nuts and bolts.
Look for frame distortion caused by overloads or impacts.
Distorted frames can lead to wheel failure by placing
disproportionate loads on one or two casters.
Make sure the casters are not bent and the mounting bolts
are securely fastened.
Casters
Check the swivel assembly on each caster for excessive play due to
wear. If the swivel does not turn freely, check for corrosion or dirt
binding the raceways. If a caster is not operating properly, clean it.
Wheels
Check each wheel for excessive or uneven tread wear, or badly
worn or “chunked out” rubber tires. Such conditions can cause
erratic steering, bumping, load shifting, and damage to floors. If a
wheel binds and no longer rolls freely, or if flat spots appear on the
tire, carefully inspect the wheel/caster assembly for damage or
accumulated foreign matter (dirt, string, hair, etc.).
Form No. 702749 November, 2006
11
Page 12
Owner’s Manual
Repairs and Replacements
Replacement Parts
emaNtraP rebmuNtraPICSS ytitnauQ
bonKralugnairTkcalB362458121egaP
-doRgnipocseleT
Replacement Parts for SSCI Hand-operated Mobile IV Stands
agnaH-2
r
ragnaH-4-doRgnipocseleT10-10-002801W131egaP
ragnaH-6-doRgnipocseleT 10-20-002801W 1 31egaP
The table below lists the replacement parts available for the Mobile
IV Stands. For parts not listed in the table, or if you require
assistance with any repair procedure, contact SSCI Customer
Service at (800) 323-7366. Refer to Parts Ordering Procedure
on Page 4.
20-00-002801W 1 31egaP
Replacement
Procedures
tnemecalpeR
snoitcurtsnI
Overview
Black Triangular
Knob
P/N 854263
The replacement procedures for the parts listed in the table are
given below. Notice that none of the parts of the foot-operated IV
stand are field-replaceable since they are all welded or otherwise
permanently mounted in place. In the hand-operated IV stand, only
the knob and telescoping rod are field-replaceable. If damage
occurs to parts other than those listed in the table, return the IV
stand to SSCI for repair, or replace the stand with a new unit. To
return the stand to SSCI, refer to Returning the Mobile IV Stand
for Repairs on Page 5. To order a new stand, refer to Parts
Ordering Procedure on Page 5.
Supplies Required
White Grease (known as Lubriplate - obtain locally)
Procedure
1. Lower the stand to the bottom position.
2. Unscrew the existing knob from the IV stand collar (Figure 5).
3. Lightly coat the screw threads on the new knob with white
grease (Figure 6).
12
4. Screw the new knob into place in the IV stand (Figure 5).
SSCI - Suburban Surgical Company, Inc.
Page 13
Knob
Unscrew
DD
D
DD
dd
d
dd
Screw In
Mobile IV Stands
Apply grease
to threads.
Figure 5. Replacing the Hand-operated
Knob
Telescoping Rod
2-Hangar -
P/N W108200-00-02
4-Hangar -
P/N W108200-01-01
6-Hangar -
P/N W108200-02-01
Procedure
1. Unscrew the knob from the IV stand (Figure 5).
2. Slide the existing telescoping rod upward and out of the IV
3. Slide the new existing telescoping rod into the IV stand.
4. Tighten the knob to hold the rod in the desired position.
Figure 6. Black Triangular Knob
stand (Figure 7).
Note: Be careful not to cross-thread the knob.
Lift Up
and Out
of Stand.
rr
r
rr
Form No. 702749 November, 2006
Figure 7. Removing the Telescoping Rod
13
Page 14
Owner’s Manual
and accessories, talk to your SSCI sales representative.
For more information on SSCI’s fine line of products
14
SSCI
Suburban Surgical Company, Inc.
275 Twelfth Street Wheeling, IL 60090
Phone: (847) 537-9320 Fax: (847) 537-9061
Toll Free: (800) 323-7366 Web: www.suburbansurgical.com
Form No. 702749 11/06
SSCI - Suburban Surgical Company, Inc.
Loading...
