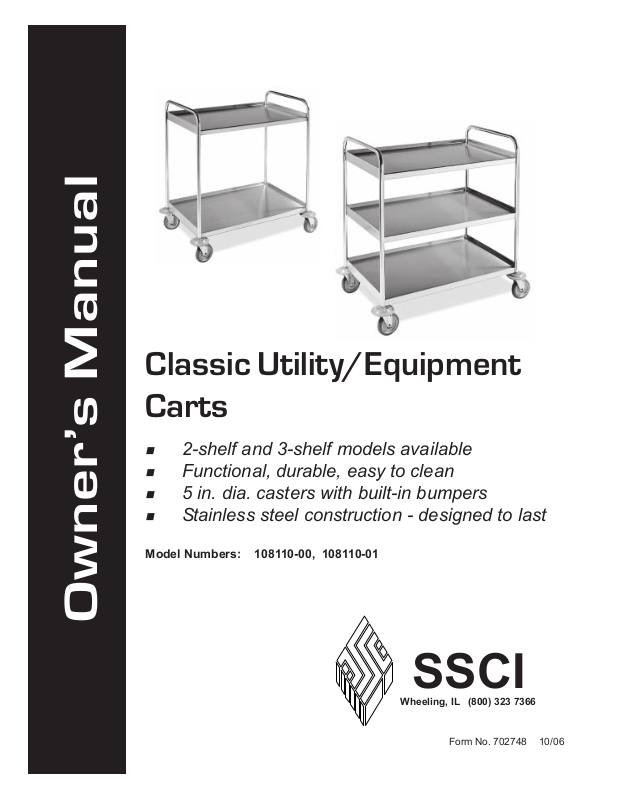

Page 1
Classic Utility/Equipment
Carts
Model Numbers: 108110-00, 108110-01
2-shelf and 3-shelf models available
Functional, durable, easy to clean
5 in. dia. casters with built-in bumpers
Stainless steel construction - designed to last
Owner’s Manual
SSCI
Wheeling, IL (800) 323 7366
Form No. 702748 10/06
Page 2
Owner’s Manual
Table of Contents
General Information .........................................................................................................................3
Introduction ............................................................................................................................................. 3
About this Manual ................................................................................................................................... 3
Models .................................................................................................................................................... 3
SSCI Contact Information ...................................................................................................................... 4
Parts Ordering Procedure....................................................................................................................... 4
Warranty ................................................................................................................................................. 5
Unpacking and Inspection ...............................................................................................................6
Care and Cleaning of Stainless Steel ............................................................................................7
Introduction ............................................................................................................................................. 7
Cleaning and Cleansers .......................................................................................................................... 7
Deodorizing Agents, Disinfectants, and Sanitizers .................................................................................. 7
Effect on Warranty ................................................................................................................................. 8
Caster Safety and Maintenance ......................................................................................................9
Overview ................................................................................................................................................ 9
Inspection ................................................................................................................................................ 9
Equipment Frames and Fasteners ................................................................................ 9
Casters.......................................................................................................................... 9
Wheels ..........................................................................................................................9
Brakes ........................................................................................................................ 10
Lubrication ............................................................................................................................................ 10
Recommended Lubricants .................................................................................................................... 10
Power Towed Operation ...................................................................................................................... 11
Repairs and Replacements ........................................................................................................... 12
Returning the Cart for Repairs ............................................................................................................. 12
RMA Numbers ........................................................................................................................ 12
Packing and Shipment ............................................................................................................. 12

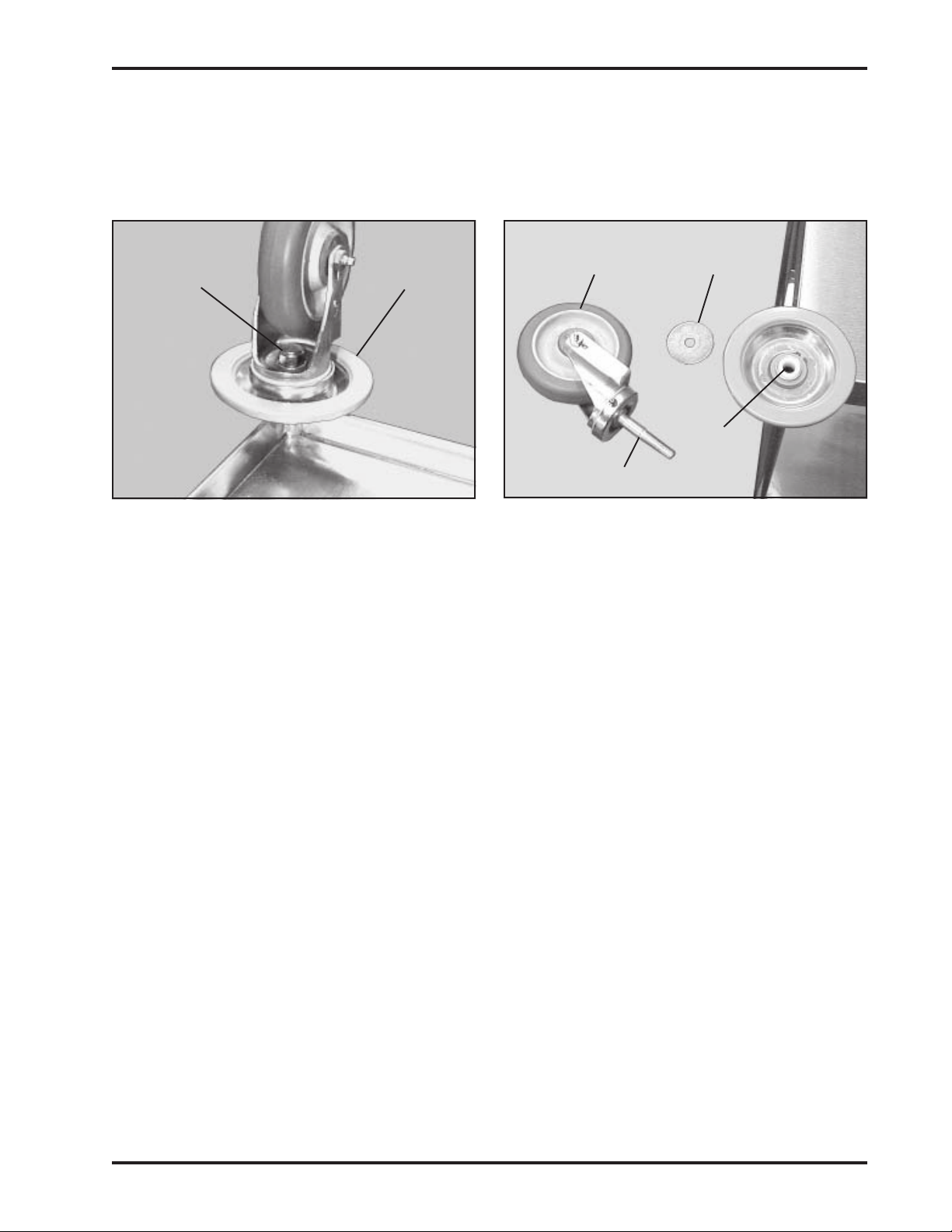

Removing and Installing a Wheel/Caster Assembly ............................................................................. 12
Overview .................................................................................................................... 12
Tool Required ............................................................................................................. 12
Removal ...................................................................................................................... 12
Installation ................................................................................................................... 13
Removing and Installing a Bumper ....................................................................................................... 14
Overview .................................................................................................................... 14
Tool Required ............................................................................................................. 14
Removal ...................................................................................................................... 14
Installation ................................................................................................................... 14
© Copyright 2006 by Suburban Surgical Co., Inc. All rights reserved.
No part of this document may be reproduced or utilized in any form or by any means, electronic or mechanical, including
photocopying, recording, or by any information storage and retrieval system without written permission.
Inquiries should be addressed to Suburban Surgical Co., Inc.
Wheeling, Illinois 60090, USA
2
SSCI - Suburban Surgical Company, Inc.
Page 3
General Information
Classic Utility/Equipment Carts
Introduction
About this Manual
Models
SSCI’s Classic Utility/Equipment Carts are designed to easily move
supplies or equipment throughout your facility. The cart’s sturdy
Type 304 Stainless Steel construction guarantees strength and
durability, and facilitates sanitary food preparation and distribution.
Tubular uprights at both ends of the carts also function as pushhandles. The carts roll easily on 5 in. (12.7 cm) diameter swivel
casters enabling you to move supplies or equipment to where you
need them. All four casters have integral bumpers to protect your
facility’s walls, door frames, and furniture. Shelves measure 34 in.
wide x 22.779 in. deep (86.36 cm wide x 57.86 cm deep) and
feature raised sides and backs.
Every attempt has been made to insure that the information in this
manual is correct and complete. SSCI, however, always welcomes
our customer’s suggestions for improvements to our products and
associated publications.

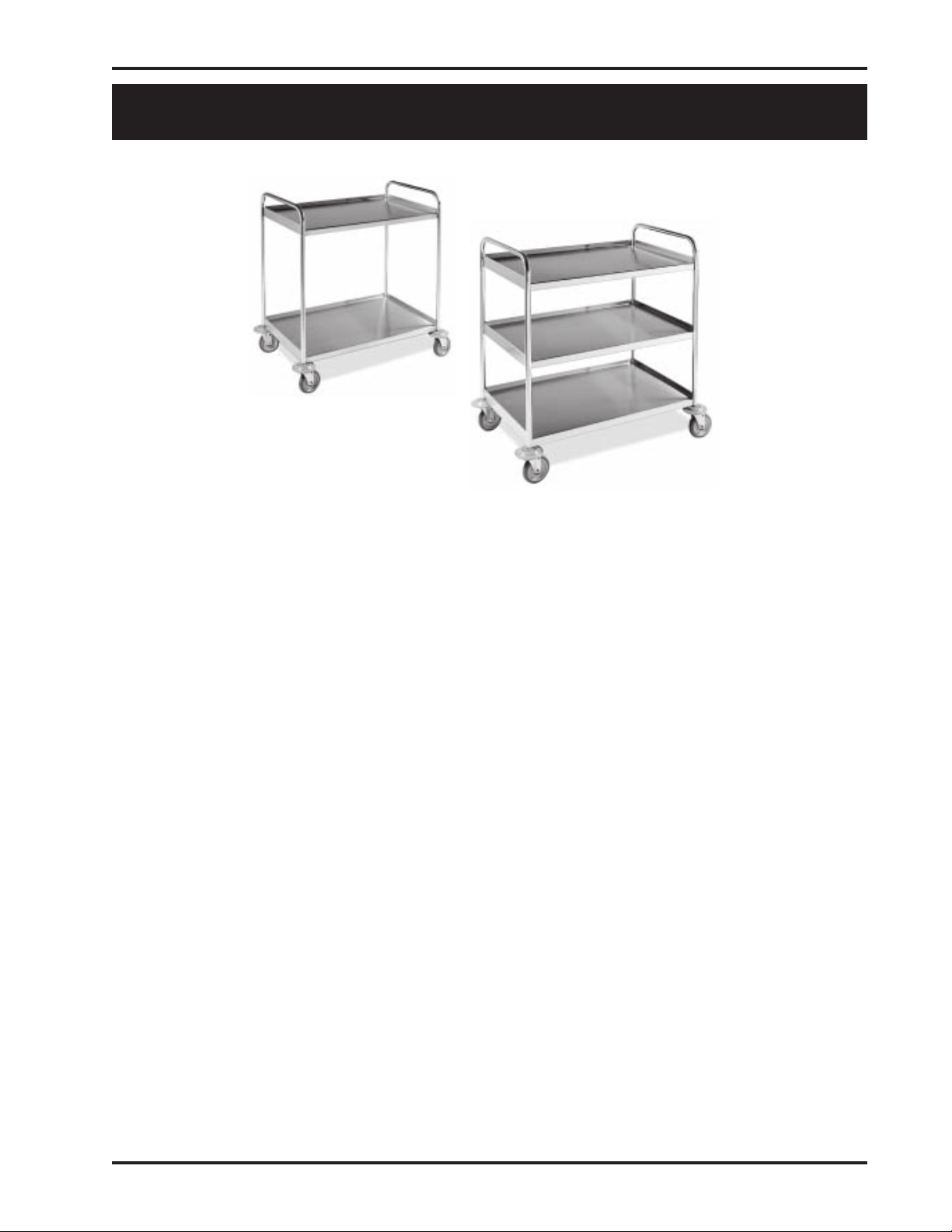

The part numbers of the SSCI Classic Utility/Equipment Carts are:
Two-shelf cart: P/N 108110-00
Three-shelf cart: P/N 108110-01
Form No. 702748 October, 2006 3
Page 4
Owner’s Manual
SSCI Contact
Information
Parts Ordering
Procedure
Contact SSCI Customer Service by mail, telephone, or fax.
The department is available from 8:30am to 5:00pm, Central Time,
Monday through Friday. Closed holidays.
Address: Suburban Surgical Co., Inc.
275 Twelfth Street
Wheeling, Illinois 60090
Telephone: Illinois - (847) 537-9320, ext. 3518
Toll Free - (800) 323-7366
Fax: (847) 537-9061
Web: www.suburbansurgical.com
Order new equipment, accessories, and replacement parts directly
through SSCI Customer Service. You can order by mail, telephone,
or fax. Refer to SSCI Contact Information above for address,
telephone, and fax numbers. When ordering, please provide the
following information:
Your name
Company name
Company account number
Telephone number
Fax number
e-mail address
Shipping address
Billing address (if different from shipping address)
Names, part numbers, and quantities of items being
ordered
Credit card number and expiration date, or other payment
information
Preferred method of shipment
Information on whether the items are required on a normal
or urgent basis
4
SSCI - Suburban Surgical Company, Inc.
Page 5
Classic Utility/Equipment Carts
Warranty
Suburban Surgical Company, Inc. warrants the original purchaser
that our products are of the highest standards in material and
workmanship. Our stainless steel components are guaranteed to last
a lifetime assuming they are used as intended, properly maintained
and cared for. Mechanical, electrical, electronic, hydraulic, and any
product’s devices carry a one year warranty.
Items purchased by Suburban Surgical Company, Inc. from other
manufacturers and incorporated into our equipment are covered by
the respective manufacturer’s warranties.
Warranties will not apply if it is determined by Suburban Surgical
Company, Inc. that the equipment became defective due to an
accident, misuse, abuse, improper maintenance, or alteration.
Warranty freight charges are covered for the first year only.
Form No. 702748 October, 2006 5
Page 6
Owner’s Manual
Unpacking and Inspection
CAUTION: Unpacking the cart is not difficult.
However, the cart is heavy and we recommend that
unpacking be done by at least two people.
If the shipping container appears damaged in any way, contact
the shipping company immediately. Save all damaged packing
materials to assist in proving liability for damage.
Carefully inspect your cart while you unpack it. If any damage is
noted, or if parts appear to be missing, call SSCI Customer Service
at (800) 323-7366.
6
SSCI - Suburban Surgical Company, Inc.
Page 7
Classic Utility/Equipment Carts
Care and Cleaning of Stainless Steel
Introduction
Cleaning and
Cleansers
Stainless steel is steel alloyed with chromium to make it highly
resistant to stain, rust, and corrosion. Note: This does NOT mean
that stainless steel will never rust or corrode. Science has not yet
developed a steel which is completely stainless or corrosion
PROOF.
The type of stainless steel and finish selected by SSCI for this
product is the best available for the intended use.
The basic rule of thumb is to use the mildest cleaning procedure that
will do the job effectively. Always rinse thoroughly with clear water
and dry completely. Frequent cleaning will prolong the service life of
stainless steel equipment and will help maintain a bright, pleasing
appearance.
Ordinary deposits of waste and fluids can usually be removed with
soap and water. More stubborn deposits or tightly adhering debris
may require harder scrubbing and possibly the use of commercial
cleaning products acceptable for use on metal surfaces. When using
any cleaning agent, rub in the direction of the polish lines or “grain”
of the metal. For high luster finishes, clean soft cloths or pads should
be used. If especially rough cleaning is necessary, use “stainless
steel” wool, nylon, or plastic scrubbers. Test these scrubbers in an
inconspicuous area first to be sure they do not mar or scratch the
stainless steel finish.
Minor scale build-up and some hard water spotting may be
removed by washing with vinegar, followed by a neutralizing rinse
with clear water and a thorough drying with a soft cloth. For heavy
deposits of scale, 5% oxalic acid (use warm), 5-15% sulfamic acid,
or 5-10% phosphoric acid may be used. Always follow with a
neutralizing rinse of clean water and a thorough drying.
Deodorizing Agents,
Disinfectants, and
Sanitizers
Form No. 702748 October, 2006 7
The large selection of brands and combinations of chemicals
available for deodorizing, disinfecting, and sanitizing is staggering.
Select one or more agents for use in your facility only after weighing
all the benefits claimed by each product. Often this choice is made
without adequate consideration of the effects these agents may
produce on equipment or furnishings.
Page 8
Owner’s Manual
CAUTION: Before selecting a chemical to employ in
your facility, review label statements regarding use
with metals (stainless steel). Always consult the
chemical supplier if there are any doubts.
Avoid prolonged use of chlorides (such as chlorine bleach),
bromides, iodides, and thiocyanates on stainless steel surfaces as
these chemicals will cause pitting, corrosion, and metal
discoloration. Allowing salty solutions to evaporate and dry on
stainless steel may also contribute to corrosive conditions.
In summary, select chemical deodorizers, disinfectants, and/or
sanitizers only after weighing all possible benefits and known
adverse effects.
Effect on Warranty
CAUTION: The warranty for this product is void if the
care and cleaning instructions provided in this
manual are not followed.
8
SSCI - Suburban Surgical Company, Inc.
Page 9
Caster Safety and Maintenance
Classic Utility/Equipment Carts
Overview
Inspection

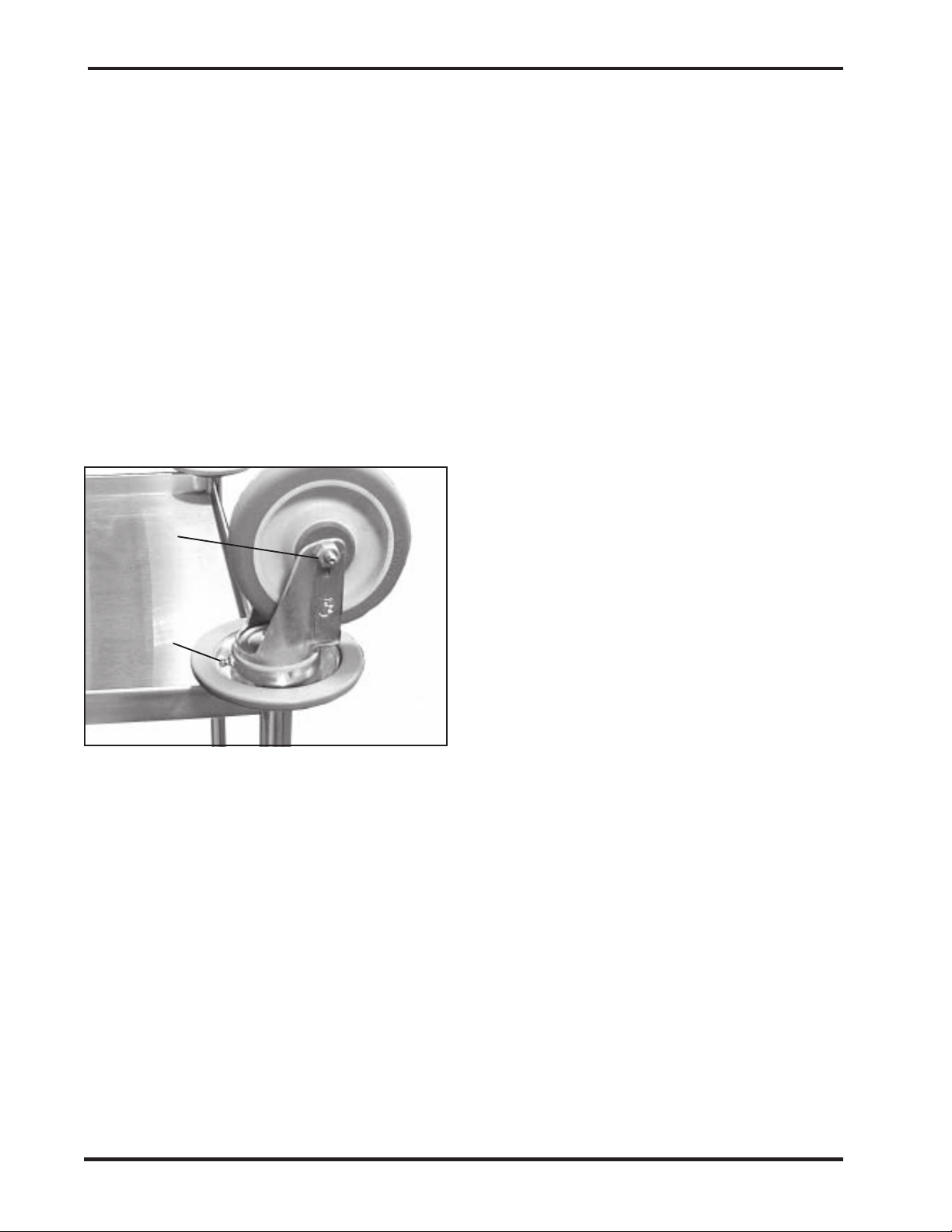

The wheel/caster assemblies on the Classic Utility/Equipment Carts
were selected by SSCI for high durability and long life. These
casters do not include brakes. Users are responsible for the proper
operation, care, and maintenance of their equipment. Equipment can
become damaged and unsafe if abused or subjected to improper
demands. If your equipment is regularly maintained and never
abused, you will get the maximum safety and service from your
casters.
Never overload the cart.
Do not drop heavy loads on the cart.
Do not use the cart at high speeds.
The above conditions can create severe impact and shock loads on
your cart and may result in caster, wheel, or equipment failure.
Equipment Frames and Fasteners
Periodically, turn the cart over and check the following:
Look for broken welds on the frame and shelves.
Tighten any loose nuts and bolts.
Look for frame distortion caused by overloads or impacts.
Distorted frames can lead to wheel failure by placing
disproportionate loads on one or two casters.
Make sure the casters are not bent and the mounting bolts
are securely fastened.
Casters
Check the swivel assembly on each caster for excessive play due to
wear. If the swivel is loose, replace the caster. If the swivel does not
turn freely, check for corrosion or dirt binding the raceways. Make
sure the swivel nut and wheel axle nuts are tight. If a caster is not
operating properly, disassemble, clean, and lubricate it. If this does
not fix the problem, replace the assembly (refer to Removing and
Installing a Wheel/Caster Assembly on Page 12).
Wheels
Check each wheel for excessive or uneven tread wear, or badly
worn or “chunked out” rubber tires. Such conditions can cause
erratic steering, bumping, load shifting, and damage to floors. If a
wheel binds and no longer rolls freely, or if flat spots appear on the
tire, carefully inspect the wheel/caster assembly for damage or
accumulated foreign matter (dirt, string, animal hair, etc.). If
necessary, replace the assembly (refer to Removing and Installing
a Wheel/Caster Assembly on Page 12).
Form No. 702748 October, 2006 9
Page 10
Owner’s Manual
Brakes
Check brakes for proper operation. Apply brakes one at a time and
attempt to move the equipment to make sure that each brake is not
slipping or loose.
If brakes slip due to worn or damaged wheels, replace the wheels
immediately and retest the brakes. If the brake mechanism itself is
not operating properly, repair or replace it. Before returning the
equipment to use, always retest the brakes.
Lubrication
Wheel
Grease
Fitting
Swivel
Grease
Fitting
Figure 1. Grease Fittings on a Typical
Wheel/Caster Assembly
Caster and wheel lubrication is essential. The lubrication schedule
depends on your specific application. Normal conditions warrant
lubrication every six months, however, for wet or corrosive
applications, monthly lubrication may be necessary.
Lubrication may also be required after each cart
washing. Special high-temperature, water-resistant
lubricants may be used for these applications. If
necessary, SSCI can provide stainless steel casters
that require less maintenance.
Each wheel/caster assembly has two grease fittings
(Figure 1), one for the wheel and one for the swivel.
Use enough grease to fill the bearing, but not so
much that it oozes out of the grease seal. After
applying the grease, turn the wheel or swivel several
times in both directions to distribute the grease
evenly.
Recommended
Lubricants
10
SSCI recommends that you use either of the following greases
when lubricating your cart casters:
Citgo EP-1
Exxon Beacon EP 1
Based on available information, these products are not expected to
produce adverse effects on health when used for the intended
application and the recommendations provided in the Material
Safety Data Sheets (MSDS) are followed. MSDS’s are available
via the Internet.
SSCI - Suburban Surgical Company, Inc.
Page 11
Classic Utility/Equipment Carts
Power Towed
Operation
Power drawn equipment such as in a tow line or mechanically
moved by conveyor will require casters, wheels, and bearings
specifically designed for this use. Please consult the factory for
caster recommendations for each specific towing or power drawn
equipment application.
Form No. 702748 October, 2006 11
Page 12
Owner’s Manual
Repairs and Replacements
Returning the Cart
for Repairs
RMA Numbers
Packing and
Shipment
Removing and
Installing a Wheel/
Caster Assembly
If your cart should require return to SSCI for repairs, discuss the
problem with one of our Customer Service Representatives. Obtain
an RMA number (Return Merchandise Authorization) from them
before shipping the item back. Note: Merchandise returned
without an RMA number will not be accepted.
If you were able to keep the cart shipping carton, repack the cart
into the carton, and staple or tape the cover securely in place.
If the original shipping carton is not available, pack the cart as best
you can to protect it during shipment. Ship documentation with the
cart including:
Destination
RMA Number
Your name, company, and address
Your telephone number
A description of the reason for returning the cart
Overview
Use these instructions to remove and replace a wheel/caster
assembly for service or cleaning, or to install a new assembly. All
carts use the same wheel/caster assemblies. Order replacement
wheel/caster assemblies directly from SSCI - refer to Parts
Ordering Procedure on Page 4. The SSCI part number for the
wheel/caster assembly is P/N 857021.
12
Tool Required
3/4 in. open-end wrench
Removal
1. Turn the cart upside-down. Be sure to place sheets or
papers under the cart to prevent scratching the cart or
push-handles.
2. With a 3/4 in. open-end wrench, loosen the swivel nut
(Figure 2). Note: With the wrench on the nut, rotate the
wrench and the entire wheel/caster assembly until the
assembly is loose.
SSCI - Suburban Surgical Company, Inc.
Page 13
Classic Utility/Equipment Carts
3. Lift off the wheel/caster assembly. Remove the large washer
from the assembly threaded shaft (Figure 3).
4. Clean the wheel/caster assembly or replace it with a new
assembly.
Swivel
Nut
Bumper
Figure 2. Wheel/Caster Assembly
Installation
1. Place the large washer on the assembly threaded shaft
2. Place the threaded shaft into the mounting hole and screw
Wheel/Caster
Assembly
Threaded Shaft
Large
Washer
Mounting
Hole
Figure 3. Wheel/Caster Assembly
Removed from Cart
(Figure 3).
the assembly down firmly with a 3/4 in. wrench.
3. Lubricate the wheel/caster assembly - refer to Lubrication
on Page 10.
4. Rotate the swivel caster several time to distribute the grease
and to check the caster movement.
5. If the caster moves satisfactorily, turn the cart right-side-up.
6. Push the cart a short distance and check to make sure the
movement is OK.
Form No. 702748 October, 2006 13
Page 14
Owner’s Manual
Removing and
Installing a Bumper

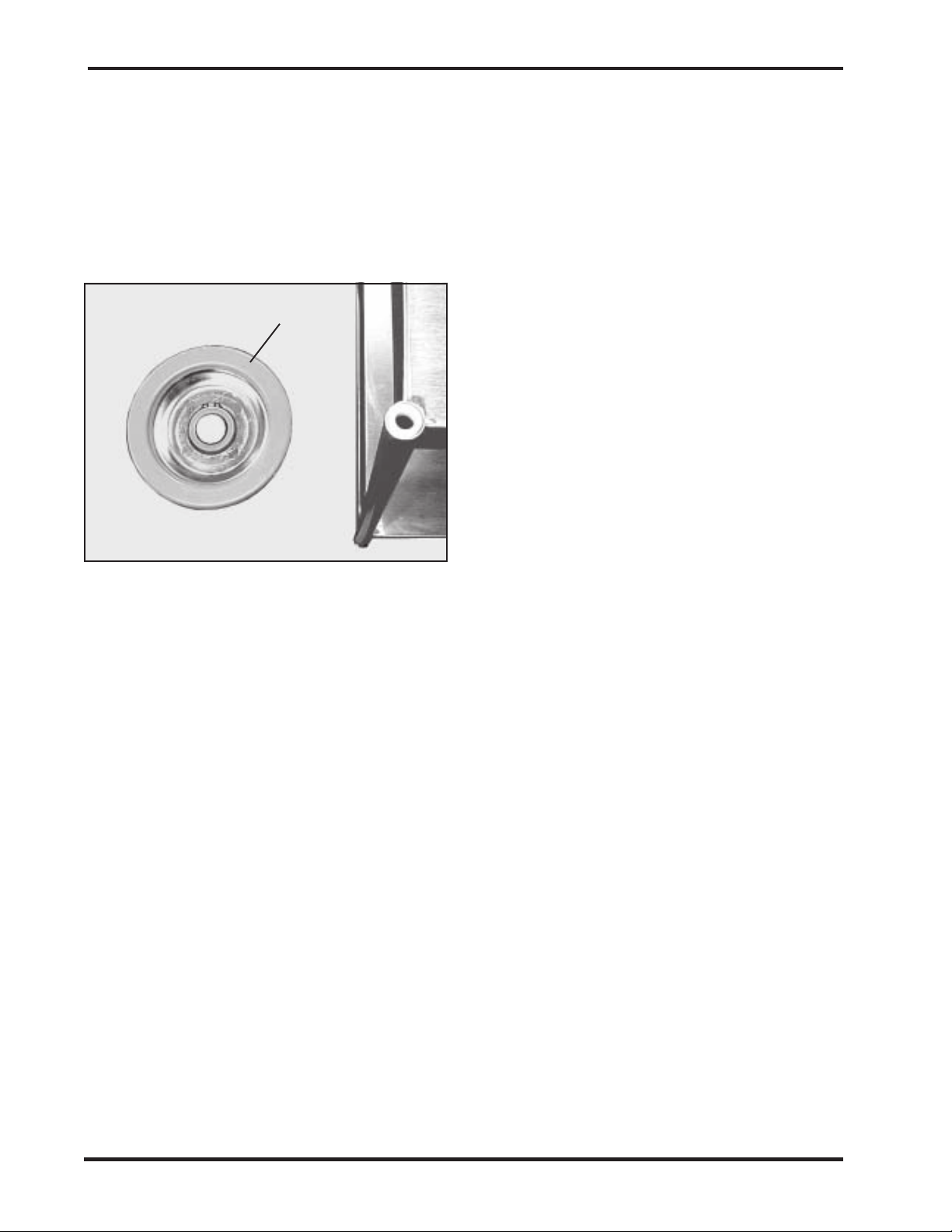

Bumper
Figure 4. Bumper Removed From Cart
Overview
Bumpers sometimes lead hard lives and may occasionally need to
be replaced. All carts use the same bumpers. Order replacement
bumpers directly from SSCI - refer to Parts Ordering Procedure on
Page 4. The SSCI part number for the bumper is P/N 749687.
Tool Required
3/4 in. open-end wrench
Removal
1. Remove the wheel/caster assembly - refer
to Removing and Installing a Wheel/
Caster Assembly - Removal - Steps 1
through 3 on Page 12.
2. Lift the bumper off the cart (Figure 4).
Installation
1. Set the new bumper in place.
2. Install the wheel-caster assembly - refer to
Removing and Installing a Wheel/Caster
Assembly - Installation - Steps 1
through 6 on Page 13.
14
SSCI - Suburban Surgical Company, Inc.
Page 15

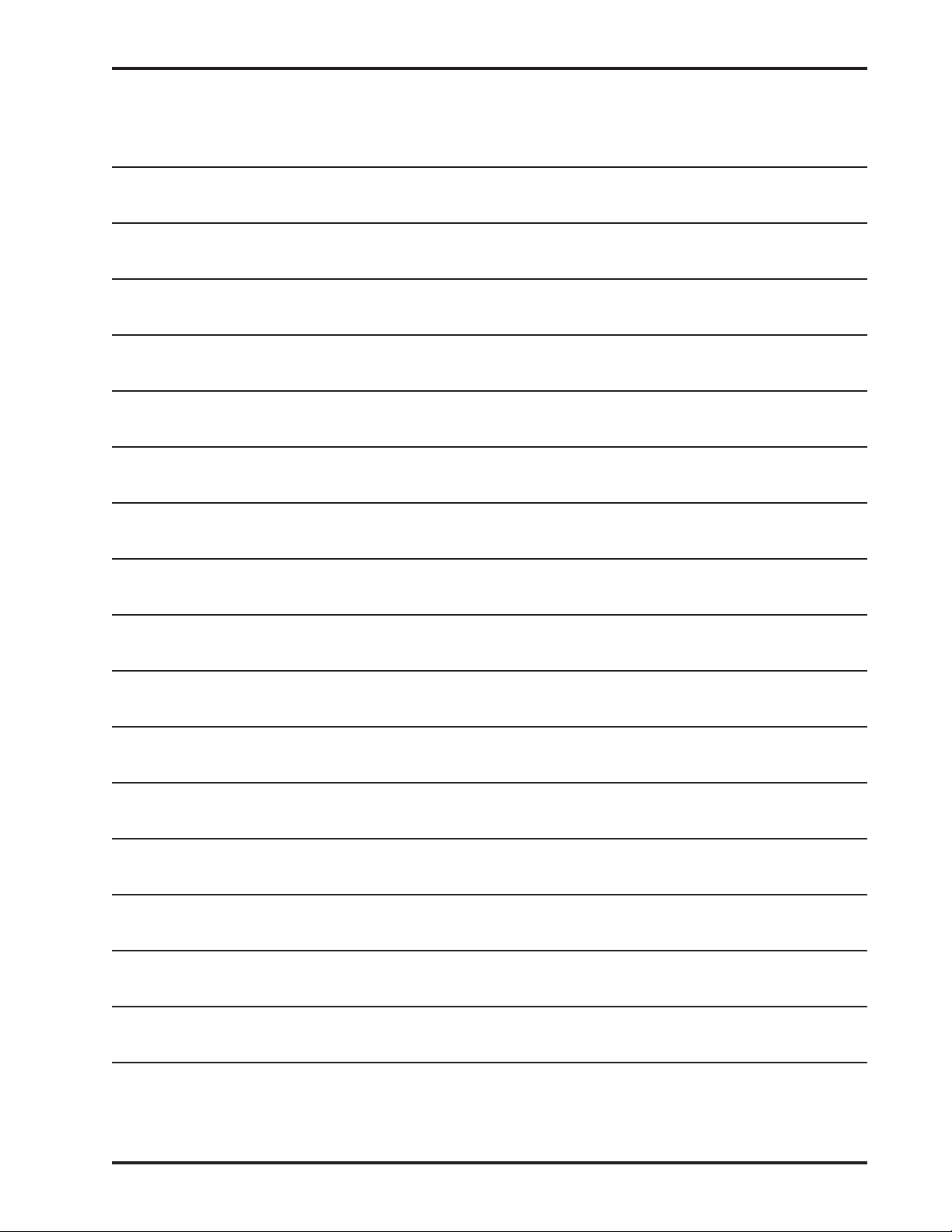

Comments:
Classic Utility/Equipment Carts
Form No. 702748 October, 2006 15
Page 16
For more information on SSCI’s fine line of products
and accessories, talk to your SSCI sales representative.
SSCI
Suburban Surgical Company, Inc.
275 Twelfth Street Wheeling, IL 60090
Phone: (847) 537-9320 Fax: (847) 537-9061
Toll Free: (800) 323-7366 Web: www.suburbansurgical.com
Form No. 702748 10/06
Loading...
