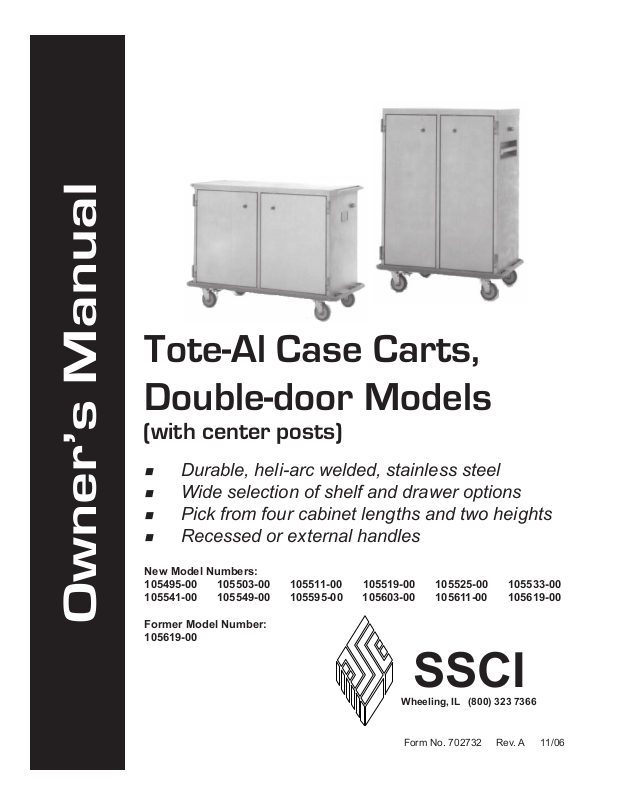

Page 1
Tote-Al Case Carts,
Double-door Models
(with center posts)
New Model Numbers:
105495-00 105503-00 105511-00 105519-00 105525-00 105533-00
105541-00 105549-00 105595-00 105603-00 105611-00 105619-00
Owner’s Manual
Former Model Number:
105619-00
Durable, heli-arc welded, stainless steel
Wide selection of shelf and drawer options
Pick from four cabinet lengths and two heights
Recessed or external handles
SSCI
Wheeling, IL (800) 323 7366
Form No. 702732 Rev. A 11/06
Page 2
© Copyright 2006 by Suburban Surgical Co., Inc. All rights reserved.
No part of this document may be reproduced or utilized in any form or by any means, electronic or mechanical, including
photocopying, recording, or by any information storage and retrieval system without written permission.
Inquiries should be addressed to Suburban Surgical Co., Inc.
Wheeling, Illinois 60090, USA
Page 3
Owner’s Manual - Tote-Al Case Carts - Double-door Models (with center posts)
Table of Contents
Chapter 1 - General Information ................................................................... 1
Introduction .............................................................................................................................. 1
About this Manual .................................................................................................................... 1
Information and Safety Notices ................................................................................................ 2
Notes ............................................................................................................................. 2
CAUTIONS .................................................................................................................. 2
SSCI Contact Information ........................................................................................................2
Models ...................................................................................................................................... 3
Cabinet Sizes ................................................................................................................ 3

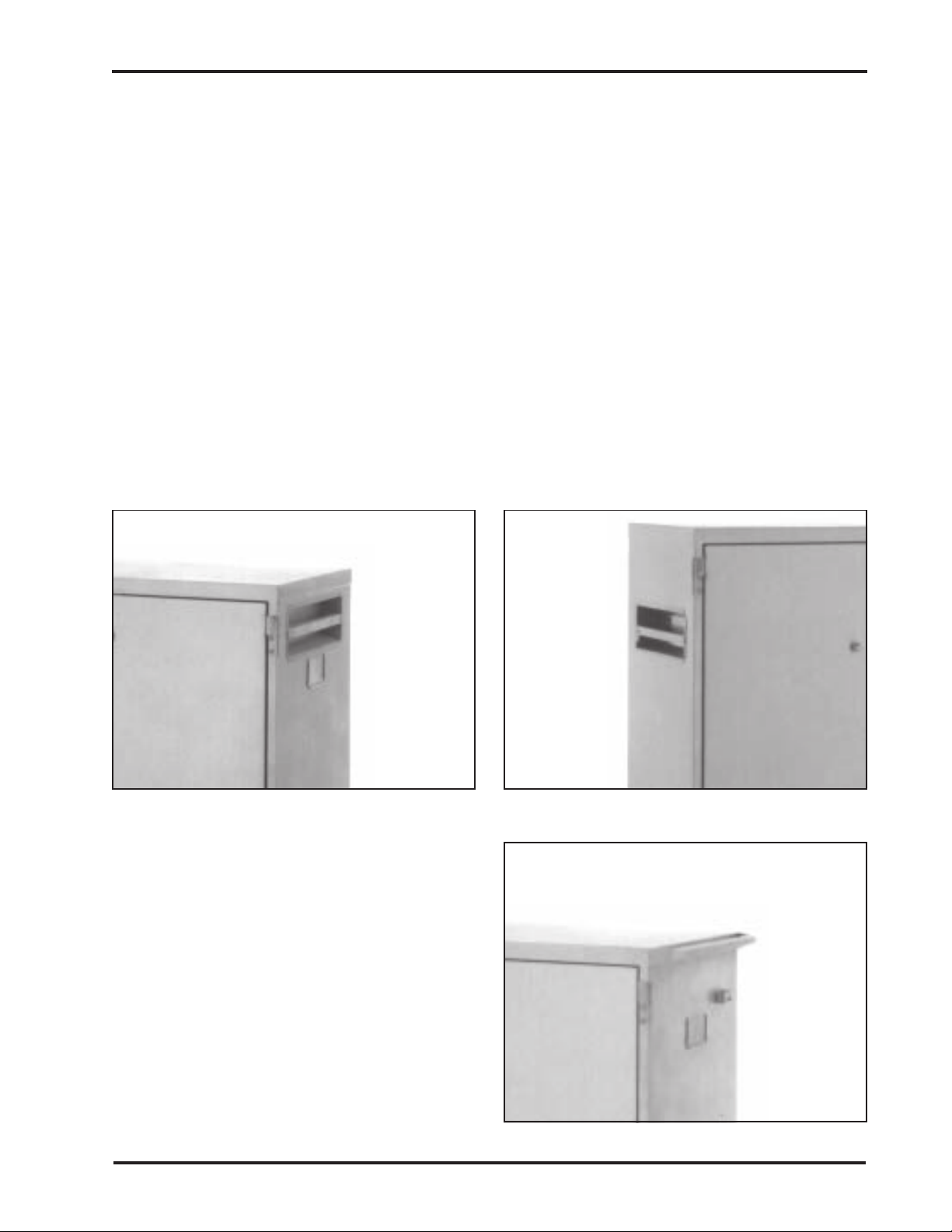

Handle Options ............................................................................................................. 3
Model Part Numbers ..................................................................................................... 4
Shelf Options ................................................................................................................ 4

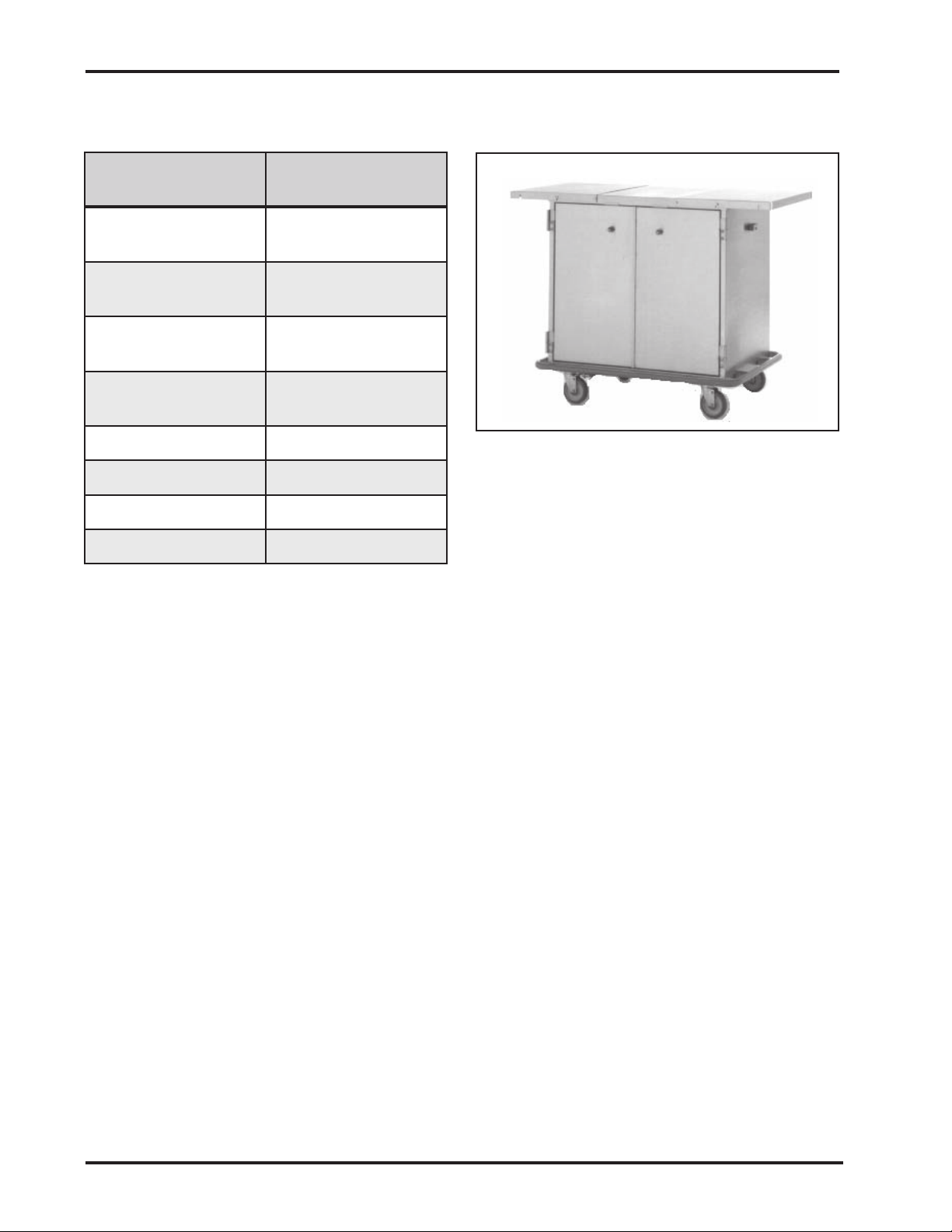

Top Extensions ............................................................................................................. 6
Accessories ............................................................................................................................... 6
Optional Drawers .......................................................................................................... 6
Returning the Case Cart for Repairs ......................................................................................... 7
RMA Numbers.............................................................................................................. 7
Packing and Shipment .................................................................................................. 7
Warranty.................................................................................................................................... 8
Chapter 2 - Unpacking and Assembly .......................................................... 9
General...................................................................................................................................... 9
Unpacking and Inspection ........................................................................................................9

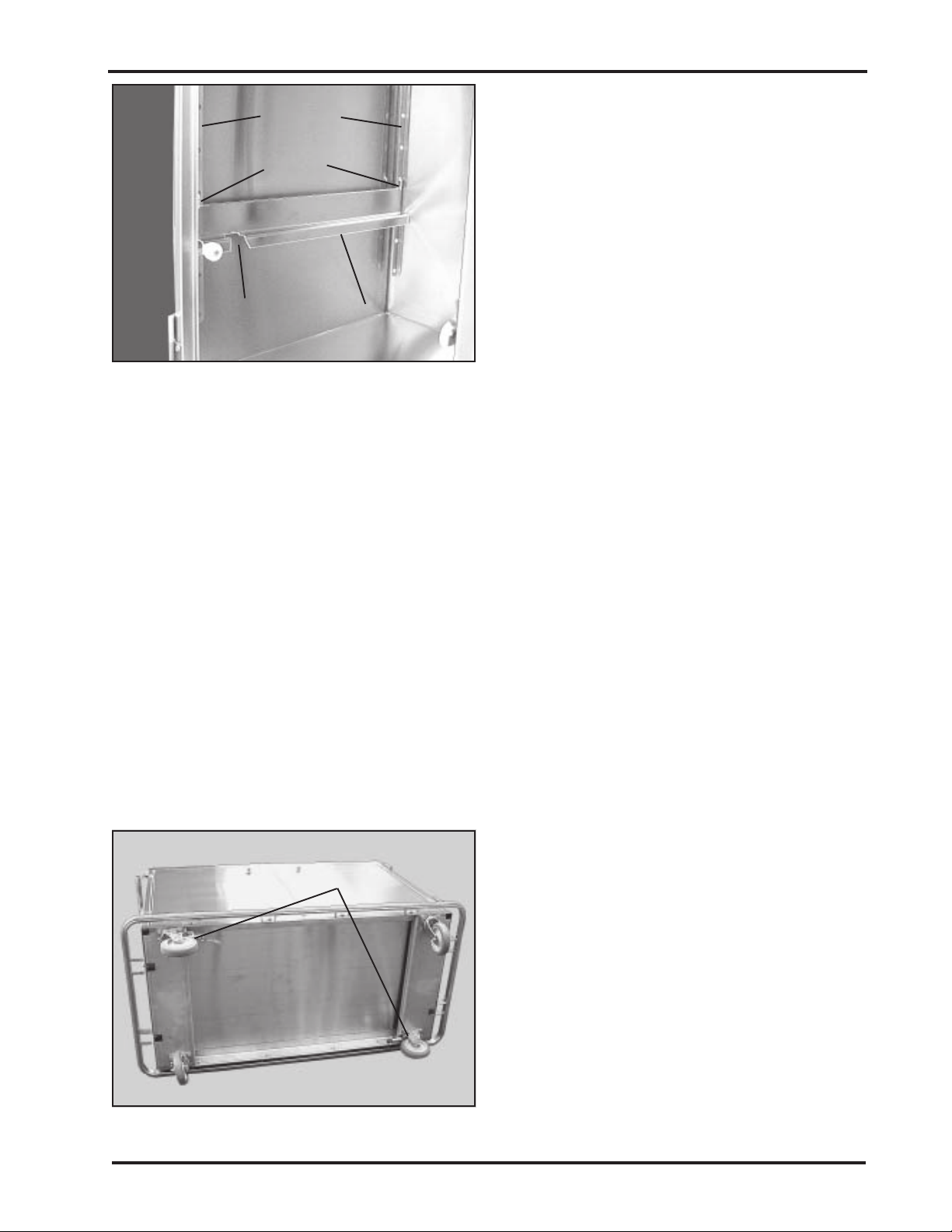

Shelf Installation ....................................................................................................................... 9
Adjustable Shelves ....................................................................................................... 9
Roll-out Shelves ......................................................................................................... 10
Chapter 3 - Using Your Case Cart............................................................... 13

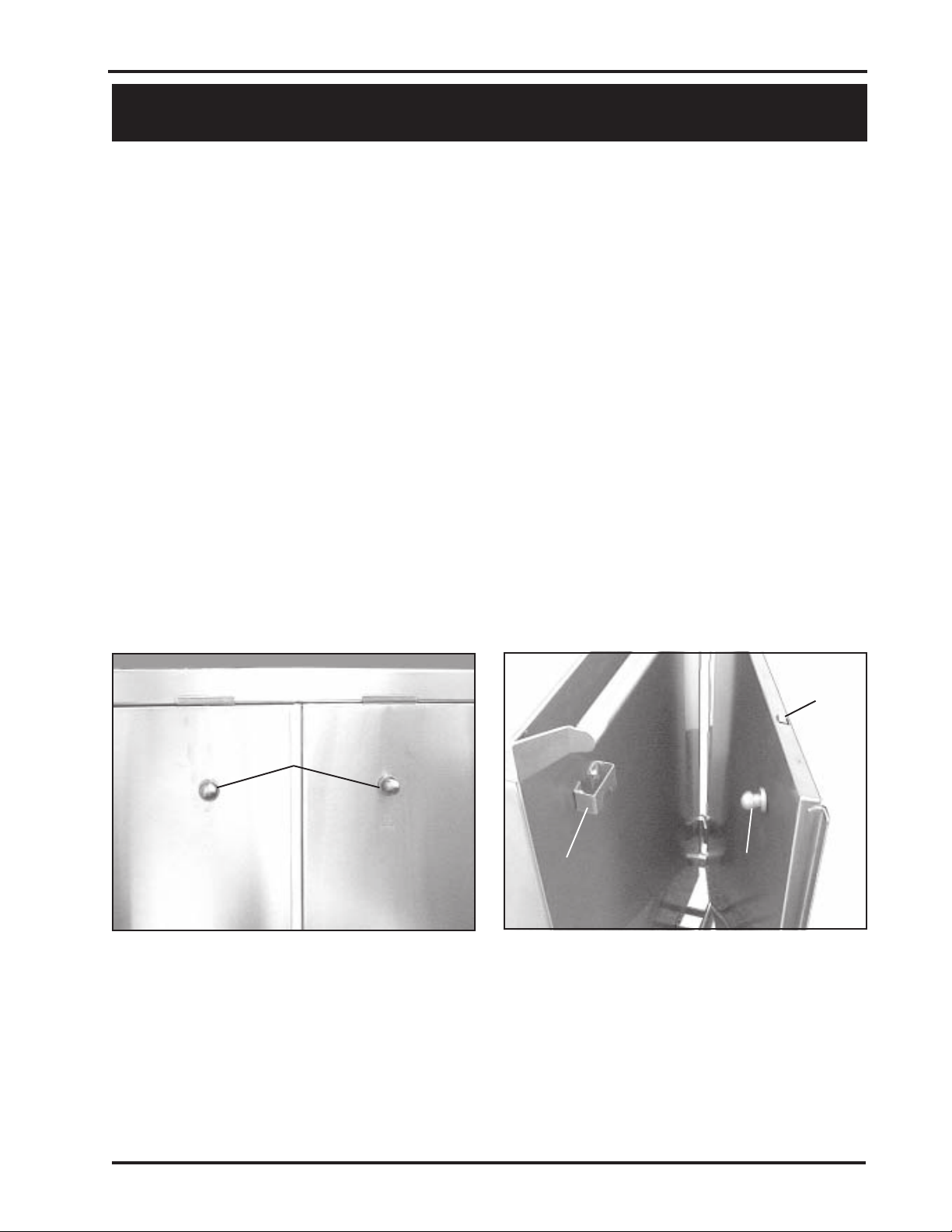

Opening, Latching, and Closing the Doors ............................................................................ 13
Opening the Door ........................................................................................... 13
Latching the Door in the Full-open Position .................................................. 13
Unlatching the Door from the Full-open Position .......................................... 13
Closing the Door ............................................................................................. 13
Using Roll-out Shelves ........................................................................................................... 14
Locking and Releasing Roll-out Shelves .................................................................... 14
Rolling Shelves In and Out ......................................................................................... 14
Removing and Replacing Roll-out Shelves ................................................................ 14
Removal .......................................................................................................... 14
Replacement ................................................................................................... 15
Form No. 702732 Rev. A November, 2006 i
Page 4
Table of Contents
Adjusting Shelf Height ........................................................................................................... 16
Adjustable Shelves ..................................................................................................... 16
Roll-out Shelves ......................................................................................................... 16
Removing and Replacing Shelves .......................................................................................... 17
Adjustable Shelves ..................................................................................................... 17
Roll-out Shelves ......................................................................................................... 17

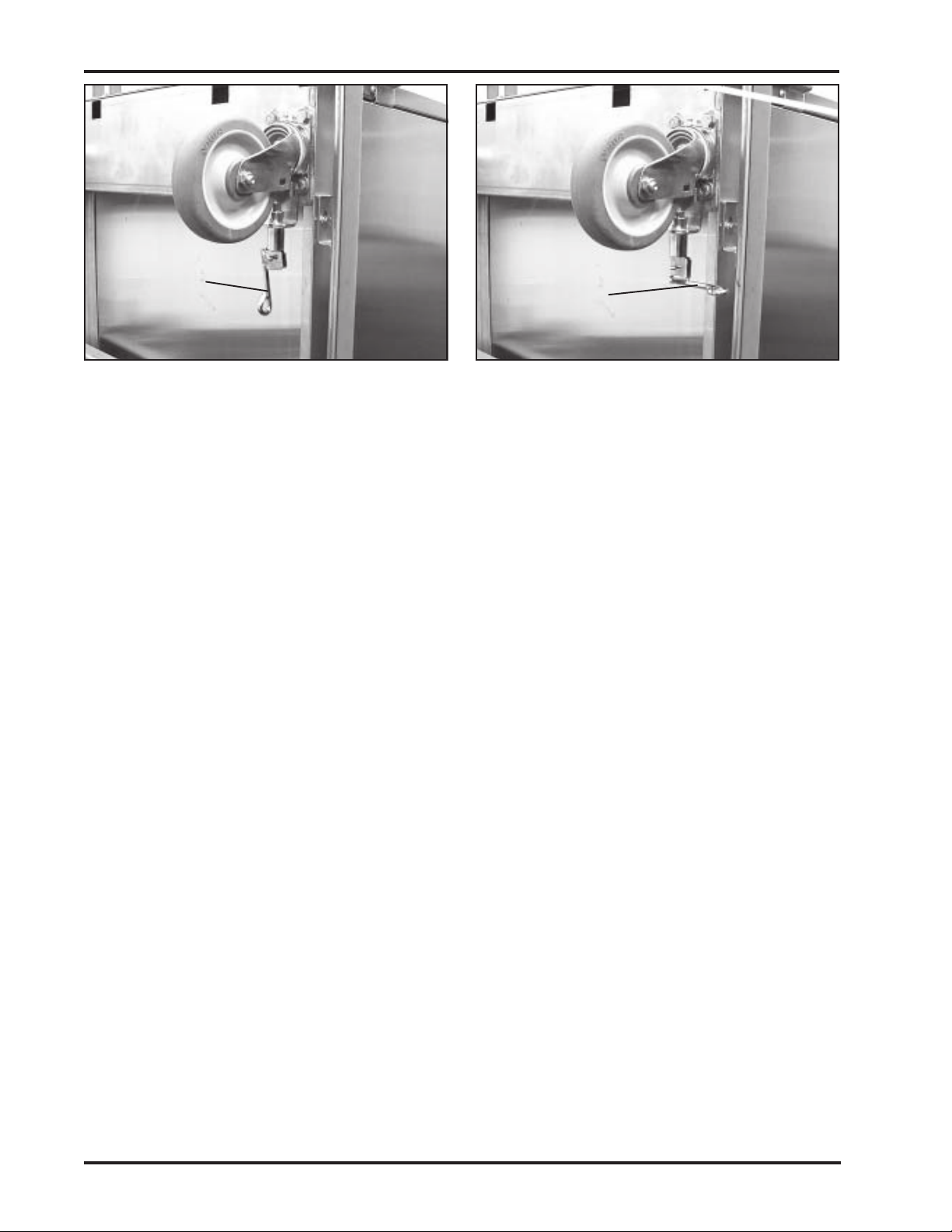

Using the Caster Swivel Locks ............................................................................................... 17
Locking the Swivel ......................................................................................... 17
Unlocking the Swivel ..................................................................................... 18
Chapter 4 - Repairs and Replacements..................................................... 19
Replacement Parts .................................................................................................................. 19
General.................................................................................................................................... 21
Parts Ordering Procedure ........................................................................................................21
Parts Replacement Procedures................................................................................................ 22
Removing and Installing a Case Cart Door ................................................................ 22
Overview ........................................................................................................ 22
Removal .......................................................................................................... 22
Installation ...................................................................................................... 22
Lower Door Hinge ...................................................................................................... 23
Overview ........................................................................................................ 23
Tools Required ................................................................................................ 23
Procedure ........................................................................................................ 23

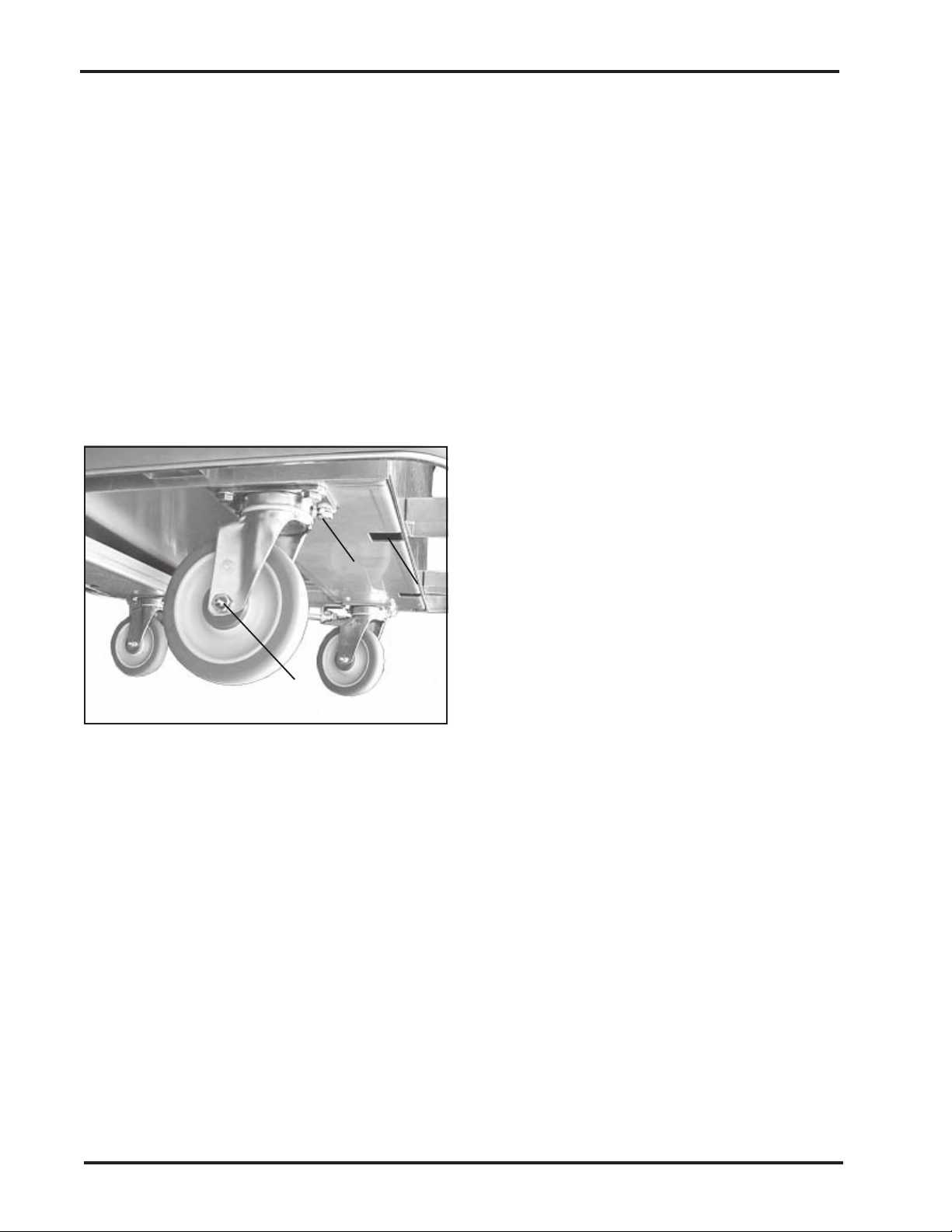

Casters ........................................................................................................................ 24
Overview ........................................................................................................ 24
Tool Required ................................................................................................. 24
Procedure ........................................................................................................ 24
Latch Striker Plate ...................................................................................................... 25
Overview ........................................................................................................ 25
Tools Required ................................................................................................ 25
Procedure ........................................................................................................ 25
Handle Catch .............................................................................................................. 26
Overview ........................................................................................................ 26
Tools Required ................................................................................................ 26
Procedure ........................................................................................................ 26
Knob Handle ............................................................................................................... 27
Latch Bolt ................................................................................................................... 27
Latch Bolt Spring ........................................................................................................ 27
Overview ........................................................................................................ 27
Tool Required ................................................................................................. 27
Procedure ........................................................................................................ 27
Bumper (Complete with Vinyl Insert) ........................................................................ 28
Overview ........................................................................................................ 28
Tools Required ................................................................................................ 28
Procedure ........................................................................................................ 28
ii
SSCI - Suburban Surgical Company, Inc.
Page 5
Owner’s Manual - Tote-Al Case Carts - Double-door Models (with center posts)
Adjustable Shelf ......................................................................................................... 29
Overview ........................................................................................................ 29
Procedure ........................................................................................................ 29
Roll-out Shelf ............................................................................................................. 29
Overview ........................................................................................................ 29
Procedure ........................................................................................................ 29
Roll-out Shelf Track ................................................................................................... 29
Overview ........................................................................................................ 29
Procedure ........................................................................................................ 29
Rollers for Roll-out Shelves and Tracks..................................................................... 30
Overview ........................................................................................................ 30
Tools Required ................................................................................................ 30
Procedure ........................................................................................................ 30
Care of Wheel/Caster Assemblies .......................................................................................... 31
Overview .................................................................................................................... 31
Inspection.................................................................................................................... 31
Equipment Frames and Fasteners ................................................................... 31
Casters ............................................................................................................ 31
Wheels ............................................................................................................ 31
Swivel Locks .................................................................................................. 32
Lubrication.................................................................................................................. 32
Recommended Lubricants .......................................................................................... 32
Power Towed Operation ............................................................................................. 32
Form No. 702732 Rev. A November, 2006 iii
Page 6
Table of Contents

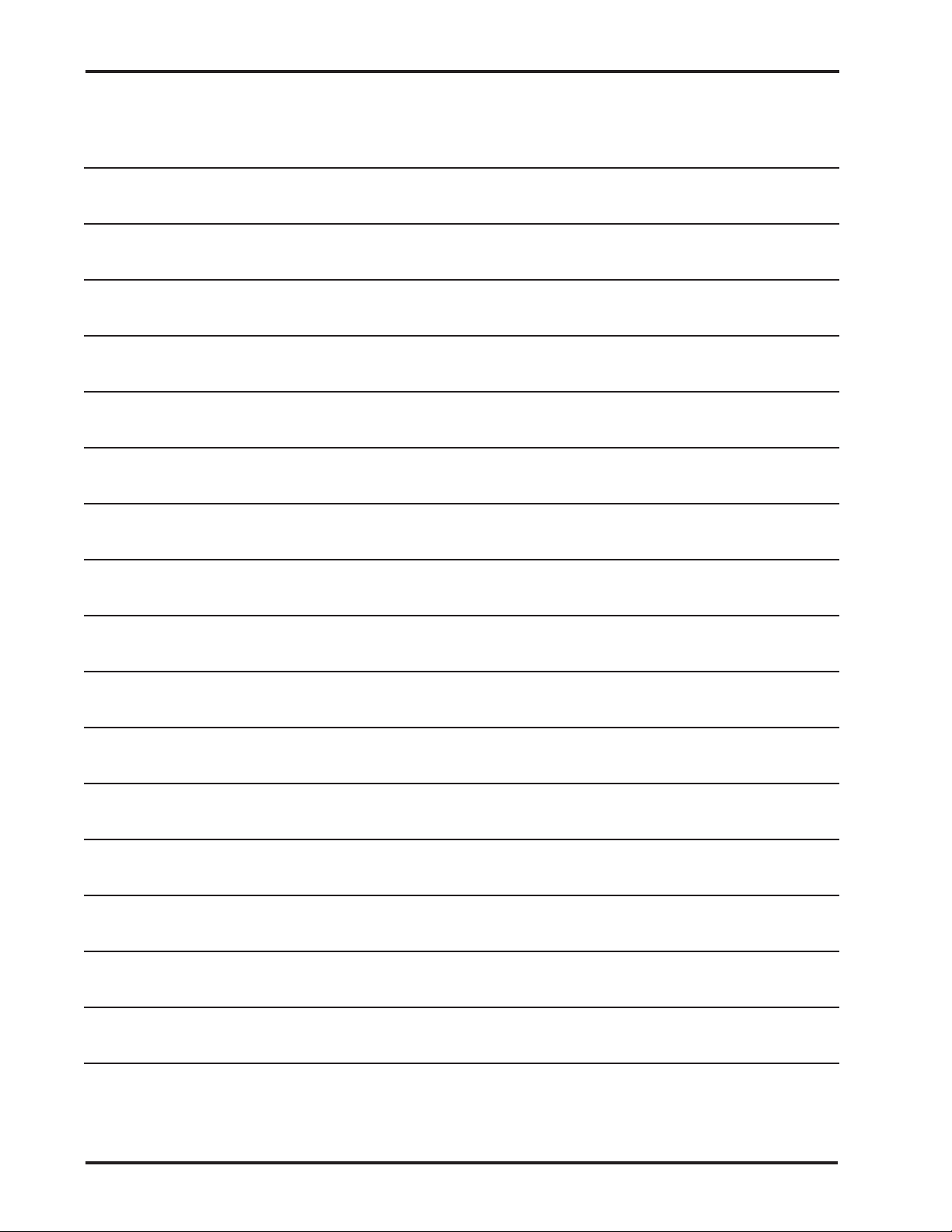

Comments:
iv
SSCI - Suburban Surgical Company, Inc.
Page 7
Owner’s Manual - Tote-Al Case Carts - Double-door Models (with center posts)
Chapter 1 - General Information
Introduction
An SSCI Case Cart is ideal for keeping all the supplies needed
for individual procedures close at hand. Simply load it with
sterile instruments, surgical packs, surgical drapes, sutures, and
other supplies and wheel it to the surgical suite. When the
procedure is complete, all items delivered to the surgical suite
within the Case Cart are to be repackaged inside the Case Cart
for return to the sterile processing department. Then, after
washing, quickly and easily restock the Case Cart with sterile
instruments, surgical packs, surgical drapes, sutures, and other
supplies for the next surgical procedure or emergency.
You will appreciate the exceptional quality of SSCI’s stainless
steel Case Carts. We start with heavy-gauge, Type 304 stainless
steel, formed, heli-arc welded, and then polished to a smooth,
even finish. We then incorporate a host of construction features
for industrial-strength durability and exceptionally easy care.
SSCI Tote-Al Case Carts can be designed and sized with couplers
and signage compatible with all cart transfer and lift systems.
About this Manual
Form No. 702732 Rev. A November, 2006
Every attempt has been made to insure that the information in
this manual is correct and complete. SSCI, however, always
welcomes our customer’s suggestions for improvements to our
products and associated publications.
1
Page 8
Chapter 1 - General Information
Information and
Safety Notices
CAUTIONS
Notes
In this manual you will find text under the headings Note:, and
CAUTION:.
Under Note: headings, you will be given additional information
pertinent to the subject discussed in that paragraph or step.
Example:
Stainless steel is steel alloyed with chromium to make
it highly resistant to stain, rust, and corrosion.
Note: This does NOT mean, however, that stainless
steel will never rust or corrode.
Under CAUTION: headings, you will be alerted to potentially
hazardous conditions which, if ignored or mishandled, could
result in injury to yourself or damage to the equipment.
Example:
SSCI Contact
Information
CAUTION: Unpacking the case cart is not
difficult. The cart is heavy, however, and
handling it can be awkward for one person.
We recommend that unpacking be done by
at least two people.
Contact SSCI Customer Service by mail, telephone, or fax. The
department is available from 8:30am to 5:00pm, Central Time,
Monday through Friday. Closed holidays.
Address: Suburban Surgical Co., Inc.
275 Twelfth Street
Wheeling, Illinois 60090
Telephone: Illinois - (847) 537-9320, ext. 3518
Toll Free - (800) 323-7366
Fax: (847) 537-9061
Web: www.suburbansurgical.com
2
SSCI - Suburban Surgical Company, inc.
Page 9
Owner’s Manual - Tote-Al Case Carts - Double-door Models (with center posts)
Models
There are twelve models of double-door case carts (with center
posts) varying by cabinet size and handle options. These carts
allow for configuration with shelves on both sides of the center
post. When the doors are open, you have full access to the cart’s
optional shelves. The doors close tightly against the center post to
help seal out environmental contaminants.
Cabinet Sizes
Case cart cabinets are all 24 in. wide, and either 30 in., 36 in.,
42 in., or 48 in. long. Carts are available in two cabinet heights:
33 in. and 48 in.
Handle Options
Three handle options are available for your case cart:
Style A - Recessed handle, near the top of the case cart -
Style B - Recessed handle, spaced down from the top of
Style C - External handle, near the top of the case cart -
Recessed Handle Near Top of Case Cart
for 33 in. high cabinets (Figure 1).
the case cart - for 48 in. high cabinets (Figure 2).
for 33 in. high cabinets (Figure 3).
Figure 1. Style A Handles
Recessed Handle Spaced Down from
Top of Case Cart
Figure 2. Style B Handles
External Handle Near Top of Case Cart
Figure 3. Style C Handles
Form No. 702732 Rev. A November, 2006
3
Page 10
Chapter 1 - General Information
Model Part Numbers
The SSCI part numbers, handle styles, and dimensions of the
twelve double-door case carts (with center posts) are listed in
Table 1.
traPtraC
rebmuN
00-594501A"03"42"33"057.33"573.72"573.93
00-305501 A "63 "42 "33 "057.93 "573.72 "573.93
00-115501A"24"42"33"057.54"573.72"573.93
00-915501 A "84 "42 "33 "057.15 "573.72 "573.93
00-525501B"03"42"84"057.53"573.72"573.45
00-335501 B "63 "42 "84 "057.14 "573.72 "573.45
00-145501B"24"42"84"057.74"573.72"573.45
00-945501 B "84 "42 "84 "057.35 "573.72 "573.45
00-595501C"03"42"33"057.53"573.72"573.93
eldnaH
elytS
htgneL htdiW thgieH htgneL htdiW thgieH
snoisnemiDtenibaC snoisnemiDllarevO
00-306501 C "63 "42 "33 "057.14 "573.72 "573.93
00-116501C"24"42"33"057.74"573.72"573.93
00-916501 C "84 "42 "33 "057.35 "573.72 "573.93
Table 1. Double-door Case Carts - Parts Numbers and Dimensions
Shelf Options
SSCI provides a variety of shelving options for your case cart.
Three types of shelves are available: wire, solid, and
perforated. All three types are available in adjustable or roll-out
styles. All shelves, both adjustable and roll-out, are adjustable
for height. Wire shelves are stainless steel rod, heli-arc welded
at all intersections. Solid and perforated shelves are 18-gauge,
stainless steel.

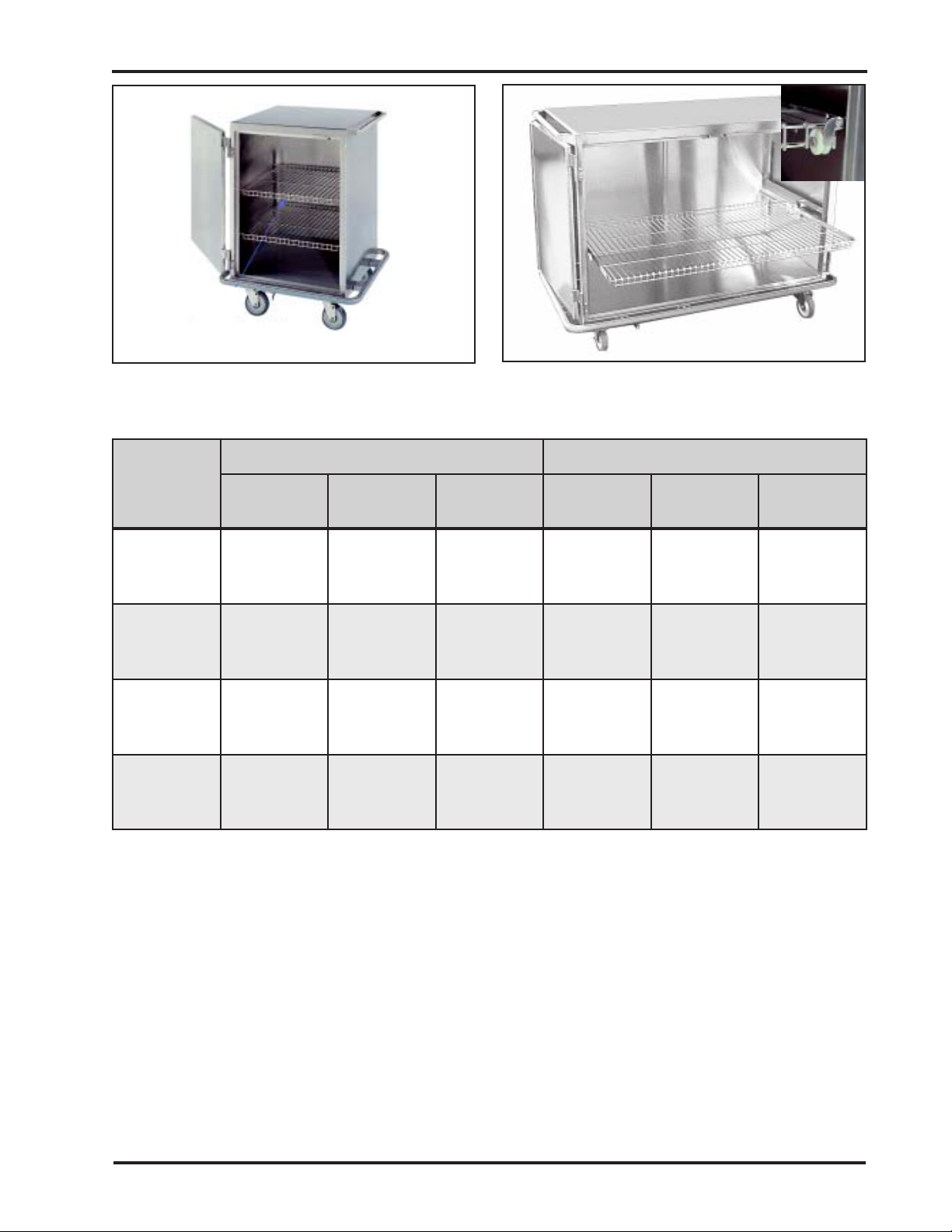

Figure 4 shows a case cart with adjustable wire shelves, and
Figure 5 shows a cart with roll-out wire shelves.
Part numbers for the various shelf options are shown in Table 2.
4
SSCI - Suburban Surgical Company, inc.
Page 11
Owner’s Manual - Tote-Al Case Carts - Double-door Models (with center posts)
Single-door cart shown - double-door similar
Figure 4. Case Cart with Adjustable
Wire Shelves
traPtraC
rebmuN
00-594501
00-525501
00-595501
00-305501
00-335501
00-306501
00-115501
00-145501
00-116501
00-915501
00-945501
00-916501
flehSeriW flehSdiloS
00-20302200-21302200-22302200-23302200-24302200-253022
00-403022 00-413022 00-423022 00-433022 00-443022 00-453022
00-60302200-61302200-62302200-63302200-64302200-653022
00-003022 00-013022 00-023022 00-033022 00-043022 00-053022
Figure 5. Case Cart with Roll-out Wire
Shelves (Rollers Shown in Inset)
sevlehSelbatsujdA sevlehStuo-lloR
detarofreP
flehS
flehSeriW flehSdiloS
detarofreP
flehS
Table 2. Double-door Case Carts (with center posts) - Shelf Options Part Numbers
Form No. 702732 Rev. A November, 2006
5
Page 12
Chapter 1 - General Information
Top Extensions
New double-door case carts can be ordered with extended tops
(Figure 6). The extension tops are 18-gauge, stainless steel.
rebmuNtraPtraC
00-594501
00-525501
00-305501
00-335501
00-115501
00-145501
00-915501
00-945501
00-59550100-114022
00-306501 00-214022
00-11650100-314022
00-916501 00-014022
rebmuNtraP
00-104022
00-204022
00-304022
00-004022
Table 3. Extension Top Part Numbers
poTnoisnetxE
Figure 6. Extended Top
These extensions increase the length of the top
by the following amounts, on each end,
depending on cabinet length:
Cabinet length 30 in. - 5.125 in.
Cabinet length 36 in. - 8.125 in.
Cabinet length 42 in. - 11.125 in.
Cabinet length 48 in. - 14.125 in.
Accessories
Optional Drawers
A variety of accessories can be ordered to increase the
functionality of your case cart:
Card holders (open on top edge):
5 in. W x 3 in. H - 600013
6 in. W x 4 in. H - 603673
8 in. W x 5 in. H - 601495
Custom-sized card holders available
2 digit signage plates - 617375
Sign “THIS END ENTERS LIFT FIRST” - 610794
Sign “OTHER END ENTERS LIFT FIRST” - 617525
Drawers (refer to Optional Drawers below)
Two types of optional drawers are available for the case cart:
drawers that mount inside the cart under the top (Figure 7), and
drawers that mount under one of the shelves (Figure 8).
Drawers are made of ABS or fiberglass reinforced plastic.
All runners are stainless steel.
ABS drawers can be ordered ribbed with vertical channels to
accommodate divider strips, or non-ribbed. Fiberglass
reinforced plastic drawers can be autoclaved to 250° F. constant.
6
SSCI - Suburban Surgical Company, inc.
Page 13
Owner’s Manual - Tote-Al Case Carts - Double-door Models (with center posts)
Drawer

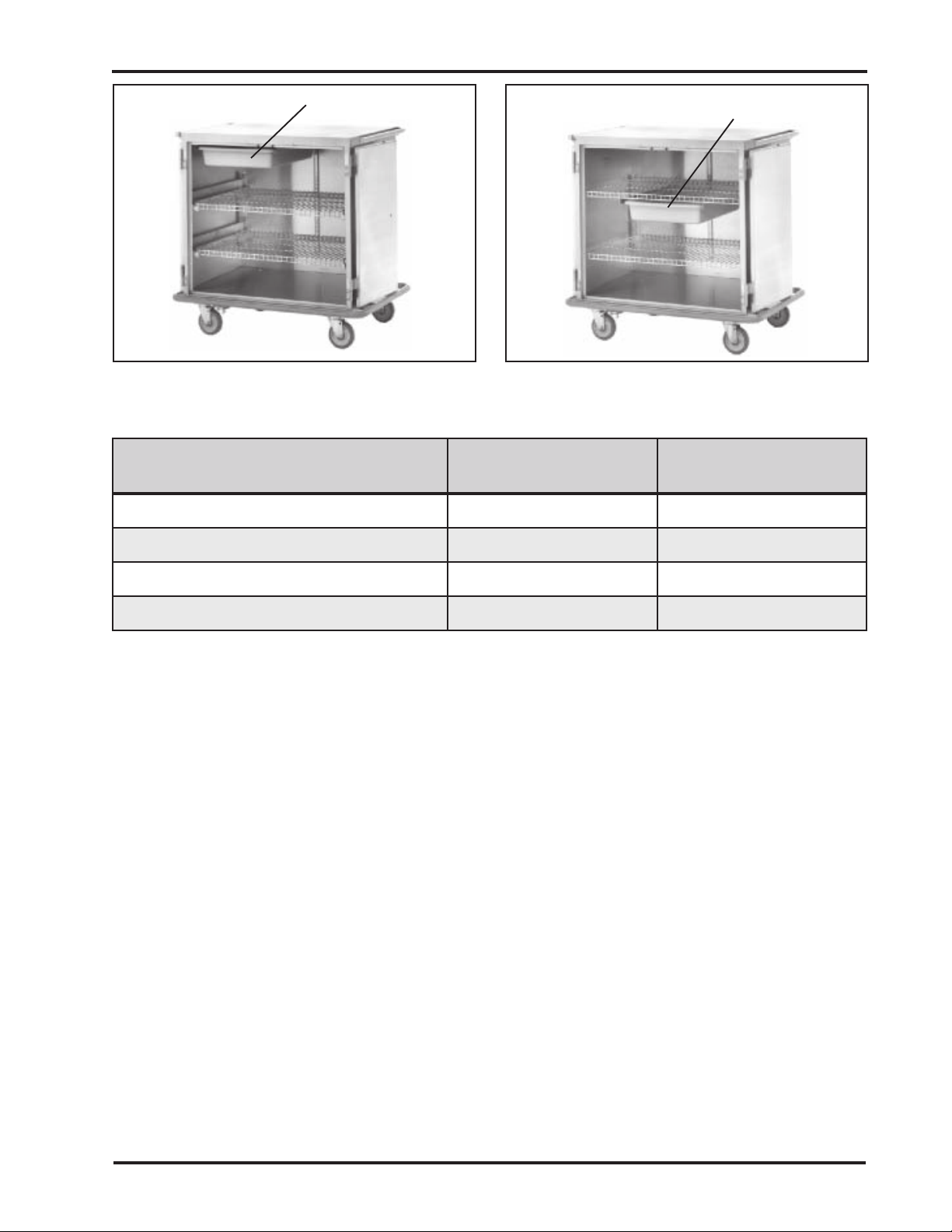

Figure 7. Optional Drawer Mounted
Under the Case Cart Top
noitacoLrewarD SBA
poTtraCesaCrednU042-034022042-534022
flehSeriWelbatsujdArednU 042-134022 042-634022
Drawer
Figure 8. Optional Drawer Mounted
Under a Shelf
decrofnieRssalgrebiF
citsalP
sevlehSdetarofreP&diloSelbatsujdArednU042-234022042-734022
flehSeriWtuo-lloRrednU 042-334022 042-824022
Table 4. Part Numbers for Optional Drawers
Returning the Case
Cart for Repairs
RMA Numbers
Packing and
Shipment
If your case cart should require return to SSCI for repairs,
discuss the problem with one of our Customer Service
Representatives. Obtain an RMA number (Return Merchandise
Authorization) from them before shipping the unit back.
Note: Merchandise returned without an RMA number will not
be accepted.
Package the case cart securely, and ship documentation with
the cart including:
Destination
RMA Number
Your name, company, and address
Your telephone number
A description of the reason for returning the cart
Form No. 702732 Rev. A November, 2006
7
Page 14
Chapter 1 - General Information
Warranty
Suburban Surgical Company, Inc. warrants the original
purchaser that all equipment manufactured by Suburban
Surgical Company, Inc. will be of the highest standards in
material and workmanship. All equipment manufactured by
Suburban Surgical Company, Inc. will be warrantied for a
period of one (1) year from the date of shipment from the
factory.
Components and casters Suburban Surgical Company, Inc.
purchases from other manufacturers will be covered by the
respective manufacturer’s Warranty.
Warranties will not apply if it is determined by Suburban
Surgical Company, Inc. that the equipment became defective
due to an accident, misuse, abuse, or alteration. Warranties do
not include freight charges for replacement or repair.
8
SSCI - Suburban Surgical Company, inc.
Page 15
Owner’s Manual - Tote-Al Case Carts - Double-door Models (with center posts)
Chapter 2 - Unpacking and Assembly
General
Unpacking and
Inspection
Shelf Installation
SSCI Case Carts are shipped fully assembled except for
optional shelves which must be installed on-site. If you have
problems or require additional assistance, please feel free to
call SSCI Customer Service at (800) 323-7366.
CAUTION: Unpacking the case cart is not difficult.
The cart is heavy, however, and handling it can be
awkward for one person. We recommend that
unpacking be done by at least two people.
If the shipping container appears damaged in any way, contact
the shipping company immediately. Save all damaged packing
materials to assist in proving liability for damage.
Carefully inspect your case cart while you unpack it. If any
damage is noted, or if parts appear to be missing, call SSCI
Customer Service at (800) 323-7366.
Wire, solid, and perforated shelves are all installed in the same
way. There are differences, however, in the installation
procedures for adjustable and roll-out shelves.
Adjustable Shelves
Observe the shelf (Figure 9) and notice that on the front and
rear shelf rods, the left end is straight and the right end is bent
down at a 90° angle. Also note that the rear of the shelf is
flanged up (to keep items from falling off when the shelf is
moved), and the front is flanged down. Notice also, vertical
shelf brackets mounted to each inside corner of the cart
(Figure 10), in the center of the back wall, and on the center post.
A series of oblong holes in the vertical brackets are spaced about
three inches apart. The ends of the shelf rods fit into these holes.
To install adjustable shelves:
1. Open the case cart door.
2. Put the shelf into the cabinet (flanged-up side to the
rear) with the right side tilted up at about a 30° angle.
3. Place the straight (left) rod ends into the holes in the left
front and rear vertical brackets at the desired level.
Form No. 702732 Rev. A November, 2006 9
Page 16
Chapter 2 - Unpacking and Assembly
Front - flanged down
Straight End
(left)
Front Shelf Rod Shown - Rear Same
90° End
(right)
Brackets also
present in
center of back
wall and on
center post
Shelf
Bracket
(1 each
corner)
mm
m
mm
3 in.
kk
k
kk

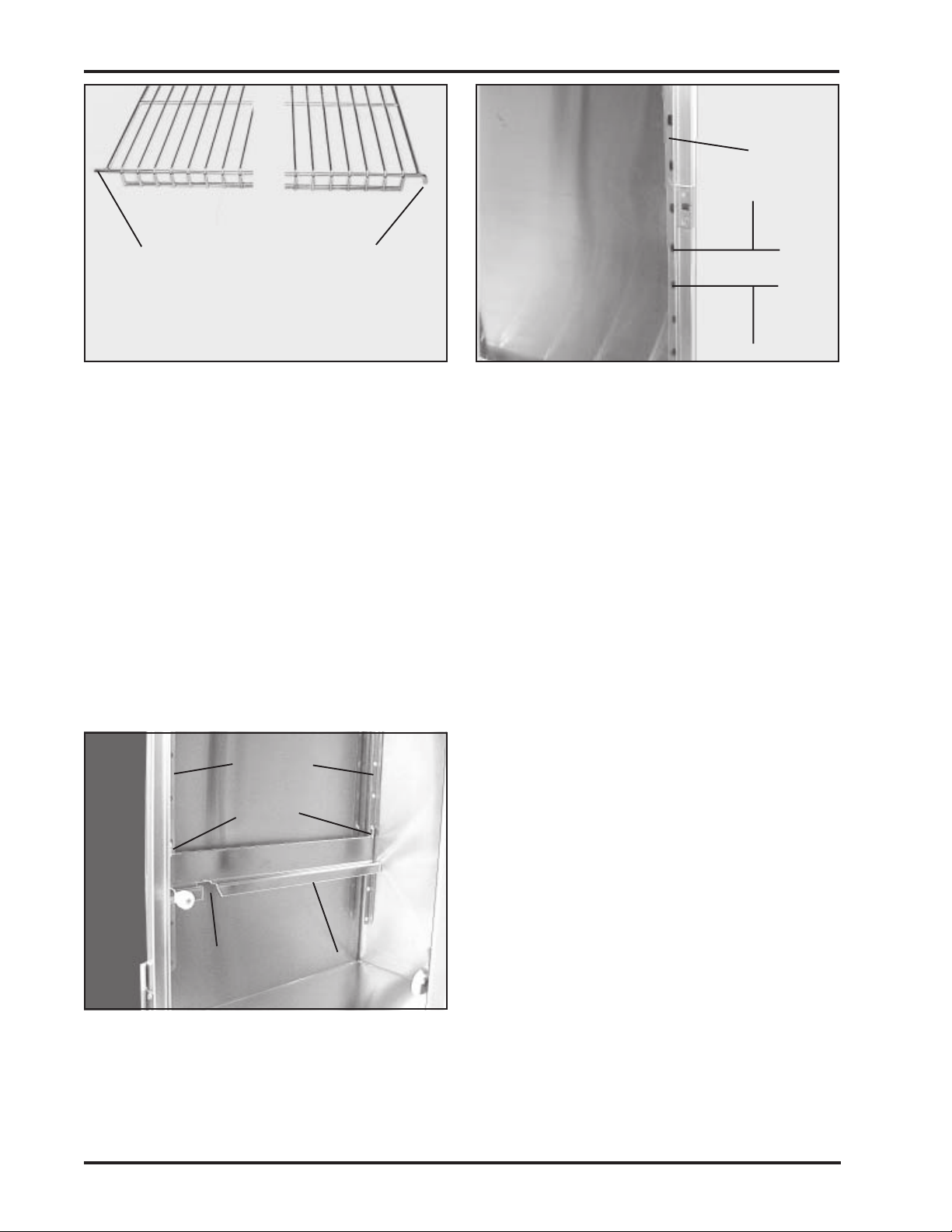

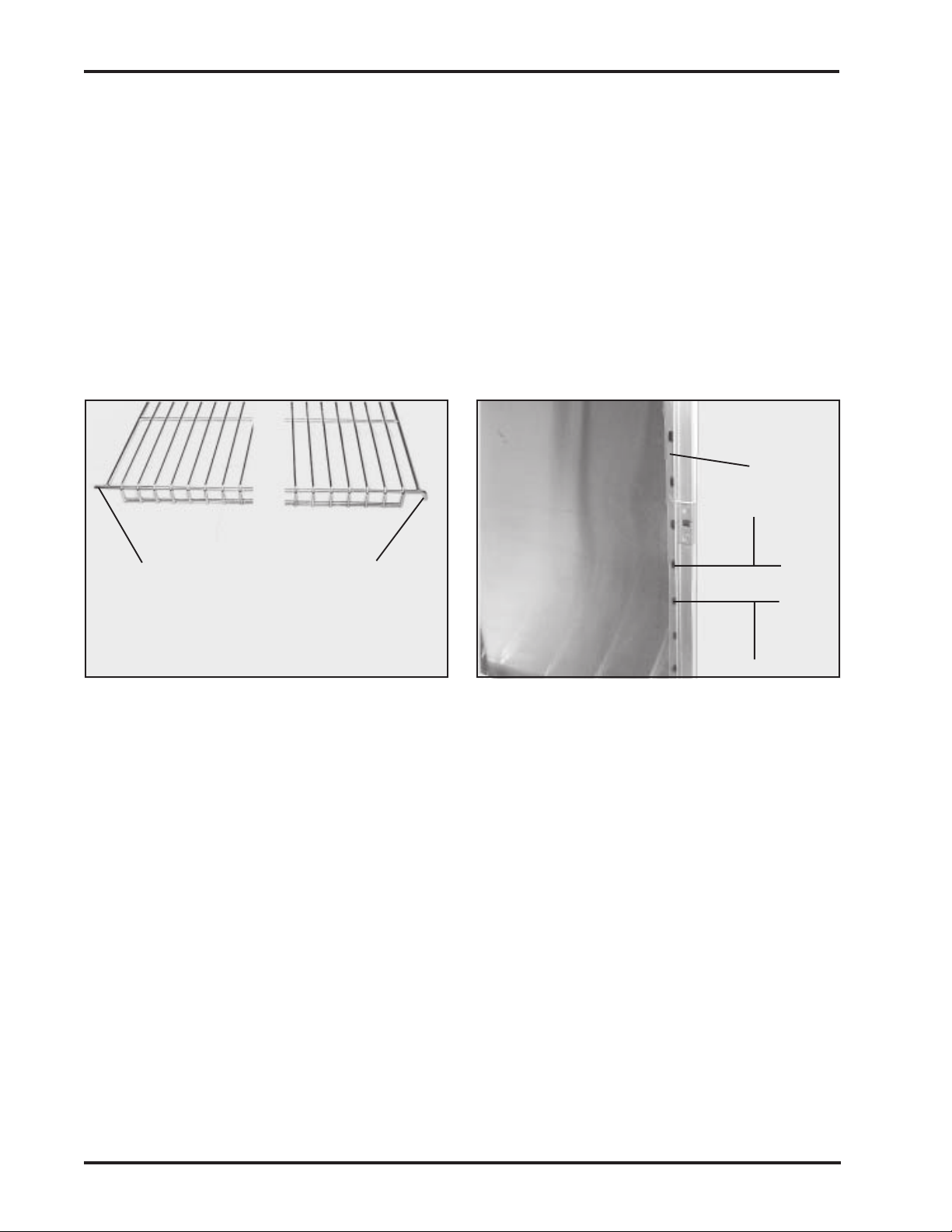

Figure 9. Adjustable Shelf
Roll-out Shelves
Vertical
Brackets
Hooks
Figure 10. Shelf Bracket
4. Lower the 90° ends (right) and engage rod ends into the
right vertical bracket holes. Note: Make sure the shelf
is level side-to-side and front-to-rear.
Mounting a roll-out shelf is a two-step procedure: (1) mounting
the two roll-out shelf tracks, and (2) installing the shelf.
Notice the vertical shelf brackets mounted to each inside corner
of the cart (Figure 10), in the center of the back wall, and on the
center post. A series of oblong holes in the vertical brackets are
spaced about three inches apart. The hooks on the roll-out shelf
tracks fit into these holes. To install roll-out shelves:
1. Open the case cart door.

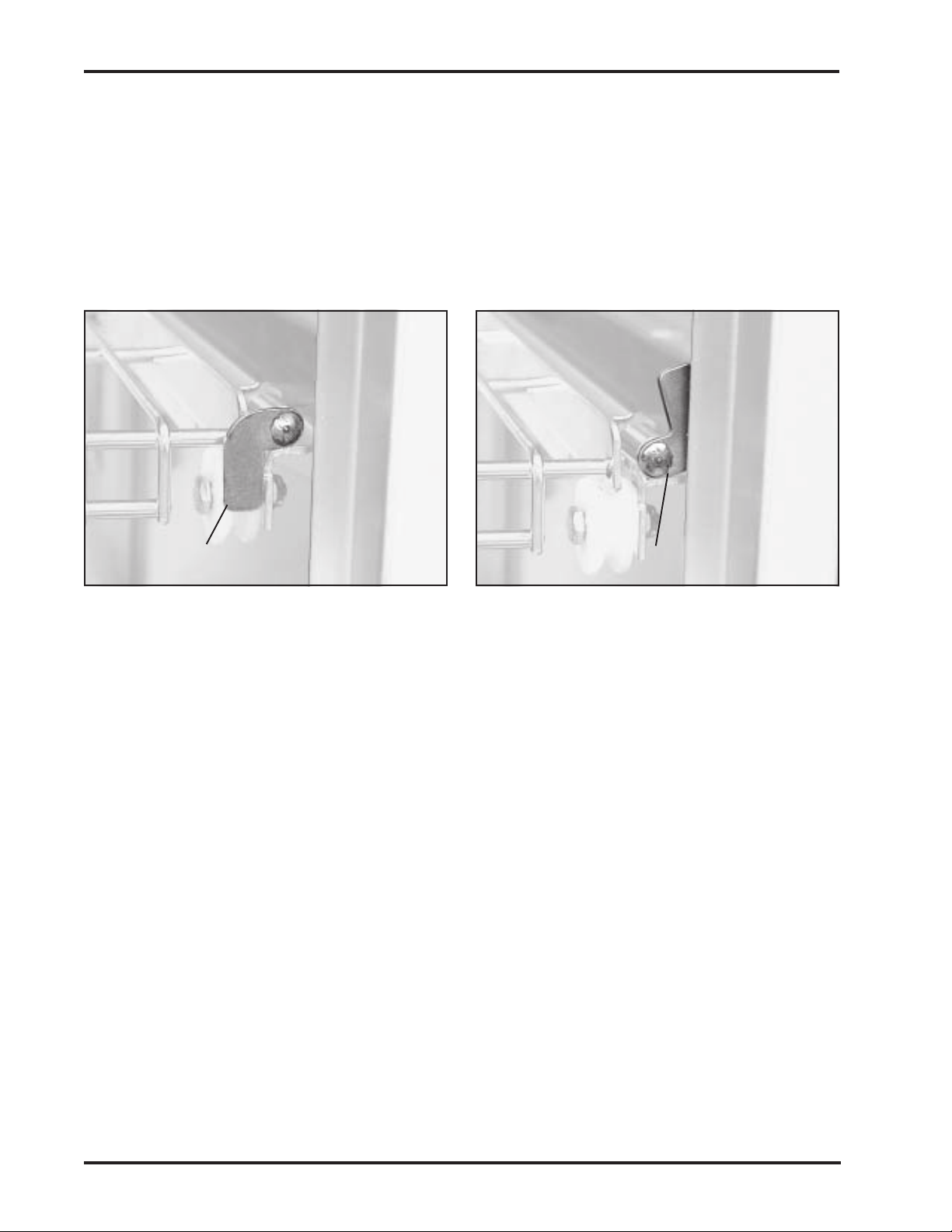

2. Make sure that the shelf lock is pivoted
up to the release position (Figure 14).
Gap

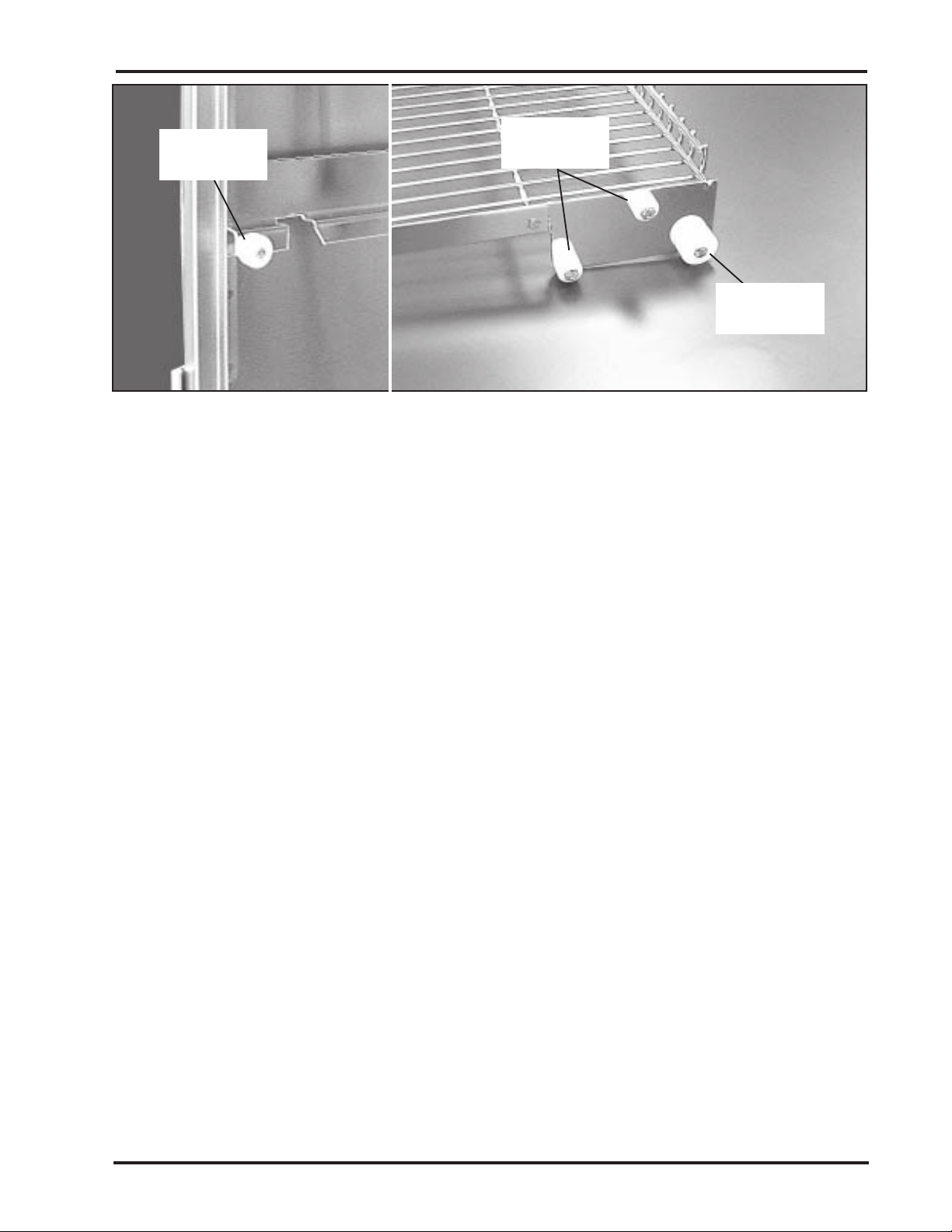

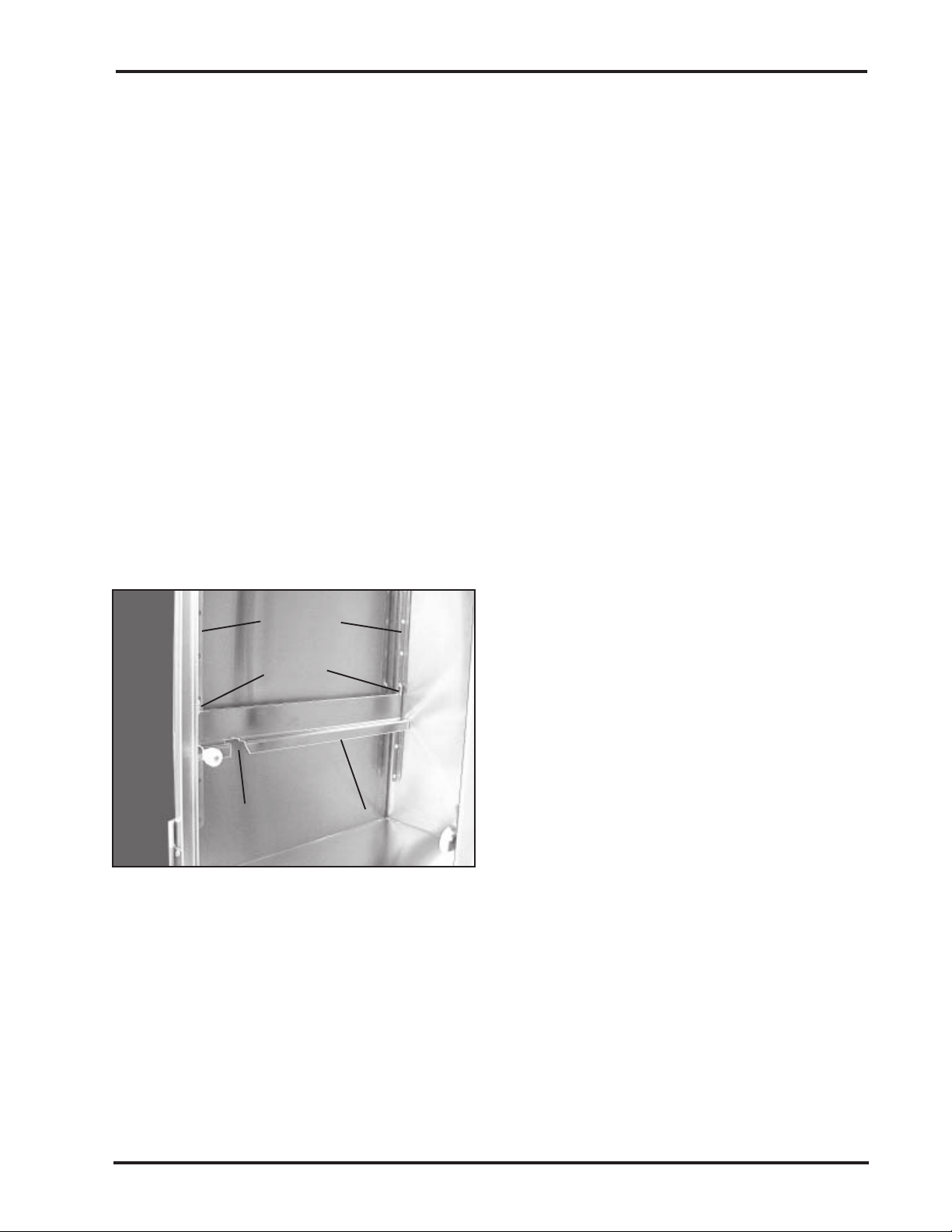

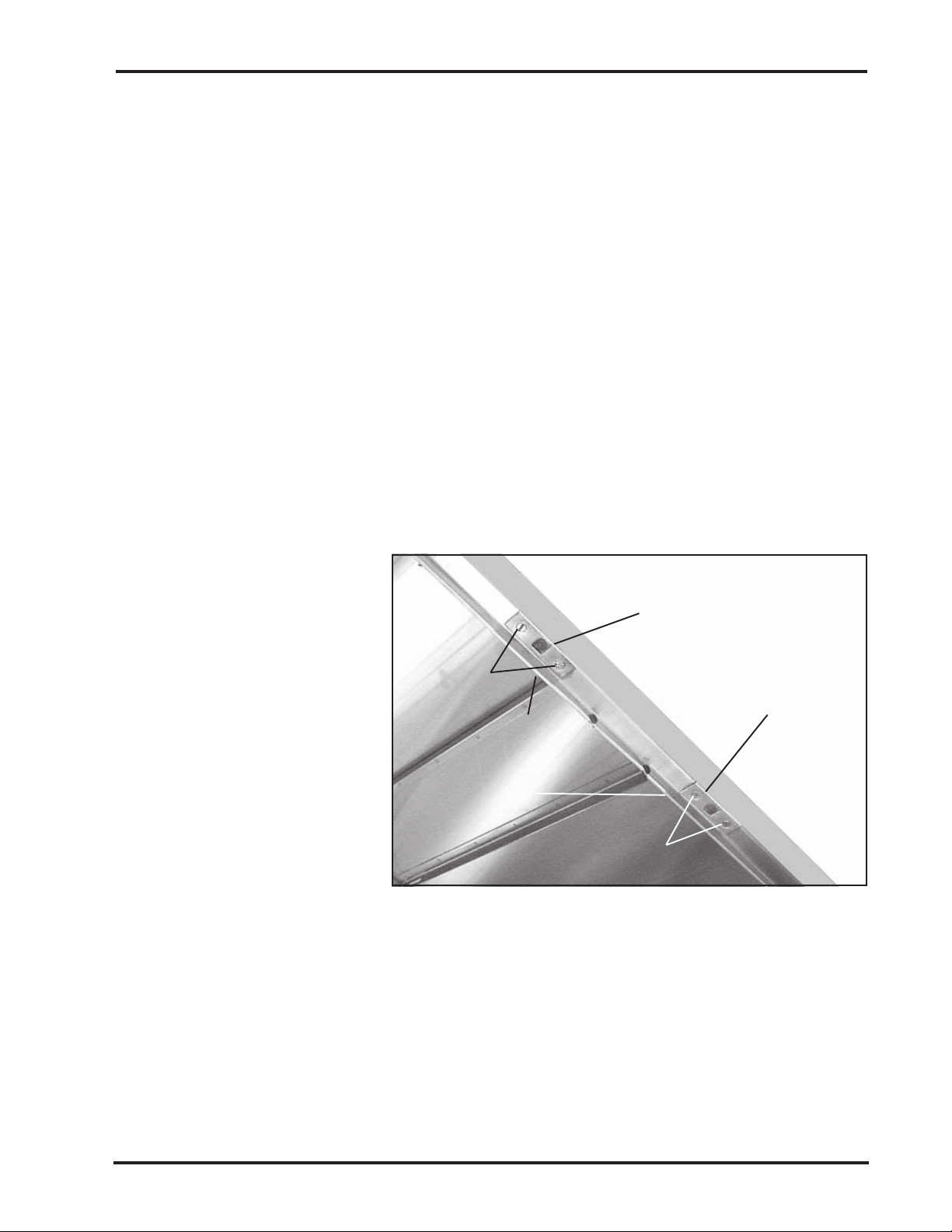

Figure 11. Roll-out Shelf Track and
Vertical Brackets
10
Roll-out Shelf
Track
3. Hook both roll-out shelf tracks to the
front and rear vertical brackets at the
desired level (Figure 11). Note: Make
sure that the gaps in the roll-out shelf
tracks are to the front.
4. Tilt the front of the shelf upward and
insert the rear edge into the cabinet.
5. Slide the lower rollers down through the
gaps in the roll-out shelf tracks.
SSCI - Suburban Surgical Company, Inc.
Page 17
Owner’s Manual - Tote-Al Case Carts - Double-door Models (with center posts)
6. Lower the front of the shelf to near horizontal.
7. When all rollers are properly positioned, roll the shelf
back into the cabinet.
8. Slide the shelf back and forth a few times to make sure
it operates smoothly.
9. Slide the shelf all the way into the cabinet.
10. Pivot the shelf lock down to the lock position (Figure 15).
11. Close the door.
Form No. 702732 Rev. A November, 2006 11
Page 18
Chapter 2 - Unpacking and Assembly
Comments:
12
SSCI - Suburban Surgical Company, Inc.
Page 19
Owner’s Manual - Tote-Al Case Carts - Double-door Models (with center posts)
Chapter 3 - Using Your Case Cart
Opening, Latching,
and Closing the
Doors
Opening the Door
To open the door, push the knob handle down (Figure 12) and
swing the door open.
Latching the Door in the Full-open Position
The door can be opened a full 270° to lie flat against the side of
the cart and can be latched in that position for greater convenience
when loading or cleaning. When latched, the knob handle engages
either a catch on the side of the cart (Figure 13) or the recessed
handle (depending on case cart model) and is held in the full-open
position.
Unlatching the Door from the Full-open Position
Press down on the latch tongue (Figure 13) and pull the door
free of the catch (or recessed handle).
Closing the Door
The door can be pushed closed and will lock. It may be easier,
however, to press the knob handle down and then push the door
closed.
Left Door
Knob Handles
pp
pp
p
Figure 12. Opening the Doors
Right Door
pp
pp
p
Latch
Tongue
pp
p
pp
Catch
Figure 13. Latching a Door in the Fullopen Position
pp
p
pp
pp
p
pp
Knob
Handle
Form No. 702732 Rev. A November, 2006
13
Page 20
Chapter 3 - Using Your Case Cart
Using Roll-out
Shelves
Locking and
Releasing Roll-out
Pivot UP to Release
EE
E
EE
Shelves
The following information is valid for wire, solid, and
perforated shelves.
Roll-out shelves have a built-in lock to hold them securely in
place so that they do not roll out of the cabinet when not
intended. A two-position pivot lock located on the front of the
shelf on the right side holds the shelves in place, or releases
them when required. Pivot the lock up to release the shelf
(Figure 14), or down to lock it (Figure 15).
Pivot DOWN to Lock
FF
F
FF
Shelf Lock
Figure 14. Shelf Lock in Lock Position
Rolling Shelves
In and Out
Removing and
Replacing Roll-out
Shelves
Roll-out shelves ride on polyethylene rollers and, when rolled
out, extend 14.75 in. past the cart’s face to a positive stop
preventing accidental removal. The rear edge of each shelf is
flanged up to prevent stored items from falling off the back as the
shelf is rolled out.
Before attempting to roll the shelf out, pivot the shelf lock upward
to the release position (Figure 14). After rolling the shelf back into
the cabinet, be sure to pivot the shelf lock down to the lock
position (Figure 15).
It will occasionally be necessary to remove a roll-out shelf for
cleaning, height adjustment, etc.
Removal
1. Open both cabinet doors and latch them back (Figure 13).
Shelf Lock
Figure 15. Shelf Lock in Release
Position
2. Pivot the shelf lock up to the release position (Figure 14).
14 SSCI - Suburban Surgical Company, Inc.
Page 21
Owner’s Manual - Tote-Al Case Carts - Double-door Models (with center posts)
Note: The shelf rollers ride on a roll-out shelf
track on either side of the cabinet. Notice that on
each track there is a 1.25 in. gap about 2.5 in.
back from the front end (Figure 16).
Gap
Roll-out Shelf
Track (both
sides)
Figure 16. Roll-out Shelf Track
3. Roll the shelf out until the front lower
rollers approach the gaps.
4. Tilt the shelf up and pull it outward,
allowing the lower rollers to come out
through the gaps.
5. Remove the shelf from the cabinet.
Replacement
1. Tilt the front of the shelf upward and insert the rear
edge into the cabinet.
2. Slide the lower rollers through the gaps in the
roll-out shelf tracks.
3. Lower the front of the shelf to horizontal.
4. When all rollers are properly positioned, roll the shelf
back into the cabinet.
5. Slide the shelf back and forth a few times to make sure
it operates smoothly.
6. Slide the shelf all the way into the cabinet.
7. Pivot the shelf lock down to the lock position (Figure 15).
8. Close the door.
Form No. 702732 Rev. A November, 2006
15
Page 22
Chapter 3 - Using Your Case Cart
Adjusting Shelf
Height
Adjustable Shelves
Front - flanged down
Straight End
(left)
Front Shelf Rod Shown - Rear Same
90° End
Adjustment points are provided in the case cart to allow you to
adjust the shelves up and down to suite your needs. Shelf
positions are spaced about 3 in. apart, and the number of
positions varies with the height of the cabinet. Both adjustable
and roll-out shelves can be adjusted for height.
Observe the shelf (Figure 17) and notice that on the front and
rear shelf rods, one end is straight and the opposite end is bent
down at a 90° angle. Notice also, vertical shelf brackets
mounted to each inside corner of the cart (Figure 18), in the center
of the back wall, and on the center post. A series of oblong holes
in the vertical brackets are spaced about three inches apart. The
ends of the shelf rods fit into these holes.
Brackets also
present in
center of back
wall and on
center post
(right)
mm
m
mm
3 in.
kk
k
kk
Shelf
Bracket
(1 each
corner)
Figure 17. Adjustable Shelf
Roll-out Shelves
Figure 18. Shelf Bracket
To move a shelf to a different level:
1. Lift up on the side of the shelf with the 90° rod ends
until you can remove the straight rod ends from the
bracket holes.
2. Place the straight ends into the holes at the desired level.
3. Lower the 90° ends and engage rod ends into the new
holes. Note: Make sure the shelf is level side-to-side
and front-to-rear.
Altering the height of a roll-out shelf requires removal of the
shelf from the cabinet. To alter the shelf height:
1. Remove the shelf from the cabinet (refer to Removing
and Replacing Roll-out Shelves - Removal, Steps 1
through 5, starting on Page 14).
16 SSCI - Suburban Surgical Company, Inc.
Page 23
Owner’s Manual - Tote-Al Case Carts - Double-door Models (with center posts)
Vertical
Brackets
Hooks
Gap

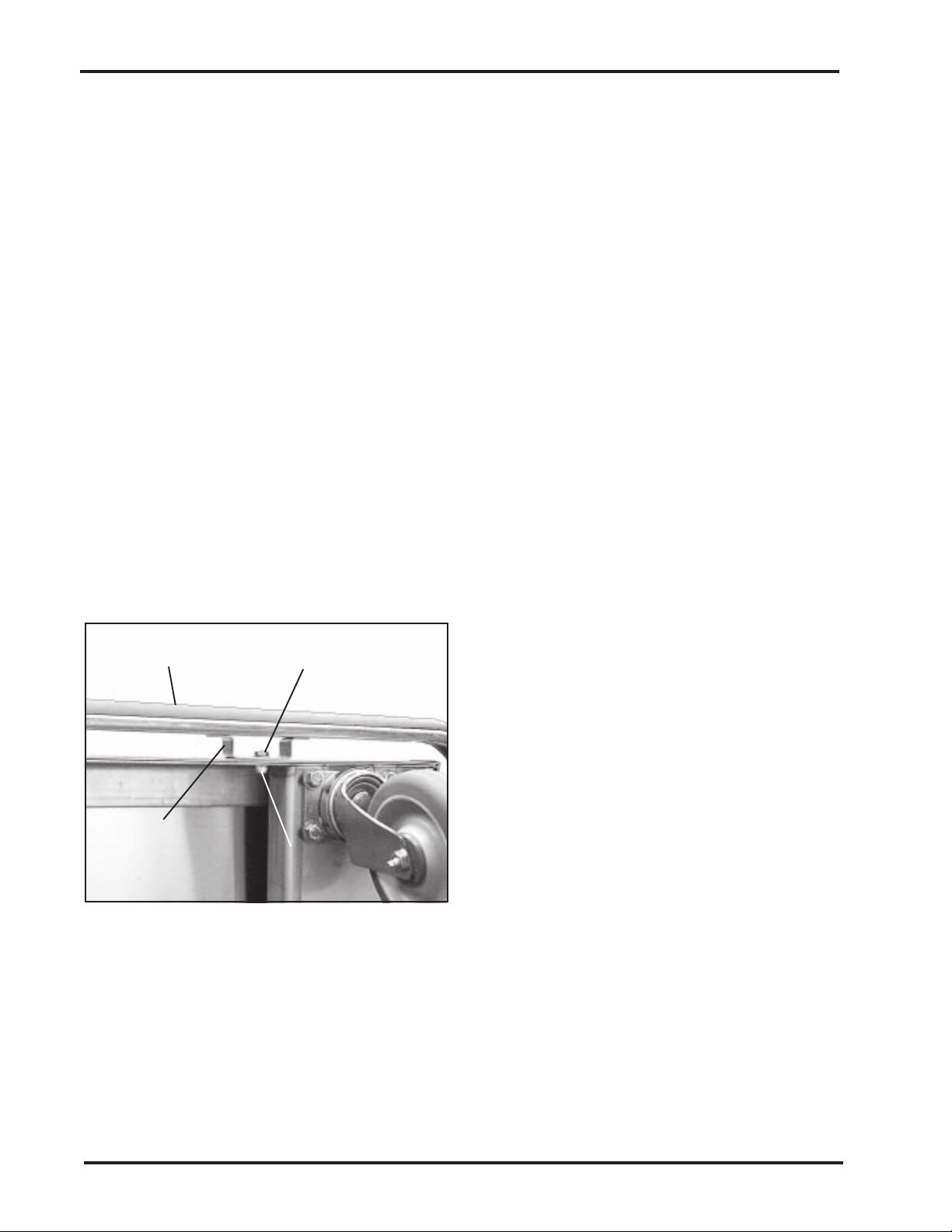

Figure 19. Roll-out Shelf Track and
Vertical Brackets
Removing and
Replacing Shelves
Adjustable Shelves
Roll-out shelf
track
It may occasionally be necessary to remove a shelf for cleaning,
height adjustment, etc. Removing and replacing the case cart
shelves are simple and easy.
To remove and replace an adjustable shelf, follow the
instructions under Adjusting Shelf Height - Adjustable Shelves
on Page 16.
2. Lift up on the roll-out shelf track and
unhook it from the front and rear vertical
brackets (Figure 19). Do this for both
roll-out shelf tracks.
3. Hook both roll-out shelf tracks to the
front and rear vertical brackets at the
desired level.
4. Replace the shelf onto the roll-out shelf
tracks (refer to Removing and Replacing
Roll-out Shelves - Replacement, Steps 1
through 8 on Page 15). Note: Make
sure the shelf is level side-to-side and
front-to-rear.
Roll-out Shelves
Using the Caster
Swivel Locks
To remove and replace a roll-out shelf, follow the instructions
under Removing and Replacing Roll-out Shelves - Removal,
Steps 1 through 5, starting on Page 14.
Two of the four casters on each case cart are equipped with
swivel locks to insure that the case cart runs straight without
turning. The casters with swivel locks are located on diagonally
Casters with
Swivel Locks
opposite corners of the cart (Figure 20).
Locking the Swivel
To lock the swivel and prevent the caster from
turning, place the swivel lock (Figure 21) in the
straight-out position. In this position, the end of
the lock enters a notch in the swivel body and
prevents it from turning.
Figure 20. Typical Case Cart
Form No. 702732 Rev. A November, 2006
17
Page 24
Chapter 3 - Using Your Case Cart
Swivel Lock
in Locked
Position
Figure 21. Caster with Swivel Lock Locked
Unlocking the Swivel
To unlock the swivel and allow the caster to turn, place the
swivel handle in the 90° position (Figure 22).
Swivel Lock
in Unlocked
Position
Figure 22. Caster with Swivel Lock Unlocked
18 SSCI - Suburban Surgical Company, Inc.
Page 25
Owner’s Manual - Tote-Al Case Carts - Double-door Models (with center posts)
Chapter 4 - Repairs and Replacements
Replacement Parts
emaNtraP rebmuNtraPICSS ytitnauQ
egniHrooDrewoL584306432egaP
kcoLleviwS/w,retsaC 00AAF-01111013-100C 2 42egaP
kcoLleviwSo/w,retsaC00AAF-01111012-100C242egaP
etalPrekirtShctaL 880806 2 52egaP
hctaCeldnaH
eldnaHbonK 994202 2 72egaP
tloBhctaL945157272egaP
gnirpStloBhctaL 604258 2 72egaP
Table 5 lists the replacement parts available for the case cart.
For parts not listed below, contact SSCI Customer Service at
(800) 323-7366. Refer to Parts Ordering Procedure on Page 21.
tnemecalpeR
snoitcurtsnI
eldnaHhtiwstraCesaCnO
(C&BselytS 3egaP -)
083616
2 62egaP
etelpmoC,repmuBno6elbaTotrefeR 02egaP 1 82egaP
flehSeriWelbatsujdA
no7elbaTotrefeR 02egaP yravnac 92egaPflehSdiloSelbatsujdA
flehSdetarofrePelbatsujdA
flehSeriWtuo-lloR
flehSdiloStuo-lloR
flehSdetarofrePtuo-lloR
kcarTflehStuo-lloR
kcarT&flehSrofsrelloRno32erugiFotrefeR 12egaP03egaP
no7elbaTotrefeR 02egaP yravnac 92egaP
700012-tfeL
800012-thgiR
flehS/hcae1 92egaP
Table 5. Replacement Parts for SSCI Double-door Case Carts (with center posts)
Form No. 702732 Rev. A November, 2006 19
Page 26
Chapter 4 - Repairs and Replacements
rebmuNtraPtraC N/PyssArepmuB
00-594501840502
00-305501 470302
00-115501963502
00-915501 770702
00-525501E840502
00-335501 E470302
00-145501E963502
00-945501 E770302
00-595501E840502
00-306501 E470302
00-116501E963502
00-916501 E770302
Table 6. Replacement Bumpers - Double-door Case
Carts (with center posts)
sevlehSelbatsujdA sevlehStuo-lloR
traPtraC
rebmuN
00-594501
00-525501
00-595501
00-305501
00-335501
00-306501
00-115501
00-145501
00-116501
00-915501
00-945501
00-916501
flehSeriW flehSdiloS
00-20302200-21302200-22302200-23302200-24302200-253022
00-403022 00-413022 00-423022 00-433022 00-443022 00-453022
00-60302200-61302200-62302200-63302200-64302200-653022
00-003022 00-013022 00-023022 00-033022 00-043022 00-053022
detarofreP
flehS
flehSeriW flehSdiloS
detarofreP
flehS
Table 7. Replacement Shelves - Double-door Case Carts (with center posts)
20
SSCI - Suburban Surgical Company, Inc.
Page 27
Owner’s Manual - Tote-Al Case Carts - Double-door Models (with center posts)
753332
1 per track
Roll-out Shelf Track

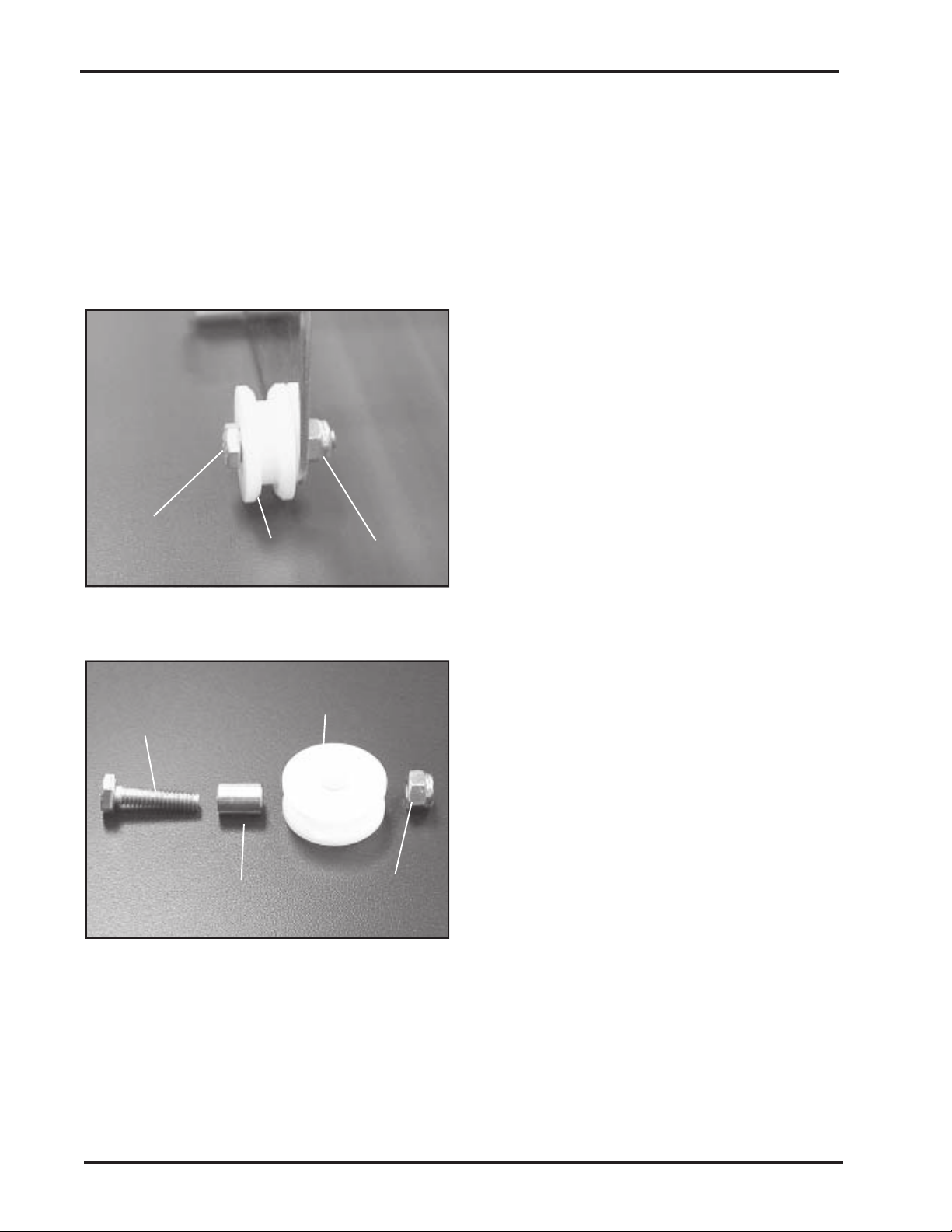

Figure 23. Part Numbers for Rollers on Roll-out Tracks and Shelves
General
Many threaded fasteners used on SSCI products are
secured with thread adhesive to insure structural integrity.
Removing any screw or bolt may be difficult at first.
If during disassembly, you remove any tape, cable ties,
etc., remember to replace them when the installation is
complete.
During disassembly, retain all hardware items such as
screws, nuts, lockwashers, etc. for reassembly.
If you have problems with any procedure, please feel
free to call SSCI Customer Service at (800) 323-7366.
753333
4 per shelf
Roll-out Shelf
753332
2 per shelf
Parts Ordering
Procedure
Order new equipment, accessories, and replacement parts direct
from SSCI. You can order by mail, telephone, or fax. Refer to
SSCI Contact Information on Page 2 for address, telephone,
and fax numbers. When ordering, please provide the following
information:
Your name
Company name
Company account number
Telephone number
Fax number
e-mail address
Shipping address
Billing address (if different from shipping address)
Names, part numbers, and quantities of items being
ordered
Credit card number and expiration date, or other
payment information
Preferred method of shipment
Information on whether the items are required on a
normal or urgent basis
Form No. 702732 Rev. A November, 2006 21
Page 28
Chapter 4 - Repairs and Replacements
Parts Replacement
Procedures
Removing and
Installing a
Case Cart Door
Hinges
Left Door Right Door
Hinges
Overview
Replacement of some case cart parts will require the removal
and subsequent reinstallation of a case cart door.
CAUTION: When working on the case cart, make
sure the wheels are blocked so that the cart cannot
move while you are working. Such movement could
create a hazardous condition.
Removal
1. Block or otherwise immobilize the case
cart wheels so that the cart can’t move
while you are working on it.
2. Unlatch and open the door.
CAUTION: The case cart door is heavy
and we recommend that removing and
installing the door be done by at least
two people.

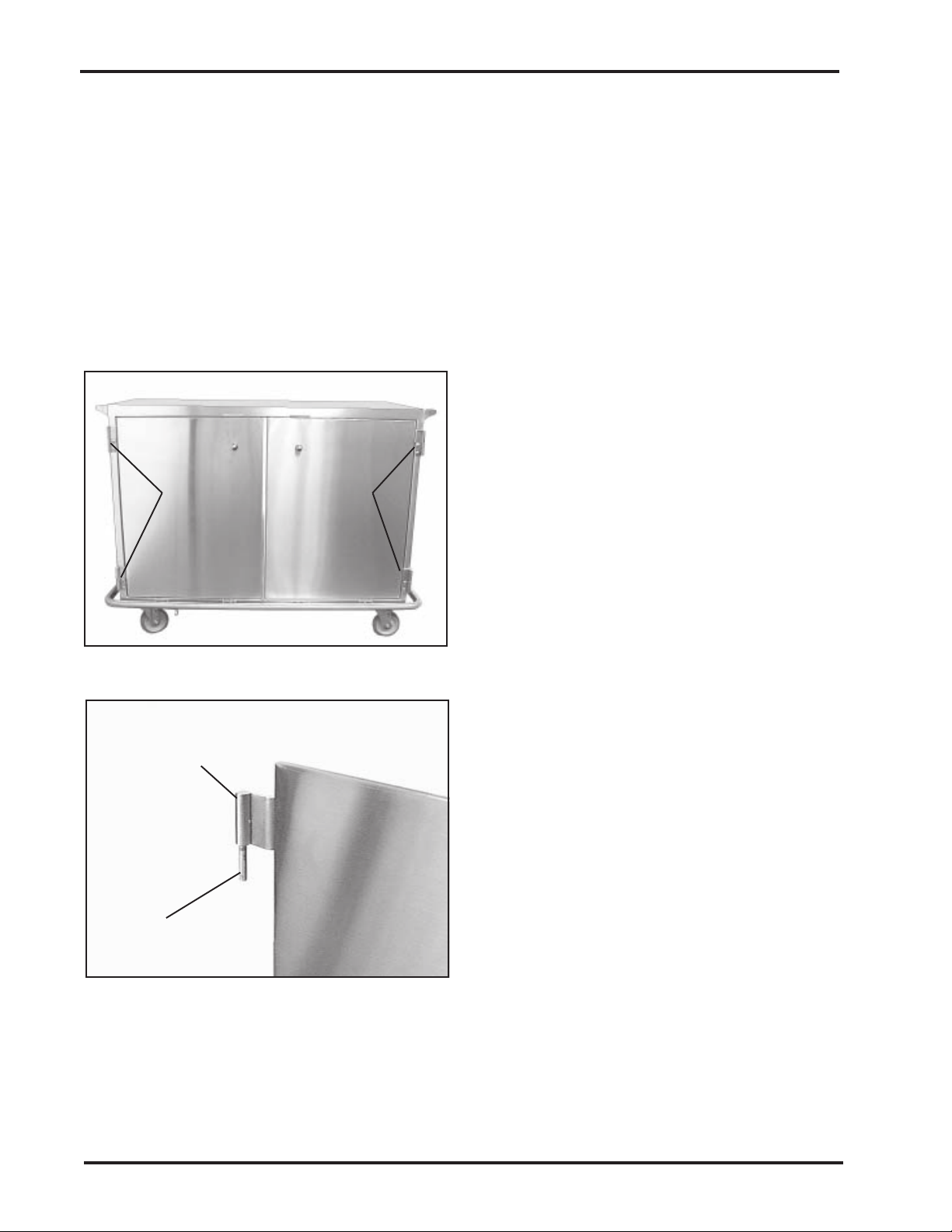

Figure 24. Door Hinges
Top Half
of Hinge
Door
Hinge Pin
Figure 25. Top Half of Door Hinge
3. Lift up on the door until the upper and
lower hinge pins on the door disengage
from the lower hinge halves (Figures 25
and 25) and remove the door.
Installation
1. Lift up the door and gently lower both
hinge pins into the lower hinge halves
(Figure 25). Make sure the hinge pins
seat fully into the lower halves.
2. Swing the door open and closed a few
times to make sure it moves easily.
3. Close and latch the door.
22
SSCI - Suburban Surgical Company, Inc.
Page 29
Owner’s Manual - Tote-Al Case Carts - Double-door Models (with center posts)
Lower Door Hinge
P/N 603485
Overview
On all double-door case cart doors, each of the two hinges has
an upper and a lower half. The upper half is integral to the door
itself and cannot be replaced short of replacing the complete
door. The lower half is bolted to the case cart and can be
replaced if necessary. All hinges, upper and lower, on all
double-door case carts are identical.
Tools Required
Phillips screwdriver
Socket wrench, 7/16 in. socket, and 3 in. extension
Procedure
1. Remove the case cart door. Refer to Removing and
Installing a Case Cart Door - Removal, Steps 1
through 3 on Page 22. Observe the Cautions shown in
the procedure.
2. With a Phillips screwdriver and a socket wrench with a
7/16 in. socket on a 3 in. extension, remove the two
hinge mounting screws and nuts (Figure 26), and
remove the hinge.
Mounting
Nuts Inside
Lower
Door
Hinge
Hinge
Mounting
Screws

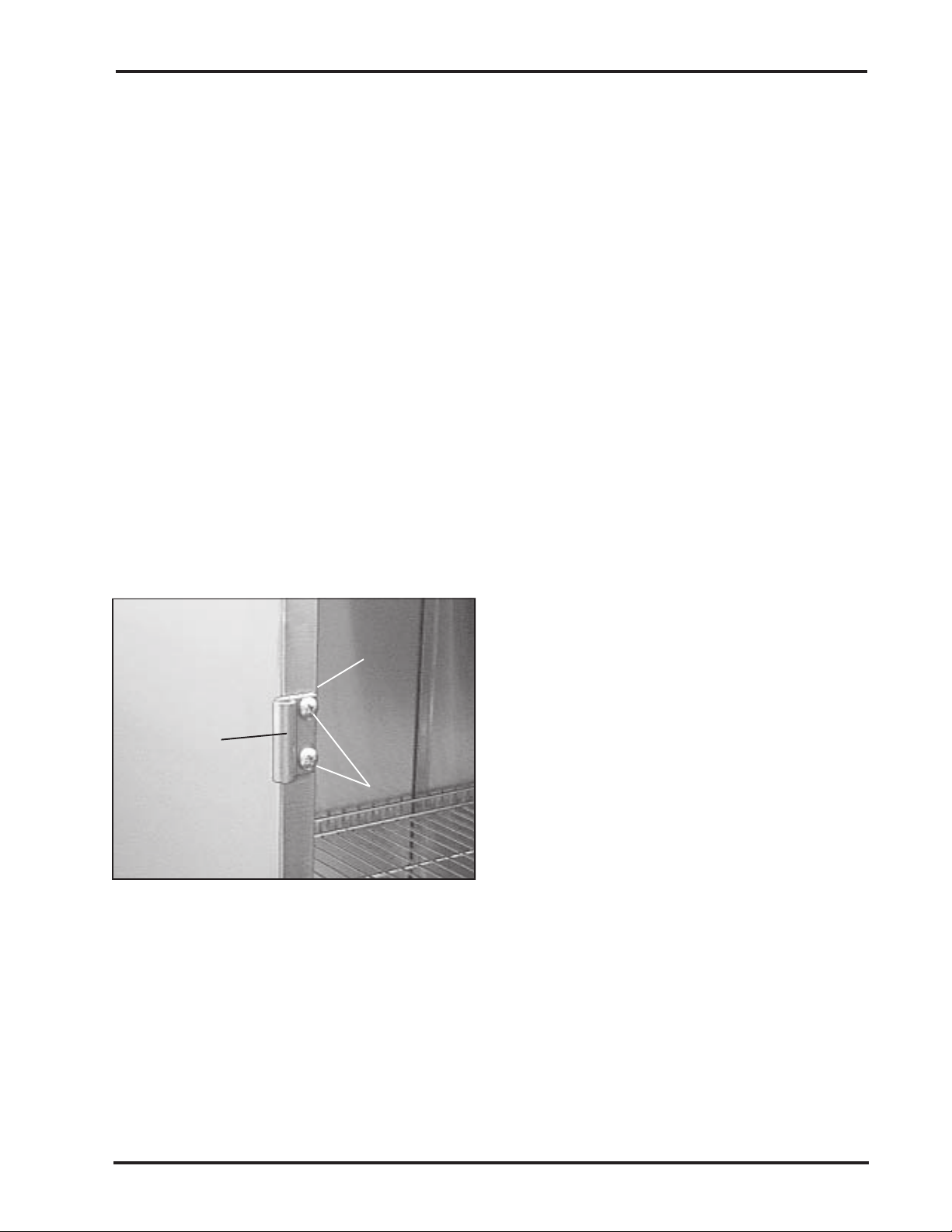

Figure 26. Lower Door Hinge and
Mounting Screws and Nuts
3. Hold the new hinge in place and secure
with the two mounting screws/nuts.
4. Replace the case cart door. Refer to
Removing and Installing a Case Cart
Door - Installation, Steps 1 through 3
on Page 22.
Form No. 702732 Rev. A November, 2006 23
Page 30
Chapter 4 - Repairs and Replacements
Casters
w/ Swivel Lock -
P/N C001-31011110-FAA00
w/o Swivel Lock -
P/N C001-21011110-FAA00
Overview
All casters, either with or without swivel locks, are removed
and installed the same way.
Tool Required
1/2 in. wrench
Procedure
1. Make sure that the door is closed and latched.
CAUTION: The case cart is heavy. We recommend
that laying it down be done by at least two people.
2. Lay the case cart down on one side so that the caster
being removed is on top.
3. With a 1/2 in. wrench, remove the four mounting
screws/washers on the caster base (Figure 27).
4. Lift the complete caster assembly off the case cart.
5. Using the same screws/washers, mount the new caster
to the bottom of the case cart.
6. Stand the case cart back up to the upright position.
Caster Mounting Screw/
Washer (4)
24

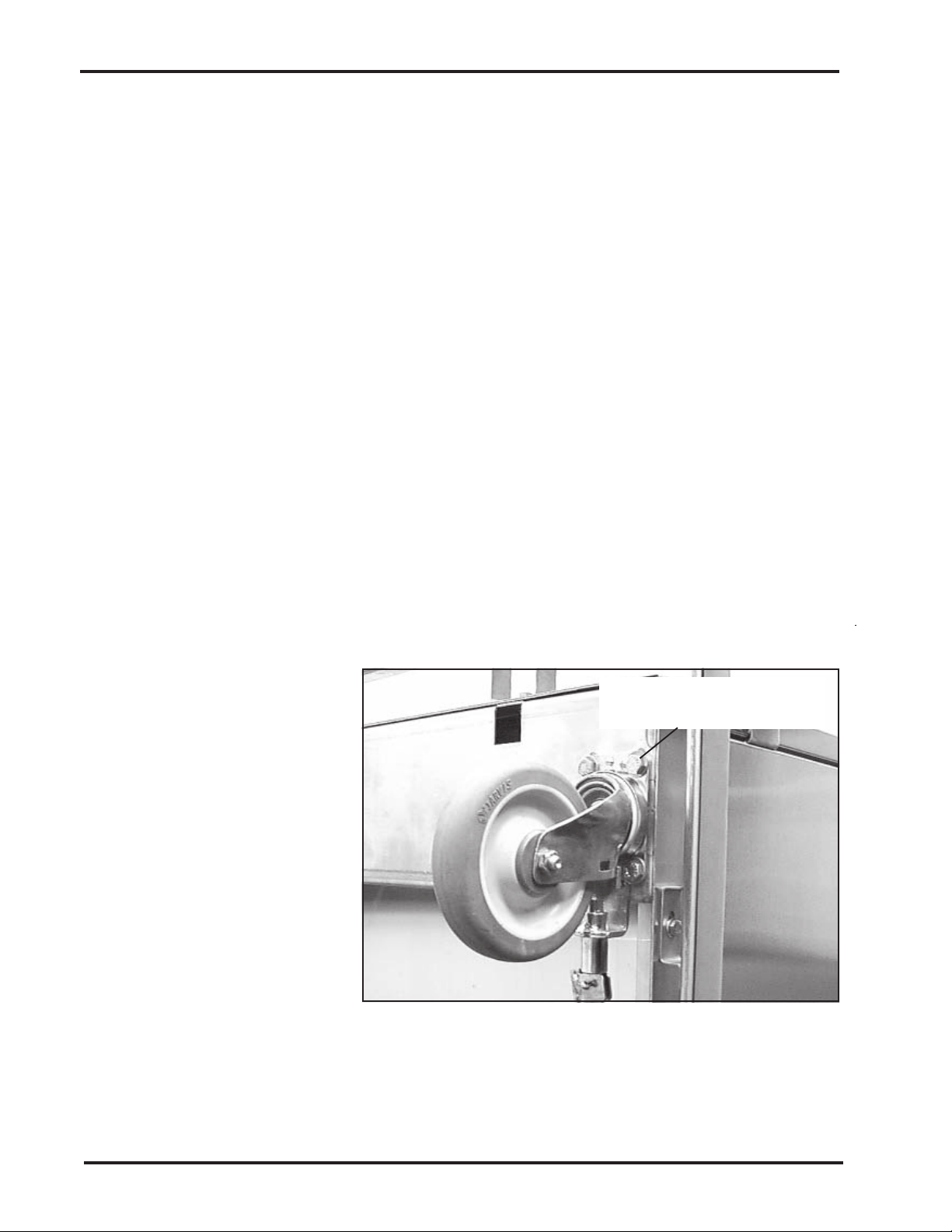

Figure 27. Caster Mounting Screws (4)
SSCI - Suburban Surgical Company, Inc.
Page 31
Owner’s Manual - Tote-Al Case Carts - Double-door Models (with center posts)
Latch Striker Plate
P/N 608088
Overview
All double-door case carts have two striker plates. They are all
identical and are all removed and installed in the same way.
Tools Required
Flat blade screwdriver
3/8 in. open-end or box-end wrench
Procedure
1. Unlatch and open the door.
2. With a flat blade screwdriver and a 3/8 in. open-end or
box-end wrench, remove the two striker plate mounting
screws and nuts (Figure 28), and remove the striker
plate.
3. Hold the new striker plate in place and secure with the
two mounting screws/nuts.
4. Close and latch the door.
Left Door
Latch Striker Plate
Mounting
Screws
Mounting Nuts
Inside
Mounting Nuts
Inside
Mounting Screws
Right Door
Latch Striker Plate
Figure 28. Striker Plates and Mounting Screws
Form No. 702732 Rev. A November, 2006 25
Page 32
Chapter 4 - Repairs and Replacements
Handle Catch
P/N 616380 -
(Only on Case Carts
with Handle Styles B and C)
Handle Catch
Mounting Nuts
Handle
Catch
Overview
Double-door case carts with handle styles B and C have these
handle catches. There is one for each door, and both are
removed and installed in the same way.
Tools Required
3/8 in. wrench
Phillips screwdriver
Procedure
Note: If you do not remove the case cart door,
it will require two people to perform this
procedure due to the difficulty of reaching the
mounting nuts and screws at the same time.
1. Optional: Remove the case cart door.
(Refer to Note above.) Refer to
Removing and Installing a Case Cart
Door - Removal, Steps 1 through 3 on
Page 22. Observe the Cautions shown
in the procedure.

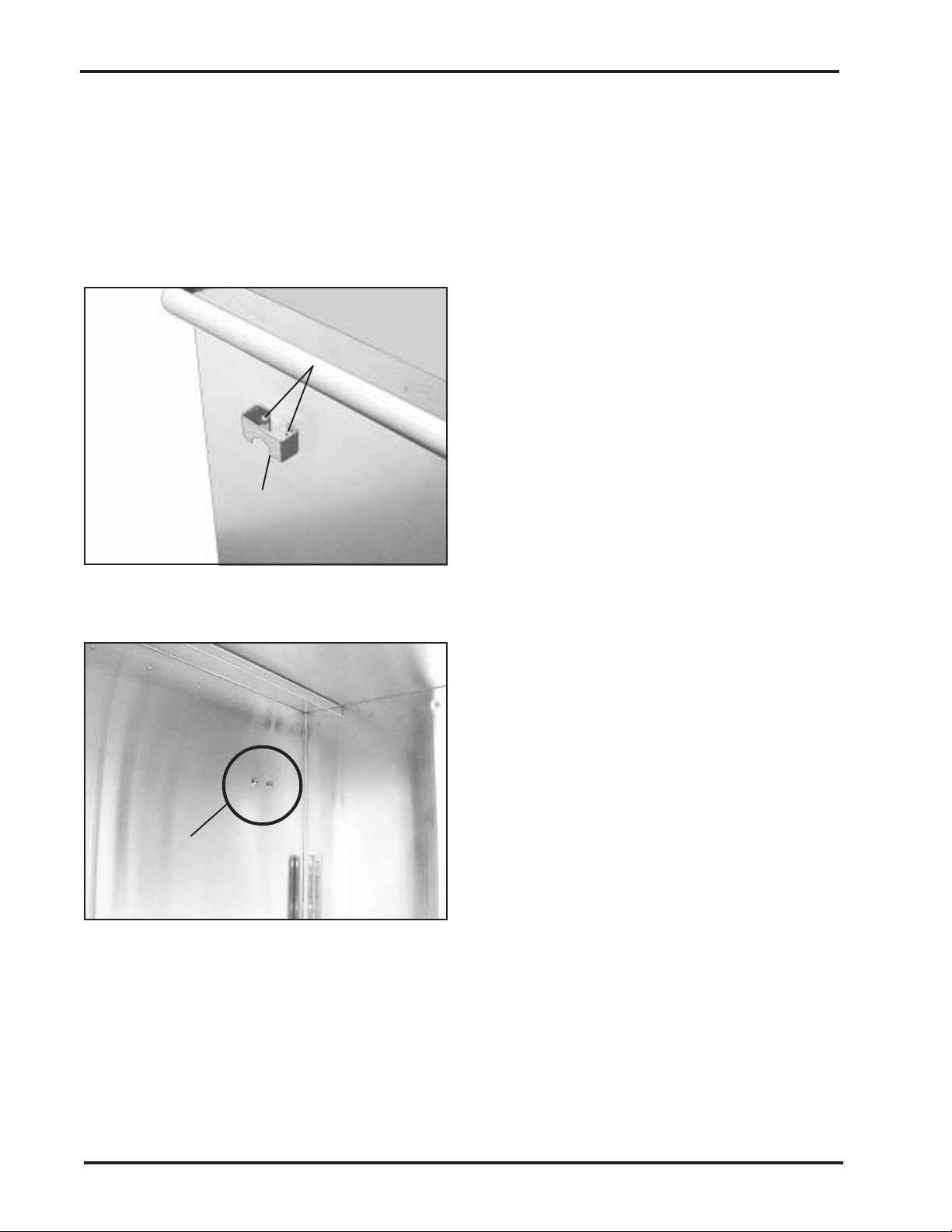

Figure 29. Handle Catch on Side of Case
Cart (left side shown)
Handle Catch
Mounting
Screws
Figure 30. Handle Catch Mounting
Screws Inside Case Cart (left side shown)
2. With a 3/8 in. wrench and a Phillips
screwdriver, remove the two mounting
screws/nuts on the handle catch
(Figures 29 and 30), and lift off the catch.
3. Mount the new latch handle to the case
cart with the screws/nuts removed above.
4. If you removed it, replace the door.
Refer to Removing and Installing a
Case Cart Door - Installation, Steps 1
through 3 on Page 22.
5. Try latching and unlatching the door
several times to make sure it works.
26
SSCI - Suburban Surgical Company, Inc.
Page 33
Owner’s Manual - Tote-Al Case Carts - Double-door Models (with center posts)
Knob Handle
P/N 202499
Latch Bolt
P/N 751549
Latch Bolt Spring
P/N 852406
Latch Bolt -
Knob Handle
Bevelled side
faces inside of
cabinet
Overview
The knob handle, latch bolt, and latch bolt spring are closely
related parts. The knob handle can be replaced by itself.
Replacing the latch bolt requires removal of the knob handle.
Replacing the latch bolt spring requires removal of the latch bolt.
Tool Required
Pliers
Procedure
CAUTION: When using the pliers to loosen or tighten
the knob handle, try not to scratch or mar the handle.
1. With a pliers, unscrew the knob handle
from the door (Figure 31). If not
replacing the bolt or spring, proceed to
Step 7.
2. Note the position of the angled end of
the latch bolt. Grasp the bolt and pull it
out of the door. If not replacing the
spring, proceed to Step 6.

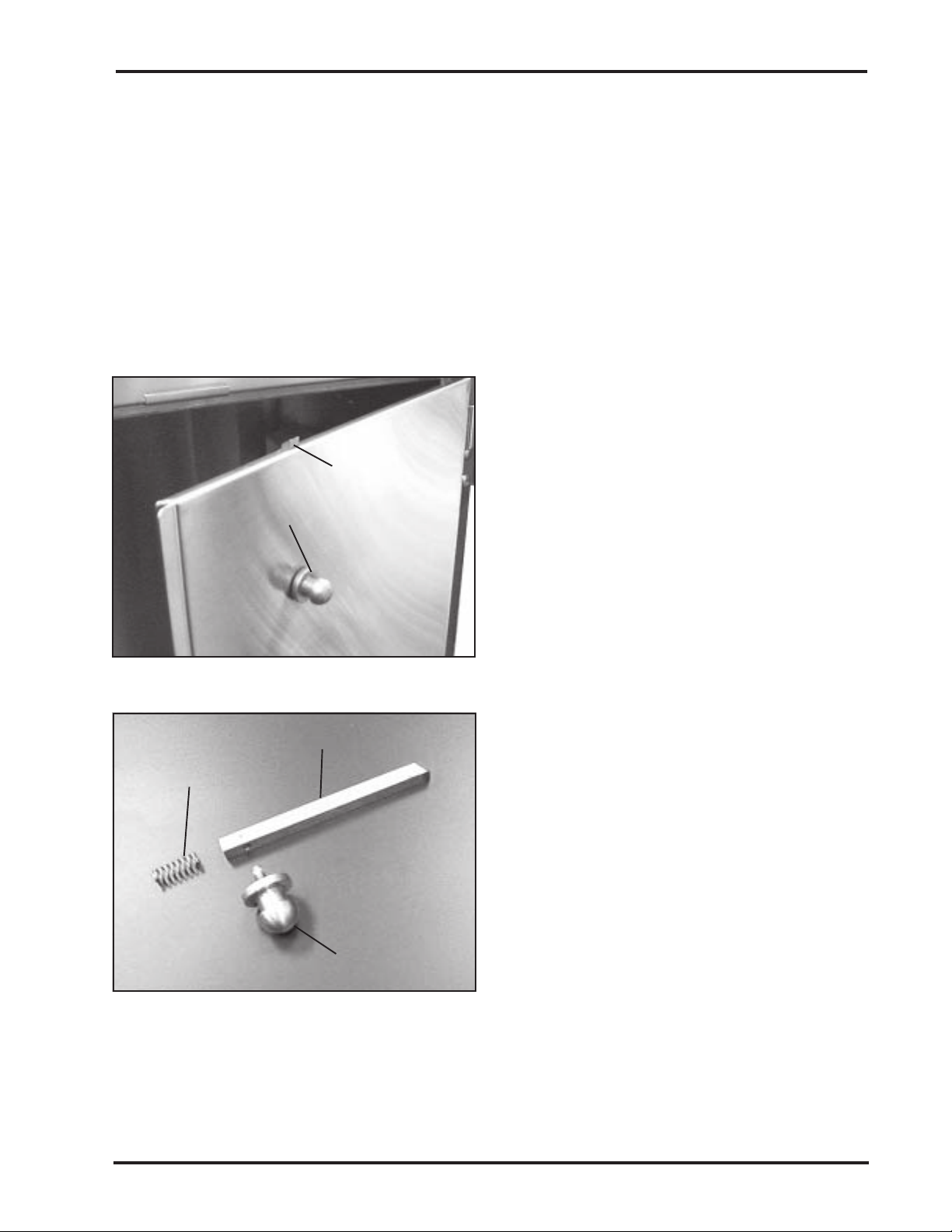

Figure 31. Knob Handle and Latch Bolt
Latch Bolt
Latch Bolt
Spring
Knob Handle
Figure 32. Latch Parts
3. If replacing the spring, remove the door
from the case cart. Refer to Removing
and Installing a Case Cart Door Removal, Steps 1 through 3 on Page 22.
Observe the Cautions shown in the
procedure.
4. Hold the door so that the hole from
which the latch bolt was removed is
down, and allow the spring to fall out
(Figure 32).
5. Hold the door so that the hole from
which the latch bolt was removed is up,
and drop the new spring into the hole.
6. Insert the new or existing latch bolt (as
appropriate) into the hole. Make sure
the bevelled side faces the inside of the
cabinet.
Form No. 702732 Rev. A November, 2006 27
Page 34
Chapter 4 - Repairs and Replacements
7. Screw the new or existing knob handle (as appropriate)
into the latch bolt and tighten with a pliers.
8. If the door was removed from the case cart reinstall it
now. Refer to Removing and Installing a Case Cart
Door - Installation, Steps 1 through 3 on Page 22.
Bumper (Complete
with Vinyl Insert)
Refer to Table 6 for
Part Numbers
Bumper
Machine Screw
Overview
This is the complete bumper assembly including the vinyl
insert. All double-door bumper assemblies are the same except
that the dimensions vary to suit the dimensions of the various
size case carts.
Tools Required
Two 7/16 in. wrenches
Procedure
CAUTION: The case cart is heavy. We recommend
that tilting it over be done by at least two people.
1. Tilt the case cart over on one side, and block up the
lower end so that the bumper is off the floor.
2. With two 7/16 in. wrenches remove the
machine screws and locknuts from all
bumper bracket positions (Figure 33).
3. Remove the old bumper from the case
cart.
Bumper
Bracket
Locknut
Figure 33. Bumper, Bracket, and
Mounting Hardware
28
4. Place the new bumper in place on the
cart.
5. Using the machine screws and locknuts
removed above, mount the new bumper
to the cart.
6. Remove the block from under the case
cart, and return the cart to the upright
position.
SSCI - Suburban Surgical Company, Inc.
Page 35
Owner’s Manual - Tote-Al Case Carts - Double-door Models (with center posts)
Adjustable Shelf
Wire - P/N 220300-00
Solid - P/N 220310-00
Perforated - P/N 220320-00
Roll-out Shelf
Wire - P/N 220330-00
Solid - P/N 220340-00
Perforated - P/N 220350-00
Roll-out Shelf Track
Left - P/N 210007
Right - P/N 210008
Overview
All adjustable shelves, wire, solid, and perforated, are removed
and installed in the same way.
Procedure
Refer to Adjustable Shelves on Page 16, and use the procedure
given there for moving a shelf.
Overview
All roll-out shelves, wire, solid, and perforated, are removed
and installed in the same way.
Procedure
Refer to Using Roll-out Shelves - Removing and Replacing
Roll-out Shelves on Page 14, and use the procedure given there.
Overview
Left and right roll-out shelf tracks are removed and installed
the same way.
Vertical
Brackets
Hooks
Gap
Roll-out Shelf
Track

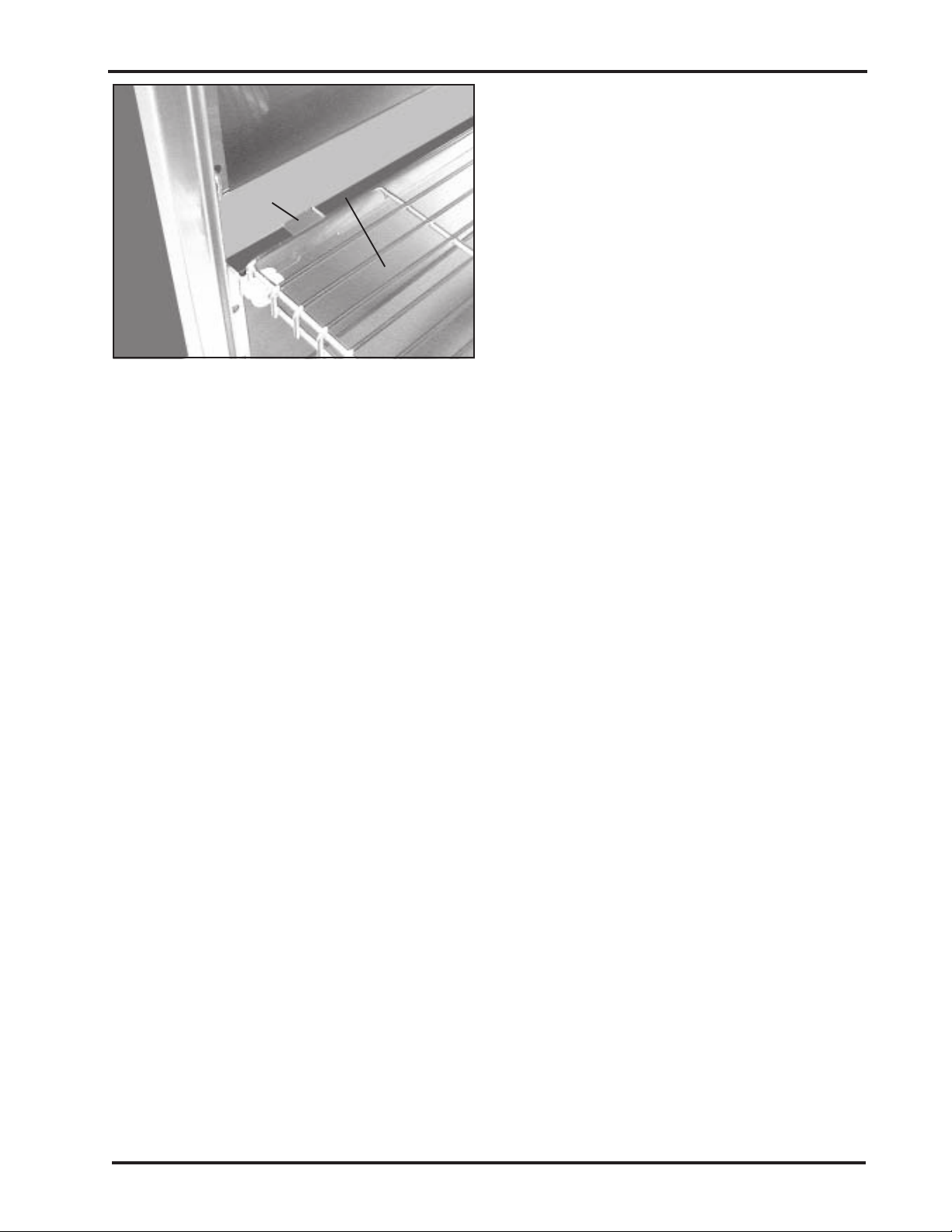

Figure 34. Roll-out Shelf Track and
Vertical Brackets
Procedure
1. Remove the shelf from the cabinet (refer
to Removing and Replacing Roll-out
Shelves - Removal, Steps 1 through 5,
starting on Page 14).
2. Lift up on the roll-out shelf track and
unhook it from the front and rear
vertical brackets (Figure 34).
3. Hook the new track to the vertical
brackets.
4. Replace the shelf onto the shelf tracks
(refer to Removing and Replacing
Roll-out Shelves - Replacement, Steps 1
through 8 on Page 15). Note: Make
sure the shelf is level side-to-side and
front-to-rear.
Form No. 702732 Rev. A November, 2006 29
Page 36
Chapter 4 - Repairs and Replacements
Rollers for Roll-out
Shelves and Tracks
Overview
Each roll-out shelf track has one large, grooved roller. Each
roll-out shelf has two large, grooved rollers, and four small,
Large, Grooved Rollers -
P/N 753332
Small, Smooth Rollers -
smooth rollers. All large, grooved rollers are the same, and all
small, smooth rollers are the same. All rollers are removed and
replaced in the same way.
P/N 753333
Tools Required
Two 7/16 in. wrenches
Machine
Screw
Roller Locknut
Figure 35. Roller Machine Screw and
Locknut
Machine
Screw
Roller
Procedure
1. Remove the shelf from the cabinet (refer
to Removing and Replacing Roll-out
Shelves - Removal, Steps 1 through 5,
starting on Page 14).
2. If replacing a roller on the roll-out shelf
track, lift up on the track and unhook it
from the front and rear vertical brackets
(Figure 34).
3. Locate the roller you wish to replace.
With two 7/16 in. wrenches, remove the
machine screw and locknut that hold the
roller in place, and remove the roller
from the shelf or track, as appropriate
(Figure 35).
4. Remove the sleeve and discard the old
roller.
Sleeve
Figure 36. Roller and Sleeve
30
5. Install the sleeve into the new roller
(Figure 36).
6. Mount the new roller/sleeve and secure
it with the machine screw/locknut
Locknut
removed earlier.
7. If it was removed, hook the track to the
vertical brackets.
8. Replace the shelf onto the shelf tracks (refer to Removing
and Replacing Roll-out Shelves - Replacement, Steps 1
through 8 on Page 15).
SSCI - Suburban Surgical Company, Inc.
Page 37
Owner’s Manual - Tote-Al Case Carts - Double-door Models (with center posts)
Care of Wheel/Caster
Assemblies
Overview
Inspection
The wheel/caster assemblies on the case carts were selected by
SSCI for high durability and long life. Two of the casters on
each transport cage are equipped with swivel locks. Users are
responsible for the proper operation, care, and maintenance of
their equipment. Equipment can become damaged and unsafe if
abused or subjected to improper demands. If your equipment is
regularly maintained and never abused, you will get the
maximum safety and service from your casters.
Never overload the case cart.
Do not drop heavy loads on the case cart.
Do not use the transport cart at high speeds.
The above conditions can create severe impact and shock loads
on your case cart and may result in caster, wheel, or equipment
failure.
Equipment Frames and Fasteners
Periodically examine the case cart and check the following:
Look for broken welds on the case cart.
Tighten any loose nuts and bolts.
Look for distortion of the cart caused by overload and
impacts. Distorted carts can lead to wheel failure by
placing disproportionate loads on one or two casters.
Make sure the casters are not bent and the mounting
bolts are securely fastened.
Casters
Check the swivel assembly on each caster for excessive play
due to wear. If the swivel is loose, replace the caster. If the
swivel does not turn freely, check for corrosion or dirt binding
the raceways. Make sure the swivel nut and wheel axle nuts are
tight. If a caster is not operating properly, disassemble, clean,
and lubricate it. If this does not fix the problem, replace the
assembly (refer to Casters on Page 24).
Wheels
Check each wheel for excessive or uneven tread wear, or badly
worn or “chunked out” rubber tires. Such conditions can cause
erratic steering, bumping, load shifting, and damage to floors.
If a wheel binds and no longer rolls freely, or if flat spots
appear on the tire, carefully inspect the wheel/caster assembly
for damage or accumulated foreign matter (dirt, string, animal
hair, etc.). If necessary, replace the assembly (refer to Casters
on Page 24).
Form No. 702732 Rev. A November, 2006 31
Page 38
Chapter 4 - Repairs and Replacements
Swivel Locks
Check swivel locks for proper operation. Apply lock one at a
time and attempt to move the equipment to make sure that each
lock is not slipping or loose.
If locks slip due to worn or damaged wheels, replace the
wheels immediately and retest the brakes. If the lock
mechanism itself is not operating properly, repair or replace it.
Before returning the equipment to use, always retest the locks.
Lubrication
Wheel Bearing
Grease Fitting
Figure 37. Wheel/Caster Assembly
Grease Fittings
Caster and wheel lubrication is essential. The lubrication
schedule depends on your specific application. Normal
conditions warrant lubrication every six months, however, for
wet or corrosive applications, monthly lubrication may be
necessary.
Swivel Bearing
Grease Fitting
Lubrication may also be required after each
piece of equipment is washed. Special hightemperature, water-resistant lubricants may be
used for these applications. If necessary, SSCI
can provide stainless steel casters that require
less maintenance.
The wheel/caster assemblies have two grease
fittings (Figure 37), one for the wheel and one
for the swivel. Use enough grease to fill the
bearing, but not so much that it oozes out of the
grease seal. After applying the grease, turn the
wheel or swivel several times in both directions
to distribute the grease evenly.
32
Recommended
Lubricants
Power Towed
Operation
SSCI recommends that you use either of the following greases
when lubricating your case cart casters:
Citgo EP-1
Exxon Beacon EP 1
Based on available information, these products are not
expected to produce adverse effects on health when used for
the intended application and the recommendations provided in
the Material Safety Data Sheets (MSDS) are followed.
MSDS’s are available via the Internet.
Power drawn equipment such as in a tow line or mechanically
moved by conveyor will require casters, wheels, and bearings
specifically designed for this use. Please consult the factory for
caster recommendations of each specific towing or power
drawn equipment application.
SSCI - Suburban Surgical Company, Inc.
Page 39
Inside back cover
This page left blank intentionally
Page 40
For more information on SSCI’s fine line of products
and accessories, talk to your SSCI sales representative.
SSCI
Suburban Surgical Company, Inc.
275 Twelfth Street Wheeling, IL 60090
