SSANGYONG D20DTF Information

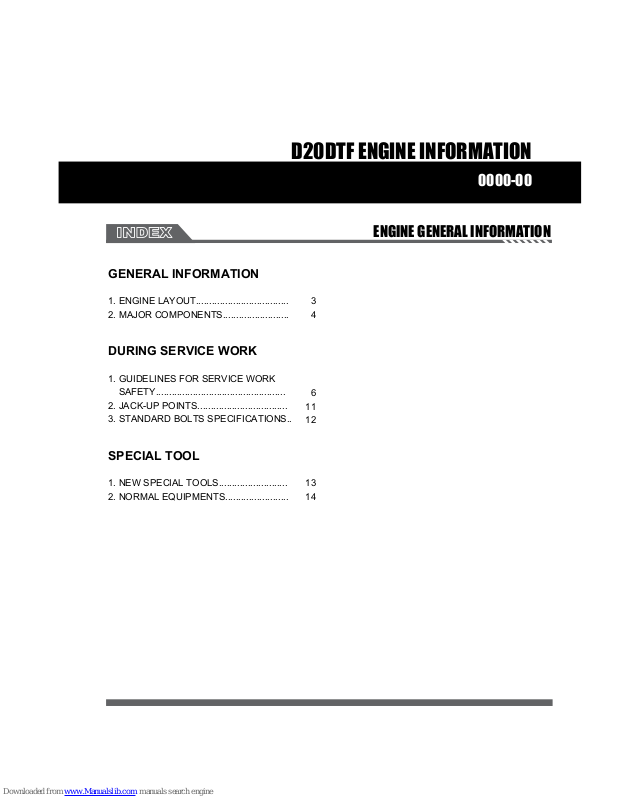

D20DTF ENGINE INFORMATION

0000-00

ENGINE GENERAL INFORMATION

1. ENGINE LAYOUT...................................

2. MAJOR COMPONENTS.........................

DURING SERVICE WORK

1. GUIDELINES FOR SERVICE WORK

SAFETY.................................................

2. JACK-UP POINTS..................................

3. STANDARD BOLTS SPECIFICATIONS..

SPECIAL TOOL

1. NEW SPECIAL TOOLS..........................

2. NORMAL EQUIPMENTS........................

3
4

6
11
12

13
14

GENERAL INFORMATION

01-3

D20DTF ENGINE INFORMATION

korando 2010.10

0000-00

1. ENGINE LAYOUT

Front view Rear view

Right view Left view

01-4

korando 2010.10

0000-00

D20DTF ENGINE INFORMATION

2. MAJOR COMPONENTS

Front view

▶

Vacuum pump

Oil filter assembly

Camshaft position sensor

Power steering pump pulley

Water pump pulley

Alternator pulley

Idler bearing 1

A/C compressor pulley

Auto tensioner

Idler bearing 2

Isolation damper

Rear view

▶

E-EGR valve

Fuel temperature sensor

Fuel HP pump assembly

E-VGT actuator

Coolant temperature sensor

IMV

Magnetic triggering

Crankshaft position sensor

01-5

D20DTF ENGINE INFORMATION

korando 2010.10

0000-00

Right view

▶

Wide-band oxygen sensor

Pressure port before CDPF

Front exhaust gas

temperature sensor

Rear exhaust gas

temperature sensor

CDPF assembly

E-VGT

Pressure port after CDPF

Oil drain plug

Left view

▶

Thermostat assembly

Knock sensor 1 connector

Variable swirl valve assembly

Oil cooler assembly

E-EGR valve

Knock sensor 2 connector

E-EGR solenoid valve

EGR cooler

Electronic throttle body

T-MAP sensor

Oil level switch
