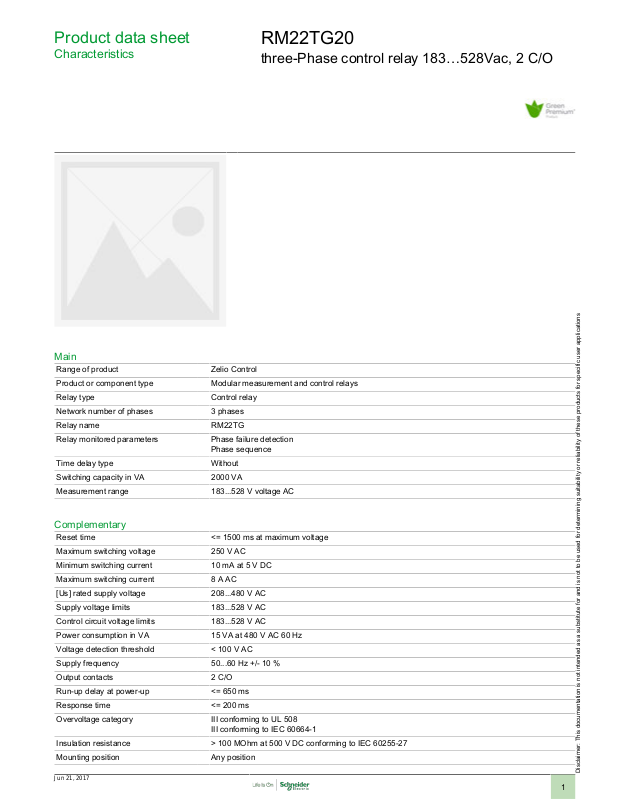

Product data sheet
Characteristics
RM22TG20
three-Phase control relay 183…528Vac, 2 C/O
Main
Range of product Zelio Control
Product or component type Modular measurement and control relays
Relay type Control relay
Network number of phases 3 phases
Relay name RM22TG
Relay monitored parameters Phase failure detection
Phase sequence
Time delay type Without
Switching capacity in VA 2000 VA
Measurement range 183...528 V voltage AC
Complementary
Reset time <= 1500 ms at maximum voltage
Maximum switching voltage 250 V AC
Minimum switching current 10 mA at 5 V DC
Maximum switching current 8 A AC
[Us] rated supply voltage 208...480 V AC
Supply voltage limits 183...528 V AC
Control circuit voltage limits 183...528 V AC
Power consumption in VA 15 VA at 480 V AC 60 Hz
Voltage detection threshold < 100 V AC
Supply frequency 50...60 Hz +/- 10 %
Output contacts 2 C/O
Run-up delay at power-up <= 650 ms
Response time <= 200 ms
Overvoltage category III conforming to UL 508
III conforming to IEC 60664-1
Insulation resistance > 100 MOhm at 500 V DC conforming to IEC 60255-27
Mounting position Any position
Jun 21, 2017
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Connections - terminals Screw terminals 2 x 0.5...2 x 2.5 mm² - AWG 20...AWG 14, solid cable without cable end
Tightening torque 0.6...1 N.m conforming to IEC 60947-1
Housing material Self-extinguishing plastic
Status LED LED yellow for relay ON
Mounting support 35 mm DIN rail conforming to EN/IEC 60715
Electrical durability 100000 cycles
Mechanical durability 10000000 cycles
Utilisation category AC-1 conforming to IEC 60947-4-1
Safety reliability data MTTFd = 924.6 years
Contacts material Cadmium free
Width 22.5 mm
Product weight 0.09 kg
Screw terminals 2 x 0.2...2 x 1.5 mm² - AWG 24...AWG 16, flexible cable with cable end
Screw terminals 1 x 0.5...1 x 3.3 mm² - AWG 20...AWG 12, solid cable without cable end
Screw terminals 1 x 0.2...1 x 2.5 mm² - AWG 24...AWG 14, flexible cable with cable end
LED green for power ON
DC-1 conforming to IEC 60947-4-1
AC-15 conforming to IEC 60947-5-1
DC-13 conforming to IEC 60947-5-1
B10d = 850000
Environment
Immunity to microbreaks <= 10 ms
Electromagnetic compatibility Conducted and radiated emissions class B conforming to CISPR 22
Standards EN/IEC 60255-1
Product certifications RCM
Ambient air temperature for storage -40...70 °C
Ambient air temperature for operation -20...50 °C at 60 Hz
Relative humidity 93...97 % at 25...55 °C conforming to IEC 60068-2-30
Vibration resistance 0.075 mm (f = 10...58.1 Hz) (not in operation) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms (not in operation) conforming to IEC 60068-2-27
IP degree of protection IP20 on terminals conforming to IEC 60529
Pollution degree 3 conforming to IEC 60664-1
Immunity for residential, commercial and light-industrial environments conforming to EN/IEC
61000-6-1
Electrostatic discharge 6 kV level 3 contact discharge conforming to IEC 61000-4-2
Electrostatic discharge 8 kV level 3 air discharge conforming to IEC 61000-4-2
Radiated radio-frequency electromagnetic field immunity test 10 V/m level 3 conforming to IEC
61000-4-3
Electrical fast transient/burst immunity test 4 kV level 4 direct conforming to IEC 61000-4-4
Electrical fast transient/burst immunity test 2 kV level 4 capacitive coupling conforming to IEC
61000-4-4
Surge immunity test 4 kV level 4 common mode conforming to IEC 61000-4-5
Surge immunity test 2 kV level 4 differential mode conforming to IEC 61000-4-5
Conducted and radiated emissions class B group 1 conforming to CISPR 11
Emission standard for industrial environments conforming to EN/IEC 61000-6-4
Emission standard for residential, commercial and light-industrial environments conforming to EN/IEC
61000-6-3
Immunity for industrial environments conforming to EN/IEC 61000-6-2
EAC
China RoHS
CSA
CE
GL
CCC
UL
-20...60 °C at 50 Hz AC/DC
1 gn (f = 10...58.1 Hz) (not in operation) conforming to IEC 60068-2-6
0.035 mm (f = 58.1...150 Hz) (in operation) conforming to IEC 60068-2-6
0.5 gn (f = 58.1...150 Hz) (in operation) conforming to IEC 60068-2-6
5 gn for 11 ms (in operation) conforming to IEC 60068-2-27
IP40 on housing conforming to IEC 60529
IP50 on front panel conforming to IEC 60529
3 conforming to UL 508
2
Dielectric test voltage 2.5 kV for 1 min AC 50 Hz conforming to IEC 60255-27
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW) Compliant - since 1524 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Product environmental profile Available
Product environmental
Product end of life instructions Available
End of life manual
