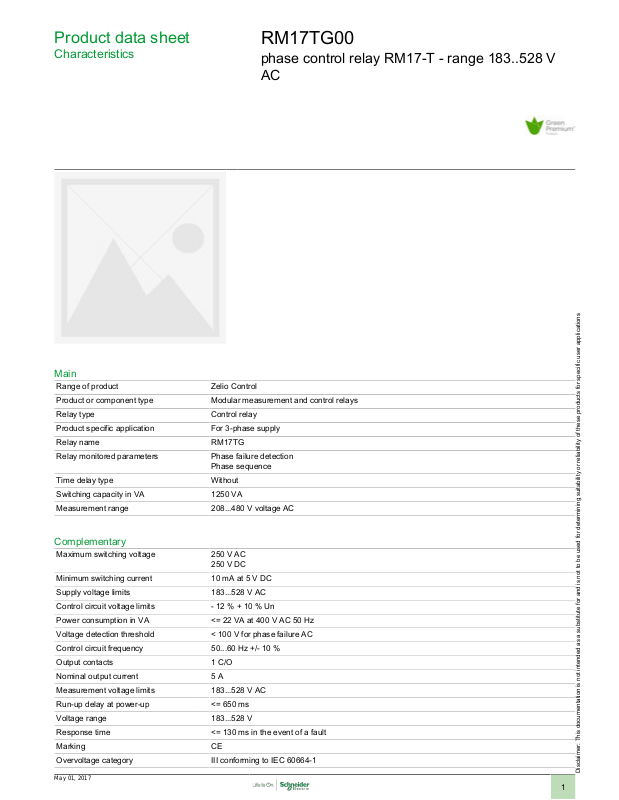

Product data sheet
Characteristics
RM17TG00
phase control relay RM17-T - range 183..528 V
AC
Main
Range of product Zelio Control
Product or component type Modular measurement and control relays
Relay type Control relay
Product specific application For 3-phase supply
Relay name RM17TG
Relay monitored parameters Phase failure detection
Phase sequence
Time delay type Without
Switching capacity in VA 1250 VA
Measurement range 208...480 V voltage AC
Complementary
Maximum switching voltage 250 V AC
250 V DC
Minimum switching current 10 mA at 5 V DC
Supply voltage limits 183...528 V AC
Control circuit voltage limits - 12 % + 10 % Un
Power consumption in VA <= 22 VA at 400 V AC 50 Hz
Voltage detection threshold < 100 V for phase failure AC
Control circuit frequency 50...60 Hz +/- 10 %
Output contacts 1 C/O
Nominal output current 5 A
Measurement voltage limits 183...528 V AC
Run-up delay at power-up <= 650 ms
Voltage range 183...528 V
Response time <= 130 ms in the event of a fault
Marking CE
Overvoltage category III conforming to IEC 60664-1
May 01, 2017
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Insulation resistance > 500 MOhm at 500 V DC conforming to IEC 60255-5
[Ui] rated insulation voltage 400 V conforming to IEC 60664-1
Supply frequency 50/60 Hz +/- 10 %
Operating position Any position without
Connections - terminals Screw terminals 1 x 0.5...1 x 4 mm² - AWG 20...AWG 11, solid cable without cable end
Tightening torque 0.6...1 N.m conforming to IEC 60947-1
Housing material Self-extinguishing plastic
Local signalling LED yellow for relay ON
Mounting support 35 mm symmetrical DIN rail conforming to EN/IEC 60715
Electrical durability 100000 cycles
Mechanical durability <= 30000000 cycles
Operating rate <= 360 operations/hour under full load
Utilisation category AC-12 conforming to IEC 60947-5-1
Safety reliability data MTTFd = 924.6 years
Width 17.5 mm
Product weight 0.13 kg
> 500 MOhm at 500 V DC conforming to IEC 60664-1
Screw terminals 2 x 0.5...2 x 2.5 mm² - AWG 20...AWG 14, solid cable without cable end
Screw terminals 1 x 0.2...1 x 2.5 mm² - AWG 24...AWG 12, flexible cable with cable end
Screw terminals 2 x 0.2...2 x 1.5 mm² - AWG 24...AWG 16, flexible cable with cable end
AC-13 conforming to IEC 60947-5-1
AC-14 conforming to IEC 60947-5-1
AC-15 conforming to IEC 60947-5-1
DC-12 conforming to IEC 60947-5-1
DC-13 conforming to IEC 60947-5-1
B10d = 850000
Environment
Electromagnetic compatibility Emission standard for industrial environments conforming to EN/IEC 61000-6-4
Standards EN/IEC 60255-1
Product certifications CSA
Directives 89/336/EEC - electromagnetic compatibility
Ambient air temperature for storage -40...70 °C
Ambient air temperature for operation -20...50 °C
Relative humidity 95 % at 55 °C conforming to IEC 60068-2-30
Vibration resistance 0.35 mm (f = 5...57.6 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to IEC 60255-21-1
IP degree of protection IP20 (terminals) conforming to IEC 60529
Pollution degree 3 conforming to IEC 60664-1
Dielectric test voltage 2 kV 1 min AC 50 Hz
Non-dissipating shock wave 4 kV
Emission standard for residential, commercial and light-industrial environments conforming to EN/IEC
61000-6-3
Immunity for industrial environments conforming to EN/IEC 61000-6-2
C-Tick
GL
GOST
UL
73/23/EEC - low voltage directive
1 gn (f = 57.6...150 Hz) conforming to IEC 60255-21-1
IP30 (casing) conforming to IEC 60529
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW) Compliant - since 0701 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
2
Product environmental profile Available
Product environmental
Product end of life instructions Available
End of life manual
Contractual warranty
Warranty period 18 months
