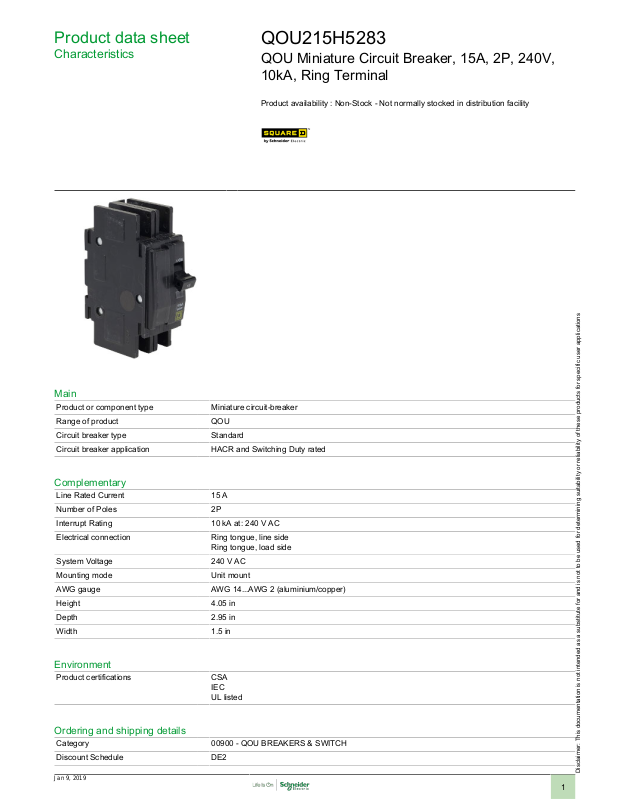

Product data sheet
Characteristics
QOU215H5283
QOU Miniature Circuit Breaker, 15A, 2P, 240V,
10kA, Ring Terminal
Product availability : Non-Stock - Not normally stocked in distribution facility
Main
Product or component type Miniature circuit-breaker
Range of product QOU
Circuit breaker type Standard
Circuit breaker application HACR and Switching Duty rated
Complementary
Line Rated Current 15 A
Number of Poles 2P
Interrupt Rating 10 kA at: 240 V AC
Electrical connection Ring tongue, line side
System Voltage 240 V AC
Mounting mode Unit mount
AWG gauge AWG 14...AWG 2 (aluminium/copper)
Height 4.05 in
Depth 2.95 in
Width 1.5 in
Ring tongue, load side
Environment
Product certifications CSA
IEC
UL listed
Ordering and shipping details
Category 00900 - QOU BREAKERS & SWITCH
Discount Schedule DE2
Jan 9, 2019
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Nbr. of units in pkg. 1
Package weight(Lbs) 0.35000000000000003
Returnability N
Country of origin MX
Offer Sustainability
RoHS (date code: YYWW) Compliant ๎- since๎ 1424 ๎-๎ Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
Contractual warranty
Warranty period 18 months
