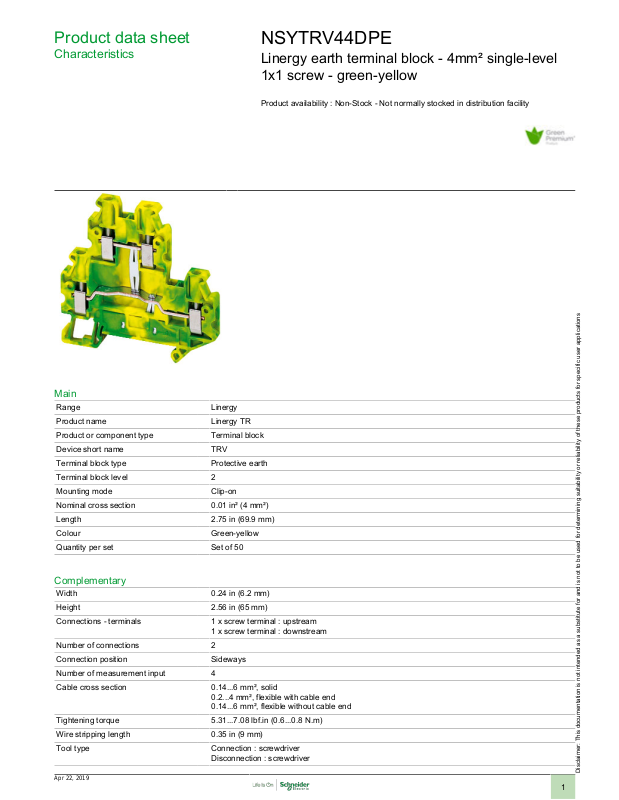

Product data sheet
Characteristics
NSYTRV44DPE
Linergy earth terminal block - 4mm² single-level
1x1 screw - green-yellow
Product availability : Non-Stock - Not normally stocked in distribution facility
Main
Range Linergy
Product name Linergy TR
Product or component type Terminal block
Device short name TRV
Terminal block type Protective earth
Terminal block level 2
Mounting mode Clip-on
Nominal cross section 0.01 in² (4 mm²)
Length 2.75 in (69.9 mm)
Colour Green-yellow
Quantity per set Set of 50
Complementary
Width 0.24 in (6.2 mm)
Height 2.56 in (65 mm)
Connections - terminals 1 x screw terminal : upstream
1 x screw terminal : downstream
Number of connections 2
Connection position Sideways
Number of measurement input 4
Cable cross section 0.14...6 mm², solid
0.2...4 mm², flexible with cable end
0.14...6 mm², flexible without cable end
Tightening torque 5.31...7.08 lbf.in (0.6...0.8 N.m)
Wire stripping length 0.35 in (9 mm)
Tool type Connection : screwdriver
Disconnection : screwdriver
Apr 22, 2019
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Material Polyamide 6/6 (insulating case)
Dielectric loss 0.01 at 1 MHz conforming to IEC 60250
Dielectric constant 3.7 at 1 MHz
Resistivity 10000 MΩ.m conforming to IEC 60093
Surface resistance 1000 GΩ conforming to IEC 60093
Creep resistance 500 CTI (> 400 kB) conforming to IEC 60093
Flame retardance V0, thickness0.03 in (0.8 mm) conforming to UL 94
Product weight 0.82 oz (23.3 g)
Range compatibility Prisma - G
Product compatibility Spacial enclosures
0.01 at 1 MHz conforming to VDE 0303-T4
10000 MΩ.m conforming to VDE 0303-T30
1000 GΩ conforming to VDE 0303-T30
500 CTI (> 400 kB) conforming to VDE 0303-T30
Prisma - P
Pragma
Prisma - PH
Prisma - Pack
Spacial
Kaedra
TeSys
Environment
Product certifications ATEX
Dielectric strength 1000 V conforming to IEC 60243-1
Ambient air temperature for operation -40...266 °F (-40...130 °C) conforming to IEC 60216-1
CSA
cURus
DNV
GL
LR
IEC-Ex
EAC
-40...266 °F (-40...130 °C) conforming to VDE 0304-T21
Ordering and shipping details
Category 21715 - IEC TERMINAL BLOCKS-NSY,AM1,DF6,GK1
Discount Schedule CP5
GTIN 00785901951278
Nbr. of units in pkg. 50
Package weight(Lbs) 5.0000000000000003E-2
Returnability N
Country of origin DE
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW) Compliant - since 1052 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference contains SVHC above the threshold - Go to CaP for more details
Go to CaP for more details
Product environmental profile Available
Product end of life instructions Need no specific recycling operations
California proposition 65 WARNING: This product can expose you to chemicals including:
- - - - - - - Substance 1 Lead and lead compounds, which is known to the State of California to cause cancer and birth
- - - - - - - More information For more information go to www.p65warnings.ca.gov
defects or other reproductive harm.
2
Contractual warranty
Warranty period 18 months
