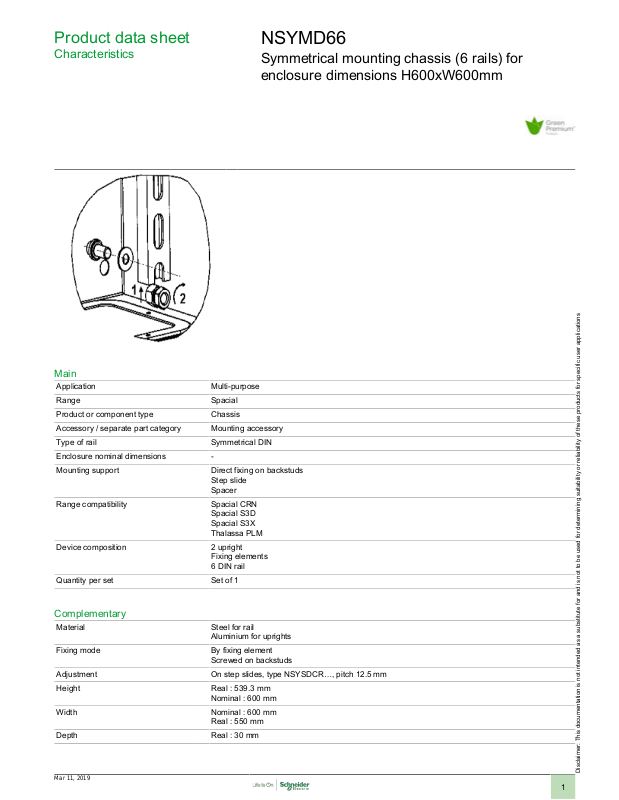

Product data sheet
Characteristics
NSYMD66
Symmetrical mounting chassis (6 rails) for
enclosure dimensions H600xW600mm
Main
Application Multi-purpose
Range Spacial
Product or component type Chassis
Accessory / separate part category Mounting accessory
Type of rail Symmetrical DIN
Enclosure nominal dimensions -
Mounting support Direct fixing on backstuds
Range compatibility Spacial CRN
Device composition 2 upright
Quantity per set Set of 1
Step slide
Spacer
Spacial S3D
Spacial S3X
Thalassa PLM
Fixing elements
6 DIN rail
Complementary
Material Steel for rail
Fixing mode By fixing element
Adjustment On step slides, type NSYSDCR…, pitch 12.5 mm
Height Real : 539.3 mm
Width Nominal : 600 mm
Depth Real : 30 mm
Aluminium for uprights
Screwed on backstuds
Nominal : 600 mm
Real : 550 mm
Mar 11, 2019
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW) Compliant - since 0940 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Product environmental profile Available
Product Environmental Profile
Product end of life instructions Need no specific recycling operations
Contractual warranty
Warranty period 18 months
