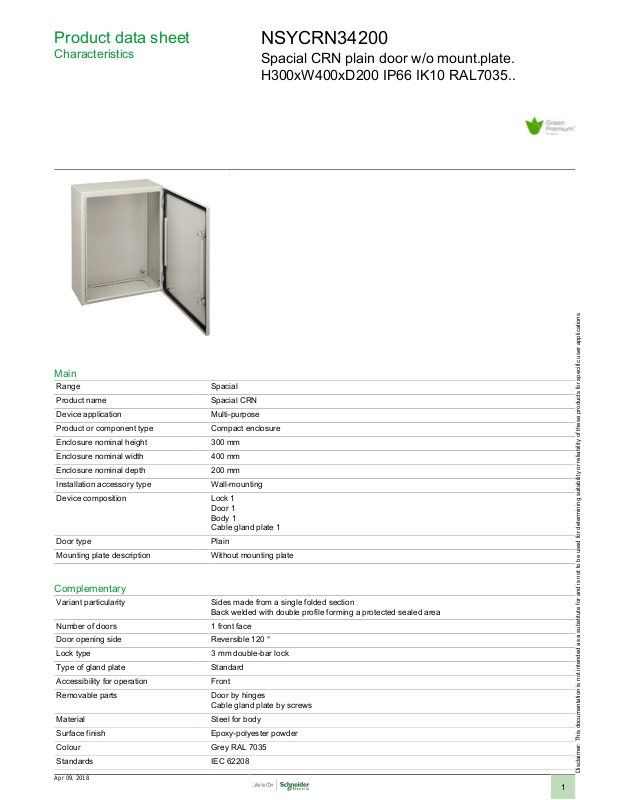

Product data sheet
Characteristics
NSYCRN34200
Spacial CRN plain door w/o mount.plate.
H300xW400xD200 IP66 IK10 RAL7035..
Main
Range Spacial
Product name Spacial CRN
Device application Multi-purpose
Product or component type Compact enclosure
Enclosure nominal height 300 mm
Enclosure nominal width 400 mm
Enclosure nominal depth 200 mm
Installation accessory type Wall-mounting
Device composition Lock 1
Door 1
Body 1
Cable gland plate 1
Door type Plain
Mounting plate description Without mounting plate
Complementary
Variant particularity Sides made from a single folded section
Back welded with double profile forming a protected sealed area
Number of doors 1 front face
Door opening side Reversible 120 °
Lock type 3 mm double-bar lock
Type of gland plate Standard
Accessibility for operation Front
Removable parts Door by hinges
Cable gland plate by screws
Material Steel for body
Surface finish Epoxy-polyester powder
Colour Grey RAL 7035
Standards IEC 62208
Apr 09, 2018
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Product certifications CUL
UL
Environment
IP degree of protection IP66 conforming to IEC 60529
IK degree of protection IK10 conforming to IEC 62262
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW) Compliant - since 0940 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Product environmental profile Available
Product environmental
Product end of life instructions Need no specific recycling operations
Contractual warranty
Warranty period 18 months
