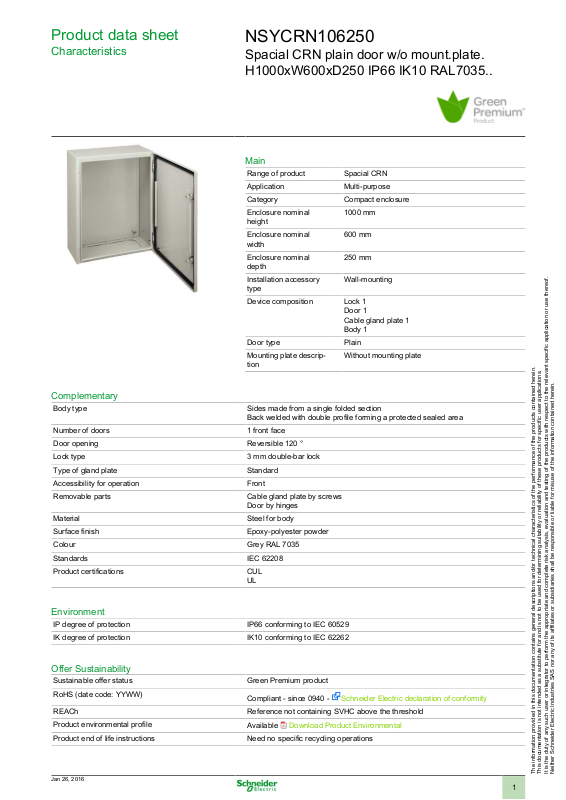

Product data sheet
Characteristics
NSYCRN106250
Spacial CRN plain door w/o mount.plate.
H1000xW600xD250 IP66 IK10 RAL7035..
Main
Range of product Spacial CRN
Application Multi-purpose
Category Compact enclosure
Enclosure nominal
height
Enclosure nominal
width
Enclosure nominal
depth
Installation accessory
type
Device composition Lock 1
Door type Plain
Mounting plate description
1000 mm
600 mm
250 mm
Wall-mounting
Door 1
Cable gland plate 1
Body 1
Without mounting plate
Complementary
Body type Sides made from a single folded section
Number of doors 1 front face
Door opening Reversible 120 °
Lock type 3 mm double-bar lock
Type of gland plate Standard
Accessibility for operation Front
Removable parts Cable gland plate by screws
Material Steel for body
Surface finish Epoxy-polyester powder
Colour Grey RAL 7035
Standards IEC 62208
Product certifications CUL
Back welded with double profile forming a protected sealed area
Door by hinges
UL
Environment
IP degree of protection IP66 conforming to IEC 60529
IK degree of protection IK10 conforming to IEC 62262
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW)
REACh Reference not containing SVHC above the threshold
Product environmental profile
Product end of life instructions Need no specific recycling operations
Compliant - since 0940 - Schneider Electric declaration of conformity
Available Download Product Environmental
Jan 26, 2016
