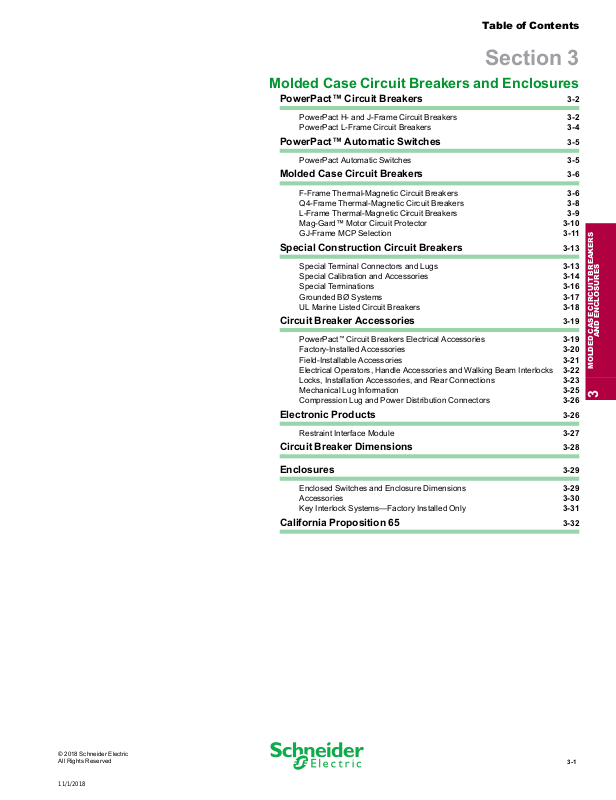

Table of Contents
11/1/2018
Section 3
Molded Case Circuit Breakers and Enclosures
PowerPact™ Circuit Breakers 3-2
PowerPact H- and J-Frame Circuit Breakers 3-2
PowerPact L-Frame Circuit Breakers 3-4
PowerPact™ Automatic Switches 3-5
PowerPact Automatic Switches 3-5
Molded Case Circuit Breakers 3-6
F-Frame Thermal-Magnetic Circuit Breakers 3-6
Q4-Frame Thermal-Magnetic Circuit Breakers 3-8
L-Frame Thermal-Magnetic Circuit Breakers 3-9
Mag-Gard™ Motor Circuit Protector 3-10
GJ-Frame MCP Selection 3-11
Special Construction Circuit Breakers 3-13
Special Terminal Connectors and Lugs 3-13
Special Calibration and Accessories 3-14
Special Terminations 3-16
Grounded BØ Systems 3-17
UL Marine Listed Circuit Breakers 3-18
Circuit Breaker Accessories 3-19
™
PowerPact
Factory-Installed Accessories 3-20
Field-Installable Accessories 3-21
Electrical Operators, Handle Accessories and Walking Beam Interlocks 3-22
Locks, Installation Accessories, and Rear Connections 3-23
Mechanical Lug Information 3-25
Compression Lug and Power Distribution Connectors 3-26
Electronic Products 3-26
Circuit Breakers Electrical Accessories 3-19
AND ENCLOSURES
MOLDED CASE CIRCUIT BREAKERS
3
Restraint Interface Module 3-27
Circuit Breaker Dimensions 3-28
Enclosures 3-29
Enclosed Switches and Enclosure Dimensions 3-29
Accessories 3-30
Key Interlock Systems—Factory Installed Only 3-31
California Proposition 65 3-32
© 2018 Schneider Electric
All Rights Reserved
3-1
PowerPact™ Circuit Breakers PowerPact H- and J-Frame Circuit Breakers
11/1/2018
Class 611 / Refer to Catalog 0611CT1001
PowerPact H- and J-Frame Circuit Breakers
Table 3.1: H-Frame 150 A UL Current-Limiting [1] Circuit Breaker Frame with Field-Interchangeable Thermal-Magnetic Trip Units [2]
(600 Vac, 250 Vdc)
Ampere
Rating
3P, 600 Vac 50/60 Hz
15 A 350 A 750 A HDL36015T HGL36015T HJL36015T HLL36015T
20 A 350 A 750 A HDL36020T HGL36020T HJL36020T HLL36020T
25 A 350 A 750 A HDL36025T HGL36025T HJL36025T HLL36025T
30 A 350 A 750 A HDL36030T HGL36030T HJL36030T HLL36030T
35 A 400 A 850 A HDL36035T HGL36035T HJL36035T HLL36035T
40 A 400 A 850 A HDL36040T HGL36040T HJL36040T HLL36040T
45 A 400 A 850 A HDL36045T HGL36045T HJL36045T HLL36045T
50 A 400 A 850 A HDL36050T HGL36050T HJL36050T HLL36050T
60 A 800 A 1450 A HDL36060T HGL36060T HJL36060T HLL36060T
70 A 800 A 1450 A HDL36070T HGL36070T HJL36070T HLL36070T
80 A 800 A 1450 A HDL36080T HGL36080T HJL36080T HLL36080T
90 A 800 A 1450 A HDL36090T HGL36090T HJL36090T HLL36090T
3
100 A 900 A 1700 A HDL36100T HGL36100T HJL36100T HLL36100T
110 A 900 A 1700 A HDL36110T HGL36110T HJL36110T HLL36110T
125 A 900 A 1700 A HDL36125T HGL36125T HJL36125T HLL36125T
150 A 900 A 1700 A HDL36150T HGL36150T HJL36150T HLL36150T
MOLDED CASE CIRCUIT BREAKERS
Table 3.2: J-Frame 250 A UL Current-Limiting [1] Circuit Breaker Frame with Field-Interchangeable Thermal-Magnetic Trip Units [2]
(600 Vac, 250 Vdc)
AND ENCLOSURES
Ampere
Rating
3P, 600 Vac 50/60 Hz
150 A 750 A 1500 A JDL36150T JGL36150T JJL36150T JLL36150T
175 A 875 A 1750 A JDL36175T JGL36175T JJL36175T JLL36175T
200 A 1000 A 2000 A JDL36200T JGL36200T JJL36200T JLL36200T
225 A 1125 A 2250 A JDL36225T JGL36225T JJL36225T JLL36225T
250 A 1250 A 2500 A JDL36250T JGL36250T JJL36250T JLL36250T
Accessories see Digest Section 7
Optional Lugs see Digest Section 7
Dimensions see Digest Section 7
Enclosures see Digest Section 7
Fixed AC Magnetic Trip
Hold
Adjustable AC Magnetic Trip
Low
H-Frame and Trip Unit
Trip D Interrupting G Interrupting J Interrupting [1] L Interrupting [1]
High D Interrupting G Interrupting J Interrupting [1] L Interrupting [1]
Cat. No.
Cat. No.
Table 3.3: H-Frame 150A and J-Frame 250 A 3P Basic UL Current-Limiting [1]
Circuit Breaker Frame Without Terminations [3] or Trip Unit (600 Vac, 250 Vdc)
Circuit Breaker
Frame
H-Frame
J-Frame 150–250 A JDF36000F25 JGF36000F25 JJF36000F25 JLF36000F25
Ampere
Rating
15–60 A HDF36000F06 HGF36000F06 HJF36000F06 HLF36000F06
70–150 A HDF36000F15 HGF36000F15 HJF36000F15 HLF36000F15
D Interrupting G Interrupting
Cat. No.
J Interrupting
[1]
Table 3.4: H-Frame and J-Frame 3P Field-Installable Thermal-Magnetic Trip Unit
15–60 A H-Frame 70–150 A H-Frame 150–250 A J-Frame
Amperage
15 A HT3015 70 A HT3070 150 A JT3150
20 A HT3020 80 A HT3080 175 A JT3175
25 A HT3025 90 A HT3090 200 A JT3200
30 A HT3030 100 A HT3100 225 A JT3225
35 A HT3035 110 A HT3110 250 A JT3250
40 A HT3040 125 A HT3125 — —
45 A HT3045 150 A HT3150 — —
50 A HT3050 — — — —
60 A HT3060 — — — —
Cat. No.
Amperage
Cat. No.
Amperage
Table 3.5: H- and J-Frame Interrupting Ratings
Voltage
240 Vac 25 KA 65 kA 100 kA 125 kA
480 Vac 18 kA 35 kA 65 kA 100 kA
600 Vac 14 kA 18 kA 25 kA 50 kA
D G J L
Interrupting Rating
Table 3.6: H- and J-Frame Termination Options
A - I-Line (See Section 9)
F = No Lugs (includes terminal nut kit on both ends) [4]
L = Lugs both ends
M = Lugs ON end Terminal Nut Kit OFF end
P = Lugs OFF end Terminal Nut Kit ON end
N = Plug-in
D = Drawout
S = Rear Connected
For factory-installed termination, place termination letter in the third block of the circuit breaker catalog number.
H D L 3 6 0 1 5 T
Termination Letter
schneider-electric.us
Terminal Wire Range
AL150HD
14–3/0 AWG Al or Cu
Terminal Wire Range
AL175JD
4–4/0 AWG Al or Cu
AL250JD
3/0 AWG–350 kcmil Al or
Cu
L Interrupting [1]
Cat. No.
[1] J and L interrupts are UL Certified as current limiting.
[2] Circuit breakers will be labeled with Line and Load markings and are not suitable for reverse connections.
Available on 3P circuit breakers; not available onI-Line™ constructions. For 100% rated circuit breakers replace the “T” suffix with an “R” suffix. 100% rated is not available in I-Line, plug-in,
or drawout constructions.
[3] See Digest Section 7 for lug and termination kits.
[4] Add TS suffix for circuit breaker without terminal nut kit.
