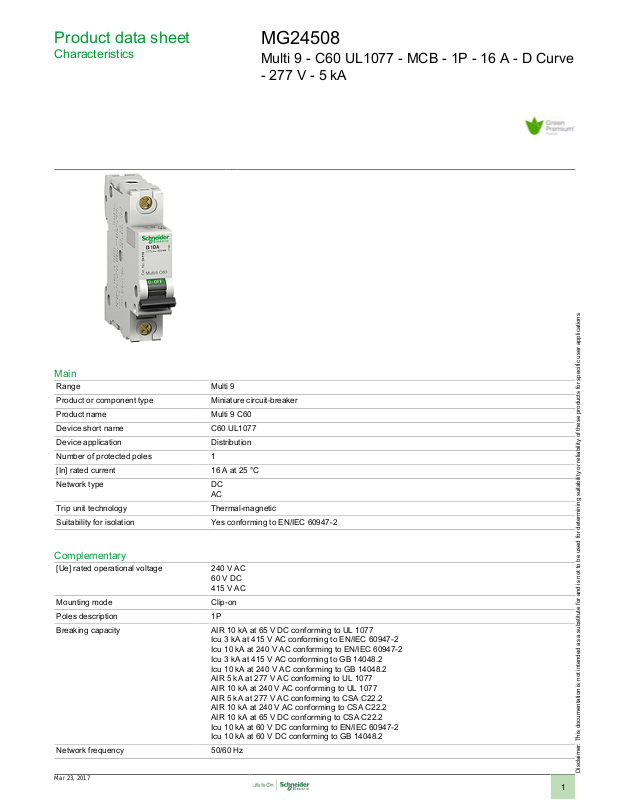

Product data sheet
Characteristics
MG24508
Multi 9 - C60 UL1077 - MCB - 1P - 16 A - D Curve
- 277 V - 5 kA
Main
Range Multi 9
Product or component type Miniature circuit-breaker
Product name Multi 9 C60
Device short name C60 UL1077
Device application Distribution
Number of protected poles 1
[In] rated current 16 A at 25 °C
Network type DC
Trip unit technology Thermal-magnetic
Suitability for isolation Yes conforming to EN/IEC 60947-2
AC
Complementary
[Ue] rated operational voltage 240 V AC
Mounting mode Clip-on
Poles description 1P
Breaking capacity AIR 10 kA at 65 V DC conforming to UL 1077
Network frequency 50/60 Hz
60 V DC
415 V AC
Icu 3 kA at 415 V AC conforming to EN/IEC 60947-2
Icu 10 kA at 240 V AC conforming to EN/IEC 60947-2
Icu 3 kA at 415 V AC conforming to GB 14048.2
Icu 10 kA at 240 V AC conforming to GB 14048.2
AIR 5 kA at 277 V AC conforming to UL 1077
AIR 10 kA at 240 V AC conforming to UL 1077
AIR 5 kA at 277 V AC conforming to CSA C22.2
AIR 10 kA at 240 V AC conforming to CSA C22.2
AIR 10 kA at 65 V DC conforming to CSA C22.2
Icu 10 kA at 60 V DC conforming to EN/IEC 60947-2
Icu 10 kA at 60 V DC conforming to GB 14048.2
Mar 23, 2017
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Curve code D
Magnetic tripping limit 12 x In +/- 20% AC
Limitation class 3 conforming to EN/IEC 60947-2
[Ui] rated insulation voltage 500 V AC conforming to EN/IEC 60947-2
[Uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-2
Contact position indicator Yes
Control type Toggle
Local signalling ON/OFF indication
Mounting support DIN rail
9 mm pitches 2
Height 81 mm
Width 18 mm
Depth 73 mm
Product weight 0.11 kg
Colour Grey
Mechanical durability 20000 cycles
Electrical durability 10000 cycles
Provision for padlocking Padlockable
Connections - terminals Tunnel type terminal, top or bottom rigid wire(s) 2.5...25 mm² max (AWG 14...AWG 4)
Wire stripping length 14 mm top or bottom
Tightening torque 2.5 N.m top or bottom
17 x In +/- 20% DC
Environment
Standards UL 1077
Product certifications CSA
IP degree of protection IP40 for modular enclosure conforming to IEC 60529
Pollution degree 3 conforming to EN/IEC 60947-2
Overvoltage category IV
Tropicalisation 2 conforming to IEC 60068-1
Relative humidity 95 % 55 °C
Operating altitude 2000 m
Ambient air temperature for operation -30...70 °C
Ambient air temperature for storage -40...80 °C
GB 14048.2
EN/IEC 60947-2
CSA C22.2 No 235
CCC
IEC
UR
IP20 conforming to IEC 60529
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW) Compliant - since 1310 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Product environmental profile Available
Product end of life instructions Need no specific recycling operations
