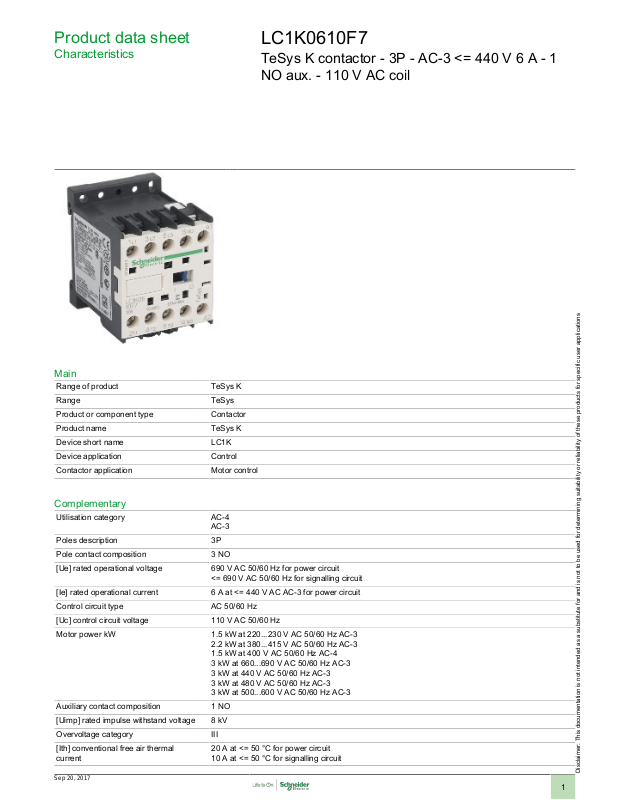

Product data sheet
Characteristics
LC1K0610F7
TeSys K contactor - 3P - AC-3 <= 440 V 6 A - 1
NO aux. - 110 V AC coil
Main
Range of product TeSys K
Range TeSys
Product or component type Contactor
Product name TeSys K
Device short name LC1K
Device application Control
Contactor application Motor control
Complementary
Utilisation category AC-4
Poles description 3P
Pole contact composition 3 NO
[Ue] rated operational voltage 690 V AC 50/60 Hz for power circuit
[Ie] rated operational current 6 A at <= 440 V AC AC-3 for power circuit
Control circuit type AC 50/60 Hz
[Uc] control circuit voltage 110 V AC 50/60 Hz
Motor power kW 1.5 kW at 220...230 V AC 50/60 Hz AC-3
Auxiliary contact composition 1 NO
[Uimp] rated impulse withstand voltage 8 kV
Overvoltage category III
[Ith] conventional free air thermal
current
Sep 20, 2017
AC-3
<= 690 V AC 50/60 Hz for signalling circuit
2.2 kW at 380...415 V AC 50/60 Hz AC-3
1.5 kW at 400 V AC 50/60 Hz AC-4
3 kW at 660...690 V AC 50/60 Hz AC-3
3 kW at 440 V AC 50/60 Hz AC-3
3 kW at 480 V AC 50/60 Hz AC-3
3 kW at 500...600 V AC 50/60 Hz AC-3
20 A at <= 50 °C for power circuit
10 A at <= 50 °C for signalling circuit
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Irms rated making capacity 110 A AC for power circuit conforming to NF C 63-110
Rated breaking capacity 110 A at 415 V conforming to IEC 60947
[Icw] rated short-time withstand current 20 A <= 50 °C >= 15 min power circuit
Associated fuse rating 25 A gG at <= 440 V for power circuit
Average impedance 3 mOhm at 50 Hz - Ith 20 A for power circuit
[Ui] rated insulation voltage 690 V for signalling circuit conforming to IEC 60947-4-1
Insulation resistance > 10 MOhm for signalling circuit
Inrush power in VA 30 VA at 20 °C
Hold-in power consumption in VA 4.5 VA at 20 °C
Heat dissipation 1.3 W
Control circuit voltage limits 0.2...0.75 Uc at <= 50 °C drop-out
Connections - terminals Screw clamp terminals 1 cable(s) 1.5...4 mm² - cable stiffness: solid
Operating rate 3600 cyc/h
Auxiliary contacts type Type instantaneous (1 NO)
Signalling circuit frequency <= 400 Hz
Minimum switching current 5 mA for signalling circuit
Minimum switching voltage 17 V for signalling circuit
Mounting support Rail
Tightening torque 1.3 N.m - on screw clamp terminals - with screwdriver Philips No 2
Operating time 10...20 ms coil de-energisation and NO opening
Safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Non overlap distance 0.5 mm
Mechanical durability 10 Mcycles
Electrical durability 1.3 Mcycles 6 A AC-3 at Ue <= 440 V
Mechanical robustness Shocks contactor closed, on X axis 10 Gn for 11 ms IEC 60068-2-27
110 A AC for power circuit conforming to IEC 60947
110 A AC for signalling circuit conforming to IEC 60947
110 A at 440 V conforming to IEC 60947
80 A at 500 V conforming to IEC 60947
110 A at 220...230 V conforming to IEC 60947
110 A at 380...400 V conforming to IEC 60947
70 A at 660...690 V conforming to IEC 60947
90 A <= 50 °C 1 s power circuit
85 A <= 50 °C 5 s power circuit
80 A <= 50 °C 10 s power circuit
60 A <= 50 °C 30 s power circuit
45 A <= 50 °C 1 min power circuit
40 A <= 50 °C 3 min power circuit
80 A 1 s signalling circuit
90 A 500 ms signalling circuit
110 A 100 ms signalling circuit
25 A aM for power circuit
10 A gG for signalling circuit conforming to IEC 60947
10 A gG for signalling circuit conforming to VDE 0660
690 V for signalling circuit conforming to IEC 60947-5-1
600 V for signalling circuit conforming to UL 508
600 V for power circuit conforming to CSA C22.2 No 14
600 V for signalling circuit conforming to CSA C22.2 No 14
690 V for power circuit conforming to IEC 60947-4-1
600 V for power circuit conforming to UL 508
0.8...1.15 Uc at <= 50 °C operational
Screw clamp terminals 1 cable(s) 0.75...4 mm² - cable stiffness: flexible - without cable end
Screw clamp terminals 1 cable(s) 0.34...2.5 mm² - cable stiffness: flexible - with cable end
Screw clamp terminals 2 cable(s) 1.5...4 mm² - cable stiffness: solid
Screw clamp terminals 2 cable(s) 0.75...4 mm² - cable stiffness: flexible - without cable end
Screw clamp terminals 2 cable(s) 0.34...1.5 mm² - cable stiffness: flexible - with cable end
Plate
1.3 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
10...20 ms coil energisation and NO closing
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Shocks contactor closed, on Y axis 15 Gn for 11 ms IEC 60068-2-27
Shocks contactor closed, on Z axis 15 Gn for 11 ms IEC 60068-2-27
Shocks contactor opened, on X axis 6 Gn for 11 ms IEC 60068-2-27
Shocks contactor opened, on Y axis 10 Gn for 11 ms IEC 60068-2-27
Shocks contactor opened, on Z axis 10 Gn for 11 ms IEC 60068-2-27
2
Vibrations contactor closed 4 Gn, 5...300 Hz IEC 60068-2-6
Vibrations contactor opened 2 Gn, 5...300 Hz IEC 60068-2-6
Height 58 mm
Width 45 mm
Depth 57 mm
Product weight 0.18 kg
Power range 0.55...1 kW 200...240 V 3 phases
Motor starter type Direct on-line contactor
Contactor coil voltage 110 V AC standard
0.55...1 kW 380...440 V 3 phases
0.55...1 kW 480...500 V 3 phases
1.1...2 kW 200...240 V 3 phases
1.1...2 kW 380...440 V 3 phases
2.2...3 kW 380...440 V 3 phases
2.2...3 kW 480...500 V 3 phases
0...0.5 kW 200...240 V 3 phases
0...0.5 kW 380...440 V 3 phases
0...0.5 kW 480...500 V 3 phases
1.1...2 kW 480...500 V 3 phases
Environment
Standards BS 5424
Product certifications UL
IP degree of protection IP2x conforming to VDE 0106
Protective treatment TC conforming to IEC 60068
Ambient air temperature for operation -25...50 °C
Ambient air temperature for storage -50...80 °C
Operating altitude 2000 m without derating in temperature
Flame retardance V1 conforming to UL 94
IEC 60947
NF C 63-110
VDE 0660
CSA
TC conforming to DIN 50016
Requirement 2 conforming to NF F 16-101
Requirement 2 conforming to NF F 16-102
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW) Compliant - since 0640 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Product environmental profile Available
Product environmental
Product end of life instructions Available
End of life manual
Contractual warranty
Warranty period 18 months
3
Product data sheet
Dimensions Drawings
Dimensions
Contactors LC1 K, LP1 K, LP4 K: Mounting on Panel
Contactors LC1 K, LP1 K, LP4 K: Mounting on Rail AM1 DP200 or AM1 DE200 (35mm)
LC1K0610F7
4
Product data sheet
Connections and Schema
Wiring
3-Pole Contactors: 3P + N/O
3-Pole Contactors: 3P + N/C
LC1K0610F7
5
Product data sheet
LC1K0610F7
Motor Starter BOM
Our Proposal - Type 1 : Circuit Breaker + Contactor for Motor Power from 0,06 to 2,2 kW and 415 VAC
Motor power
(kW)
0.06 > 100
0.09 > 100
0,12 to 0,18 > 100
0,25 to 0,37 > 100
0.55 > 100
ICU
(kA)
Breaker Contactor (*)
GV2ME02 LC1K0610F7
GV2ME03 LC1K0610F7
GV2ME04 LC1K0610F7
GV2ME05 LC1K0610F7
GV2ME06 LC1K0610F7
0.75 > 100
GV2ME07 LC1K0610F7
1,1 to 1,5 > 100
GV2ME08 LC1K0610F7
2.2 > 100
GV2ME10 LC1K0610F7
Non contractual pictures.
Type 1 coordination requires that in a short-circuit condition, the contactor or starter must not present any danger to personnel or installations and
must not be able to resume operation without repair or the replacement of parts.
