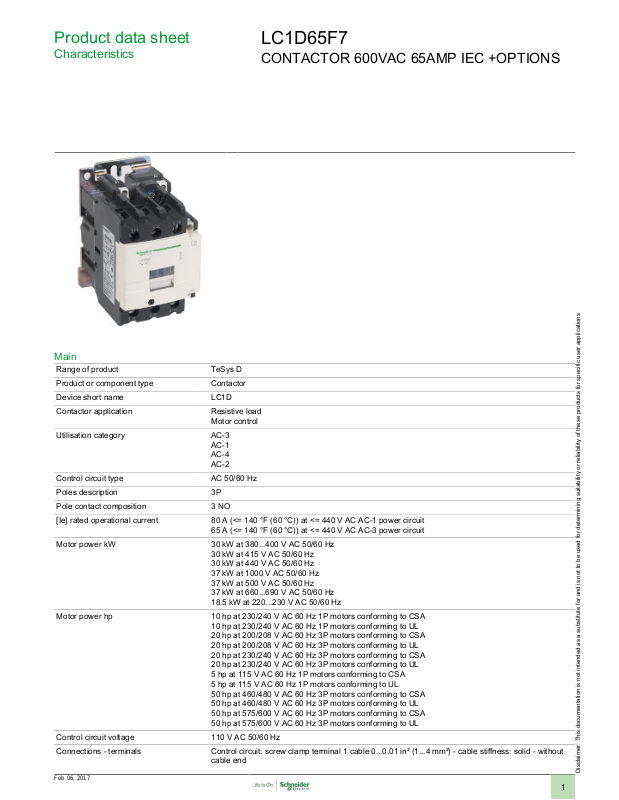

Product data sheet
Characteristics
LC1D65F7
CONTACTOR 600VAC 65AMP IEC +OPTIONS
Main
Range of product TeSys D
Product or component type Contactor
Device short name LC1D
Contactor application Resistive load
Motor control
Utilisation category AC-3
AC-1
AC-4
AC-2
Control circuit type AC 50/60 Hz
Poles description 3P
Pole contact composition 3 NO
[Ie] rated operational current 80 A (<= 140 °F (60 °C)) at <= 440 V AC AC-1 power circuit
65 A (<= 140 °F (60 °C)) at <= 440 V AC AC-3 power circuit
Motor power kW 30 kW at 380...400 V AC 50/60 Hz
30 kW at 415 V AC 50/60 Hz
30 kW at 440 V AC 50/60 Hz
37 kW at 1000 V AC 50/60 Hz
37 kW at 500 V AC 50/60 Hz
37 kW at 660...690 V AC 50/60 Hz
18.5 kW at 220...230 V AC 50/60 Hz
Motor power hp 10 hp at 230/240 V AC 60 Hz 1P motors conforming to CSA
10 hp at 230/240 V AC 60 Hz 1P motors conforming to UL
20 hp at 200/208 V AC 60 Hz 3P motors conforming to CSA
20 hp at 200/208 V AC 60 Hz 3P motors conforming to UL
20 hp at 230/240 V AC 60 Hz 3P motors conforming to CSA
20 hp at 230/240 V AC 60 Hz 3P motors conforming to UL
5 hp at 115 V AC 60 Hz 1P motors conforming to CSA
5 hp at 115 V AC 60 Hz 1P motors conforming to UL
50 hp at 460/480 V AC 60 Hz 3P motors conforming to CSA
50 hp at 460/480 V AC 60 Hz 3P motors conforming to UL
50 hp at 575/600 V AC 60 Hz 3P motors conforming to CSA
50 hp at 575/600 V AC 60 Hz 3P motors conforming to UL
Control circuit voltage 110 V AC 50/60 Hz
Connections - terminals Control circuit: screw clamp terminal 1 cable 0...0.01 in² (1...4 mm²) - cable stiffness: solid - without
cable end
Feb 06, 2017
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Control circuit: screw clamp terminal 2 cable 0...0.01 in² (1...4 mm²) - cable stiffness: solid - without
cable end
Power circuit: screw clamp terminal 1 cable 0...0.05 in² (1...35 mm²) - cable stiffness: solid - without
cable end
Power circuit: screw clamp terminal 2 cable 0...0.04 in² (1...25 mm²) - cable stiffness: solid - without
cable end
Power circuit: screw clamp terminal 1 cable 0...0.05 in² (1...35 mm²) - cable stiffness: flexible - without
cable end
Control circuit: screw clamp terminal 1 cable 0...0.01 in² (1...4 mm²) - cable stiffness: flexible - with
cable end
Control circuit: screw clamp terminal 2 cable 0...0 in² (1...2.5 mm²) - cable stiffness: flexible - without
cable end
Control circuit: screw clamp terminal 2 cable 0...0.01 in² (1...4 mm²) - cable stiffness: flexible - with
cable end
Power circuit: screw clamp terminal 2 cable 0...0.04 in² (1...25 mm²) - cable stiffness: flexible - with
cable end
Power circuit: screw clamp terminal 2 cable 0...0.05 in² (1...35 mm²) - cable stiffness: flexible - without
cable end
Complementary
Coil technology Without built-in bidirectional peak limiting diode suppressor
Protective cover With
Auxiliary contacts type Type mechanically linked (1 NO + 1 NC) conforming to IEC 60947-5-1
Auxiliary contact composition 1 NO + 1 NC
Control circuit voltage limits 0.3...0.6 Uc at 140 °F (60 °C) drop-out 50/60 Hz
[Ui] rated insulation voltage 600 V control circuit certifications CSA
[Uimp] rated impulse withstand voltage 8 kV
Overvoltage category III
Mounting support Rail
Flame retardance V1 conforming to UL 94
Tightening torque Power circuit : - on screw clamp terminal - with screwdriver flat Ø 6 mm
System Voltage <= 690 V AC 25...400 Hz power circuit
[Ith] conventional free air thermal
current
Irms rated making capacity 1000 A at 440 V power circuit conforming to IEC 60947
Rated breaking capacity 1000 A at 440 V power circuit conforming to IEC 60947
Associated fuse rating 10 A gG control circuit conforming to IEC 60947-5-1
Power dissipation per pole 4.2 W AC-3
Inrush power in VA 140 VA at 68 °F (20 °C) (cos φ 0.75)
Hold-in power consumption in VA 13 VA at 68 °F (20 °C) (cos φ 0.3) 60 Hz
Operating time 12...26 ms closing
Safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Mechanical durability 6000000 cycles
Operating rate 3600 cyc/h at <= 140 °F (60 °C)
Type mirror contact (1 NC) conforming to IEC 60947-4-1
0.8...1.1 Uc at 140 °F (60 °C) operational 50 Hz
0.85...1.1 Uc at 140 °F (60 °C) operational 60 Hz
600 V control circuit certifications UL
600 V power circuit certifications CSA
600 V power circuit certifications UL
690 V control circuit conforming to IEC 60947-1
690 V power circuit conforming to IEC 60947-1
Plate
Control circuit : - on screw clamp terminal - with screwdriver flat Ø 6 mm
Control circuit : - on screw clamp terminal - with screwdriver Philips No 2
Power circuit : - on screw clamp terminal - with screwdriver flat Ø 8 mm
10 A at <= 140 °F (60 °C) control circuit
80 A at <= 140 °F (60 °C) power circuit
140 A AC for control circuit conforming to IEC 60947-5-1
125 A gG at <= 690 V coordination type 2 power circuit
160 A gG at <= 690 V coordination type 1 for power circuit
6.4 W AC-1
160 VA at 68 °F (20 °C) (cos φ 0.75)
15 VA at 68 °F (20 °C) (cos φ 0.3) 50 Hz
4...19 ms opening
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
2
Minimum switching current 5 mA control circuit
Minimum switching voltage 17 V control circuit
Non-overlap time 1.5 ms on de-energisation between NC and NO contacts
Insulation resistance > 10 MOhm control circuit
Height 5 in (127 mm)
Width 2.95 in (75 mm)
Depth 4.69 in (119 mm)
Product weight 3.09 lb(US) (1.4 kg)
1.5 ms on energisation between NC and NO contacts
Environment
Standards IEC 60947-5-1
Product certifications CCC
IP degree of protection IP2x conforming to IEC 60529
Ambient air temperature for operation 23...140 °F (-5...60 °C)
Ambient air temperature for storage -76...176 °F (-60...80 °C)
Permissible ambient air temperature
around the device
Operating altitude 9842.52 ft (3000 m) without derating in temperature
Fire resistance 1562 °F (850 °C) conforming to IEC 60695-2-1
Shock resistance 10 gn contactor opened
Vibration resistance 2 gn 5...300 Hz contactor opened
Heat dissipation 4...5 W at 50/60 Hz for control circuit
UL 508
EN 60947-4-1
IEC 60947-4-1
EN 60947-5-1
CSA C22.2 No 14
CSA
DNV
BV
GOST
LROS (Lloyds register of shipping)
RINA
UL
GL
IP2x conforming to VDE 0106
-40...158 °F (-40...70 °C) at Uc
15 gn contactor closed
4 gn 5...300 Hz contactor closed
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW) Compliant - since 0701 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Product environmental profile Available
End of life manual
Product end of life instructions Available
Contractual warranty
Warranty period 18 months
3
