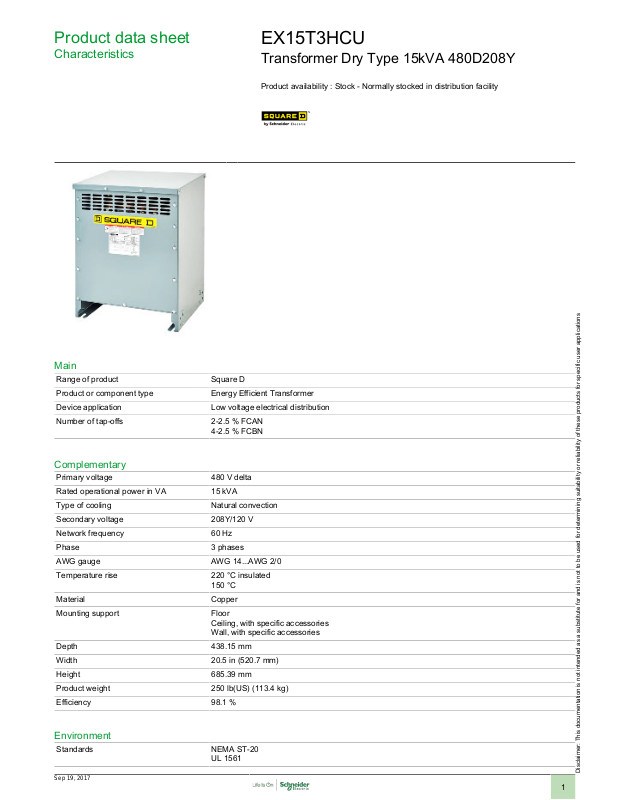

Product data sheet
Characteristics
EX15T3HCU
Transformer Dry Type 15kVA 480D208Y
Product availability : Stock - Normally stocked in distribution facility
Main
Range of product Square D
Product or component type Energy Efficient Transformer
Device application Low voltage electrical distribution
Number of tap-offs 2-2.5 % FCAN
4-2.5 % FCBN
Complementary
Primary voltage 480 V delta
Rated operational power in VA 15 kVA
Type of cooling Natural convection
Secondary voltage 208Y/120 V
Network frequency 60 Hz
Phase 3 phases
AWG gauge AWG 14...AWG 2/0
Temperature rise 220 °C insulated
Material Copper
Mounting support Floor
Depth 438.15 mm
Width 20.5 in (520.7 mm)
Height 685.39 mm
Product weight 250 lb(US) (113.4 kg)
Efficiency 98.1 %
150 °C
Ceiling, with specific accessories
Wall, with specific accessories
Environment
Standards NEMA ST-20
UL 1561
Sep 19, 2017
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Degree of protection UL type 1
UL type 3R, with accessory
Ordering and shipping details
Category 16250 - 3PH EX/2016 15-150KVA LVGP XFMR
Discount Schedule PE2X
GTIN 00785901691488
Nbr. of units in pkg. 1
Package weight(Lbs) 263
Returnability Y
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW) Compliant - since 1601 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Product environmental profile Available
Product end of life instructions Need no specific recycling operations
