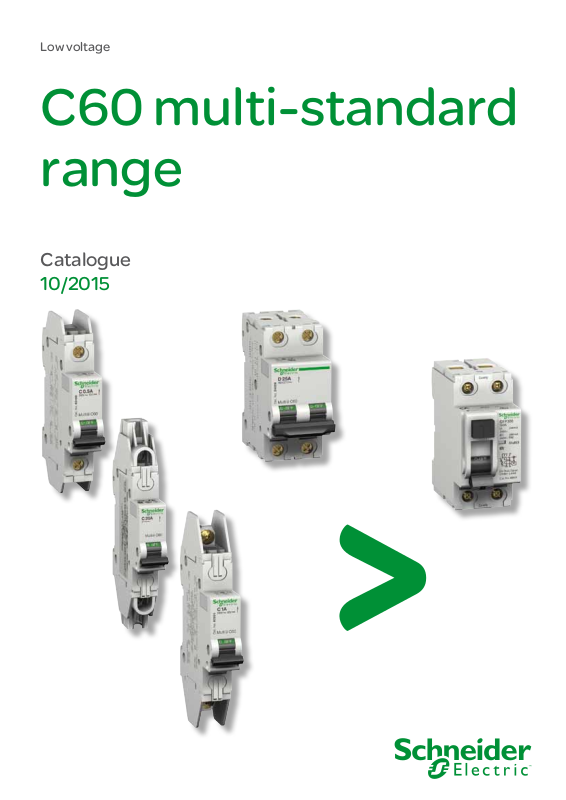

Square D C60 multi-standard range Catalog

Low voltage

C60 multi-standard
range

Catalogue

10/2015

C60 multi-standard range

Summary

Presentation

Panorama of the C60 multi-standard range CM907017E 2

Circuit protection

Circuit breaker

C60 UL 489 circuit breaker CM901037E 9
C60 UL 1077 circuit breaker CM901039E 13

Direct current circuit breakers

C60H-DC CM901044E 16

Ground fault protection

GFP UL 1053 CM902013E 21

Accessorisation/Auxiliarisation

Electrical auxiliaries CM907010E 23
Accessories CM907016E 26
UL 1077 connection comb busbar CM907011E 29

Complementary technical information

Limitation and tripping curves,
temperature derating, power consumption.

CM908004E 30

Version : 1.0

28/10/2015CM909003E

1

Multi 9 system

C60 UL 489

IEC 60947-2,
GB 14048-2,

Panorama of the C60
multi-standard range

OF

Multi9 C60

SD

C60 UL 1077

IEC 60947-2,
GB 14048-2,

DB105727

See CM901037E.indd, page 2

DB105728

IEC

DB405227

DB105727

See CM907010E.indd, page 2

DB105728

DB105728

MN

DB405229

MX+OF

IEC

Circuit breakers Auxiliaries Accessories

OF

Multi9 C60

SD

DB126596

See CM901039E.indd, page 2

DB126597

DB405227

Circuit breakers

2

Version : 1.2

IEC

MN

MX+OF

DB105727

See CM907010E.indd, page 2

DB105728

DB105728

DB405229

Auxiliaries Accessories

28/10/2015 CM907017E

IEC

Multi 9 system

Panorama of the C60
multi-standard range

Rotary handle

See CM907016E.indd, page 2

Rotary handle

Plug-in
base

Spacer

Padlocking
device

Screw shield

Padlocking device

Terminal
shield

Clip-on terminal
marker strip

Interpole
barrier

Spacer

Connection kit for
ring terminals

See CM907016E.indd, page 2

Multi-cable
terminal

50 mm² Al
terminal

Version : 1.2

Screw-on connection
for ring terminal

28/10/2015CM907017E

Clip-on terminal
marker strip

3

Multi 9 system

GFP UL 1053

IEC 61008

Panorama of the C60
multi-standard range

GFP

C60H-DC

IEC 60947-2,
GB 14048-2, UL1077

DB105727

See CM902013E.indd, page 2

IEC

Ground fault protector Accessories

OF

C60H-DC

SD

DB105730

See CM901044E.indd, page 2

DB123431

IEC

DB105727

See CM907010E.indd, page 2

DB105728

MN

DB105728

DB405229

MX+OF

IEC

Circuit breakers Auxiliaries Accessories

4

Version : 1.2

28/10/2015 CM907017E

Multi 9 system

Panorama of the C60
multi-standard range

Rotary handle

Connection kit for
ring terminals

See CM907016E.indd, page 2

Plug-in
base

Padlocking
device

Multi-cable
terminal

Screw shield

50 mm² Al
terminal

Terminal
shield

Screw-on connection
for ring terminal

Interpole
barrier

Spacer

Clip-on terminal
marker strip

Rotary handle

Connection kit for
ring terminals

See CM907016E.indd, page 2

Plug-in
base

Padlocking
device

Multi-cable
terminal

Screw shield

50 mm² Al
terminal

Version : 1.2

Terminal
shield

Screw-on connection
for ring terminal

28/10/2015CM907017E

Interpole
barrier

Spacer

Clip-on terminal
marker strip

5

Multi 9 system

DB105727

DB405227

PB100981A

C60 UL 489 C60 UL 489 480Y /277 V a

PB100977A

DB105730

IEC

DB105728

DB105729

PB102035A

Overview of the C60
multi-standard range

Multi 9 range for equipment having to comply
with UL / CSA and IEC.

The Multi 9 system is designed for OEMs to ensure complete protection of their

products or the specic circuits inside the equipment.
This range allows OEMs throughout the world to offer equipment in compliance with

the leading international standards:

b UL 489, UL 1077
b CSA C22.2 No. 5-02, CSA C22.2 No. 235-04
b IEC 60947-2
b GB 14048-2
b It saves space in the switchboard thanks to its small size
b Easy installation on symmetrical DIN rail (35 mm)
b It includes ratings that also make it possible to protect low-power circuits.

Main applications

b Semiconductor fabrication.
b Telecommunications.
b IT systems.
b Medical equipment.
b Transformers.
b Process control and automation.
b Packaging equipment.
b Food industry.

C60 UL 1077

PB101000A_SE

Tunnel terminal 240 V a Tunnel terminal

PB100999A_SE

Ring terminal 240 V a Ring terminal

PB102091A_SE

480Y / 277 V a

PB102090A_SE

480Y / 277 V a

6

Version : 1.2

28/10/2015 CM907017E

Multi 9 system

IEC

The setup of circuit protective devices depends
on the electrical installation standard. Multi 9
devices (designed for machinery and equipment
manufacturers, integrators, panelbuilders, etc.)
are tested in accordance with the UL (Underwriter
Laboratories) product standard in order to meet
the requirements of the NEC (National Electric
Code) installation standard, in force in the United
States.
To allow the most extensive possible use
worldwide, Multi 9 “UL” products are also tested
to ensure compliance with IEC and CSA
standards.

The CE Marking is an administrative formality for
free circulation and sale on the territory of the
European Union.
Made compulsory by a European directive, the CE
Marking of products complies with the
administrative and legal requirements.
Designed for the European supervisory
authorities (customs authorities), the “CE
Marking” declarations and dossiers are produced
under the sole responsibility of the manufacturer
and undergo no conformity check by a third-party
organization.
Only the quality marks, issued and inspected by
an independent third-party organization, provide
a full guarantee of operation, compatibility and
safety in accordance with national and
international standards.

Product standards

UL 489

“Branch circuit protection” - Protection des départs/
distribution

The UL 489 standard applies primarily to the protection of circuits installed, in
accordance with the NEC (National Electric Code):

b upstream of a device or a machine (branch circuit protection)
b inside the device or a machine, for certain loads (ventilation, air conditioning,

heating, etc.)

b to power loads external to the device (motors, power sockets, etc.).

UL 1077

Supplementary protection - Internal protection of electrical
equipment

The UL 1077 standard applies to circuit breakers for electrical equipment, in

accordance with the NEC. These circuit breakers are considered as components

forming part of the equipment but can in no case replace a UL 489 protective device.
Their use is limited to the protection of specic loads exclusively inside the machine
or equipment. Where the machine or equipment is powered upstream by a control

panel, the UL 1077 protection must be combined with a UL 489 protective device in
that panel.

CSA C22.2 No. 5-02

The CSA (Canadian Standards Association) standard C22.2 No. 5-02 is very similar
to the UL 489 standard. Products meeting this standard are designed for circuit
protection in accordance with the CEC (Canadian Electrical Code).

CSA C22.2 No. 235-04

The CSA C22.2 No. 235-04 standard is equivalent to the UL 1077 standard.

UL 486A standard for wire connectors

The UL 486A standard applies to wire connectors in accordance with NEC
recommendations. The Multi 9 C60 / C120 UL 489 and C60 UL 1077 circuit

breakers are tested in accordance with this standard (UL 1077 does not require

compliance with this standard).
It allows direct connection of wires to the circuit breakers without using an
intermediate terminal block. The C60 / C120 Multi 9 UL range complies with the UL
486A standard which applies to copper wires.

CSA C22.2 No. 65

The CSA C22.2 No. 65 standard is equivalent to the UL 486A standard.

60947-2

The IEC 60947-2 standard is an international product standard concerning circuit
breakers; it is used for industrial circuit protection applications. It meets the

requirements of the IEC 60364 installation standard.

GB 14048-2

The GB 14048-2 standard is equivalent to the IEC 60947-2 standard for installations

on Chinese territory.

Version : 1.2

28/10/2015CM907017E

7

Multi 9 system

The standards and their
applications

Example of use of UL 489 circuit breakers and UL 1077
electrical equipment internal protective devices

Miscellaneous
devices

Electronic
equipment

Other
sensitive
devices

Equipment case

Distribution circuit
"Branch circuit protection"

None if protection
by secondary
circuit breaker

1

2

1

4

2

Internal
power socket

3

Heating,
ventilation and
air conditioning
equipment

External
power socket

External
motor

UL 1077

Applications allowing the use of electrical
equipment internal protective devices

UL 1077

Supplements an existing protective device or provides

additional protection inside equipment

UL 1077

Used for the protection of internal circuits such as:

b Computers and microprocessors
b Telecommunications equipment
b Electronic controllers
b Power supply sources
b Transformers
b Small motors.

1

2

UL 489

Applications requiring branch circuit protection

UL 489

Equipment incoming end protection.

UL 489

Power socket circuit protection (internal or external).

UL 489

Protection of an external circuit (e.g. motor).

UL 489

Protection of heating, ventilation and air conditionning equipment

(HACR/HVAC).

1

2

3

4

8

Version : 1.2

28/10/2015 CM907017E

Protection

60 V c

Circuit protection

DB105727

DB105728

IEC

DB405227

C60 UL 489 circuit breakers

(C and D curves)

UL 489 / CSA C22.2 No. 5-02
IEC 60947-2 / GB 14048-2

Tunnel terminal Ring terminal

240 V a 480Y / 277 V a 240 V a 480Y / 277 V a

PB100981A_SE

They provide:

b circuit overcurrent protection
b protection for wires against overloads and short circuits in nal distribution
b manual control and isolation
b remote tripping, indications by the addition of auxiliaries.

Breaking capacity:

Type Number of 18

240 V a 1P 120 V a 10 -

480Y / 277 V a 1P 277 V a 10 10

PB102035A_SE

mm (0.71 in.)
poles

2P/3P 240 V a 10 20

1P 60 V c 10 10
2P 125 V c 10 10

2P/3P 480Y/277 V a 10 10
1P 60 V c 10 10
2P 125 V c 10 10

PB100985A_SE

Voltage rating
(Ue)

240 V a 5 10

415 V a - 10
440 V a - 6

Breaking capacity (kA rms)
AIR
UL 489/CSA

PB102035A_SE

Icu
IEC 60947-2

Connection

1P 2P 3P

DB406775

Version : 1.8

DB406776

28/10/2015CM901037E

DB407203

531

642

9

Protection
Circuit protection

C60 UL 489 circuit breakers

(C and D curves)

Catalogue numbers

Tunnel terminal connection

240 V a 480 Y / 277 V a

Type 1P 2P 3P 1P 2P 3P

Rating (In) C D C D C D C D C D C D

0.5
1

1.5
2
3
4
5
6
7

8
10
13
15
20
25
30
35
Width in 9 mm modules 2 4 6 2 4 6

Auxiliaries Remote indication and tripping, module CM907010

Accessories Module CM907016

Curve Curve Curve Curve Curve Curve

60100 60117 60134 60151
60101 60118 60135 60152 60168 60184 MGN61301 MGN61334 MGN61312 MGN61345 MGN61323 MGN61356
60102 60119 60136 60153 60169 60185 - - - - - ­60103 60120 60137 60154 60170 60186 MGN61302 MGN61335 MGN61313 MGN61346 MGN61324 MGN61357
60104 60121 60138 60155 60171 60187 MGN61303 MGN61336 MGN61314 MGN61347 MGN61325 MGN61358
60105 60122 60139 60156 60172 60188 MGN61304 MGN61337 MGN61315 MGN61348 MGN61326 MGN61359
60106 60123 60140 60157 60173 60189 MGN61305 MGN61338 MGN61316 MGN61349 MGN61327 MGN61360
60107 60124 60141 60158 60174 60190 MGN61306 MGN61339 MGN61317 MGN61350 MGN61328 MGN61361
60108 60125 60142 60159 60175 60191 - - - - - -

60109 60126 60143 60160 60176 60192 MGN61307 MGN61340 MGN61318 MGN61351 MGN61329 MGN61362
60110 60127 60144 60161 60177 60193 MGN61308 MGN61341 MGN61319 MGN61352 MGN61330 MGN61363
60111 60128 60145 60162 60178 60194 - - - - - ­60112 60129 60146 60163 60179 60195 MGN61309 MGN61342 MGN61320 MGN61353 MGN61331 MGN61364

60113 60130 60147 60164 60180 60196 MGN61310 MGN61343 MGN61321 MGN61354 MGN61332 MGN61365
60114 60131 60148 60165 60181 60197 - - - - - ­60115 60132 60149 60166 60182 60198 - - - - - ­60116 60133 60150 60167 60183 60199 - - - - - -

- -

MGN61300 MGN61333 MGN61311 MGN61344 - -

Ring terminal connection

240 V a 480 Y / 277 V a

Type 1P 2P 3P 1P 2P 3P

Rating (In) C D C D C D C D C D C D

0.5
1

1.5
2
3
4
5
6
7
8
10
13
15
20
25
30
35
Width in 9 mm modules 2 4 6 2 4 6

Auxiliaries Remote indication and tripping, module CM907010

Accessories Module CM907016

Curve Curve Curve Curve Curve Curve

60200 60217 60234 60251
60201 60218 60235 60252 60268 60284 MGN61367 MGN61400 MGN61378 MGN61411 MGN61389 MGN61422
60202 60219 60236 60253 60269 60285 - - - - - ­60203 60220 60237 60254 60270 60286 MGN61368 MGN61401 MGN61379 MGN61412 MGN61390 MGN61423
60204 60221 60238 60255 60271 60287 MGN61369 MGN61402 MGN61380 MGN61413 MGN61391 MGN61424
60205 60222 60239 60256 60272 60288 MGN61370 MGN61403 MGN61381 MGN61414 MGN61392 MGN61425
60206 60223 60240 60257 60273 60289 MGN61371 MGN61404 MGN61382 MGN61415 MGN61393 MGN61426
60207 60224 60241 60258 60274 60290 MGN61372 MGN61405 MGN61383 MGN61416 MGN61394 MGN61427
60208 60225 60242 60259 60275 60291 - - - - - ­60209 60226 60243 60260 60276 60292 MGN61373 MGN61406 MGN61384 MGN61417 MGN61395 MGN61428
60210 60227 60244 60261 60277 60293 MGN61374 MGN61407 MGN61385 MGN61418 MGN61396 MGN61429
60211 60228 60245 60262 60278 60294 - - - - - ­60212 60229 60246 60263 60279 60295 MGN61375 MGN61408 MGN61386 MGN61419 MGN61397 MGN61430

60213 60230 60247 60264 60280 60296 MGN61376 MGN61409 MGN61387 MGN61420 MGN61398 MGN61431
60214 60231 60248 60265 60281 60297 - - - - - ­60215 60232 60249 60266 60282 60298 - - - - - ­60216 60233 60250 60267 60283 60299 - - - - - -

- -

MGN61366 MGN61399 MGN61377 MGN61410 - -

10

Version : 1.8

28/10/2015 CM901037E

Protection
Circuit protection

C60 UL 489 circuit breakers

(C and D curves)

Connection

Type Rating Tightening

torque

Cu wires Screw-on

connection
for ring
terminal

PB101000A_SE

Tunnel terminal 240 V a Tunnel terminal

PB100999A_SE

Ring terminal 240 V a Ring terminal

DB118767

Clips on to 35 mm DIN rail.

DB122831

Any installation position.

PB102091A_SE

480Y / 277 V a

PB102090A_SE

480Y / 277 V a

IP40

DB123391

DB122945

Tunnel terminal
240 V a

Tunnel terminal
480 Y / 277 V

Ring terminal
240 V a
480 Y / 277 V

(1) UL 486A
(2) Single insulated ring terminal, UL or CSA certied.

0.5 to 25 A 2.5 N.m

(22 Ib.in.)

30-35 A 3.5 N.m

(31 Ib.in.)

0.5 to 10 A 0.8 N.m

(7 Ib.in.)

15 to 25 A 1.6 N.m

(14 Ib.in.)

- 2 N.m

(18 Ib.in.)

1 to 25 mm

(#18 #4 AWG)

1 to 35 mm

(#18 #2 AWG)

1 or 2 wires, 1 to 1.5 mm

(#18 #16 AWG)

1 or 2 wires, 1 to 6 mm

(#18 #10 AWG)

-

(1)

2

2

DB118789

-

-

2

-

2

-

Ø 5 mm

Technical data

Main characteristics

Voltage rating (Ue) 120 to 240 V a, 480 Y / 277 V a,

Insulation voltage (Ui) 500 V
Pollution degree 3
Rated impulse withstand voltage (Uimp) 6 kV
Thermal tripping Reference temperature 25°C / 77°F
Magnetic tripping

(IEC 60947-2)

Limitation class 3
Rated breaking and making capacity on a single pole

(Icn1)

C curve In alternating current 8.5 In ± 20 %

In direct current 12 In ± 20 %

D curve In alternating current 12 In ± 20 %

In direct current 17 In ± 20 %

Additional characteristics

Degree of protection
(IEC 60529)

Endurance (O-C) Electrical 10,000 cycles

Operating temperature -30°C to +70°C
Storage temperature -40°C to +80°C
Tropicalization Treatment 2

Device in modular enclosure IP40 / IPXXB
Tunnel terminal connection

480 Y / 277 V a
Ring terminal connection IP10 / IPXXA

Mechanical 20,000 cycles

1P: 60 V c 2P 125 V c

Icn1 = Icn

IP20 / IPXXB

(relative humidity of 95 % at 55 °C)

(2)

Version : 1.8

28/10/2015CM901037E

11

Protection
Circuit protection

C60 UL 489 circuit breakers

(C and D curves)

Weight (g/oz)

Circuit breaker

Type C60 UL

1P 110/3.88
2P 220/7.75
3P 330/11.64

Dimensions (mm)

DB112931

Tunnel terminal 240 V a Tunnel terminal 480Y / 277 V a

DB112932

Ring terminal 480Y / 277 V a

DB112934

Ring terminal 240 V a

12

Version : 1.8

28/10/2015 CM901037E

Protection
Circuit protection

DB105730

DB105729

IEC

DB405227

C60 UL 1077 circuit breakers

(B, C and D curves)

UL1077 / CSA C22.2, IEC 60947-2 / GB 14048-2

C60 UL circuit breakers are multi-standard circuit breakers which combine the
following functions:

b circuit protection against short-circuit currents
b circuit protection against overload currents
b tripping and fault indication by the addition of auxiliaries.

PB101029_2-35

18360

Rating (A)
25°C/77°F

PB100980_2-35

0.5 to 63

18376

Number of
18 mm

(0.71 in.) poles UL 1077/CSA IEC 60947-2

1P 240 V a 10 10
2P/3P/4P 240 V a 10 20
1P 277 V a 5 -

2P/3P/4P 415 V a - 10

1P 60 V c - 10
1P 65 V c 10 ­2P 125 V c 10 10

Catalogue numbers

C60 UL circuit breaker

Type 1P 2P

c

DB406809

Voltage Breaking capacity (kA rms)

AIR Icu

415 V a - 3

440 V a - 6
480Y/277 V a 5 -

DB406810

Auxiliaries Remote indication and tripping, module CM907010

Curve Curve

Rating (In) B C D B C D

0.5 - 17411 17421 - 17441 17451
1 24110 24425 24500 24125 24442 24516

1.2 17402 17412 17422 17432 17442 17452

1.5 17403 17413 17423 17433 17443 17453
2 24111 24426 24501 24126 24443 24517
3 24112 24427 24502 24127 24444 24518
4 24113 24428 24503 24128 24445 24519
5 17404 17414 17424 17434 17444 17454
6 24114 24430 24504 24129 24447 24520
7 17405 17415 17425 17435 17445 17455
8 24115 24431 24505 24130 24448 24521
10 24116 24432 24506 24131 24449 24522
13 24117 24433 24507 24132 24450 24523
15 17406 17416 17426 17436 17446 17456
16 24118 24434 24508 24133 24451 24524
20 24119 24435 24509 24134 24452 24525
25 24120 24436 24510 24135 24453 24526
30 17407 17417 17427 17437 17447 17457
32 24121 24437 24511 24136 24454 24527
35 17408 17418 17428 17438 17448 17458
40 24122 24438 24512 24137 24455 24528
50 24123 24439 24513 24138 24456 24529
60 17409 17419 17429 17439 17449 17459
63 24124 24440 24514 24139 24457 24530

Width in 9 mm

modules

Accessories Module CM907016

2 4

Version : 1.6

28/10/2015CM901039E

13

Protection
Circuit protection

C60 UL 1077 circuit breakers

(B, C and D curves)

Conformity with product standards

b UL 1077 additional protective devices, document #E90509.
b CSA C22.2 no. 235-04 additional protective devices, document #E179014.
b IEC 60947-2.

Catalogue numbers

C60 UL circuit breaker

Type 3P 4P

531

E27971- Sch 3P

642

Auxiliaries Remote indication and tripping, module CM907010

Curve Curve

Rating (In) B C D B C D

1 24140 24459 24532 24155 24476 24548

1.5 - - 17470
2 24141 24460 24533 24156 24477 24549
3 24142 24461 24534 24157 24478 24550
4 24143 24462 24535 24158 24479 24551
6 24144 24464 24536 24159 24481 24552
8 24145 24465 24537 24160 24482 24553
10 24146 24466 24538 24161 24483 24554
13 24147 24467 24539 24162 24484 24555
15 17461 17466 17471
16 24148 24468 24540 24163 24485 24556
20 24149 24469 24541 24164 24486 24557
25 24150 24470 24542 24165 24487 24558
30 17462 17467 17472
32 24151 24471 24543 24166 24488 24559
35 17463 17468 17473
40 24152 24472 24544 24167 24489 24560
50 24153 24473 24545 24168 24490 24561
60 17464 17469 17474
63 24154 24474 24546 24169 24491 24562

Width in 9 mm

modules

Accessories Module CM907016

6 8

E27971- Sch 3P

- - -

- - -

- - -

- - -

- - -

7531

8642

14

Version : 1.6

28/10/2015 CM901039E

Protection
Circuit protection

C60 UL 1077 circuit breakers

(B, C and D curves)

PB100997A_SE-40

DB118767

Clips onto 35 mm DIN rail.

DB122831

Any installation position.

IP40

DB123391

058967N

Connection kit for ring
terminal cat. no. 17400
(option).

UL 486A connections for copper wires,
document #E216919

Without accessory With accessory

Rating Tightening

torque

0.5 to 25 A
30 to 63 A

(1) 2 set-screw connectors + 2 separators for terminals (upstream / downstream) cat. no. 17400.

2.5 N.m (22 lb.in)

3.5 N.m (31 lb.in)

Cu wires Screw-on

connection for ring
terminal

DB122945

1 to 25 mm2 (#18 #4 AWG)
1 to 35 mm

2

(#18 #2 AWG)

DB118789

Ø 5 mm
Ø 5 mm

(1)

Technical data

Main characteristics

Voltage rating 480Y/277 V a

Insulation voltage 500 V
Pollution degree 3
Rated impulse withstand voltage (Uimp) 6 kV
Thermal tripping Reference temperature 25°C / 77°F
Magnetic tripping B curve In alternating current 4 In ± 20 %

In direct current 5.7 In ± 20 %

C curve In alternating current 8.5 In ± 20 %

In direct current 12 In ± 20 %

D curve In alternating current 12 In ± 20 %

In direct current 17 In ± 20 %
Limitation class 3
Rated breaking and making capacity on a single pole

(Icn1)

Additional characteristics

Degree of protection
(IEC 60529)

Endurance (O-C) Electrical 10,000 cycles

Operating temperature -30°C to +70°C
Storage temperature -40°C to +80°C
Tropicalization Treatment 2

Device in modular enclosure IP40
Tunnel terminal connection

480 Y / 277 V a
Ring terminal connection IP10

Mechanical 20,000 cycles

1P: 60 V c and 2P: 125 V c

Icn1 = Icn

IP20

(relative humidity 95 % at 55°C)

Weight (g/oz)

Type 1P 2P 3P 4P

C60 UL 110/3.88 220/7.75 330/11.64 440/15.52

Dimensions (mm)

DB112942

C60 UL 1077 Kit for ring terminals

Version : 1.6

28/10/2015CM901039E

DB110257

15

DC circuit supplementary
protectors for feeders /
distribution systems

DB105730

PB104013-34

IEC

DB123431

PB104014-34

C60H-DC

C curve

IEC/EN 60947-2, GB 14048.2,
UL1077 (Supplementary Protector TC 3)

The C60H-DC supplementary protectors are used in direct current circuits
(Industrial control and automations, transport, renewable energy...).
They combine the following functions of circuit protection against short-circuit and
overload currents, control and isolation.

e

Catalogue numbers

C60H-DC

Operating voltage
(Ue)

Rated voltage (Un) 250 V DC 500 V DC
Number of poles 1P 2P
Curve C C

Number of
modules of 9 mm

Diagrams

Standards UL1077 IEC 60947-2

Breaking capacity 5 kA / 250 V DC 20 kA / 110 V DC

Auxiliaries Remote indication and tripping, module CM907010

Rating (A)* UL 1077, IEC 60947-2, EN 60947-2, GB 14048.2

0.5 MGN61500 MGN61520

1 MGN61501 MGN61521

2 MGN61502 MGN61522

3 MGN61503 MGN61523

4 MGN61504 MGN61524

5 MGN61505 MGN61525

6 MGN61506 MGN61526

10 MGN61508 MGN61528

13 MGN61509 MGN61529

15 MGN61510 MGN61530

16 MGN61511 MGN61531

20 MGN61512 MGN61532

25 MGN61513 MGN61533

30 MGN61514 MGN61534

32 MGN61515 MGN61535

40 MGN61517 MGN61537

Rating (A)* IEC 60947-2, EN 60947-2, GB 14048.2

50 MGN61518 MGN61538

63 MGN61519 MGN61539

Accessories Module CM907016

* At 25°C / 77°F see temperature derating.

12…250 V DC 12…500 V DC

2 4

DB116587

Supply from above or below,
observing the polarity

EN 60947-2
GB 14048.2

10 kA / 220 V DC
6 kA / 250 V DC

DB116588

Supply from
above

UL1077 IEC 60947-2

5 kA / 500 V DC 20 kA / 220 V DC

or

Supply from
below

EN 60947-2
GB 14048.2

20 kA / 250 V DC
10 kA / 440 V DC
6 kA / 500 V DC

16

Version : 3.3

28/10/2015 CM901044E

DC circuit supplementary
protectors for feeders /
distribution systems

C60H-DC (cont.)

C curve

DB123310DB123312DB123391DB123538

Clip on DIN rail 35 mm.

Indifferent position of installation.

IP40

10

0.39

35

t

1.38

10

0.39

Technical data

b Tripping curves: C curve - Overcurrent protection for any type of application.
b Positive break indication - the green strip indicates that all the poles are open and

allows work to be carried out on the downstream circuit in complete safety.

b Suitable for isolation as dened in IEC / EN 60947-2.
b Increase in the service life of the product: thanks to fast closure independent of the

speed of action on the handle.

b Current limitation in the event of a fault: fast opening of the contacts prevents the

loads from being destroyed in the event of a short-circuit.

Main characteristics

Rated service breaking capacity (Ics)
Power loss
Magnetic tripping (Ii)
Rated impulse withstand voltage (Uimp)

under frame
Insulation voltage (Ui)

Endurance (O-C)

Electrical

Mechanical

Additional characteristics

Pollution degree
Utilization category

Degree of protection
(IEC 60529)

Tropicalization
(IEC 60068-2 and GB 14048.2)

Operating temperature
Storage temperature

Device in modular
enclosure

75 % of the ultimate breaking capacity (Icu)
See module 92517

8.5 In (± 20 %) (compatible with curve C)
6 kV

500 V DC

3,000 cycles (where L/R=2 ms)
6,000 cycles where the circuit is resistive
20,000 cycles

3
A (no delay in accordance with IEC/EN 60947-2

standards)
IP40

Relative humidity: 95 % at 55°C / 131°F

-25°C to 70°C / -13°F to 158°F

-40°C to 85°C / -40°F to 185°F

35

1.38

t

Details of minimum distance between circuit-breaker
and earthed metal parts for circuit-breaker intended for
use without enclosure.

Dimensions (mm/in)

DB116740

Failure to match polarity during connection may
lead to a fire hazard and/or serious injury.

PB104015-24

d

b The connection polarity must be observed

(marked on the front panel).

b Use only with direct current.
b If two poles are used in series for the American

network, use at least a 12 inch / 30 cm cable.

Weight (g)

Circuit-breaker

Type C60H-DC

1P 128 g / 4.51 oz
2P 256 g / 9.03 oz

DB116741

C60H-DC Kit for ring terminals

Version : 3.3

28/10/2015CM901044E

17

DC circuit supplementary
protectors for feeders /
distribution systems

Curves

Tripping curves

C curve as in standard IEC 60947.2

b The operating range of the magnetic release is as follows between 7 In and 10 In.
b The curves show the cold thermal tripping limits when poles are charged and the electromagnetic tripping limits

with 2 charged poles.

b The curves are used without any derating.

C60H-DC (cont.)

C curve

t (s)

DB122667

1000

100

10

1

0,1

0.01

0.51 10

Short circuit current limiting

220 V with 1P, 440 V with 2P 250 V with 1P, 500 V with 2P

1000000

DB123591

s)

2

Limited energy (A

100000

10000

1000

10 ms

50 -63

32 -40

20 -25

16

10

6

4

3

0.5 -2

DB123590

1000000

100000

s)

2

10000

Limited energy (A

1000

10 ms

I / In

50 -63

32 -40
20 -25

16

10
6

4

3
2

18

100

Prospective current (kA rms)

1001010.10.01

Version : 3.3

100

Prospective current (kA rms)

0.5 -1

28/10/2015 CM901044E

1001010.10.01

DC circuit supplementary
protectors for feeders /

C60H-DC (cont.)

C curve

distribution systems

Curves (cont.)

Thermal stress limitation curve

220 V with 1P, 440 V with 2P 250 V with 1P, 500 V with 2P

DB123588

100

10

Peak current (kA)

0.1

50 - 63
32 - 40

20 - 25
16
10
6

1

Prospective current (kA rms) Prospective current (kA rms)

4

3

2

≤ 1

1001010.10.01

DB123589

100

10

Peak current (kA)

1

0.1

Temperature derating (according to UL 1077/ CSA22.2/ UL489A/ UL489/ IEC 60947-2 standards)

The maximum permissable current in a device depends on the ambient temperature in which it is placed.
Ambient temperature is the temperature inside the enclosure or switchboard in which the devices have been
installed.
The reference temperature is in the coloured column.

When several simultaneously operating devices are mounted side by side in a small enclosure, the temperature
rise inside the enclosure causes a reduction in the current rating. A reduction cœfcient of the order of 0.8 must

therefore be allocated to the rating (already derated if it depends on the ambient temperature).

50 - 63
32 - 40

20 - 25
16
10
6
4
3
2

≤ 1

1001010.10.01

Temperature

-30 -25 -20 -15 -10 -5 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70

(°C)

Ratings (A)

0.5 0.63 0.62 0.61 0.60 0.59 0.58 0.56 0.55 0.54 0.53 0.51 0.5 0.49 0.47 0.46 0.44 0.43 0.41 0.39 0.38 0.36
1 1.18 1.17 1.15 1.14 1.12 1.10 1.09 1.07 1.05 1.04 1.02 1 0.98 0.96 0.94 0.92 0.90 0.88 0.86 0.84 0.82

1.2 1.45 1.43 1.41 1.39 1.37 1.34 1.32 1.30 1.27 1.25 1.22 1.2 1.17 1.15 1.12 1.09 1.07 1.04 1.01 0.98 0.95

1.5 1.86 1.83 1.80 1.77 1.74 1.71 1.67 1.64 1.61 1.57 1.54 1.5 1.46 1.42 1.39 1.34 1.30 1.26 1.22 1.17 1.12
2 2.54 2.50 2.45 2.41 2.36 2.31 2.26 2.21 2.16 2.11 2.06 2 1.94 1.88 1.82 1.76 1.70 1.63 1.56 1.48 1.41
3 3.78 3.71 3.65 3.58 3.51 3.45 3.38 3.30 3.23 3.16 3.08 3 2.92 2.84 2.75 2.66 2.57 2.48 2.38 2.27 2.17
4 5.08 4.99 4.90 4.81 4.71 4.62 4.52 4.42 4.32 4.22 4.11 4 3.89 3.77 3.65 3.53 3.40 3.27 3.13 2.98 2.83
5 6.00 5.92 5.83 5.74 5.66 5.57 5.48 5.39 5.29 5.20 5.10 5 4.90 4.80 4.69 4.58 4.47 4.36 4.24 4.12 4.00
6 7.26 7.15 7.04 6.94 6.83 6.71 6.60 6.48 6.37 6.25 6.12 6 5.87 5.74 5.61 5.47 5.33 5.19 5.04 4.89 4.73
7 8.76 8.62 8.47 8.32 8.17 8.01 7.85 7.69 7.52 7.35 7.18 7 6.82 6.63 6.44 6.24 6.03 5.82 5.60 5.37 5.13
8 9.64 9.50 9.36 9.22 9.08 8.93 8.78 8.63 8.48 8.32 8.16 8 7.83 7.67 7.49 7.31 7.13 6.95 6.76 6.56 6.36
10 12.59 12.38 12.16 11.94 11.71 11.49 11.25 11.01 10.77 10.52 10.26 10 9.73 9.45 9.17 8.87 8.57 8.25 7.92 7.58 7.22
13 15.49 15.28 15.07 14.85 14.63 14.41 14.19 13.96 13.72 13.49 13.25 13 12.75 12.49 12.23 11.97 11.69 11.41 11.13 10.83 10.53
15 18.61 18.31 18.01 17.70 17.38 17.06 16.74 16.40 16.07 15.72 15.36 15 14.63 14.25 13.85 13.45 13.03 12.60 12.16 11.69 11.21
16 19.43 19.14 18.85 18.55 18.25 17.95 17.64 17.32 17.00 16.68 16.34 16 15.65 15.29 14.93 14.56 14.17 13.78 13.37 12.95 12.52
20 24.06 23.72 23.37 23.02 22.67 22.31 21.94 21.56 21.18 20.80 20.40 20 19.59 19.17 18.74 18.30 17.85 17.39 16.92 16.43 15.93
25 30.35 29.91 29.45 28.99 28.52 28.05 27.56 27.07 26.57 26.06 25.53 25 24.46 23.90 23.33 22.74 22.14 21.53 20.89 20.24 19.56
30
32 38.45 37.91 37.36 36.80 36.24 35.66 35.08 34.48 33.88 33.27 32.64 32 31.35 30.68 30.00 29.31 28.59 27.86 27.11 26.34 25.54
35 44.15 43.40 42.63 41.86 41.06 40.25 39.42 38.58 37.72 36.83 35.93 35 34.05 33.06 32.05 31.01 29.93 28.81 27.64 26.42 25.14
40 48.92 48.17 47.42 46.65 45.87 45.08 44.28 43.45 42.62 41.76 40.89 40 39.09 38.16 37.20 36.22 35.21 34.17 33.10 31.99 30.84
50 59.93 59.09 58.25 57.39 56.52 55.63 54.74 53.82 52.89 51.95 50.98 50 49.00 47.97 46.93 45.86 44.77 43.64 42.49 41.31 40.09
60 76.16 74.83 73.48 72.11 70.71 69.28 67.82 66.33 64.81 63.25 61.64 60 58.31 56.57 54.77 52.92 50.99 48.99 46.90 44.72 42.43
63 78.16 76.91 75.63 74.33 73.01 71.67 70.30 68.90 67.47 66.02 64.53 63 61.44 59.83 58.18 56.49 54.74 52.93 51.06 49.12 47.10

37.35 36.74 36.12 35.50 34.86 34.21 33.54 32.86 32.17 31.46 30.74 30 29.24 28.46 27.66 26.83 25.98 25.10 24.19 23.24 22.25

Version : 3.3

28/10/2015CM901044E

19

DC circuit supplementary
protectors for feeders /

C60H-DC (cont.)

C curve

distribution systems

Connection Without accessory With accessories

DB123537

14 mm

Rating Tightening

torque

6.5 mm

PZ2

Copper cables 50 mm²

Al

Rigid /
Stranded

Flexible or
with ferrule

terminal

Screw-on

connection

for ring

terminal

Multi-cables

terminal

Rigid
cables

Flexible
cables

O-OFF

O-OFF

y 25 A 2.5 N.m /

> 25 A 3.5 N.m /

22 lb.in

31 lb.in

DB122945

1 to 25 mm

#18 - #4 AWG

1 to 35 mm

#18 - #2 AWG

DB122946

2

2

1 to 16 mm

#18 - #6 AWG

1 to 25 mm

#18 - #4 AWG

Multi-cables connection Without accessory

DB123537

O-OFF

14 mm

O-OFF

Rating Tightening

torque

6.5 mm

PZ2

y 25 A 2.5 N.m /

22 lb.in

> 25 A 3.5 N.m /

31 lb.in

2 Copper cables 3 Multi-cables / Different wires

Rigid /
Stranded

DB122945

2 x 1 mm2 to 2 x 10 mm

2 x 18 AWG - 2 x 8 AWG

2 x 1 mm

2 x 18 AWG - 2 x 6 AWG

Flexible or
with ferrule

DB122946

2

to 2 x 16 mm

2

2

2

2

DB122935

50 mm

1 AWG

-

Flexible /
Stranded

DB118787

3 x 1 mm

3 x 18 AWG

3 x 4 mm

3 x 6 AWG

DB118789

2

Ø 5 mm 3 x 16 mm

2

2

DB118787

2

3 x 6 AWG

3 x 10 mm

3 x 8 AWG

Flexible / Stranded /
Rigid

2 x 2.5 mm

2 x 13 AWG + 1 x 15 AWG

2 x 10 mm

2 x 8 AWG + 1 x 9 AWG

2

+ 1 x 1.5 mm

2

+ 1 x 6 mm

2

2

2

20

Version : 3.3

28/10/2015 CM901044E

Protection

mm

Earth leakage protection

DB105727

PB101614A50_SE

UL 1053 residual current circuit breakers already
protected upstream by a short-circuit and
overload protection device are used for:

b control and disconnection of electric circuits
b protection of people against electric shock by

direct and indirect contacts
b protection of installations against insulation
faults.
They comply with RCD standards UL 1053 and
IEC61008.

They guarantee:
b enhanced continuity of supply, during a series of
close lightning strokes, IT earthing system,
equipment including interference suppression
filters, variable speed controllers, frequency
converters, electronic ballasts for lighting
b enhanced earth leakage protection: in presence
of harmonics or high frequency rejections.

IEC

GFP - Ground Fault Protector

UL 1053
IEC 61008

IEC/EN 61008-1
UL 1053

GFP UL 1053 type AC SI

Technical data

Voltage rating +10 %, -15 % 2P 120 or 240 V a 60 Hz

Current rating (ln) at 40°C 25…100 A
Making and breaking capacity: rated

residual current (IDm)
Rated impulse withstand voltage (Uimp) 6 kV
Utilisation category AC 23A
Level of immunity In current wave 8/20 µs: 3 kÂ

Short-circuit current withstand (IDc = Inc)
Test button minimum operating

voltage
Phase-to-phase test circuit To avoid external bridging on use on three-phase

Locking possible in “tripped” position By padlocking facility (not supplied)

Release with xed sensitivity for all

ratings

Behaviour in case of voltage drop

Earth fault indication On front face by red mechanical indicator
Number of cycles (O-C) 20,000 cycles
Tropicalisation Treatment 2 (relative humidity: 95 % at 55°C)
Degree of protection as per IEC 60529 On front face: IP40/IPXXB

Operating temperature

Storage temperature -40°C to +70°C

230 or 240 V a 50 Hz

2P 480Y/277 V a 60 Hz

240 V a 60 Hz
230/400 or 240/415 V a 50 Hz

4P 480Y/277 V a 60 Hz

240 V a 60 Hz
230/400 or 240/415 V a 50 Hz

1 000 A

In dampened recurrent current wave

0.5 µs/100 kHz: 200 A
10 kA with 100 A gG upstream fuse

2P 113 V AC
4P 189 V AC

network without neutral

Instantaneous release:
UL 1053 : ±15 %
IEC 61008 : +0 %, -50 %

Residual current protection down to 0 V
according to IEC/EN 61008-1 § 3.3.4

Tunnel terminal connection: IP20/IPXXB

-25°C to +60°C

SI type GFPs are ideal for operation in

environments with a humid atmosphere and/or
polluted by aggressive agents: swimming pools,
marinas, agri-food industries, water treatment
stations, industrial sites, etc.

IP20 IP40

DB132922

Weight (g/oz)

GFP UL 1053 type AC SI

Type GFP

2P 220 / 7.7
4P 450 / 15.9

UL 486A connections for copper wires,
document #E216919

Rating Tightening

torque

25 to 100 A 3.5 N.m (31 lb.in) 1 to 35 mm2 (#18 #2 AWG)

Cu wires

DB122945

Dimensions (mm)

in

4P

36

2P

1.42

DB124109

Version : 1.5

72

2.83

6

0.24

81

3.19

60

2.36

44

1.73

28/10/2015CM902013E

9

0.35

45

1.77

21

Protection
Earth leakage protection

PB101614A38_SEPB101615A38_SE

GFP - Ground Fault Protector

UL 1053
IEC 61008

Catalogue numbers

GFP UL 1053 type AC SI

Rating

AC type SI

Auxiliaries Remote indication and tripping, module CM907025

2P

DB109525DB109526

SI

AC type

4P

Accessories Module CM907026

Sensitivity

(A)

(mA)
UL

IEC 61008 120 or 240 V

1053

25 26 30 60949 60969 4

86 100 60950 60971
260 300 60951 -

40 26 30 60952 60972

260 300 60954 -

63 26 30 60955 -

Rating

Sensitivity

(A)

(mA)
UL

IEC 61008

1053

25 26 30 - 60989 8

86 100 - 60990
260 300 - 60991

40 26 30 - 60992

260 300 - 60994

63 26 30 - 60995

86 100 - 60996

100 86 100 - 60999

Cat. no. Width in

230 or 240 V

240 V
480Y/277 V
230/400 or
240/415 V

Cat. no.
240 V
480Y/277 V
230/400 or
240/415 V

mod.
of 9 mm
(0,354 in.)

Width in
mod.
of 9 mm
(0,354 in.)

Coordination

Short-Circuit Current Rating (SCCR)

The Ground-Fault Protector GFP must be used with upstream overcurrent protection
suitable for the circuit. GFP is suitable for use on a circuit capable of delivering not
more than values (kA) below when protected by devices listed below.

Overcurrent Protection Required for UL applications of GFP

Circuit breaker type

C60 240 V C60 277 V C60 480Y/277 V QOU QO HDL

240 V a 277 V a
1P and 2P 3P 1P 2P 3P 1P and 2P 3P 1P and 2P 3P 2P

GFP 25 A 25 A 20 A 20 A 20 A 25 to 70 A 25 to 100 A 25 to 70 A 25 to 100 A 25 to 50 A

2P 240 V a
2P 480Y/277 V a
4P 480Y/277 V a

(1) include all amperages of GFP

(1)

(1)

(1)

10 Max short-Circuit Current withstand (kA)

10 - - - - 10 - 10 - 65

- - 10 10 - - - - - -

- 10 - - 10 - 10 - 10 -

480Y/277 V a 120 or 240 V a

240 V a 120 or 240 V a 240 V a 240 V a

22

Version : 1.5

28/10/2015 CM902013E

Protection
Circuit protection

DB105727

DB105730

DB105728

DB105729

IEC

Electrical auxiliaries
for C60 UL devices

Compliance with electrical auxiliaries standards

b For UL 489 circuit breaker File #217688.
b For CSA C22.2 No. 5.2 circuit breakers File #179014.
b For UL 1077 Supplementary Protectors File #E90509.
b For CSA C22.2 No. 235-M04 Supplementary Protectors File #179014.
b For IEC 60947-2 and IEC 60947-5-1 circuit-breakers.
b CE Marked.

b The electrical auxiliaries are combined with
C60 UL circuit breakers.
b They perform the functions of tripping or
remote indication of the position (open/closed/
tripped) of circuit breakers in the event of a fault.
b They are installed by clip-on mounting (without
tools) to the left of the circuit breaker.

Indication

DB405975

Tripping

Combination table

Electrical auxiliaries Electrical auxiliaries

+

1 OF 1 SD or OF 2 (MN, MX+OF) maxi

+

+

Devices

C60 UL

d

DB1261475

Tripping devices must be installed first.

0.16 inch (4 mm)

PZ1

0.35 inch

(9 mm)

Connection

Type Tightening torque Copper wires

Rigid

DB122946DB405990

Indication and
tripping auxiliaries

Version : 1.3

9 lb.in (1 N.m) 2 wires, #16 AWG (1.5 mm2)

or

1 wires, #14 AWG

28/10/2015CM907010E

(2.5 mm2)

23

Protection

68

68

Electrical auxiliaries

Circuit protection

for C60 UL devices

Tripping Indication

Auxiliaries MN MX+OF OF SD

Type Undervoltage release Shunt release Open/closed

auxiliary
contact

Instantaneous With open/closed

auxiliary contact

Fault indicating
switch

PB100202-SE-3008603084

Function

Wiring diagrams

Use

Catalogue numbers 27105 27106 27107 27108 27109 27110 27118 26925 26928

Technical specications

Rated voltage
(Ue)

Mechanical status
indicator, red
Test function – – – On front panel On front panel

Width in 9 mm modules 2 2 2 1 1
Current rating – – 3 A / 415 V AC

Number of contacts – – 1 NO/NC 1 NO/NC 1 NO/NC
Operating
temperature
Storage
temperature

V AC,
50/60 Hz
V DC – 48 – 24 110...125 48 12…24 12…130 12…130

°C -25…+50 -25…+50 -25…+50 -25…+50 -25…+50

°C -40…+85 -40…+85 -40…+85 -40…+85 -40…+85

b Causes tripping of the device with which it is

combined when its input voltage decreases (between
70 % and 35 % of Un)

b Prevents closing of the device until its input voltage

has been restored

u <

D1 D2

b Emergency stoppage by normally closed push

button

b Ensures the safety of power supply circuits for

several machines by preventing untimely restarting

220…240 48 120 24 120...277 48 12…24 220…240 220…240

On front panel On front panel On front panel _ On front panel

PB100198-SE-30

b Causes tripping of the

associated device when
powered

b Includes an open/closed

contact (OF) to indicate the
"open" or "closed" position of the
associated device

08603083

b Emergency stoppage by

normally open push button

b Remote indication of the

position of the associated device

6 A / y 240 V AC

u >

C11214 C2

PB100626-SE-3008603086

b Changeover

contact indicating
the "open" or
"closed" position of
the associated
device

1214 11

b Remote

indication of the
position of the
associated device

3 A /415 V AC
6 A / y 240 V AC

PB100627-SE-30

b Changeover contact

indicating the position of
the associated device in
the event of:

v an electrical fault
v actuation of the tripping

auxiliary

b Same indication

function as VISI-TRIP

08603085

92 9194

b Remote indication of

tripping upon a fault in the
associated device

24

Dimensions

18

DB405992

82.581

60

44

45

5.55.5

9

81

85

MN, MX+OF OF, SD

Version : 1.3

28/10/2015 CM907010E

60

44

45

Version : 2.2

28/10/2015CM907016E

25

Protection

Accessories for C60UL489,

Circuit protection
Earth leakage protection

C60UL1077, GFPUL1053,
C60H-DC, devices

Installation Safety

Accessories Rotary handle Plug-in base Padlocking device Accessories Screw shield Terminal shield Interpole barrier Spacer

PB100138_SE-24PB100137_SE-24

PB111764-40

057209J_SE-20

Function Function

Front or side control of 2, 3 and 4-pole circuit
breakers or GFP

b Degree of protection: IP40
b A complete rotary handle consists of:

v a circuit-breaker operating sub-assembly, cat.

no. 27046,

v a handle cat. no. 27047 or a handle cat. no.

27048

b Installation:

v the circuit-breaker operating sub-assembly cat.

no. 27046 is xed to the circuit breaker or to the
GFP

v the removable handle cat. no. 27047 is mounted

on the removable front panel or on the enclosure
door

v the xed handle cat. no. 27048 is xed to the

front or side panel of the enclosure

Cat. numbers 27047

Removable
extended
handle

Set of 1 1 1 1 2 Set of 2 (4P dividable) 2 (for upstream/downstream

Suitable for the following devices: Suitable for the following devices:

C60 UL489 b 2P, 3P – b C60 UL489 – – – – b
C60 UL1077 b b b C60 UL1077 b b b b b
GFP UL1053 b 2P, 4P b b GFP UL1053 b – b b b
C60H-DC b 2P b b C60H-DC b b b b 2P b

27048

Fixed
handle

27046

Operating
sub-assembly

Allows a circuit breaker to be quickly removed
or replaced, without touching the connections

b Degree of protection: IP20
b It consists of:
v a base to be xed to a rail (or panel)
v 2 “blades” to be xed in the device terminals
b Connection: tunnel terminals for cables up to

50 mm² (rigid) or 35 mm² (exible)

b Installation:
v on backplate
v on a horizontal rail
b Centreline between two rows: 200 mm
b Only on the circuit breaker, without a Vigi device

or auxiliary

b Padlocking option (8 mm dia. padlock not

supplied)

26996

(1 per pole)

Used to padlock a device in the
"open" or "closed" position

b Diameter of the padlock: 8 mm max.
b Locking in the ON position does not

prevent the device from tripping in the
event of a fault

b Isolation: in conformity

with IEC/EN 60947-2.

26970 Cat. numbers 26981 26975 26976 27001 27062

26

Version : 2.2

28/10/2015 CM907016E

Protection
Circuit protection
Earth leakage protection

Accessories for C60UL489,
C60UL1077, GFPUL1053,
C60H-DC, devices (cont.)

PB124114

Prevents all contact with the xing screws

b The degree of protection becomes IP40
b Sealable, max. diameter 1.2 mm
b Dividable

056869_SE-38

Prevents all contact with the
terminals

b Degree of protection becomes IP40
b Sealable, max. diameter 1.2 mm

b 1P b 2P

b 3P: 1 x 26975 + 1 x 26976
b 4P: 2 x 26976

terminal)

DB123898

Improves the
insulation between the
connections: cables,
terminals, lugs, etc.

10 1

PB104483-35

b Used to:
v complete the rows
v separate the devices
b Width: 1 x 9 mm

module

b Allows that 2 cables

are routed from one row
to another (above and
below), up to 6 mm²

Version : 2.2

28/10/2015CM907016E

27

Protection

Accessories for C60UL489,

Circuit protection
Earth leakage protection

C60UL1077, GFPUL1053,
C60H-DC, devices (cont.)

Connection

Accessories Multi-cable terminal 50 mm² Al terminal Screw-on

connection for
ring terminal

Connection kit for ring
terminals

DB118780

DB118782

DB123897

058967N-23

Function

For 3 copper cables:

b Rigid up to 16 mm²
b Flexible up to 10 mm²

DB118787

Cat. numbers 19091 19096 27060 27053 17400

Set of 4 3 1 8 2

C60 UL489 – – – – –
C60 UL1077
GFP UL1053
C60H-DC
Tightening torque 2 N.m 10 N.m 2 N.m –

Stripping length 11 mm 13 mm – –
Tools to be used Diameter 5 mm or PZ2 Hc 1/5" or 5 mm Diameter 5 mm Diameter 5 mm

b b b b b
b b b b b
b b b b b

For 16 to 50 mm²
aluminium cables

DB122935

For lug tipped cables,
front or rear mounting

DB118789

5 mm

For terminal up to 63 A, front or
rear access (screw Ø 5 mm)

b It incorporates a "conductive"

part and an "insulating" part which
ensures the phase-to-phase
clearance

Identication

Accessories Clip-on terminal marker strip

031204D_SE-23

Function For connection identication

Cat. numbers 0: AB1-R0

1: AB1-R1
2: AB1-R2
3: AB1-R3
4: AB1-R4
5: AB1-R5
6: AB1-R6
7: AB1-R7
8: AB1-R8
9: AB1-R9

Set of 250

C60 UL489 b 4 markers max. per pole
C60 UL1077 b 4 markers max. per pole
GFP UL1053 b 4 markers max. per pole

C60H-DC b 4 markers max. per pole

A: AB1-GA
B: AB1-GB
C: AB1-GC
D: AB1-GD
E: AB1-GE
F: AB1-GF
G: AB1-GG
H: AB1-GH
I: AB1-GI
J: AB1-GJ

K: AB1-GK
L: AB1-GL
M: AB1-GM
N: AB1-GN
O: AB1-GO
P: AB1-GP
Q: AB1-GQ
R: AB1-GR
S: AB1-GS
T: AB1-GT

U: AB1-GU
V: AB1-GV

W: AB1-GW

X: AB1-GX
Y: AB1-GY
Z: AB1-GZ
+: AB1-R12

-: AB1-R13
Blank : AB1-RV

28

Version : 2.2

28/10/2015 CM907016E

Protection
Circuit protection

DB105730

Connection
accessories

DB105729

IEC

Comb busbars Accessory

Comb busbar Tooth cover end-piece

DB405227

Connection comb busbars

for C60SP circuit breakers UL 1077
supplementary protection

The comb busbars are used only for C60SP circuit breakers UL 1077 supplementary
protection in conformity with standards:
UL 1077 / CSA C22.2 No. 235 / IEC 60947-2 / GB 14048-2

They perform distribution and subdistribution of the electric power supply and allow

rapid assembly and disassembly of equipment.

058963N-15

62233-10

Function

b The comb busbars make it easier to install Schneider Electric circuit breakers

UL 1077 supplementary protection

b Power supply directly in the cage of the circuit-breaker

Number of poles 1P 2P 3P All
Voltage rating (Ue) 480Y/277 V AC 480Y/277 V AC 480Y/277 V AC –

Catalogue numbers 10285 10286 10287 60488

Number of 18 mm modules 12 (8.5 inches/216 mm) 12 (8.5 inches/216 mm) 12 (8.5 inches/216 mm) –

Set of

1 1 1 20

b The Tooth Caps are insulated protectors which

may be slipped onto the unused teeth of the comb
busbar

b They come in strips with 1-pole spacing, but

can be snapped apart to be used individually

Technical specications

Insulation voltage (Ui) 690 V –
Impulse withstand voltage

(Uimp)
Acceptable current at 40°C (Ie) 63 A with 1 central power supply point 100 A with 2 power supply points –

12 kV under 240 V
5 kV under 480Y/277 V or 277 V

DB110396

–

DB110397

b Power supply via cable directly in the cage of the device:
v cross section maxi: 3 AWG (25 mm

Resistance to short-circuit
currents

Fire resistance Self-extinguishability 960°C 30 s/30 s
Colour RAL 9001 RAL 1021

v cross section mini: 10 AWG (5.27 mm

Compatible with the breaking capacity of C60

2

)

2

)

SP Schneider Electric circuit breakers UL 1077 supplementary protection

Dimensions (inches/mm)

8.5

(216)

DB405991

0.7

Version : 1.1

7.8

(198)

28/10/2015CM907011E

(18)

0.15
(3.8)

(35)

0.44

(11.2)

0.87

1.4

(22)

0.5

0.06

(13)

(1.5)

29

Complementary
technical information

C60 limitation curve

Thermal stress

IEC

C60

UL 489 / CSA C22.2 No. 5-02, UL 1077 / CSA C22.2 No. 235-04 UL 489 / CSA C22.2 No. 5-02, UL 1077 / CSA C22.2 No. 235-04

Ue : y 277 V a (UL 489 - UL 1077) 1P Ue : y 277 V a 2, 3, 4P

DB126151

UL 1077 / CSA C22.2 No. 235-04

Ue : 480Y / 277 V a 2, 3, 4P

DB126152

DB126153

30

28/10/2015Version : 2.6

CM908004E

Complementary
technical information

C60 limitation curve

Peak current

IEC

C60

UL 1077 / CSA C22.2 No. 235-04 UL 489 / CSA C22.2 No. 5-02, UL 1077 / CSA C22.2 No. 235-04

Ue : y 240 V a (UL 489 - UL 1077) 1P Ue : y 240 V a 2, 3, 4P

DB126151

UL 1077 / CSA C22.2 No. 235-04 UL 1077 / CSA C22.2 No. 235-04

Ue : y 277 V a (UL 1077) 1P Ue : 480Y / 277 V a 2, 3, 4P

DB126152

DB126153

DB126153

CM908004E

28/10/2015Version : 2.6

31

Complementary
technical information

C60 tripping curves

UL 489 Listed C60
Miniature Circuit Breakers

IEC

C60

UL489 Listed C60N - C curve - AC/DC UL 489 Listed C60N - D curve - AC/DC

DB406168

10000

3600 s for
I/In = 1.05

1000

3600 s for
I/In = 1.3

IEC 60947-2 / GB 14048-2

Operating range of the magnetic trip unit:

b C curve :
v in alternative current: 8.5 In ± 20 %
v in direct current: 12 In ± 20 %
b D curve :
v in alternative current: 12 In ± 20 %
v in direct current: 17 In ± 20 %

The curves represent: the thermal tripping limits at low temperatures (25 °C),
poles loaded.

DB406778

10000

3600 s for
I/In = 1.05

1000

3600 s for
I/In = 1.3

t(s)

100

0.1

0.01

100

10

1

AC

t(s)

DC DC

1

I / In

8.5

±20%

±20%

12

0.1

0.01

10

1

1

I / In

AC

12

±20%

±20%

17

32

28/10/2015Version : 2.6

CM908004E

Complementary

10000

10000

10000

technical information

C60 tripping curves

UL 1077 Recognized Supplementary
Protectors

IEC

C60

UL 1077 Recognized C60 - B curve - AC/DC UL 1077 Recognized C60 - C curve - AC/ DC

IEC 60947-2 / GB 14048-2

Operating range of the magnetic trip unit:

b B curve :
v in alternative current: 4 In ± 20 %
v in direct current: 5.7 In ± 20 %
b C curve :
v in alternative current: 8.5 In ± 20 %
v in direct current: 12 In ± 20 %
b D curve :
v in alternative current: 12 In ± 20 %
v in direct current: 17 In ± 20 %

The curves represent: the thermal tripping limits at low temperatures (25 °C),
poles loaded.

3600 s for

DB406171

t(s)

3600 s for
I/In = 1.05

1000

100

I/In = 1.3

10

AC

1

0.1

0.01

±20%

4

I / In

UL 1077 Recognized C60 - D curve - AC/DC

3600 s for

DB406808

3600 s for
I/In = 1.05

1000

I/In = 1.3

5.7

DC

±20%

3600 s for

DB406172

3600 s for
I/In = 1.05

1000

100

t(s)

0.1

101

0.01

I/In = 1.3

10

1

AC

DC

1

I / In

8.5

±20%

±20%

12

100

t(s)

10

1

0.1

0.01

CM908004E

AC

DC

1

I / In

±20%

12

±20%

17

28/10/2015Version : 2.6

33

Complementary
technical information

IEC

Temperature derating C60

UL 1077 / CSA C22.2 No. 235-04
UL 489 / CSA C22.2 No. 5-02

Inuence of temperature on the operation

Circuit breakers

High temperatures

b A rise in temperature causes lowering of the thermal threshold

(tripping on overload).

b Protection is still ensured: the tripping threshold remains lower than the current

acceptable by the cable (Iz)

b To prevent nuisance tripping, it should be checked that this threshold remains

higher than the maximum operating current (IB) of the circuit, dened by:

v the rated load currents,
v the coefcients of expansion and simultaneity of use.

If the temperature is sufciently high for the tripping threshold to become lower than

the operating current I

Low temperatures

b A fall in temperature increases the thermal tripping threshold of the circuit breaker.
b There is no risk of nuisance tripping: the threshold remains higher than the

maximum operating current of the circuit (I

b It should be checked that the cable remains suitably protected, i.e. that its

acceptable current (Iz) is higher than the values shown in the following tables
(in amperes).

, switchboard ventilation should be provided for.

B

) demanded by the loads.

B

When the ambient temperature could vary within a broad range, both these aspects

must be taken into account:

b the difference between the maximum operating current of the circuit (I

tripping threshold of the circuit breaker for the minimum ambient temperature,

b the difference between the strength of the cable (IZ) and the maximum tripping

threshold of the circuit breaker for the maximum ambient temperature.

Maximum permissible current

b The maximum current allowed to ow through the device depends on the ambient

temperature in which it is placed.

b The ambient temperature is the temperature inside the enclosure or switchboard

in which the devices are installed.

b The reference temperature is in a halftone colour for the different devices.
b When several devices operating simultaneously are mounted side by side in a

small enclosure, a temperature rise in the enclosure results in a reduction in the

operating current. A reduction coefcient of 0.8 will then have to be assigned to the

rating (already derated, if applicable, depending on the ambient temperature).

b Example:

Depending on the ambient temperature and the method of installation, the table
below shows how to determine, for a C60 the operating currents not to be exceeded
(reference temperature 25°C).

The reference temperature is in half-tone colour.

Rating

-30°C -25°C -20°C -15°C -10°C -5°C 0°C 5°C 10°C 15°C 20°C 25°C 30°C 35°C 40°C 45°C 50°C 55°C 60°C 65°C 70°C

(A)

-22°F -13°F -4°F 5°F 14°F 23°F 32°F 41°F 50°F 59°F 68°F 77°F 86°F 95°F 104°F 113°F 122°F 131°F 140°F 149°F 158°F

0.5

0.61 0.60 0.59 0.58 0.57 0.56 0.55 0.54 0.53 0.52 0.51 0.5 0.49 0.48 0.47 0.45 0.44 0.43 0.42 0.40 0.39

1

1.35 1.33 1.30 1.27 1.24 1.21 1.17 1.14 1.11 1.07 1.04 1 0.96 0.92 0.88 0.83 0.79 0.74 0.69 0.63 0.56

1.2

1.52 1.49 1.46 1.44 1.41 1.38 1.35 1.32 1.29 1.26 1.23 1 1.17 1.13 1.10 1.06 1.02 0.99 0.94 0.90 0.86

1.5

1.88 1.85 1.82 1.79 1.75 1.72 1.68 1.65 1.61 1.58 1.54 1.5 1.46 1.42 1.38 1.33 1.29 1.24 1.20 1.15 1.09

2

2.52 2.48 2.44 2.39 2.35 2.30 2.25 2.20 2.16 2.10 2.05 2 1.95 1.89 1.83 1.77 1.71 1.65 1.58 1.51 1.44

3

3.75 3.69 3.62 3.56 3.49 3.43 3.36 3.29 3.22 3.15 3.08 3 2.92 2.84 2.76 2.68 2.59 2.50 2.41 2.31 2.21

4

5.02 4.93 4.85 4.76 4.67 4.58 4.49 4.40 4.30 4.20 4.10 4 3.89 3.79 3.67 3.56 3.44 3.32 3.19 3.06 2.92

5

6.19 6.09 5.99 5.89 5.79 5.68 5.57 5.46 5.35 5.24 5.12 5 4.88 4.75 4.62 4.49 4.35 4.21 4.06 3.91 3.75

6

7.77 7.63 7.48 7.33 7.18 7.02 6.86 6.70 6.53 6.36 6.18 6 5.81 5.62 5.42 5.21 4.99 4.76 4.52 4.27 4.00

7

8.61 8.48 8.34 8.20 8.06 7.92 7.77 7.63 7.47 7.32 7.16 7 6.83 6.66 6.49 6.31 6.13 5.94 5.74 5.54 5.33

8

9.94 9.78 9.62 9.45 9.28 9.11 8.94 8.76 8.57 8.39 8.20 8 7.80 7.59 7.38 7.16 6.94 6.71 6.47 6.22 5.96

10

12.43 12.23 12.02 11.82 11.60 11.39 11.17 10.95 10.72 10.48 10.24 10 9.75 9.49 9.23 8.96 8.67 8.38 8.08 7.77 7.45

13

15.64 15.42 15.19 14.97 14.73 14.50 14.26 14.02 13.77 13.52 13.26 13 12.73 12.46 12.18 11.90 11.60 11.30 11.00 10.68 10.35

15

18.07 17.81 17.55 17.28 17.02 16.74 16.47 16.18 15.90 15.60 15.30 15 14.69 14.37 14.05 13.72 13.38 13.03 12.67 12.30 11.92

16

18.88 18.64 18.39 18.14 17.89 17.63 17.37 17.10 16.84 16.56 16.28 16 15.71 15.42 15.12 14.81 14.50 14.18 13.86 13.52 13.18

20

24.65 24.26 23.87 23.47 23.07 22.65 22.23 21.81 21.37 20.92 20.47 20 19.52 19.03 18.53 18.01 17.48 16.93 16.37 15.78 15.17

25

30.71 30.24 29.76

30

37.35 36.74 36.12 35.50 34.86 34.21 33.54 32.86 32.17 31.46 30.74 30 29.24 28.46 27.66 26.83 25.98 25.10 24.19 23.24 22.25

32

38.45 37.91 37.36 36.80 36.24 35.66 35.08 34.48 33.88 33.27 32.64 32 31.35 30.68 30.00 29.31 28.59 27.86 27.11 26.34 25.54

35

44.15 43.40 42.63 41.86 41.06 40.25 39.42 38.58 37.72 36.83 35.93 35 34.05 33.06 32.05 31.01 29.93 28.81 27.64 26.42 25.14

40

48.92 48.17 47.42 46.65 45.87 45.08 44.28 43.45 42.62 41.76 40.89 40 39.09 38.16 37.20 36.22 35.21 34.17 33.10 31.99 30.84

50

59.93 59.09 58.25 57.39 56.52 55.63 54.74 53.82 52.89 51.95 50.98 50 49.00 47.97 46.93 45.86 44.77 43.64 42.49 41.31 40.09

60

76.16 74.83 73.48 72.11 70.71 69.28 67.82 66.33 64.81 63.25 61.64 60 58.31 56.57 54.77 52.92 50.99 48.99 46.90 44.72 42.43

63

78.16 76.91 75.63 74.33 73.01 71.67 70.30 68.90 67.47 66.02 64.53 63 61.44 59.83 58.18 56.49 54.74 52.93 51.06 49.12 47.10

29.27 28.77 28.26 27.74 27.22 26.68 26.13 25.57 25 24.41 23.81 23.20 22.57 21.92 21.25 20.55 19.84 19.09

) and the

B

34

28/10/2015Version : 2.6

CM908004E

Complementary
technical information

IEC

C60 power consumption

UL 1077 / CSA C22.2 No. 235-04
UL 489 / CSA C22.2 No. 5-02
UL 1053

What is the power consumption per pole?

Rating (A)

C60

0.5 1 1.2 1.5 2 3 4 5 6 7 8 10 13 15 16 20 25 30 32 35 40 45 50 60 63

2.61 1.35 2.00 1.97 1.70 1.91 1.96 2.16 1.22 1.41 1.66 1.90 2.37 2.25 2.59 2.18 2.68 2.73 3.87 3.08 3.92 4.14 4.60 4.98 5.23

The table below shows the device’s power consumption in watts for
each rating, per pole, under In:

Impedance calculation:

Z = P / I²

Z: impedance in Ohms

P: dissipated power in Watts (table values)

I: rating in Amperes

Voltage drop calculation:

U = P / I

U: voltage drop in Volts

P: dissipated power in Watts (table values)

I: rating in Amperes

CM908004E

28/10/2015Version : 2.6

35

Schneider Electric Industries SAS

35, rue Joseph Monier
CS 30323
F- 92506 Rueil Malmaison Cedex

As standards, specications and designs change from time to time, please ask for conrmation
of the information given in this publication.

Printed on ecological paper

Publishing: Schneider Electric
Design: Sonovision
Printing:

© 2015 Schneider Electric - All rights reserved

CM909003EN

10-2015
