Page 1
™
Spicer® TIMS
(Tire Inflation and Monitor System)
for Trailers
Illustrated Parts List
AXIP-0025
March 2007
Page 2
Page 3
Table of Contents
Table of Contents
Table of Contents...............................................................................................................1
General Information...........................................................................................................2
How to Order Parts............................................................................................................3
TIMS Parts - Control Components.....................................................................................4
TIMS Parts - Harness, Axle & Spindle Components..........................................................5
TIMS Parts - Wheel End Components...............................................................................6
TIMS Parts - Service Components....................................................................................7
Quick Part Number Replacement List ...............................................................................7
Retrofit Kits........................................................................................................................8
Index..................................................................................................................................9
1
Page 4

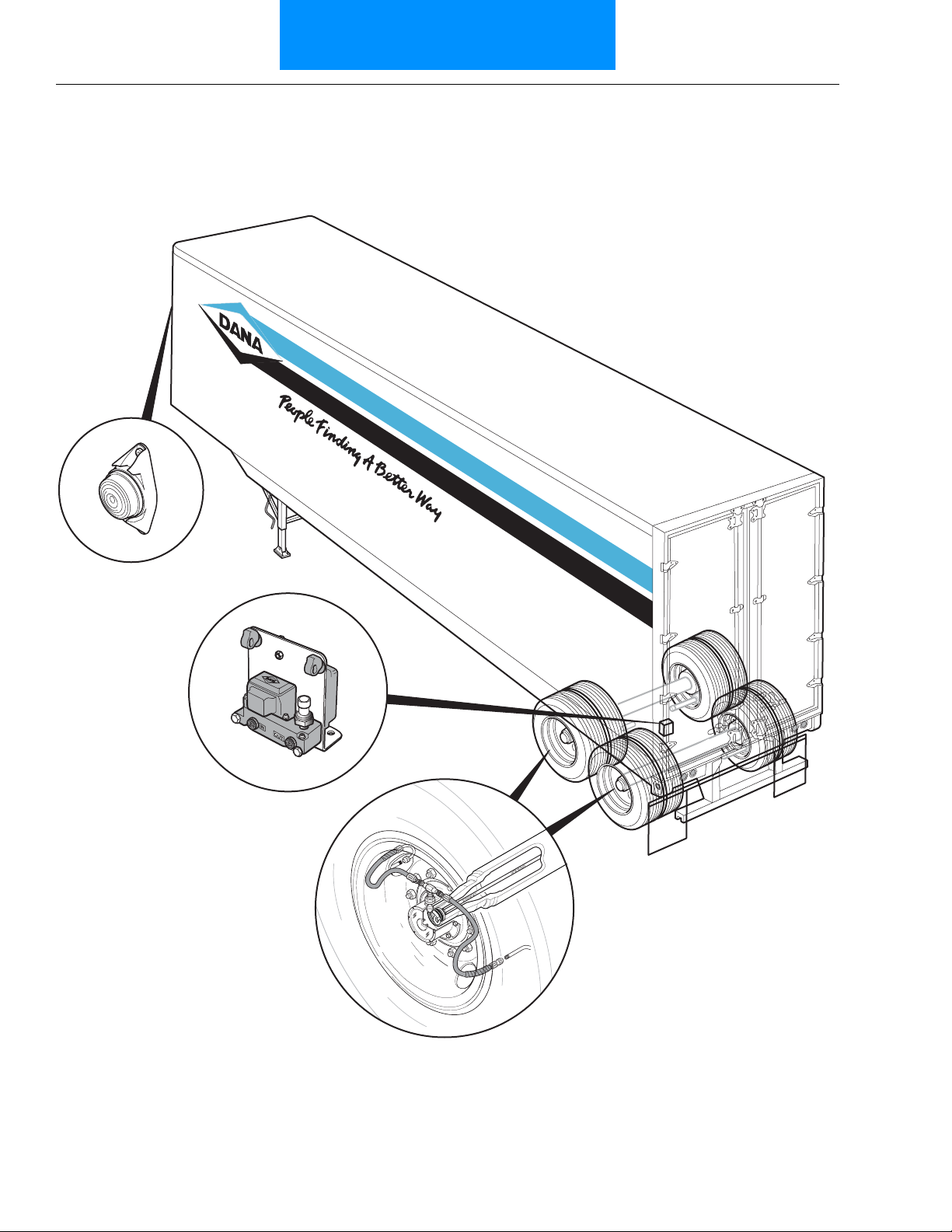

Tire Inflation and Monitor System
TIMSTM(Tire Inflation and Monitor System)
Spicer® TIMSTM for trailers offers a number of convenient, reliable and unique features to reduce your costs and
simplify your service requirements.
2
Page 5
Tire Inflation and Monitor System
TIMSTM(Tire Inflation and Monitor System)
How To Order Parts
Category - Indicates parts
groups from which to order
components for a new
installation.
Items - Matched to
parts on illustration.
Part No. - Numbers in Bold type
are kits that may be ordered.
Description - Identifies
the component
Notes - Key information
(i.e. items contained in a kit)
Category Item Part No. Description Notes
A
2
3
4 676644 Bracket - NSS
676467 PCU, Pneumatic Control Unit
676495 Pressure Sensor
NSS - Not Sold Separately
Does not include Pressure Sensor
Tan connector (0-153 PSIA)
Note: Always replace parts with same as original part.
Every effort has been made to ensure the accuracy of this publication. However, Dana Corporation Commercial Vehicle &
Systems Group makes no expressed or implied warranty representation based on the information contained in this publication.
3
Page 6
Tire Inflation and Monitor System

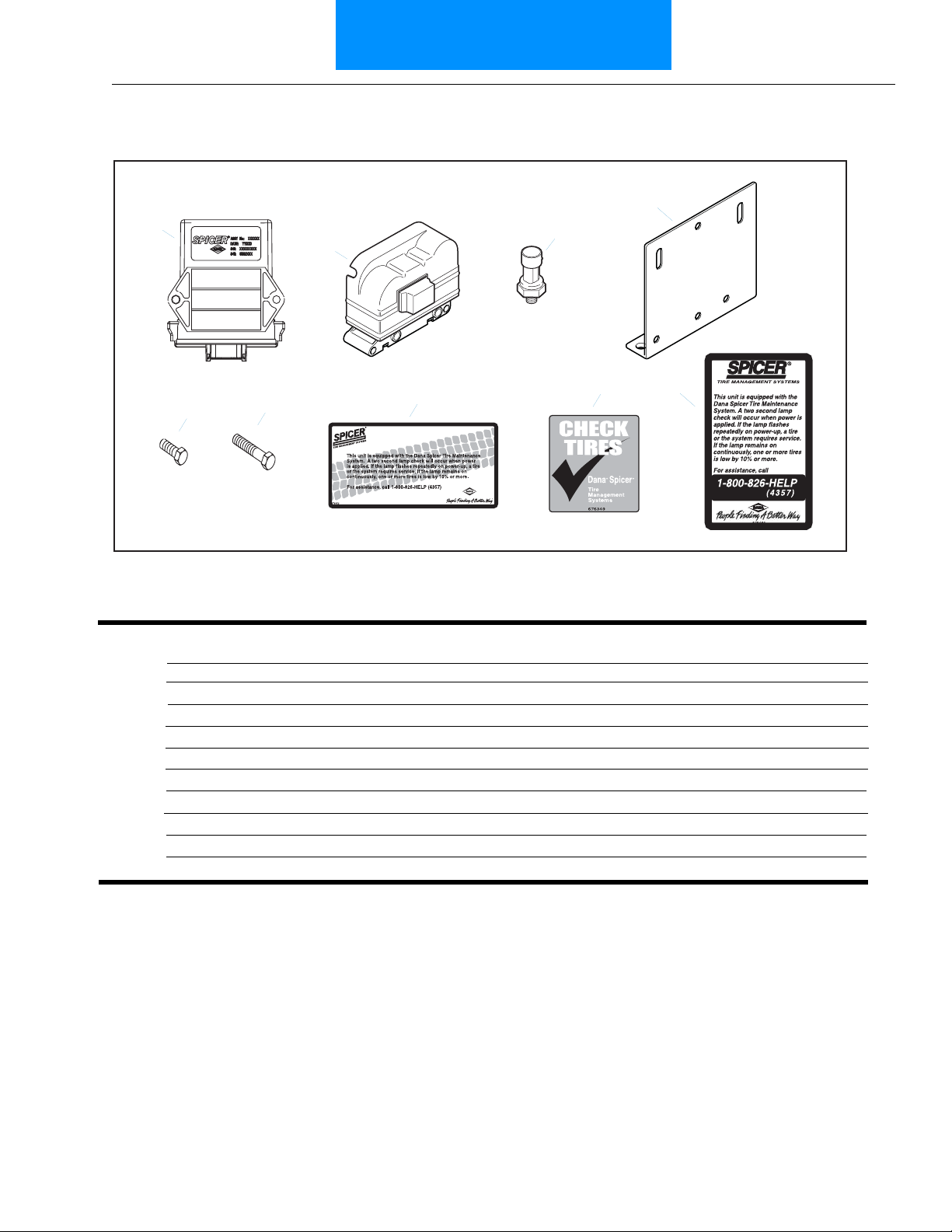

TIMSTM Parts - Control Components
A
1
2
5
6
A Control Components
676651 TIMS Controller Assy Includes items 1-6 and locknuts
676653 TIMS Controller Assy for Bendix TABS6 Includes items 2-4,6 and locknuts
1 676631 ECU, Electronic Control Unit
2 676467 PCU, Pneumatic Control Unit Does not include Pressure Sensor
3 676495 Pressure Sensor Tan connector
4 676644 Bracket - NSS
5 676652 Bolts, ECU - NSS 1/4-20x 1 Locknuts 599631 NSS 1/4-20
6 676667 Bolts, PCU - NSS 5/16-18x2.25 Locknuts 070HN108 NSS 5/16-18
7 676452 Label, Information
8 676349 Label, Check Tire
9 676484 Label, System Maintenance
7
4
3
8
9
NotesDescriptionPart No.ItemCategory
4
Page 7
Tire Inflation and Monitor System

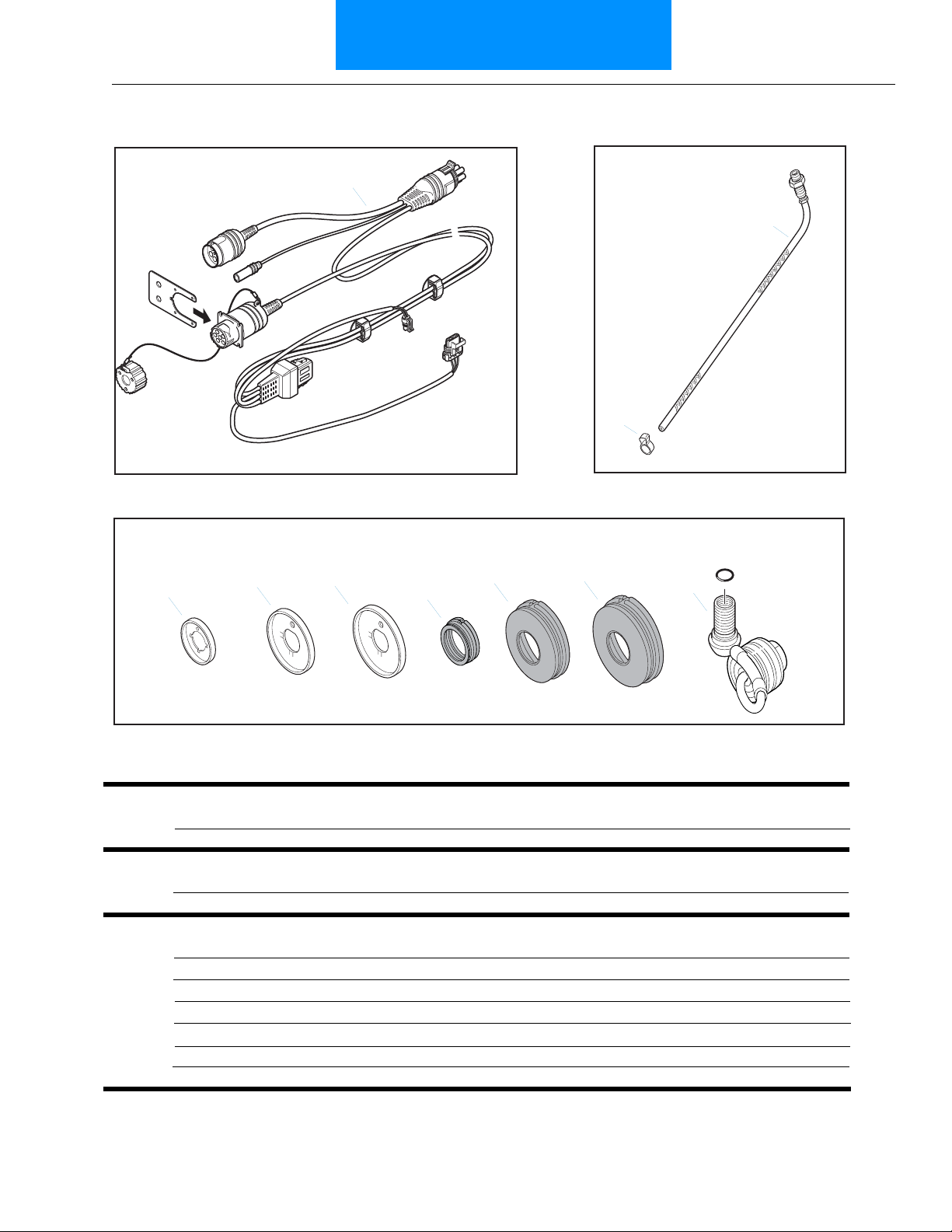

TIMSTMParts - Harness, Axle & Spindle Components
B
1
C
1
2
D
1
2
3
4
5
6
7
B Wiring Harness Components
1 676608 Wiring Harness, 1.8m/6 ft
676609 Wiring Harness, 7.6m/25ft
C Axle Components
1 676473 Hose Assy., Axle Inlet - female 1/4” NP Hose length 34.5”
2 676384 Clamp, Stepless ear (Oetiker)
D Spindle Hardware
1 676397 Plug Assy., D22 Axle (1.75” I.D.)
2 676385 Plug Assy., P22 Axle (2.50” I.D.)
3 676447 Plug Assy., S.A.P. 225P Axle (2.75” I.D.)
4 676364 Mounting Cylinder, J (1.75” I.D.)
5 676347 Mounting Cylinder, P (2.50” I.D.)
6 676448 Mounting Cylinder, S.A.P. P (2.75” I.D.)
7 676450 Rotary Joint Assembly
NSS - Not Sold Separately
NotesDescriptionPart No.ItemCategory
5
Page 8
Tire Inflation and Monitor System

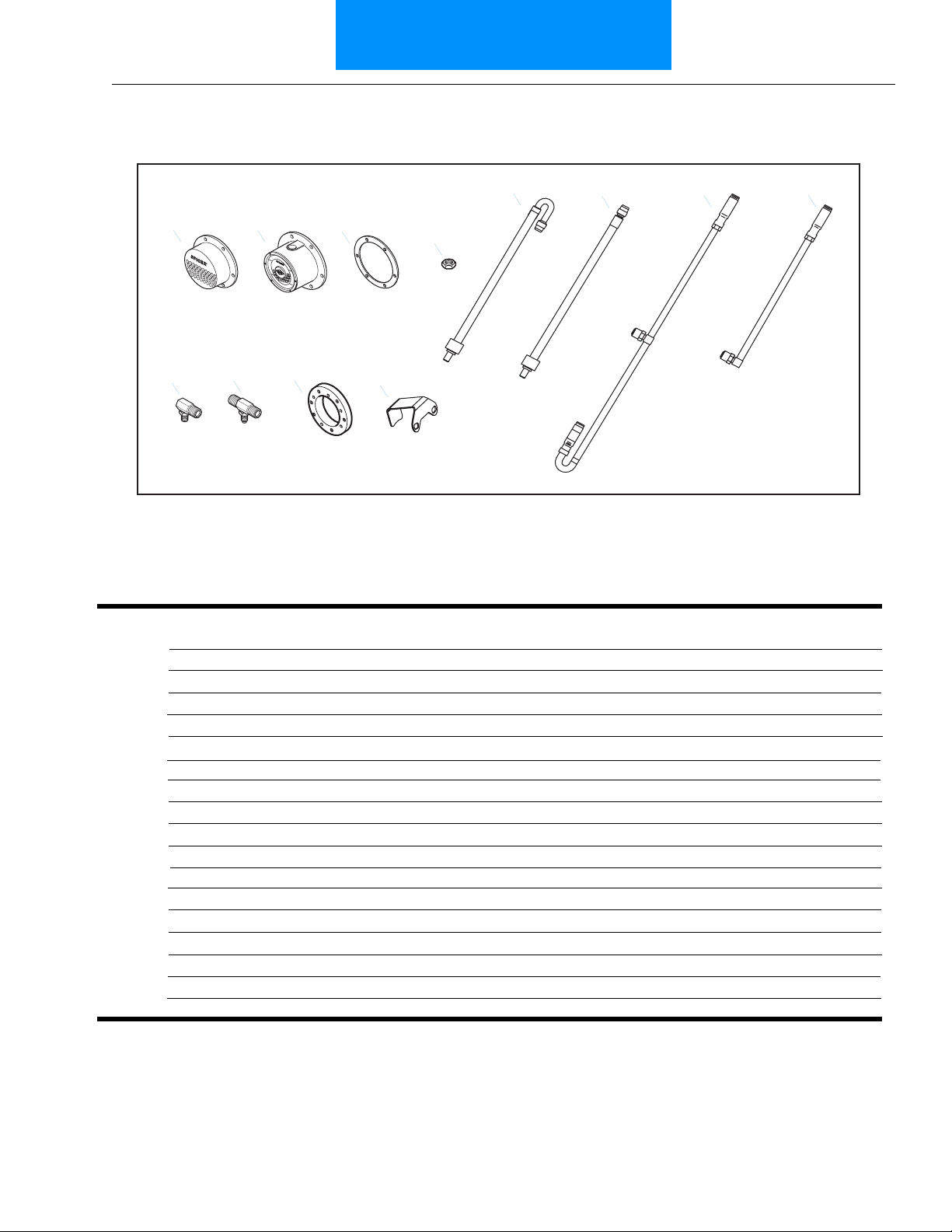

TIMSTM Parts - Wheel End Components
E
1
9
2
L
E
V
E
L
L
I
O
O
I
L
L
E
V
E
10
11
3
4
L
12
E Wheel End Components
1 676400 Hubcap, 5.5” B.C., grease - D22
1 676411 Hubcap, 6.75” B.C., grease - P22
2 676401 Hubcap, 5.5” B.C., oil - D22
2 676412 Hubcap, 6.75” B.C., oil - P22
3 M10HG138 Gasket, 6.75” B.C. - P22 Use with hubcaps 676411 and 676412
4 676378 Jam Nut - 5/8”-18 Secures RJ fitting to Hubcap
5 676669 Tire hose-dual,180 end - See note 1 Duals, outer tire hose 22-24” Wheel
5 676670 Tire hose-dual,180 end - See note 1 Duals, outer tire hose 17.5-19.5” Wheel
o
o
6 676648 Tire hose - dual, straight end - See note 1 Duals, inner tire hose 22-24” Wheel
6 676649 Tire hose - straight - See note 1 Duals 17.5-19.5 inner / Wide base single
7 676641 Tire Hose Assy - See note 2 For 22.5-24” Wheels
7 676642 Tire Hose Assy - See note 2 For 17.5-19.5” Wheels
8 676643 Tire Hose Assy - See note 2 For Wide Base Single Wheels
9 676673 90 fitting, hubcap to hose Used on item 6, wide base singles only
o
10 676671 Tee fitting, hubcap to hose Used on items 5,6 duals only
11 673500 Spacer - 5.50 B.C., .5” thick Required for Pro-torque nut and short hub
12 676672 Wheel End Guard
5
6
7
8
NotesDescriptionPart No.ItemCategory
Use with hubcaps 676400 and 6764013 969143 Gasket, 5.5” B.C. - D22
Note 1: Items 5-6 have the check valves located at the hubcap connection end.
Note 2: Items 7-8 have the check valves located at the valve stem end.
6
Page 9
Tire Inflation and Monitor System

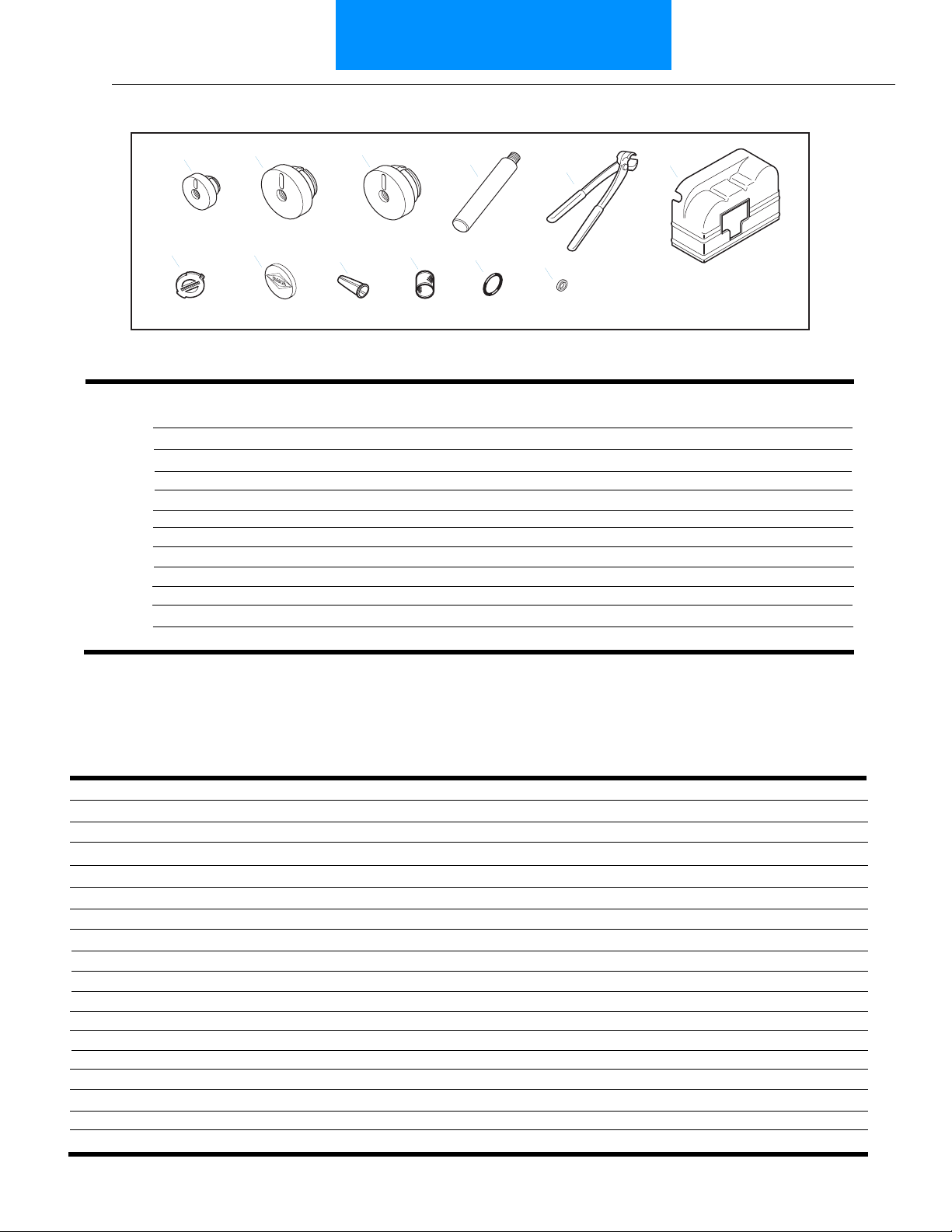

TIMSTM Parts - Service Components & Tools
F
1
7
2
8
3
9
10
F Service Parts & Tools
1 676461 Tool, plug installation, 1.75”
2 676462 Tool, plug installation, 2.50”
3 676463 Tool, plug installation, 2.75”
4 N/A Tool handle, universal (Kent Moore J-8092) SPX Kent Moore Tools: 800-345-2233
5 N/A Oetiker clamp tool (Grainger 4E607)
6 676665 PCU Cover
7 676666 PCU filter cap
8 676645 Oil hubcap plug Used on p/n 676401 & 676412 only
9 676464 Filter, PCU (cone shaped) Used on p/n 676403 PCU only
10 676678 Filter, PCU (cylidrical shaped) Used on p/n 676467 PCU only
11 676374 O-ring, rotary joint to hubcap O-ring .468 ID #3-906
12 676472 Seal, tire hose (to valve stem) O-ring square cut .250 ID - See note 1
4
11
5
12
6
NotesDescriptionPart No.ItemCategory
Note 1: Used only on hose p/n 676387, 676388, 676481, and 676482
Quick Part Number Replacement Listing
Old Part
Number
673221 676505 Pressure Sensor Use only with ECU 676474
676271 676609 Wiring Harness Requires ECU 676631 & Pressure Sensor 676495
676272 676609 Wiring Harness Requires ECU 676631 & Pressure Sensor 676495
676387 676669 Tire hose Replace all associated hoses & fittings (see pg 6)
676388 676648 Tire hose Replace all associated hoses & fittings (see pg 6)
676389 676671 Tee Fitting Replace all associated hoses & fittings (see pg 6)
676403 676467 PCU Requires bracket 676644 and assoc. hardware
676457 676673 90 Fitting Replace all associated hoses & fittings (see pg 6)
676459 676473 Axle hose assy. May require shortening
676470 676609 Wiring Harness Requires ECU 676631 & Pressure Sensor 676495
676471 676609 Wiring harness Requires ECU 676631 & Pressure Sensor 676495
676474 676631 ECU Requires Pressure Sensor 676495
676475 676651 TIMS Controller Assy.
676481 676649 Tire hose Replace all associated hoses & fittings (see pg 6)
676482 676670 Tire hose Replace all associated hoses & fittings (see pg 6)
676553 676631 ECU
676559 676651 TIMS Controller Assy.
676632 676651 TIMS Controller Assy.
Current Replacement Part
Number Description Notes
o
7
Page 10
Retrofit Kits
SYSTEM CONTROL KIT - 1.8 m (6 ft) 512411
TIMS Controller Assy 1 676651
Harness 1 676608
Label, Check Tire 1 676349
Label, Information 1 676452
Retrofit Kits
NotesPart No.QtyKit No.Description
For use when ABS power connection
is on the suspension.
SYSTEM CONTROL KIT - 7.6 m (25 ft) 512412
TIMS Controller Assy 1 676651
Harness 1 676609
Label, Check Tire 1 676349
Label, Information 1 676452
AXLE KIT - D22 1.75” Spindle I.D. 512413
Axle Hose Assy 2 676473
Plug Assy, D22 Axle 1.75” 2 676397
AXLE KIT - P22 2.50” Spindle I.D. 512414
Axle Hose Assy 2 676473
Plug Assy, P22 Axle 2.50” 2 676385
AXLE KIT - P22 2.75” Spindle I.D. 512415
Axle Hose Assy 2 676473
Plug Assy, P22 Axle 2.75” 2 676447
WHEEL END KIT - D22 1.75” Spindle I.D. 513504
Mounting Cylinder, D22 1.75” 2 676364
Rotary Joint Assy 2 676450
Clamp, Stepless Ear - Oetiker 2 676384
Jam Nut 2 676378
WHEEL END KIT - P22 2.50” Spindle I.D. 513505
Mounting Cylinder, P22 2.50” 2 676347
Rotary Joint Assy 2 676450
Clamp, Stepless Ear - Oetiker 2 676384
Jam Nut 2 676378
WHEEL END KIT - P22 2.75” Spindle I.D. 513506
Mounting Cylinder, P22 2.75” 2 676448
Rotary Joint Assy 2 676450
Clamp, Stepless Ear - Oetiker 2 676384
Jam Nut 2 676378
For use when ABS power connection
is on the trailer body.
TIRE HOSE KIT - DUAL 22.5-24.5” Tire 513974
Wheel End Guard 2 676633
Dual 22.5-24.5” Tire Hose Assy 2 676641
TIRE HOSE KIT - DUAL 17.5-19.5” 513975
Wheel End Guard 2 676633
Dual 17.5-19.5” Tire Hose Assy 2 676642
TIRE HOSE KIT - WIDE BASE SINGLE 513976
Wheel End Guard 2 676633
Wide Base Single Tire Hose Assy 2 676643
Note: Hubcaps not included with the above kits.
8
Page 11
Index
512411 System Control Kit - 1.8m (6 ft) 8
512412 System Control Kit - 7.6m (25ft) 8
512413 Axle Kit - D22 1.75” 8
512414 Axle Kit - P22 2.50” 8
512415 Axle Kit - P22 2.75” 8
513504 Wheel End Kit - D22 1.75” 8
513505 Wheel End Kit - P22 2.50” 8
513506 Wheel End Kit - P22 2.75” 8
513974 Tire Hose Kit - Dual 22.5” 8
513975 Tire Hose Kit - Dual 19.5” 8
513976 Tire Hose Kit - Wide Base Single 8
673500 Spacer, 5.50 B.C., .5” thick 6
676347 Mounting Cylinder, P (2.50) 5
676349 Label, Check Tire 4
676364 Mounting Cylinder, J (1.75) 5
676374 O-ring, Rotary Joint 7
676378 Jam nut, 5/8” - 18 6
676384 Clamp, Stepless Ear (Oetiker) 5
676385 Plug Assy, P22 Axle (2.50) 5
676397 Plug Assy, D22 Axle (1.75) 5
676400 Hubcap, 5.5” B.C., grease - D22 6
676401 Hubcap, 5.5” B.C., oil - D22 6
676467 PCU 4
676411 Hubcap, 6.75” B.C., grease - P22 6
676412 Hubcap, 6.75” B.C., oil - P22 6
676447 Plug Assy, S.A.P. 225P Axle (2.75) 5
676448 Mounting Cylinder, S.A.P. P (2.75) 5
676450 Rotary Joint Assy 5
676452 Label, Information 4
676461 Tool, Plug Installation, 1.75” 7
676462 Tool, Plug Installation, 2.50” 7
676463 Tool, Plug Installation, 2.75” 7
Index
676464 Filter, PCU - cone 7
676472 Seal, Tire hose 7
676473 Hose Assy, Axle Inlet - female 1/4” NPT 5
676484 Label, System Maintenance 4
676495 Pressure Sensor 4
676608 Harness - 1.8m (6 ft) 5
676609 Harness - 7.6m (25 ft) 5
676631 ECU 4
676641 Tire Hose Assy with Check Valve 6
676642 Tire Hose Assy with Check Valve 6
676643 Tire Hose Assy with Check 6
676644 Bracket 4
676645 Plug, Oil Hubcap 7
676648 Tire Hose - Dual, Straight end 6
676649 Tire Hose - Straight 6
676651 TIMS Controller Assy 4
676652 Bolts, ECU 4
676653 TIMS Controller Assy, Bendix TABS6 7
676665 Cover, PCU 7
676666 Filter Cap, PCU 7
676667 Bolts, PCU 4
676669 Tire Hose - Dual, 180 end 6
676670 Tire Hose - Dual, 180 end 6
676671 Tee Fitting 6
676672 Wheel End Guard 6
676673 90 Fitting, Hubcap Super Single 6
676678 Filter, PCU - cylinder 7
969143 Gasket, 5.50” B.C. - D22 6
M10HG138 Gasket, 6.75” B.C. - P22 6
N/A Tool handle, Universal 7
N/A Oetiker Clamp Tool 7
o
o
o
PageDescriptionPart No.PageDescriptionPart No.
9
Page 12
Dana Aftermarket Group
For spec‘ing or service assistance, call 1.800.621.8084 or visit our website at www.spicerparts.com
PO Box 321
Toledo, Ohio 43697-0321
Warehouse Distributor: 1.800.621.8084
Dana Commercial Vehicle Products Group
OE Dealers: 1.877.777.5360
3939 Technology Drive
Maumee, Ohio, USA 43537
www.spicerparts.com
www.dana.com
AXIP-0025 Printed in U.S.A.
Copyright Dana Limited, 2012.
All rights reserved. Dana Limited.
Loading...
