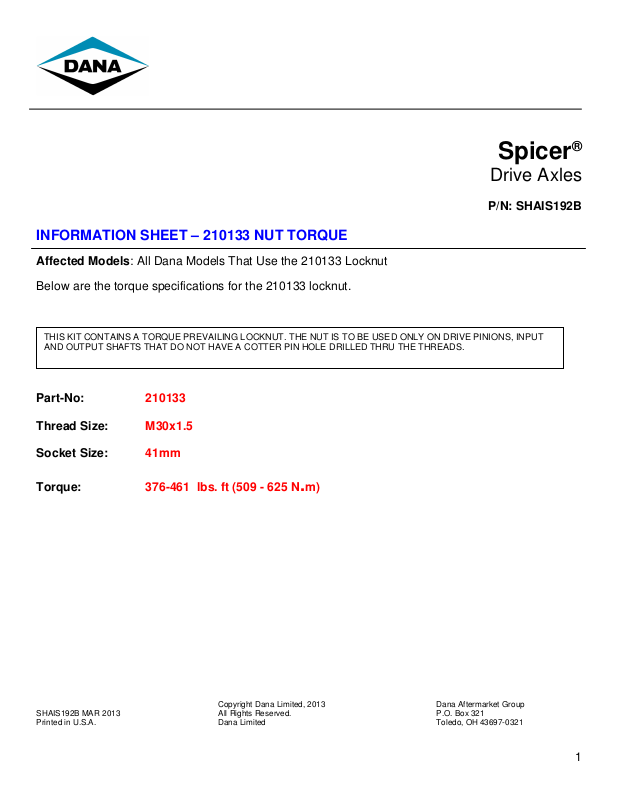

Spicer 210133 User Manual

Spicer

Drive Axles

P/N: SHAIS192B

INFORMATION SHEET – 210133 NUT TORQUE

Affected Models: All Dana Models That Use the 210133 Locknut

Below are the torque specifications for the 210133 locknut.

THIS KIT CONTAINS A TORQUE PREVAILING LOCKNUT. THE NUT IS TO BE USED ONLY ON DRIVE PINIONS, INPUT
AND OUTPUT SHAFTS THAT DO NOT HAVE A COTTER PIN HOLE DRILLED THRU THE THREADS.

Part-No: 210133

Thread Size: M30x1.5

Socket Size: 41mm

®

Torque: 376-461 lbs. ft (509 - 625 N.m)

Copyright Dana Limited, 2013 Dana Aftermarket Group
SHAIS192B MAR 2013 All Rights Reserved. P.O. Box 321
Printed in U.S.A. Dana Limited Toledo, OH 43697-0321

1
