Speed Queen TMB1268C User Manual

Drying Tumblers
120 Pound Capacity 170 Pound Capacity
Refer to page 3 for Model Identification
Installation/Operation Supplement
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
TMB1268C
TMB1268C
Part No. M414881R7EN
Installation must conform with local codes.
Installation/Operation Supplement
WARNING
WARNING
FOR YOUR SAFETY, the information in this manual must be followed to minimize the risk of fire or explosion or to prevent property damage, personal injury or death.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
• WHAT TO DO IF YOU SMELL GAS: – Do not try to light any appliance. – Do not touch any electrical switch; do
not use any phone in your building.
– Clear the room, building or area of all
occupants.
– Immediately call your gas supplier
from a neighbor’s phone. Follow the gas supplier’s instructions.
– If you cannot reach your gas supplier,
call the fire department.
• Installation and service must be performed by a qualified installer, service agency or the gas supplier.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
IMPORTANT: Information must be obtained from a local gas supplier on instructions to be followed if the user smells gas. These instructions must be posted in a prominent location. Step-by-step instructions of the above safety information must be posted in a prominent location near the tumbler for customer use.
W033
W052
W053
To reduce the risk of fire, electric shock, serious injury or death to persons when using the tumbler unit, follow these basic precautions:
• Read all instructions before using tumbler.
• DO NOT tamper with controls.
• DO NOT bypass any safety devices.
• Always follow the fabric care instructions supplied by the garment manufacturer.
• Remove laundry immediately after the tumbler stops.
• DO NOT reach into tumbler if cylinder is revolving.
To avoid creating any flammable vapors which may explode, ignite or cause corrosive damage, DO NOT dry the following materials:
• Articles that have been cleaned in, soaked in, washed in or spotted with gasoline, dry-cleaning solvents or other flammable/explosive substances.
• Plastics or articles containing foam rubber or similarly textured rubberlike materials.
• Articles that have traces of flammable substances like cooking oil, machine oil, flammable chemicals or thinner.
• Articles containing wax or cleaning chemicals.
• Fiberglass curtains or draperies (unless the label says it can be done).
W440R1
© Published by permission of the copyright owner – DO NOT COPY or TRANSMITM414881 (EN)
1
Installation/Operation Supplement
Table of
Contents
Introduction......................................................................................... 3
Model Identification ............................................................................. 3
Wiring Diagram Location..................................................................... 3
Serial Plate Location............................................................................. 4
Safety Information.............................................................................. 5
Important Safety Instructions ............................................................... 5
Installation........................................................................................... 7
Specifications and Dimensions............................................................. 7
120 Pound Tumbler Dimensions and Exhaust Outlet Locations..... 8
170 Pound Tumbler Dimensions and Exhaust Outlet Locations..... 9
Electric and Gas Connection Locations for Gas Models ................. 10
Electric and Steam Connection Locations for Steam Models ......... 11
Position and Level the Tumbler............................................................ 12
Fire Suppression System....................................................................... 13
Water Requirements......................................................................... 13
Water Connections........................................................................... 13
Electrical Requirements ................................................................... 13
Auxiliary Alarm ............................................................................... 14
Gas Requirements................................................................................. 14
Natural Gas and Liquefied Petroleum.............................................. 14
European Gas ................................................................................... 14
General Information......................................................................... 14
Exhaust Requirements .......................................................................... 17
Make-Up Air.................................................................................... 17
Venting............................................................................................. 17
Electrical Requirements........................................................................ 18
Grounding Instructions .................................................................... 18
Steam Requirements ............................................................................. 19
Thermal Oil Prep .................................................................................. 19
Operation............................................................................................. 22
Emergency Stop Button........................................................................ 22
Operating Instructions .......................................................................... 22
Step 1: Clean Lint Screen/Compartment ......................................... 22
Step 2: Load Laundry....................................................................... 22
Step 3: Determine Control Type and Temperature Setting ............. 22
Step 4: Remove Laundry ................................................................. 22
Control Instructions .............................................................................. 23
Manual Timer Control ..................................................................... 23

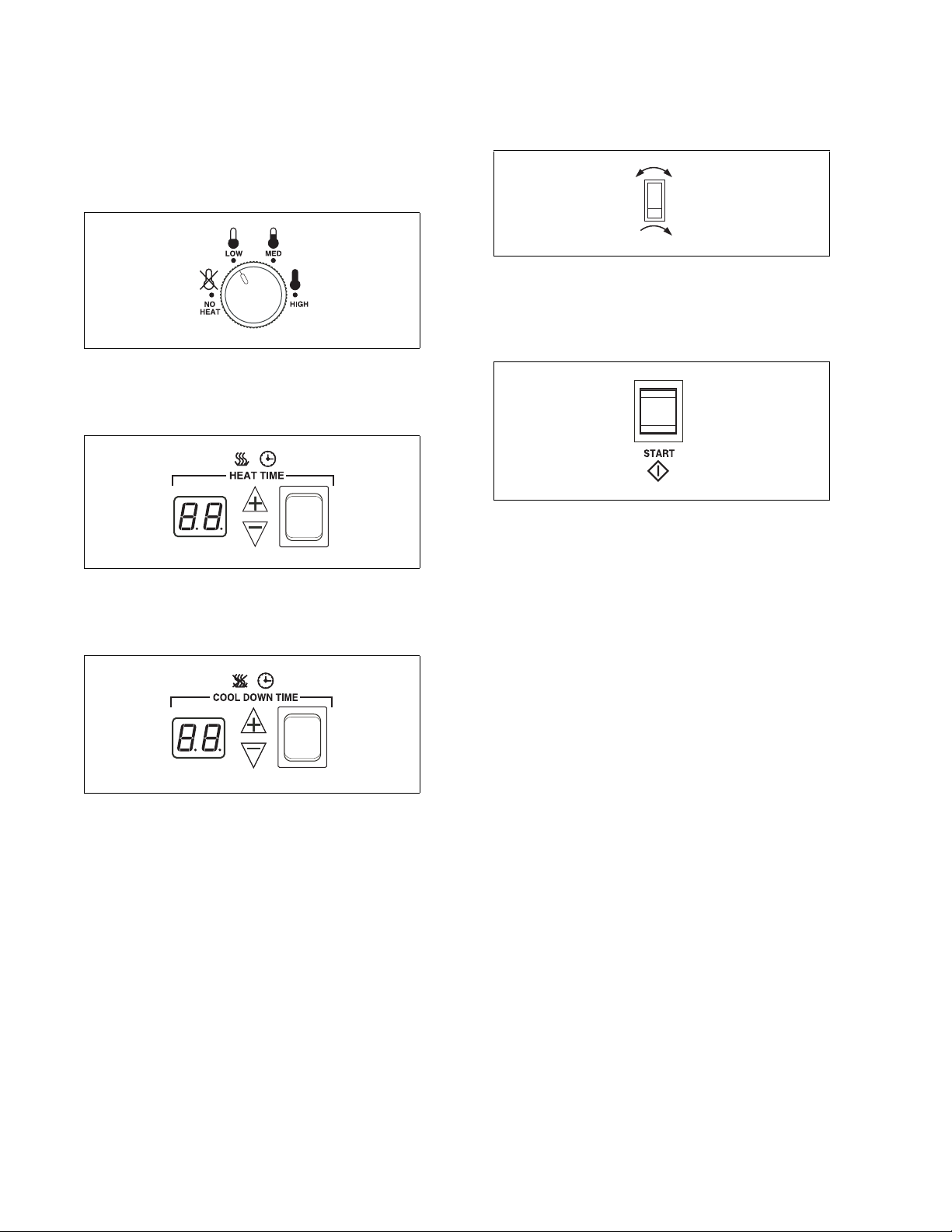

Dual Digital Timer Control.............................................................. 24

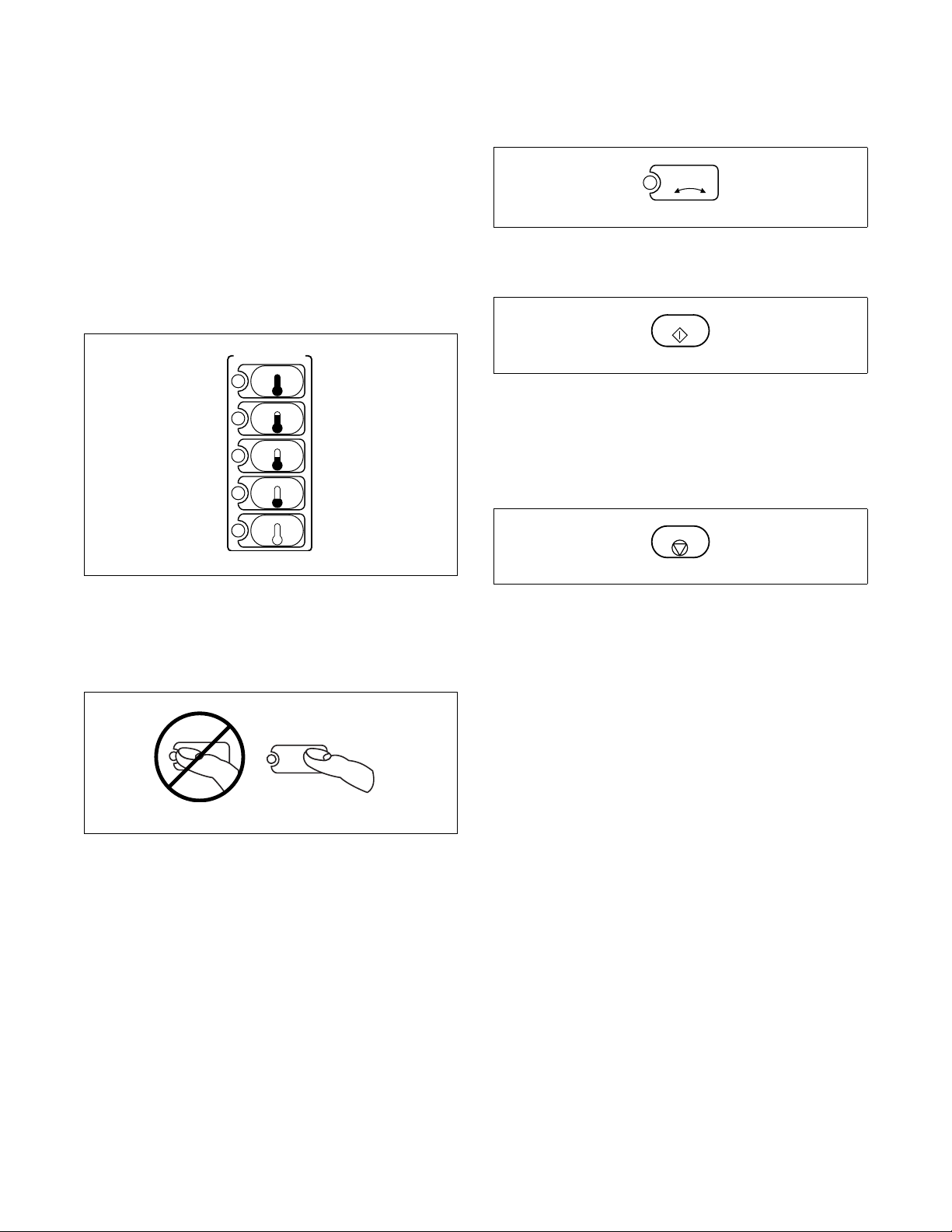

Electronic OPL Control ................................................................... 25

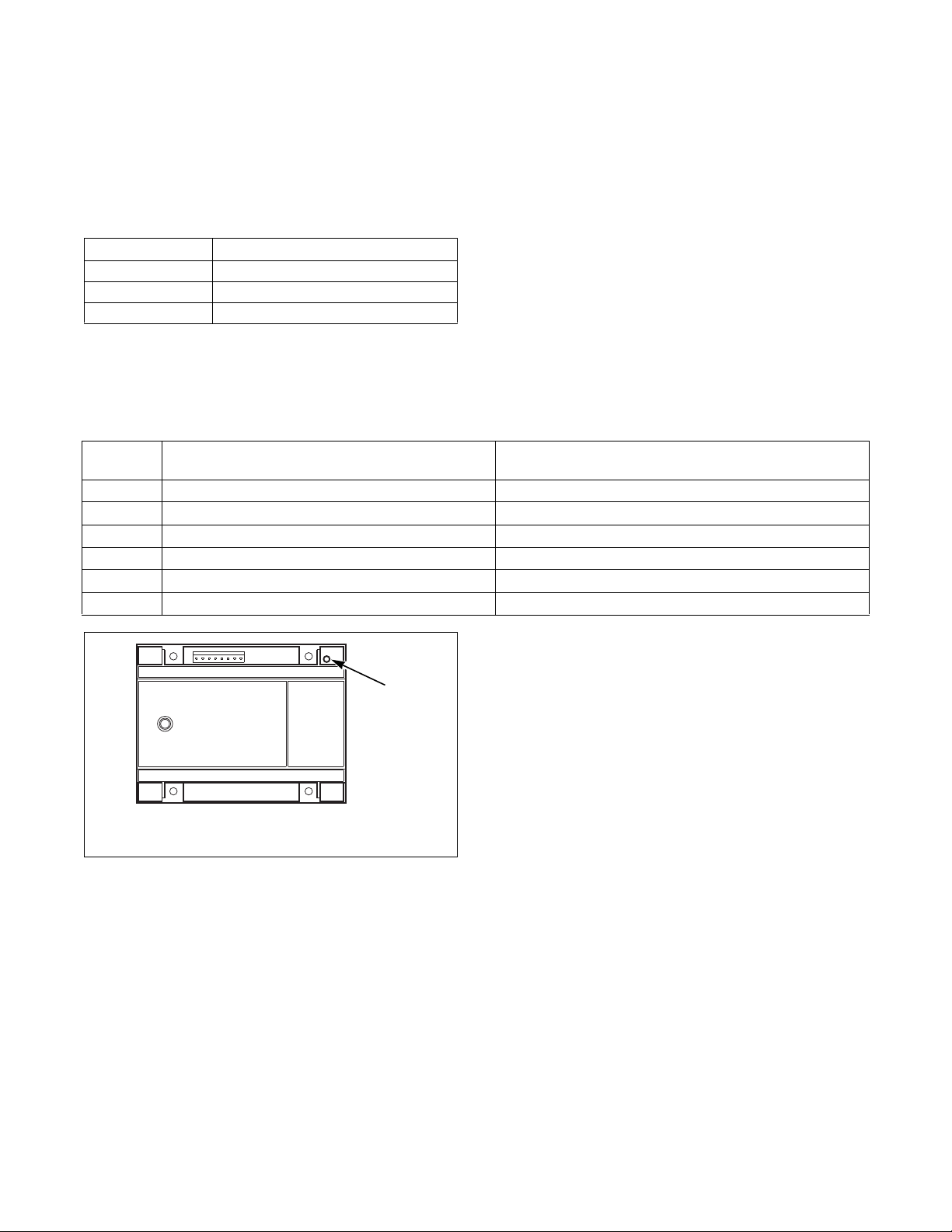

Ignition Control Operation ................................................................... 27
Disposal of Unit................................................................................... 28
© Published by permission of the copyright owner All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
2
M414881 (EN)© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
Introduction
Model Identification
Information in this manual is applicable to these models.
Gas Steam/Thermal Oil
PU120N SU120L SU120N UU120L UU120N XU120L XU120N
PU170L PU170N SU170L SU170N UU170L UU170N XU170L XU170N
120 Pound
170 Pound
GU120L GU120N HU120L HU120N KU120L KU120N LU120L LU120N PU120L
GU170L GU170N HU170L HU170N KU170L KU170N LU170L LU170N
GU120S GU120T HU120S HU120T KU120S KU120T LU120S LU120T PU120S
GU170S GU170T HU170S HU170T KU170S KU170T LU170S LU170T
Installation/Operation Supplement
PU120T SU120S SU120T UU120S UU120T XU120S XU120T YU120S YU120T
PU170S PU170T SU170S SU170T UU170S UU170T XU170S XU170T
Includes models with the following control suffixes:
RM – reversing OPL Micro RQ – reversing dual digital timer RT – reversing manual timer
Wiring Diagram Location
The wiring diagram is located in the junction or contactor box.
M414881 (EN)
© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
3
Installation/Operation Supplement
Serial Plate Location
120 POUND TUMBLER
1 Serial Plate
1
1
170 POUND TUMBLER
TMB1298N
TMB1298N
4
© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
M414881 (EN)
Installation/Operation Supplement
Safety Information
Save These Instructions
Important Safety Instructions
WARNING
Hazardous Voltage. Can cause shock, burn or cause death. Allow machine power to remain off for two minutes prior to working in and around AC inverter drive.
W359
1. Read all instructions before using the tumbler.
2. Refer to the GROUNDING INSTRUCTIONS
for the proper grounding of the tumbler.
3. Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode.
4. Do not allow children to play on or in the tumbler. This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.
5. Before the tumbler is removed from service or discarded, remove the door to the drying compartment and the door to the lint compartment.
6. Do not reach into the tumbler if the cylinder is revolving.
7. Do not install or store the tumbler where it will be exposed to water and/or weather.
8. Do not tamper with the controls.
9. Do not repair or replace any part of the tumbler, or attempt any servicing unless specifically recommended in the user-maintenance instructions or in published user-repair instructions that you understand and have the skills to carry out.
10. Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.
11. To reduce the risk of fire, DO NOT DRY plastics or articles containing foam rubber or similarly textured rubberlike materials.
13. Keep area around the exhaust opening and adjacent surrounding area free from the accumulation of lint, dust and dirt.
14. The interior of the tumbler and the exhaust duct should be cleaned periodically by qualified service personnel.
15. If not installed, operated and maintained in accordance with the manufacturer’s instructions or if there is damage to or mishandling of this product’s components, use of this product could expose you to substances in the fuel or from fuel combustion which can cause death or serious illness and which are known to the State of California to cause cancer, birth defects or other reproductive harm.
16. Tumbler will not operate with the loading door open. DO NOT bypass the door safety switch to permit the tumbler to operate with the door open. The tumbler will stop tumbling when the door is opened. Do not use the tumbler if it does not stop tumbling when the door is opened or starts tumbling without pressing or turning the START mechanism. Remove the tumbler from use and call for service.
17. Tumbler will not operate with lint panel open. DO NOT bypass lint panel safety switch to permit the tumbler to operate with the lint panel open.
18. Do not put articles soiled with vegetable or cooking oil in the tumbler, as these oils may not be removed during washing. Due to the remaining oil, the fabric may catch on fire by itself.
19. To reduce the risk of fire, DO NOT put clothes which have traces of any flammable substances such as machine oil, flammable chemicals, thinner, etc. or anything containing wax or chemicals such as in mops and cleaning cloths, or anything dry-cleaned at home with dry-cleaning solvent in the tumbler.
20. Use the tumbler only for its intended purpose, drying fabrics.
21. ALWAYS disconnect and lockout the electrical power to the tumbler before servicing. Disconnect power by shutting off appropriate breaker or fuse.
12. Always clean the lint filter daily.
M414881 (EN)
© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
5
Installation/Operation Supplement
22. Install this tumbler according to the INSTALLATION INSTRUCTIONS. All connections for electrical power, grounding, and gas supply must comply with local codes and be made by licensed personnel when required.
23. Remove laundry immediately after tumbler stops.
24. Always read and follow manufacturer’s instructions on packages of laundry and cleaning aids. Heed all warnings or precautions. To reduce the risk of poisoning or chemical burns, keep them out of reach of children at all times (preferably in a locked cabinet).
25. Do not tumble fiberglass curtains and draperies unless the label says it can be done. If they are dried, wipe out the cylinder with a damp cloth to remove particles of fiberglass.
26. Always follow the fabric care instructions supplied by the garment manufacturer.
27. Never operate the tumbler with any guards and/or panels removed.
28. DO NOT operate the tumbler if it is smoking,
grinding, has missing or broken parts.
29. DO NOT bypass any safety devices.
30. Solvent vapors from dry-cleaning machines create acids when drawn through the heater of the drying unit. These acids are corrosive to the tumbler as well as to the laundry load being dried. Be sure make-up air is free of solvent vapors.
31. Failure to install, maintain, and/or operate this machine according to the manufacturer’s instructions may result in conditions which can produce bodily injury and/or property damage.
WARNING
To reduce the risk of serious injury, install lockable door(s) to prevent public access to rear of tumblers.
W055
6
© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
M414881 (EN)
Installation
Specifications and Dimensions
Specifications 120 Pound 170 Pound
Noise level measured during operation at operator position of 1 meter (3.3 feet) in front of machine and
1.6 meters (5.2 feet) from the floor.
Cylinder Size: mm (in.)
Cylinder Capacity dry weight: kg (lbs.)
Cylinder Motor Horsepower
Fan Motor Horsepower
Air Outlet Diameter: mm (in.)
Maximum Static Back Pressure: mbar (inches W.C.)
Maximum Airflow: l/sec (C.F.M.)
Installation/Operation Supplement
66 dBA 66 dBA
1118 x 1041
(44 x 41)
54.4
(120)
0.75 0.75
13
254
(10)
0.8
(0.3)
755
(1600)
1289 x 1080
(50.75 x 42.5)
77.1
(170)
300
(12)
0.8
(0.3)
1156
(2450)
Net Weight (approximate): kg (lbs.)
Gas Connection
Gas Burner Rating: Mj/hr (Btu/hr)
Net Weight (approximate): kg (lbs.)
Steam Connection
Steam Coil Rating at 100 psig: Boiler Horsepower (Btu/hr)
Gas Models
Steam Models
580
(1275)
3/4 in. NPT 1 in. NPT
316
(300,000)
625
(1375)
3/4 in. NPT 3/4 in. NPT inlet
11.7
(405,000)
716
(1575)
421
(395,000)
761
(1675)
1 in. NPT outlet
18.8
(648,000)
M414881 (EN)
© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
7
Installation/Operation Supplement
120 Pound Tumbler Dimensions and Exhaust Outlet Locations
TOP VIEW OF
EXHAUST
DUCT
W
V
X
X
H
U
B
A
Y
C
D
E
Z
F
G
TMB2211N
Cabinet Dimensions
ModelsABCDE FGH
120L/N
120S
797 mm
(31.38 in.)
797 mm
(31.38 in.)
826 mm
(32.5 in.)
826 mm
(32.5 in.)
1242 mm
(48.91 in.)
1242 mm
(48.91 in.)
1268 mm
(49.91 in.)
1268 mm
(49.91 in.)
1725 mm
(67.92 in.)
1725 mm
(67.92 in.)
1153 mm
(45.38 in.)
1153 mm
(45.38 in.)
1178 mm
(46.38 in.)
1178 mm
(46.38 in.)
2177 mm (85.7 in.)
2121 mm (83.5 in.)
Refer to Position and Level the Tumbler to temporarily reduce the heights of these models.
Exhaust Outlet Dimensions and Locations
Models U V W X Y Z
8
120L/N
120S
1612 mm
(63.45 in.)
1542 mm (60.7 in.)
© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
214 mm
(8.44 in.)
214 mm
(8.44 in.)
190 mm (7.5 in.)
190 mm (7.5 in.)
208 mm
(8.18 in.)
208 mm
(8.18 in.)
222 mm
(8.75 in.)
222 mm
(8.75 in.)
208 mm
(8.18 in.)
208 mm
(8.18 in.)
M414881 (EN)
170 Pound Tumbler Dimensions and Exhaust Outlet Locations
TOP VIEW OF
EXHAUST
DUCT
X
Installation/Operation Supplement
Y
W
B
A
C
D
E
Y
V
F
G
H
TMB2212N
TMB2212N
Cabinet Dimensions
ModelsABCDEFGH
170L/N/S
860 mm
(33.86 in.)
826 mm
(32.5 in.)
1289 mm
(50.75 in.)
1314 mm
(51.75 in.)
1749 mm
(68.85 in.)
1324 mm
(52.12 in.)
1349 mm
(53.12 in.)
2388 mm
(94 in.)
Refer to Position and Level the Tumbler to temporarily reduce the heights of these models.
Exhaust Outlet Dimensions and Locations
Models V W X Y
170L/N/S
M414881 (EN)
1076 mm
(42.38 in.)
© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
171 mm
(6.75 in.)
222 mm
(8.75 in.)
178 mm
(7 in.)
9
Installation/Operation Supplement
Electric and Gas Connection Locations for Gas Models
A
A
120L/N 170L/N
C
B
D
C
D
B
TMB1301N
Models
Electrical Connection Gas Connection
ABCDDiameter
120L/N
170L/N
500 mm
(19.69 in.)
589 mm
(23.18 in.)
1904 mm
(74.98 in.)
2003 mm
(78.85 in.)
NOTE: These figures are approximate dimensions only.
325 mm
(12.78 in.)
368 mm
(14.5 in.)
1781 mm
(70.12 in.)
1965 mm
(77.38 in.)
3/4 in. NPT
1 in. NPT
10
© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
M414881 (EN)
Electric and Steam Connection Locations for Steam Models
A1
A2
Installation/Operation Supplement
A1
A2
C
B2
B1
D
120S 170S
fdf
F
E
C
B2
B1
E
D
F
TMB1461N
Steam Inlet
Models
Diameter A1 A2 F
120S
170S
3/4 in. NPT 911 mm
(35.875 in.)
3/4 in. NPT 956 mm
(37.625 in.)
340 mm
(13.375 in.)
387 mm
(15.25 in.)
2102 mm
(82.75 in.)
2235 mm
(88 in.)
Steam Outlet
Diameter B1 B2 D
120S
170S
3/4 in. NPT 879 mm
(34.625 in.)
1 in. NPT 1133 mm
(44.625 in.)
333 mm
(13.125 in.)
222 mm
(8.75 in.)
1740 mm
(68.5 in.)
1822 mm
(71.75 in.)
Electrical Connection
CE
120S
170S
500 mm
(19.69 in.)
589 mm
(23.18 in.)
1904 mm
(74.98 in.)
2003 mm
(78.85 in.)
M414881 (EN)
© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
11
Installation/Operation Supplement
Position and Level the Tumbler
WARNING
To reduce the risk of severe injury, clearance of tumbler cabinet from combustible construction must conform to the minimum clearances.
W056
1
8
NOTE: Shaded areas indicate adjacent structure.
1 13 mm (0.5 in.) recommended between machines for removal or installation. 2 Allow 51-102 mm (2-4 in.) opening at top of machine to aid in removal or installation. A removable trim piece may
be used to conceal the opening; zero clearance allowed for trim.
3 102 mm (4 in.) maximum header thickness 4 Minimum clearance permitted for remainder: Gas 102 mm (4 in.), Steam 305 mm (12 in.) 5 Guard 6 Provision for Make-Up Air 7 610 mm (24 in.) minimum, 914 mm (36 in.) recommended for maintenance purposes 8 6 mm (0.25 in.) recommended for removal or installation purposes, zero clearance allowed
2
3
7
TMB2020N
4
5
6
TMB2020N
12
Figure 1
© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
M414881 (EN)
Installation/Operation Supplement
Fire Suppression System
G, H, K, S and U Models Only
Water Requirements
IMPORTANT: Water must be supplied to the fire suppression system, or the fire suppression system will not operate as intended.
Connection point to the electric water solenoid valve is a 19 mm (3/4 inch) hose. The fire suppression system equipped tumbler must be supplied with a minimum water pipe size of 12,7 mm (1/2 inch) and be provided with a
minimum of 138 kPa (20 psi) and a maximum
of 827 kPa (120 psi) of pressure at all times. Flowrate must be no less than, but approximately 57 liters (15 gallons) per minute.
NOTE: Water pressure under 138 kPa (20 pounds per square inch) will cause low flow and water leakage at water solenoid valve.
IMPORTANT: Temperature of the water supply must be kept between 4,4° and 48,9°C (40° and 120°F). If water in the supply line or water solenoid valve freezes, the fire suppression system will not operate.

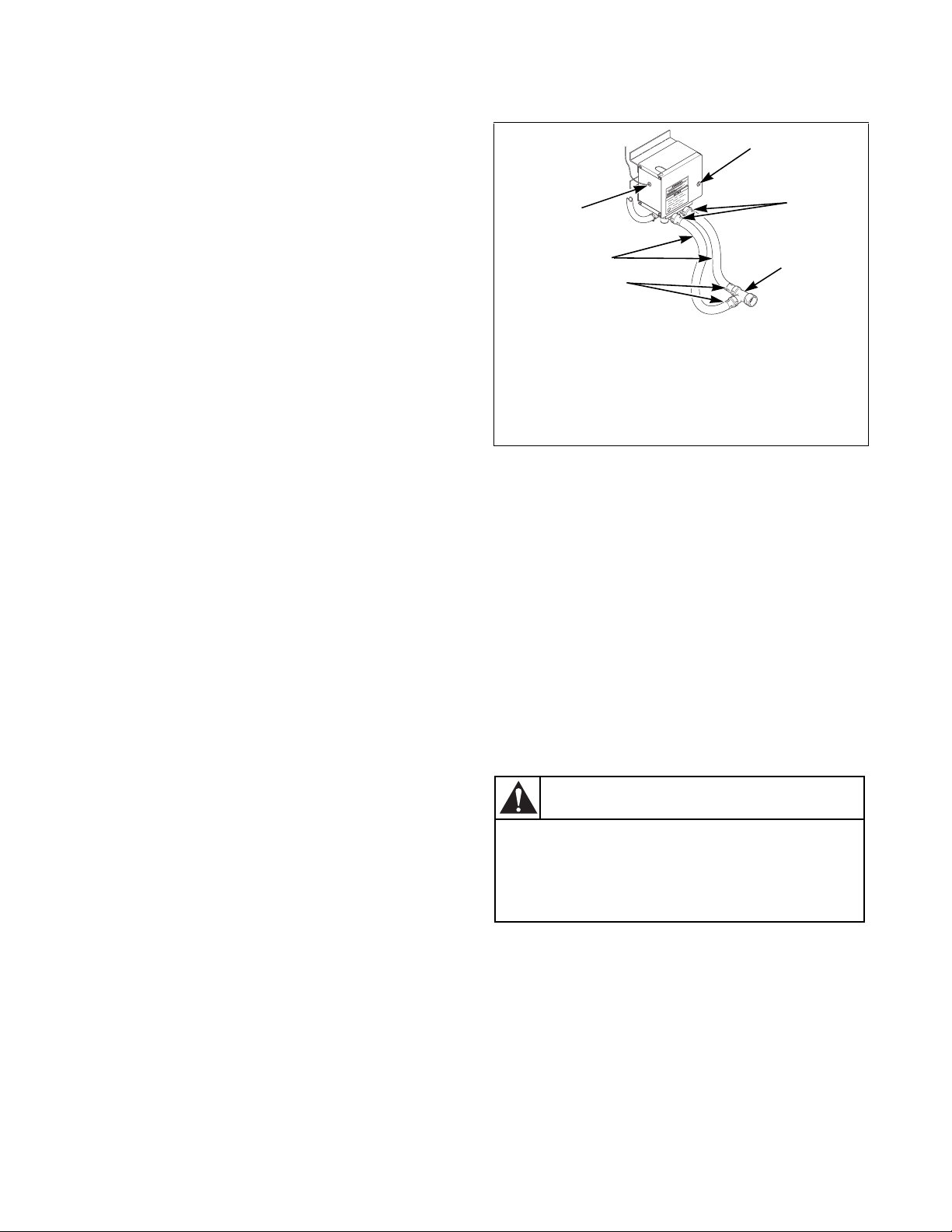

Water Connections
1
5
4
2
1 Lock 2 Hose Couplings 3 Y Valve 4 Inlet Hoses 5 Opening for Auxiliary Alarm Cable
Figure 2
IMPORTANT: Thread hose couplings onto valve connections finger tight, then turn 1/4 turn with pliers. Do not cross thread or overtighten couplings.
2
3
TMB2008N
IMPORTANT: If temperature sensors inside the tumbler register a temperature below 4,4°C (40°F), the fire suppression system control will lock out. This feature protects against operation of the tumbler with a possible frozen water supply. Only when the temperature sensors register a temperature above 4,4°C (40°F) will the machine reset for operation.
IMPORTANT: Flexible supply line/coupling must be used. Solenoid valve failure due to hard plumbing connections will void the warranty. It is recommended that a filter or strainer be installed in the water supply line.
IMPORTANT: Replace all hoses every five years.
NOTE: Longer inlet hoses are available (as optional equipment at extra cost) if the hoses supplied with the tumbler are not long enough for installation. Order hoses as follows:
Part No. 20617 Inlet hose 2.44 m (8 feet) Part No. 20618 Inlet hose 3.05 m (10 feet)
Electrical Requirements
WARNING
Electrical power must be provided to tumbler at all times. The fire suppression system will be inoperative if the main electrical power supply is disconnected.
W690
No independent external power source or supply connection is necessary. Power to operate the 24 Volt fire suppression system is from the rear junction/ contactor box.
M414881 (EN)
© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
13
Installation/Operation Supplement
Auxiliary Alarm
During tumbler installation, you have the option to connect a separate alarm system to this auxiliary output. Use of the auxiliary output is not required for the fire suppression system to operate, but may be used for additional protection.
NOTE: The auxiliary output is activated during fire suppression system maintenance test sequence. Consider this fact prior to your system test every three months. (Example: If the external system uses the auxiliary output to call the fire department, inform the fire department before and after the fire suppression system maintenance test.)
WARNING
To reduce the risk of fire or explosion, if the tumbler is to be connected to Liquefied Petroleum (L.P.) gas, a vent to the outdoors must be provided in the room where the tumbler is installed.
W062
NOTE: This manual is only a supplement. Refer to installation/operation manual for full instructions.
European Gas
Gas Requirements
Natural Gas and Liquefied Petroleum
WARNING
To reduce the risk of fire or explosion, DO NOT CONNECT THE GAS LINE TO THE TUMBLER IF THE GAS SERVICE IS NOT THE SAME AS THAT SPECIFIED ON THE TUMBLER SERIAL PLATE! It will first be necessary to convert the gas burner orifice and gas valve. Appropriate conversion kits are available.
IMPORTANT: Any product revisions or conversions must be made by the Manufacturer’s Authorized Dealers, Distributors, or local service personnel.
IMPORTANT: The tumbler must be isolated the gas supply piping system by closing its individual manual shut-off valve during any pressure testing of the gas supply piping system at test pressure equal to or less than
3.45 kPa,
34.5 mbar (0.5 psi).
IMPORTANT: The tumbler and its manually operated appliance gas valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of
3.45 kPa, 34.5 mbar (0.5 psi).
IMPORTANT: The installation must comply with local codes.
W060
from
WARNING
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the tumbler before servicing.
• Close gas shut-off valve to gas tumbler before servicing.
• Close steam valve to steam tumbler before servicing.
• Never start the tumbler with any guards/ panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be reconnected to ensure that the tumbler is properly grounded.
General Information
This information is to be used when installing gas tumblers in countries, and/or on gases, different than the machine’s factory configuration. Tumblers are supplied from the factory for operation on Natural Gas 8914 kcal/m kcal/m PT/ES/IT/GR/LU/CH. To install machines in any other country or on any other gas requires some level of modification.
Models are built in two different configurations:
Regulated Natural Gas – Injector is sized for
Natural Gas, second family, group H (E) at 20 mbar inlet pressure. Regulator/governor is operational. Gas valve CAN be field-converted to a non-regulating type.
Unregulated Liquefied Petroleum (L.P.) Gas –
Injector is sized for L.P. Gas, third family, group 3+ at 28.37 mbar inlet pressure. Regulator/ governor is blocked open. Gas valve CANNOT be field-converted to a regulating type.
3
(1000 Btu/cu ft.) or L.P. Gas 22,250
3
(2500 Btu/cu ft.) in the countries of GB/IE/
W002
14
© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
M414881 (EN)
Serial plates supplied from the factory are configured for the countries of GB/IE/PT/ES/IT/GR/LU/CH. These instructions pertain to the situations when the country of use or gas supply is different than that on the serial plate.
NOTE: This manual is only a supplement. Refer to installation/operation manual for full instructions.
Installation/Operation Supplement
M414881 (EN)
© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
15
Installation/Operation Supplement
Gases and Configurations
Country
Code
DK/NO/ SE/FI/CZ/ EE/LV/LT/
SI/SK
DE**
NL
BE/FR*
Supply
Gas Type Group
Pressure,
mbar
Natural Gas E 20 8.9
Burner
Orifice
Pressure,
mbar
8.0
Capacity/
Model
120 170
L.P. Gas B/P 30 No Governor 120
170
Natural Gas E 20 8.9
8.0
L.P. Gas B/P 30 and No Governor or 26.4
or
120 170
120 170
50** and No Governor or
28.7
Natural Gas LL 25 12.0 120
170
L.P. Gas B/P 30 No Governor 120
170
Natural Gas E+ 20 or 25 No Governor* 120
170
L.P. Gas 3+ 28 or 37 No Governor 120
170
Diameter,
mm
4.8
4.8
2.6
3.4
4.8
4.8
2.6
3.4
4.8
4.8
2.6
3.4
4.2
3.8
2.6
3.4
Quantity
3 4
3 3
3 4
3 3
3 4
3 3
3 4
3 3
Burner Orifice
Part No.
M411372 M411372
M411376 M400997
M411372 M411372
M411376 M400997
M411372 M411372
M411376 M400997
M402995 M402997
M411376 M400997
Natural Gas E 20 8.9
GB/IE/PT/ ES/IT/GR/
LU/CH
L.P. Gas 3+ 28 or 37 No Governor 120
Natural Gas E 20 8.9
AT**
L.P. Gas B/P 50** 26.4
CY/IS/MT
L.P. Gas B/P 30 No Governor 120
Natural Gas H 25 8.9
HU
L.P. Gas B/P 30 No Governor 120
Natural Gas H 20 8.9
PL
L.P. Gas 3P 37 No Governor 120
Burner orifice information at 0-600 meters (0-2000 feet) altitude.
* For Natural Gas, Group E+ applications, convert using
L.P. Gas model and replace burner orifices.
8.0
8.0
28.7
8.0
8.0
120 170
170
120 170
120 170
170
120 170
170
120 170
170
4.8
4.8
2.6
3.4
4.8
4.8
2.6
3.4
2.6
3.4
4.8
4.8
2.6
3.4
4.8
4.8
2.6
3.4
3 4
3 3
3 4
3 3
3 3
3 4
3 3
3 4
3 3
Ta bl e 1
** For L.P. Gas, Group B/P with 50 mbar supply pressure,
convert using Natural Gas model and appropriate burner orifices.
M411372 M411372
M411376 M400997
M411372 M411372
M411376 M400997
M411376 M400997
M411372 M411372
M411376 M400997
M411372 M411372
M411376 M400997
16
© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
M414881 (EN)
Installation/Operation Supplement
Exhaust Requirements
WARNING
A drying tumbler produces combustible lint. To reduce the risk of fire, the tumbler must be exhausted to the outdoors.
W057
To reduce the risk of fire and accumulation of combustible gases, DO NOT exhaust tumbler air into a window well, gas vent, chimney or enclosed, unventilated area such as an attic, ceiling, crawl space under a building, or concealed space of a building.
W506
Make-Up Air
IMPORTANT: Do not obstruct the flow of combustion and ventilation air.
A tumbler is forced air exhausted and requires provisions for make-up air to replace the air exhausted by the tumbler.
Required Make-Up Air Opening
(to the outside) for Each Tumbler
Venting
Proper sized exhaust ducts are essential for proper operation. All elbows should be sweep type. Exhaust ducts must be assembled so the interior surfaces are smooth to prevent the accumulation of lint.
DO NOT use plastic or thin foil flexible ducts. Use exhaust ducts made of sheet metal or other noncombustible material. Use duct tape or pop rivets on all seams and joints.
Verify that old ducts are thoroughly cleaned out before installing new tumbler(s).
NOTE: The ducts must be equivalent in strength and corrosion resistance to ducts made of galvanized sheet steel not less than 0.495 mm (0.0195 inches) thick.
IMPORTANT: For best performance, provide an individual exhaust duct for each tumbler. Do not install a hot water heater in a room containing tumblers. It is better to have the water heater in a separate room with a separate air inlet.
NOTE: This manual is only a supplement. Refer to installation/operation manual for full instructions.
Models Opening
2
120 Pound
170 Pound
2323 cm
3710 cm
Table 2
(360 in2)
free air
2
(525 in2)
free air
Make-up air openings with louvers will restrict air flow. The opening must be increased to compensate for area taken up by louvers.
If it is necessary to duct make-up air to tumbler(s), increase area of ductwork by 25% to compensate for any restriction in air movement.
M414881 (EN)
© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
17
Installation/Operation Supplement
Electrical Requirements
WARNING
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the tumbler before servicing.
• Close gas shut-off valve to gas tumbler before servicing.
• Close steam valve to steam tumbler before servicing.
• Never start the tumbler with any guards/ panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be reconnected to ensure that the tumbler is properly grounded.
W002
To reduce the risk of fire and electric shock, check with a qualified serviceman for proper grounding procedures. Improper connection of the equipment grounding conductor may result in a risk of electric shock.
W068
To reduce the risk of fire and electric shock, if electrical supply is coming from a three phase service, DO NOT connect a “High Leg” or “Stinger Leg” to a single phase machine. On a three phase machine, if there is a “High Leg” or “Stinger Leg” it should be connected to L3.
W069
Grounding Instructions
NOTE: To ensure protection against shock, this tumbler MUST be electrically grounded in accordance with the local codes or, in the absence of local codes, with the latest edition of the National Electrical Code ANSI/NFPA No. 70.
Metal conduit and/or BX cable is not considered
ground.
Connecting the Neutral from the electrical
service box to the tumbler ground screw does not constitute a ground.
A dedicated ground conduit (wire) must be
connected between the electrical service box ground bar and the tumbler ground screw.
WARNING
All electrical connections should be made by a qualified electrician.
To reduce the risk of electrical shock, de­energize the electrical circuit being connected to the tumbler before making any electrical connections. Never attempt to connect a live circuit.
W070
CAUTION
Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing.
W071
All manually operated models are factory-equipped with an emergency stop button on the front panel.
NOTE: Activation of the emergency stop button stops all machine control circuit functions, but DOES NOT remove all electrical power from machine.
NOTE: This manual is only a supplement. Refer to installation/operation manual for full instructions.
In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This tumbler must be connected to a grounded metal, permanent wiring system; or an equipment grounding conductor must be run with the circuit conductors and connected to the appropriate ground location.
18
© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
M414881 (EN)
Installation/Operation Supplement
Steam Requirements
Obtain specific steam service pipe sizes from the steam system supplier or a qualified steam fitter.
Refer to Figure 3 and Figure 4 for proper steam
pipe configurations.
When tumbler is on the end of a line of
equipment, extend header at least 1.2 meters (4 feet) beyond tumbler. Install shut-off valve, union, check valve and bypass trap at end of line. If the system has a gravity return to the boiler, omit trap.
Insulate steam supply and return line for safety of
operator and safety while servicing tumbler.
Keep tumbler in good working condition. Repair
or replace any worn or defective parts.
WARNING
All system components must have a
8.6 bar (125 psig) working pressure.
Shut-off valves must be installed upstream of the steam solenoid valve and downstream of each steam trap so components can be isolated for maintenance or emergency purposes.
Thermal Oil Prep
It is the responsibility of the customer to install appropriate coil and heating system for thermal oil prep models. Alliance Laundry Systems, LLC. is not responsible for the performance or safety of the customer installed thermal oil system. To ensure proper operation, refer to the Specifications and Dimensions section for the BTU input of equivalent steam models. Thermal oil systems that do not deliver appropriate BTUs will dry slower. For solenoid valve wiring connections, refer to the Wiring Diagram supplied with tumbler.
All components (solenoid valve, traps) must be supported to minimize loads on the tumbler steam coil connections.
W701
NOTE: This manual is only a supplement. Refer to installation/operation manual for full instructions.
M414881 (EN)
© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
19
Installation/Operation Supplement
120 Pound Tumblers
1
11
2
12
6
13
10
9
8
7
6
NOTE: Refer to Tabl e 3 for sizing of steam lines. Piping must also be sized accordingly for length of runs and number of elbows.
1 Supply 8 457 mm (18 in.) Drop 2 305 mm (12 in.) Riser 9 Solenoid Valve (Supplied with machine) 3 Shut-Off Valve 10 Steam Bonnet 4 Condensate Return Line from Supply Line 11 Flexible Line 5 Return 12 Union 6 Check Valve 13 Trap with Built-in Strainer 7 Vacuum Breaker (optional)
3
4
5
TMB2014N
TMB2014N
Model
120S
*Based on maximum PSI.
20
Figure 3
Steam Pressure
bar (PSI)
Minimum Pipe Diameter
(Pounds Condensate/Hour)
8.3 - 8.6 (120-125) 1 in. NPT 345
4.1 - 8.3 (60-120) 1 in. NPT 345
2.4 - 4.1 (35-60) 1-1/4 in. NPT 345
Tabl e 3
© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
Steam Trap Size*
M414881 (EN)
170 Pound Tumblers
SUPPLY
8
Installation/Operation Supplement
1
2
9
3
7
6
5
4
3
NOTE: Refer to Tabl e 4 for sizing of steam lines. Piping must also be sized accordingly for length of runs and number of elbows.
1 Risers 305 mm (12 in.) 6 457 mm (18 in.) Drop 2 Shut-Off Valve 7 Steam Bonnet 3 Check Valve 8 Solenoid Valve (Supplied with machine) 4 Vacuum Breaker (optional) 9 Union 5 Condensate Return Line from Supply Line 10 Trap with Built-In Strainer
10
RETURN
2
TMB2024N
TMB2024N
Figure 4
Model
Steam Pressure
bar (PSI)
Minimum Pipe Diameter
Steam Trap Size*
(Pounds Condensate/Hour)
7.5 - 8.6 (110-125) 1 in. NPT 517
170S
4.1 - 7.5 (60-110) 1-1/4 in. NPT 517
2.4 - 4.1 (35-60) 1-1/2 in. NPT 517
* Based on maximum PSI.
Tabl e 4
M414881 (EN)
© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
21
Installation/Operation Supplement
Operation
WARNING
To reduce the risk of fire:
• DO NOT DRY articles containing foam rubber or similarly textured rubberlike materials.
• DO NOT DRY plastics, anything containing wax or chemicals such as mops and cleaning cloths, or anything dry-cleaned at home with a dry-cleaning solvent.
• DO NOT TUMBLE fiberglass curtains and draperies unless the label says it can be done. If they are dried, wipe out the cylinder with a damp cloth to remove particles of fiberglass.
To reduce the risk of serious injury, allow cylinder to stop before cleaning lint screen.
W076
W412
Emergency Stop Button
All CE approved OPL tumblers are factory-equipped with an emergency stop button located on the front panel. Refer to Figure 5.
1
TMB1665N
1 Emergency Stop Button
Figure 5
To operate emergency stop button:
a. Press red emergency stop button to stop all
action.
b. To restart machine, pull red emergency stop
button out and press START pad or button.
NOTE: Activation of the emergency stop button stops all machine control circuit functions, but DOES NOT remove all electrical power from machine.
Operating Instructions
IMPORTANT: Clean lint screen and lint compartment daily. Failure to clean the lint screen daily will result in higher than normal temperatures that may damage laundry.
Step 2: Load Laundry
Open loading door and load cylinder with laundry. DO NOT OVERLOAD.
NOTE: Overloading causes slow drying and wrinkling.
Close loading door. Tumbler will not operate with the door open.
Step 3: Determine Control Type and Temperature Setting
Refer to the various controls in the Control Instructions Section, pages 23 - 26, determine
appropriate control and then follow the instructions.
The type of fabric being dried will determine the temperature setting. Consult the fabric care label or fabric manufacturer to determine proper temperature setting.
IMPORTANT: Always follow the fabric care instructions supplied by the garment manufacturer.
Step 4: Remove Laundry
When the cycle is complete, open door and remove the laundry.
Step 1: Clean Lint Screen/Compartment
Remove any accumulated lint from the lint screen and compartment. Close panel tightly against tumbler frame and lock panel securely, if applicable.
22
© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT M414881 (EN)
Installation/Operation Supplement
Control Instructions
Manual Timer Control
RT Control Suffix
1. Set the HEAT/DRYING timer for the number of minutes (from 0-60) desired.
0
60
50
40
2. Set the COOL DOWN/COOLING timer for the number of minutes (from 0-15) desired.
15
10
10
20
30
Figure 6
0
5
HEAT
COOL
DOWN
TMB2142N
TMB2143N
4. Press the PUSH TO START button in, and hold it in for approximately three seconds. This starts the tumbler cycle.
PUSH
TO
START
TMB2146N
Figure 9
IMPORTANT: If the loading door or lint panel door is opened during the cycle, the heating system will shut off and the motor will stop. To restart the cycle, both doors must be closed and the PUSH TO START button must be pressed in.
5. When the cycle is complete, open door and remove the laundry.
Figure 7
3. Set the TEMPERATURE selector at HIGH, LOW or anywhere between these settings.
TEMPERATURE
HIGH
Figure 8
LOW
TMB2144N
M414881 (EN)
© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
23
Installation/Operation Supplement
Dual Digital Timer Control
RQ Control Suffix
1. Select HIGH, MED, LOW or NO HEAT by turning the temperature knob.
TMB2147N
Figure 10
2. Set the HEAT TIME for the number of minutes (from 0-60) desired.
TMB2148N
Figure 11
3. Set the COOL DOWN TIME for the number of minutes (from 0-15) desired.
4. Select reversing or nonreversing cylinder rotation settings, if applicable.
TMB2145N
Figure 13
5. Press and release START button to start tumbler. Display will show minutes remaining before end of cycle.
TMB2150N
Figure 14
IMPORTANT: To stop the tumbler at any time during the cycle, OPEN DOOR. If the loading door or lint panel door is opened during the cycle, the heating system will shut off and the motor will stop. To restart the cycle, both doors must be closed and the START button must be pressed in.
Figure 12
6. When the cycle is complete, open door and remove the laundry.
TMB2149N
24
© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
M414881 (EN)
Installation/Operation Supplement
Electronic OPL Control
H, L, P, S, U, X and Y Models with RM Control Suffix
1. To use an Automatic Cycle, press an ON/ SELECT pad. Select HIGH, MEDIUM, MED LOW, LOW or NO HEAT for items that should not be dried with heat. A light to the left of the selected pad lights up.
To use a Time Dry or Custom Cycle, refer to the Programming Manual.
ON / SELECT
HIGH
MEDIUM
MED LOW
LOW
NO HEAT
2. Select REVERSING or NON-REVERSING cylinder rotation setting.
REVERSING
TMB1486N
Figure 17
3. Press START pad to start tumbler.
START
TMB1485N
Figure 18
NOTE: All pads can be pressed in any sequence without damaging control or tumbler. To stop the tumbler at any time, open the door or press STOP/ RESET.
STOP/RESET
TMB1483N
Figure 15
NOTE: Do not press directly on lights or the center of pad. For proper selection, press on pad slightly to the right of center. Refer to Figure 16.
TMB806N
Figure 16
TMB1484N
Figure 19
NOTE: The window display will flash. Press STOP/ RESET twice (within three seconds) to end the cycle and reset the control to idle status. To restart the tumbler, CLOSE door and press START pad.
IMPORTANT: If the loading door or lint panel door is opened during the cycle, the heating system will shut off and the motor will stop. To restart the cycle, both doors must be closed and the START pad must be pressed.
4. When the cycle is complete, open door and remove the laundry.
M414881 (EN)
© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
25
Installation/Operation Supplement
G and K Models with RM Control Suffix
1. To use an Automatic Cycle, press a TEMPERATURE pad. Select HIGH, MED, LOW, DELICATE or NO HEAT for items that should not be dried with heat. A light to the left of the selected pad lights up.
To use a Time Dry or Custom Cycle, refer to the
Programming Manual.
Figure 20
2. Select REVERSING or NONREVERSING cylinder rotation setting.
TMB2201N
3. Press START pad to start tumbler.
TMB2202N
Figure 22
NOTE: All pads can be pressed in any sequence without damaging control or tumbler. To stop the tumbler at any time, open the door or press STOP.
TMB2203N
Figure 23
NOTE: The window display will flash. Press STOP twice (within 3 seconds) to end the cycle and reset the control to idle status. To restart the tumbler, CLOSE door and press START pad.
IMPORTANT: If the loading door or lint panel door is opened during the cycle, the heating system will shut off and the motor will stop. To restart the cycle, both doors must be closed and the PUSH TO START button must be pressed in.
Figure 21
4. When the cycle is complete, open door and remove the laundry.
TMB2206N
26
© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
M414881 (EN)
Ignition Control Operation
Diagnostic LED (DGN LED) / Error Codes
The Diagnostic LED or DGN LED is located by the power connector on the ignition control. Refer to Figure 24. The Diagnostic LED will indicate the status of the ignition control. Refer to Table 5.
LED Color Description
Orange-Yellow Initialization Green Standby / Normal Operation Red Fault Indication Code
Table 5
The Diagnostic LED will flash error codes one half second on and one half second off. Error codes are separated by a one second pause before the code is repeated.
Installation/Operation Supplement
Error Code
1 2 3 4 5 6
1 Diagnostic (DGN) LED
Red Ignition Control Internal Failure
2 Red Flashes Gas Valve Not Connected
3 Red Flashes Ignition/Flame Sense Failure
4 Red Flashes Reset Switch is Shorted
Slow Red and Green Flashes Low Voltage Detection
Fast Red and Orange Flashes Ignition Control is in Reset Delay
Figure 24
DGN LED status Fault Type
1
TMB2176N
M414881 (EN)
© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT
27
Installation/Operation Supplement
Disposal of Unit
This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).
This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Refer to Figure 25. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Ensuring this product is disposed of correctly will help prevent potential negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact the local city office, household waste disposal service, or the source from which the product was purchased.
MIX1N
Figure 25
28
© Published by permission of the copyright owner – DO NOT COPY or TRANSMIT M414881 (EN)
Loading...
