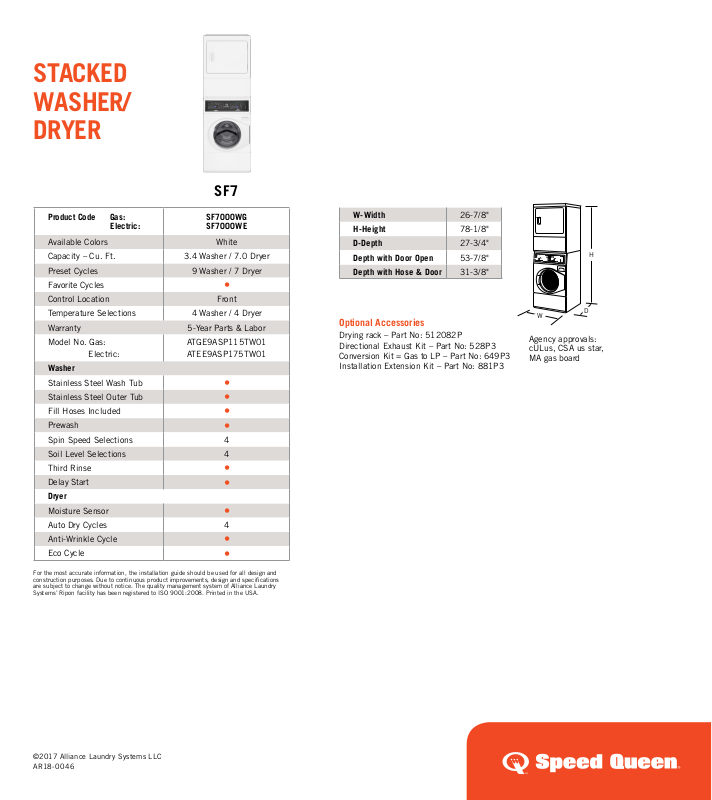

Speed Queen ATGE9ASP115TW01, ATEE9ASP175TW01 Specification Sheet

STACKED WASHER/ DRYER

SF7

Product Code Gas: Electric:

Available Colors White

Capacity – Cu. Ft. 3.4 Washer / 7.0 Dryer

Preset Cycles 9 Washer / 7 Dryer

Favorite Cycles

Control Location Front

Temperature Selections 4 Washer / 4 Dryer

Warranty 5-Year Parts & Labor

Model No. Gas: Electric:

Washer

Stainless Steel Wash Tub

Stainless Steel Outer Tub

Fill Hoses Included

Prewash

Spin Speed Selections 4

Soil Level Selections 4

Third Rinse

Delay Start

Dryer

Moisture Sensor

Auto Dry Cycles 4

Anti-Wrinkle Cycle

Eco Cycle

For the most accurate information, the installation guide should be used for all design and construction purposes. Due to continuous product improvements, design and speciﬁcations are subject to change without notice. The quality management system of Alliance Laundry Systems’ Ripon facility has been registered to ISO 9001:2008. Printed in the USA.

SF7000WG SF7000WE

•

ATGE9ASP115TW01 ATEE9ASP175TW01

•

W-Width 26-7/8"

H-Height 78-1/8"

D-Depth 27-3/4"

Depth with Door Open 53-7/8"

Depth with Hose & Door

31-3/8"

Optional Accessories

Drying rack – Part No: 512082P Directional Exhaust Kit – Part No: 528P3 Conversion Kit = Gas to LP – Part No: 649P3 Installation Extension Kit – Part No: 881P3

Agency approvals: cULus, CSA us star, MA gas board
