Page 1
KT55
Quick Guide
Android 5.1
1
Page 2
KT55 Quick Guide V1.0 DATE：2016-10-10
List
KT55 SPECIFICATIONS .................................................................................................
3
External structure......................................................................................................................
6
Overall ...................................................................................................................................
6
Card slot ................................................................................................................
6
Android 5.1 introduction...........................................................................................................
7
System lock screen ................................................................................................................
7
Main interface .......................................................................................................................
8
All applications ......................................................................................................................
9
Basic application and settings .................................................................................................
10
Phone...................................................................................................................................
10
Camera ................................................................................................................................
11
Set the language..................................................................................................................
12
A key scan................................................................................................................................
13
Include key-values...............................................................................................................
14
Include key...........................................................................................................................
14
Instructions..........................................................................................................................
15
RFID Read (optional)..............................................................................................................
15
Basic model description...............................................................................................................................
16
Special function customization instructions.......................................................................................
16
Technical Support Contact ......................................................................................................
16
SPEEDATA ITALIA Via Denzlingen 10 , 06062 Città della Pieve (PG) ITALY
T +39-0578-299685 F +39-0578-299810 www.speedata.it
Page 3
KT55 Quick Guide V1.0 DATE：2016-10-10
KT55
SPECIFICATIONS
Basic parameters
CPU ARM Cotex-A53 8-core 1.5GHz
OS Android 5.1
Storage
RAM 2GB;ROM 16GB
Storage
A Micro SD Card, maximum support 128GB.
Extensions
Keyboard
Five side buttons, a Home screen Home button.
Battery 6000mAh 3.7V; Standby time: 500 hours; Talk time: 8 hours.
Support fast charge and wireless charging, Special quick charge,
Charging method
Voltage: 5V/9V , Electric current: 1.6A
1.Bluetooth V2.1+ EDR/ V3.0+ HS/ V4.1
Wireless
2.WIFI 802.11 b/g/n/a 2.4G/5G
transmission
3.GPRS/EDGE/HSPA/CDMA2000/TDD/FDD
Location service
GPS, AGPS, BEIDOU (accuracy of < 10 meters, positioning time<40s).
Notification
S
ound, vibration, LED tips
Method
Audio
Built-in speaker
Size
170mm*76mm*10mm
Weight(with
260g
battery)
Machine performance
Operating
Normal operating temperature -20 ℃ to 60 ℃ , low temperature
temperature
battery -30℃.
Storage
-45℃ to +60℃
temperature
Humidity
5%-95%(no condensing)
IP Code
IP65
6 surface can withstand 1.8 meter drops to concrete floor of the
Drop test
impact.
Rolling test Rolling specifications : 0.5 m / 1000 times (6 contact surfaces)
Electrostatic
± 15kV air discharge, ± 8kV contact discharge
discharge (ESD)
Camera
Pixel
Rear 13 million pixels; front 5 million pixels.
Focus mode Rear auto focus, pre fixed focus.
Flash Support flash, support flashlight.
Display
Display
5.5 inch FHD AMOLED；Auxiliary screen：0.91 inch OLED
Page 4
KT55 Quick Guide V1.0 DATE：2016-10-10
Screen resolution
1080p（1920*1080）
Touchscreen type
Capacitive touch screen
Back lighting
LED
Network
Network type
Dual card dual , 4G Full Netcom
4G TDD-LTE : 1900/2300/2500/2600 MHz(B38/B39/B40/B41)
4G FDD-LTE : 1800/2100/2600 MHz (B1/B3/B7)
3G TD-SCDMA: 1900/2100 MHZ (B34 B39 )
Support band
3G WCDMA:850/900/1900/2100 MHz(B1 B2 B5 B8)
2G GSM:850/900/1800/1900 MHz(B2 B3 B5 B8)
CDMA&EVDO: 800 MHz(BC0)
FDD: Downlink：150Mbps Uplink： 50Mbps
TDD: Downlink：150Mbps Uplink： 50Mbps
WCDMA HSDPA: Downlink：42.2Mbps Uplink： 11.5Mbps
Communication
TD-SCDMA: Downlink：384Kbps Uplink： 384Kbps
speed
TD-HSDPA: Downlink：2.2Mbps Uplink： 2.8Mbps
CDMA2000 1xRTT ： 153.6Kbps
CDMA2000 HRPD/1xEV-DO ：Forward link 3.1Mbps Reverse link
1.8Mbps
Scalability
Micro SD card slot； SIM card slot；Micro SIM card slot.
Physical interface
Micro USB interface, 3.5mm headphone jack, can support RS232/485
serial ports.
Optional scan
Honeywell: N6603 (Two dimensional soft solution).
head model
Scanning head
5cm-40cm according to different barcode size and resolution.
reading distance
AZTEC、CODABAR、CODE11、CODE128、EAN128、CODE39、CODE49、
CODE93 、 COMPOSITE、DATAMATRIX、 EAN8 、 EAN13 、 INT25、
MAXICODE、MICROPDF、PDF417、POSTNET、OCR、QR、RSS、UPCA、
Barcode scanning
UPCE、ISBT、BPO、CANPOST、AUSPOST、IATA25、CODABLOCK、
supports barcode
JAPOST、PLANET、DUTCHPOST、MSI、TLC39、TRIOPTIC、CODE32、
type
STRT25、MATRIX25、PLESSEY、CHINAPOST、KOREAPOST、TELEPEN、
CODE16K、POSICODE、COUPONCODE、USPS4CB、IDTAG、LABELIV、LABELV、GS1_128、HANXIN、GRIDMATRIX
1. High Frequency : 13.56MHz
Supported protocols : 14443A, 15693, NFC
Reading distance : 0cm-5cm
RFID
2.UHF :UHF 900MHz
Support reading and writing(Need to install the extension clip
EM55) Support EPC C1 GEN2/ISO18000-6C agreement
SPEEDATA ITALIA Via Denzlingen 10 , 06062 Città della Pieve (PG) ITALY
T +39-0578-299685 F +39-0578-299810 www.speedata.it
Page 5
KT55 Quick Guide V1.0 DATE：2016-10-10
Tag processing speed >200/s, Reading distance
0-5m
3.ID card：13.56MHz
Support the second generation ID card to read the complete
information and analysis, does not require networking.
Power infrared meter reading module, 38kHz modulation frequency,
Infrared module
940nm, and in line with the meter DLT 645-2007 standard DLT 645-
(optional)
2007
Iris recognition
Optical image recognition, iris storage 1000, 1: 1000 <1s
(optional)
Fingerprint
Semiconductor
fingerprint
identification(Ordinary
civil:
Module
1000fingerprints storage, 1:1000<1s; FBI STQC special: 100fingerprint
(optional)
storage, 1:100<2s).
PSAM card
ISO 7816, GSM 11-11,EMV4.2 and EMV 2000
(optional)
Thermal printer The roll width is ±58mm , The roll thickness 40mm.
(with extended
16/24dot matrix, speed can be adjusted.
clip)
Accessories
Standard
USB data cable, Special fast charger.
Accessories
Optional
Wireless charger, Multifunctional back clip.
Accessories
SPEEDATA ITALIA Via Denzlingen 10 , 06062 Città della Pieve (PG) ITALY
T +39-0578-299685 F +39-0578-299810 www.speedata.it
Page 6
KT55 Quick Guide V1.0 DATE：2016-10-10

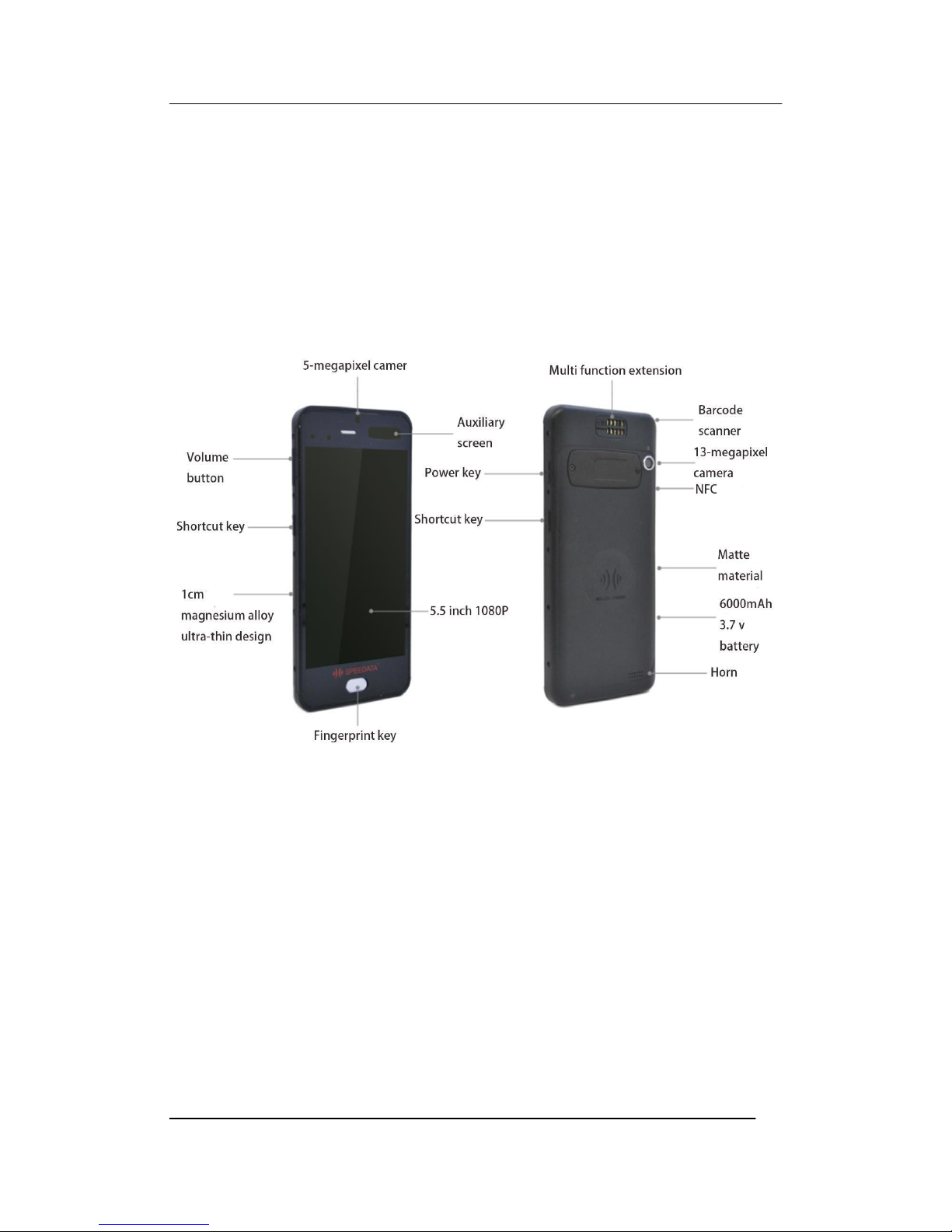

External structure
Overall
Card slot
Micro SD card slot: External memory card slot.
4G SIM card slot: Full Netcom 4G SIM card slot.
SPEEDATA ITALIA Via Denzlingen 10 , 06062 Città della Pieve (PG) ITALY
T +39-0578-299685 F +39-0578-299810 www.speedata.it
Page 7
KT55 Quick Guide V1.0 DATE：2016-10-10
Android 5.1 introduction

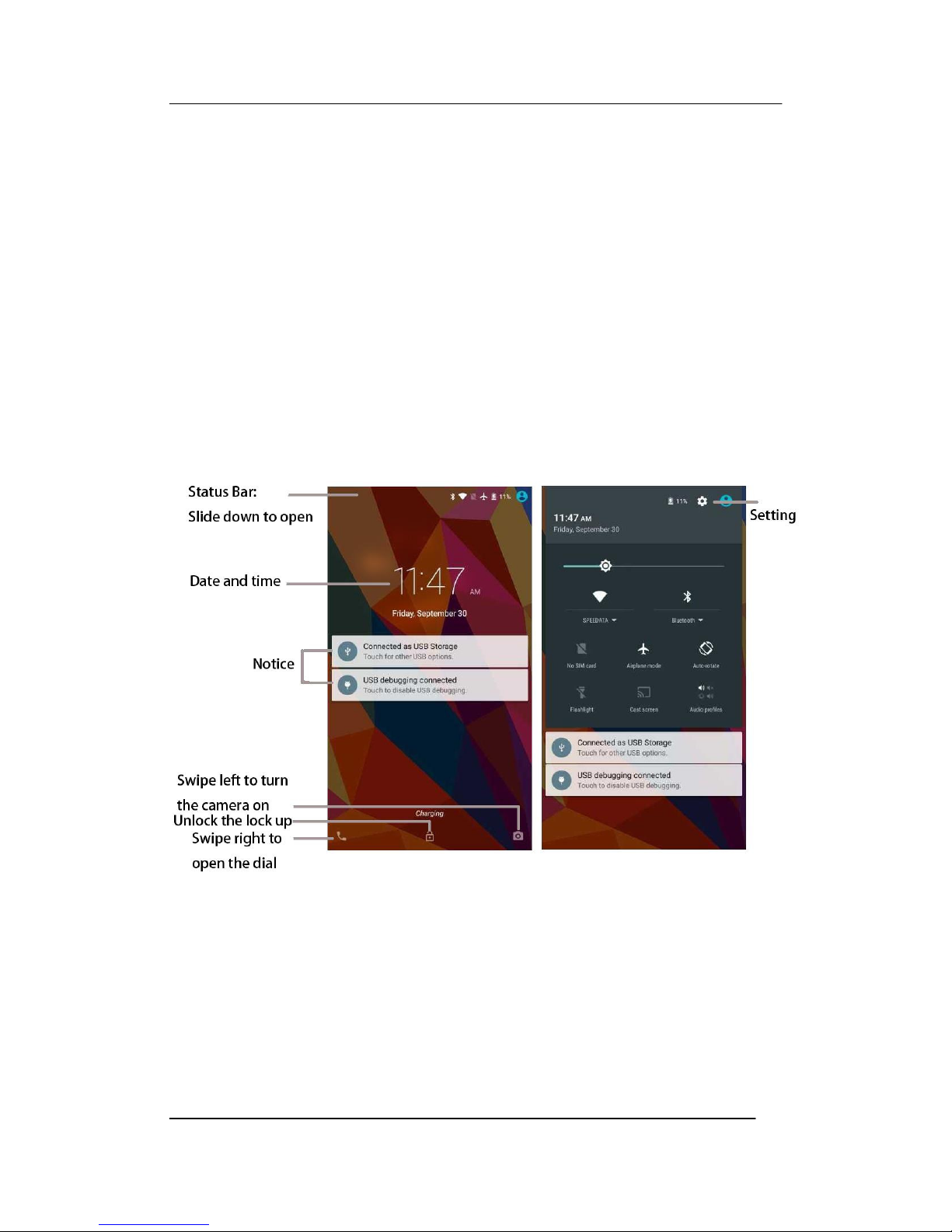

System lock screen
If you don’t have a screen lock, you can unlock it, open an app, and view notification.
Quick Setup: Touch the screen to the top position and side the notification bar, directly
touching the icons setting, but also directly touch the top of the System Setup icon to enter
system settings.
Notice: Double-click to expand, touch to view press and hold the left and right point slide
removed.
SPEEDATA ITALIA Via Denzlingen 10 , 06062 Città della Pieve (PG) ITALY
T +39-0578-299685 F +39-0578-299810 www.speedata.it
Page 8
KT55 Quick Guide V1.0 DATE：2016-10-10

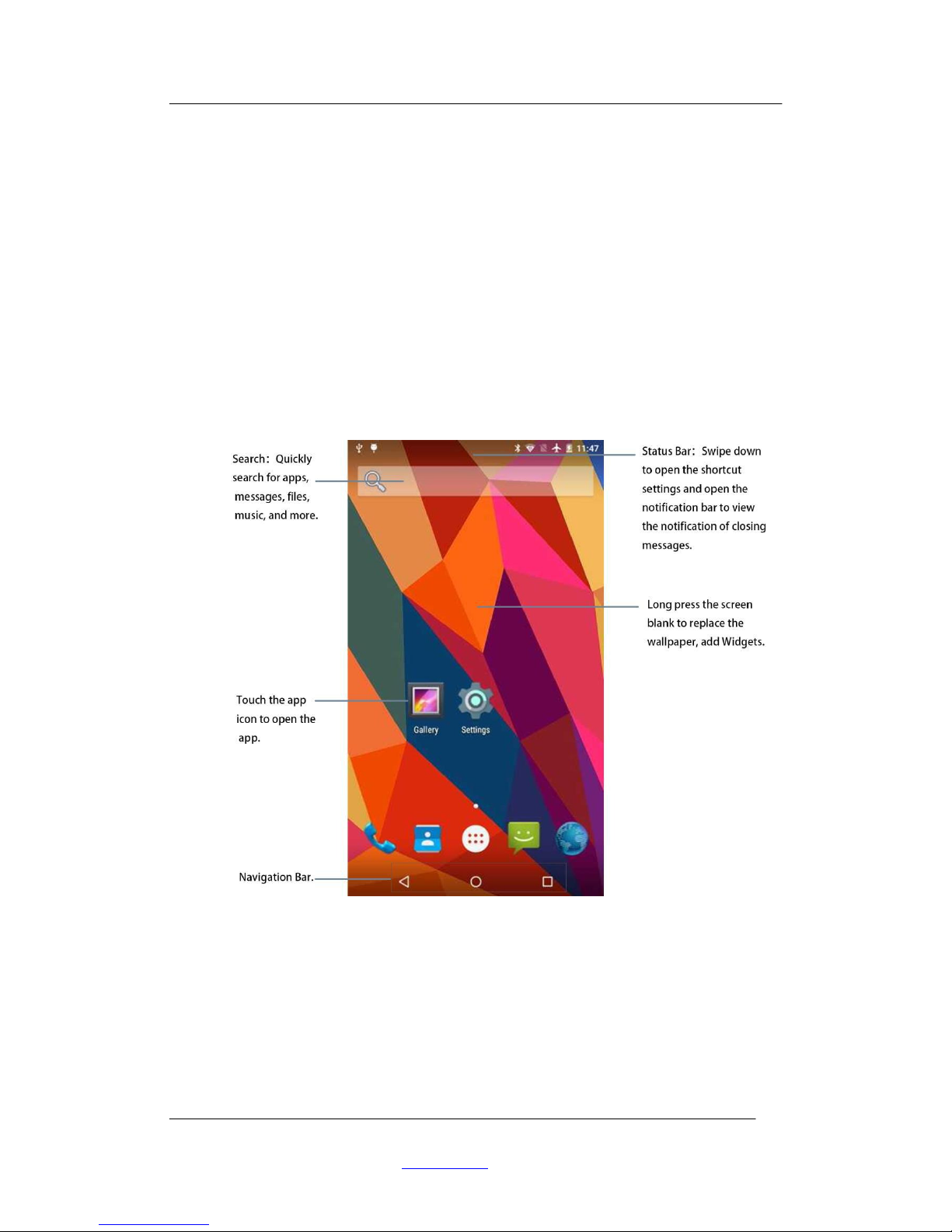

Main interface
In the main interface, you can observe the state, view the notification, open the application,
such as search.
Add application shortcuts：：：：Point hold the app icon and then move to the main screen
anywhere.
Settings: Change screen brightness, WLAN, etc. Can be directly slide down the status bar,
quick operation settings.
SPEEDATA ITALIA Via Denzlingen 10 , 06062 Città della Pieve (PG) ITALY
T +39-0578-299685 F +39-0578-299810 www.speedata.it
Page 9
KT55 Quick Guide V1.0 DATE：2016-10-10

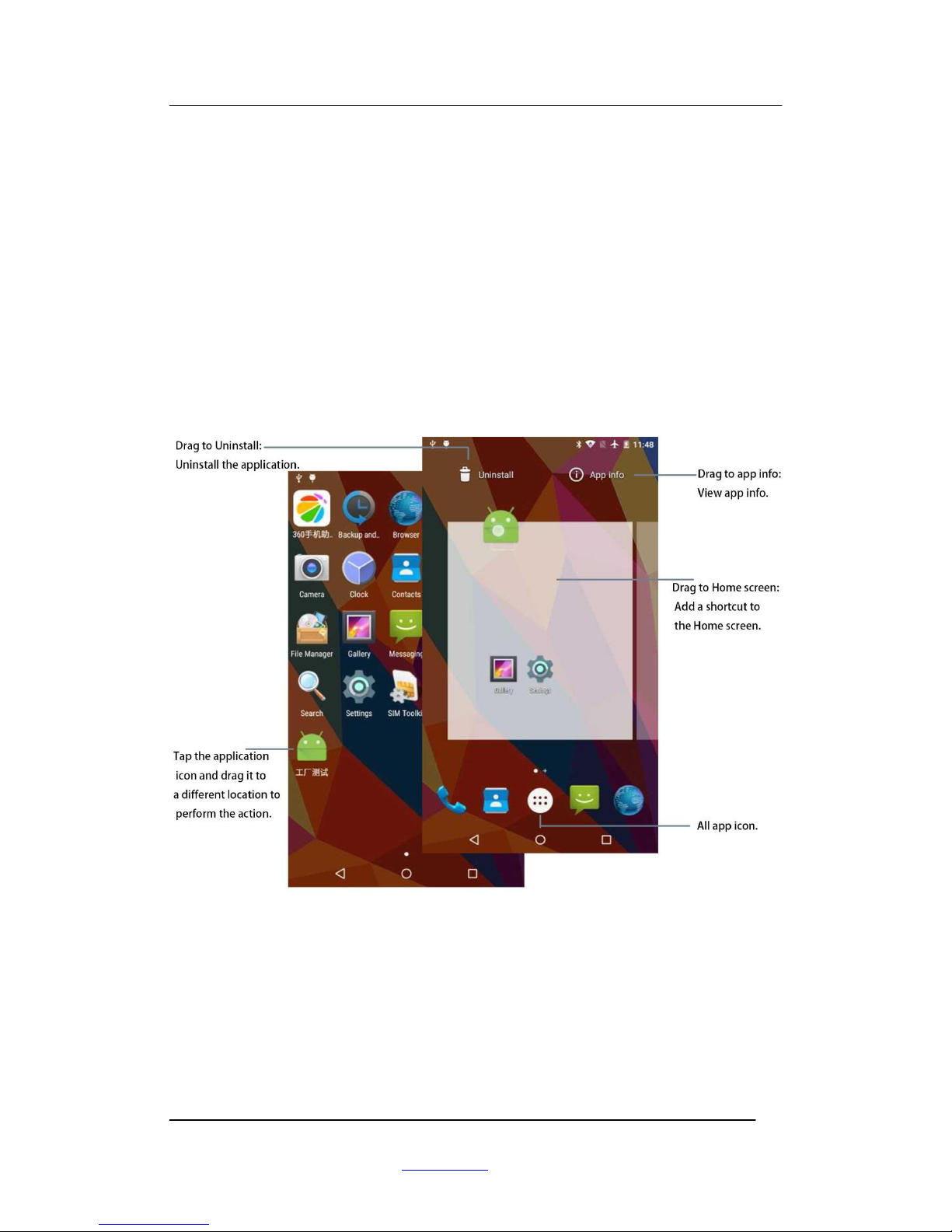

All applications
Touch the “All app icon” in the Favorites bar to see all of the apps already installed on your
current device.
Swipe the screen left or right to see all your
apps. Touch the icon to open the app.
Tap and hold the icon to add a shortcut to the Home screen, to view the application
information, or to uninstall it (The system application can only view the application
information).
SPEEDATA ITALIA Via Denzlingen 10 , 06062 Città della Pieve (PG) ITALY
T +39-0578-299685 F +39-0578-299810 www.speedata.it
Page 10
KT55 Quick Guide V1.0 DATE：2016-10-10
Basic application and settings

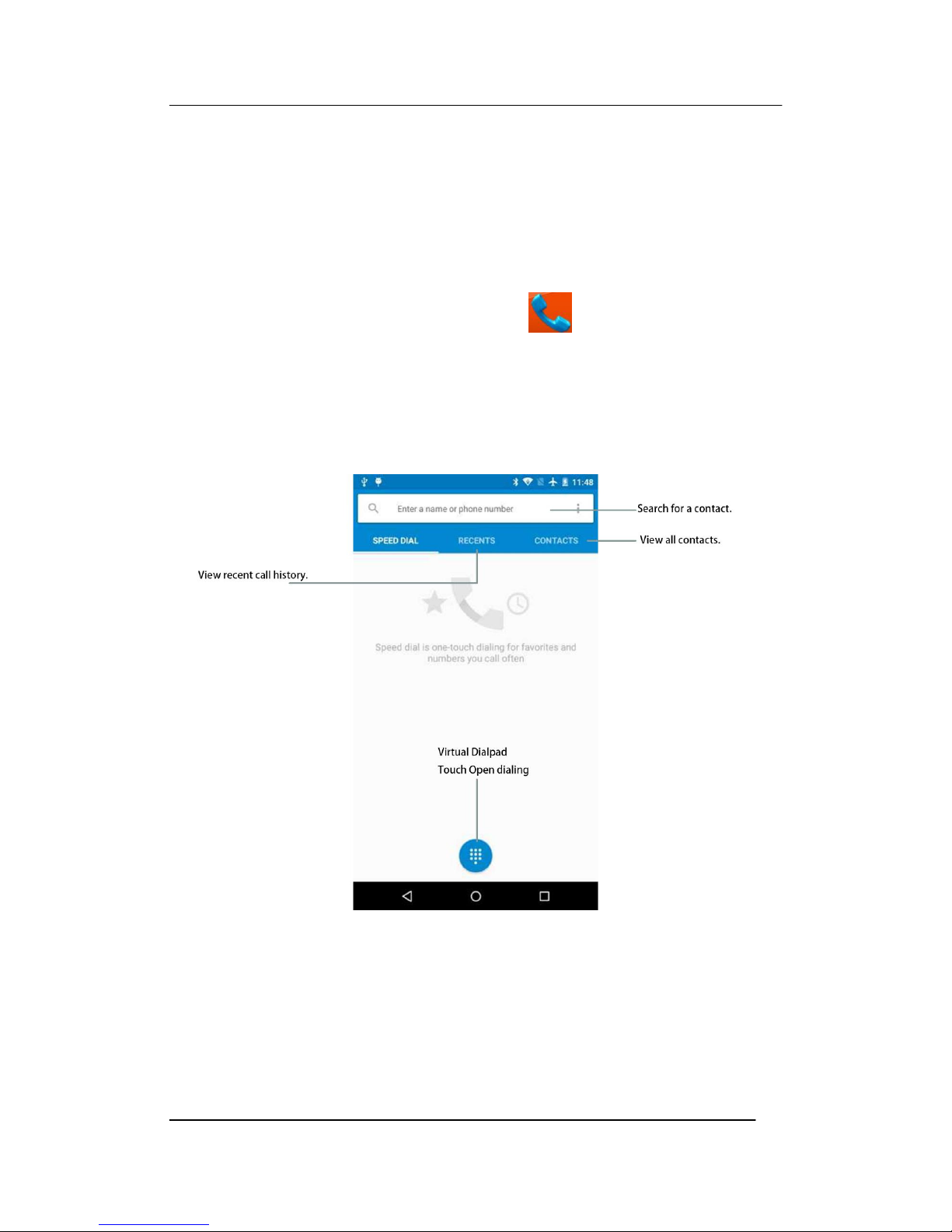

Phone
Favorites bar or touch the phone icon in all applications , or slide the screen to the right
to enter the dial screen interface can use the phone function.
Speed Dial: Shows stored in your phone, and favorite contacts.
Outbound dialing: Dial opening disk, use the virtual dial pad to enter or use the hardware
keyboard to enter the number.
SPEEDATA ITALIA Via Denzlingen 10 , 06062 Città della Pieve (PG) ITALY
T +39-0578-299685 F +39-0578-299810 www.speedata.it
Page 11
KT55 Quick Guide V1.0 DATE：2016-10-10

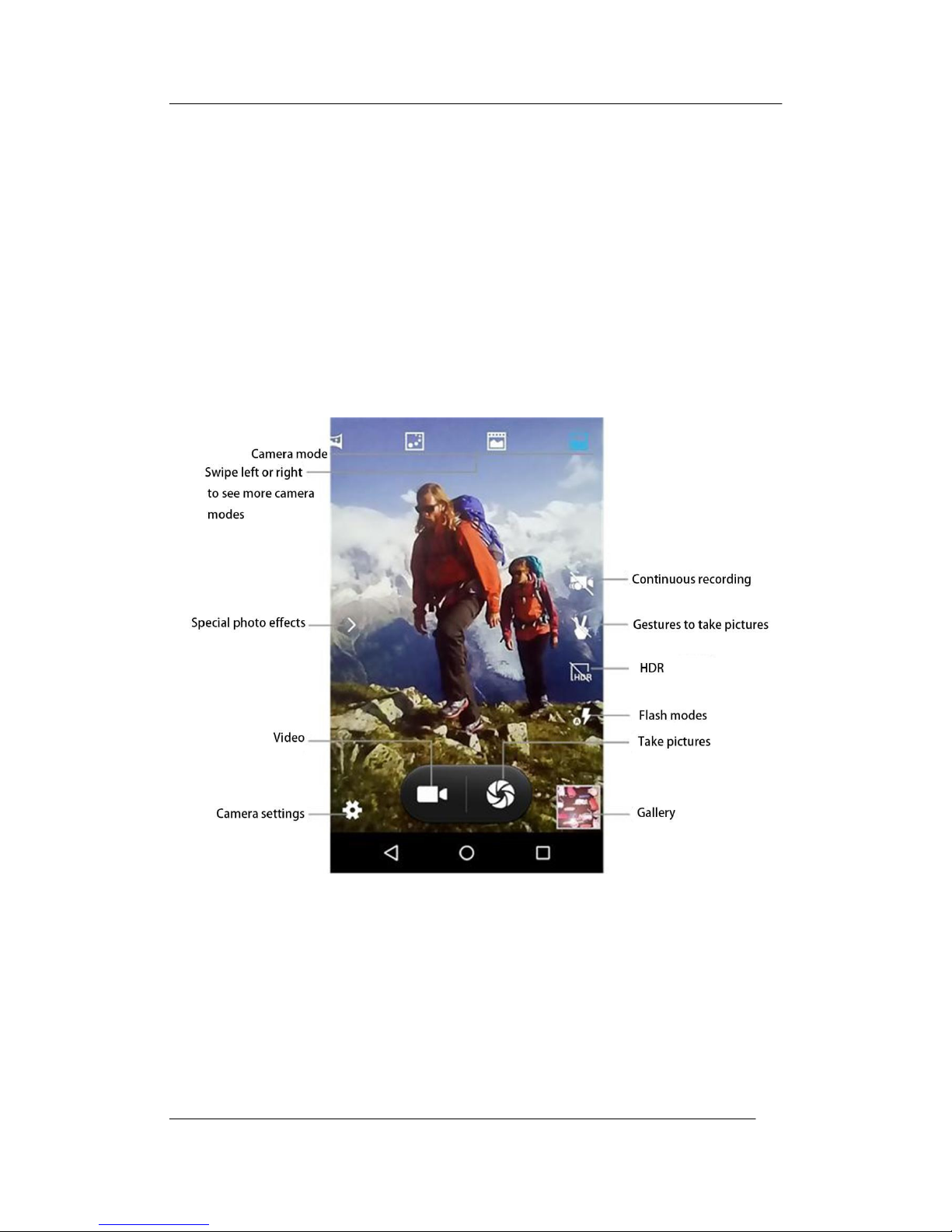

Camera
There are three ways to turn the camera on: the screen lock screen to left, touch the camera
application icon, and press the camera shortcut key (on both sides of the screen).
Snapshot Mode: Swipe left or right to see more pictures mode.
Flash modes: automatic, always on, and always off three modes, default mode.
Continuous recording: Open the recording can be performed repeatedly.
SPEEDATA ITALIA Via Denzlingen 10 , 06062 Città della Pieve (PG) ITALY
T +39-0578-299685 F +39-0578-299810 www.speedata.it
Page 12
KT55 Quick Guide V1.0 DATE：2016-10-10

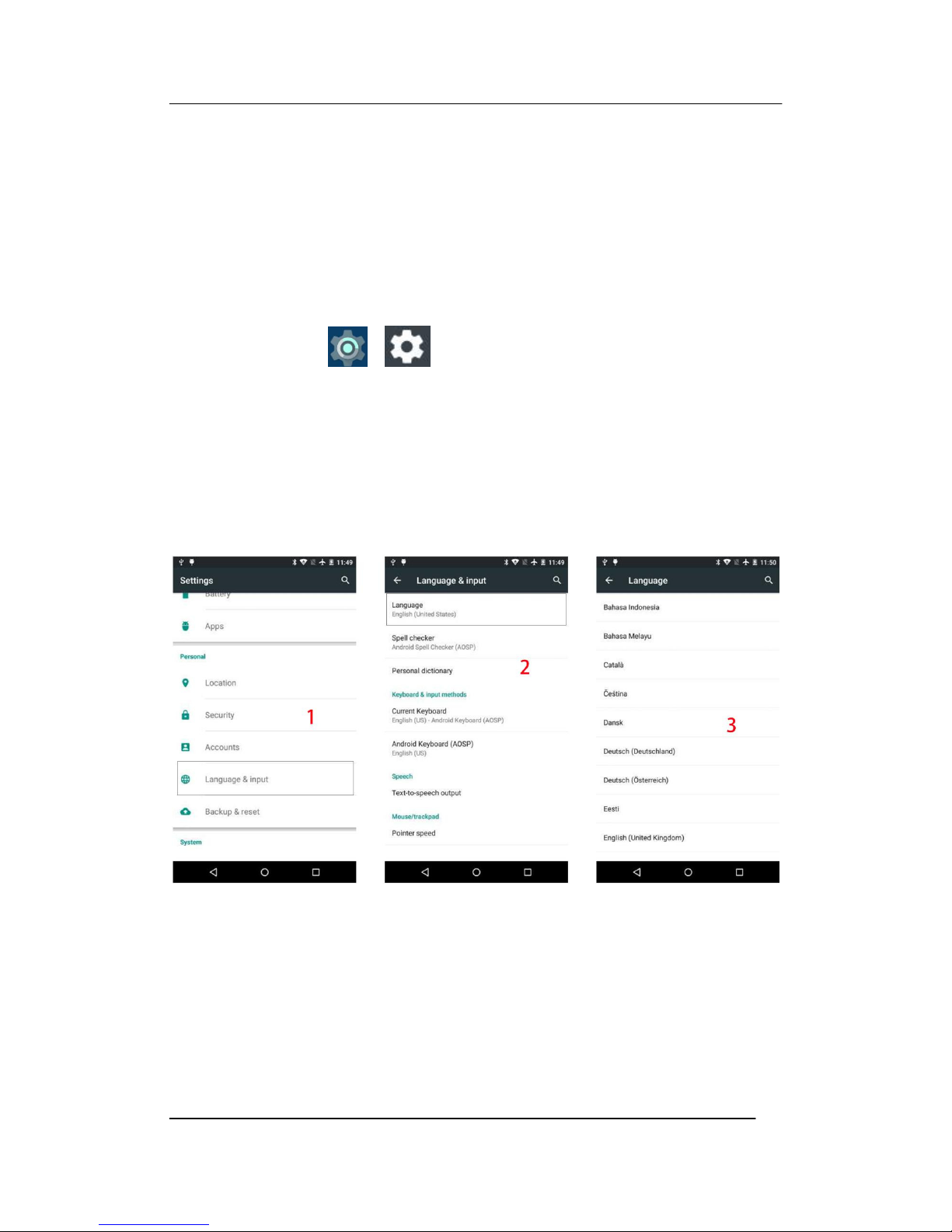

Set the language
The default display language is English. Brush to upgrade the system version or restore the
factory settings, the system display the language back to the default settings.
Can be put into the local use of telephone card changes, or enter the system settings changes.
Touch the Settings icon or .
Proceed as follows:
SPEEDATA ITALIA Via Denzlingen 10 , 06062 Città della Pieve (PG) ITALY
T +39-0578-299685 F +39-0578-299810 www.speedata.it
Page 13
KT55 Quick Guide V1.0 DATE：2016-10-10
A key scan
A key scan is also called quick scan. This feature allows you to directly bar code or twodimensional code scanning, hereinafter referred to as bar code.

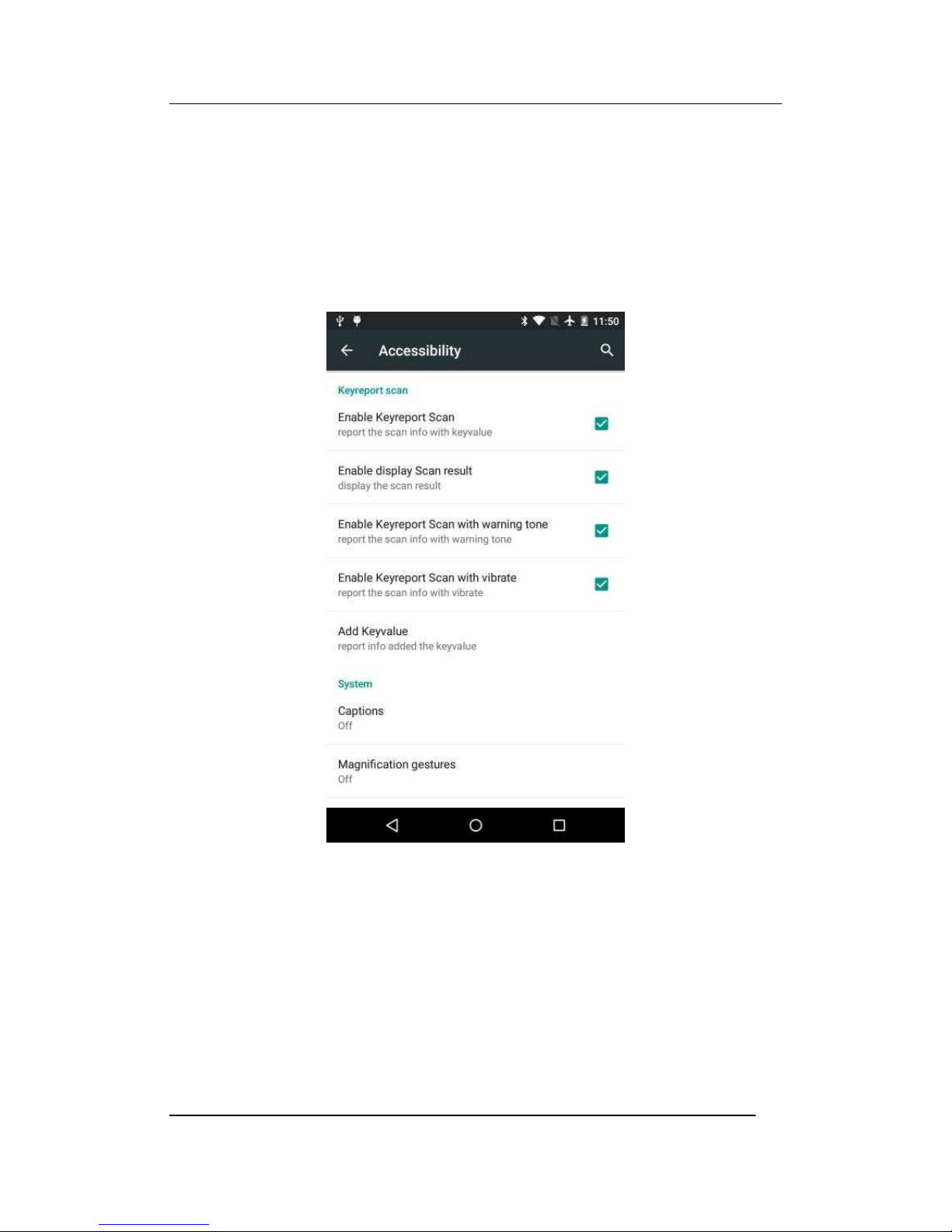

A key scan settings
The device does not open a key by default, you want to use the need to open and set.
SettingsAccessibilityReported Scan key contains all the relevant options.
Check Enable reporting Scan key to open a key scan function.
Enable Display Scan Results: checked by default, scan the bar code successfully reported
and displayed information is displayed at the current cursor position; is not checked, then
any reported success but does not display the bar code information can be determined
display position themselves in specific applications and the way.
Enable scanning tone: When checked after scanning you will hear “ding” sound.
Enable scanning shock: When checked in after a successful scan machine will vibrate.
SPEEDATA ITALIA Via Denzlingen 10 , 06062 Città della Pieve (PG) ITALY
T +39-0578-299685 F +39-0578-299810 www.speedata.it
Page 14
KT55 Quick Guide V1.0 DATE：2016-10-10

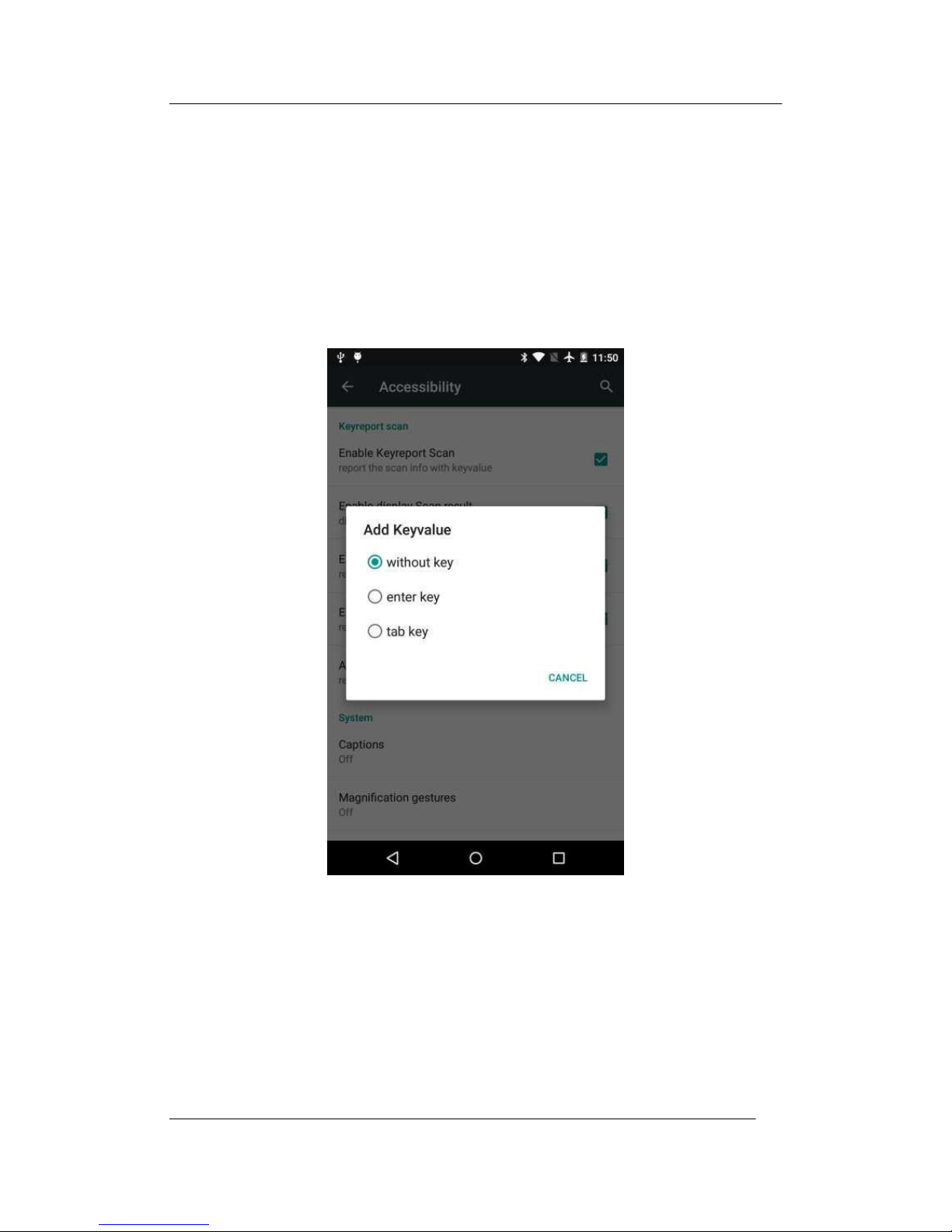

Include key-values
Include key:
in the back of the bar code information display included with the other
key, the default is "without warranty key." "With enter key" After the success of the scan
with enter carriage return line feed, "with tab key" after the success of the scan tab to the
next tab stop.
About "Enable display scan results" and "Include key values":
Check the "enable display scan results", that is reported and displayed bar code
information, bar code information will be attached to the key value;
Do not check the "Enable display scan results", that is, only reported but does not display
the bar code information, will not be accompanied by key values.
SPEEDATA ITALIA Via Denzlingen 10 , 06062 Città della Pieve (PG) ITALY
T +39-0578-299685 F +39-0578-299810 www.speedata.it
Page 15
KT55 Quick Guide V1.0 DATE：2016-10-10
Instructions
Use one-touch scan to set the operation steps are as follows:
First, a quick scan opens. Please enter the settings accessibility, check the "Scan key
reporting" category under the "Enable reported Scan key." You can see the scanning beam
by pressing any of the scan keys (the scan key on both sides of the screen).
Then, enter the bar code display interface. Open any available display interface and
specify the focus, such as: Message, "To-do" and add new items and "Search" on the
desktop.
Finally, a quick scan is performed. Press and hold the scan key and align the scanning
beam at the barcode. After the scanning, the head light will be off, and the corresponding
bar code information can be seen on the device. Depending on the version, the scan is
divided into two cases: press and hold the scan button that is scanning light, release that is
off; click the scan button appears scanning light, sweep to the bar code or more than the
scan time exterminate. (If you want to hear a tone or vibrate after scanning successfully,
you need to check the corresponding "Enable scanning tone" and "Enable scanning
vibration".)
Page 16
CUSTOMER SERVICE AND TECHNICAL SUPPORTER
Customer service +39-0578-299685
SPEEDATA ITALIA
Via Denzlingen 10 , 06062 Città della Pieve (PG) ITALY
T +39-0578-299685 F +39-0578-299810 www.speedata.it
Loading...
