KT45Q SPECIFICATION
BASIC INFORMATION
CPU Cortex-A53 1.3GHz-1.5GHz OCTA-core
STORAGE&MEMORY Flash 8GB RAM 1GB
OS Android 5.1
CONNECTIVITY
1.Bluetooth: v2.1 +EDR/v3.0+HS/v4.1
2.WIFI: 802.11 b/g/n/a 2.4G/5G
3.GPRS /HSPA/EDGE/CDMA2000/TDD/FDD
GPS MODULE GPS
PC CONNECTOR
USB 2.0 High-Speed
SCREEN
SCREEN SIZE 4.5’’ IPS LCD
SCREEN RESOLUTION 480*854
TOUCH SCREEN TYPE Capacitive Touch screen
BACK LIGHTING LED
VEDIO FUNCTION
MAIN CAMERA 800MP
FOCUS MODE Auto
SENSOR TYPE CMOS
FLASH LED
COMMUNICATION MODULE
COMMUNICATION
SPECTRUM
Support two cards
2G GSM:850/900/1800/1900MHz
3G TDSCDMA: 1900/2100MHz
3G WCDMA: 850/900/1900/2100MHz
4G:TDD-LTE Band: B38/B39/B40/B41
4G: FDD-LTE Band: B1/B3/B7/B8
CDMA&EVDO BCO
EXPANDABILITY
BarcodeScanner(supp
ort 1D/2D barcode,
choose according to
demand)
Honeywell: N4313
Symbol: SE955
Newland:EM1300
Motorola: SE4500(1D/2D)
Newland: EM3095(1D/2D)
Newland: EM3000(1D/2D)
Page 4
KT45Q Quick Guide V1.0 DATE：2016-04-08
Beijing Speedata Technology Co.,Ltd
1st floor,2nd building, ShangDi No.6 Street 28#, HaiDian District, Beijing 100085,China4/19
T:(86)010 8234 6858 F:(86)010 8234 6858www.speedata.cn
RFID
1. 13.56MHz(14443A/B,15693,NFC)
2.UHF 900MHz
3.LF low frequency(125KHz,134.2KHz)
FingerPrint optical fingerprint identification
PHYSICAL SPEC
SIZE 175mm*76mm*28mm
BATTERY 5200mAh, 3.8V or 2600mAh,7.4V
WORK ENVIRONMENT
WORK TEMPERATURE
-20℃~50℃
HUMIDITY RANGE
5%~95%（no condensation）
DROP SPECIFICATION
Within the scope of operation，all 6 sides can withstand the impact of falling to
sement floor from 1.5m in height
SCROLL
SPECIFICATION
1000 times 0.5m, 6 rolling contact sides
SEAL GRADE IP65
Page 5
KT45Q Quick Guide V1.0 DATE：2016-04-08
Beijing Speedata Technology Co.,Ltd
1st floor,2nd building, ShangDi No.6 Street 28#, HaiDian District, Beijing 100085,China5/19
T:(86)010 8234 6858 F:(86)010 8234 6858www.speedata.cn

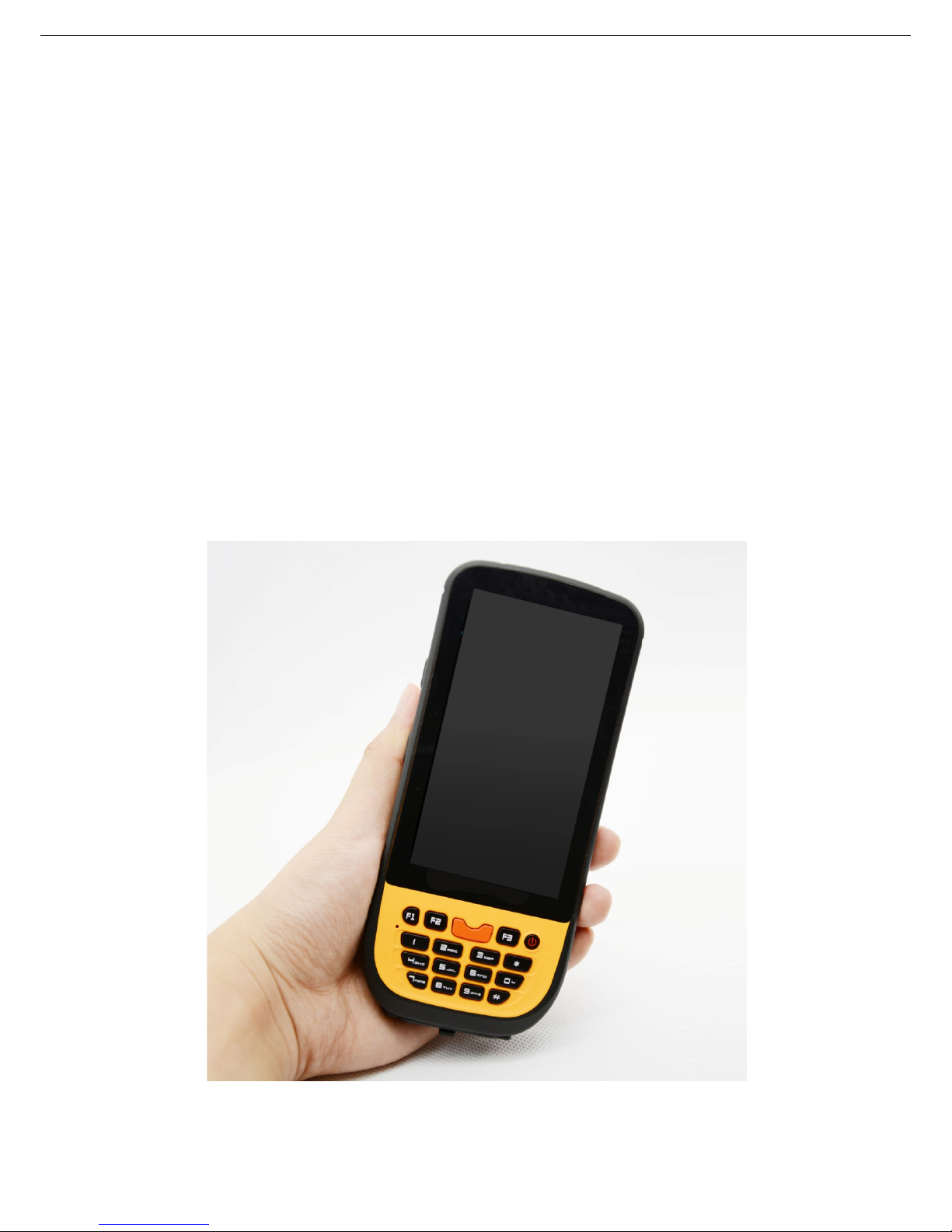

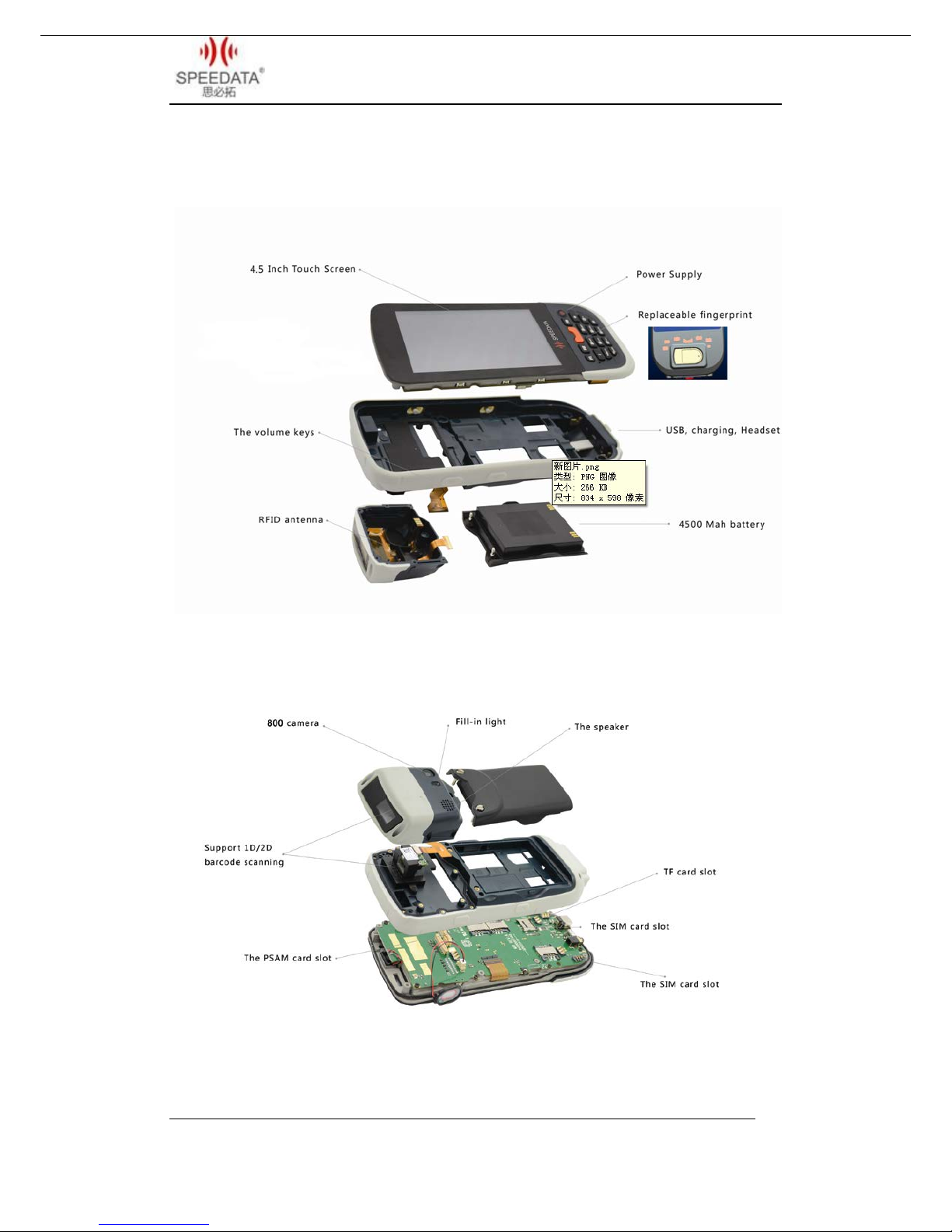

1 EXTERNAL STRUCTURE DESCRIPTION
Page 6
KT45Q Quick Guide V1.0 DATE：2016-04-08
Beijing Speedata Technology Co.,Ltd
1st floor,2nd building, ShangDi No.6 Street 28#, HaiDian District, Beijing 100085,China6/19
T:(86)010 8234 6858 F:(86)010 8234 6858www.speedata.cn

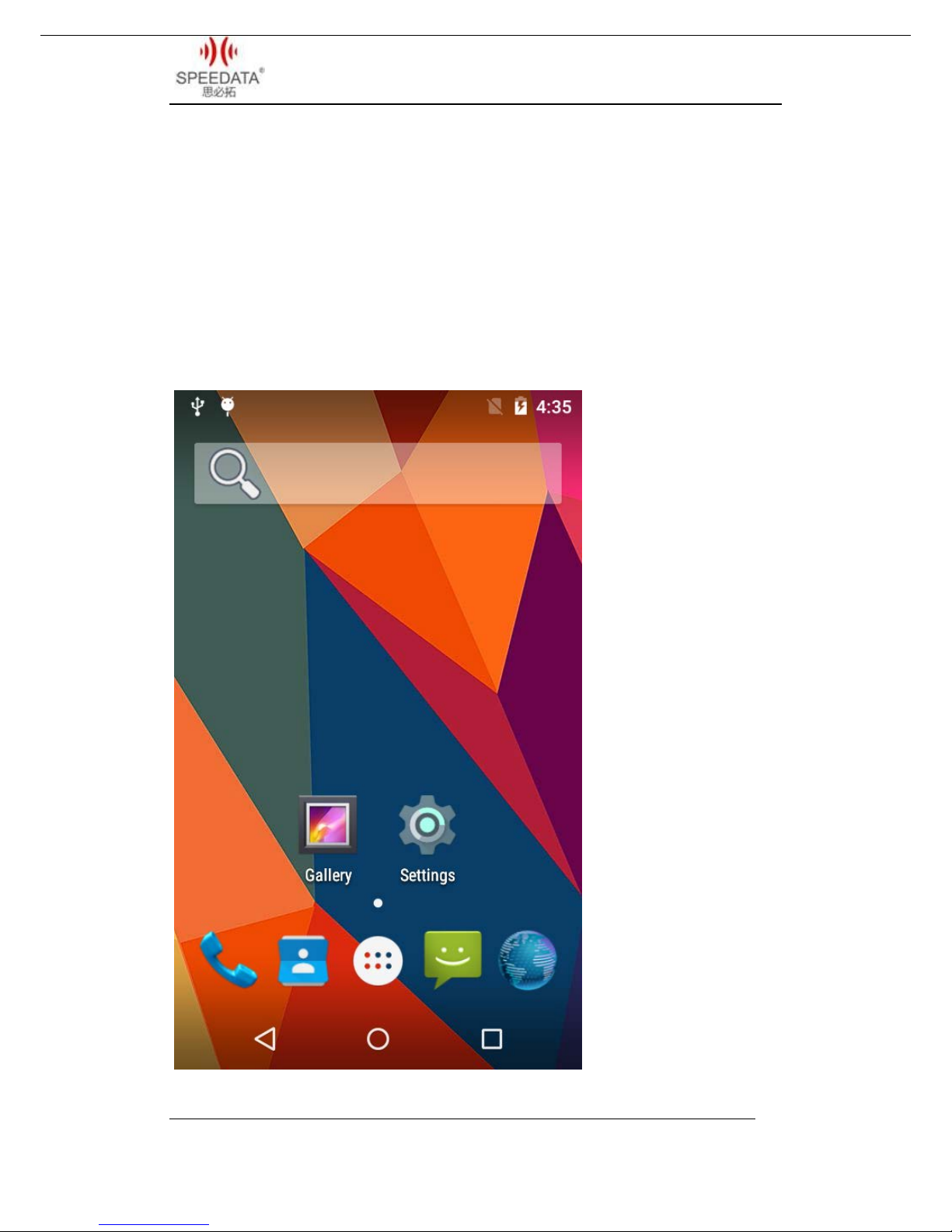

2 HOME SCREEN
Home screen shows some important information, such as missed calls
and messages. Touch the shortcut menu to make a call, take photos,
check or send messages directly and so on.
Page 7
KT45Q Quick Guide V1.0 DATE：2016-04-08
Beijing Speedata Technology Co.,Ltd
1st floor,2nd building, ShangDi No.6 Street 28#, HaiDian District, Beijing 100085,China7/19
T:(86)010 8234 6858 F:(86)010 8234 6858www.speedata.cn

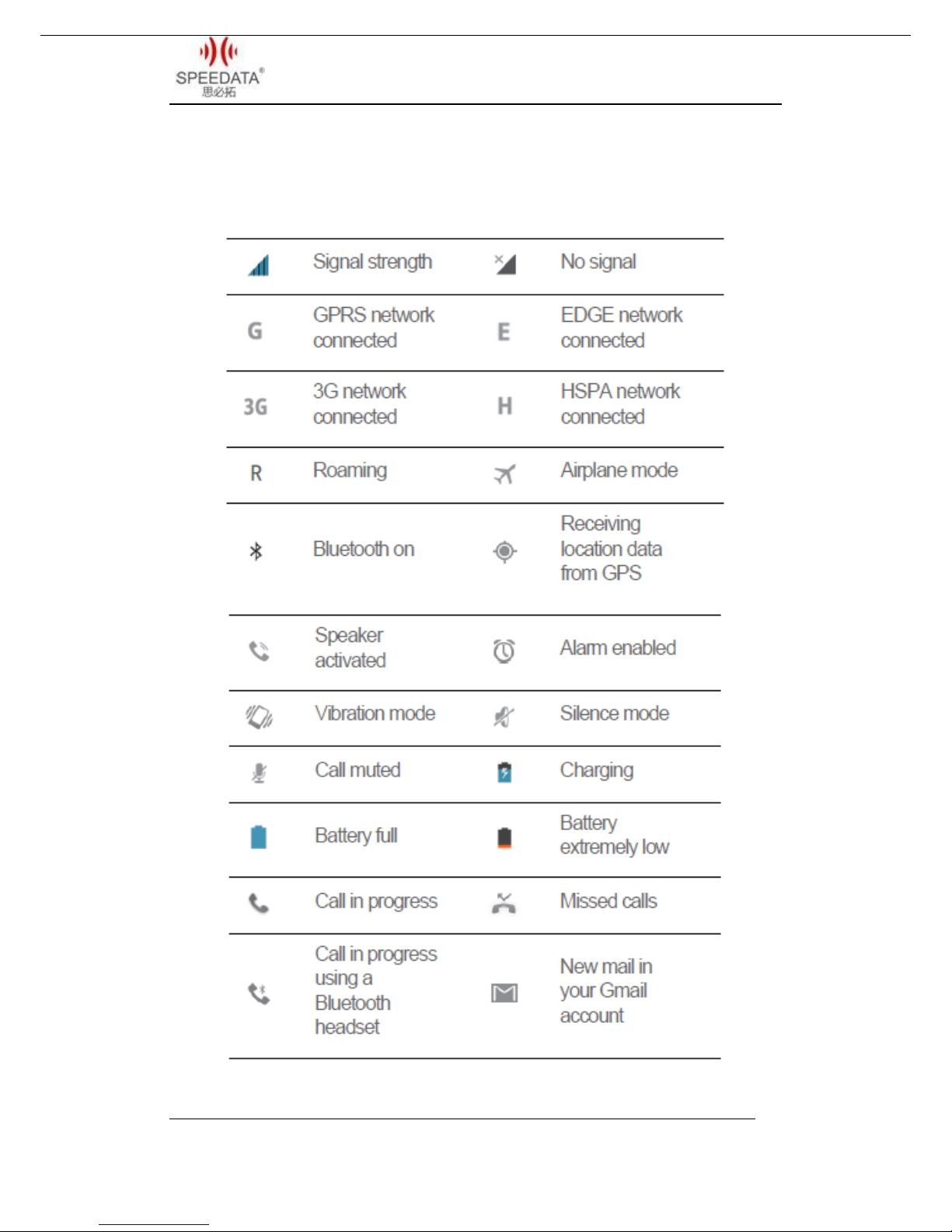

2.1 Notification Bar Icons
Page 8
KT45Q Quick Guide V1.0 DATE：2016-04-08
Beijing Speedata Technology Co.,Ltd
1st floor,2nd building, ShangDi No.6 Street 28#, HaiDian District, Beijing 100085,China8/19
T:(86)010 8234 6858 F:(86)010 8234 6858www.speedata.cn
3 OPERATION INSTRUCTIONS
3.1 Dialing

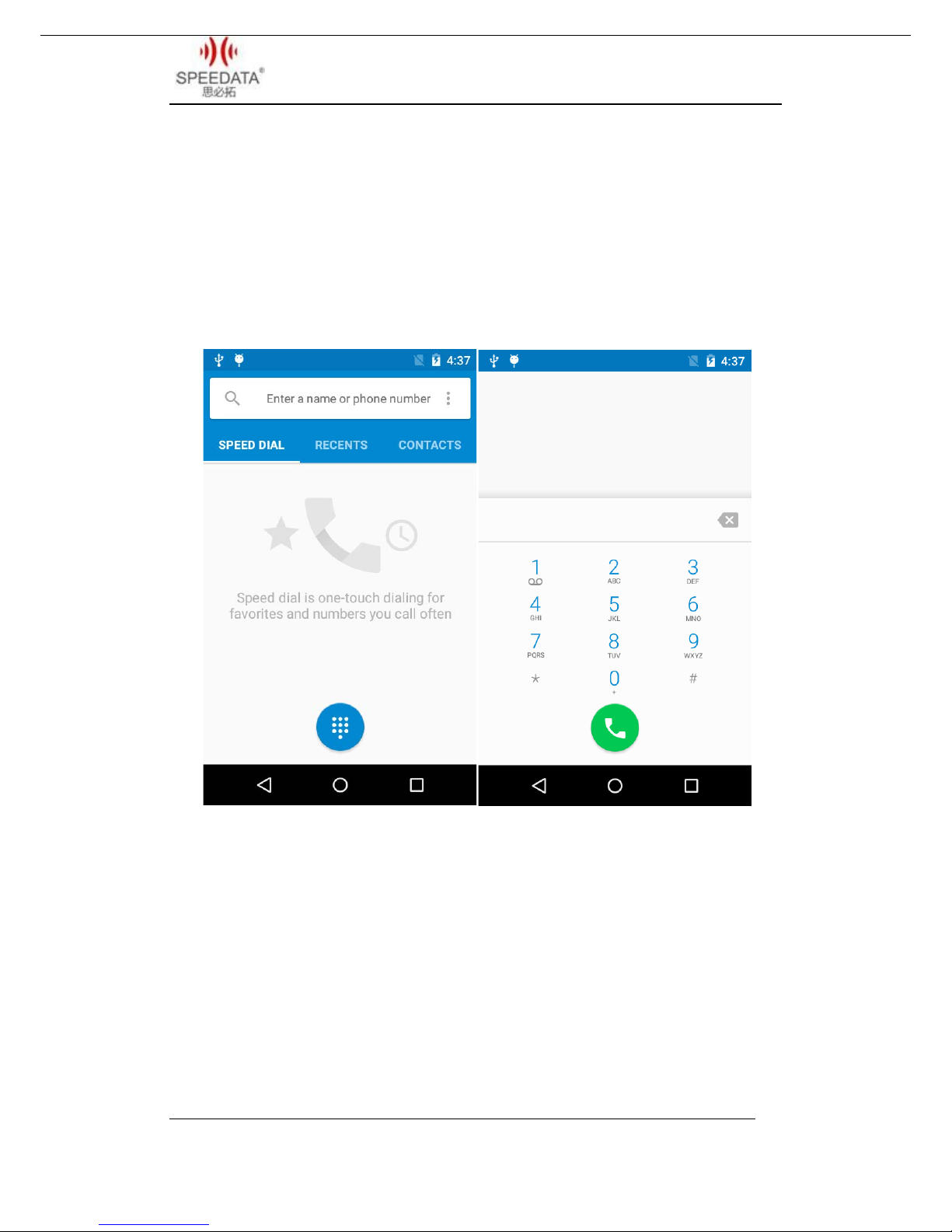

Click Phone at Home Screen into dial interface. As shown in the
figure.
You can use the Virtual Dial or press the buttons on device to
input number in the input field. Click the number you input to call.
Delete error input by delete button. Call Log can view all related records.
And you can see all saved phone number in Contacts.
Page 9
KT45Q Quick Guide V1.0 DATE：2016-04-08
Beijing Speedata Technology Co.,Ltd
1st floor,2nd building, ShangDi No.6 Street 28#, HaiDian District, Beijing 100085,China9/19
T:(86)010 8234 6858 F:(86)010 8234 6858www.speedata.cn
3.2 CAMERA

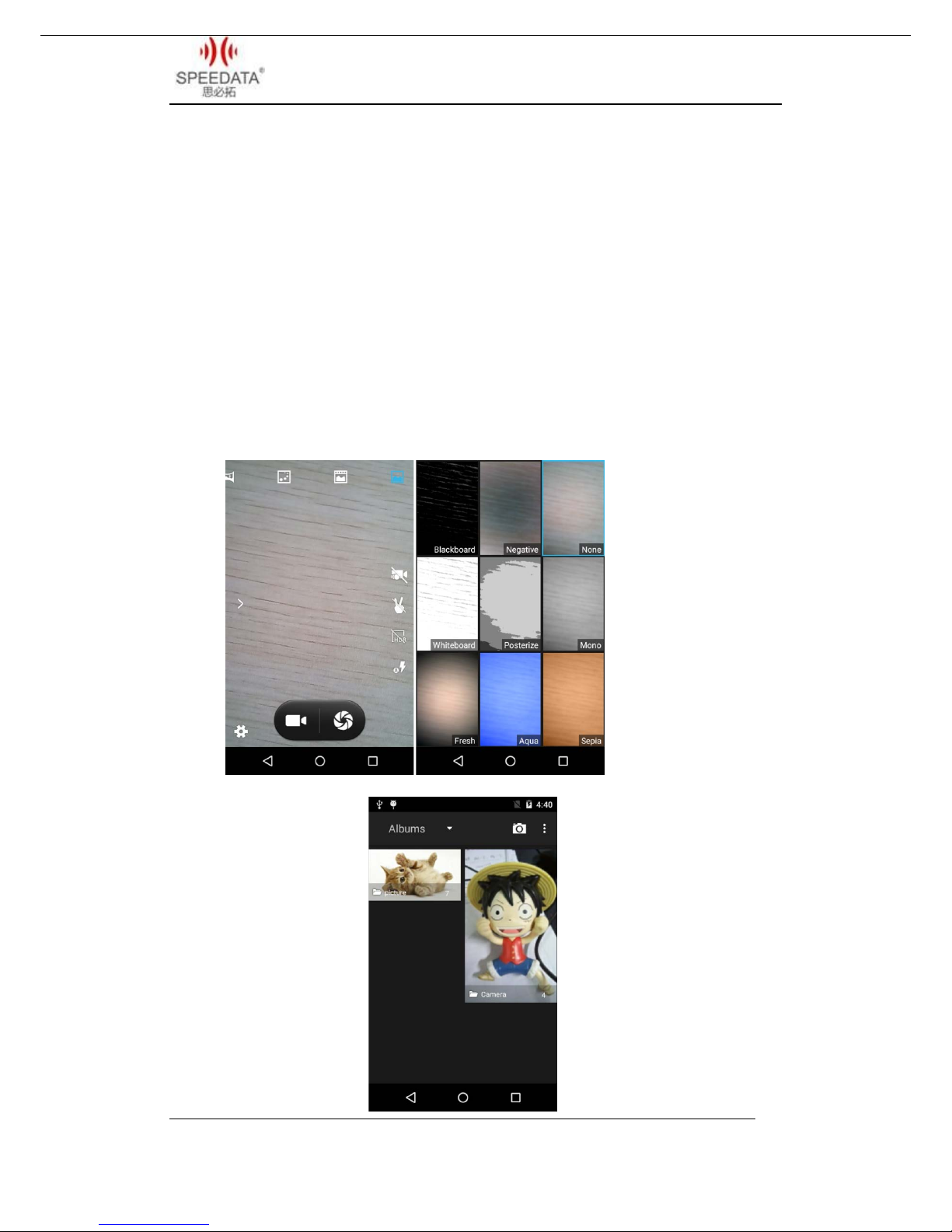

Click camera icon to take pictures and do a set with the setting
button at the bottom left corner.
You can click the direction arrow on the left side to change
different scene modes.
You can find your taken pictures in Gallery.
Page 10
KT45Q Quick Guide V1.0 DATE：2016-04-08
Beijing Speedata Technology Co.,Ltd
1st floor,2nd building, ShangDi No.6 Street 28#, HaiDian District, Beijing 100085,China10/19
T:(86)010 8234 6858 F:(86)010 8234 6858www.speedata.cn
3.3 Shortcut Menu of Notification Bar

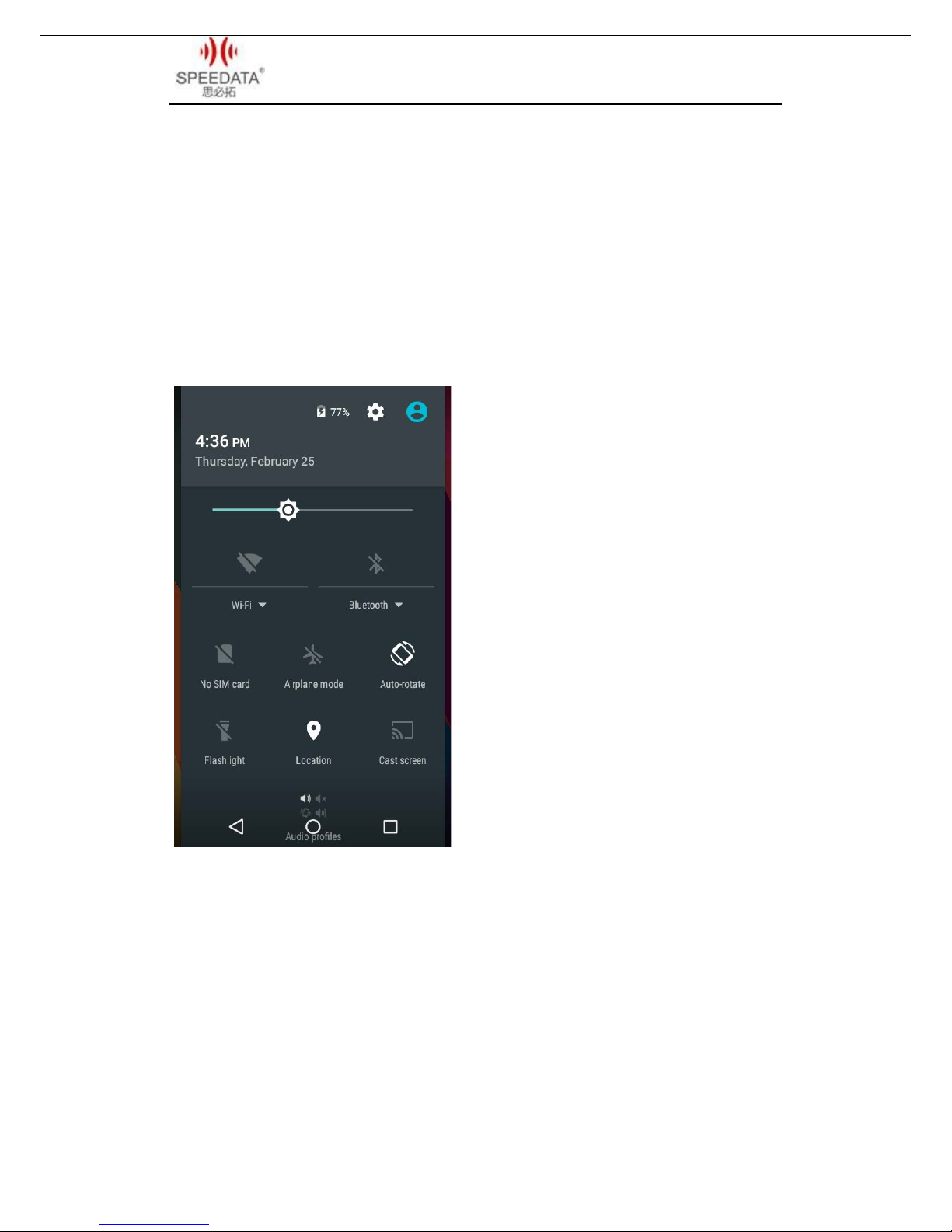

Slide down the Notification Bar two times from the top of the
device or slide down it one time and click the circular icon at the top
right corner, you will see the following interface and you can set Wi-Fi,
bluetooth etc. directly.
There are prompts about connect USB cable and SIM card status.
Clicking Setting Button could enter system settings directly.
Page 11
KT45Q Quick Guide V1.0 DATE：2016-04-08
Beijing Speedata Technology Co.,Ltd
1st floor,2nd building, ShangDi No.6 Street 28#, HaiDian District, Beijing 100085,China11/19
T:(86)010 8234 6858 F:(86)010 8234 6858www.speedata.cn
3.4 File Transfer Instructions
Make sure there’s a SD card in default card slot, check USB
debugging and the specific process is Settings{}Developer
optionsUSBdebugging(It’s checked in default). Connect device and PC

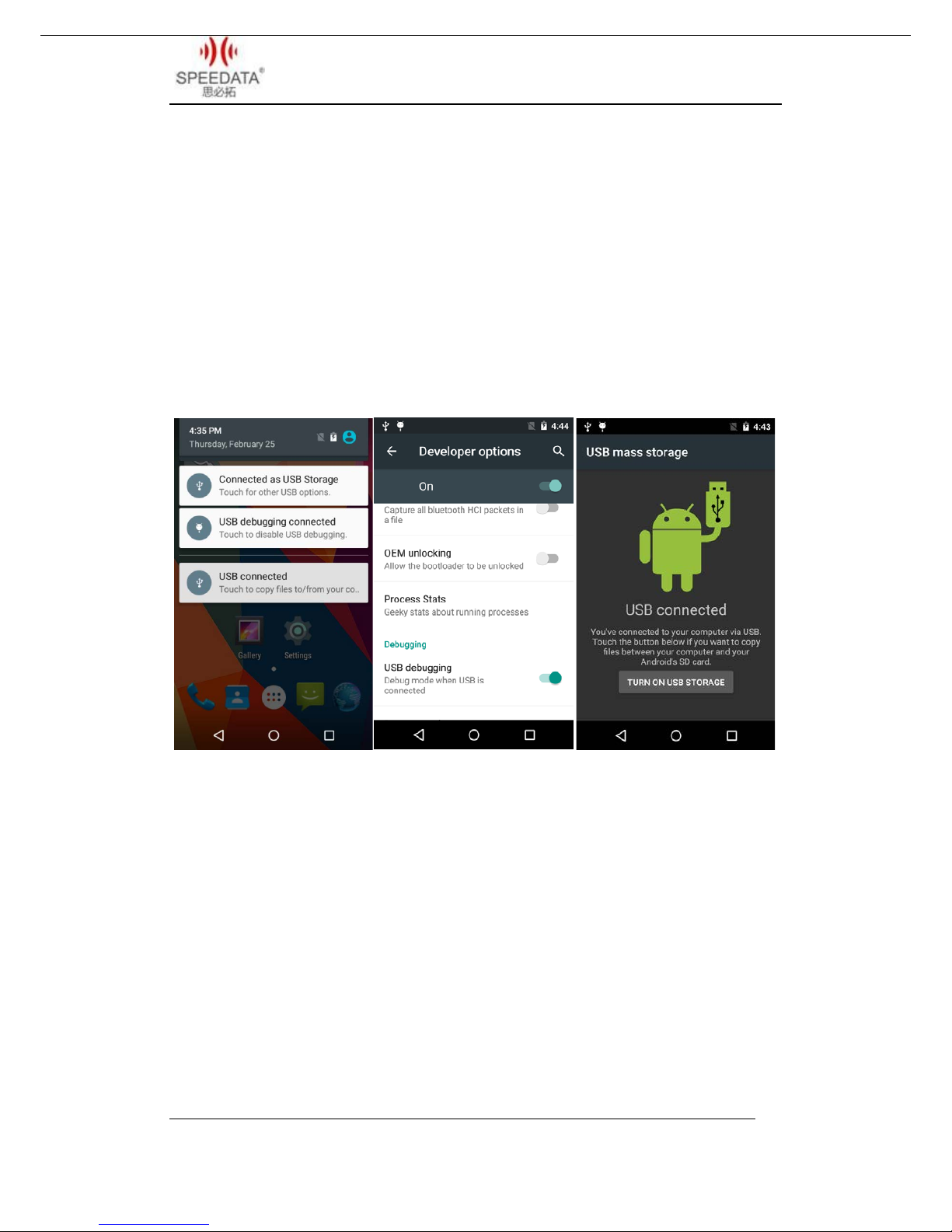

with USB cable and you will see the first picture after sliding down the
Notification Bar.
Click USB connected to get into the second interface. Click Turn
on USB storage and android robot will turn into orange after connecting
successfully, a removable storage device will display on computer. You
can read and write the memory card like operation U disk now. You can
install applications by memory card. Firstly copy installation files(*.apk)
of app to SD card, then Turn off USB storage and find the file in SD card,
the specific process is Menu
File Manager. Click and install it.
Page 12
KT45Q Quick Guide V1.0 DATE：2016-04-08
Beijing Speedata Technology Co.,Ltd
1st floor,2nd building, ShangDi No.6 Street 28#, HaiDian District, Beijing 100085,China12/19
T:(86)010 8234 6858 F:(86)010 8234 6858www.speedata.cn
3.5 Main Menu
Click Menu in Home Screen, you’ll see the first picture below.
All about system apps, settings and installed third-party apps are
listed here. Click icon to start it. The screen can’t display completely If
the icons are too many that a screen, please slide around to show
more.

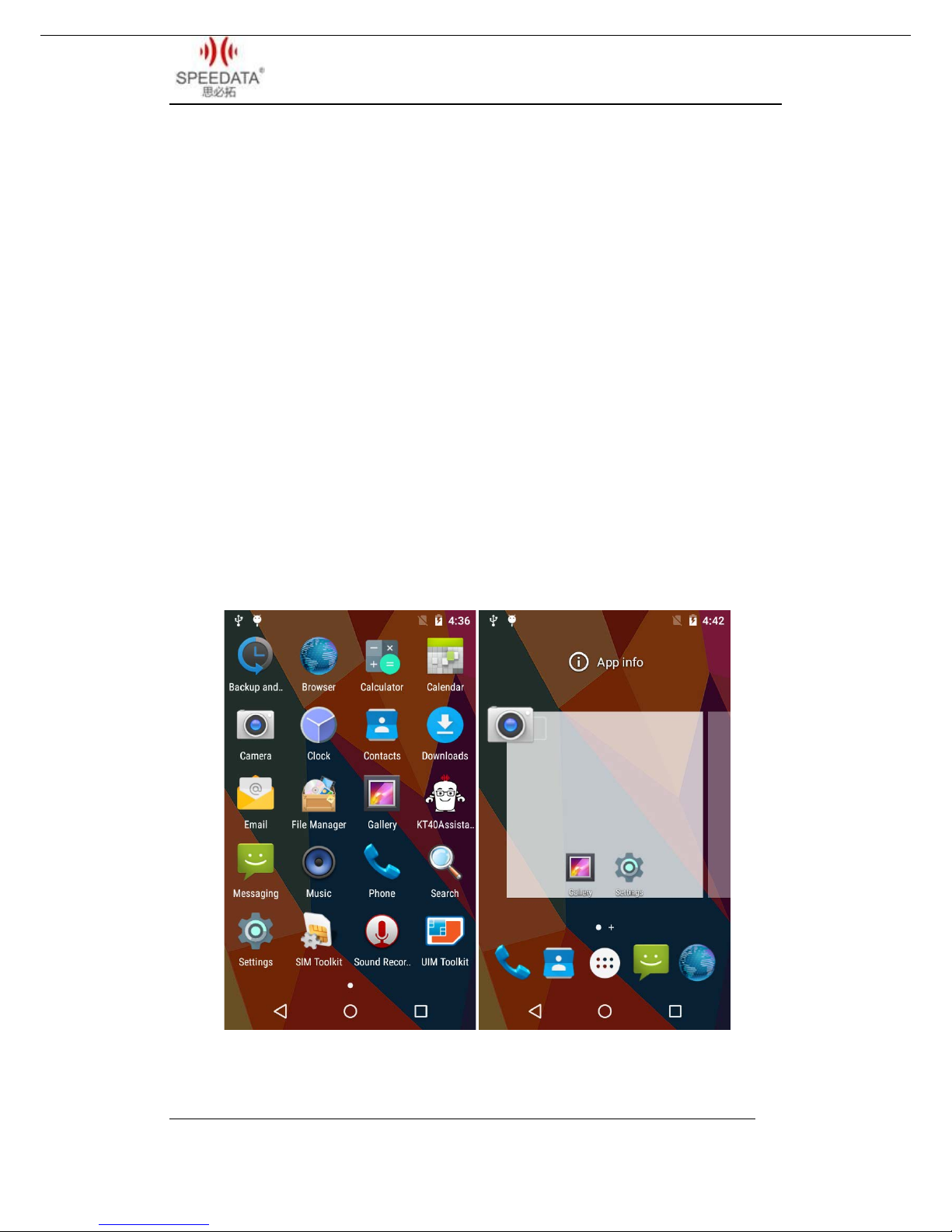

Long press any app icon and put it in the pop-up box to be shortcut
icon seen as the second picture.
Page 13
KT45Q Quick Guide V1.0 DATE：2016-04-08
Beijing Speedata Technology Co.,Ltd
1st floor,2nd building, ShangDi No.6 Street 28#, HaiDian District, Beijing 100085,China13/19
T:(86)010 8234 6858 F:(86)010 8234 6858www.speedata.cn

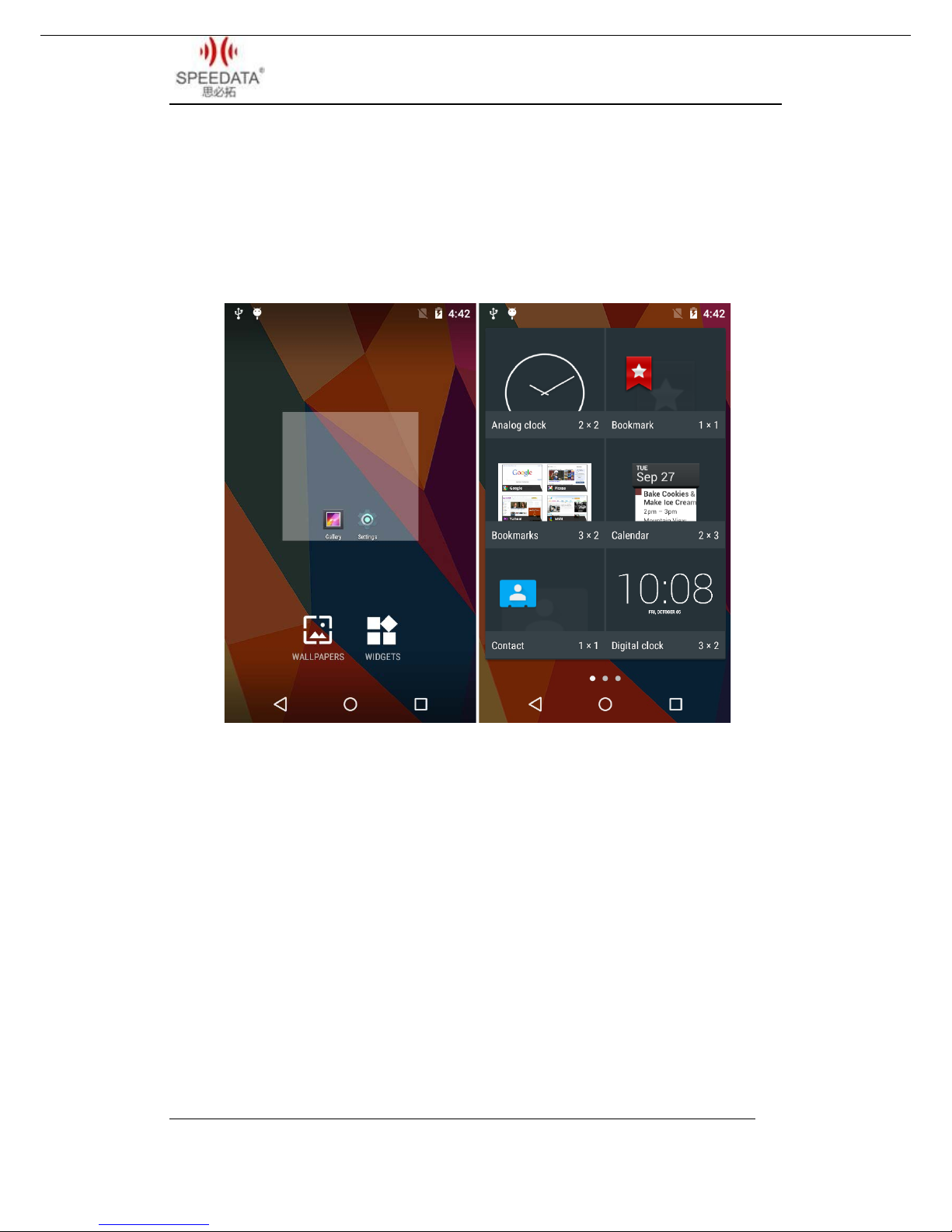

Long press the blank screen, you will see the first picture below. You can
click WALLPAPERS to change wallpaper. You can also click WIDGETS seen
as the second picture and long press any of it to add it to home screen.
Page 14
KT45Q Quick Guide V1.0 DATE：2016-04-08
Beijing Speedata Technology Co.,Ltd
1st floor,2nd building, ShangDi No.6 Street 28#, HaiDian District, Beijing 100085,China14/19
T:(86)010 8234 6858 F:(86)010 8234 6858www.speedata.cn

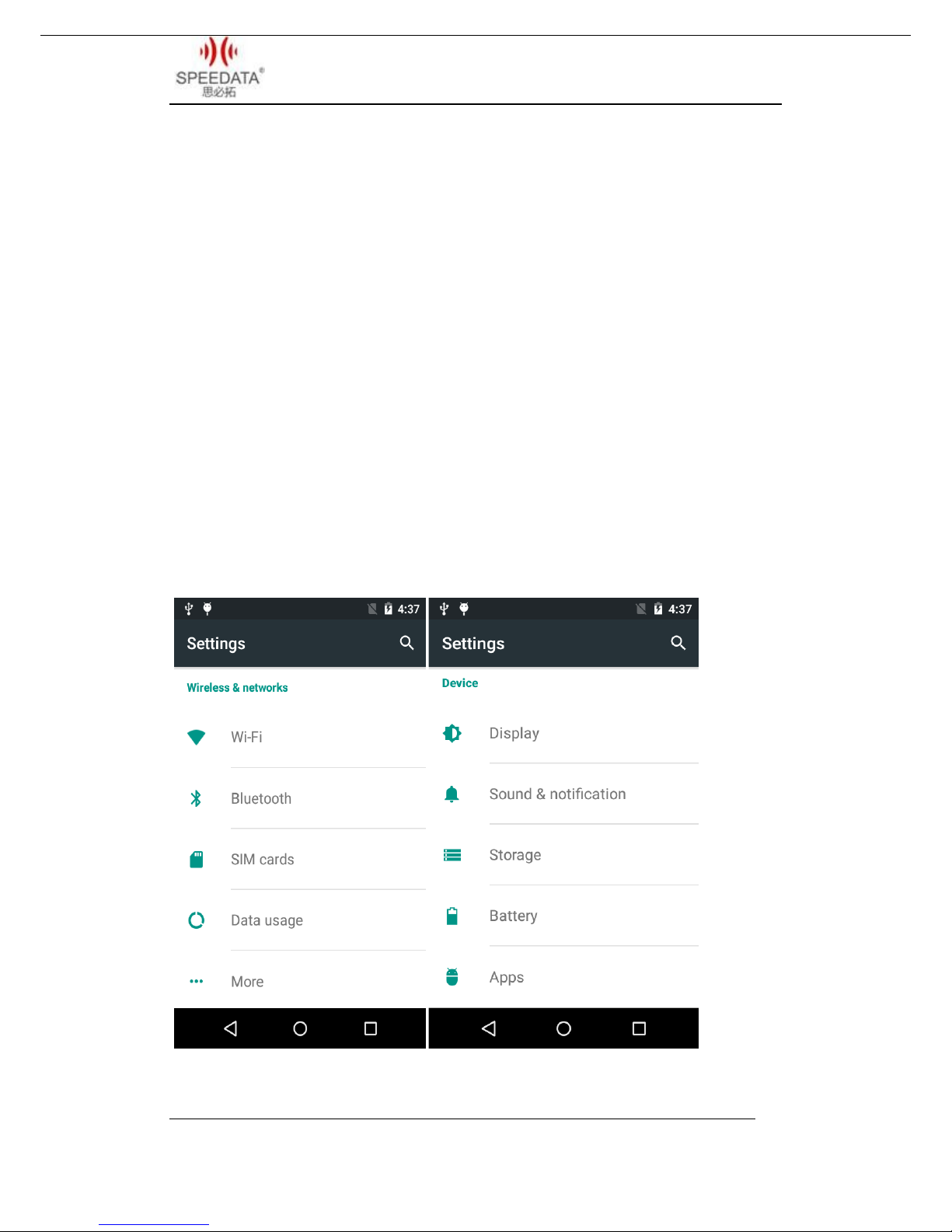

3.6 Settings Menu
Click Settings in Home Screen, Menu or Notification Bar to enter
the following interface.
All settings about device are listed here. A total of five classes:
WIRELESS & NETWORKS, DEVICE, PERSONAL, ACCOUNT and SYSTEM.
Slide up and down to show more. If you want to use WIFI, please open
Wi-Fi and connect it. Click Sound and remove the tick of Touch sounds if
you want to cancel Touch sounds. The specific process of factory reset in
settings is Backup & reset
Factory data reset.
Page 15
KT45Q Quick Guide V1.0 DATE：2016-04-08
Beijing Speedata Technology Co.,Ltd
1st floor,2nd building, ShangDi No.6 Street 28#, HaiDian District, Beijing 100085,China15/19
T:(86)010 8234 6858 F:(86)010 8234 6858www.speedata.cn
3.7 Wireless Network
You can surf the net when the device is in wireless network

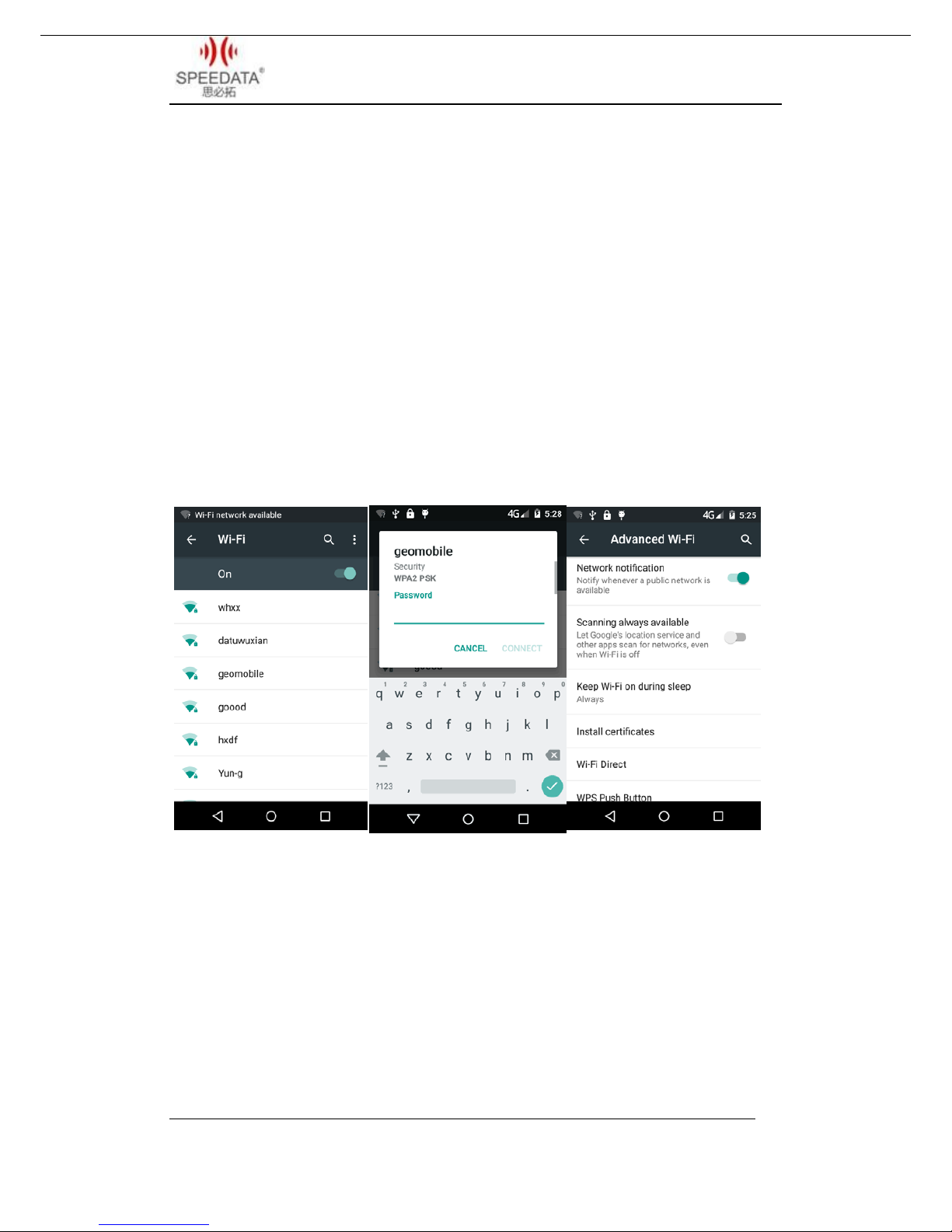

environment. Go into Settings, turn Wi-Fi ON below WIRELESS &
NETWORKS. Then the network is available. Choose the hotspot you want
to connect directly, input password. If it is a network hidden SSID, please
clickthe top right corner menu and choose Add network to add it, input
SSID and select the security type. You can also click Advanced Wi-Fi in
the menu to set other advanced options about WI-Fi.
VPN settings steps:
Firstly ensure device has connected to network. Then enter
SettingsMore…VPN and do set a kind of screen lock.Click Add VPN
network, input a name like Vpn and server address. Click Save after
inputting the data. Finally, input username and password and connect.
Page 16
KT45Q Quick Guide V1.0 DATE：2016-04-08
Beijing Speedata Technology Co.,Ltd
1st floor,2nd building, ShangDi No.6 Street 28#, HaiDian District, Beijing 100085,China16/19
T:(86)010 8234 6858 F:(86)010 8234 6858www.speedata.cn

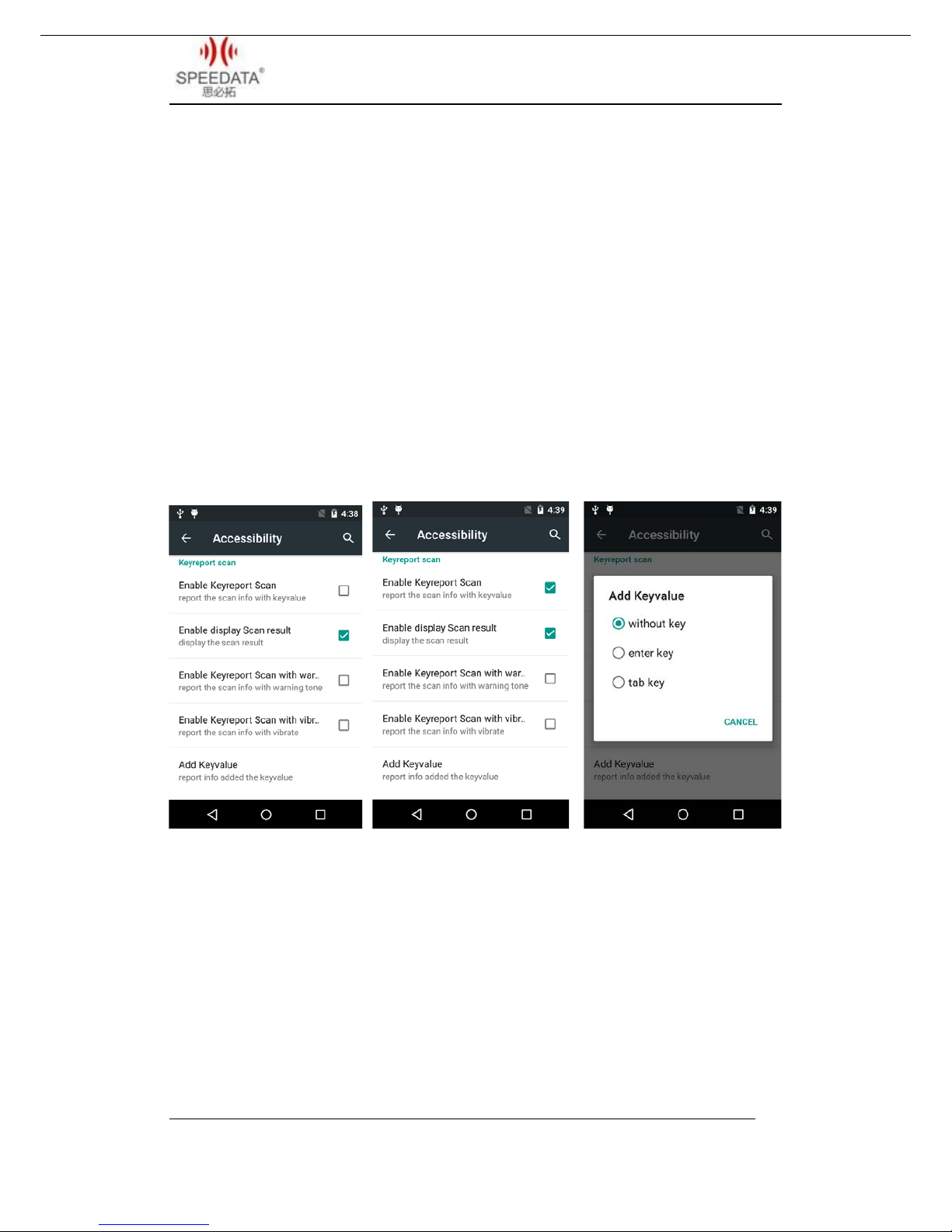

3.8 Focus Scanning
The cursor is in an input status, the device can scan barcode and input
the result to where cursor is by pressingSCAN KEY. Before implement it,
you should do a setting. Go into SettingsAccessibility, and check
Enable Keyreport Scan just like the pictures below. Then you can use
Focus Scanning. Check Enable Keyreport Scan with warning tone to
hear a chime after scanning successfully and you can click Add Keyvalue
to choose different turning results.
Note: 1. You should designate the position of cursor before using Focus
Scanning, or you won’t see the messages about barcode.
2. The Add Keyvalue under Enable Keyreport Scan is an option for Focus
Scanning. You can choose one to add nothing, a table or an enter after
the barcode messages.
Page 17
KT45Q Quick Guide V1.0 DATE：2016-04-08
Beijing Speedata Technology Co.,Ltd
1st floor,2nd building, ShangDi No.6 Street 28#, HaiDian District, Beijing 100085,China17/19
T:(86)010 8234 6858 F:(86)010 8234 6858www.speedata.cn
3.9 F1 Key on the keyboard
You can input numbers, uppercase letters and lowercase letters with
hardware keyboard by pressing F1 key to switch. For example, it inputs
numbers at present time, you can press F1 key one time and then you
can input lowercase letters.
3.10 RFID（optional）
3.10.1 HF
The freq of HF module is 13.56MHz，the device with HF module
will add a “-R6” or “-R9” behind the normal name
If the phone has RFID module ， open RC663_RFID or NFC
application. Place a Mifare1 card to the reader range, input a sector
number and click DEMO. The screen will display the information after
reading and writing this sector.
3.10.2 UHF
The freq of UHF module is 900MHz，the device with UHF module will add
a “-UHF” behind the normal name.
If the device has UHF module, choose As3992demo in menu, and
enter ISO18000-6C,.
Page 18
KT45Q Quick Guide V1.0 DATE：2016-04-08
Beijing Speedata Technology Co.,Ltd
1st floor,2nd building, ShangDi No.6 Street 28#, HaiDian District, Beijing 100085,China18/19
T:(86)010 8234 6858 F:(86)010 8234 6858www.speedata.cn
First click SEARCH key, a dialog will popup. Click Start key to begin
to search card. When a card is in the valid range, its EPC will be listed in
the screen. Click Stop key and click the EPC directly to select the card. It
will go back to main window, and display the EPC in status bar if it
succeeds. Now you can operate the card(read/write/lock).
More information about this demo and developing code please contact
the manufacturer to acquire.
3.10.3 LF
KT45Q has two types of LF RFID modules. One’s freq is 134.2KHz(LF1)
and the other’s is 125KHz(LF2). The device with LF RFID module is named
after a “-LF*”.
If the device has LF module, choose LFRFID in menu to enter demo,
as shown in fig. Click OFF, The demo is available if it turns to ON and the
green bar light on. Place a card near the RFID read area, the card’s
content will display on the screen.
When develop application is related to RFID Please
contact the phone manufacturer to get more information.
Page 19
KT45Q Quick Guide V1.0 DATE：2016-04-08
Beijing Speedata Technology Co.,Ltd
1st floor,2nd building, ShangDi No.6 Street 28#, HaiDian District, Beijing 100085,China19/19
T:(86)010 8234 6858 F:(86)010 8234 6858www.speedata.cn
4 SPECIAL CUSTOMIZATION INSTRUCTIONS
This phone has many reserved port to meet the customization. It
can connect with RS232, I2C, RS485 and other interface’s peripherals or
some function modules. Please contact the phone manufacturer to get
more information.
5 CUSTOMER SERVICE AND TECHNICAL SUPPORTER
Customer service 010 – 82346858 - 801
Technical supporter Skype: Android.Speedata
QQ: 287601031
Loading...
