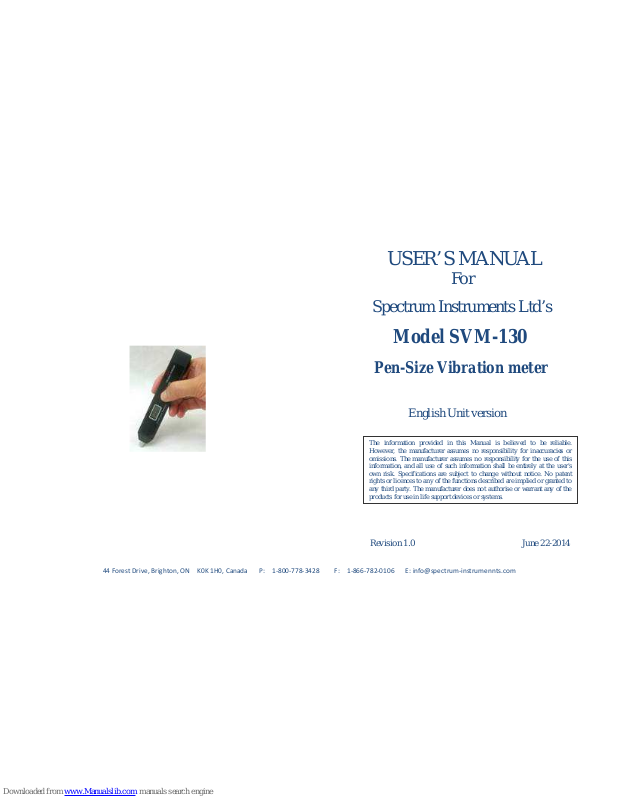

USER’S MANUAL
For
Spectrum Instruments Ltd’s
Model SVM-130
Pen-Size Vibr ation meter
English Unit version
Revision 1.0 June 22-2014
The information provided in this Manual is believed to be reliable.
However, the manufacturer assumes no responsibility for inaccuracies or
omissions. The manufacturer assumes no responsibility for the use of this
information, and all use of such information shall be entirely at the user's
own risk. Specifications are subject to change without notice. No patent
rights or licences to any of the functions described are implied or granted to
any third party. The manufacturer does not authorise or warrant any of the
products for use in life support devices or systems.
Page 2
44 Forest Drive, Brighton, ON K0K 1H0, Canada P: 1-800-778-3428 F: 1-866-782-0106 E: [email protected]
General
The SVM-130 is a 3-Parameter vibration measurement tool
capable of measuring vibration velocity, displacement and
acceleration (caused by rotational and structural problems like
imbalance, misalignment, looseness, etc.).
Operation
·Press the meter’s tip gently on the object being measured
while keep the meter perpendicular to it (The pressure
should be about 1 pound).
·Select the measure parame ter s by click the key quickly:
Acc: Acceleration (unit: g): equivalent Peak Value
VEL: Velocity (unit: inch/s): True RMS Value;
DIS: Displacement (unit; mil): equivalent Peak-Peak
·Start the measurement by continuously pressing the key.
·You may use the re mote sw itch inst ead of pr essing the k ey. If
at the same time use a magnet base to fix the meter on the
object, it will give you a more reliable and consistent reading.
·After releasing the key, the r esult of t he last measure ment w ill
be held for about 40 seconds, and then the meter will power
off automatically.
·The 1st character displayed on LCD will be A/U/D, mean
Acceleration/Velocity/Displacement. Measured value follows.
·The LCD will show 1 . if exceed this upper limit.
Specification
1) Sensor type: Accelerometer
2) Measurement Parameter:
Acceleration (unit: g): equivalent Peak Value
Velocity (unit: inch/s)]: True RMS Value;
Displacement (unit: mil) equivalent Peak-Peak
3) Measurement Range:
Acceleration: 0.02 to 5 g
Velocity: 0.02 to 2 inch/s
Displacement: 0.01 to 20 mil
4) Frequency Response & Accuracy:
Acceleration: 20Hz~1kHz, + 5% ± 2 digits
Velocity:10Hz~1000Hz, + 10% ± 2 digits
Displacement: 10 Hz~500Hz, + 10% ± 2 digits
5) Display: 4 digits LCD
6) Battery: size 1/2 AA, 3.6V, operating current 4-7mA
7) Battery capacity: 100 hours continuously or 4000
times operation
8) Operation Environment: Temperature: 0oC~50oC,
Relative humidity: <85%
9) Dimensions: 160×25×17 (mm)
10) Weight: 120g (including battery)
Notes:
·Avoid intense impact, high temp. & immersion in water
·If the SVM-130 has been used for over one year, please
contact Spectrum Instruments re performance check.
Warranty:
1 year on material and workmanship (mishandling &
batteries are not covered by this warranty)
