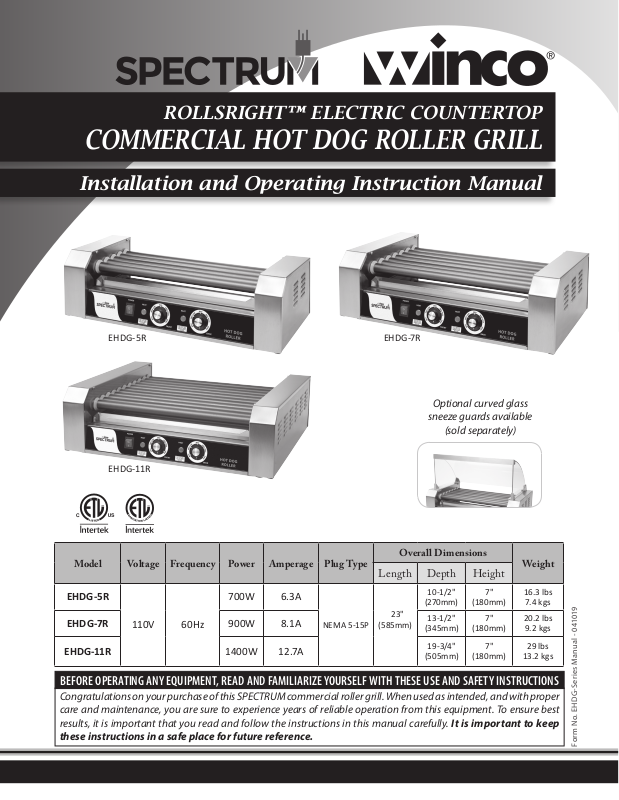

ROLLSRIGHT™ ELECTRIC COUNTERTOP

COMMERCIAL HOT DOG ROLLER GRILL

Installation and Operating Instruction Manual

EHDG-7REHDG-5R

Optional curved glass

sneeze guards available

(sold separately)

EHDG-11R

Overall Dimensions

Model Volta ge Frequency Power Amperage Plu g Ty pe

Weight

Length Depth Heig ht

EHDG-5R

EHDG-7R 900W 8.1A

110V 60Hz

700W 6.3A

EHDG-11R 1400W 12.7A

NEMA 5-15P

23"

(585mm)

10 -1 /2"

(270mm)

13 -1/2"

(345mm)

19-3/4"

(505mm)

7"

(180mm)

7"

(180mm)

7"

(180mm)

16.3 lbs

7.4 k g s

20.2 lbs

9.2 kgs

29 lbs

13.2 kgs

BEFORE OPERATING ANY EQUIPMENT, READ AND FAMILIARIZE YOURSELF WITH THESE USE AND SAFETY INSTRUCTIONS

Congratulations on your purchase of this SPECTRUM commercial roller grill. When used as intended, and with proper
care and maintenance, you are sure to experience years of reliable operation from this equipment. To ensure best
results, it is important that you read and follow the instructions in this manual carefully. It is important to keep

these instructions in a safe place for future reference.

Form No. EHDG -Series Manual - 041019

Electric Countertop Roller Grill

Important For Future Reference

Please complete this information and retain this manual for the life of the equipment. For
Warranty Service and/or parts, this information is required.

Model Number Serial Number Date Purchased

WARNING: IMPROPER INSTALLATION, ADJUSTMENT,
ALTERATION, SERVICE OR MAINTENANCE CAN CAUSE

! !

PROPERTY DAMAGE, INJURY, OR DEATH. READ THE
INSTALLATION, OPERATION, AND MAINTENANCE
INSTRUCTIONS THOROUGHLY BEFORE INSTALLING
OR SERVICING THIS EQUIPMENT.

CAUTION: THESE MODELS ARE DESIGNED, BUILT, AND
SOLD FOR COMMERCIAL USE ONLY. IF THESE MODELS

! !

ARE POSITIONED SO THE GENERAL PUBLIC CAN USE
THE EQUIPMENT, MAKE SURE THAT CAUTION SIGNS,
WARNINGS, AND OPERATING INSTRUCTIONS ARE
CLEARLY POSTED NEAR EACH UNIT SO THAT ANYONE
USING THE EQUIPMENT WILL USE IT CORRECTLY AND
NOT INJURE THEMSELVES OR HARM THE EQUIPMENT.

WARNING: A FACTORY AUTHORIZED SERVICE
PROVIDER SHOULD HANDLE ALL MAINTENANCE

! !

AND REPAIR. BEFORE DOING ANY MAINTENANCE
OR REPAIR, FOLLOW SERVICE SET UP ARRANGEMENT
ON PAGE 11.

AVERTISSEMENT: TOUTE INSTALLATION, RÉGLAGE,
MODIFICATION, RÉPARATION OU ENTRETIEN
INCORRECT PEUT OCCASIONNER DES DOMMAGES
MATÉRIELS, DES BLESSURES GRAVES OU LA MORT.
LIRE LES INTRUCTIONS D'INSTALLATION, D'UTILISATION ET
D'ENTRETIEN ATTENTIVEMENT AVANT D'INSTALLER OU DE
RÉPARER CET APPAREIL.

ATTENTION: CES MODÈLES SONT CONÇUS, FABRIQUÉS,
ET VENDUS POUR UN USAGE COMMERCIAL SEULEMENT.
SI CES MODÈLES SONT PLACÉS POUR QUE LE GRAND
PUBLIC PUISSE LES UTILISER, ASSUREZ-VOUS QUE LES CONSIGNES
D’ATTENTION, D'AVERTISSEMENT, ET LES INSTRUCTIONS
D'UTILISATION SOIENT CLAIREMENT AFFICHÉES PRÈS DE
CHAQUE UNITÉ DE SORTE QUE N'IMPORTE QUEL UTILISATEUR DE
L'APPAREIL L'EMPLOIE CORRECTEMENT ET NE SE BLESSE PAS OU
N'ENDOMMAGE PAS L'APPAREIL.

AVERTISSEMENT: UN TECHNICIEN AUTORISÉ PAR
L'USINE DEVRA EFFECTUER TOUT L'ENTRETIEN ET LES
RÉPARATIONS. AVANT DE FAIRE TOUT ENTRETIEN OU
RÉPARATION, VEUILLEZ CONTACTER WINCO.

Introduction

Congratulations on the purchase of the SPECTRUM™ RollsRight™
Commercial Hot Dog Roller Grill. Please take time to carefully read
through this manual to ensure the machine is operated and maintained
properly, to ensure the best possible performance from the product for
many years.

SPECTRUM will not accept liability for the following if:

• The instructions in this manual have not been followed correctly.

• Non-authorized personnel have tampered with the machine.

• Non-original spare parts are used.

• The machine has not been handled and cleaned correctly.

• There is any use damage to the unit.

2

Immediately Inspect for Shipping Damage

All containers should be examined for damage before and during
unloading. The freight carrier has assumed responsibility for its safe
transit and delivery. If equipment is received damaged, either apparent
or concealed, a claim must be made with the delivering carrier.

A. Apparent damage or loss must be noted on the freight bill

at the time of delivery. It must then be signed by the carrier
representative (Driver). If this is not done, the carrier may refuse
the claim. The carrier can supply the necessary forms.

B. If concealed damage or loss is not apparent until after equipment

is uncrated, a request for inspection must be made to the carrier
within 15 days. The carrier should arrange an inspection. Be certain
to keep all contents and packaging material.

Table of Contents

Specications ....................................................................................... 1

Warnings .............................................................................................. 2

Introduction ........................................................................................ 2

Packaging ............................................................................................ 3

Installation .......................................................................................... 4

Operation ............................................................................................ 5

Optional Accessories .......................................................................... 5

Cleaning, Care & Maintenance ......................................................... 6

Safety ................................................................................................... 6

Troubleshooting ................................................................................. 7

Service & Repair .................................................................................. 7

Exploded View .................................................................................... 8

Electric Countertop Roller Grill

Spare Parts List .................................................................................... 9

Electrical Diagram ............................................................................ 10

Assembly Instructions - sneeze guards ........................................ 11

Limited Warranty .............................................................................. 12

Package Contents

All units come with an Operating Instruction Manual and the following:

• SPECTRUM™ RollsRight™ Commercial Hot Dog Roller Grill

• Drip Tray

SPECTRUM prides itself on quality and service, ensuring that at the
time of packing, all products are supplied fully functional and free
of damage. Should you nd any damage as a result of freight, please
contact your SPECTRUM dealer immediately.

Installation and start-up must be performed by a qualified installer who has thoroughly read, understands and follows these instructions.

Please keep this manual in a safe place for future use!

Unpacking the Equipment

DISPOSE OF ALL PACKAGING MATERIALS IN AN
ENVIRONMENTALLY RESPONSIBLE MANNER.

1. Remove all packing materials and tape, as well as any protective
plastic and cardboard, from the unit.

2. Clean any glue residue left over from the plastic or tape.

3. Place the unit in the desired position and height.

NOTE

Please remember that this manual and the warning labels do not replace the need to be alert, to properly train and
supervise operators, and to use common sense when using this equipment.

3

Installation

These instructions should be followed at all times. Failure to follow
these instructions could result in injury to yourself and others.

TO REDUCE RISK OF INJURY OR DAMAGE TO THE UNIT:

1. Read this manual thoroughly before installation and operation.
DO NOT proceed with installation and operation if you have any
questions or do not understand anything in this manual. Contact
your representative or the manufacturer rst.

WARNING AVERTISSEMENT

Fire Hazard.

Correct installation precautions,
procedures and regulations
must be fo llowed. Operati on
and safe ty training is ne cessary
for all use rs of this equipme nt.

The equip ment must be
install ed by qualied per sonnel
only. Correc t installatio n
precautions, procedures and
regulati ons must be followe d
in order to re duce the risk of
re. Hood an d re suppression
system s must be maintaine d
per manufacturer's guidelines.
Only quali ed and trained
person nel are to use this
equipment.

2. Remove the SPECTRUM™ Commercial Hot Dog Roller Grill from the
packaging. Be certain that all protective plastics and residues are
thoroughly cleaned from its surface.

3. Place Roller Grill on a rm level surface; the adjustable feet can
assist in leveling.
Local standards and regulations should be consulted in order to
abide by standards set in relation to positioning, spacing, and
ventilation. SPECTRUM recommends that you allow no less than 4”
for a ventilation gap around the perimeter of this unit. Common
sense should be used when choosing position and operation of this
product.

CAUTION

Do not position or operate near combustible materials/ammable
objects.

Ne pas placer ni faire fonctionner l'appareil près de
matériels combustibles ou d'objets inflammables.

Once your Hot Dog Roller has been placed in position, be sure that
the stainless steel drip tray is correctly positioned.

Une fois que votre Machine à Hot-Dog à Rouleau est
mise en place, veillez à ce que le bac à déchets en acier
inoxydable soit correctement placé.

Risque d'incendie

La surcha ue des vapeurs d' huile ou de
l'huile peut s'enammer et provoquer
un incendi e. Surveillez la temp érature,
la qualité et l e niveau d’huile. Uti lisez et
entrete nez le système d'élimi nation des
vapeurs d'huile.

Faire chau er l'huile avec préca ution. Si
l'huile fu me, réduire le feu. Ne p as laisser
l'appareil s ans surveillance. S i le feu se
produit , éteindre l'apparei l, couvrir jusqu'à
refroi dissement. Ne pas m ettre l'eau dans
l'huile chau de ou enammée. Ne fa ites pas
fonct ionner avec de l'huile s ous la barre
d'huile. L’huile sal e a un point d'éclair
plus bas. R emplacer l'huile sur un e base
régulière. Maintenir le niveau d'huile
correct. Utiliser un système d'évacuation
de la vapeur d' huile (capot) pour réd uire
l'accumulation de graisse et d'huile sur les
surfa ces de paroi ou de plaf ond.

ATTENTION

WARNING AVERTISSEMENT

Electrical Shock Hazard

Keep water an d other liquids
from entering the inside of the
unit. Liquid inside the unit could
cause an el ectrical sho ck.

Do not spray w ater or cleaning
products. Liquid could contact
the electrical components
and cause a s hort circuit o r an
elect rical shock. Do n ot use unit
if power cor d is damaged or has
been modied.

4. Once the Roller Grill has been placed in position, be sure that the
stainless steel drip tray is correctly positioned.

5. Proper connections and power supply are essential for
ecient performance. Supply the appropriate power and

connect to source; your Roller Grill is now ready to turn on and
operate. (For power supply please see technical specication on
page 1).

Fournir l'alimentation secteur appropriée et brancher l’appareil
à la source d'alimentation ; votre Machine à Hot-Dog à Rouleau
est maintenant prête à être allumée et à fonctionner. (Pour
l’alimentation, veuillez voir la che technique, page 1).

6. The units are wired to be used with a standard 110V/AC receptacle
and may be plugged into any convenient outlet.

Proper Grounding · Mise à la terre correcte

This machine is p rovided with a three-pronged
grounding plug. The outle t to which this plug
is connected must be pr operly grounded. If the
receptacle is not the prop er grounding type, cont act an
electr ician. DO NOT, under any circumstance s, cut
or remove the thir d ground prong from the power cord
or use any adapter plug.

Cette machine est équip ée d'une che à trois broches.
La prise sur laquelle cette che es t branchée doit être
correctement mise à la terre. Si la prise n'est pas le type d e
mise à la terre, contactez avec un électrici en. NE PAS, en
aucun cas couper ou enlever la troisièm e broche de terre à
partir du cordon d'alimentation ou utiliser un adaptateur.

7. The installation of the unit must conform to the NATIONAL
ELECTRIC CODE, ALL LOCAL ELECTRIC CODES AND ORDINANCES, AND
ALL THE LOCAL ELECTRICAL COMPANY RULES AND REGULATIONS.
Additionally, we recommend a 4" spacing surrounding the unit in
order to provide adequate ventilation.

Risque de choc électrique

Conser ver l'eau et d'autres liqui des
de pénétr er à l'intérieur de l'app areil.
Liquide à l'intérieur de l'appareil pourrait
provoquer un choc électrique.

Ne pas pulvé riser de l'eau ou des pro duits
de nettoyage. Le liquide pourrait contacter
avec les comp osants élec triques et caus er
un court- circuit ou un cho c électrique.
Ne pas util iser l'appareil si le cor don
d'alimentation est endommagé.
ou a été modi é.

USE A GROUNDED OUTLE T
DO NOT ADD AN ADAPTO R

TO THE PLUG

UTILISER UNE PRISE AVEC M ISE
À LA TERRE NE PAS AJO UTER UN

ADAPTATEUR SUR LA FICHE

4

Operation

Preparing the rollers

The rollers are coated with Teon™, a superior uoropolymer coating.
It has excellent resistance to wear and to all forms of abrasion. To clean,
simply use a damp cloth and soapy water.

During the manufacturing process oils are used to prevent rusting.
During nal processing the rollers are coated with food safe oil.
However, it is strongly recommended the rollers are thoroughly
cleaned before rst use.

Be sure the cooking surface is clean; using a damp cloth and soapy
water, turn gently while wiping down the rollers, then allow to dry.

It is recommended that the cooking surface be lightly greased before
every use.

Operating the roller grill

The SPECTRUM™ Commercial Roller Grill should be turned on and
preheated prior to using, to allow the cooking surface to warm up ­5 to 7 minutes should be sucient.

For more ecient use, it is recommended that when using the unit
intermittently, the energy control should be turned to low when not
cooking or powered o. This will assist in reducing power consumption
and also allow for quicker heat response when needed.

The unit is equipped with one rocker switch for On/O POWER. This
switch activates main power to the unit and rollers movement. When
POWER switch is on, rollers will turn with or without heat.

• The POWER switch does not activate heat, only turns

unit On or Off.

• When POWER switch is On, rollers will turn with or

without heat.

• Heat is controlled by the Temperature dials (C in

diagram).

• Each temperature control dial controls either the FRONT or BACK

section of the unit, as indicated on the control panel:

A. On/O Switch Main power switch and roller activation
B. Heat Lights Indicates heating up to reach temperature
C. Dial Controls Temperature adjustment

The HEAT indicator lights on the front panel indicate that the roller is
heating, either one section, or both front and back. If the heat lights
are o, this indicates the rollers have reached desired temperature, or
have been turned o from the power switch.

WARNING AVERTISSEMENT

HOT

Burn Hazard.

When in operation, the
appliance s urfaces will b e HOT!

Please take e xtreme cau tion.

USE CAUTION WHEN
TOUCHING THE UNIT.

Risque de brûlure.

En fonctionnement, les surfaces de
l'appareil seront CHAUDES!

S'il vous pl aît prendre u ne extrêm e
prudence.

Ne touchez pas le liquide chaud
ou les sur faces de chauage
lorsque l’appareil chaue ou en
fonctionnement.

A B BC C

Optional Accessories

Curved glass sneeze guards are available sized to t
each roller grill unit.

See assembly instructions on page 11

Sneeze guards sold separately:

EHDG-5SG / EHDG-7SG / EHDG-11SG

EHDG-7SG sneeze guard
shown on EHDG-7R roller grill

5

Cleaning, Care & Maintenance

To maintain the appearance and increase the service life,
clean your unit daily.

The SPECTRUM™ Commercial Hot Dog Roller Grill should
be cleaned after each day’s operation; however, the unit
may require more frequent cleaning, depending on the
volume of production.

WARNING AVERTISSEMENT

Burn Hazard.

When in operation, the
appliance s urfaces will b e HOT!

HOT

Please take e xtreme cau tion.

USE CAUTION WHEN
TOUCHING THE UNIT.

1. Switch power o and disconnect from the outlet before cleaning.

2. The Roller Grill should be cleaned regularly throughout use, and
thoroughly cleaned after each meal period.

3. For best results clean the rollers while still warm using warm soapy
water. A nylon cleaning cloth may be used, but it is recommended
that you avoid scrapers made from steel or wool, as they will
damage the cooking surface of the rollers. Do not use cold water.
Leave the catch trays in while cleaning.

4. Using a moist cloth lled with crushed or aked ice, wipe each
tube. Wipe the tubes from each end to the center. This will keep
as much of the loosened particles out of the bearings as possible.
Extend the cloth as far as possible between the rollers.

5. Wipe clean with another clean cloth. Continue to wipe from the
end of the rollers to the center. This will reduce the grease and
particles getting into the bearings and drive mechanism. This will
also extend the life of the unit and the period between routine
maintenance of the drive mechanism.

Risque de brûlure.

En fonctionnement, les surfaces de
l'appareil seront CHAUDES!

S'il vous pl aît prendre u ne extrêm e
prudence.

Ne touchez pas le liquide chaud
ou les sur faces de chauage
lorsque l’appareil chaue ou en
fonctionnement.

WARNING AVERTISSEMENT

Electrical Shock Hazard

Keep water an d other liquids
from entering the inside of the
unit. Liquid inside the unit could
cause an el ectrical sho ck.

Do not spray w ater or cleaning
products. Liquid could contact
the electrical components
and cause a s hort circuit o r an
elect rical shock. Do n ot use unit
if power cor d is damaged or has
been modied.

Risque de choc électrique

Conser ver l'eau et d'autres liqui des
de pénétr er à l'intérieur de l'app areil.
Liquide à l'intérieur de l'appareil pourrait
provoquer un choc électrique.

Ne pas pulvé riser de l'eau ou des pro duits
de nettoyage. Le liquide pourrait contacter
avec les comp osants élec triques et caus er
un court- circuit ou un cho c électrique.
Ne pas util iser l'appareil si le cor don
d'alimentation est endommagé.
ou a été modi é.

CAUTION

NEVER use abrasive powders or pads; these cleaners may
damage the roller finish. Also, the particles may get into
the drive mechanism, shortening the life of the unit.

6. Remove catch tray from unit and discard waste; clean with hot
soapy water.

7. The remainder of the Roller Grill can be cleaned with a damp cloth
using warm, soapy water. Warm, soapy water is recommended for
cleaning; prolonged use of cleaning agents may damage stainless
steel.

8. Do not immerse in water.

Ne jamais immerger dans l'eau.

9. Do not use a hose to clean.

10. Replace the cleaned catch tray when completely dry.

Safety

SAFETY PRECAUTIONS

Before installing and operating this equipment be sure
everyone involved in its operation are fully trained and
aware of all precautions. Accidents and problems can
result from a failure to follow fundamental rules and
precautions.

• A WINCO® Approved Recommended Qualied Service Technician
should carry out repairs if necessary. Do not remove any
components or service panels on this product.

• Allow the Roller Grill to cool down after use before dismantling for
cleaning; the unit will be too hot to handle immediately after use.

• Before cleaning, switch o power and disconnect power cord from
the outlet.

• Do not immerse unit in water or use hose to clean.

Ne jamais immerger l'appareil dans l'eau ni utilisez un jet
d'eau pour le nettoyer.

• If the power cord is damaged, it must be replaced by a WINCO®
Approved Recommended Qualied Service Technician in order to
avoid a hazard.

6

Troubleshooting

If the SPECTRUM™ Commercial Hot Dog Roller Grill does not operate, please check the following before placing a service call:

ISSUE MIGHT BE CAUSE BY RECOMMENDED SOLUTION

Main power supply Check main power supply

Power switch has not been turned on Check that unit is correctly plugged in and turned on

The unit is not working and the
indicator light is not on

The unit is heating but the
indicator light is not on

Indicator light is on but the unit is
not heating

Slow heat up of the roller surfaces

Rollers are not rotating

Wrong operating procedure Refer to operating instructions

Damaged power cable Replace damaged power cable - Replacement must

be done by an authorized service provider

Built-in resettable fuse is tripped Resettable fuse located at rear of unit - remove cap

and push red plunger to reset

The indicator light bulb has blown Replace the indicator light - Replacement must be

done by an authorized service provider

The unit has reached temperature The unit is operating correctly

Faulty element(s) Replace faulty element(s) - Replacement must be

done by an authorized service provider

Faulty thermostat Replace faulty thermostat - Replacement must be

done by an authorized service provider

Allow time to heat up Refer to operating instructions

Thermostat setting Ensure that the thermostat is set correctly, also

ensure the dial is not spinning on the thermostat
shaft and at the wrong setting

Faulty element(s) Replace faulty thermostat - Replacement must be

done by an authorized service provider

The unit is not on Refer to operating instructions

Motor fault Check main power and motor connections - Must be

done by an authroized service provider

Chain fault Check chain for misalignment - Must be done by an

authroized service provider

Service and Repair

THIS EQUIPMENT MUST ONLY BE SERVICED BY AN AUTHORIZED AGENT.

NOTE

Parts protected by the manufacturer or its agent are not to be adjusted by the installer unless the installer is an authorized service agent.

If you have any questions or problems DO NOT send unit to WINCO® without rst contacting our customer service department.

See "Limited Warranty" section on page 11 for details.

7

Exploded Views

MODELS: EHDG5R / 7R / 11R

Access Door

12

3 4 5 6 8 9

7

10

11

13

12

Resettable Fuse

8

Parts List

MODELS: EHDG5R / 7R / 11R

# Description EHDG-5R EHDG-7R EHDG-11R

1 Roller - Non-Stick with Teon™ Coating EHDG-P4 EHDG-P4 EHDG-P4
2 Gear -16 teeth EHDG-P3 EHDG-P3 EHDG-P3
3 Rubber Foot EHDG-P1 EHDG-P1 EHDG-P1
4 Heating Element EHDG-P2 EHDG-P2 EHDG-P2
5 Motor EHDG-P5 EHDG-P5 EHDG-P5

Chain for EHDG-5R EHDG-P21
Chain for EHDG-7R EHDG-P22

6

Chain for EHDG-11R, #1 EHDG-P25
Chain for EHDG-11R, #2 EHDG-P26
Grease Seal EHDG-P7 EHDG-P7 EHDG-P7

7 Power Switch EHDG-P11 EHDG-P11 EHDG-P11
8 Heat Indicator Light EHDG-P8 EHDG-P8 EHDG-P8

Thermostat EHDG-P9 EHDG-P9 EHDG-P9

9 Knob EHDG-P10 EHDG-P10 EHDG-P10
10 Wear-Proof O-Ring Seal EHDG-P6 EHDG-P6 EHDG-P6
11 Drip Tray EHDG-P27 EHDG-P28 EHDG-P30
12 Strain Relief Connector EHDG-P12 EHDG-P12 EHDG-P12
13 Sneeze Guard Kit EHDG-5SG EHDG-7SG EHDG-11SG

Please contact factory for special order parts not listed.

9

Electrical Circuit Diagram

MODELS: EHDG5R / 7R / 11R

110V~50/60Hz

FRONT ELEMENT REAR ELEMENT

This circuit diagram has been provided to assist qualied electricians;

only SPECTRUM™ service agents or qualied electricians should carry out

repairs if required.

Do not remove any components or service panels on this product.

10

Assembly Instructions - Sneeze Guards (sold separately)

SNEEZE GUARD

ASSEMBLY INSTRUCTIONS

EHDG-SG Series

CONTENTS

ASSEMBLE THE SNEEZE GUARD

• 1 Curved Shield

• 2 Side Panels

• 1 Cross-Brace

• 2 Screws [#6]

• 2 Acorn Nuts [#6]

• 4 Brackets:

2 Front, Lt & Rt
2 Rear, Lt & Rt

x2

x1

x1

x2

x2

Assemble on Hot Dog Roller Grill

www.wincous.com

x2

front

x2

rear

MODELS: EHDG5SG / 7SG / 11SG

a) Loosen the frame screws located on inner sides of roller

grill above rollers. Use these to mount the sneeze guard
brackets to the top of roller grill.

b) Slide sneeze guard side panels into front bracket and slot

on rear bracket. Repeat on other side.

c) Slide the curved shield into slot on rear bracket.

Sneeze guard must be assembled on top of roller grill.

d) Attach cross-brace to top of curved shield and at corners

b)

of side panels. Secure with screws and nuts provided.

d)

CAUTION

DO NOT OVERTIGHTEN SCREWS.

a)

c)

Overtightening causes stress points in the

glass, leading to cracking/breaking.

SNEEZE GUARD ASSEMBLED ON ROLLER GRILL

• EHDG-5SG Fits EHDG-5R

• EHDG-7SG Fits EHDG-7R

• EHDG-11SG Fits EHDG-11R

EHDG-11SG sneeze guard shown on EHDG-11R roller grill

11

Limited Warranty

WINCO® warrants to the original purchaser of new equipment that said
equipment, when installed in accordance with our instructions within
North America and subjected to normal use, is free from defects in
material or workmanship for a period of 1 year. The labor warranty is
one year from original installation or 18 months from actual factory
shipment date, whichever date occurs rst.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES,
WHETHER EXPRESSED OR IMPLIED. WINCO EXPRESSLY
DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY
OR EXPRESSED OR IMPLIED WARRANTY OF FITNESS FOR A
PARTICULAR PURPOSE.

WINCO’S OBLIGATION AND LIABILITY UNDER THIS WARRANTY
IS EXPRESSLY LIMITED TO REPAIRING AND REPLACING
EQUIPMENT THAT PROVES TO BE DEFECTIVE IN MATERIAL OR
WORKMANSHIP WITHIN THE APPLICABLE WARRANTY PERIOD.

IN NO EVENT SHALL WINCO BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES TO BUYER OR ANY THIRD PARTY,
INCLUDING, WITHOUT LIMITATION, LOSS OF PROPERTY,
PERSONAL INJURY, LOSS OF BUSINESS OR PROFITS OR OTHER
ECONOMIC LOSSES, OR STATUTORY OR EXEMPLARY DAMAGES,
WHETHER IN NEGLIGENCE, WARRANTY, STRICT LIABILITY, OR
OTHERWISE.

This warranty is given only to the rst purchaser from a retail dealer.
No warranty is given to subsequent transferees.

Warranty does not cover product failures caused by: failure to maintain,
neglect, abuse, damage due to excess water, re, normal wear,
improper set up and use. Periodic maintenance is not covered.

This warranty is not in force until such time as a properly completed
and digitally signed Installation/Warranty Registration has been
received by WINCO within 30 days from the date of installation.

WARRANTY SERVICE

To initiate warranty service contact: [e-mail]
or call: 973-295-3899

DO NOT send unit to WINCO® without rst contacting our customer
service department.

REGISTER ONLINE AT:

http://support.wincous.com

Proof of purchase is required to extend warranty more than 1 year from
date of shipment from the factory.

THE FOREGOING WARRANTY PROVISIONS ARE A COMPLETE
AND EXCLUSIVE STATEMENT BETWEEN THE BUYER AND SELLER.
WINCO® NEITHER ASSUMES NOR AUTHORIZES ANY PERSONS
TO ASSUME FOR IT ANY OTHER OBLIGATION OR LIABILITY IN
CONNECTION WITH SAID EQUIPMENT.

Examples of items not covered under warranty, but not limited to just
these items:

1. Natural disasters (ie: earthquakes, tornadoes, hurricanes, etc.), re,
water damage, burglary, accident, theft.

2. Freight damage.

3. Improper installation or alteration of equipment.

4. Use of generic or after-market parts.

5. Repairs made by anyone other than a WINCO® designated service
provider.

6. Lubrication.

7. Expendable wear parts, adjustable feet, blown fuses, lamps, etc.

8. Cleaning of equipment.

9. Misuse or abuse.

12

Please keep this manual in a safe place for future use!

Models: EHDG-5R / EHDG-7R / EHDG-11R

www.wincous.com
