Spectra Precision DG511 User Manual

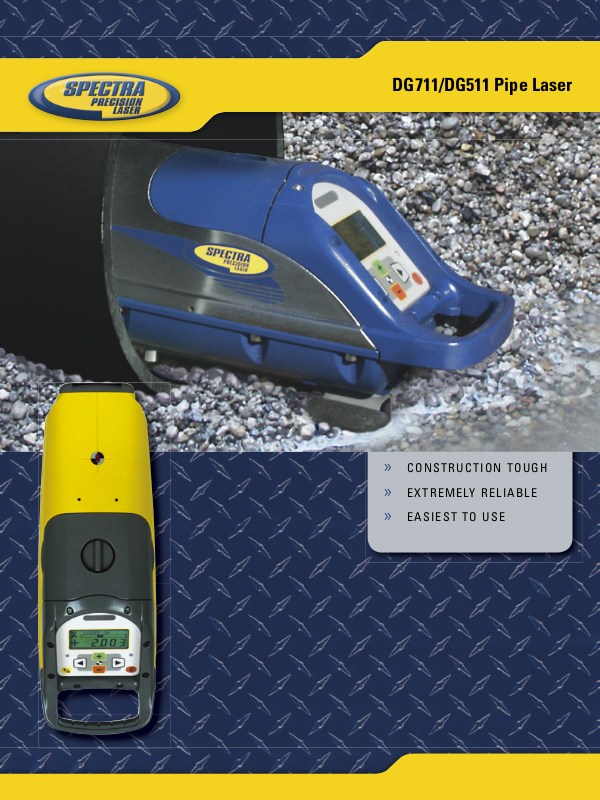

DG711/DG511 Pipe Laser

CONSTRUCTION T O U G H

»

EXTREMELY RELIABLE

»

EASIEST T O U S E

»

Color-coded panel clearly

Color-coded panel clearly

indicates the line and grade

functions to minimize crew

The industry’s largest display

lets you see the % Grade from

outside the manhole. Protective

coating prevents damage from

Spectra Precision Laser

proven performance and

quality...supported by the

industry’s leading service

Armor-Plated housing

provides unmatched protection

from sewage effluents and

Rubberized front bumper

lets you set the unit upright

on concrete while also

providing protection from

indicates the line and grade

functions to minimize crew

training and setup errors.

Full-function remote
included with the DG711
permits On-Off, Line and
Grade adjustments, as
well as Line Set/Check
functionality.

The industry’s largest display

lets you see the % Grade from

outside the manhole. Protective

coating prevents damage from

stones and debris.

DG711

Spectra Precision Laser
proven performance and
quality...supported by the
industry’s leading service

centers.

Armor-Plated housing

provides unmatched protection

from sewage effluents and

cleans up like new.

Rubberized front bumper

lets you set the unit upright

on concrete while also

providing protection from

knocks when going down

the manhole.

Universal Connector

Both models have

a Steep Grade Option,

to manually “rake-in”

grades up to 100%.

lets you hook up to
an optional 12V battery,
and allows fast service

diagnostics and

software upgrades.

Both units can be programmed by your dealer to provide

LCD Panel instructions in English, Dutch, Finnish, French,

German, Italian, Japanese, Portuguese, Spanish or Swedish.

Versatile pivot point easily establishes your start point:

Reflective Target enhances a laser plumb bob

•
Super-bright LED enables easy instrument or optical

•
plummet alignment
Use the two color “+” marks for plumb bobs

•

Remote controls line
and offers full on-off
capability if left in the
manhole overnight.

DG511

RUGGED, RELIABLE, REPEATABLE

Your job sites involve some of the harshest

conditions found in any industry. You need

equipment that can stand up to corrosion from

acids, chemicals, salts and other destructive

underground elements, as well as to the

physical abuse typical in the construction

industry. The Spectra Precision Laser DG711

and DG511 pipe lasers from Trimble are

designed to meet those conditions.

Built tough for long-lasting performance and

reliability, the DG711 and DG511 pipe lasers

are completely waterproof and designed

to ensure easy cleanup. They are also

easy to assemble with a full range of setup

accessories available, and easy to use with

straightforward, “no-instructions-required”

controls. They even keep track of their own

maintenance needs, notifying you at regular

intervals (you decide how often) when it’s

time for a checkup. The DG711 and DG511

pipe lasers are simply the toughest, smartest

tools you’ll ever own!

SELF-LEVELING: The DG711 and DG511 feature

the largest automatic leveling range in the industry

providing quick, easy setups, regardless of grade.

Unlike traditional pipe lasers, they eliminate the

need for rough leveling and minimize crew training.

Simply set up the laser in the pipe, manhole or

open cut without the need to swivel or rough level

the unit. No need to reset the unit or HI, over the

center point when rough leveling.

Our patented Target Lens collects the

beam and transfers the spot up at the

angle viewed by the pipe layer, making

it very easy to see the laser beam.

LINE ALERT: This unique feature is ideal for

working in high-vibration or wet conditions where

the pipe lasers may be disturbed. The beam

flashes to notify you that the setup line has been

disturbed, eliminating the necessity of rework.

Combined with the self-leveling warning, you’ll

always complete the job correctly, on time and on

budget! Only available on the DG711.

LINE SET: The Line Set/Check capability

of the pipe laser allows you to raise the beam

outside of the trench for fast line setup or

checking. Raising the laser beam out of the trench

to an above-ground stake saves you time—instead

of having to move the excavator off line during

setup of the pipe laser, you can just get on with

your job. In addition, the Line Set-Check feature is

ideal for rechecking the line in pipe jacking puts

after each push. Only available on the DG711.

956 Optically Enhanced Pipe Target –

from 150 to 500 mm (6 to 21 inches) in diameter. Level

vial facilitates use in other positions and in larger pipe.

Auto plumbing-- visible red laser that replaces the

the laser, or the instrument, over the manhole centerline for

varying job conditions.

Contractor-defined accessories assure fast,
easy setups under all conditions.

1230 (English) and
1237 (Metric) Invert Plates –

Unique heavy-duty plate provides an easy way to
self-center the laser in pipes in the 250 – 400 mm
(10 – 15 inch) diameter range, or to be used as a
stable base for open cut setups with the 1239 Pole
Kit. Eliminates the need for multiple foot screws.
Kit includes leveling feet for the 1230 and 1237
invert plates.

Mounts and Tripods

956 Optically Enhanced Pipe Target –

Uses special optical elements to enhance beam bright­ness. Has two adjustable inserts to self-center in pipes
from 150 to 500 mm (6 to 21 inches) in diameter. Level
vial facilitates use in other positions and in larger pipe.

1239 Extended Height Vertical Pole Kit –
Attaches to all mounting plates and T-bars to
set the laser at the correct elevation in open cut,
flat bottom, or drop manholes.

Spectra Precision Laser LL200 Auto Leveling

Grade Checking Laser –

Complete package with tripod and grade rod
lets one person check grade anywhere, above
or below ground, along the pipe run.

1244 T-bars –

Two sizes simplify manhole, drop manhole,
or large diameter pipe setups ranging from 84 cm
to 2 m (2 ft. 9 inches to 6 ft. 8 inches). Provides
secure mounting for high theft or vibration areas.

1211 Automatic Laser Plummet –

Auto plumbing-- visible red laser that replaces the
5/8 x 11 instrument hold down on tripods or on the 1017
Manhole Mount. Versatile—lets you decide to first position
the laser, or the instrument, over the manhole centerline for

Underground Accessories

varying job conditions.

1017 Manhole Mount –

Attaches to a manhole cone or riser so any
5/8 x 11 instrument can be easily plumbed over
the pipe laser.

1214 Line String Adapter –

Adheres to the top pivot point to provide
accurate string positioning for quick setup.

936 Adjustable Large Pipe Target –

Self- centers in 400 to 800 mm (15 – 30 inch)
pipes. Can also be clamped to a 2 x 4 timber for
larger pipe sizes.

929 Blower –

Variable speed, high-capacity output, minimizes
beam refraction to prevent grade sag. Operates
on 12V DC.

EW1160-1

Provides additional one-year increments of warranty coverage up to a total of
three years. Eliminates unplanned repair expenses, and is honored globally at
authorized service centers.

PERFORMANCE SPECIFICATIONS

1233 Scope Kit –

Helps align the laser for over-the-top
setups, or one-person second-day
setups in large pipe. Includes adapter.

P20/P20B Alkaline Battery Pack –

Great backup if you forget to
charge the unit. Insert four D-cell
alkaline batteries and get over
40 hours of use. Included with
the DG711.

Power Options

P21 12V DC Battery Power Cable –

Another option for providing power
for extended periods of operation or
for backup in remote areas.

1161 Heavy-Duty Tripod –

Non-warping cured wood legs provide
a stable setup for over the top setups,
or grade checking. Includes Safety
Chains to prevent tipover.

DG711 DG511

Grade Range -15% to +40%

Self-Leveling Range Complete grade range (no rough leveling required)

Line Range 20°

Line Center Yes

Grade Zero and Quick Grade Yes

Line Set/Check Yes

Line Alert Yes

Temperature Compensation Yes

Grade Compensation Yes

Maintenance Interval Notification Selectable Intervals: 3, 6, 12, 18 or 24 Months

Warranty Period 2 Years 1 Year

LASER CLASSIFICATION

Laser output 4.5–5 mW (maximum allowable)

Laser classification 3A/3R

GENERAL SPECIFICATIONS

Weight 3.6 kg (8.0 lbs.)

Length 37.5 cm (14.75 inches)

Diameter 14 cm (5.5 inches)

Housing material Armored Die Casting Hard Anodized Aluminum

Battery type and life NiMH / 60 Hours with Daily Setup at 20° C (68° F)

P22 Cigarette Lighter Charger –

Provides the ability to charge the battery pack
overnight in the work vehicle or
for a refresher charge to finish the
workday.

Battery pack Sealed (NiMH), 0-Ring Sealed Removable (Alkaline)

Operating voltage 6-16V DC

Operating temperature -20° to 60° C (-4° to 140° F)

Storage temperature -30° to 60° C (-23° to 140° F)

Waterproof Continuous Submersion at 3 m (10 ft.)

WIRELESS REMOTE SPECIFICATIONS

Functionality 7 Button

Power, Line and Grade

Adjustment, Line Set

Through the Pipe Range 225 m (750 ft)

Front / Over the Top Range 150 m (500 ft)

Rear Range 10 m (30 ft)

Battery life (normal operation) 3 Years / 36 Months 2 Years / 24 Months

3 Button

Power, Line Adjustment

THE ORIGINAL AND STILL THE LEADER.

CONSTRUCTION TOUGH

Well known for their innovative features and rugged dependability,

Spectra Precision Lasers are used by more construction professionals

around the world than any other brand.

STRONGEST WARRANTY

With the largest dealer and service network in the industry, no other

company can match the service and support you’ll get with Spectra

Precision Lasers.

EASIEST TO USE

Spectra Precision Lasers have the most advanced productivity features

you’ll find, because you make a lot more money working than you do

setting up lasers.

N O R T H A M E R I C A

Tr im bl e Co ns tr uc ti on D iv isi on
547 5 Ke ll en bu rge r R oa d
Day to n, O hi o 45 424
USA
800 -5 38 -7 80 0 ( Tol l Fr ee )
[phone] P ho ne
[phone] F ax

E U R O P E

Tr im bl e Gm bH
Am Pr im e Pa rc 1 1
654 79 Ra un he im
GER MA NY
[phone] P ho ne
[phone] Fa x

L A T I N A M E R I C A

Tr im bl e Na vi ga ti on L im it ed
650 5 Bl ue L ag oo n D ri ve
Sui te 12 0
Mia mi , FL 3 31 26
USA
[phone] P ho ne
[phone] F ax

A F R I C A & M I D D L E E A S T

Tr im bl e Ex po rt M id dl e- Ea st
P.O . Bo x 17 76 0
Jeb el Al i Fr ee Z on e
Dub ai
U.A .E .
[phone] P ho ne
[phone] F ax

YOUR LOCAL SPECTRA PRECISION LASER DISTRIBUTOR

W W W . T R I M B L E . C O M / S P E C T R A

Trimble Construction Division
5475 Kellenburger Road
Dayton, Ohio 45424
USA

800-538-7800 (Toll Free in USA)
[phone] Phone
[phone] Fax

© 2006, Trimble Navigation Limited. All rights reserved. Trimble, the Globe & Triangle logo, and Spectra
Precision are trademarks of Trimble Navigation Limited, registered in the United States Patent and
Trademark Office and in other countries. All other trademarks are the property of their respective owners.
Reorder PN 022546-015A (07/06)

A S I A - P A C I F I C

Tr im bl e Na vi ga ti on A us tr ali a
PTY L im it ed
Lev el 1/ 12 0 Wi ck ha m S tr eet
For ti tu de V al le y, Q LD 40 06
AUS TR AL IA
[phone] P ho ne
[phone] F ax

CHI NA

Tr im bl e Be ij in g
Roo m 28 05 -0 7
Te ng da P la za
No. 1 68 Xi wa i St re et
Hai di an D is tr ict , B ei jin g
CHI NA 10 00 44
[phone] Ph one
[phone] Fa x
www.t ri mb le .c om .c n
