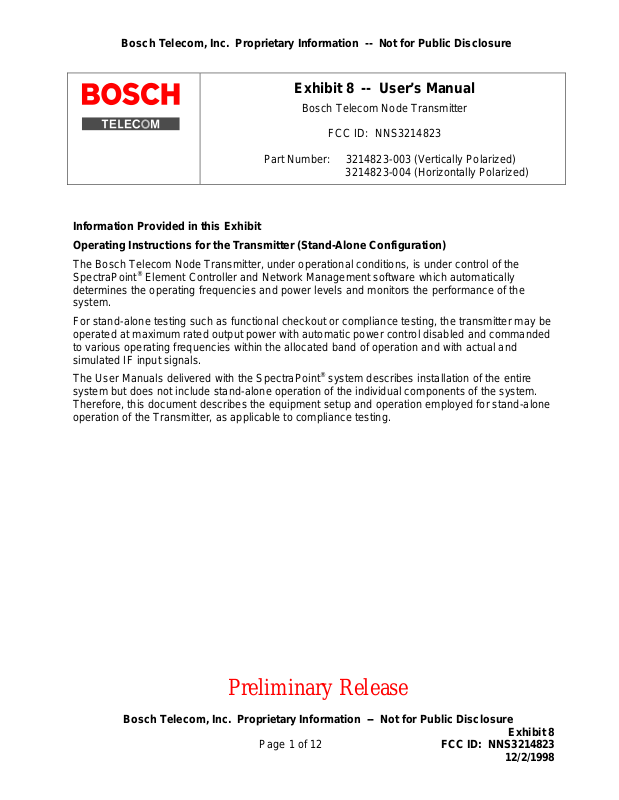

Bosch Telecom, Inc. Proprietary Information -- Not for Public Disclosure
Exhibit 8 -- User’s Manual
Bosch Telecom Node Transmitter
FCC ID: NNS3214823
Part Number: 3214823-003 (Vertically Polarized)
3214823-004 (Horizontally Polarized)
Information Provided in this Exhibit
Operating Instructions for the Transmitter (Stand-Alone Configuration)
The Bosch Telecom Node Transmitter, under operational conditions, is under control of the
SpectraPoint
determines the operating frequencies and power levels and monitors the performance of the
system.
For stand-alone testing such as functional checkout or compliance testing, the transmitter may be
operated at maximum rated output power with automatic power control disabled and commanded
to various operating frequencies within the allocated band of operation and with actual and
simulated IF input signals.
The User Manuals delivered with the SpectraPoint
system but does not include stand-alone operation of the individual components of the system.
Therefore, this document describes the equipment setup and operation employed for stand-alone
operation of the Transmitter, as applicable to compliance testing.
®
Element Controller and Network Management software which automatically
®
system describes installation of the entire
Preliminary Release
Bosch Telecom, Inc. Proprietary Information -- Not for Public Disclosure
Page 1 of 12 FCC ID: NNS3214823
Exhibit 8
12/2/1998
Bosch Telecom, Inc. Proprietary Information -- Not for Public Disclosure
Tune-Up Instructions for Operation of a Single Transmitter
1.0 Scope
This document provides the tune-up instructions for operation of a single SpectraPoint
Node Transmitter, when operated for test purposes (i.e., without the control of the
SpectraPoint System for which it is intended to operate).
2.0 Introduction
Transmitters, when operating under control of the SpectraPoint System, are “automatically”
commanded to the correct operating frequency (i.e., the correct intermediate frequency
signal input, both tuned frequency and amplitude, and the correct local oscillator frequency)
and provided with the correct reference frequency, to be caused to transmit at the
appropriate RF output level for range and path conditions. However, for test purposes,
control of these signals must be provided by test hardware and software which is defined in
this document.
3.0 Interconnection of Support Equipment
The interconnection of the SpectraPoint Node Transmitter and support equipment is shown
in Figure 8-1 and support hardware and software is contained in Table 8-1.
The Node Transmitter may be operated to produce a CW output (pilot tone for SpectraPoint
System), a single QPSK phase modulated output (simulating single-channel QPSK used in
the SpectraPoint System at service-provider-selectable bandwidths) or a multiple-channel
QPSK phase modulated output (simulating multi-channel modem-generated signals).
Preliminary Release
Bosch Telecom, Inc. Proprietary Information -- Not for Public Disclosure
Page 2 of 12 FCC ID: NNS3214823
Exhibit 8
12/2/1998
Bosch Telecom, Inc. Proprietary Information -- Not for Public Disclosure
24” Wide
R
A
S
C
Bosch Modem
Central Shelf
Fan Tray
60”
High
Bosch Modem
Expansion Shelf
Frequency Synthesizer
HP 8648B
- 48 Volt Power Supply
Figure 8-1: Bosch Modem Test Set
Preliminary Release
Bosch Telecom, Inc. Proprietary Information -- Not for Public Disclosure
Page 3 of 12 FCC ID: NNS3214823
Exhibit 8
12/2/1998
Bosch Telecom, Inc. Proprietary Information -- Not for Public Disclosure
Table 8 - 1 Hardware and Software to Support Operation of the SpectraPoint Node
Transmitter in Stand-Alone Test Configuration
Item Description Model Number Manufacturer
1 Node Transmitter 3214823.00x Bosch Telecom, Inc.
2 Frequency Synthesizer,
960 MHz at –5 dBm
3 Input Signal Source for
CW Operation
4 Input Signal Source for
Modem Operation
5 Input Signal Source for
Simulated QPSK
Operation with Arbitrary
Waveform Generator
6 Personal Computer with
Dual RS-485 and IEEE-
488 Interface Cards
7 NA-1 Test Software Version X.X Bosch Telecom, Inc.
8 SECO Test Software Version X.X Bosch Telecom, Inc.
9 IQSIM Test Software Version X.X Tektronix
10 Power/Command Cable
Assembly
11 RF Cable (N/N)
HP 8648B
(or equivalent)
HP 8648B
(or equivalent)
[TBD] Bosch Telecom, Inc.
SMHU-58
AWG 2021
133 MHz Pentium
Processor
3214944-002 Bosch Telecom, Inc.
8000048-001 Bosch Telecom, Inc.
Hewlett-Packard
Hewlett-Packard
Rohde & Schwarz
Tektronix
Gateway
(IF Input Cable)
12 RF Cable (N/TNC)
(Ref Tone Input Cable)
Equivalent equipment may be substituted
8000048-001 Bosch Telecom, Inc.
Preliminary Release
Bosch Telecom, Inc. Proprietary Information -- Not for Public Disclosure
Page 4 of 12 FCC ID: NNS3214823
Exhibit 8
12/2/1998
Bosch Telecom, Inc. Proprietary Information -- Not for Public Disclosure
4.0 Description of the test and support equipment
4.1 Bosch Modem Test set
The Bosch modem test set consists of the central shelf, expansion shelf and a -48Vdc
power supply. The expansion shelf consists of slots for 14 modem circuit cards (plus two
spares), a combiner circuit card and a power supply module. The central shelf consists of
RASCO module, six modem circuit cards, one broadcast modem circuit card, one combiner
circuit card, a power supply module and an IF translator module. In a typical operation (and
for test) only 20 modems are used. A diagram of this test set is shown in Figure 8.1. On the
RASCO, there is a DB-25 connector labeled as Serial Port 2.
An RS-232 cable should be connected between the RASCO serial port and the COM1 port
(DB-9 connector) on a PC running Windows95. Only three pins on these ports are required
for communication as shown in the following table:
DB-9, COM1 DB-25, RASCO Signal
Pin 2 Pin 3 Tx
Pin 3 Pin 2 Rx
Pin 5 Pin 7 Gnd
This cable is used for communication with the modems and the translator through the
RASCO u sing the Bosch Sec tor Controller program ( SECO).
4.2 AWG-2021 & SMHU-58 Test Set
This test set is used to generate an arbitrary waveform at the desired IF frequency to
produce a simulated QPSK signal at any specified code rate or channel bandwidth. The
channel bandwidth may be 30, 40 or 50 MHz depending on the type of communication. The
Tektronix AWG-2021 generates the filtered I and Q signals which are applied to the Rohde
& Schwarz SMHU-58. The SMHU-58 uses the I and Q signals to produce a phasemodulated L-Band IF signal for input to the node transmitter. Both AWG-2021 and SMHU58 are connected to a PC by HP-IB cable to the PC. Tektronix software (IQSIM) is used to
generate the I and Q signals and download these signals to the SMHU-58.
4.3 Junction Box
The junction box provides the mechanical interface and the electrical connectivity to provide
-48Vdc and control signals to the node transmitter utilizing actual system cabling.
Preliminary Release
Bosch Telecom, Inc. Proprietary Information -- Not for Public Disclosure
Page 5 of 12 FCC ID: NNS3214823
Exhibit 8
12/2/1998
Bosch Telecom, Inc. Proprietary Information -- Not for Public Disclosure
4.4 Reference Tone Generator
A CW generator (HP 83640L or equivalent) is used to generate a continuous tone at 960
MHz to provide a reference frequency to the node transmitter simulating the reference
signal from the Frequency Reference System in the Control and Monitor rack. The normal
power level of the reference input to the transmitter is –5 dBm (range is -7 to 0 dBm).
4.5 Node Transmitter
The transmitter consists of a local oscillator module, HPA/Upconverter module, a
waveguide filter, an antenna, and a polarizer mounted in a chassis. For some tests, the
antenna and the polarizer may be removed and a waveguide adapter plate (part number
3214985) connected directly to the waveguide filter. The transmitter, the equipment under
test (EUT), upconverts an L-Band IF input signal to produce a Ka-Band RF output signal
and provides power amplification. It receives the IF signal from either the Modem Test Set
or from the SMHU-58 and the LO reference from the reference tone generator via coaxial
cables. The power and control signals are provided through the junction box through a
multi-conductor cable.
4.6 Waveguide Directional Coupler
A waveguide directional coupler (Millimeter Products 559A-20/599, or equivalent) is
attached to the waveguide adapter plate at the output of the transmitter to facilitate the
measurement of the output power and spectral analysis. A power meter is connected to the
20dB-coupled port and a spectrum analyzer is connected to the through-port of the
waveguide.
4.7 Power meter
An RF power meter (Anritsu ML2438A, or equivalent) is used to measure the output power
of the transmitter. All the test measurements are taken at the maximum output power from
the transmitter, which is +30dBm. The maximum power which the power meter can handle
is +20dBm, therefore, it is connected to the coupled port of the waveguide which is 20dB
down from the input port.
4.8 Spectrum Analyzer
A spectrum Analyzer (HP 8564E) is used to monitor the output of the transmitter and
measure power spectral density, channel power and occupied bandwidth. A DC block is
used on the input to the spectrum analyzer for protection. Sufficient series attenuation
should be used to protect the spectrum analyzer.
Preliminary Release
Bosch Telecom, Inc. Proprietary Information -- Not for Public Disclosure
Page 6 of 12 FCC ID: NNS3214823
Exhibit 8
12/2/1998
Bosch Telecom, Inc. Proprietary Information -- Not for Public Disclosure
5.0 Instructions for setting up the system and software
This test system was designed to support two types of tests, one with AWG-2021 and
SMHU-58 (Test 1) which can provide a variable bandwidth single-channel QPSK signal and
the other with the Bosch modem rack (Test 2) which has a fixed 30MHz multi-channel
bandwidth but with different code rates for individual modems. Refer to Figure 8-2.
-48 Volts DC
Modem Test Set
a) Bosch Multi-channel
QPS K test setup:
RS-232 input to RASCO
(SECO)
OR
b) SMHU-58 and AWG2021:
Sin gle C h an ne l Q P S K T es t
setup.
HP-IB in p u t to
2021(IQSIM)
Break-out Box
IF Inp u t
RS-232 To RAS CO
RS-485
Power
and
control
signals
Tra nsmitter
20dB
Waveguide
P/N 559A-20/599
DC9808
Power Meter
Anritsu
ML2438A
Spectrum
Analyzer
8564E
Grounded Plate
HP-IB to AWG 2021
SE C O ------->IQS IM
NA-1 RS -48 5
Co ntro ller ---------->
Benchlink Spectrum
analy z e r--------->
PC, WIN95
RS-485 To Transmitter
83640L HP CW G enerator
for 96 0 MHz Refe ren ce
Ground Wire
Figure 8-2 Test Arrangement of Equipment to Support Stand-Alone Testing of Transmitter
Preliminary Release
Bosch Telecom, Inc. Proprietary Information -- Not for Public Disclosure
Page 7 of 12 FCC ID: NNS3214823
Exhibit 8
12/2/1998
Bosch Telecom, Inc. Proprietary Information -- Not for Public Disclosure
5.1 Test Equipment Set-up for Simulated QPSK Modulation
The following instructions provide a step-by-step procedure for setting up the system with
the AWG2021 and SMHU58:
1. Connect an HP-IB cable between the SMHU-58 and AWG-2021.
2. Connect an HP-IB cable between the PC and the AWG-2021.
3. Connect equal-length (i.e., within 0.25 inche) BNC cables between the I and Q output
ports on the front of the AWG2021 and the I&Q input ports on the back of the SMHU58.
4. Turn on the PC, AWG2021 and the SMHU-58.
5. Verify that the GPIB address on the AWG2021 is set to 14
6. Verify that the GPIB address on the SMHU-58 set to 28.
7. Double-click on the IQSIM icon on the computer to start the IQSIM software.
8. The IQSIM window should come up and acknowledge that the PC is connected to
AWG2021 and SMHU58. Click OK.
9. On the IQSIM File menu, select Load File.
10. Select 30M-QPSK.IQS. Click OK.
11. To set the modulation, select the modulation menu -> Mod. Type -> PSK -> QPSK
12. The filter function in the SpectraPoint system is raised cosine. Select modulation ->
Filtering -> Filter Function -> \/
13. To select an αααα of 0.3, select modulation -> Filtering -> Filter Function -> parameter.
Type 0.3 in the box and click OK.
14. To set the symbol rate, select Modulation -> Symbol Rate, type 30MHz and click OK.
15. Select 'Transfer to AWG2021' from the transfer menu. After a few seconds, the
computer responds by indicating that the transfer is complete.
16. Connect a coax cable from the output of the SMHU58 to the IF IN port of the
transmitter.
17. Set the desire IF frequency and power level on the SMHU58. The power level is set
such that the transmitter output power indicated on the power meter +30 dBm (with
correction for cable, attenuator and waveguide losses).
18. Proceed to section 5.3.
---
COS.
Preliminary Release
Bosch Telecom, Inc. Proprietary Information -- Not for Public Disclosure
Page 8 of 12 FCC ID: NNS3214823
Exhibit 8
12/2/1998
Bosch Telecom, Inc. Proprietary Information -- Not for Public Disclosure
5.2 Test Equipment Set-up for “Actual” QPSK Modulation
The following instructions provide a step-by-step procedure for setting up the system with
the Bosch Modem Test Set.
1. Verify there are 6 modems and 1 broadcast modem present in the central shelf of the
rack. The Broadcast modem is next to the translator.
2. Verify there are 14 modems in the expansion shelf.
3. Turn on the power supply.
4. Double-click on the SECO icon on the computer.
5. On the right-hand side of the main window, verify that the RASCO box is checked. If not
check that box. (If a ‘check’ is added to the box, the SECO will ask for a conformation.
Click 'Continue').
A message stating 'THE CONNECTION IS UP NOW' should be displayed on the lower
part of the main window. If this message is not present, the SECO is not
communicating with RASCO; check the cable connections and start at step 1 again.
7. Click ‘BRC Modems’ in the SECO main window. A new window should appear with
modem information on line 1. Select this modem by clicking on the cell under the index
column containing the serial number.
8. ‘Click’ the Modify button on the right side of the window. A new window (‘Selected
BRC Modem: 1’) should appear. Parameters for this modem may be modified.
9. ‘Check’ the Carrier and Modulator boxes.
10. Select 1300.0 MHz from the drop-down menu for the Tx frequency to set the broadcast
frequency for the broadcast channel.
11. Set the Tx Power Delta to 12dB and the Power Compensation Factor to 0dB.
12. ‘Click’ OK and close the broadcast modem window.
13. ‘Click’ the “BST Modems” box in the SECO main window.
14. To modify modem operating parameters, select each modem in the BST Modems
window and click the ‘Modify’ button.
15. ‘Check’ the Carrier and Modulator boxes.
16. ‘Check’ ESF in the Frame mode section.
17. ‘Check’ B8ZS in the line code section.
18. ‘Check’ the Symmetrical Tx+Rx parameters box.
19. ‘Check’ the Tx Timeslot button. A new window will open showing the timeslots for
transmit and receive; ‘check’ the ‘Set All’ button. The values for Tx and Rx should read
‘0xffffff’.
20. Verify that symmetrical and hexadecimal buttons are checked and ‘click’ OK.
Preliminary Release
Bosch Telecom, Inc. Proprietary Information -- Not for Public Disclosure
Page 9 of 12 FCC ID: NNS3214823
Exhibit 8
12/2/1998
Bosch Telecom, Inc. Proprietary Information -- Not for Public Disclosure
21. The only values to be entered are the frequencies, Tx power Delta and modulation type.
The frequencies are unique for each modem and are entered per Table 7-2 (shown
below). The Tx Power Delta and the modulation type for different code rates should also
be entered as shown in Table 8-1, below.
Table 7-2 Modem Operating Parameters
Index Factory ID Tx
Frequency
(MHz)
1 978228779 1.961 QPSK 3/4 13.2
2 978228859 3.320 QPSK 3/4 12.5
3 978228795 4.679 QPSK 3/4 11.9
4 978228865 6.038 QPSK 3/4 11.5
5 978228773 7.397 QPSK 3/4 11.1
6 978228838 8.756 QPSK 3/4 11
7 978228834 10.115 QPSK 3/4 10.6
8 978228878 11.377 QPSK 7/8 8.6
9 978228803 12.542 QPSK 7/8 8.6
10 978228862 13.706 QPSK 7/8 8.6
11 978228775 14.871 QPSK 7/8 8.5
12 978228809 16.036 QPSK 7/8 8.2
13 978228820 17.201 QPSK 7/8 8.2
Tx
Modulation
Tx Code
Rate
Tx Power
Delta(dB)
14 978228768 18.366 QPSK 7/8 8.2
15 978228800 19.691 QPSK 7/8 8.2
16 978228839 20.856 QPSK 7/8 8.2
17 978228811 22.02 QPSK 7/8 8.5
18 978228789 23.622 QPSK 1/2 12.8
19 978228783 25.66 QPSK 1/2 13
20 978228771 27.699 QPSK 1/2 13
25. Minimize the BST Modems window.
26. ‘Click’ RASCO in the SECO main Window.
Preliminary Release
Bosch Telecom, Inc. Proprietary Information -- Not for Public Disclosure
Page 10 of 12 FCC ID: NNS3214823
Exhibit 8
12/2/1998
Bosch Telecom, Inc. Proprietary Information -- Not for Public Disclosure
27. Select index 1. ‘Click’ on Parameter menu and select IF unit from the list.
28. ‘Check’ the ON box for the HPA mode. This causes power to be applied to the HPA.
29. ‘Check’ TWT in the transmitter type.
30. Select 1310.926MHz for the outbound channel and 1720.926 for the inbound channel.
31. Set Tx Gain at 35.5% on the scale and ‘click’ OK.
32. Verify that all the attenuators on the lower right-hand side of the IF Translator are turned
off (DIP-switches toward the left side).
33. Connect a 75-to-50 ohm adapter to the TX IF port of the translator.
34. Connect a 50 ohm coaxial cable between the 50 ohm side of the 75-to-50 ohm adapter
on the translator TX IF port and the IF input connector (type N) of the transmitter.
35. Proceed to section 5.3
5.3 Transmitter Setup
1. Place the transmitter (3214823.XXX) on a waveguide bench and attach the test
waveguide directly to its waveguide filter.
2. Connect an RS-485 cable from the Junction box to the Transmitter.
3. Connect an RS-485 cable from the Junction box to the RS-485 controller card in the
PC. The cable has two DB-9 connectors, one for Data (orange) and the other for Reset
(blue).
4. Connect the IF cable from either the Bosch modem test set or from the SMHU58 to the
IF input connector on the transmitter.
5. Connect the Reference Signal from the HP83640L CW generator to the Reference
Frequency input on the transmitter. Verify the level of the reference signal is -5dBm.
6. Connect the ML2438A power meter to the coupled port of the waveguide. Enter the
exact coupled loss after calibrating the waveguide as an offset in the power meter to
allow the output of the transmitter to be read directly off the power meter.
7. Connect 8564E Spectrum Analyzer to the output port of the waveguide with a 16dB
attenuator. The spectrum analyzer is used to observe the behavior of the signals, for
troubleshooting or to take measurements.
8. ‘Double-click’ on the NA-1 RS-485 Controller icon on the PC.
9. Verify that the PC Data Comm port is set to 5 and the Reset port is set to 6.
10. ‘Click’ on the Solid State Transmitter box under the Node section.
11. Set the STX address in the new window to 129.
12. Set Light to OFF
13. Set ALC to Disabled.
Preliminary Release
Bosch Telecom, Inc. Proprietary Information -- Not for Public Disclosure
Page 11 of 12 FCC ID: NNS3214823
Exhibit 8
12/2/1998
Bosch Telecom, Inc. Proprietary Information -- Not for Public Disclosure
14. Set RF BIT threshold to 12 dBm.
15. Set Power Control to ON.
16. Set LO frequency to 26550 MHz.
17. Set IF attenuation to 40 dB.
18. Close the window.
19. Verify that the light at the back of the transmitter digital board is green. If it is not green,
check the settings in the Solid State Transmitter window again.
20. Set the center frequency of the spectrum analyzer to the signal of interest. Set the
resolution BW to 30KHz and Video BW to 300KHz.
21. Increase the IF power level to obtain an RF output of +30dBm as indicated on the RF
power meter.
22. The system is now ready to take measurements.
Preliminary Release
Bosch Telecom, Inc. Proprietary Information -- Not for Public Disclosure
Page 12 of 12 FCC ID: NNS3214823
Exhibit 8
12/2/1998
Loading...
