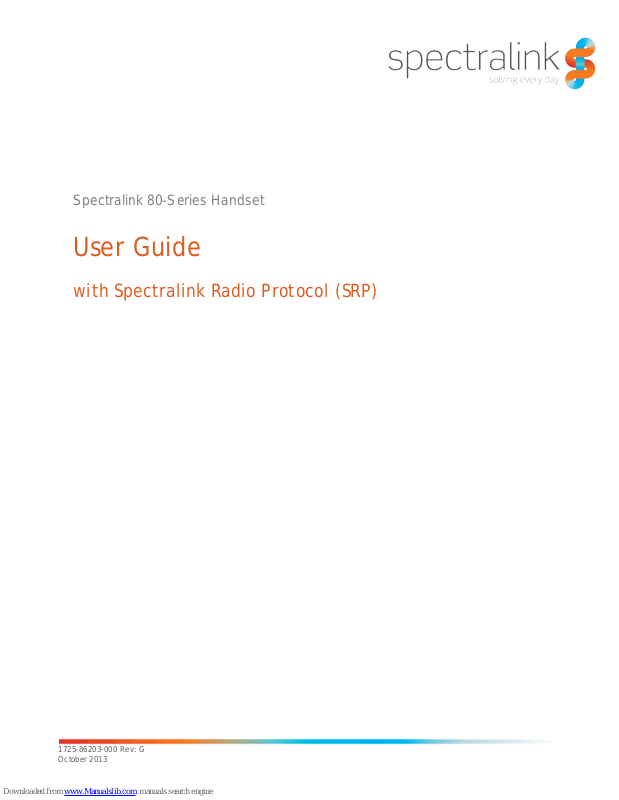

Spectralink 80-Series Handset
User Guide
with Spectralink Radio Protocol (SRP)
1725-86203-000 Rev: G
October 2013
Spectralink 80-Series Handsets User Guide for SRP
Copyright Notice
© 2007-2013 Spectralink Corporation All rights reserved. SpectralinkTM, the Spectralink logo and the
names and marks associated with Spectralink’s products are trademarks and/or service marks of
Spectralink Corporation and are common law marks in the United States and various other countries. All
other trademarks are property of their respective owners. No portion hereof may be reproduced or
transmitted in any form or by any means, for any purpose other than the recipient’s personal use, without
the express written permission of Spectralink.
All rights reserved under the International and pan-American Copyright Conventions. No part of this
manual, or the software described herein, may be reproduced or transmitted in any form or by any
means, or translated into another language or format, in whole or in part, without the express writ ten
permission of Spectralink Corporation.
Do not remove (or allow any third party to remove) any product identification, copyright or other notices.
Notice
Spectralink Corporation has prepared this document for use by Spectralink personnel and customers.
The drawings and specifications contained herein are the property of Spectralink and shall be neither
reproduced in whole or in part without the prior written approval of Spectralink, nor be implied to grant any
license to make, use, or sell equipment manufactured in accordance herewith.
Spectralink reserves the right to make changes in specifications and other information contained in this
document without prior notice, and the reader should in all cases consult Spectralink to determine
whether any such changes have been made.
NO REPRESENTATION OR OTHER AFFIRMATION OF FACT CONTAINED IN THIS DOCUMENT
INCLUDING BUT NOT LIMITED TO STATEMENTS REGARDING CAPACITY, RESPONSE-TIME
PERFORMANCE, SUITABILITY FOR USE, OR PERFORMANCE OF PRODUCTS DESCRIBED
HEREIN SHALL BE DE EM ED T O BE A W ARR ANTY BY SPECTRALINK FOR AN Y PURPOSE, OR
GIVE RISE TO ANY LIABILITY OF SPECTRALINK WHATSOEVER.
Warranty
The Product Warranty and Software License and Warranty and other support documents are available at
http://support.spectralink.com.
Contact Information
US Location Denmark Location
800-775-5330 +45 7560 2850
Spectralink Corporation Spectralink Europe ApS
2560 55th Street Langmarksvej 34
Boulder, CO 80301 8700 Horsens
info@spectralink.com infodk@spectralink.com
1725-86203-000-G.docx
October 2013 2
Contents
Chapter 1: About this Guide ................................................. 7
Spectralink Model Numbers ............................................................................................. 7
Product Support ............................................................................................................... 7
Spectralink References .................................................................................................... 8
Specific Documents ......................................................................................................... 8
Conventions Used In This Document .............................................................................. 9
Icons ............................................................................................................................... 9
Typography ....................................................................................................................10
Chapter 2: Getting Started ................................................... 12
Overview ...........................................................................................................................12
Battery Packs ...................................................................................................................12
Indications of low battery ................................................................................................13
Battery Pack removal and replacement ..........................................................................13
Notes on Battery Packs ..................................................................................................13
Features of your Spectralink 80-Series Handset ...........................................................15
The Handset Display ........................................................................................................17
Status Icons ...................................................................................................................17
Softkeys .........................................................................................................................18
NavOK Functions ...........................................................................................................19
Menus ............................................................................................................................19
Config menu ...................................................................................................................19
Line menu ......................................................................................................................19
FCN menu ......................................................................................................................20
Handset Modes ................................................................................................................20
Standby mode (on-hook) ................................................................................................20
Active mode (off-hook) ...................................................................................................20
Push-to-talk (PTT) mode ................................................................................................20
Configuration menu mode ..............................................................................................21
Message alert mode .......................................................................................................21
Accessories......................................................................................................................21
Carrying Options ............................................................................................................21
Headsets ........................................................................................................................21
Chapter 3: Customizing your Handset .................................... 22
Config Menu .....................................................................................................................22
Default settings...............................................................................................................25
Toggle options ................................................................................................................25
Lock Keys .........................................................................................................................25
1725-86203-000-G.docx
October 2013 3
Spectralink 80-Series Handsets User Guide for SRP
User Profiles.....................................................................................................................26
Set as Active ..................................................................................................................26
Ring Settings ..................................................................................................................26
Noise Mode ....................................................................................................................27
Ring in Headset/Speaker ................................................................................................27
Warning Tones ...............................................................................................................27
Key Tones ......................................................................................................................27
Phone Settings .................................................................................................................28
Extension Info ................................................................................................................28
Keypad Autolock ............................................................................................................28
Display Contrast .............................................................................................................28
Use Hearing Aid .............................................................................................................28
Startup Song Play/Inhibit ................................................................................................28
Predial ............................................................................................................................28
Push-to-Talk (PTT) ...........................................................................................................29
Default Channel ..............................................................................................................29
Subscribed Channels .....................................................................................................29
PTT Audio Volume .........................................................................................................29
PTT Tone Volume ..........................................................................................................29
PTT Vibrate ....................................................................................................................29
System Info ......................................................................................................................30
Phone IP Address ..........................................................................................................30
Gateway IP Address .......................................................................................................30
Firmware Version ...........................................................................................................30
Emergency Dial ..............................................................................................................30
Chapter 4: Using Basic Features ........................................... 31
Turn the Handset On ......................................................................................................31
Turn the Handset Off ......................................................................................................32
Lock the Keypad .............................................................................................................32
Unlock the Keypad .........................................................................................................32
Place a Call ....................................................................................................................32
Place an Emergency Call ...............................................................................................32
Answer or Reject a Call ..................................................................................................33
Place a Call on Hold/Resume Call ..................................................................................33
Answer a Second Call ....................................................................................................33
Clear Forwarding on a Line ............................................................................................33
Redial the Last Number you Dialed ................................................................................34
Silence the Ringing ........................................................................................................34
Change the Ring Volume ...............................................................................................34
Adjust the Speaker Volume ............................................................................................34
Adjust the Headset Volume ............................................................................................35
Mute/Unmute a Call ........................................................................................................35
1725-86203-000-G.docx
October 2013 4
Spectralink 80-Series Handsets User Guide for SRP
End a Call .......................................................................................................................35
Change the Profile ..........................................................................................................35
Open the Config Menu ...................................................................................................35
Turn on the Backlight......................................................................................................35
Chapter 5: Using Advanced Features ..................................... 36
Place a Second Call .......................................................................................................36
Place a Call on a Different Line ......................................................................................36
Listen to Voicemail .........................................................................................................36
Activate Installed Custom Applications ...........................................................................36
Use the Phonebook and Speed Dial ...............................................................................37
Search for a phonebook entry ........................................................................................37
View a phonebook entry .................................................................................................37
Edit a phonebook entry ...................................................................................................38
Dial phonebook number .................................................................................................38
Enter a new name and number in the phonebook ..........................................................38
Delete a phonebook entry ..............................................................................................38
Open the speed dial list from standby .............................................................................38
Make a speed dial call ....................................................................................................39
Assign a speed dial number ...........................................................................................39
Chapter 6: Using Push-to-Talk .............................................. 41
Make a PTT Call .............................................................................................................42
Respond to a PTT Call ...................................................................................................42
End a Wait Period ..........................................................................................................42
Select a Different PTT Channel ......................................................................................42
End One PTT Call and Start another on a Different Channel ..........................................42
Receive a PTT Call while on a Telephone Call ...............................................................42
Use PTT Vibrate .............................................................................................................42
Transmit on the Priority Channel ....................................................................................43
End a PTT Call ...............................................................................................................43
Change the PTT Volume ................................................................................................43
Answer a Telephone Call during a PTT Transmission ....................................................43
Start a Telephone Call during a PTT Transmission ........................................................43
Turn off PTT ...................................................................................................................43
Subscribe to additional PTT channels ............................................................................43
Chapter 7: Charger Options ................................................. 44
Charger Models ................................................................................................................44
Install the Charger ..........................................................................................................44
Charging Status Indicators .............................................................................................45
Single Charger .................................................................................................................46
1725-86203-000-G.docx
October 2013 5
Spectralink 80-Series Handsets User Guide for SRP
Dual Charger ....................................................................................................................47
Quad Charger ...................................................................................................................48
Appendix A: Cleaning and Drying the Handset ......................... 49
Appendix B: Safety Information ............................................ 51
Industry Canada Notice ...................................................................................................51
Chargers and Battery Packs ...........................................................................................51
Handsets ..........................................................................................................................52
Operational Warnings .....................................................................................................53
Electromagnetic Interference and Compatibility ...........................................................54
Facilities .........................................................................................................................54
Pacemakers ...................................................................................................................54
Other Medical Devices ...................................................................................................54
Use While Driving ...........................................................................................................54
FCC Statement...............................................................................................................55
Specific Absorption Rate (SAR) Information: Spectralink 80-Series Wireless
Handsets ..........................................................................................................................55
Handset operation normal position .................................................................................56
1725-86203-000-G.docx
October 2013 6
Chapter 1: About this Guide
Thank you for choosing the Spectralink 80-Series Handsets with Spectralink Radio Protocol
1
(SRP)
appearances, call hold, transfer, and conference over your Local Area Network. Your handset
can call other telephone numbers and extensions within your facility as well as any external
telephone number. Your handset will only work within your facility when it is in contact with the
LAN. It will not work beyond the coverage area of the wireless LAN. Contact your system
administrator if you have questions about your facility’s boundaries.
In this User Guide, you will find everything you need to quickly use your new handset. If you
have questions about features and functions customized for your facility, contact you r system
administrator. Please read the Safety section in this guide before you set up and use the
Spectralink 80-Series Handset.
Spectralink Model Numbers
. These handsets provide business telephony features and functions such as multiple call
This document covers the following registered model numbers:
802X (Spectralink 8020 Handset)
803X (Spectralink 8030 Handset)
PBP0850 (Standard Battery Pack)
PBP1300 (Extended Battery Pack)
PBP1850 (Ultra-Extended Battery Pack)
PCS1850 (Desktop Charger)
PCD1850 (Dual Charger)
PCQ1850 (Quad Charger)
Product Support
Spectralink wants you to have a successful installation. If you have questions please contact the
Customer Support Hotline at 1-800-775-5330.
The hotline is open Monday through Friday, 6 a.m. to 6 p.m. Mountain time.
For Technical Support: mailto:technicalsupport@spectralink.com
For Knowledge Base: http://support.spectralink.com
1
SRP is Spectralink's proprietary signaling protocol used by the Spectralink 80-Series Handsets to send and receive telephone calls
over the telephony system installed in your facility.
1725-86203-000-G.docx
October 2013 7
Spectralink 80-Series Handsets User Guide for SRP
For Return Material Authorization: mailto:nalarma@spectralink.com
Spectralink References
All Spectralink documents are available at http://support.spectralink.com.
To go to a specific product page:
Select the Product Category and Product Type from the dropdown lists and then select the
product from the next page. All resources for that particular product are displayed by default
under the All tab. Documents, downloads and other resources are sorted by the date they were
created so the most recently created resource is at the top of the list. You can further sort the
list by the tabs across the top of the list to find exactly what you are looking for. Click the title to
open the link.
Specific Documents
Spectralink 80-Series Handset Administration Guide for SRP
1725-86203-000-G.docx
October 2013 8
Spectralink 80-Series Handsets User Guide for SRP
yourself or others to hazardous conditions.
Spectralink 80-Series Regulatory Information
Conventions Used In This Document
Icons
Icons indicate extra information about nearby text.
Warning
The Warning icon highlights an action you must perform (or avoid) to avoid exposing
Caution
The Caution icon highlights information you need to know to avoid a hazard that
could potentially impact device performance, application functionality, successful
feature configuration and/or affect handset or network performance.
Note
The Note icon highlights information of interest or important information that will help
you be successful in accomplishing a procedure or understanding a concept.
Tip
The Tip icon highlights information that may be valuable or helpful for users to know,
such as special techniques, shortcut methods, or information that will make user
tasks easier to perform.
Web
The We b Info icon highlights supplementary information available online such as
documents or downloads on support.spectralink.com or other locations.
Timesaver
A time-saving tip is typically used to mention or highlight a faster or alternative
method for users who may already be familiar with the operation or method being
discussed.
Admin Tip
This tip advises the administrator of a smarter, more productive or alternative method
of performing an administrat or-level task or procedure.
1725-86203-000-G.docx
October 2013 9
Spectralink 80-Series Handsets User Guide for SRP
Support Web site and other reference sites.
document.
Fixed-width-font
Power User
A Power User Tip is typically reserved for information directed specifically at highlevel users who are familiar with the information or procedure being discussed and
are looking for better or more efficient ways of performing the task. For example, this
might highlight customization of a feature for a specific purpose.
Troubleshooting
This element can be used in any type of document and is typically used to highlight
information to help you solve a relevant problem you may encounter, or to point to
other relevant troubleshooting reference information.
Settings
The Settings icon highlights information to help you zero in on settings you need to
choose for a specific behavior, to enable a specific feature, or access customization
options.
Typography
A few typographic conventions, listed next, are used in this guide to distinguish types of in-text
information.
Convention Description
Bold
Italics Used to emphasize text, to show example values or inputs, and to
Underlined blue Used for URL links to external Web pages or documents. If you
Bright orange text Used for cross references to other sections within this document. If
Highlights interface items such as menus, soft keys, file names, and
directories. Also used to represent menu selections and text entry
to the handset.
show titles of reference documents available from the Spectralink
click on text in this style, you will be linked to an external document
or Web page.
you click on text in this style, you will be taken to another part of this
Used for code fragments and parameter names.
1725-86203-000-G.docx
October 2013 10
Spectralink 80-Series Handsets User Guide for SRP
Convention
Description
from the Settings menu.
This guide also uses a few writing conventions to distinguish conditional information.
<MACaddress> Indicat es that you must enter information specific to your
installation, handset, or network. For example, when you see
<MACaddress>, enter your handset’s 12-digit MAC address. If you
see <installed-directory>, enter the path to your installation
directory.
> Indicates that you need to select an item from a menu. For
example, Settings > Basic indicates that you need to select Basic
1725-86203-000-G.docx
October 2013 11
Type
Talk Time
Standby Time
Charging Time
Standard
Extended
Ultra-Extended
Chapter 2: Getting Sta rted
Overview
The Spectralink 80-Series Handset is a Wi-Fi handset for workplace telephone systems. By
seamlessly integrating with the facility’s telephone system, wireless telephone users are
provided with high-quality mobile voice communications throughout the workplace, giving users
the freedom to roam throughout the workplace while providing the features and functionality of a
wired desk phone.
The handsets will only work when they are within range of the wireless access points at your
facility; they are not cellular or satellite phones.
Note
Install and charge the Battery Pack before using the Spectralink 80-Series Handset.
See the Battery P acks section below and Charger Options.
Battery Packs
Three battery pack models are available: Standard, Extended, and Ultra-Extended. The
Standard rechargeable handset Battery Pack gives you approximately four hours of talk time or
80 hours of stand-by time. Stand-by time is when the handset is turned on, but not in an active
call.
4 hours 80 hours 2 hours
6 hours 120 hours 3 hours
8 hours 160 hours 4 hours
Note
Talk time and standby time will vary depending on handset model, call server,
features enabled and system configuration. These are minimum estimates. Your
experience may be significantly higher.
Note
The type of Battery Pack is printed on the label. Remove the Battery Pack and view
the label to determine the type of Battery Pack you have been issued.
1725-86203-000-G.docx
October 2013 12
Spectralink 80-Series Handsets User Guide for SRP
Caution
Use only Battery Pack models BPL100, -200 and -300 in the Spectralink 80-Series
Handsets.
Indications of low battery
The handset will need to have its Battery Pack recharged periodically. The Battery Pack icon on
the handset display’s status row indicates the amount of charge remaining. Additionally the
handset will sound warning tones and display the Battery Low message when there are fewer
than two minutes of talk time remaining.
A melody will play when the handset is powered on for the first time after being fully charged,
unless this feature has been disabled. See your system administrator if you have questions
about the type of Battery Pack you have been issued.
When the handset is in Standby mode, the message Battery Low and a series of chirps
indicate a critically low Battery Pack charge. The handset will not work until the Battery Pack is
charged.
Caution
Take care not to short the battery contacts on the Battery Pack with metal objects
such as coins, keys or paper clips. Shorting the contacts can cause permanent
damage.
Battery Pack removal and replacement
To remove, press down on the latch on the Battery Pack on the back of the handset. The
Battery Pack releases outward.
To replace, slide the lip of the Battery Pack into the bottom of the cavity. Push the top of the
Battery Pack until it snaps into place. You should not have to force it against the handset.
Notes on Battery Packs
• Battery Pack life will vary depending on handset model and features and system
infrastructure.
• Maximum Battery Pack performance is achieved after a few charge/discharge cycles.
• If multiple Battery Packs are supplied with your handset, Spectralink recommends that
each be fully charged upon receipt to prolong battery life. Battery Packs will slowly lose
charge if unused. To maintain battery potential, charge unused Battery Packs occasionally or alternate Battery Pack use.
1725-86203-000-G.docx
October 2013 13
Spectralink 80-Series Handsets User Guide for SRP
• After a length of time Battery Packs will lose the ability to maintain a charge and to
perform at maximum capacity and will need to be replaced. This is normal for all
batteries.
• If your Battery Pack requires replacement, contact your system administrator.
• Overnight charging is best done while the handset is turned off.
• The handset will chirp once when properly seated in the charger to let you know that the
charging cycle has begun. If the handset does not charge, clean Battery Pack, charger
and handset contacts with an alcohol swab.
Caution
Only use Spectralink Battery Packs with Spectralink 80-Series Handsets.
1725-86203-000-G.docx
October 2013 14
Spectralink 80-Series Handsets User Guide for SRP
Features of your Spectralink 80-Series Handset
The handset operates much like a cell phone, and is programmed by your system administrator
to support the features commonly available in an office environment. Orient yourself to your
handset’s features using the illustration below and the following explanatory material.
1725-86203-000-G.docx
October 2013 15
Spectralink 80-Series Handsets User Guide for SRP
1 Earpiece —Delivers audio to the ear.
2 Screen —Displays information relating to the handset’s current mode. See Handset
Modes below.
3 Softkeys —Four softkey buttons. A softkey label appears in the display area just above
the corresponding softkey when the function assigned to that softkey is available.
4 Headset jack —Allows you to place and receive calls through a Spectralink headset.
5 Up/Down buttons —Use these buttons to scroll through displayed menu options. Use to
adjust speaker volume while in a call.
6 Emergency Dial/TALK button —Spectralink 8030 only. This button may be
programmed by the system administrator for either Emergency Dial or Push-to-talk
(PTT) functionality. Test the active mode by pressing the button once to see which
feature is active. If you are prompted to press it twice to place an emergency call, then
Emergency Dial is programmed. Check the Config menu to determine if PTT is
activated. Push and hold to activate push-to-talk mode.
7 On hook —Also refer red to as END. Use to power on and power off the handset, and to
end a call.
8 Off hook —Also referred to as START. Use to obtain a dial tone or place a call.
9 Nav and Nav OK keys —Four directional navigation keys and a NavOK key. Use the
Nav and keys for menu navigation. Use the NavOK key to select menu items,
place calls, and perform softkey functions as described below in NavOK Functions.
10 Keypad —12 keys provide the 10 digits 0-9, the alphabetic characters, and special
characters available in context-sensitive applications.
11 FCN —Press to access the Function menu; press in combination with assigned keys to
access programmed system functions.
12 LINE —Press to access additional line appearances.
13 Battery contacts —Located along the bottom edge, the battery contacts enable the
handset to be charged in the Desktop Charger or the Dual Charger. They should be kept
clean and free of debris.
14 Microphone —Sensitive microphone transmits voice accurately and without distortion.
1725-86203-000-G.docx
October 2013 16
Spectralink 80-Series Handsets User Guide for SRP
-Icon row (status line)
Ext. 1234
-Extension number
[Name]
[date] [time]
-Date and time if configured
Profile: [name]
-Name of the active profile
[PTT channel info]
◄Spkr
Phbk
Prof
Lock►
-First set of softkeys
◄Spdl
Redl
Cfg
►
Indicator
Function
The Handset Display
When first powered on, the handset screen will display the standby screen. This screen displays
a top row of system icons showing the status of the handset, followed by two lines for the
handset’s extension number and name, a line for date and time display, and a bottom row for
softkey labels.
While the handset is in use, display screens include:
• Call status screen
• Push-to-talk screen (8030 only, if available)
• Message screen (if available)
• Menu screens.
The standby screen has the following format:
Status Icons
-Name assigned to extension (info line)
-PTT channels (8030--only if configured)
-Second set of softkeys
The signal strength icon indicates the strength of the signal and can assist
the user in determining if the handset is moving out-of-range.
The voicemail icon is activated when a new voicemail message is received if
the feature is supported by the phone emulation. (Not available in all
facilities)
The battery icon indicates the amount of charge remaining in the Battery
Pack. When only one level remains, the Battery Pack needs to be charged.
The speakerphone icon displays when the speakerphone is active.
Up and down arrows are displayed when the menu has additional options
above or below.
Left or right arrows are displayed during editing when the cursor may be
moved left or right.
The location service icon indicates the Real-Time Location System (RTLS) is
enabled.
1725-86203-000-G.docx
October 2013 17
Spectralink 80-Series Handsets User Guide for SRP
Indicator
Function
[No Service
and they are displayed four at a time. Press FCN repeatedly to step through each set.
Softkey
Name
Displayed during…
Press to…
Locked
message]
XXXX During character entry, indicates current data entry symbol mode.
Locked indicates that the keypad is locked to prevent accidental activation.
Use the Unlk softkey plus the # key to unlock it.
If warning tones are not disabled, an alarm will sound and a descriptive
message displays when the handset cannot receive or place calls. You may
be outside of the covered area. Walk back into the covered area. The inservice tone indicates service is reestablished.
The download icon indicates that the handset is downloading code. This icon
only appears while the handset is running the over-the-air downloader. It
appears to the right of the signal strength icon in the same location as the
voicemail icon.
The download failure icon indicates that the handset has failed to download
code because the code is incompatible with the handset hardware. Contact
your system administrator should this icon appear.
Softkeys
Certain softkeys are standard with all handsets and others are locally programmed.
Admin Tip
Step through locally-programmed softkeys by going off-hook (press START) and the n
press the FCN key. The softkeys displayed while in the active mode are programmed
to telephony features available in your facility. Up to 16 softkeys may be programmed
If you have questions about any softkey not on this list, see your system administrator.
<< Cursor backward Entering a dial number. Move the cursor back one position.
>> Cursor forward Entering a dial number. Move the cursor forward in
alphanumeric mode. If the cursor is at
the end of the line, adds a space
character.
Bksp Backspace
character
Back Back one screen Displaying a menu. Exit the menu, move back one screen.
Cfg Config Menu Standby mode, second set Open the Config Menu
Hold Hold In an active call. Place the call on hold. The line
Lock Lock keys Standby mode, first set Lock handset keys
1725-86203-000-G.docx
October 2013 18
Entering a dial number. Delete the character prior to the cursor
position.
number blinks while the call is on hold.
Spectralink 80-Series Handsets User Guide for SRP
Softkey
Name
Displayed during…
Press to…
Phbk
Phonebook
Standby mode, first set
Open the phonebook
Mute Toggle muting In an active call. Toggle audio transmission to the far
end. The status row displays <Muted>
when the line is muted.
Prof Profile Standby mode, first set Change Profile settings
Redl Redial Standby node, second set Display a list of recently-dialed
numbers that may be redialed.
Save Save Entering a dial number as a
call forwarding destination.
Spdl Speed dial Standby node, second set Open speed dial list
Spkr Speakerphone Standby mode, first set Activate speakerphone
Save the dial number as the call
forwarding destination for the selected
line.
NavOK Functions
The NavOK key acts as a fifth softkey with implicit functionality as follows:
State NavOK key function
Dialing Place a phone call.
Answering Answer a phone call
Holding Resume audio.
Displaying menu Select the highlighted menu option.
Menus
Config menu
See Chapter 3 for a full description of the Config menu.
Line menu
The Line menu allows you to activate a call on a selected line or to view the status of lines.
Press the LINE key to display a menu of available lines and to activate a new call on a selected
line.
The currently selected line is indicated by an asterisk (*). Lines which have new voicemail are
flagged with plus (+) characters.
Exit the Line menu display by pressing a line number key to start a new call on the selected line
and put any other call on hold, or by pressing the END key to exit without starting a new call.
1725-86203-000-G.docx
October 2013 19
Spectralink 80-Series Handsets User Guide for SRP
FCN menu
The FCN menu is accessible while in the active mode and provides locally-programmed
features such as conference, voicemail access, transfer, etc.
Items on this menu are accessible through the Nav keys or through shortcut keys as
displayed with the menu items. Installed custom applications, such as messaging applications,
are automatically added as items at the end of this menu when defined on an Open Applications
Interface (OAI) server. If you have questions about the functionality of a custom application,
contact your system administrator.
Handset Modes
Standby mode (on-hook)
In standby mode, the handset is powered on and is ready to send and receive calls. The
extension number is shown on the display and there is no dial tone. In this mode, the handset is
conserving battery power and bandwidth.
When an incoming call arrives, the handset rings and goes into active mode. Answer the call by
pressing the START key. The handset will ring according to user preference as specified in the
standby menus. You can silence the ringing by pressing the END key. The call will be redirected
to voicemail if available.
Active mode (off-hook)
The handset is in the active mode when you are placing or receiving a call, or when the handset
is in communication with the PBX.
When an incoming call occurs during an active call, the handset will play the second call ringing
sound until the call is answered, the caller hangs up, or the call transfers to voicemail. If you
press the END key, the first (active) call ends and the handset reverts to a full ring for the
second call.
The active mode utilizes the most bandwidth and battery power. To conserve these resources,
return the handset to the standby mode at the end of your call by pressing the END key.
Push-to-talk (PTT) mode
The Spectralink 8030 Handsets utilizes channels for incoming and outgoing radio
communication, similar to a walkie-talkie. While using this feature, the handset is in PTT mode.
It can receive regular phone calls while in this mode. When a regular phone call is answered,
the handset switches to active mode.
1725-86203-000-G.docx
October 2013 20
Spectralink 80-Series Handsets User Guide for SRP
Configuration menu mode
When user preferences are being configured in the Config menu, the handset is on, but is not
active. It cannot receive calls while in the Config menu. The handset will revert to standby mode
if there is no activity in configuration menu mode.
Message alert mode
If text messaging functions have been programmed, as in a nurse call system, the handset is
able to receive text messages. While these messages are being accessed, the handset is in
message alert mode. Incoming calls will ring with the second call ringing sound.
Accessories
Carrying devices and headsets that are specifically designed for your Spectralink handset may
be purchased through your service representative.
Carrying Options
The following options are available for handset protection and easy access and carrying.
• Belt clip: Spring-loaded plastic belt clip that attaches to the back of the handset.
• Swivel belt clip: Swivel-st yle belt clip that attaches to the back of the handset with full
360 degree swivel or eight-position ratchet options.
• Swivel carrying case: Black leather case with keypad cover and swivel-style quick
release belt clip.
• Holster: Black holster with belt clip.
• Cord lanyard: Nylon cord lanyard with quick disconnect.
• Coiled lanyard: Plastic coiled lanyard with clothing clip.
Headsets
Spectralink offers optional headsets (for North America only) for use in noisy environments or if
you need to have your hands free while talking on the handset.
To use the headset, simply plug it into the jack on the right side of the handset. While using a
headset, the handset will ring according to the user profile setting established in the
Headset/Speaker ring option. The external ring will ring according to the setting of the profile.
The headsets offered by Spectralink have been laboratory tested and work properly with the
Spectralink 80-Series Handset. Spectralink does not recommend using other headsets.
1725-86203-000-G.docx
October 2013 21
Config menu
2nd level
3rd level
4th level
5th level
6th level
Lock Keys
Custom
Set as Active
Ring Settings
Telephone
Message Alert 2
Ring Cadence
Off
Long Pulse
Ring Tone
Tones 1-10
Custom
Long Pulse
Ring Delay
No Delay
10 Second Delay
Noise Mode
Normal
Severe
Ring in Headset
Ring in Speaker
Chapter 3: Customizing your Handset
When the handset is in standby mode (on but not in use), press the Cfg softkey to display the
configuration menu (“Config menu”). The handset cannot make or receive calls while in the
Config menu. This menu allows you to set user preferences and display handset information.
Check with your system administrator for specific features supported by your handset.
Config Menu
User Profiles Silent
Vibrate
Loud
Soft
Ring Volume Volume
Silent
Vibrate
Loud
Soft
Message Alert 1
PBX
Continuous
Short Pulse
Vibrate Cadence Off
PBX
Continuous
Short Pulse
1725-86203-000-G.docx
October 2013 22
5 Second Delay
High
Spectralink 80-Series Handsets User Guide for SRP
Config menu
2nd level
3rd level
4th level
5th level
6th level
Warnings
Enable/Disable
Disable/Enable
Phone Settings
Extension Info
Extension Number
Extension Name
20 seconds
Display Contrast
Set Contrast
Use No Hearing Aid
Startup Song
Play/Inhibit
Predial
Disable/Enable
Key Tones
Keypad Autolock Disable
5 seconds
10 seconds
Use Hearing Aid
1725-86203-000-G.docx
October 2013 23
Spectralink 80-Series Handsets User Guide for SRP
Config menu
2nd level
3rd level
4th level
5th level
6th level
Push-to-talk †
Default Channel
Channel 1
Channel 24
Subscribed Channels
Channel 1
Channel 24
PTT Audio Volume
Audio Volume
PTT Tone Volume
Tone Volume
PTT Vibrate
Enable/Disable
System Info
Phone IP Address
Gateway IP Address
Firmware Version
Emergency Dial ‡
Emergency Number
Emergency Name
….
Channel 2
Channel 3
….
† (Spectralink 8030 only) Push-to-talk must be enabled by the system administrator before it can be activated by the user. If it is not
enabled, then it will not appear on the Config menu. If PTT has not been enabled, Emergency Dial may be. Check the System
Info options to determine if Emergency Dial appears. If so, it is active.
‡ (Spectralink 8030 only) Emergency Dial will appear if it has been enabled by the system administrator. The Emergency
Number/Name options allow you to check the number and name that is dialed when the Emergency Dial button is pressed
twice in two seconds.
1725-86203-000-G.docx
October 2013 24
Spectralink 80-Series Handsets User Guide for SRP
Setting/profile
Silent
Vibrate
Soft
Loud
Custom
PTT Vibrate †
Disabled
Disabled
Disabled
Disabled
Disabled
Default settings
The profile options on the Config menu may be reset to their default values by the system
administrator. These are the default settings:
Ring Cadence Off Off PBX PBX PBX
Ring Tone Tone 1 Tone 1 Tone 1 Tone 1 Tone 1
Ring Volume 1 1 3 7 5
Vibrate Cadence Off PBX Off Off PBX
Ring Delay 0 0 0 0 5
Noise Mode Normal Normal Normal Normal Normal
Headset/Speaker Speaker Speaker Speaker Speaker Speaker
Key Tones Off Off On On On
Warning Tones Off Off Off Off Off
Push-to-talk * Off Off On On On
Emergency Dial ‡ On On On On On
* (8030 only) Push-to-talk must be enabled by the system administrator before it can be activated by the user. If it is not enabled,
then it will not appear on the Config menu and will not be “On” for any profile.
† PTT Vibrate is available only when Push-to-talk has been enabled by the system administrator.
‡ Emergency Dial must be enabled by the system administrator. If enabled, it will be “On” (or available for use) in every profile.
Toggle options
Some menu items have only two options, which operate on a toggle basis. The curre nt settin g is
shown below the menu heading on the inf o line. The other available setting is highlighted in the
menu list. Press NavOK to activate the highlighted setting.
For example, when Predial is disabled, the info line displays Predial Disabled and the
highlighted menu item is the Enable Predial option. Press NavOK to enable Predial. The info
line will change to display Predial Enabled.
In another example, when the info line displays Currently Speaker, the highlighted menu option
is Ring in Headset, Press NavOK to select Ring in Headset, The ring will now sound in the
headset and the info line will change to Currently Headset.
Lock Keys
When enabled, the Keypad Lock option will lock the keypad immediately. If the keypad is
locked, it may be unlocked by pressing the Unlk softkey and then the # key.
1725-86203-000-G.docx
October 2013 25
Spectralink 80-Series Handsets User Guide for SRP
User Profiles
Your handset ring behavior is established by the five User Profiles: Silent, Vibrate, Loud, Soft
and Custom. The currently-active user profile is shown on the standby display. If you want to
quickly switch to a different profile, while in standby press the Prof softkey and select a different
profile from the list. The currently-active profile is marked with an asterisk (*).
Set as Active
You can change to a different User Profile from the Config menu by selecting the desired profile
and then selecting Set as Active and pressing the NavOK key. This activates the new User
Profile.
Ring Settings
The Ring Settings option allows the user to set the ring for three separate functions. Telephone
Ring is used for usual telephony functions. Message Alert 1 and Message Alert 2 may be
used to set different ringing patterns for custom applications.
Telephone Ring
The telephone ring setting allows the user to set a distinctive ring rhythm, tone, volume and
sequence. Select from an audible ring, a vibrate-only ring or a vibrate ring accompanied by an
audible ring.
Ring Cadence The ring cadence is the rhythm of the ring. It may be set to a pre-programmed
ring cadence, or it may be set to obtain its cadence from the SIP proxy server. The PBX option
is designed to utilize any distinctive rings sent by the proxy server while allowing the user to set
unique rings for auxiliary applications.
Off: Silent
PBX: The PBX, also known as the SIP call server, determines ring cadence (e.g. the call
server may send rings that differentiate between internal and external calls)
Continuous: Rings continually until answered
Short Pulse: Rings in short bursts
Long Pulse: Rings in long bursts
Ring Tone Scroll and select from ten available tones. The Play softkey allows the user to
preview the tone before selecting. If Ring Cadence is turned off, the Ring Tone option will not
appear on the menu.
Ring Volume Use the Nav keys to change the Ring Volume setting, or press the up/down
volume buttons on the side of the handset during ringing. If Ring Cadence is turned off, the Ring
Volume option will not appear on the menu.
Vibrate Cadence Vibrate Cadence options are the same as for Ring Cadence (see above).
1725-86203-000-G.docx
October 2013 26
Spectralink 80-Series Handsets User Guide for SRP
Noise mode
Microphone
In-ear speaker
Ring volume
Ring Delay Ring Delay determines how long the vibrate cadence will play before the audible
ring starts. If Ring Cad ence is turned off, the Ring Delay option will not appear on the menu.
Message Alerts 1 and 2
Message Alerts are used by external applications such as nurse call systems. If such systems
are installed in your facility, you may adjust their ring characteristics to differentiate them from
other rings. Contact your system administrator to find out if these options are available.
Noise Mode
Provides options that describe the noise level in your environment. Changing this mode to High
or Severe adjusts the handset’s microphone and in-ear speaker volume to account for
background noise. Select Normal for most office environments; High for moderate background
noise; or Severe for extremely noisy conditions. If you use High or Severe modes in a quiet
environment, the person on the other end of the line may find it difficult to hear your voice.
High and Severe noise modes increase microphone, speaker, and ring volume settings above
Normal mode baseline. All measures are approximate.
High +12dB +6dB +3dB
Severe +18dB +12dB +6dB
Ring in Headset/Speaker
Toggle between the two options to select ring location.
Warning Tones
The handset plays various Warning Tones such as system up or down, out of range, etc. These
tones may be turned on or off and are enabled by default.
Key Tones
Key Tones may be turned on or off and determine whether tones play when keys are pressed.
Key Tones are enabled by default.
1725-86203-000-G.docx
October 2013 27
Spectralink 80-Series Handsets User Guide for SRP
Phone Settings
Extension Info
The extension number and extension name are provided. These are programmed by the system
administrator and may not be changed by the user.
Keypad Autolock
The handset may be set to lock the keypad automatically when in standby mode. The
automatic locking function of the keypad may be disabled (the default) or adjusted for a 5, 10 or
20-second delay before locking.
Display Contrast
The display may need to be adjusted for different lighting situations. Contrast may be set by
pressing the up/down buttons on the side of the handset or the Nav keys until the desired
contrast is displayed.
Use Hearing Aid
The handset speaker may be set for use with a hearing aid. Toggle to set the desired option.
Startup Song Play/Inhibit
When the handset is powered up, a series of tones sounds. The Startup Song is enabled by
default.
Predial
Enabling Predial allows the user to enter a phone number and then press the START key to
initiate the call.
Predial must be enabled if you wish to use the Redial feature. See Chapter 3 Using the Basic
Features of Your Spectralink 80-Series Handset for more information on using the Redial
feature.
1725-86203-000-G.docx
October 2013 28
Spectralink 80-Series Handsets User Guide for SRP
Push-to-Talk (PTT)
Note
If the system administrator has configured the Spectralink 8030 Handsets for PTT,
they can be used like walkie-talkies. If the system administrator has disabled PTT, the
PTT options will not appear in the Config menu.
Default Channel
Displays all enabled PTT channels. The default transmission channel is marked with a (*) to the
left of the channel. If you wish to change the default PTT channel, use the Nav keys to
scroll to the desired channel and press NavOK to select it.
The handset will transmit only to phones set to receive on the selected channel. The Priority
Channel transmits to all channels.
Subscribed Channels
Displays all enabled PTT channels. The handset will receive PTT transmissions on all
subscribed channels, which are marked with a (*) to the left of the channel. The handset will not
receive a PTT transmission on a channel to which the user has not subscribed. If you wish to
select or deselect a subscribed channel, use the Nav keys to scroll to the desired PTT
channel and press NavOK.
PTT Audio Volume
Use the Nav keys or t he up/down volume buttons on the side of the handset to adjust the
PTT Audio Volume setting.
PTT Tone Volume
Use the Nav keys to adjust the PTT Tone Volume setting.
PTT Vibrate
To enhance the alerting of a PTT call, PTT Vibrate may be enabled. When PTT Vibrate is
enabled, the handset will vibrate three times whenever a PTT broadcast is received, whether
the handset is in standby or in a call. If in a call, the chirp alert will also sound. The vibration
does not replace any PTT tone volume already set.
To set the handset for PTT vibrate only, enable PTT Vibrate and set the tone volume to zero.
1725-86203-000-G.docx
October 2013 29
Spectralink 80-Series Handsets User Guide for SRP
System Info
Displays the IP address of the highlighted menu item. The IP address appears in the upper
portion of the screen below the words System Info.
Phone IP Address
Displays the IP address currently assigned to the handset by the SVP Server.
Gateway IP Address
Displays the IP address used by the Spectralink Telephony Gateway which operates as a call
administrator between the handset and the PBX.
Firmware Version
Displays the software version running the handset. The MAC address is the hardware
identification number and is set at the factory. Three code numbers correspond to the three
software files that each software version uses.
Emergency Dial
(Spectralink 8030 Handset only)
Emergency Dial will appear if it has been enabled by the system administrator. The
Emergency Number/Name options allow you to check the number and name that is dialed
when the Emergency Dial button is pressed.
1725-86203-000-G.docx
October 2013 30
Chapter 4: Using Basic Features
Your Spectralink 80-Series Handset is designed to be used like a cell phone on a public
switched telephone network (PSTN).
Only one call is active at any given time. The active call has audio associated with it. There may
be multiple other calls:
• On hold
• In an “Incoming call” or “Ringing” state
This chapter provides basic operating instructions for the Spectralink 80-Series Handset. This
chapter contains instructions on how to:
• Turn the handset on and off
• Lock and unlock the keypad
• Place a call
• Place an emergency call
• Answer a call
• Place a call on hold
• Answer a second call
• Resume a call on hold from standby
• Redial last number dialed
• Silence the ring
• Change the ring volume
• Adjust the speaker or headset volume
• Mute/unmute a call
• End the call
• Change the profile
• Open the Config menu
• Turn on the backlight
Turn the Handset On
Press and hold the END key until two chirps sound.
1725-86203-000-G.docx
October 2013 31
Spectralink 80-Series Handsets User Guide for SRP
be displayed.
Turn the Handset Off
Press and hold the END key. One chirp will sound. If you are in a call, hang up first, then turn off
the handset.
Lock the Keypad
While in standby mode press the Lock softkey.
Unlock the Keypad
Press the Unlk softkey, then #.
Place a Call
1 To dial a number, follow any one of these sequences:
○ Press the START key, wait for a dial tone, then dial the number.
○ [Predial] Dial the number and then press the START key.
○ Press the Spkr softkey, then dial the number.
2 Listen for the ring to indicate the alerting of the called party.
Note: Line 1 is the default line
Place an Emergency Call
(Spectralink 8030 Handset only)
Note
The large button on the left side of the Spectralink 8030 Handset may provide you
with either Emergency Dial or PTT as determined and activated by the system
administrator.
Press this button one time. If Emergency Dial is active, an explanatory message will
When Emergency Dial has been enabled, the handset will dial an emergency number when it is
pressed twice within two seconds. The number dialed may be found under the Config
Menu>System Info option.
Caution
Emergency Dial will be inoperable if the wireless system or the call server fails for any
reason. Do not rely on it as your sole method of emergency notification.
1725-86203-000-G.docx
October 2013 32
Spectralink 80-Series Handsets User Guide for SRP
[From]
[time/date]
Spkr
Hold
Mute
Fwd
Answer or Reject a Call
When the handset rings, the incoming line’s icon number will flash and incoming call data will
display
To answer a call:
• Press the START key and hold the handset to your ear.
• Press the Spkr softkey and speak towards the handset.
When the call is answered, the call’s line number displays to indicate that this line is in an active
call with established audio connection. The softkeys are locally programmed and may include
those shown below.
Example:
To reject a call:
Press the End softkey to silence t he ring and allow the server to redirect the call to voicemail.
Place a Call on Hold/Resume Call
Press the Hold softkey. Press Hold again to resume audio.
Answer a Second Call
When an incoming call occurs during an active call, the handset will play the second call ringing
sound until:
• the call is answered
• the first call is terminated
• the caller hangs up or
• the call is transferred to voicemail.
1 Press START or Spkr to place the current call on hold and answer the second call, or
2 Press END to reject the incoming call.
Clear Forwarding on a Line
1 Press START or select the line number from the Line menu.
1725-86203-000-G.docx
October 2013 33
Spectralink 80-Series Handsets User Guide for SRP
2 Press FCN.
3 Select the Set/Clear Forward item from the menu and press NavOK.
Redial the Last Number you Dialed
From Standby mode:
1 Press Nav or Nav to navigate to the second set of softkeys.
2 Press the Redl softkey to display a list of the last 10 dialed numbers.
3 Select the number you wish to call from the list.
4 Press START.
Silence the Ringing
Press the END key to silence the external speaker ring.
External speaker ringing will resume when the next incoming call is received while the handset
is in standby mode.
Change the Ring Volume
Press the up/down volume buttons on the side of the handset during ringing, or while the
handset is in standby mode.
Adjust the Speaker Volume
While speakerphone is active, press the up/down volume buttons on the side of the handset
during the call.
1725-86203-000-G.docx
October 2013 34
Spectralink 80-Series Handsets User Guide for SRP
Adjust the Headset Volume
While the headset is plugged in, press the up/down volume buttons on the side of the handset
during the call.
Mute/Unmute a Call
Press the Mute softkey. When the handset is muted, <Muted> appears on the status line.
Press the Mute softkey again to restore audio pickup.
End a Call
Press the END key on the keypad to return to the standby mode.
Change the Profile
Press the Prof softkey and use the Nav keys to select a new profile while in standby mode.
The selected profile is marked with an asterisk (*).
Open the Config Menu
Press the Cfg softkey from standby mode.
Turn on the Backlight
The backlight comes on when any key is pressed or when there is an incoming call, and stays
on for 60 seconds. It turns off if another key is not pressed within that period.
1725-86203-000-G.docx
October 2013 35
Chapter 5: Using Advanced Features
This chapter provides operating instructions for the advanced features of the Spectralink
80-Series Handset.
This chapter contains instructions on:
• Multiple line appearances
• Listening to voicemail
• Activating installed custom applications
• Using the Phonebook and Speed dial
Place a Second Call
1 To get a dial tone for the second call, press LINE and navigate to the line you wish to
use and press START.
○ The first call is automatically placed on hold.
○ The second call number is dialed.
○ The second call info appears in the display area.
2 Press LINE and the line number of the held call to toggle between calls.
Place a Call on a Different Line
1 Press the LINE key.
2 Navigate to the desired line and press START.
Listen to Voicemail
Voicemail may be locally available. If so, when the handset has a voicemail message, the
voicemail icon may display.
1 Press START.
2 Press FCN to display softkeys programmed for locally-available feature activation.
3 Press the voicemail softkey and follow the directions. Contact your system administrator
if you have questions about how to use voicemail.
Activate Installed Custom Applications
Some facilities may have advanced applications such as directory and text messaging or nurse
call systems. These are accessed through the FCN key.
1 Press START or Spkr.
1725-86203-000-G.docx
October 2013 36
Spectralink 80-Series Handsets User Guide for SRP
Phonebook
Select Name
> [special]
<new>
A Name
B Name
C Name
Spkr
Edit
Back
Phonebook
spdl [x]
[Name]
number
[Extension/number]
Spkr
Edit
Back
2 Press FCN to display softkeys programmed for locally-available feature activation.
3 Press the relevant softkey.
4 Follow the directions for feature activation (provided by the system administrator).
Use the Phonebook and Speed Dial
Press the Phbk softkey from standby mode.
The phonebook list is sorted alphabetically.
If present as shown above, the first item on the list will be a system-wide speed dial number
programmed by the system administrator to be used for certain types of calls. Please contact
your system administrator for more information.
The <new> option appears until the maximum number of entries (20) has been entered.
Search for a phonebook entry
Use Nav and Nav to scroll through the names or press the keys corresponding to the first
letters of the name. Use Nav◄ and Nav► to edit the search characters as needed.
View a phonebook entry
Navigate to the name on the phonebook list and press NavOK.
The entry may be called, assigned a speed dial number or edited from this screen. If a speed
dial number has been assigned to this name, it will appear beside spdl.
Return to the phonebook list by pressing the Back softkey or NavOK.
1725-86203-000-G.docx
October 2013 37
Spectralink 80-Series Handsets User Guide for SRP
Phonebook
Select Name
> [special]
<new>
A Name
B Name
C Name
Spkr
Del
Edit
Back
Edit a phonebook entry
1 Select the name to edit from the phonebook list.
2 Press the Edit softkey to open the Enter Number display and edit the existing number.
Use the Clr and Del softkeys as needed.
3 Press NavOK to display the Enter Name display and edit the name.
4 Press NavOK to save the changes and exit the editing screens. Press the Back softkey
to exit without saving the changes.
Dial phonebook number
Select the entry and press START or the Spkr softkey.
Enter a new name and number in the phonebook
1 Open the phonebook.
2 Select the <new> option (if available) and press the Edit softkey to open the Enter
Number display.
3 Enter the name and number by following the steps for editing a name and number. You
must enter alphanumeric characters for the name, not blank spaces.
Delete a phonebook entry
1 Open the phonebook and select the entry.
2 Press the Del softkey to delete the entry.
Open the speed dial list from standby
Press the Spdl softkey from standby mode.
1725-86203-000-G.docx
October 2013 38
Spectralink 80-Series Handsets User Guide for SRP
Speed Dial Menu
Assign to a key
A Name
B Name
C Name
Spkr
Set
Clr
Exit
Phonebook
Select name
<new>
A Name
B Name
Spkr
Del
Edit
Back
Make a speed dial call
1 From standby or while in the speed dial menu, press and hold the corresponding number
key on the keypad for one second. The system speed dial key must be pressed for three
seconds.
2 The handset will display the name and number for one second before the call is dialed.
You may press END during this second to terminate the call. (You may also use the Nav
keys to highlight an entry and then press START or the Spkr softkey to dial the number.)
If you do not place a call, you may return to standby by pressing the Exit softkey.
Assign a speed dial number
A phonebook entry may be assigned to a speed dial key from the speed dial list or from the
phonebook edit number display.
From the speed dial list:
1 Select the speed dial key that you wish to assign.
2 Press the Set softkey to open the phonebook list.
3 Use the search routine or the Nav keys to select the desired entry.
4 Press NavOK to assign the selected name to that speed dial key.
5 Press Exit to exit to standby.
1725-86203-000-G.docx
October 2013 39
Spectralink 80-Series Handsets User Guide for SRP
Phonebook
spdl [x]
[Name]
number
[Extension/number]
Spkr
Spdl
Back
From the phonebook view number display:
1 Press the Spdl softkey from the view number display in the phonebook.
2 When the speed dial list opens, navigate to an empty slot and press NavOK. This sets
the speed dial key to the number in the phonebook.
3 Press END to exit to standby mode and save the speed dial number assignment.
Speed dial entries may be edited through the phonebook, as described above.
1725-86203-000-G.docx
October 2013 40
Chapter 6: Using Push-to-Talk
Note
The large button on the left side of the Spectralink 8030 Wireless IP Telephone may
provide you with either Emergency Dial or PTT as determined and activated by the
system administrator. Press this button one time. If Emergency Dial is active, an
explanatory message will be displayed. If PTT is enabled, channel information will be
displayed.
The PTT feature allows Spectralink 8030 Handsets to operate in a group broadcast mode called
PTT mode. The handsets behave like walkie-talkies, where a single handset can transmit to
multiple listeners. If the system administrator has disabled PTT, the PTT options will not appear
in the Config menu.
Press and release the TALK button to display the default channel, the last channel used, any
additional subscribed channels, and the Priority Channel.
Press and hold the TALK button to open the default PTT channel for transmission. Release the
TALK button to end the transmission and await reply. The handset will wait for 10 seconds
before reverting to standby mode.
Note
PTT mode requires additional battery resources. Ensure your handset is equipped
with an Extended or Ultra-Extended Battery Pack for optimal performance.
This chapter provides basic operating instructions for operating the PTT features of the
Spectralink 8030 Handset. This chapter contains instructions on how to:
• Make a PTT call
• Respond to a PTT call
• End a wait period
• Select a different PTT channel
• End one PTT call and start another one
• Receive a PTT call while on a telephone call
• Transmit on the priority channel
• End a PTT call
• Change the PTT volume
• Answer a telephone call during a PTT transmission
1725-86203-000-G.docx
October 2013 41
Spectralink 80-Series Handsets User Guide for SRP
• Start a telephone call during a PTT transmission
• Turn off PTT
• Subscribe to additional PTT channels
Make a PTT Call
To call on the default channel, from standby mode press and hold the TALK button. Wait for the
display to show Transmitting and then hold the handset approximately two inches from your
mouth and speak.
Respond to a PTT Call
Press and hold the TALK button during the 10-second wait period.
End a Wait Period
Press the END key.
Select a Different PTT Channel
Press and release the TALK button. Use the Nav keys or up/down side buttons to highlight the
desired channel. Press TALK to transmit.
End One PTT Call and Start another on a Different Channel
Press the END key to exit the PTT call. Press and release the TALK button and select a
different channel from the list. Press and hold the TALK button to begin transmitting on the
different channel.
Receive a PTT Call while on a Telephone Call
Press the END key to end the telephone call. Now you can hear the PTT call.
Use PTT Vibrate
To enhance the alerting of a PTT call, PTT Vibrate may be enabled on the Config menu.
When P TT Vibrate is enabled, the handset will vibrate three times whenever a PTT broadcast is
received, whether the handset is in standby or in a call. If in a call, the chirp alert will also sound.
The vibration does not replace any PTT tone volume already set. To set the handset for PTT
vibrate only, enable PTT Vibrate and set the tone volume to zero.
PTT Vibrate is disabled by default.
1725-86203-000-G.docx
October 2013 42
Spectralink 80-Series Handsets User Guide for SRP
Transmit on the Priority Channel
Press and release the TALK button. Select the priority channel from the list. Press and hold
TALK, then speak. The priority channel takes priority over all other calls in progress.
End a PTT Call
Press the END key to exit the PTT call.
Change the PTT Volume
Press the up/down volume buttons on the side of the handset while transmitting or receiving a
PTT call.
Answer a Telephone Call during a PTT Transmission
Press the START key. PTT transmissions will be pre-empted by the telephone call.
Start a Telephone Call during a PTT Transmission
Press the START key and dial the number. PTT transmissions will be pre-empted by the
telephone call.
Turn off PTT
Change to a different profile. (The Silent and Vibrate profiles disable PTT by default.)
Subscribe to additional PTT channels
Press the Cfg softkey to open the Config menu and select Push-to-talk. Select Subscribed
channels and then select the channels you want to add. Subscribed channels are marked with
an asterisk (*).
1725-86203-000-G.docx
October 2013 43
Chapter 7: Charger Options
Charger Models
Three charger models are available for the Spectralink 80-Series Handset. The Single Charger
will charge a single handset with an installed Battery Pack. The Dual Charger will charge the
handset and a spare Battery Pack. The Quad Charger can charge up to four Battery Packs at a
time. Any Spectralink Battery Pack can be charged in any of these chargers.
The Single and Dual Chargers allow the handset to remain operative in speakerphone mode or
with a headset while charging. Handsets may be charged while in standby mode, while in an
active call, or while turned off.
Install the Charger
Set up the Charger by first obtaining the appropriate Spectralink power supply for the country or
region. Place the Charger on a flat, horizontal surface. Plug the power supply into the Charger
and into an appropriate wall outlet.
1725-86203-000-G.docx
October 2013 44
Spectralink 80-Series Handsets User Guide for SRP
LED
Charging Status Indicators
The handset speaker, handset display, and the charger LED (on the Dual and Quad Chargers),
indicate charging status or that a Battery Pack failure has been detected.
Handset Message/
Ascending song
Charging…
LED Solid On
Charge Complete
LED Off
Battery Failure
LED Flash
Descending song
Charging Status
Occurs when handset has been insert ed int o the
charger and charging has begun.
The Battery Pack is charging.
Note that in the Dual Charger, the handset’s Battery
Pack takes charging precedence. When it is finished
charging, the single Battery Pack in the rear slot will
charge.
The Battery Pack in the handset has finished
charging.
Battery Pack is fully charged, slot is empty, or unit is
not powered.
Error. Battery Pack not able to be charged. Reinsert
Battery Pack or replace Battery Pack .
Occurs when handset is removed from charger.
1725-86203-000-G.docx
October 2013 45
Spectralink 80-Series Handsets User Guide for SRP
Single Charger
The Single Charger is designed to allow the handset to remain operational through
speakerphone or headset use while the handset’s Battery Pack is being charged. The handset
may also be charged while it is in standby mode or turned off.
Place the handset in the Single Charger facing forward. While the handset is charging in
standby mode, it will display its extension number and Charging…. An animated battery icon
will indicate that charging is in progress. The handset is fully operational and will ring if called.
When the handset is charging while turned off, only Charging… will display and no calls will be
received. The dots will be racing during the charging cycle.
When the handset is fully charged, Charge Complete will display.
No charging information will display during an active call.
1725-86203-000-G.docx
October 2013 46
Spectralink 80-Series Handsets User Guide for SRP
Dual Charger
The Dual Charger is designed to charge the Battery Pack in the handset while it remains
operational and also charge an additional Battery Pack in the rear charging bay. The handset
has charging priority when both slots are occupied.
Place the handset in the front slot, facing forward. The Battery Pack alone snaps into the
charging bay as shown in the illustration.
The LED indicates the status of the Battery Pack in the rear bay. The handset displays its
charging status as described for the Single Charger.
When the handset is fully charged or is removed, the Battery Pack will begin charging.
Note that the t ime it takes for the Battery Pack to charge will be lengthened if its charging cycle
is interrupted for a handset to charge.
1725-86203-000-G.docx
October 2013 47
Spectralink 80-Series Handsets User Guide for SRP
Quad Charger
The Quad Charger is designed to simultaneously charge four Battery Packs. It may be mounted
on a horizontal or vertical surface.
The Battery Pack snaps into the charging slot. The LED above the occupied bay indicates the
charging status of the Battery Pack in the bay.
Note
A flashing LED may indicate a Battery Pack failure. Verify the condition of the Battery
Pack by the following procedure before replacing it. First check the Battery Pack in a
different bay or substitute another charger and repeat the operation that caused the
failure. If the same Battery Pack lights a steady LED when inserted in a different bay
or charger, the first charger may be faulty. Contact your system administrator for
service information.
1725-86203-000-G.docx
October 2013 48
Appendix A: Cleaning and Drying the
Handset
Note
The Spectralink 8030 Handsets have been tested for resistance to cleaning
chemicals per IEC 60068-2-74 (1999), Exposure of the 80-Series handsets to Lysol
or diluted bleach poses little risk of functional or cosmetic damage.
• Avoid dropping the handset or knocking it against hard surfaces. Carrying the handset in
a holster or carrying case will help protect it.
• There are no serviceable parts in the handset or chargers. You should not open the
handset case nor disassemble the chargers. Doing so will void your warranty.
• Turn off the handset and unplug chargers before you clean them. Never immerse either
in liquid. Clean the exterior surfaces, including the charging contacts, with a cloth that
has been slightly moistened with water. Take care not to exert undue pressure on
charger electrical contacts while wiping.
®
• Spectralink recommends the use of a silicone cover to prolong the life of your handset,
especially when it is dropped regularly or cleaned frequently with the disinfectants
prescribed below.
• Wiping the handset surface with a water-dampened cloth or paper towel will remove
most films or residues. If the soiling is too stubborn for plain water, a mild detergent
solution, Lysol, isopropyl alcohol or diluted bleach may be used.
• Pre-treated cloths and toilettes, like those used for eyeglasses or cameras, may be used
to clean the phone, however avoid using those containing lanolin or aloe as it will leave a
slippery residue.
• When cleaning with disinfectants, do not rub the keypad characters vigorously. Doing so
will degrade legibility of the handset’s keys.
• Do not directly spray or immerse the phone in a disinfectant or cleaning agent. Spray the
disinfectant on a soft cloth or paper towel, then wipe the phone's surface to dry it.
• The following products should NOT be used on the Spectralink wireless telephones.
1725-86203-000-G.docx
October 2013 49
Spectralink 80-Series Handsets User Guide for SRP
○ Do not use cleaning products containing quaternary ammonium compounds,2 such
as CaviWipes™, CaviWipes™ XL, Cavicide® or Sani-Wipes®, Sani-Cloth, Super
Sani-Cloth® and Sani-Cloth® Plus. Quaternary ammonium compounds have been
laboratory tested and proven to damage the handset plastics.
○ Do not use furniture polishes, waxes or plasticizer based cleaner (ArmorAll®, etc.)
○ Do not use lanolin, aloe, glycerin or other skin care type products
○ Do not apply any solvent such as acetone, mineral spirits etc.
• Should the headset connector become dirty, a scratchy or intermittent signal may be
experienced. To clean the connector, dip the non-padded end of either a wooden or
paper handled cotton swab in isopropyl alcohol. Gently insert in the connector and twist,
repeating several times. If available, blow compressed air into the connector to clear
debris.
• Keep the headset jack covered when it is not in-use.
• Using a carrying case may help protect the surfaces and help prevent liquids (e.g., rain)
from entering into the interior of the handset. This product is not waterproof, and
exposing the unit to liquids may result in permanent damage to the unit.
If your wireless telephone interior gets wet, then do not try to accelerate drying with the use of
an oven or a dryer as this will damage the wireless telephone and void the warranty. Instead, do
the following:
1 Immediately power off the wireless telephone.
2 Remove Battery Pack from wireless telephone.
3 Shake excess liquid from the wireless telephone.
4 Place the wireless telephone and Battery Pack in an area that is at room temperature
and has good airflow.
5 Let the wireless telephone and Battery Pack dry for 72 hours before reconnecting the
Battery Pack and/or powering on the wireless telephone.
If the wireless telephone does not work after following the steps listed above, contact your
dealer for servicing information.
2
Quaternary ammonium compounds are also known as C12-18-alkyl [(ethylphenyl) methyl] dimethyl, chlorides and Benzyl-C12-18-
alkyldimethyl ammonium chlorides. Review the Materials Safety Data Sheet for your specific product to verify the chemical
composition.
1725-86203-000-G.docx
October 2013 50
Appendix B: Safety Information
Caution: Product compatibility
Each Spectralink family of products only works with other members of the same
family. If you have any questions about product compatibility, contact your system
administrator.
Spectralink 80-Series
Use only 80-Series products with other 80-Series products as identified by the model
number located on the label of the product.
Spectralink 8020 Wireless Handset 802X
Spectralink 8030 Wireless Handset 803X
Desktop Charger PCS1850
Dual Charger PCD1850
Quad Charger PCQ1850
Standard Battery Pack PBP0850
Extended Battery Pack PBP1300
UltraExtended Battery Pack PBP1850
Industry Canada Notice
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of
a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To
reduce potential radio interference to other users, the antenna type and its gain should not
exceed the equivalent isotropically radiated power (EIRP) necessary for successful
communication.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation
of the device.
Chargers and Battery Packs
• Chargers operate in a 50° to 85° F (10° to 30° C) environment. Do not expose them to
freezing temperatures or direct sunlight.
1725-86203-000-G.docx
October 2013 51
Spectralink 80-Series Handsets User Guide for SRP
The earpiece may retain magnetic objects.
• Do not place anything in the charger other than the handset or single Battery Pack as
appropriate to avoid bending the contacts. Bent contacts can keep the Battery Pack from
charging.
• Only use Spectralink 8400 Series Battery Packs with Spectralink 8400 Series Chargers.
• Never use a non-Spectralink charging unit as it could damage the Battery Pack.
• Use only the original plug-in power adapter for the chargers.
• Contact your service representative for assistance if you have a faulty Battery Pack or a
problem with your charger.
• Any battery that exhibits swelling, cracking or other abnormality should be disposed of
promptly and properly.
Warning: Do not…
Do not immerse the Battery Pack in water or throw it into a fire.
Warning: Do not…
Do not throw away the Battery Pack with your domestic waste. Return used Battery
Packs to your supplier or servicing agent.
Warning: Do not…
All batteries can cause property damage and/or bodily injury, such as burns, if a
conductive material such as jewelry, keys, or beaded chains touches exposed
terminals. The conductive material may complete an electrical circuit (short circuit)
and become quite hot. Exercise care in handling any charged battery, particularly
when placing it inside a pocket, purse, or other container with metal objects.
Handsets
Please read the following text carefully for important safety information.
Warning: Magnetic earpiece
1725-86203-000-G.docx
October 2013 52
Spectralink 80-Series Handsets User Guide for SRP
qualified service personnel.
Caution: Authority to operate this equipment
Changes or modifications to this equipment that are not approved by Spectralink may
cause this equipment to fail to comply with part 15 of the FCC rules, voiding the
user’s authority to operate this equipment.
Caution: Not user serviceable
Spectralink products contain no user-serviceable parts inside. Refer servicing to
Warning: Medical equipment interference
Spectralink recommends that standard acceptance procedures be followed prior to
operating this equipment in proximity of life-support systems.
Operational Warnings
Certain operational environments are potentially hazardous. Please read the following text
carefully to ensure that you understand the handset’s operating conditions.
Potentially Explosive Atmospheres
Do not take your handset into any area with a potentially explosive atmosphere. Do not remove,
install, or charge batteries in such areas. Sparks in a potentially explosive atmosphere can
cause an explosion or fire resulting in bodily injury or even death.
Warning: Explosive Atmospheres
Avoid areas with potentially explosive atmospheres include fueling areas such as
lower decks on boats, fuel, or chemical transfer or storage facilities, areas where the
air contains chemicals or particles such as grain, dust, or metal powders, and any
other area where you would normally be advised to turn off your vehicle engine.
Areas with potentially explosive atmospheres are often marked with signs, but not
always.
1725-86203-000-G.docx
October 2013 53
Spectralink 80-Series Handsets User Guide for SRP
Electromagnetic Interference and Compa tibility
Nearly every electronic device is susceptible to electromagnetic interference (EMI) if
inadequately shielded, designed, or otherwise configured for electromagnetic compatibility.
Facilities
To avoid electromagnetic interference and/or compatibility conflicts, turn off your handset in any
facility where posted notices instruct you to do so. Hospitals or health care facilities may be
using equipment that is sensitive to external radio frequency (RF) energy.
Pacemakers
The Health Industry Manufacturers Association recommends that you maintain a minimum
separation of 6 inches (15 cm) between a handheld, wireless-radio product and a pacemaker.
These recommendations are consistent with the independent research by, and
recommendations of, Wireless Technology Research. Persons with pacemakers should:
• ALWAYS keep the handset more than 6 inches (15 cm) from their pacemaker when the
handset is turned on
• Not carry the handset in a breast pocket
• Use the ear opposite the pacemaker to minimize the potential for interference
• Turn the handset off immediately if you have any reason to suspect that interference is
taking place
Other Medical Devices
If you use any other personal medical device, consult the manufacturer of your device to
determine if it is adequately shielded from external RF energy. Your physician may be able to
assist you in obtaining this information.
Use While Driving
Campus installations and warehouse facilities that use vehicles such as forklifts or golf carts
should abide by these guidelines when using wireless telephones:
• Give full attention to driving and to the road, aisle, or path
• Use hands-free operation, if available
• Pull off the road, aisle, or path and park before making or answering a call
For Vehicles Equipped with an Airbag
Do not place a portable device in the area over the airbag or in the airbag deployment area. An
airbag inflates with great force. If you place the handset in the airbag deployment area, and the
1725-86203-000-G.docx
October 2013 54
Spectralink 80-Series Handsets User Guide for SRP
airbag inflates, the airbag may propel the handset at high speed and cause serious injury to
occupants of the vehicle.
FCC Statement
This device complies with part 15 of the United States FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Specific Absorption Rate (SAR) Information:
Spectralink 80-Series Wireless Handsets
Your wireless handset is a low power radio transmitter and receiver. When it is on, it receives
and sends out 802.11a/b/g/n radio frequency (RF) signals. In August 1996, the Federal
Communications Commission (FCC) adopted radio frequency (RF) exposure guidelines with
safety levels for hand-held wireless handsets. Those guidelines are consistent with the safety
standards previously set by both U.S. and international standards bodies:
• ANSI C95.1 (1992) American National Standards Institute
• NCRP - Report 86 (1986) National Council on Radiation Protection and Measurements
• ICNIRP (1996) International Commission on Non-Ionizing Radiation Protection
• DHWC - Safety Code 6 Department of Health and Welfare Canada
These standards were developed by independent scientific organizations through periodic and
thorough evaluation of scientific studies. The standards include a substantial safety margin
designed to assure the safety of all persons, regardless of age and health. The exposure
standard for wireless mobile handsets employs a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.
Note: SAR limits
In the United States and Canada, the SAR limit for mobile handsets used by the
public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard
incorporates a substantial margin of safety to give additional protection for the public
and to account for any variations in measurements.
The FCC conducts tests for SAR using standard operating positions specified by the FCC with
the handset transmitting at its highest certified power level in all tested frequency bands.
Although the SAR is determined at the highest certified power level, the actual SAR level of the
handset while operating can be well below the maximum value. This is because the handset is
1725-86203-000-G.docx
October 2013 55
Spectralink 80-Series Handsets User Guide for SRP
Frequency
802X-head
802X-body
803X-head
803X-body
5.8 GHz
0.37
0.20
0.28
0.27
head
body
head
body
designed to operate at multiple power levels so that it uses only the power required to reach the
network. Before a handset model is available for sale to the public, the FCC must test and
certify it to ensure that handsets do not exceed the limit established by the government-adopted
requirement for safe exposure. The tests are performed in positions and locations (at the ear
and worn on the body) as required by the FCC for each model. While there may be differences
between the SAR levels of various handsets and at various positions, they all meet the
government requirement for safe exposure.
The FCC has granted an Equipment Authorization for this model handset with all reported SAR
levels evaluated in compliance with the FCC RF emission guidelines.
SAR information on this model handset is on file with the FCC. You can find it under the Display
Grant section at http://www.fcc.gov/oet/ea after searching on the FCC ID number found on the
handset label inside the battery compartment. Additional information on Specific Absorption
Rates (SAR) can be found on the World Health Organization website at http://www.who.int.
Search on “electromagnetic fields”.
FCC SAR peak values (in W/kg):
2.4 GHz 0.23 0.16 0.22 0.19
5.2 GHz 0.36 0.37 0.39 0.40
5.4 GHz 0.35 0.39 0.40 0.37
EU SAR peak values (in W/kg):
Standard Frequency 802X
802.11 b 0.119 0.093 0.114 0.104
802.11 g 0.059 0.048 0.046 0.039
802.11 a (5150-5250 MHz) 0.090 0.147 0.091 0.164
802.11 a (5250-5350 MHz) 0.043 0.113 0.051 0.095
802.11 a (5470-5725 MHz) 0.356 0.156 0.088 0.153
802X
803X
803X
Handset operation normal position
To position the antenna properly, hold the handset as you would any other telephone, with the
earpiece to your ear and speak into the microphone.
1725-86203-000-G.docx
