About This Guide

Polycom is the market leader in multi-cellular wireless telephone
systems for the workplace. We manufacture a range of products to
suit any size installation. SpectraLink 8000 Telephony Gateway uses
our LinkPlus digital integration technology to integrate with various
digital switch platforms. Using LinkPlus technology, SpectraLink
e340/h340/i640 Wireless Telephones emulate digital telephone sets to
deliver advanced capabilities such as multiple line appearances and
LCD display features. This document explains the programming or
administration required to use the host digital switch with the
SpectraLink 8000 Telephony Gateway and SpectraLink
e340/h340/i640 Wireless Telephones.

Different models of SpectraLink Wireless Telephones vary in
functional capabilities. This document covers the basic operational
features of all handsets. However, certain handset or PBX features
may not be supported by your emulation.

Related Documents

SpectraLink 8000 Telephony Gateway: Administration Guide for SRP
(1725-36028-001)

SpectraLink e340/h340/i640 Wireless Telephone: Configuration and
Administration (SRP) (72-1065-09)

Available at

http://www.polycom.com/usa/en/support/

Telephone Switch Interface Matrix (1725-36128)

Available at

http://www.polycom.com/usa/en/support/voice/wi­fi/pbx_integration.html

voice/wi-fi/wi-fi.html

PN: 1725-36143-001_K.doc

3

LinkPlus Interface Guide: Siemens Hicom/HiPath optiset for SpectraLink e340/h340/i640 Wireless Telephones

Customer Support

Polycom wants you to have a successful installation. If you have
questions please contact the Customer Support Hotline at
[phone]. The hotline is open Monday through Friday,
6 a.m. to 6 p.m. Mountain time.

For Technical Support:

For Knowledge Base:

http://www.polycom.com/usa/en/

Icons and Conventions

This manual uses the following icons and conventions.

Caution! Follow these instructions carefully to avoid danger.

Note these instructions carefully.

Label

This typeface indicates a key, label, or button on SpectraLink
hardware.

[e-mail]

support/voice/voice.html

4

PN: 1725-36143-001_K.doc

Plan the Interface

The system administrator programs the telephone system for use with
the SpectraLink 8000 System using the normal administration
terminal or procedures. Programming can be done after the handsets
are registered.

Recommended programming includes assigning extension numbers
to the handsets and programming features on the telephone system so
they are easily accessible from the handsets.

For analog interfaces, macro codes are in the document relating to
configuring the system. See SpectraLink 8000 Telephony Gateway:
Administration Guide for SRP.

1

The following information will help the system administrator set up
the SpectraLink e340/h340/i640 Wireless Telephones to operate in a
way that feels familiar and comfortable to users.

Plan Programming

Digital Interface programming for the SpectraLink e340/h340/i640
Wireless Telephones will be faster if it is planned in advance by
verifying the parameters and features on the current telephone
system and wired phones. The system administrator must assign
extension numbers to the handsets and plan the functions (trunk
access, toll restrictions, system features, ringing options etc.) to be
programmed for the handsets.

It may also help to identify a key layout that is programmed exactly
or close to the way the handsets should be programmed, and use the
programming for that set as a model for programming the handsets.

Line appearances

The handsets support two line appearances for the Hicom 150/
HiPath 3000 and four line appearances for the Hicom 300/HiPath

4000. Determine what extension numbers will be assigned to the

PN: 1725-36143-001_K.doc

5

LinkPlus Interface Guide: Siemens Hicom/HiPath optiset for SpectraLink e340/h340/i640 Wireless Telephones

handsets, which line or lines should ring at which handset; and which
line will be selected when the user goes off-hook.

Programmable feature keys

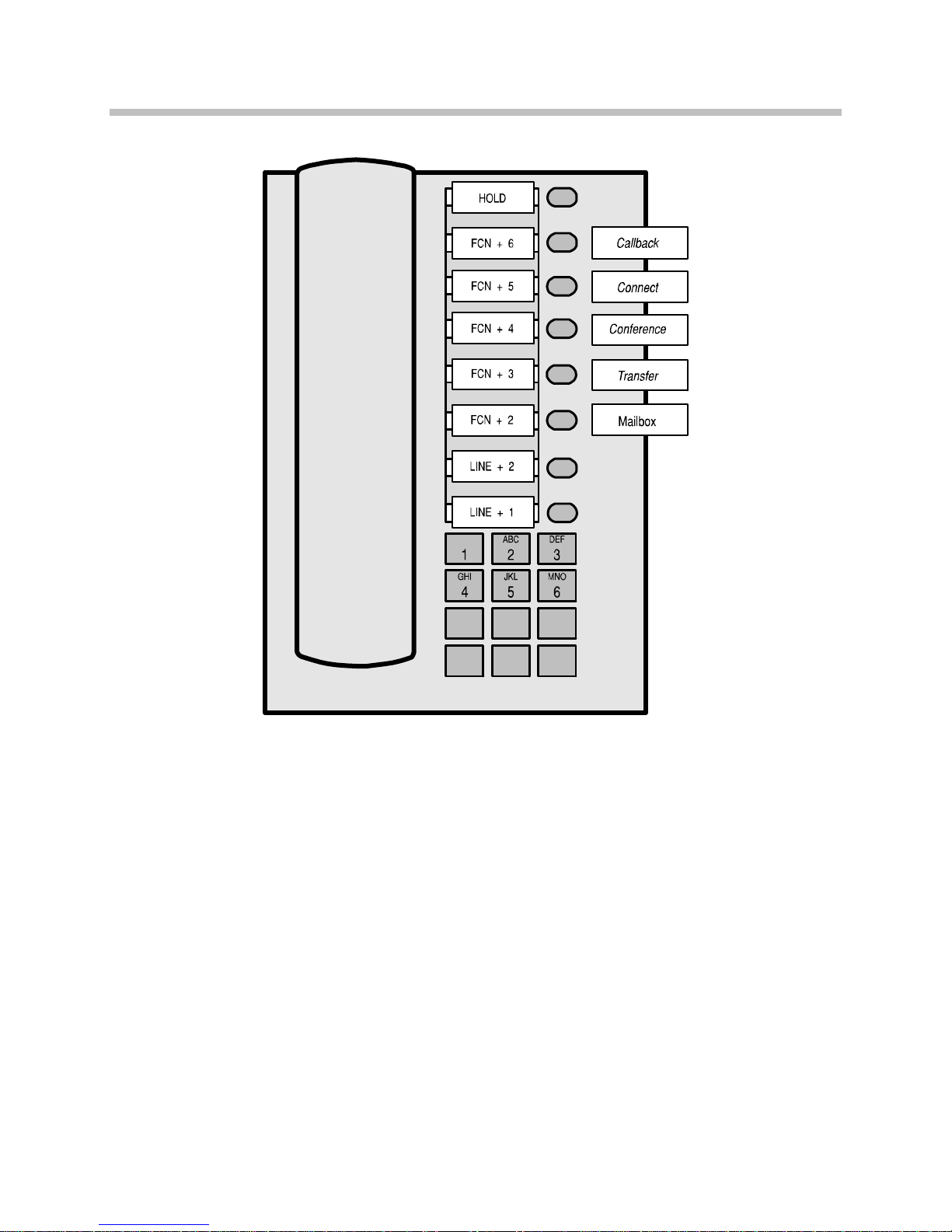

The handsets support programmable keys as shown in the key-map
diagrams below. Determine which features, if any, should be
programmed on the handsets. Feature keys that are not subject to
programming restrictions (described in the Programming Requirements
section) can be programmed to any optiset feature on the handset and
do not have to match the assignments on the user’s desktop
telephone.

Assign Extension Numbers

The wire contractor should inform the system administrator which
port numbers have been designated for the handsets.

The system administrator may use the Extension Assignments
Worksheet at the end of this document to track the port numbers,
extensions, users, and features assigned to handsets.

6

PN: 1725-36143-001_K.doc

7

The SpectraLink Wireless Telephone

Plan the Interface

(not to scale)1

SpectraLink e340 Wireless Telephone SpectraLink i640 Wireless Telephone

The handset has a pixel-based alphanumeric display (up to 4-line x
16-character), plus line and status indicators. The user can toggle
between two display views in order to see all 24 possible characters
per line sent by the Hicom CS. At the start of each call the leftmost 18
characters are displayed. Pressing
eight characters truncated from the initial screen. Pressing

LINE + ► displays the remaining

LINE + ◄

displays the leftmost 18 characters. When the left characters are being
displayed a right arrow icon is displayed. This indicates that the user
can press

LINE + ► to see more characters to the right. Likewise, when

the right characters are being displayed a left arrow icon is displayed
indicating that the user can press

LINE + ◄ to see characters at the

beginning of the line.

1

When the Power On/Start Call button is used to power on the handset, it is referred to as the Power On

button. When it is used to initiate a call or other action, it is referred to as the

When the
button. When it is used to end a call or for some other action, it is referred to as the

Power Off/End Call button is used to power off the handset, it is referred to as the Power Off

Start Call button.

End Call button.
