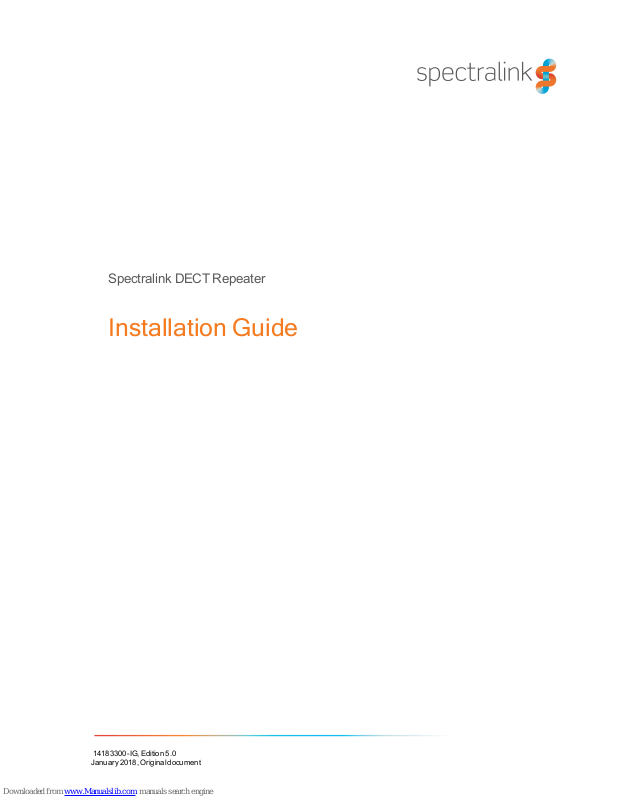

14183300-IG, Edition 5.0

January 2018, Originaldocument

Spectralink DECT Repeater

Installation Guide

© 2013 - 2017 Spectralink Corporation All rights reserved. SpectralinkTM, the Spectralink logo and the names and marks associated with Spectralink’s products are trademarks and/or service marks of Spectralink Corporation and are common law marks in the United States and various other countries. All other trademarks are property of their respective owners. No portion hereof may be reproduced or transmitted in any form or by any means, for any purpose other than the recipient’s personal use, without the express written permission of Spectralink.

All rights reserved under the International and pan-American Copyright Conventions. No part of this manual, or the software described herein, may be reproduced or transmitted in any form or by any means, or translated into another language or format, in whole or in part, without the express written permission of Spectralink Corporation.

Do not remove (or allow any third party to remove) any product identification, copyright or other notices.

Notice

Spectralink Corporation has prepared this document for use by Spectralink personnel and customers. The drawings and specifications contained herein are the property of Spectralink and shall be neither reproduced in whole or in part without the prior written approval of Spectralink, nor be implied to grant any license to make, use, or sell equipment manufactured in accordance herewith.

Spectralink reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult Spectralink to determine whether any such changes have been made.

NO REPRESENTATION OR OTHER AFFIRMATION OF FACT CONTAINED IN THIS DOCUMENT INCLUDING BUT NOT LIMITED TO STATEMENTS REGARDING CAPACITY, RESPONSE-TIME PERFORMANCE, SUITABILITY FOR USE, OR PERFORMANCE OF PRODUCTS DESCRIBED HEREIN SHALL BE DEEMED TO BE A WARRANTY BY SPECTRALINK FOR ANY PURPOSE, OR GIVE RISE TO ANY LIABILITY OF SPECTRALINK WHATSOEVER.

Warranty

The Product Warranty and Software License and Warranty and other support documents are available at http://support.spectralink.com/.

Contact Information

US Location + 1 800-775-5330

Spectralink Corporation 2560 55th Street Boulder, CO 80301 USA

info@spectralink.com

UK Location +44 (0) 20 3769 9800

Spectralink Europe UK 329 Bracknell, Doncastle Road Bracknell, Berkshire, RG12 8PE United Kingdom

infoemea@spectralink.com

Denmark Location +45 75602850

Spectralink Europe ApS Bygholm Søpark 21 E Stuen 8700 Horsens Denmark

infoemea@spectralink.com

Contents

About This Guide 4

Related Documentation

All Spectralink documents are available at http://support.spectralink.com/.

Safety and Handling information is available online at http://support.spectralink.com/products.

Regulatory information is available online at http://support.spectralink.com/products.

Subject Documentation

Spectralink DECT Handset For more information about the handset, refer to the user

guide available online at http://sup-

port.spectralink.com/products.

Site Survey Function in Handset For more information about the site survey function in

handset, refer to the guide available online at http://sup-

port.spectralink.com/products.

Synchronization and Deployment For more information about synchronization and deploy-

ment, refer to the guide available online at http://sup-

port.spectralink.com/products.

Spectralink IP-DECT/DECT Server For more information about the server, refer to the guide

available online at http://sup-

port.spectralink.com/products.

Spectralink IP-DECT/DECT Base Station

For more information about the base station, refer to the guide available online at http://sup-

port.spectralink.com/products.

Provisioning For more information about provisioning, refer to the

guide available online at http://sup-

port.spectralink.com/products.

Spectralink Technical Bulletins Available online at http://sup-

port.spectralink.com/products.

Release Notes Document that describes software changes, bug fixes,

outstanding issues, and hardware compatibility considerations for new software releases. Available online at http://support.spectralink.com/products.

SpectralinkDECT Repeater Installation Guide

14183300-IG, Edition 5.0 January 2018, Originaldocument

Subject Documentation

Spectralink DECT Training material In order to gain access to the Spectralink training mater-

ial, you must attend training and become Spectralink Certified Specialist.

Please visit http://-

partneraccess.spectralink.com/training/classroom-training for more information and registration.

SpectralinkDECT Repeater Installation Guide

14183300-IG, Edition 5.0 January 2018, Originaldocument

Installing the Spectralink DECT Repeater

This section describes the Spectralink DECT Repeater and how to unpack and install it. Installing repeaters requires a software installation as well as a hardware installation.

Note:

Before you install the equipment, ensure that a site planner defines the location of the repeaters.

The coverage depends on the construction of the building and the choice of building materials.

The repeater does not add channels. It only adds additional coverage area.

For installations, the following items should be present in every box containing a Spectralink DECT Repeater:

l Spectralink DECT Repeater

l Mounting template

l Two mounting screws and anchors

Description of Repeater

The Spectralink DECT Repeater is a building block to be used to extend the coverage area in a wireless Spectralink DECT solution. The repeater does not increase the number of traffic channels, however it provides a larger physical spreading of the traffic channels and thereby increases the coverage area established with the Spectralink IP-DECTIP-DECT/DECT Base Stations.

The repeaters are mainly used in areas with limited traffic. The Spectralink DECT Repeater is available with either 2 or 4 voice channels. It is wireless and does not need physical connection to the Spectralink IP-DECTDECT Server, making it very easy to install. The repeaters can be supplied with an external antenna making it possible to create radio coverage in a remote area without cabling

to the rest of the installation.

The base station can support up to 3 repeaters.

SpectralinkDECT Repeater Installation Guide

14183300-IG, Edition 5.0 January 2018, Originaldocument

Repeater Appearance and Components

Below you will find a description of the repeater appearance and components:

DECT Repeater - bottom DECT Repeater - rear

1. RJ9 port 1. Holesfor wall mounted screws

2. External antenna connector

DECT Repeater - front

1. LED

SpectralinkDECT Repeater Installation Guide

14183300-IG, Edition 5.0 January 2018, Originaldocument

Repeater LED Indicators

Below you will find information about LED indicators on the repeater.

Front Cover

LED Indicator Meaning

Indicator Off The repeater is not powered.

Flashing Repeater has been powered, sync has still not been

established.

Steady green The repeater is powered and sync is established.

Short flash A handset connects or makes handover to the repeater.

Site Installation Considerations

Before you begin the installation, determine the position of the repeater for best coverage. The coverage depends on the construction of the building and the choice of building materials.

The repeater can be registered on the system under the following circumstances.

l When placed within the coverage area of a base station

l When placed within the coverage area of an already-installed repeater

l When placed outside the coverage area of a base station or repeater using an external

antenna.

Note:

The repeater does not add channels. It only adds additional coverage area.

Environmental Considerations

l Do not install a device near metal objects and steel constructions.

l Do not position devices in ducts, plenums or hollow spaces used to transport environmentalair

except where the duct, plenum or hollow space is created by a suspended ceiling having lay-in panels.

l Do not position devices behind furniture.

l The installation area must be clean, free of traffic and excess dust, dry, and well ventilated.

l The installation area must be within the temperature ranges of 10°C and 40°C/50°F and

104°F.

l The installation area must be between 20% and 80% non-condensing relative humidity.

l For best RF coverage, the device must be mounted vertically on walls.

SpectralinkDECT Repeater Installation Guide

14183300-IG, Edition 5.0 January 2018, Originaldocument

How to Wall Mount the Repeater

For best RF coverage, the device must be mounted vertically on walls.

Caution:

The repeater and external antenna is to be fixed-mounted on indoor permanent structures providing a separation distance of at least 20 cm/8 inches from all persons during normal operation and must not be co-located or operating in conjunction with any other antenna or repeater. The maximum radiated output power is 1W e.i.r.p.

1. Connect the power supply cable to the RJ9 port on the bottom of the repeater.

For repeaters with external antenna, connect the external antenna cable to the antenna connector on the rear side of the repeater and in the same way on the external antenna.

2. Mount the repeater on the wall using the anchors and screws accompanying the product.

3. After installing the repeater you need to power it up. The power supply for the repeater is 9VDC, 300mA.

SpectralinkDECT Repeater Installation Guide

14183300-IG, Edition 5.0 January 2018, Originaldocument

Programming a Spectralink DECT Repeater with the Spectralink Programming Kit

Content of the Spectralink Programming Kit Repeater

The Programming Kit Repeater (Part no. 02509210) consists of:

l Splitter

l Programming tool with RJ-Connector

l USB cable

Set up of the Hardware for Repeater Programming

It is recommended that you carry out the set up in the following order:

1. Unplug the repeater power supply adapter and insert the splitter.

2. Connect the repeater power supply adapter to the splitter and the mains. LED flashes.

3. Connect the USB cable to the programming tool.

4. Download the Service Tool from http://support.spectralink.com/ and install it on your com- puter.

The repeater is now ready for programming via the Service Tool.

SpectralinkDECT Repeater Installation Guide

14183300-IG, Edition 5.0 January 2018, Originaldocument

Programming the Spectralink DECT Repeater with the Service Tool

The Service Tool is the tool you access from your desktop and use for repeater programming, handset adjustment and software download to the handset and repeater. For more information about programming the repeater with the Service Tool, refer to the Help File in the Service Tool.

The Service Tool identifies the type of repeater, and with this software it is possible to program the Spectralink DECT Repeater to connect to the Spectralink DECT Radio Infrastructure solutions.

Note:

Before you start programming the repeater, ensure that the repeater is connected to the computer and the mains.

Numbering of Base Stations and Repeaters in a Normal Configuration

Note:

Repeater and base station RPNs must not be the same. Also, in a situation where common overlap is present between the actual units, a repeater cannot have an RPN that is similar to that of a base station or another repeater. If this occurs, handover between the different units is not possible.

First Repeater

l RPN of base station + 64

l Base to synchronize on: RPN of base station

Second Repeater

l RPN of base station + 128

l Base to synchronize on: RPN of base station

Third Repeater

l RPN of base station + 192

l Base to synchronize on: RPN of base station

SpectralinkDECT Repeater Installation Guide

14183300-IG, Edition 5.0 January 2018, Originaldocument

Numbering of Repeaters in a Repeater Jump Configuration

First Repeater in Chain

l RPN of base station + 64

l Base to synchronize on: RPN of base station

Second Repeater in Chain

l RPN of base station + 128

l Base to synchronize on: RPN of previous repeater

Third Repeater in Chain

l RPN base station + 192

l Base to synchronize on: RPN of previous repeater

SpectralinkDECT Repeater Installation Guide

14183300-IG, Edition 5.0 January 2018, Originaldocument

Using the Spectralink DECT Repeater With ExternalAntenna

If coverage is needed in a remote area, synchronization can be established between the main system and a repeater by use of an external antenna. The External Antenna establishes a radio link between the main system and a Spectralink DECT Repeater.

Note:

Only the Spectralink Spectralink External Antenna is approved along with the Spectralink DECT Repeater.

The Spectralink DECT Repeater is automatically configured to the external antenna when connected.

Below is an example of using a Spectralink DECT Repeater with External antenna.

The radio link way must be stable and free of moving objects. The RSSI level of the main system at the Spectralink DECT Repeater placed remotely must not be lower than 75.

Note:

Inside the area named "radio link" there is no radio coverage for handsets.

If a situation occurs where the primary sync for some reason breaks down, the Spectralink DECT Repeater will obtain sync on the alternative sync.

SpectralinkDECT Repeater Installation Guide

14183300-IG, Edition 5.0 January 2018, Originaldocument

Alternative Synchronization Ways

The Spectralink DECT Repeater with or without external antenna, 4 channels, can be programmed to obtain synchronization on two radio units (base station, wireless server 400 or repeater).

Note:

The primary sync has priority; the alternative sync is only in use as long as the primary sync is down.

Technical Specifications - External Antenna

Electrical Properties

l Frequencyrange: 1880-1930 MHz

l Impendence: 50 Ω (DC-path to ground)

l Polarization: RHCP

l Gain: 7.5 - 8.0 dB

l 3 dB beamwidth horizontal: > 62°

l 3 dB beamwidth vertical: > 62°

l Front to back ratio: > 8 dB

l Return loss: < 15 dB

l Connector: SMB male

l One meter cable included

Environmental Conditions

l Operating temperature: -20º - 55º C (-4º - 131º F)

l Storage temperature: -40º - 85º C (-40º - 185º F)

Physical Characteristics

l Size: 100 x 100 x 42 mm (4 x 4 x 1.7 in.)

l Weight: 120 gr. (4.2 oz.)

l Only for indoor usage

SpectralinkDECT Repeater Installation Guide

14183300-IG, Edition 5.0 January 2018, Originaldocument

Product Compatibility

If you have any questions about product compatibility, contact your system administrator.

You can use the Spectralink DECT Repeater with other Spectralink products as identified by the type approval model ID and/or part number located on the label of the product.

Spectralink DECT Repeater

Spectralink DECT Repeater 1G8, 2 channels, with external antenna

K018B (0244 0000)

Spectralink DECT Repeater 1G9, 2 channels, with external antenna

K018B (0244 1000)

Spectralink DECT Repeater 1G8, 2 channels, without external antenna

K018 (0244 1100)

Spectralink DECT Repeater 1G9, 2 channels, without external antenna

K018 (0244 1200)

Spectralink DECT Repeater 1G8, 4 channels, with external antenna

K018 (0244 1600)

Spectralink DECT Repeater 1G9, 4 channels, with external antenna

K018 (0244 0200)

Spectralink DECT Repeater 1G8, 4 channels, without external antenna

K018C (0233 4601)

Repeater Programming Kit 0250 9210

Spectralink Base Station

Spectralink IP-DECT Base Station 1G8 K005

Spectralink IP-DECT Base Station 1G9 K005

Spectralink Digital DECT Base Station 4 channels K007

Spectralink Digital DECT Base Station 8 channels K007

SpectralinkDECT Repeater Installation Guide

14183300-IG, Edition 5.0 January 2018, Originaldocument

Spectralink Server

Spectralink IP-DECT Server 400 K005 (0234 4500/0234 4501)

Spectralink IP-DECT Server 6500 K006 (0235 0000)

Spectralink DECT Server 2500 K017 (0270 xxxx)

Spectralink DECT Server 8000 K016 (0233 89xx)

Power Supply, 19.0V (only Server 2500) 8476 9905

Power Supply, 19.0V (only Server 8000) 8476 9902

Cable for Power Supply: AU version 8468 7011

Cable for Power Supply: DK version 8468 7012

Cable for Power Supply: EU version 8468 7013

Cable for Power Supply: UK version 8468 7014

Spectralink DECTMedia Resource

Spectralink DECTMedia Resource (only Server

6500)

K006

SpectralinkDECT Repeater Installation Guide

SpectraLink 0244 1000, 0244 1600, 0244 1100, 0244 0000, 0250 9210 Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
